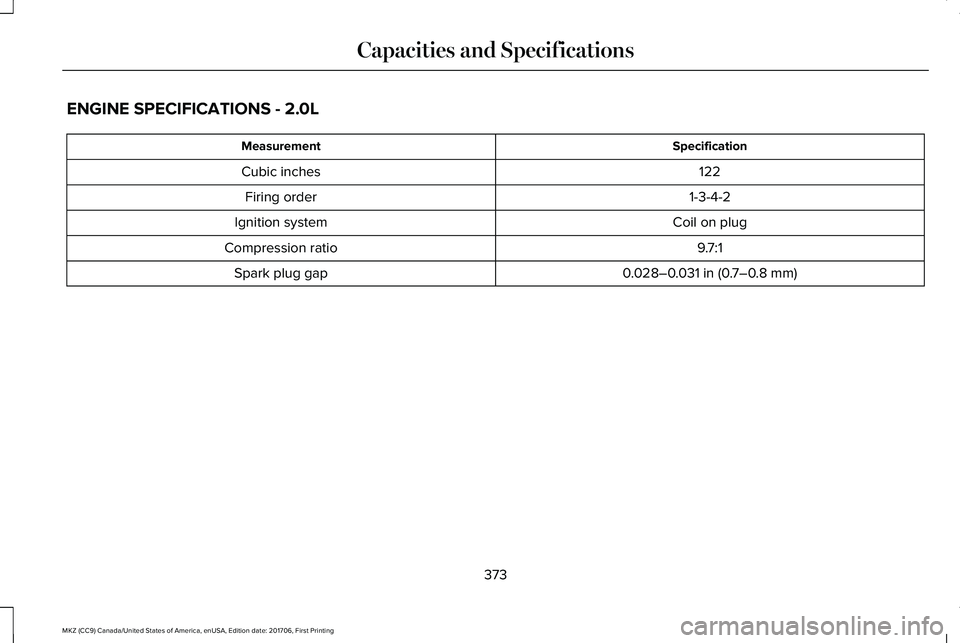

ENGINE SPECIFICATIONS - 2.0L
SpecificationMeasurement
122Cubic inches
1-3-4-2Firing order
Coil on plugIgnition system
9.7:1Compression ratio
0.028–0.031 in (0.7–0.8 mm)Spark plug gap
373
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Capacities and Specifications

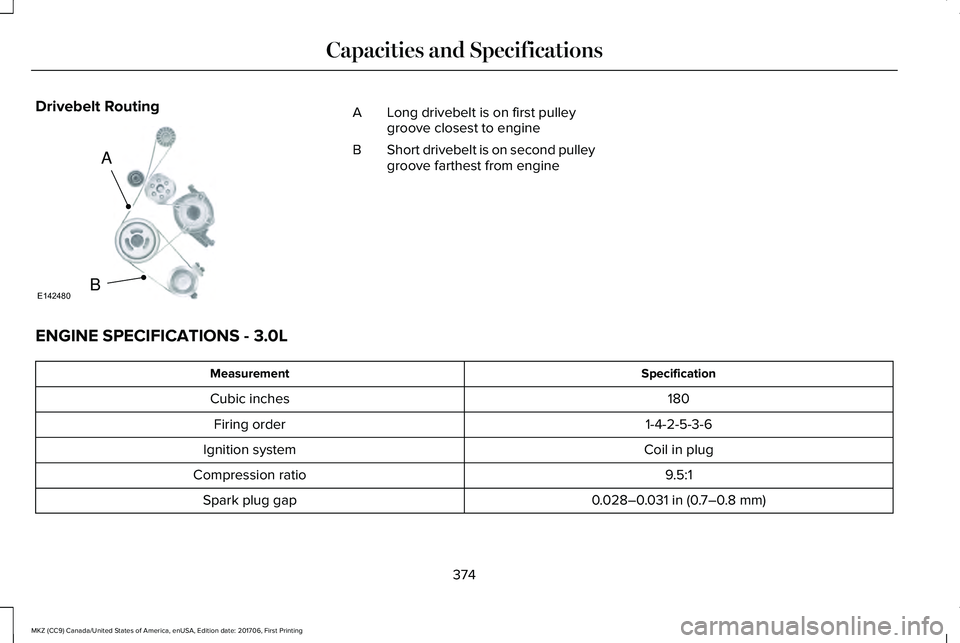

Drivebelt RoutingLong drivebelt is on first pulleygroove closest to engineA
Short drivebelt is on second pulleygroove farthest from engineB
ENGINE SPECIFICATIONS - 3.0L
SpecificationMeasurement
180Cubic inches
1-4-2-5-3-6Firing order
Coil in plugIgnition system
9.5:1Compression ratio
0.028–0.031 in (0.7–0.8 mm)Spark plug gap
374
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Capacities and SpecificationsA
BE142480
