FUSE SPECIFICATION CHART

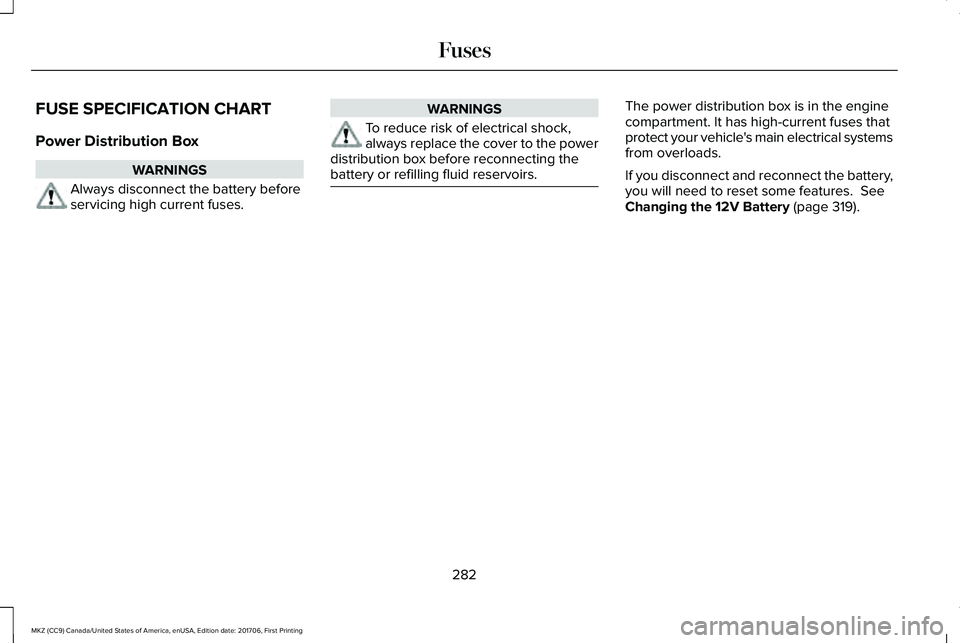

Power Distribution Box
WARNINGS
Always disconnect the battery beforeservicing high current fuses.
WARNINGS
To reduce risk of electrical shock,always replace the cover to the powerdistribution box before reconnecting thebattery or refilling fluid reservoirs.
The power distribution box is in the enginecompartment. It has high-current fuses thatprotect your vehicle's main electrical systemsfrom overloads.
If you disconnect and reconnect the battery,you will need to reset some features. SeeChanging the 12V Battery (page 319).
282
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Fuses

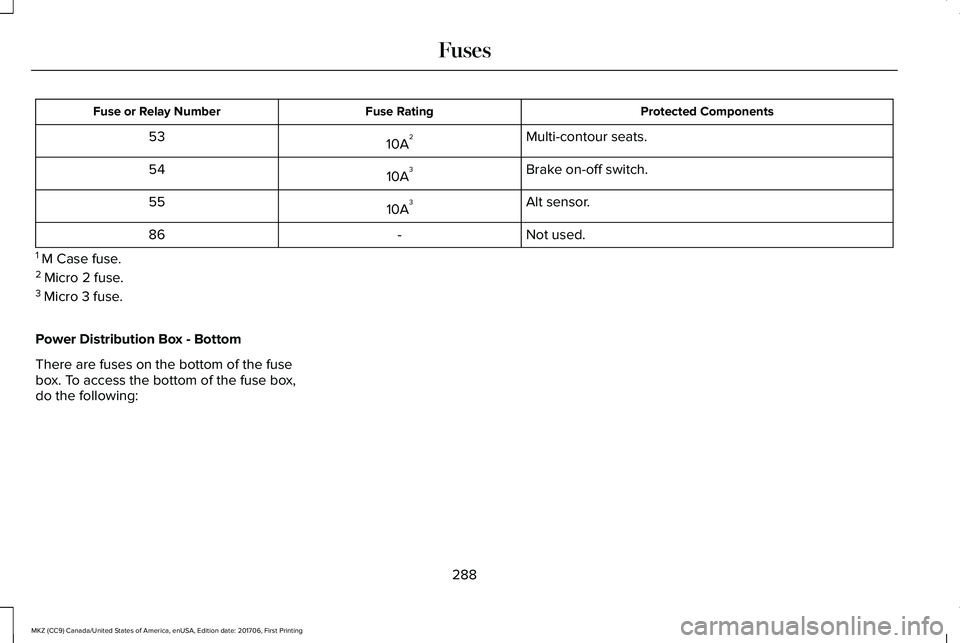

Protected ComponentsFuse RatingFuse or Relay Number
Multi-contour seats.10A253
Brake on-off switch.10A354
Alt sensor.10A355
Not used.-86
1 M Case fuse.2 Micro 2 fuse.3 Micro 3 fuse.
Power Distribution Box - Bottom
There are fuses on the bottom of the fusebox. To access the bottom of the fuse box,do the following:
288
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Fuses

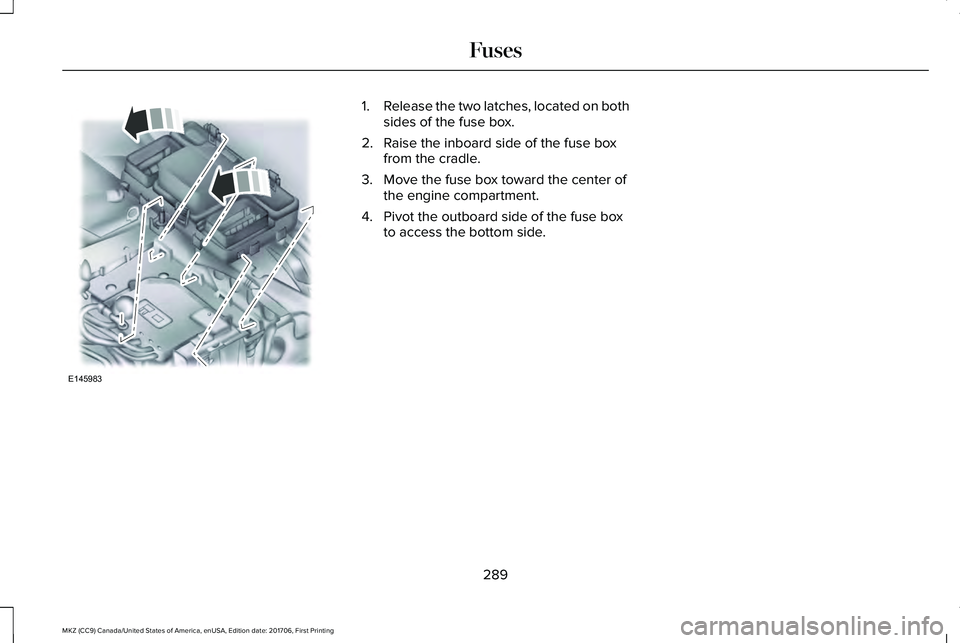

1.Release the two latches, located on bothsides of the fuse box.
2. Raise the inboard side of the fuse boxfrom the cradle.
3. Move the fuse box toward the center ofthe engine compartment.
4. Pivot the outboard side of the fuse boxto access the bottom side.
289
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
FusesE145983

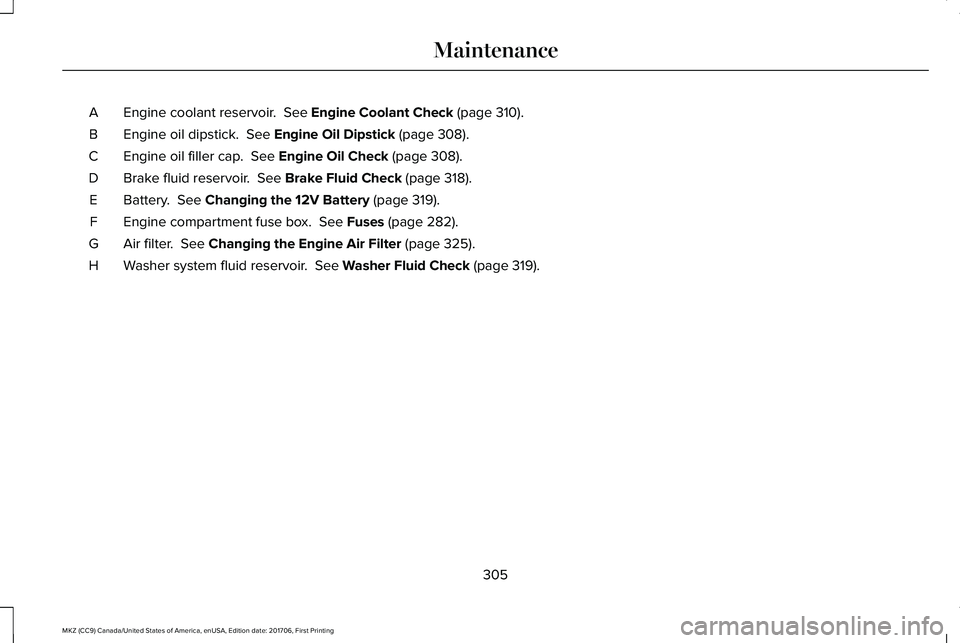

Engine coolant reservoir. See Engine Coolant Check (page 310).A
Engine oil dipstick. See Engine Oil Dipstick (page 308).B
Engine oil filler cap. See Engine Oil Check (page 308).C
Brake fluid reservoir. See Brake Fluid Check (page 318).D
Battery. See Changing the 12V Battery (page 319).E
Engine compartment fuse box. See Fuses (page 282).F
Air filter. See Changing the Engine Air Filter (page 325).G
Washer system fluid reservoir. See Washer Fluid Check (page 319).H
305
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Maintenance

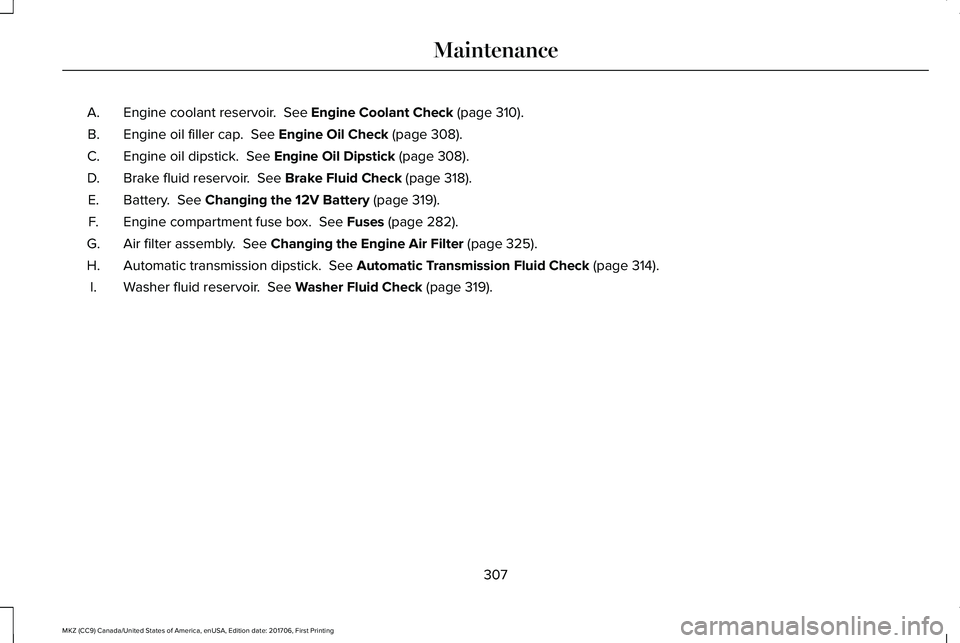

Engine coolant reservoir. See Engine Coolant Check (page 310).A.
Engine oil filler cap. See Engine Oil Check (page 308).B.
Engine oil dipstick. See Engine Oil Dipstick (page 308).C.
Brake fluid reservoir. See Brake Fluid Check (page 318).D.
Battery. See Changing the 12V Battery (page 319).E.
Engine compartment fuse box. See Fuses (page 282).F.
Air filter assembly. See Changing the Engine Air Filter (page 325).G.
Automatic transmission dipstick. See Automatic Transmission Fluid Check (page 314).H.
Washer fluid reservoir. See Washer Fluid Check (page 319).I.
307
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Maintenance

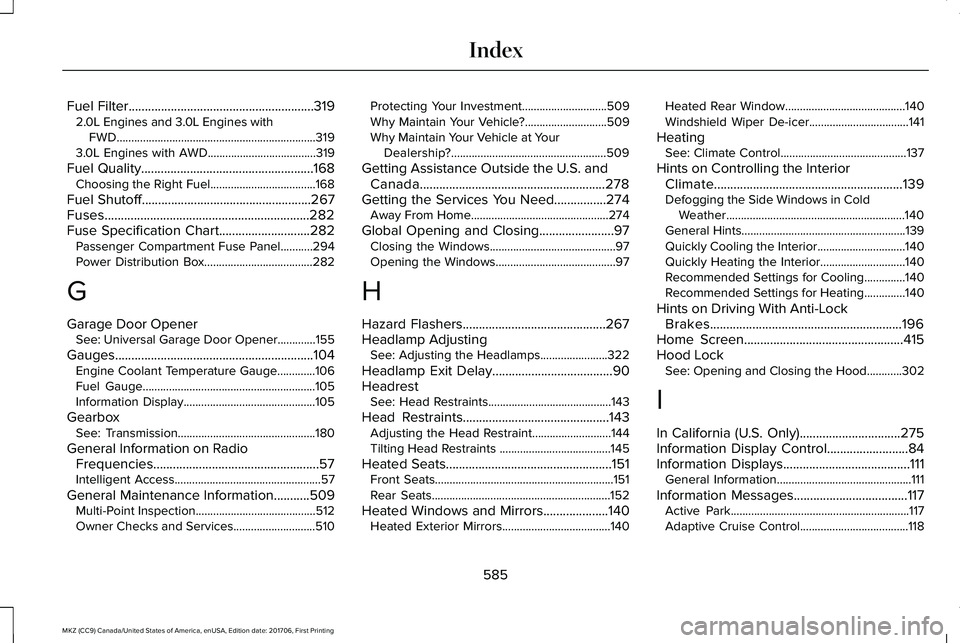

Fuel Filter.........................................................3192.0L Engines and 3.0L Engines withFWD....................................................................3193.0L Engines with AWD.....................................319
