LINCOLN MKZ 2019 Owners Manual

278
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, First-Printing

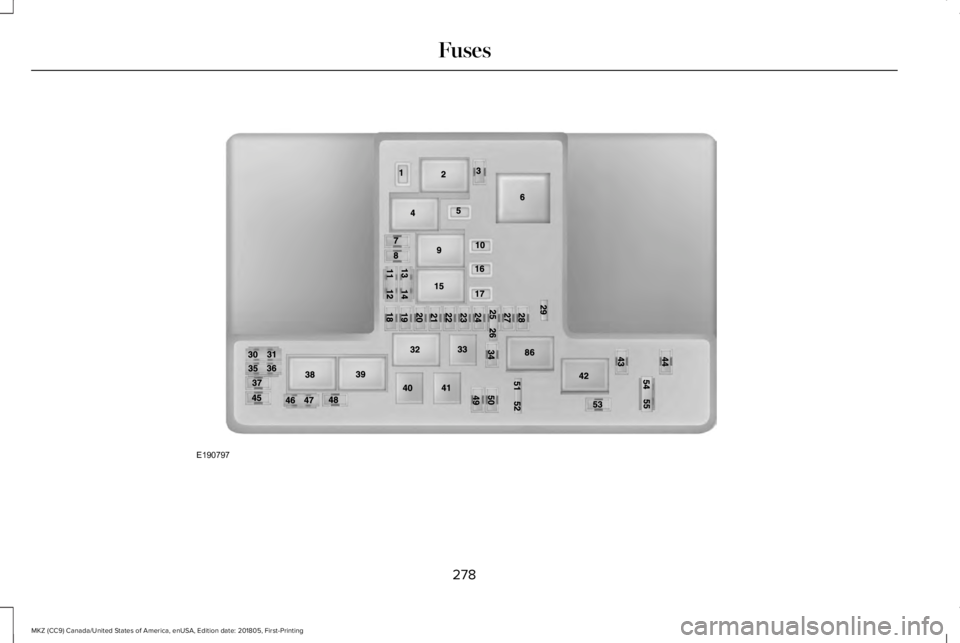

FusesE190797

Protected ComponentFuse RatingFuse or Relay Number
Moonroof.30A11
Starter relay.-2
Rain sensor.15A23
Blower motor relay.-4
Power point 4 - Back of console.20A15
Water pump relay.-6
Powertrain control module - vehicle power 1.20A27Powertrain control module power.
Powertrain control module - vehicle power 2.20A28Emissions components.
Powertrain control module relay.-9
Power point 1 - driver front.20A110
Powertrain control module - vehicle power 4.15A311Ignition coils.
Powertrain control module - vehicle power 3.15A312Non-emissions components.
279
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

Protected ComponentFuse RatingFuse or Relay Number
Vehicle power 5.10A213Ignition coils.
Vehicle power 6.10A214Ignition coils.
Run-start relay.-15
Power point 3 - rear.20A116
Power point 2 - front.20A117
Right hand side headlamp ballast.20A218
Run-start electronic power assist steering.10A219
Run-start lighting.10A220Adaptive cruise control.
Run-start transmission control.15A221Transmission oil pump start-stop.
Air conditioner clutch solenoid.10A222
Run-start: Blind spot information system, Rear view camera,All-wheel drive (3.0L engine), Heads-up display, shifter.15A223
Voltage stability module.
280
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

Protected ComponentFuse RatingFuse or Relay Number
Not used.-24
Run-start anti-lock brake system.10A325
Run-start powertrain control module.10A326
Not used.-27
Not used.-28
MAF (mass air flow).5A229
Not used.-30
Not used.-31
Electric fan #1 relay.-32
Air conditioner clutch relay.-33
Not used.-34
Not used.-35
Not used.-36
Not used.-37
Electric fan 2 relay.-38
281
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

Protected ComponentFuse RatingFuse or Relay Number

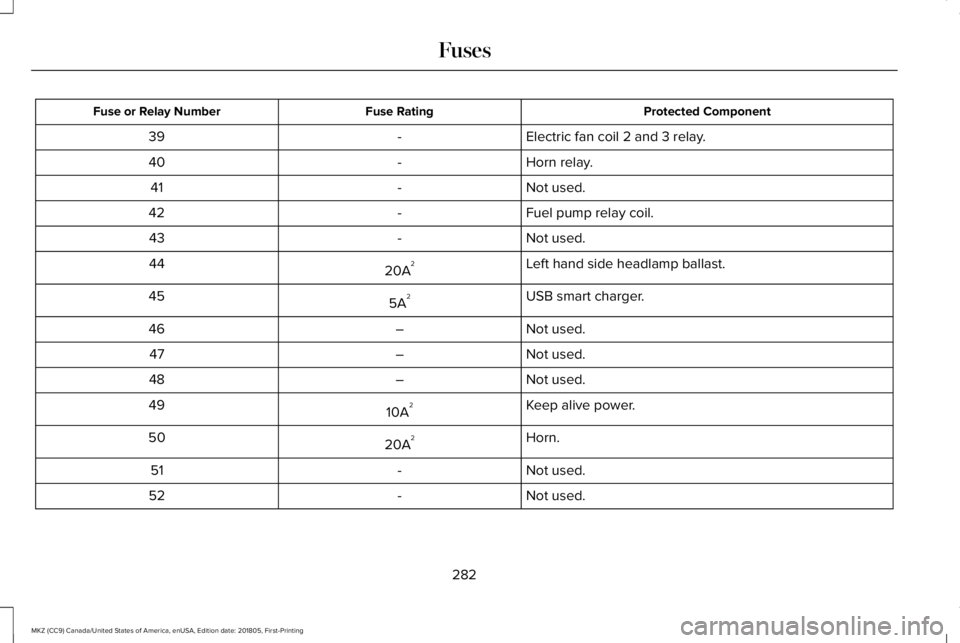

Electric fan coil 2 and 3 relay.-39
Horn relay.-40
Not used.-41
Fuel pump relay coil.-42
Not used.-43
Left hand side headlamp ballast.20A244
USB smart charger.5A245
Not used.–46
Not used.–47
Not used.–48
Keep alive power.10A249
Horn.20A250
Not used.-51
Not used.-52
282
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

Protected ComponentFuse RatingFuse or Relay Number
Multi-contour seats.10A253
Brake on-off switch.10A354
Alt sensor.10A355
Not used.-86
1 M Case fuse.2 Micro 2 fuse.3 Micro 3 fuse.
Power Distribution Box - Bottom
There are fuses on the bottom of the fusebox. To access the bottom of the fuse box,do the following:
283
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

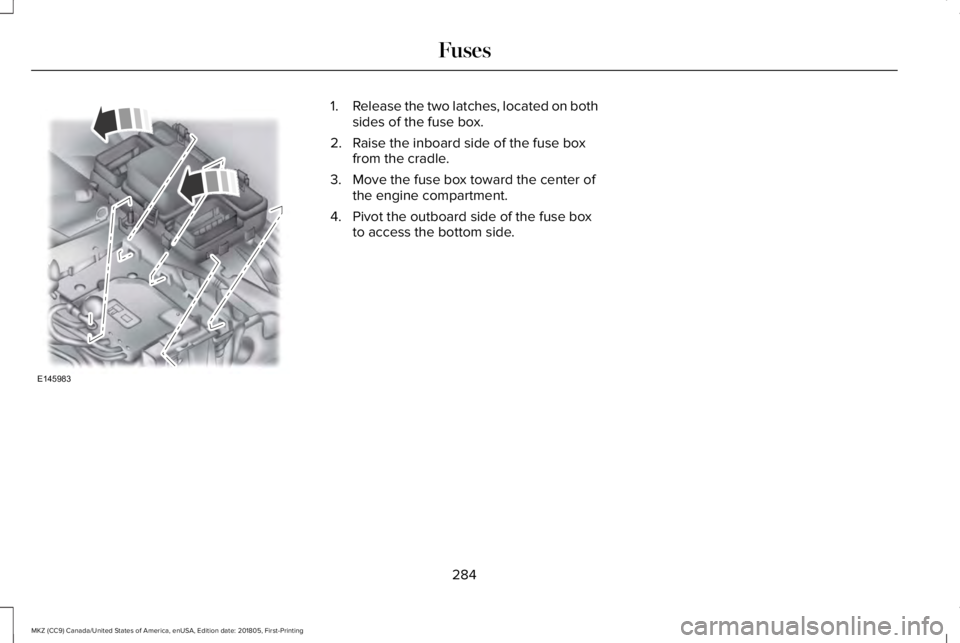

1.Release the two latches, located on bothsides of the fuse box.
2. Raise the inboard side of the fuse boxfrom the cradle.
3. Move the fuse box toward the center ofthe engine compartment.
4. Pivot the outboard side of the fuse boxto access the bottom side.
284
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, First-Printing
FusesE145983

285
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, First-Printing

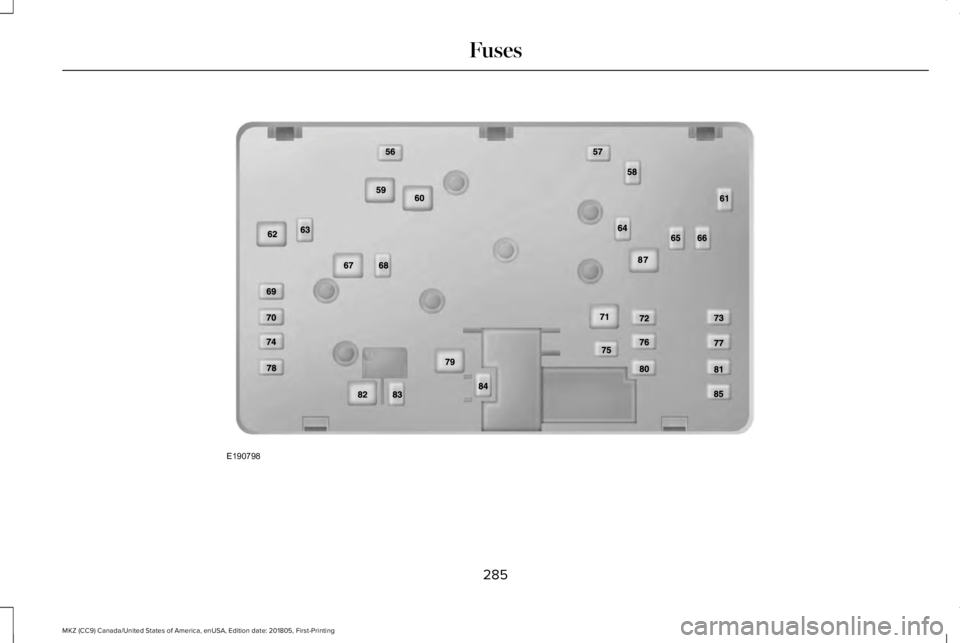

FusesE190798

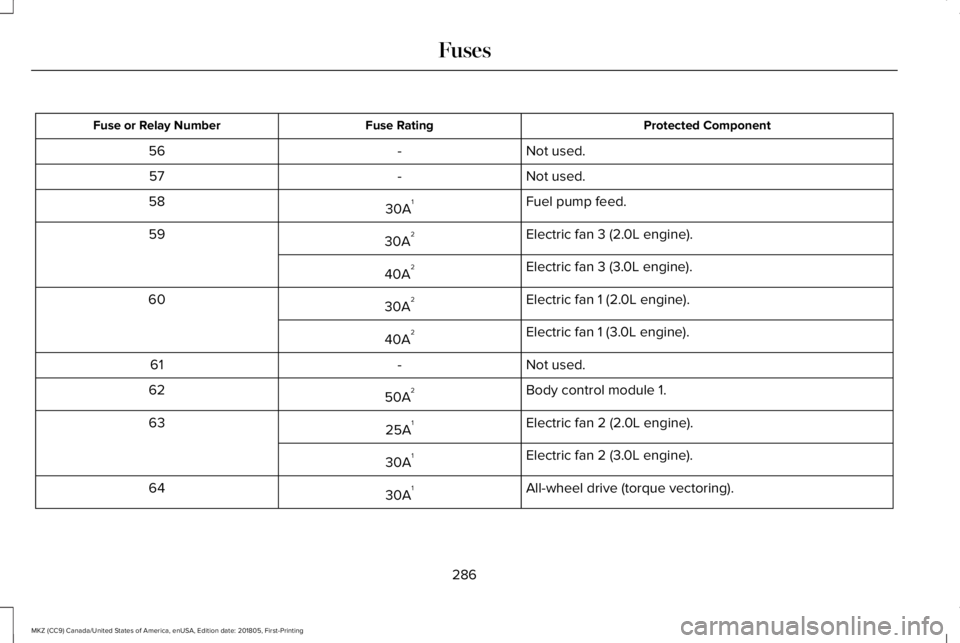

Protected ComponentFuse RatingFuse or Relay Number
Not used.-56
Not used.-57
Fuel pump feed.30A158
Electric fan 3 (2.0L engine).30A259
Electric fan 3 (3.0L engine).40A2
Electric fan 1 (2.0L engine).30A260
Electric fan 1 (3.0L engine).40A2
Not used.-61
Body control module 1.50A262
Electric fan 2 (2.0L engine).25A163
Electric fan 2 (3.0L engine).30A1
All-wheel drive (torque vectoring).30A164
286
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

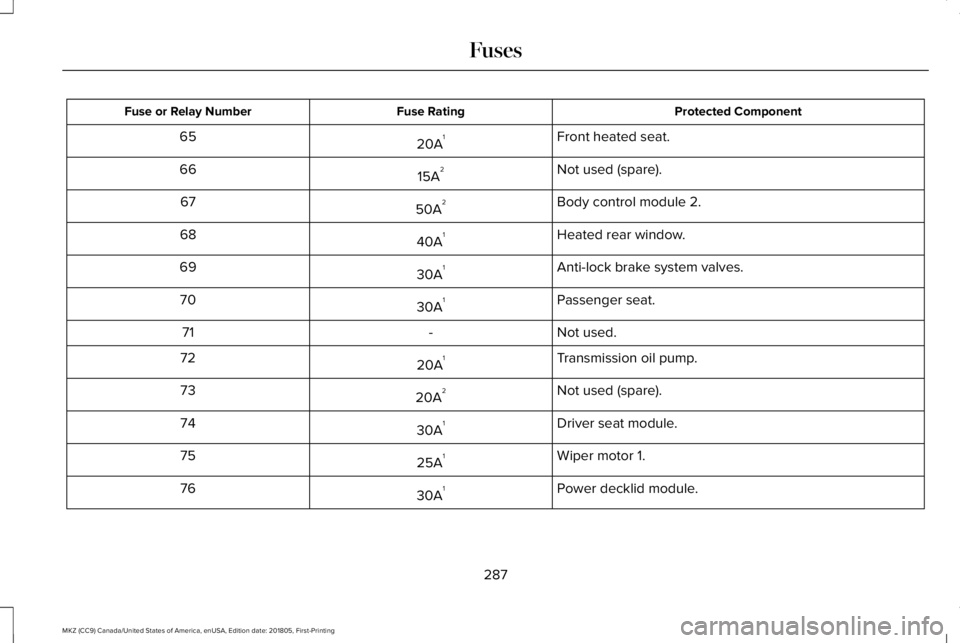

Protected ComponentFuse RatingFuse or Relay Number
Front heated seat.20A165
Not used (spare).15A266
Body control module 2.50A267
Heated rear window.40A168
Anti-lock brake system valves.30A169
Passenger seat.30A170
Not used.-71
Transmission oil pump.20A172
Not used (spare).20A273
Driver seat module.30A174
Wiper motor 1.25A175
Power decklid module.30A176
287
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses
