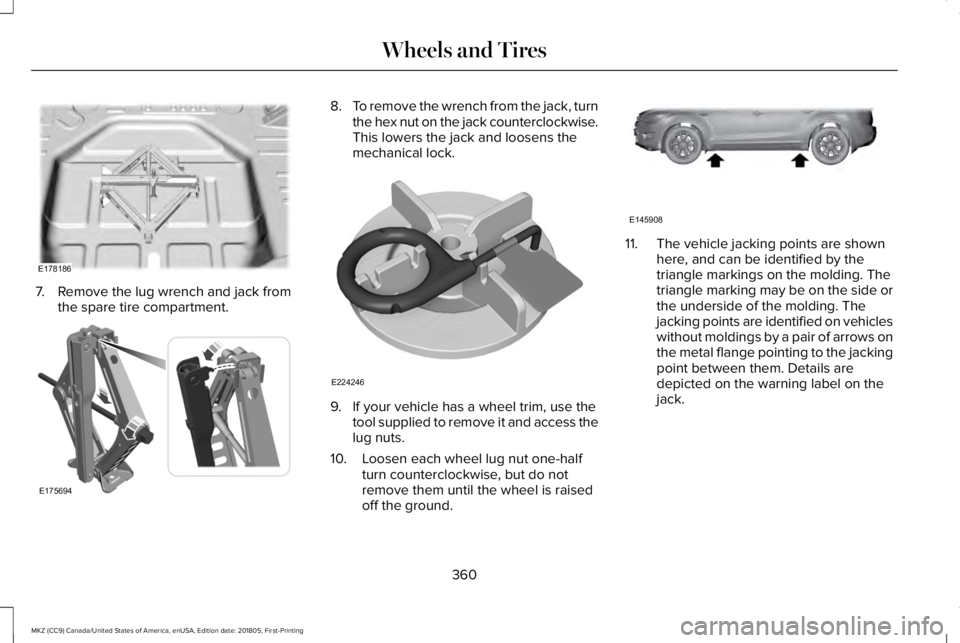

7. Remove the lug wrench and jack fromthe spare tire compartment.
8.To remove the wrench from the jack, turnthe hex nut on the jack counterclockwise.This lowers the jack and loosens themechanical lock.
9. If your vehicle has a wheel trim, use thetool supplied to remove it and access thelug nuts.
10. Loosen each wheel lug nut one-halfturn counterclockwise, but do notremove them until the wheel is raisedoff the ground.
11. The vehicle jacking points are shownhere, and can be identified by thetriangle markings on the molding. Thetriangle marking may be on the side orthe underside of the molding. Thejacking points are identified on vehicleswithout moldings by a pair of arrows onthe metal flange pointing to the jackingpoint between them. Details aredepicted on the warning label on thejack.
360
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Wheels and TiresE178186 E175694 E224246 E145908
