fuse LINCOLN MKZ 2020 User Guide

Protected Component
Fuse Rating
Fuse or Relay Number
Not used.
-
24
Run-start anti-lock brake system.
10A 3
25
Run-start powertrain control module.
10A 3
26
Not used.
-
27
Not used.
-
28
MAF (mass air flow).
5A 2
29
Not used.
-
30
Not used.
-
31
Electric fan #1 relay.
-
32
Air conditioner clutch relay.
-
33
Not used.
-
34
Not used.
-
35
Not used.
-
36
Not used.
-
37
Electric fan 2 relay.
-
38
285
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number
Electric fan coil 2 and 3 relay.
-
39
Horn relay.
-
40
Not used.
-
41
Fuel pump relay coil.
-
42
Not used.
-
43
Left hand side headlamp ballast.
20A 2
44
USB smart charger.
5A 2
45
Not used.
–
46
Not used.
–
47
Not used.
–
48
Keep alive power.
10A 2
49
Horn.
20A 2
50
Not used.
-
51
Not used.
-
52
286
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number
Multi-contour seats.
10A 2
53
Brake on-off switch.
10A 3
54
Alt sensor.
10A 3
55
Not used.
-
86
1 M Case fuse.
2 Micro 2 fuse.
3 Micro 3 fuse.
Power Distribution Box - Bottom
There are fuses on the bottom of the fuse
box. To access the bottom of the fuse box,
do the following:
287
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

1.
Release the two latches, located on both
sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box to access the bottom side.
288
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing FusesE145983

289

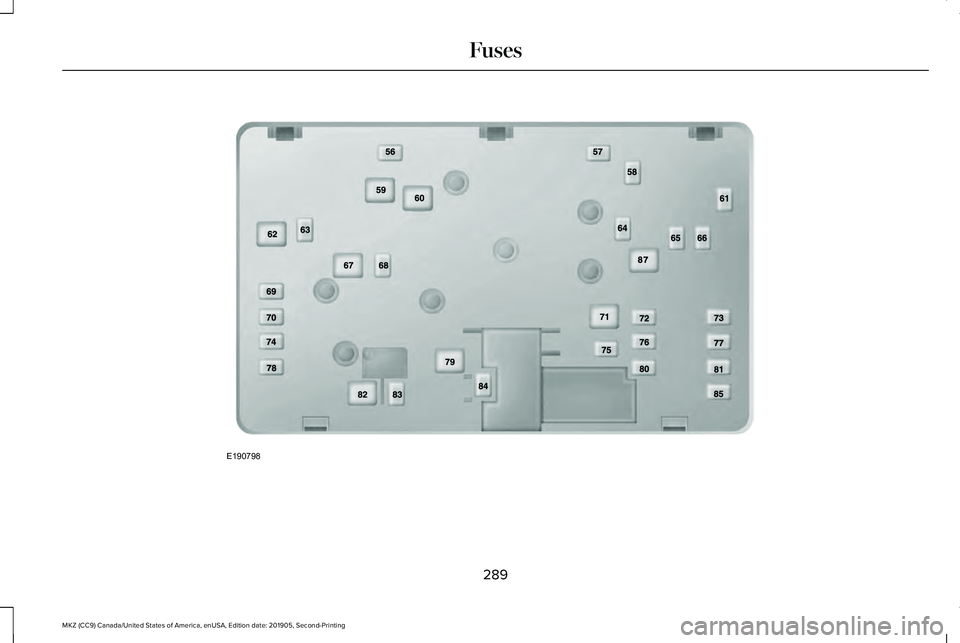

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing FusesE190798

Protected Component
Fuse Rating
Fuse or Relay Number
Not used.
-
56
Not used.
-
57
Fuel pump feed.
30A 1
58
Electric fan 3 (2.0L engine).
30A 2
59
Electric fan 3 (3.0L engine).
40A 2
Electric fan 1 (2.0L engine).
30A 2
60
Electric fan 1 (3.0L engine).
40A 2
Not used.
-
61
Body control module 1.
50A 2
62
Electric fan 2 (2.0L engine).
25A 1
63
Electric fan 2 (3.0L engine).
30A 1
All-wheel drive (torque vectoring).
30A 1
64
290
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number
Front heated seat.
20A 1
65
Not used (spare).
15A 2
66
Body control module 2.
50A 2
67
Heated rear window.
40A 1
68
Anti-lock brake system valves.
30A 1
69
Passenger seat.
30A 1
70
Not used.
-
71
Transmission oil pump.
20A 1
72
Not used (spare).
20A 2
73
Driver seat module.
30A 1
74
Wiper motor 1.
25A 1
75
Power decklid module.
30A 1
76
291
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number
Front climate controlled seats.
30A 1
77
Not used.
-
78
Blower motor.
40A 2
79
Wiper motor 2.
25A 1
80
Inverter.
40A 1
81
Not used.
–
82
Transmission Range Control Module shifter.
20A 1
83
Starter solenoid.
30A 1
84
Wide open panoramic roof 2.
30A 1
85
Anti-lock brake system pump.
60A 2
87
1 M case fuse.
2 J case fuse.
292
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

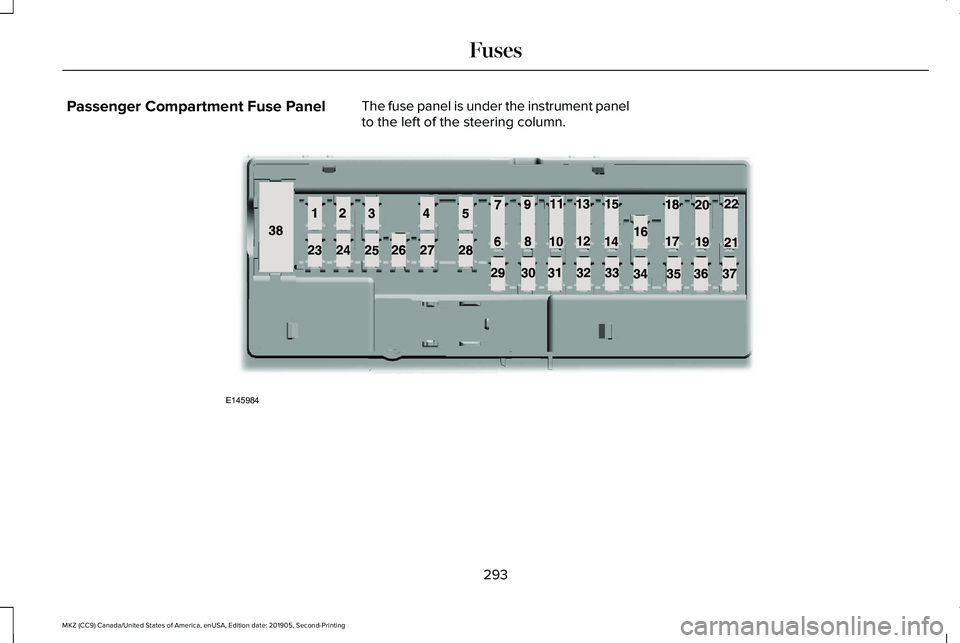

Passenger Compartment Fuse Panel
The fuse panel is under the instrument panel
to the left of the steering column. 293
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing FusesE145984

Protected Component
Fuse Rating
Fuse or Relay Number
Not used.
-
1
Lumbar.
7.5A 1
2
Driver door unlock.
20A 1
3
Not used (spare).
5A 1
4
Subwoofer amplifier.
20A 1
5
Not used (spare).
10A 2
6
Not used (spare).
10A 2
7
Not used (spare).
10A 2
8
Not used (spare).
10A 2
9
Power trunk logic.
5A 2
10
Keypad.
Cellphone passport module.
Not used (spare).
5A 2
11
294
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses
