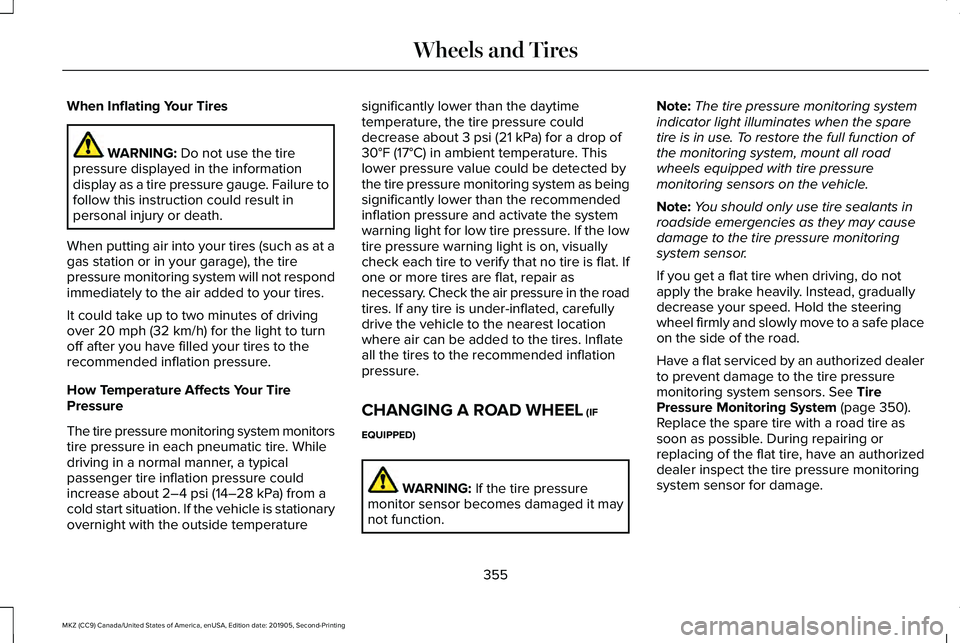

When Inflating Your Tires
WARNING: Do not use the tire
pressure displayed in the information
display as a tire pressure gauge. Failure to
follow this instruction could result in
personal injury or death.
When putting air into your tires (such as at a
gas station or in your garage), the tire
pressure monitoring system will not respond
immediately to the air added to your tires.
It could take up to two minutes of driving
over
20 mph (32 km/h) for the light to turn
off after you have filled your tires to the
recommended inflation pressure.
How Temperature Affects Your Tire
Pressure
The tire pressure monitoring system monitors
tire pressure in each pneumatic tire. While
driving in a normal manner, a typical
passenger tire inflation pressure could
increase about
2–4 psi (14–28 kPa) from a
cold start situation. If the vehicle is stationary
overnight with the outside temperature significantly lower than the daytime
temperature, the tire pressure could
decrease about
3 psi (21 kPa) for a drop of
30°F (17°C) in ambient temperature. This
lower pressure value could be detected by
the tire pressure monitoring system as being
significantly lower than the recommended
inflation pressure and activate the system
warning light for low tire pressure. If the low
tire pressure warning light is on, visually
check each tire to verify that no tire is flat. If
one or more tires are flat, repair as
necessary. Check the air pressure in the road
tires. If any tire is under-inflated, carefully
drive the vehicle to the nearest location
where air can be added to the tires. Inflate
all the tires to the recommended inflation
pressure.
CHANGING A ROAD WHEEL
(IF
EQUIPPED) WARNING:
If the tire pressure
monitor sensor becomes damaged it may
not function. Note:
The tire pressure monitoring system
indicator light illuminates when the spare
tire is in use. To restore the full function of
the monitoring system, mount all road
wheels equipped with tire pressure
monitoring sensors on the vehicle.
Note: You should only use tire sealants in
roadside emergencies as they may cause
damage to the tire pressure monitoring
system sensor.
If you get a flat tire when driving, do not
apply the brake heavily. Instead, gradually
decrease your speed. Hold the steering
wheel firmly and slowly move to a safe place
on the side of the road.
Have a flat serviced by an authorized dealer
to prevent damage to the tire pressure
monitoring system sensors.
See Tire
Pressure Monitoring System (page 350).
Replace the spare tire with a road tire as
soon as possible. During repairing or
replacing of the flat tire, have an authorized
dealer inspect the tire pressure monitoring
system sensor for damage.
355
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Wheels and Tires

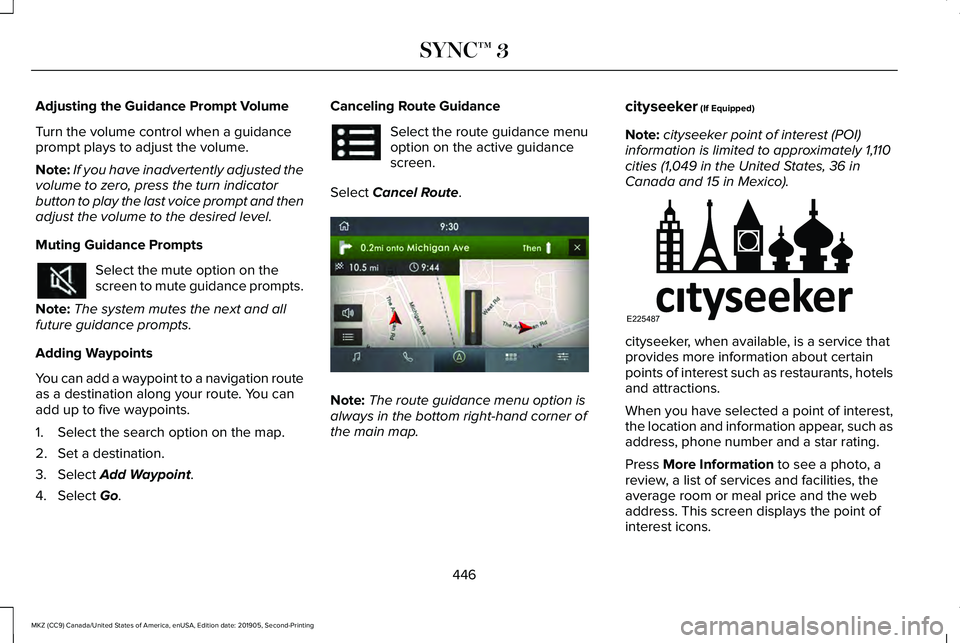

Adjusting the Guidance Prompt Volume
Turn the volume control when a guidance
prompt plays to adjust the volume.
Note:
If you have inadvertently adjusted the
volume to zero, press the turn indicator
button to play the last voice prompt and then
adjust the volume to the desired level.
Muting Guidance Prompts Select the mute option on the
screen to mute guidance prompts.
Note: The system mutes the next and all
future guidance prompts.
Adding Waypoints
You can add a waypoint to a navigation route
as a destination along your route. You can
add up to five waypoints.
1. Select the search option on the map.
2. Set a destination.
3. Select Add Waypoint.
4. Select
Go. Canceling Route Guidance Select the route guidance menu
option on the active guidance
screen.
Select
Cancel Route. Note:
The route guidance menu option is
always in the bottom right-hand corner of
the main map. cityseeker
(If Equipped)
Note: cityseeker point of interest (POI)
information is limited to approximately 1,110
cities (1,049 in the United States, 36 in
Canada and 15 in Mexico). cityseeker, when available, is a service that
provides more information about certain
points of interest such as restaurants, hotels
and attractions.
When you have selected a point of interest,
the location and information appear, such as
address, phone number and a star rating.
Press
More Information to see a photo, a
review, a list of services and facilities, the
average room or meal price and the web
address. This screen displays the point of
interest icons.
446
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing SYNC™ 3 E297860 E225487

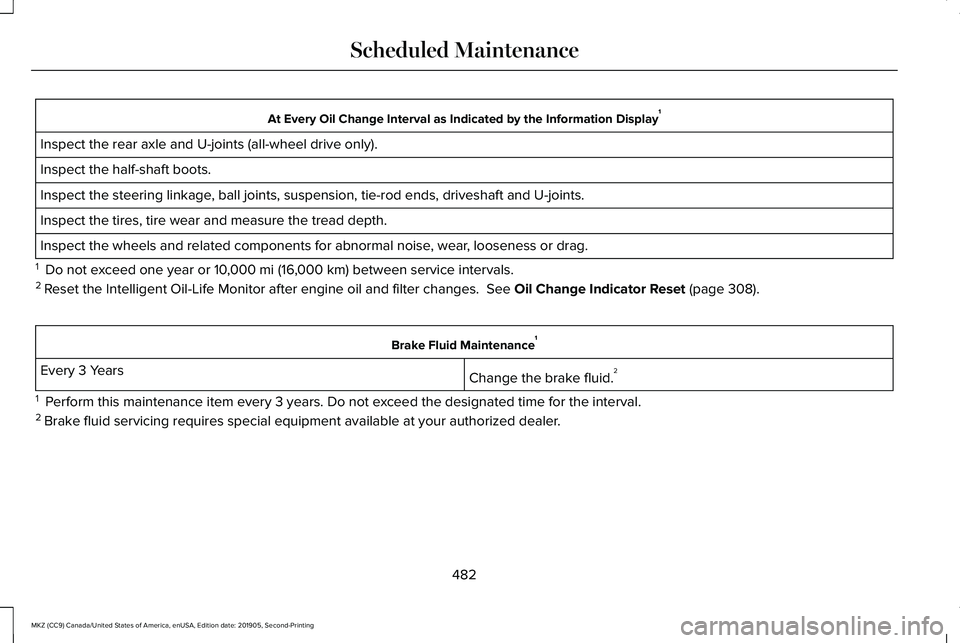

At Every Oil Change Interval as Indicated by the Information Display
1
Inspect the rear axle and U-joints (all-wheel drive only).
Inspect the half-shaft boots.
Inspect the steering linkage, ball joints, suspension, tie-rod ends, driveshaft and U-joints.
Inspect the tires, tire wear and measure the tread depth.
Inspect the wheels and related components for abnormal noise, wear, looseness or drag.
1 Do not exceed one year or 10,000 mi (16,000 km) between service intervals.
2 Reset the Intelligent Oil-Life Monitor after engine oil and filter change\
s.
See Oil Change Indicator Reset (page 308). Brake Fluid Maintenance
1
Change the brake fluid. 2
Every 3 Years
1 Perform this maintenance item every 3 years. Do not exceed the designated time for the interval.
2 Brake fluid servicing requires special equipment available at your authorize\
d dealer.
482
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Scheduled Maintenance

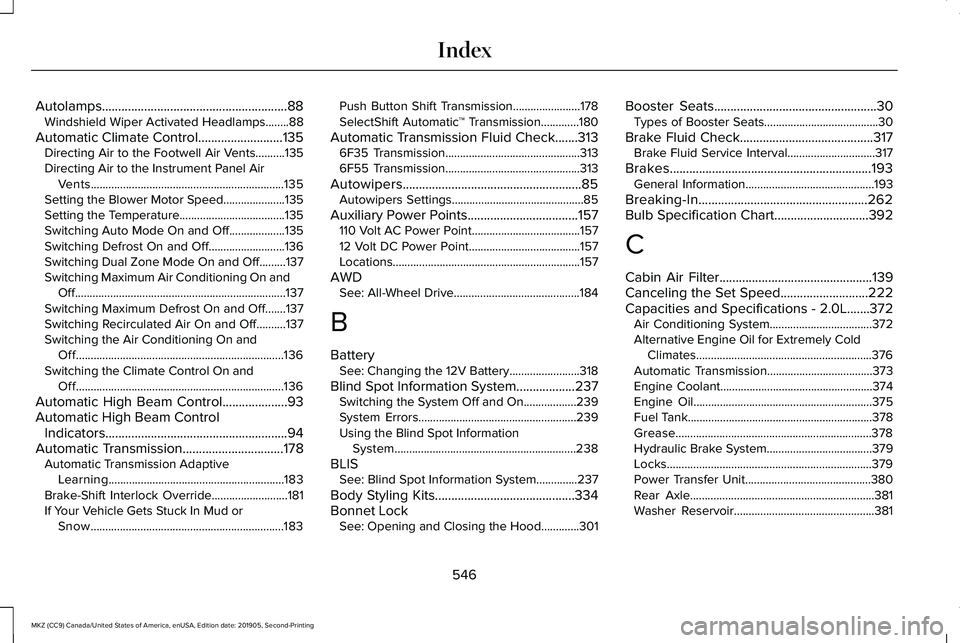

Autolamps.........................................................88
Windshield Wiper Activated Headlamps........88
Automatic Climate Control..........................135 Directing Air to the Footwell Air Vents..........135
Directing Air to the Instrument Panel Air
Vents..................................................................135
Setting the Blower Motor Speed.....................135
Setting the Temperature....................................135
Switching Auto Mode On and Off...................135
Switching Defrost On and Off..........................136
Switching Dual Zone Mode On and Off.........137
Switching Maximum Air Conditioning On and Off........................................................................\
137
Switching Maximum Defrost On and Off.......137
Switching Recirculated Air On and Off..........137
Switching the Air Conditioning On and Off.......................................................................136
Switching the Climate Control On and Off.......................................................................136
Automatic High Beam Control....................93
Automatic High Beam Control Indicators........................................................94
Automatic Transmission
...............................178
Automatic Transmission Adaptive
Learning............................................................183
Brake-Shift Interlock Override..........................181
If Your Vehicle Gets Stuck In Mud or Snow..................................................................183 Push Button Shift Transmission.......................178
SelectShift Automatic
™ Transmission.............180
Automatic Transmission Fluid Check.......313 6F35 Transmission..............................................313
6F55 Transmission..............................................313
Autowipers.......................................................85 Autowipers Settings.............................................85
Auxiliary Power Points..................................157 110 Volt AC Power Point.....................................157
12 Volt DC Power Point......................................157
Locations................................................................157
AWD See: All-Wheel Drive...........................................184
B
Battery See: Changing the 12V Battery........................318
Blind Spot Information System..................237 Switching the System Off and On..................239
System Errors......................................................239
Using the Blind Spot Information
System..............................................................238
BLIS See: Blind Spot Information System..............
237
Body Styling Kits
...........................................334
Bonnet Lock See: Opening and Closing the Hood.............301 Booster Seats
..................................................30
Types of Booster Seats.......................................30
Brake Fluid Check.........................................317 Brake Fluid Service Interval..............................317
Brakes..............................................................193 General Information............................................193
Breaking-In....................................................262
Bulb Specification Chart
.............................392
C
Cabin Air Filter
...............................................139
Canceling the Set Speed...........................222
Capacities and Specifications - 2.0L.......372 Air Conditioning System...................................372
Alternative Engine Oil for Extremely Cold
Climates............................................................376
Automatic Transmission....................................373
Engine Coolant....................................................374
Engine Oil.............................................................375
Fuel Tank...............................................................378
Grease...................................................................378
Hydraulic Brake System....................................379
Locks......................................................................379
Power Transfer Unit...........................................380
Rear Axle...............................................................381
Washer Reservoir................................................381
546
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

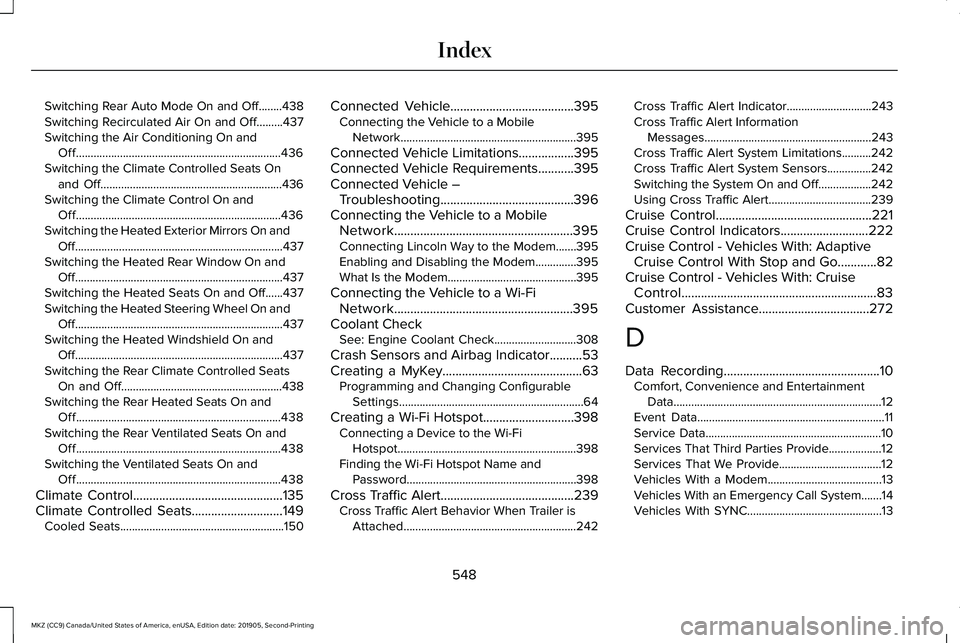

Switching Rear Auto Mode On and Off........438
Switching Recirculated Air On and Off.........437
Switching the Air Conditioning On and
Off......................................................................436
Switching the Climate Controlled Seats On and Off..............................................................436
Switching the Climate Control On and Off......................................................................436
Switching the Heated Exterior Mirrors On and Off.......................................................................437
Switching the Heated Rear Window On and Off.......................................................................437
Switching the Heated Seats On and Off......437
Switching the Heated Steering Wheel On and Off.......................................................................437
Switching the Heated Windshield On and Off.......................................................................437
Switching the Rear Climate Controlled Seats On and Off.......................................................438
Switching the Rear Heated Seats On and Off......................................................................438
Switching the Rear Ventilated Seats On and Off......................................................................438
Switching the Ventilated Seats On and Off......................................................................438
Climate Control..............................................135
Climate Controlled Seats............................149
Cooled Seats........................................................150 Connected Vehicle
......................................395
Connecting the Vehicle to a Mobile
Network............................................................395
Connected Vehicle Limitations.................395
Connected Vehicle Requirements...........395
Connected Vehicle – Troubleshooting.........................................396
Connecting the Vehicle to a Mobile Network.......................................................395
Connecting Lincoln Way to the Modem.......395
Enabling and Disabling the Modem..............395
What Is the Modem............................................395
Connecting the Vehicle to a Wi-Fi Network.......................................................395
Coolant Check See: Engine Coolant Check............................308
Crash Sensors and Airbag Indicator
..........53
Creating a MyKey...........................................63 Programming and Changing Configurable
Settings...............................................................64
Creating a Wi-Fi Hotspot............................398 Connecting a Device to the Wi-Fi
Hotspot.............................................................398
Finding the Wi-Fi Hotspot Name and Password..........................................................398
Cross Traffic Alert.........................................239 Cross Traffic Alert Behavior When Trailer is
Attached...........................................................242 Cross Traffic Alert Indicator.............................243
Cross Traffic Alert Information
Messages.........................................................243
Cross Traffic Alert System Limitations..........242
Cross Traffic Alert System Sensors...............242
Switching the System On and Off..................242
Using Cross Traffic Alert...................................
239
Cruise Control
................................................221
Cruise Control Indicators...........................222
Cruise Control - Vehicles With: Adaptive Cruise Control With Stop and Go
............82
Cruise Control - Vehicles With: Cruise Control............................................................83
Customer Assistance
..................................272
D
Data Recording
................................................10
Comfort, Convenience and Entertainment
Data.......................................................................12
Event Data................................................................11
Service Data............................................................10
Services That Third Parties Provide..................12
Services That We Provide...................................12
Vehicles With a Modem.......................................13
Vehicles With an Emergency Call System.......14
Vehicles With SYNC..............................................13
548
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

Sources.................................................................423
Supported Media Players, Formats and
Metadata Information....................................435
USB Ports.............................................................435
Environment......................................................18
EPB See: Electric Parking Brake..............................194
Essential Towing Checks...........................258
Before Towing a Trailer.....................................259
Hitches..................................................................258
Launching or Retrieving a Boat or Personal
Watercraft (PWC)............................................259
Safety Chains......................................................258
Trailer Brakes......................................................258
Trailer Lamps.......................................................258
When Towing a Trailer......................................259
Event Data Recording See: Data Recording.............................................10
Export Unique Options...................................17
Exterior Mirrors
................................................96
Auto-dimming Feature........................................98
Auto-Folding Mirrors............................................97
Blind Spot Information System..........................98
Fold-Away Exterior Mirrors.................................97
Heated Exterior Mirrors ......................................98
Lincoln Welcome Mat..........................................98
Memory Mirrors ....................................................98
Power Exterior Mirrors.........................................96 Signal Indicator Mirrors ......................................98
F
Fastening the Seatbelts................................37 Seatbelt Locking Modes.....................................38
Using Seatbelts During Pregnancy..................37
Flat Tire See: Changing a Road Wheel.........................
355
Floor Mats
......................................................264
Front Parking Aid.........................................205
Object Distance Indicator................................207
Front Passenger Sensing System..............48
Fuel and Refueling
........................................167
Fuel Consumption.........................................173
Advertised Capacity............................................173
Fuel Economy.......................................................173
Fuel Filler Funnel Location.........................168
Fuel Filter.........................................................318 2.0L Engines and 3.0L Engines with
FWD....................................................................318
3.0L Engines with AWD.....................................318
Fuel Quality.....................................................168 Choosing the Right Fuel....................................168
Fuel Shutoff
...................................................266
Fuses................................................................281
Fuse Specification Chart.............................281 Passenger Compartment Fuse Panel...........293 Power Distribution Box......................................281
G
Garage Door Opener
....................................151
Garage Door Opener See: Universal Garage Door Opener..............151
Gauges............................................................102 Engine Coolant Temperature Gauge.............103
Fuel Gauge...........................................................103
Information Display.............................................103
Gearbox See: Transmission................................................178
General Information on Radio Frequencies...................................................57
Intelligent Access..................................................57
General Maintenance Information
...........475
Multi-Point Inspection........................................478
Owner Checks and Services...........................477
Protecting Your Investment..............................
475
Why Maintain Your Vehicle?.............................475
Why Maintain Your Vehicle at Your Dealership?......................................................475
Getting Assistance Outside the U.S. and Canada
.........................................................276
Getting the Services You Need................272 Away From Home...............................................272
550
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

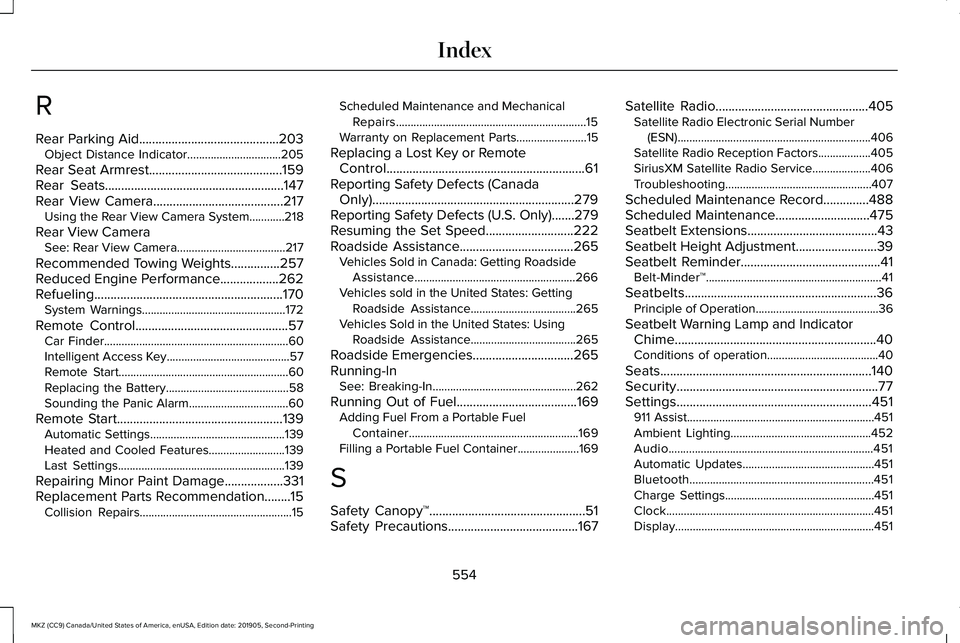

R
Rear Parking Aid...........................................203
Object Distance Indicator................................205
Rear Seat Armrest
.........................................159
Rear Seats.......................................................147
Rear View Camera........................................217
Using the Rear View Camera System............218
Rear View Camera See: Rear View Camera.....................................217
Recommended Towing Weights
...............257
Reduced Engine Performance..................262
Refueling..........................................................170 System Warnings.................................................172
Remote Control
...............................................57
Car Finder...............................................................60
Intelligent Access Key..........................................57
Remote Start..........................................................60
Replacing the Battery..........................................58
Sounding the Panic Alarm..................................60
Remote Start
...................................................139
Automatic Settings..............................................139
Heated and Cooled Features..........................139
Last Settings.........................................................139
Repairing Minor Paint Damage
..................331
Replacement Parts Recommendation........15 Collision Repairs....................................................15 Scheduled Maintenance and Mechanical
Repairs.................................................................15
Warranty on Replacement Parts........................15
Replacing a Lost Key or Remote Control.............................................................61
Reporting Safety Defects (Canada Only)..............................................................279
Reporting Safety Defects (U.S. Only).......279
Resuming the Set Speed...........................222
Roadside Assistance
...................................265
Vehicles Sold in Canada: Getting Roadside
Assistance.......................................................266
Vehicles sold in the United States: Getting Roadside Assistance....................................265
Vehicles Sold in the United States: Using Roadside Assistance....................................265
Roadside Emergencies...............................265
Running-In See: Breaking-In.................................................262
Running Out of Fuel
.....................................169
Adding Fuel From a Portable Fuel
Container..........................................................169
Filling a Portable Fuel Container.....................
169
S
Safety Canopy™................................................51
Safety Precautions........................................167 Satellite Radio
...............................................405
Satellite Radio Electronic Serial Number
(ESN)..................................................................406
Satellite Radio Reception Factors..................405
SiriusXM Satellite Radio Service....................406
Troubleshooting..................................................407
Scheduled Maintenance Record..............488
Scheduled Maintenance.............................475
Seatbelt Extensions
........................................43
Seatbelt Height Adjustment.........................39
Seatbelt Reminder
...........................................41
Belt-Minder™............................................................41
Seatbelts...........................................................36 Principle of Operation..........................................36
Seatbelt Warning Lamp and Indicator Chime..............................................................40
Conditions of operation......................................40
Seats
.................................................................140
Security..............................................................77
Settings............................................................451 911 Assist................................................................451
Ambient Lighting................................................452
Audio......................................................................451
Automatic Updates.............................................451
Bluetooth...............................................................451
Charge Settings...................................................451
Clock.......................................................................451
Display....................................................................451
554
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

General..................................................................412
Navigation.............................................................418
Phone.....................................................................416
SiriusXM Traffic and Travel Link.......................421
Voice Settings......................................................421
Utilizing the Mediation/Arbitration Program (Canada Only).............................................275

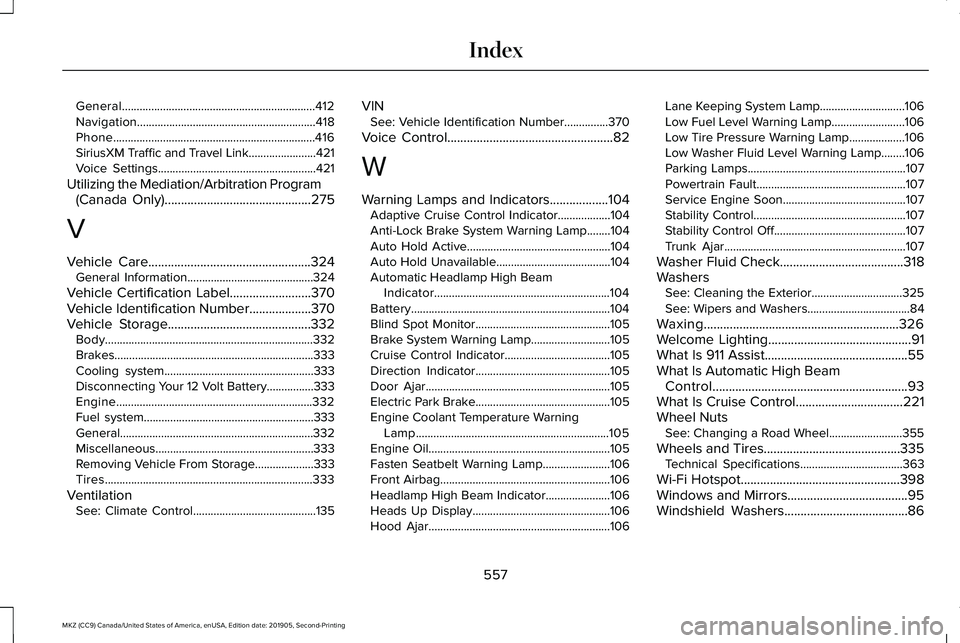

V
Vehicle Care..................................................324 General Information...........................................324
Vehicle Certification Label.........................370
Vehicle Identification Number...................370
Vehicle Storage
............................................332
Body.......................................................................332
Brakes....................................................................333
Cooling system...................................................333
Disconnecting Your 12 Volt Battery................333
Engine...................................................................332
Fuel system..........................................................333
General..................................................................332
Miscellaneous......................................................333
Removing Vehicle From Storage....................
333
Tires.......................................................................333
Ventilation See: Climate Control..........................................135 VIN
See: Vehicle Identification Number...............
370
Voice Control...................................................82
W
Warning Lamps and Indicators..................104 Adaptive Cruise Control Indicator..................104
Anti-Lock Brake System Warning Lamp........104
Auto Hold Active.................................................104
Auto Hold Unavailable.......................................104
Automatic Headlamp High Beam
Indicator............................................................104
Battery....................................................................104
Blind Spot Monitor..............................................105
Brake System Warning Lamp...........................105
Cruise Control Indicator....................................105
Direction Indicator..............................................105
Door Ajar...............................................................105
Electric Park Brake..............................................105
Engine Coolant Temperature Warning Lamp..................................................................105
Engine Oil..............................................................105
Fasten Seatbelt Warning Lamp.......................106
Front Airbag..........................................................106
Headlamp High Beam Indicator......................106
Heads Up Display...............................................106
Hood Ajar..............................................................106 Lane Keeping System Lamp.............................106
Low Fuel Level Warning Lamp.........................106
Low Tire Pressure Warning Lamp...................106
Low Washer Fluid Level Warning Lamp........106
Parking Lamps......................................................107
Powertrain Fault...................................................107
Service Engine Soon..........................................107
Stability Control....................................................107
Stability Control Off.............................................107
Trunk Ajar..............................................................107
Washer Fluid Check
......................................318
Washers See: Cleaning the Exterior...............................325
See: Wipers and Washers...................................
84
Waxing............................................................326
Welcome Lighting
............................................91
What Is 911 Assist............................................55
What Is Automatic High Beam Control............................................................93
What Is Cruise Control.................................221
Wheel Nuts See: Changing a Road Wheel.........................
355
Wheels and Tires
..........................................335
Technical Specifications...................................363
Wi-Fi Hotspot.................................................398
Windows and Mirrors.....................................95
Windshield Washers
......................................86
557
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index
