LINCOLN MKZ HYBRID 2011 Owners Manual

not accumulate as expected, then the MyKey™ is not being used by
the intended user. The only way to reset this odometer to zero is by
clearing MyKey™. If this odometer is lower than the last time you
checked, then the MyKey™ system has been recently cleared.
•# MyKey(S) Programmed — Indicates how many MyKeys™ are
programmed to the vehicle. Can be used to detect deletion of a
MyKey™.
•# Admi Key(s) programmed — Indicates how many admin keys are
programmed to the vehicle. Can be used to detect if an additional
spare key has been programmed to the vehicle.
Refer toMessage centerin theInstrument Clusterchapter for MyKey™
system warnings displays.
Using MyKey™ with remote start systems
MyKey™ is not compatible with non-Ford approved aftermarket remote
start systems. If you choose to install a remote start system please see
your authorized dealer for a Ford approved remote start system.
When using a Ford-approved remote start system, the default settings
will recognize the remote start system as an additional admin key with
its associated privileges. Program the remote start system as a MyKey™
in addition to the key that has already been programmed as a MyKey™.
To program the remote start system as MyKey™, do the following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using a remote start fob.
3. Follow the steps in theCreate a MyKey™section.
Note:For all vehicles, the number of MyKeys programmed or keys
programmed that are displayed in the MyKey™ system status will
include the remote start system as an additional key in the total count.
See theCheck MyKey™ system statussection.
Note:For all vehicles with remote start installed, it is possible to
program all ’real’ keys as MyKeys™, in which case, you will need to use
your remote start system to reset all MyKeys™ as admin keys by doing
the following:
1. Enter the vehicle, close all doors.
2. Remote start the vehicle using your remote start fob.
3. Follow the steps in theClear MyKey™section.
Locks and Security
111
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

Troubleshooting
Condition Potential Causes
Can’t create a
MyKey™•Key in the ignition is already a MyKey™.
•Key in the ignition is the last remaining admin key
(there always has to be at least one admin key).
•SecuriLockPassive Anti-Theft System is disabled
or in unlimited mode
•Vehicle has been started using a remote start
system that is programmed as MyKey™. Refer to
Using MyKey™ with remote start systemssection.
Cannot program
the MyKey™
optional settings•Key in the ignition is a MyKey™
•No MyKeys™ are programmed to the vehicle.
Refer toCreate a MyKey™section
•Vehicle has been started using a remote start
system that is programmed as a MyKey™. Refer to
Using MyKey™ with remote start systemssection.
Cannot clear
MyKey™•Key in the ignition is a MyKey™
•No MyKeys™ are programmed to the vehicle.
Refer toCreate a MyKey™section
•Vehicle has been started using a remote start
system that is programmed as a MyKey™. Refer to
MyKey™ with remote start systemssection.
Lost the only
admin key•Purchase a new key from your authorized dealer
Lost any key•For programming spare keys, refer to the
Programming spare keyssection in this chapter.
I accidentally
programmed all
keys as
MyKeys™•Vehicle has a remote start system that is
recognized as an admin key. Refer to theUsing
MyKey™ with remote start systemssection to
reset all MyKeys™ as admin keys.
MyKey™
programmed
total includes
one additional
key•Unknown key has been programmed to the
vehicle as a MyKey™.
•Vehicle is equipped with a remote start system.
Refer toUsing MyKey™ with remote start systems
section.
Locks and Security
112
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

Condition Potential Causes
Admin keys
programmed
total includes
one additional
key•Unknown key has been programmed to the
vehicle as admin key.
•Vehicle is equipped with a remote start system.
Refer toUsing MyKey™ with remote start systems
section.
MyKey™ miles
do not
accumulate•MyKey™ is not being used by the intended user.
•MyKey™ system has been recently cleared.
POWER DOOR LOCKS
•Press the
control to unlock all
doors.
•Press the
control to lock all
doors.
Smart locks
This feature attempts to help prevent you from locking yourself out of
the vehicle if your key is still in the ignition.
When you open one of the front doors and you lock the vehicle with the
power door lock control (on the driver or passenger door trim panel), all
the doors will lock, then all doors will automatically unlock reminding
you that your key is still in the ignition.
The vehicle can still be locked, with the key in the ignition, using the
manual lock control on the door, locking the driver’s door with a key, or
using the lock control on the remote entry transmitter portion of your
Integrated Keyhead Transmitter.
If both front doors are closed, the vehicle can be locked from any
method, regardless of whether the key is in the ignition or not.
Autolock feature
The autolock feature will lock all the doors when:
•all the doors are closed,
•the ignition is in the on position,
Locks and Security
113
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

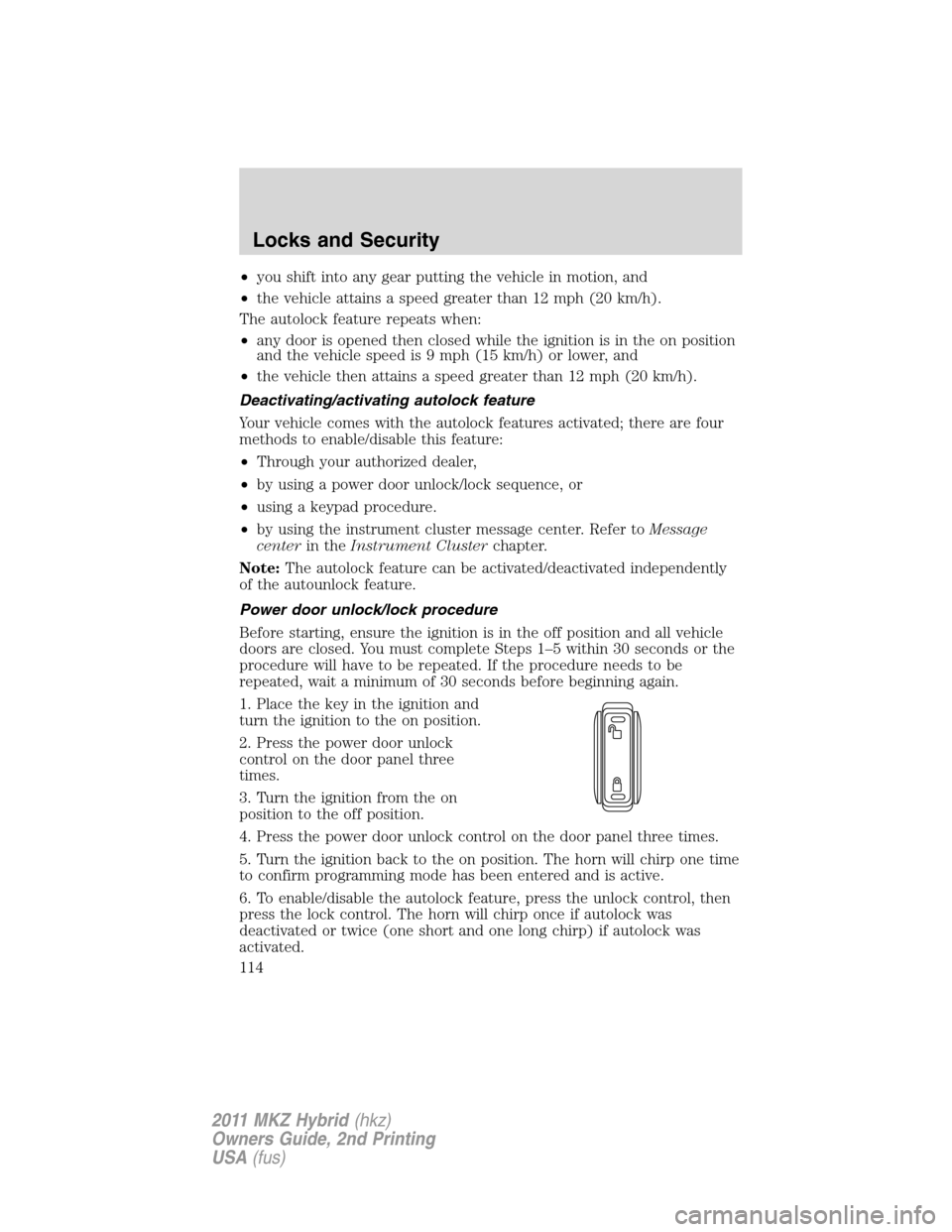

•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 12 mph (20 km/h).
The autolock feature repeats when:
•any door is opened then closed while the ignition is in the on position
and the vehicle speed is 9 mph (15 km/h) or lower, and
•the vehicle then attains a speed greater than 12 mph (20 km/h).
Deactivating/activating autolock feature
Your vehicle comes with the autolock features activated; there are four
methods to enable/disable this feature:
•Through your authorized dealer,
•by using a power door unlock/lock sequence, or
•using a keypad procedure.
•by using the instrument cluster message center. Refer toMessage
centerin theInstrument Clusterchapter.
Note:The autolock feature can be activated/deactivated independently
of the autounlock feature.
Power door unlock/lock procedure
Before starting, ensure the ignition is in the off position and all vehicle
doors are closed. You must complete Steps 1–5 within 30 seconds or the
procedure will have to be repeated. If the procedure needs to be
repeated, wait a minimum of 30 seconds before beginning again.
1. Place the key in the ignition and
turn the ignition to the on position.
2. Press the power door unlock
control on the door panel three
times.
3. Turn the ignition from the on
position to the off position.
4. Press the power door unlock control on the door panel three times.
5. Turn the ignition back to the on position. The horn will chirp one time
to confirm programming mode has been entered and is active.
6. To enable/disable the autolock feature, press the unlock control, then
press the lock control. The horn will chirp once if autolock was
deactivated or twice (one short and one long chirp) if autolock was
activated.
Locks and Security
114
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

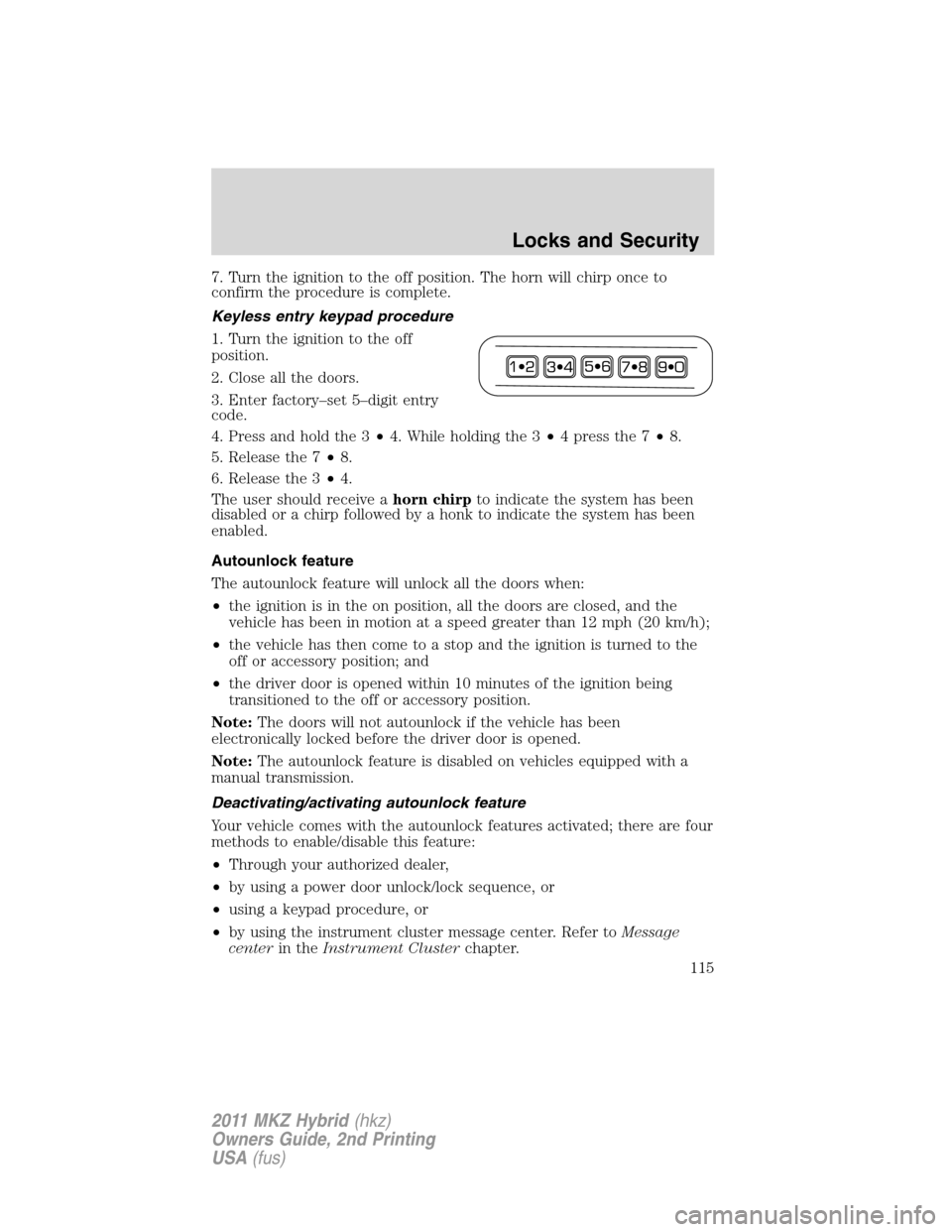

7. Turn the ignition to the off position. The horn will chirp once to
confirm the procedure is complete.
Keyless entry keypad procedure
1. Turn the ignition to the off
position.
2. Close all the doors.
3. Enter factory–set 5–digit entry
code.
4. Press and hold the 3•4. While holding the 3•4pressthe7•8.
5. Release the 7•8.
6. Release the 3•4.
The user should receive ahorn chirpto indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.
Autounlock feature
The autounlock feature will unlock all the doors when:
•the ignition is in the on position, all the doors are closed, and the
vehicle has been in motion at a speed greater than 12 mph (20 km/h);
•the vehicle has then come to a stop and the ignition is turned to the
off or accessory position; and
•the driver door is opened within 10 minutes of the ignition being
transitioned to the off or accessory position.
Note:The doors will not autounlock if the vehicle has been
electronically locked before the driver door is opened.
Note:The autounlock feature is disabled on vehicles equipped with a
manual transmission.
Deactivating/activating autounlock feature
Your vehicle comes with the autounlock features activated; there are four
methods to enable/disable this feature:
•Through your authorized dealer,
•by using a power door unlock/lock sequence, or
•using a keypad procedure, or
•by using the instrument cluster message center. Refer toMessage
centerin theInstrument Clusterchapter.
Locks and Security
115
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

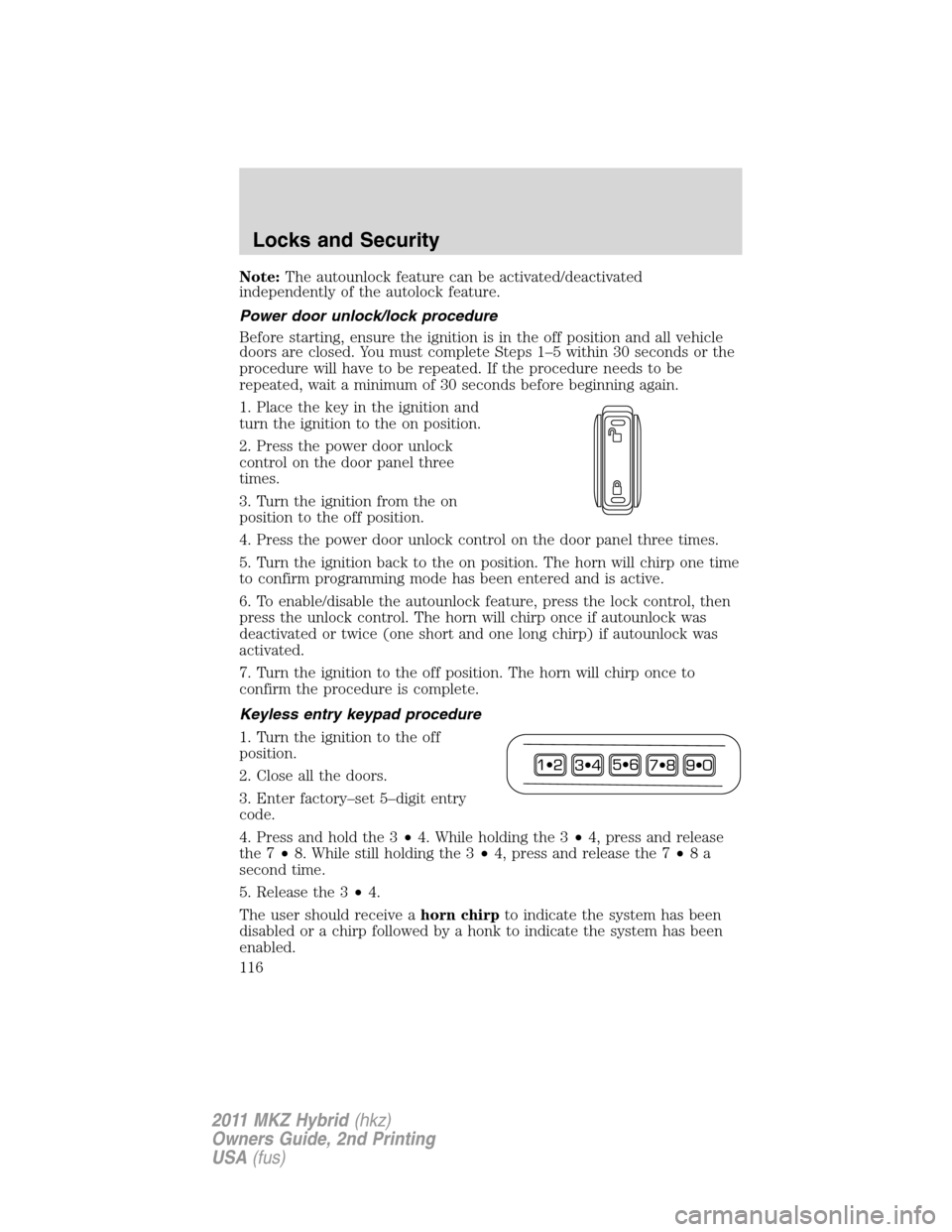

Note:The autounlock feature can be activated/deactivated
independently of the autolock feature.
Power door unlock/lock procedure
Before starting, ensure the ignition is in the off position and all vehicle
doors are closed. You must complete Steps 1–5 within 30 seconds or the
procedure will have to be repeated. If the procedure needs to be
repeated, wait a minimum of 30 seconds before beginning again.
1. Place the key in the ignition and
turn the ignition to the on position.
2. Press the power door unlock
control on the door panel three
times.
3. Turn the ignition from the on
position to the off position.
4. Press the power door unlock control on the door panel three times.
5. Turn the ignition back to the on position. The horn will chirp one time
to confirm programming mode has been entered and is active.
6. To enable/disable the autounlock feature, press the lock control, then
press the unlock control. The horn will chirp once if autounlock was
deactivated or twice (one short and one long chirp) if autounlock was
activated.
7. Turn the ignition to the off position. The horn will chirp once to
confirm the procedure is complete.
Keyless entry keypad procedure
1. Turn the ignition to the off
position.
2. Close all the doors.
3. Enter factory–set 5–digit entry
code.
4. Press and hold the 3•4. While holding the 3•4, press and release
the 7•8. While still holding the 3•4, press and release the 7•8a
second time.
5. Release the 3•4.
The user should receive ahorn chirpto indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.
Locks and Security
116
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

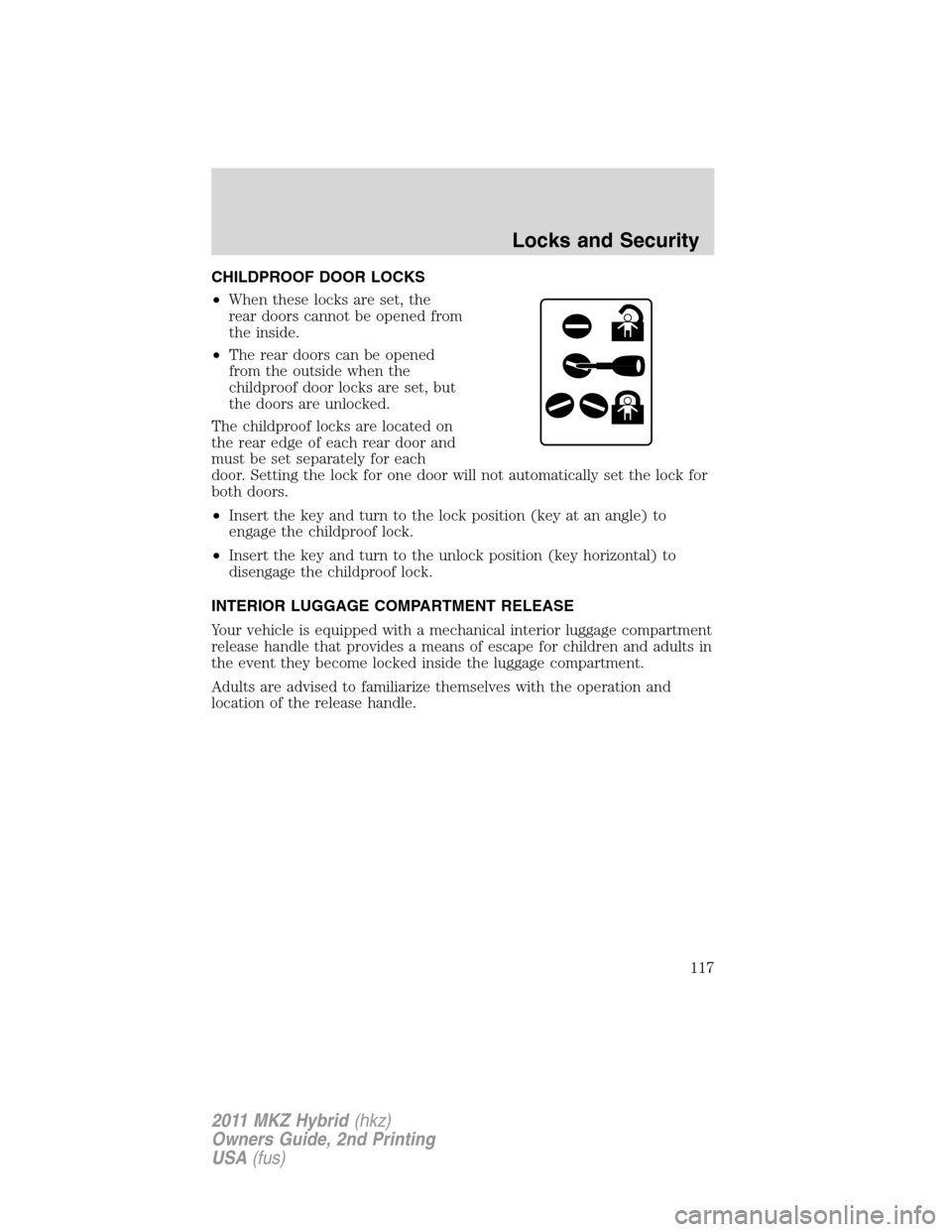

CHILDPROOF DOOR LOCKS
•When these locks are set, the
rear doors cannot be opened from
the inside.
•The rear doors can be opened
from the outside when the
childproof door locks are set, but
the doors are unlocked.
The childproof locks are located on
the rear edge of each rear door and
must be set separately for each
door. Setting the lock for one door will not automatically set the lock for
both doors.
•Insert the key and turn to the lock position (key at an angle) to
engage the childproof lock.
•Insert the key and turn to the unlock position (key horizontal) to
disengage the childproof lock.
INTERIOR LUGGAGE COMPARTMENT RELEASE
Your vehicle is equipped with a mechanical interior luggage compartment
release handle that provides a means of escape for children and adults in
the event they become locked inside the luggage compartment.
Adults are advised to familiarize themselves with the operation and
location of the release handle.
Locks and Security
117
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

To open the luggage compartment
door (lid) from within the luggage
compartment, pull the illuminated
“T” shaped handle and push up on
the trunk lid. The handle is
composed of a material that will
glow for hours in darkness following
brief exposure to ambient light.
The “T” shaped handle will be
located either on the luggage
compartment door (lid) or inside
the luggage compartment near the
tail lamps.
WARNING:Keep vehicle
doors and luggage
compartment locked and keep
keys and remote transmitters out
of a child’s reach. Unsupervised
children could lock themselves in
the trunk and risk injury. Children
should be taught not to play in
vehicles.
WARNING:Do not leave children, unreliable adults, or animals
unattended in the vehicle. On hot days, the temperature in the
trunk or vehicle interior can rise very quickly. Exposure of people or
animals to these high temperatures for even a short time can cause
death or serious heat-related injuries, including brain damage. Small
children are particularly at risk.
Locks and Security
118
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

REMOTE ENTRY SYSTEM
The Integrated Keyhead Transmitter (IKT) complies with part 15 of the
FCC rules and with RSS-210 of Industry Canada. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The typical operating range for your IKT is approximately 33 feet
(10 meters). A decrease in operating range could be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle, or
•other vehicles parked next to your vehicle.
The IKT allows you to:
•remotely unlock the vehicle
doors.
•remotely lock all the vehicle
doors.
•remotely open the trunk.
•activate the personal alarm.
•arm and disarm the perimeter
anti-theft system.
•operate the illuminated entry
feature.
The remote entry lock/unlock feature operates in any ignition position
except while the key is held in the start position. The panic feature
operates with the key in the off position.
If there are problems with the remote entry system, make sure to take
ALL Integrated Keyhead Transmitterswith you to the authorized
dealer in order to aid in troubleshooting the problem.
Unlocking the doors/two-stage unlock
1. Pressand release to unlock the driver’s door.Note:The interior
lamps will illuminate.
Locks and Security
119
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

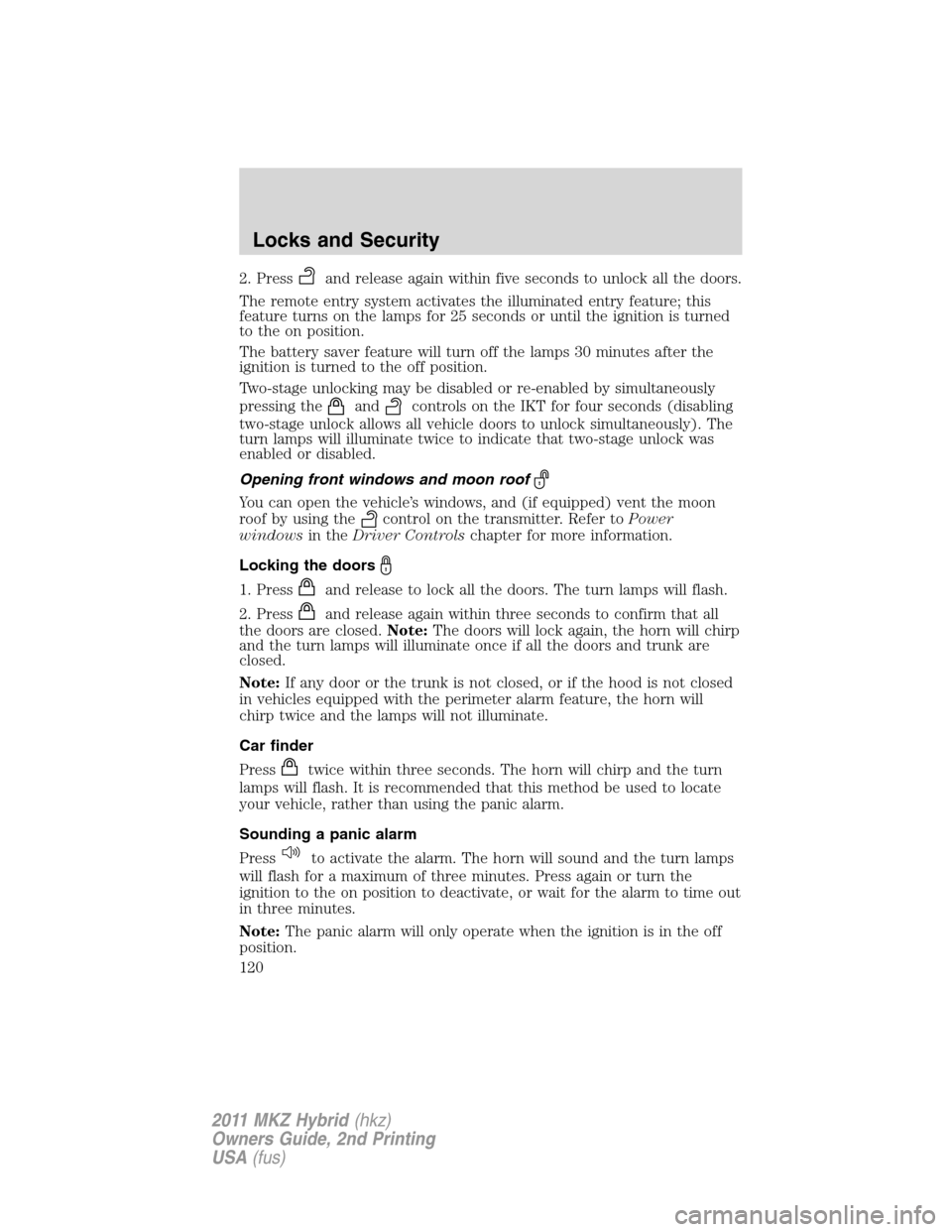

2. Pressand release again within five seconds to unlock all the doors.
The remote entry system activates the illuminated entry feature; this
feature turns on the lamps for 25 seconds or until the ignition is turned
to the on position.
The battery saver feature will turn off the lamps 30 minutes after the
ignition is turned to the off position.
Two-stage unlocking may be disabled or re-enabled by simultaneously
pressing the
andcontrols on the IKT for four seconds (disabling
two-stage unlock allows all vehicle doors to unlock simultaneously). The
turn lamps will illuminate twice to indicate that two-stage unlock was
enabled or disabled.
Opening front windows and moon roof
You can open the vehicle’s windows, and (if equipped) vent the moon
roof by using the
control on the transmitter. Refer toPower
windowsin theDriver Controlschapter for more information.
Locking the doors
1. Pressand release to lock all the doors. The turn lamps will flash.
2. Press
and release again within three seconds to confirm that all
the doors are closed.Note:The doors will lock again, the horn will chirp
and the turn lamps will illuminate once if all the doors and trunk are
closed.
Note:If any door or the trunk is not closed, or if the hood is not closed
in vehicles equipped with the perimeter alarm feature, the horn will
chirp twice and the lamps will not illuminate.
Car finder
Press
twice within three seconds. The horn will chirp and the turn
lamps will flash. It is recommended that this method be used to locate
your vehicle, rather than using the panic alarm.
Sounding a panic alarm
Press
to activate the alarm. The horn will sound and the turn lamps
will flash for a maximum of three minutes. Press again or turn the
ignition to the on position to deactivate, or wait for the alarm to time out
in three minutes.
Note:The panic alarm will only operate when the ignition is in the off
position.
Locks and Security
120
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)
