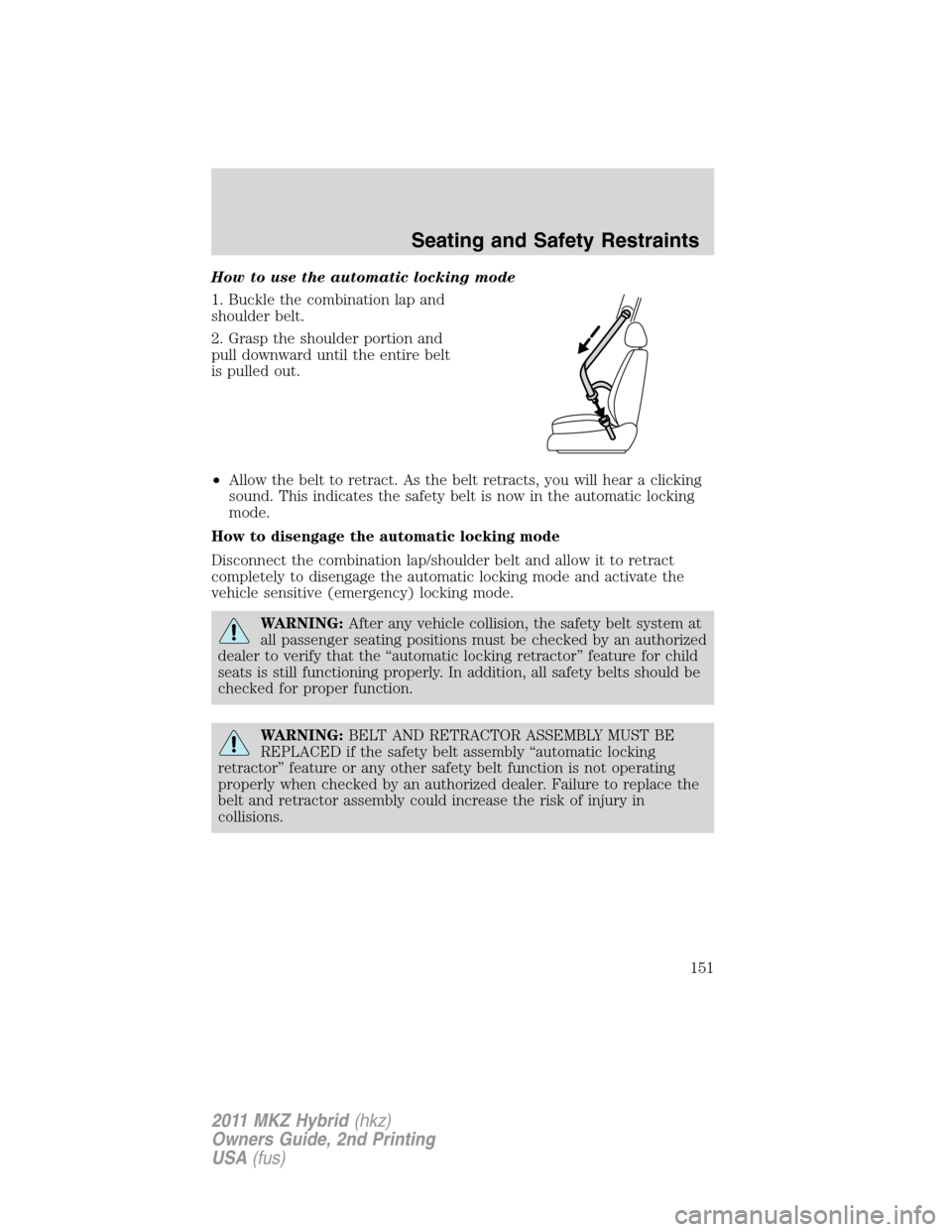

How to use the automatic locking mode
1. Buckle the combination lap and
shoulder belt.
2. Grasp the shoulder portion and
pull downward until the entire belt
is pulled out.
•Allow the belt to retract. As the belt retracts, you will hear a clicking
sound. This indicates the safety belt is now in the automatic locking
mode.
How to disengage the automatic locking mode
Disconnect the combination lap/shoulder belt and allow it to retract
completely to disengage the automatic locking mode and activate the
vehicle sensitive (emergency) locking mode.
WARNING:After any vehicle collision, the safety belt system at
all passenger seating positions must be checked by an authorized
dealer to verify that the “automatic locking retractor” feature for child
seats is still functioning properly. In addition, all safety belts should be
checked for proper function.
WARNING:BELT AND RETRACTOR ASSEMBLY MUST BE
REPLACED if the safety belt assembly “automatic locking
retractor” feature or any other safety belt function is not operating
properly when checked by an authorized dealer. Failure to replace the
belt and retractor assembly could increase the risk of injury in
collisions.
Seating and Safety Restraints
151
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

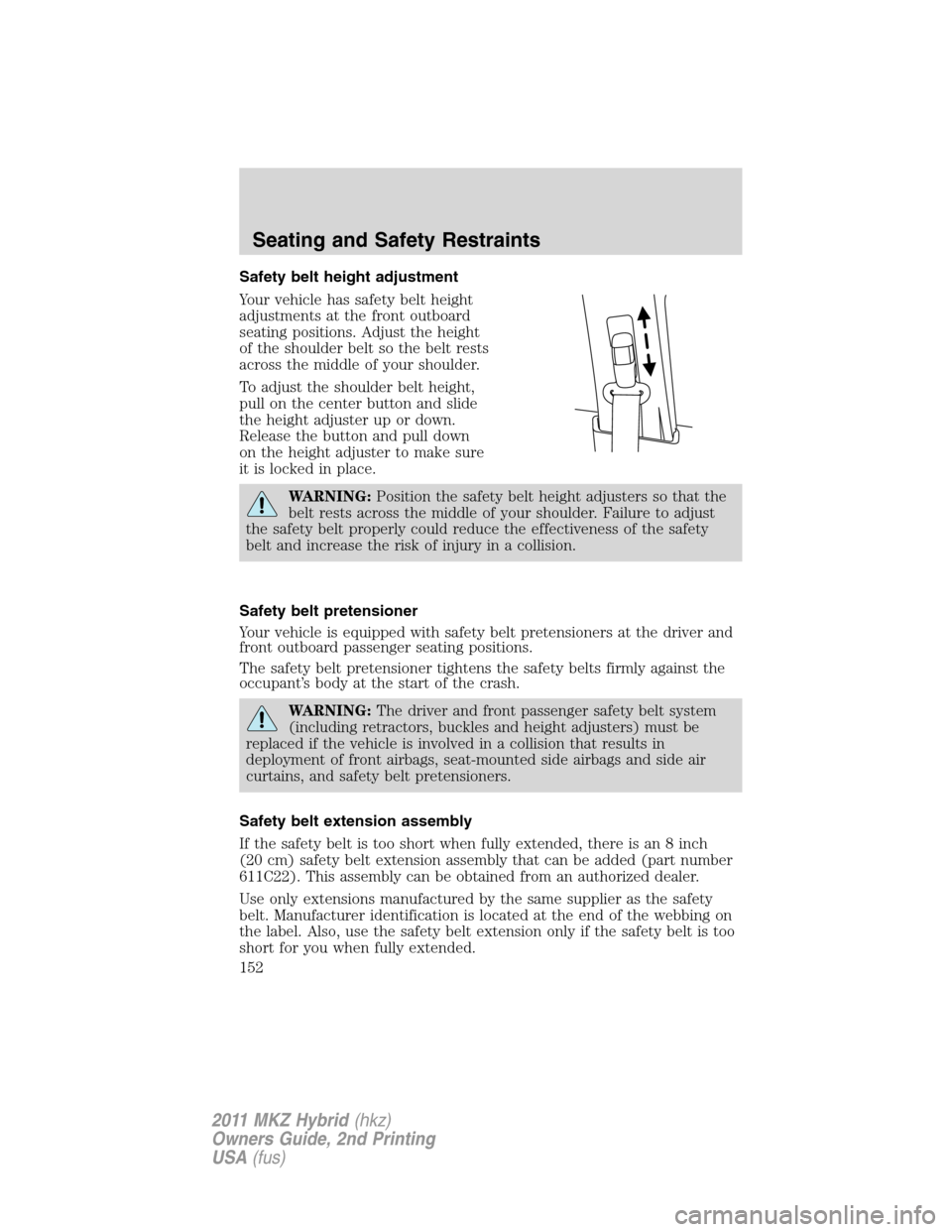

Safety belt height adjustment
Your vehicle has safety belt height
adjustments at the front outboard
seating positions. Adjust the height
of the shoulder belt so the belt rests
across the middle of your shoulder.
To adjust the shoulder belt height,
pull on the center button and slide
the height adjuster up or down.
Release the button and pull down
on the height adjuster to make sure
it is locked in place.
WARNING:Position the safety belt height adjusters so that the
belt rests across the middle of your shoulder. Failure to adjust
the safety belt properly could reduce the effectiveness of the safety
belt and increase the risk of injury in a collision.
Safety belt pretensioner
Your vehicle is equipped with safety belt pretensioners at the driver and
front outboard passenger seating positions.
The safety belt pretensioner tightens the safety belts firmly against the
occupant’s body at the start of the crash.
WARNING:The driver and front passenger safety belt system
(including retractors, buckles and height adjusters) must be
replaced if the vehicle is involved in a collision that results in
deployment of front airbags, seat-mounted side airbags and side air
curtains, and safety belt pretensioners.
Safety belt extension assembly
If the safety belt is too short when fully extended, there is an 8 inch
(20 cm) safety belt extension assembly that can be added (part number
611C22). This assembly can be obtained from an authorized dealer.
Use only extensions manufactured by the same supplier as the safety
belt. Manufacturer identification is located at the end of the webbing on
the label. Also, use the safety belt extension only if the safety belt is too
short for you when fully extended.
Seating and Safety Restraints
152
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

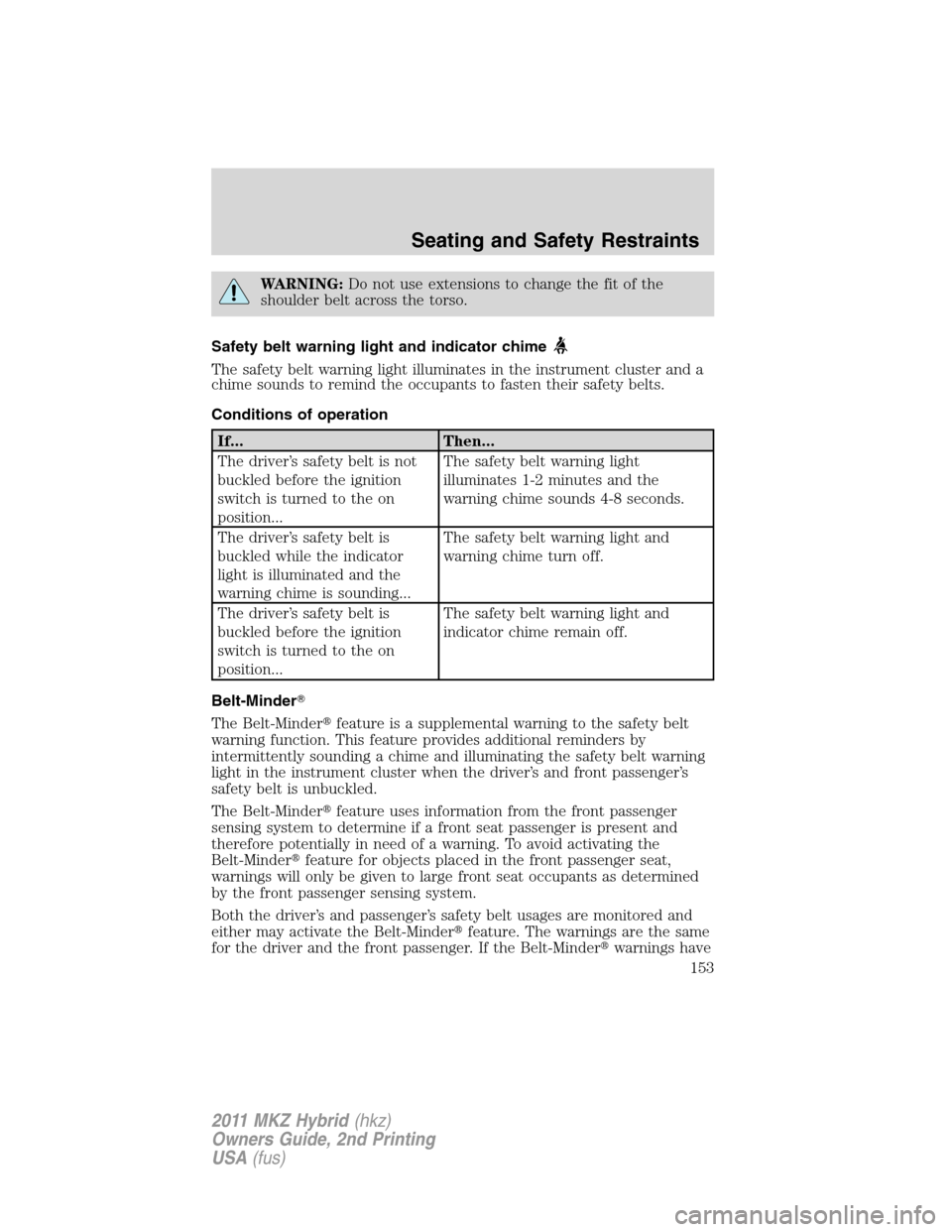

WARNING:Do not use extensions to change the fit of the
shoulder belt across the torso.
Safety belt warning light and indicator chime
The safety belt warning light illuminates in the instrument cluster and a
chime sounds to remind the occupants to fasten their safety belts.
Conditions of operation
If... Then...
The driver’s safety belt is not
buckled before the ignition
switch is turned to the on
position...The safety belt warning light
illuminates 1-2 minutes and the
warning chime sounds 4-8 seconds.
The driver’s safety belt is
buckled while the indicator
light is illuminated and the
warning chime is sounding...The safety belt warning light and
warning chime turn off.
The driver’s safety belt is
buckled before the ignition
switch is turned to the on
position...The safety belt warning light and
indicator chime remain off.
Belt-Minder
The Belt-Minderfeature is a supplemental warning to the safety belt
warning function. This feature provides additional reminders by
intermittently sounding a chime and illuminating the safety belt warning
light in the instrument cluster when the driver’s and front passenger’s
safety belt is unbuckled.
The Belt-Minderfeature uses information from the front passenger
sensing system to determine if a front seat passenger is present and
therefore potentially in need of a warning. To avoid activating the
Belt-Minderfeature for objects placed in the front passenger seat,
warnings will only be given to large front seat occupants as determined
by the front passenger sensing system.
Both the driver’s and passenger’s safety belt usages are monitored and
either may activate the Belt-Minderfeature. The warnings are the same
for the driver and the front passenger. If the Belt-Minderwarnings have
Seating and Safety Restraints
153
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

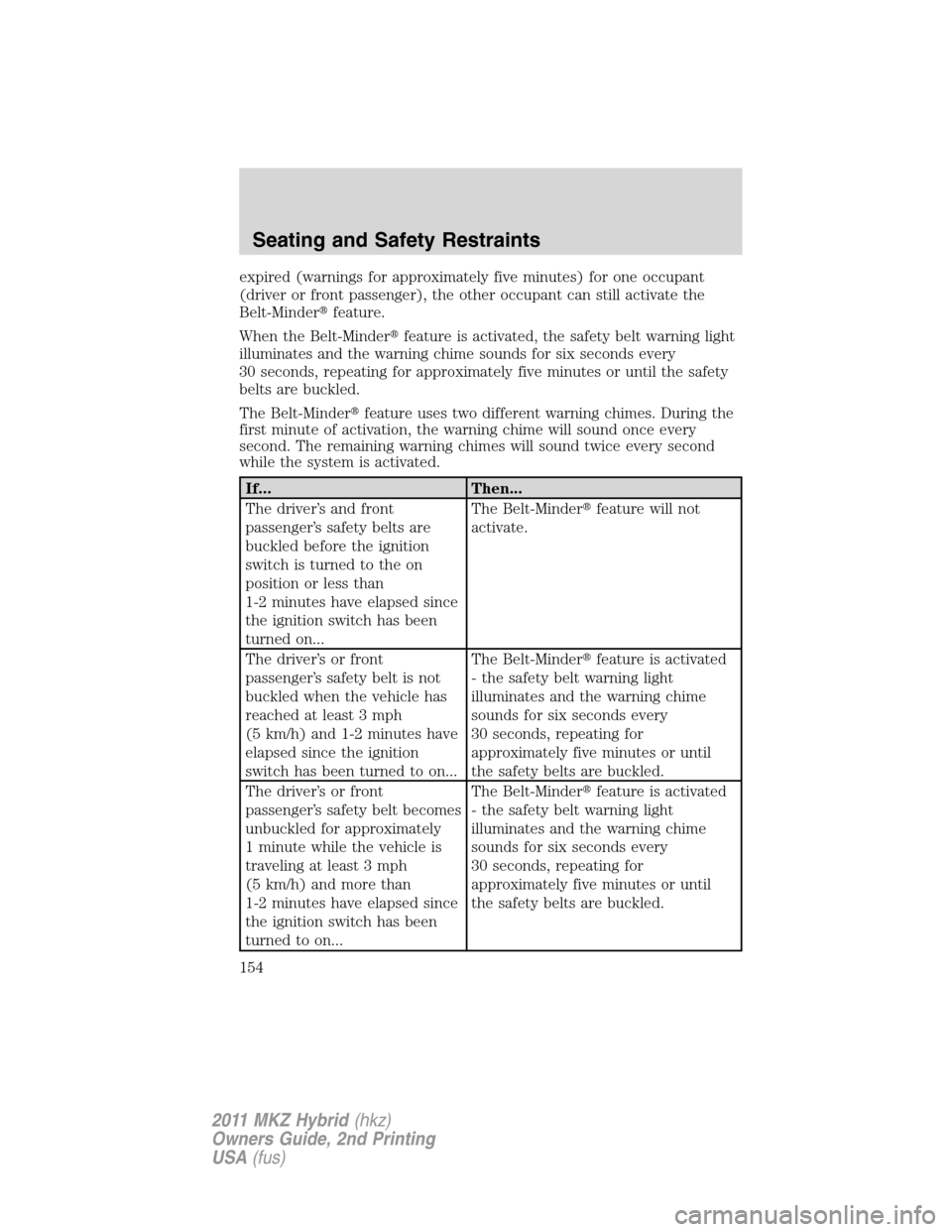

expired (warnings for approximately five minutes) for one occupant
(driver or front passenger), the other occupant can still activate the
Belt-Minderfeature.
When the Belt-Minderfeature is activated, the safety belt warning light
illuminates and the warning chime sounds for six seconds every
30 seconds, repeating for approximately five minutes or until the safety
belts are buckled.
The Belt-Minderfeature uses two different warning chimes. During the
first minute of activation, the warning chime will sound once every
second. The remaining warning chimes will sound twice every second
while the system is activated.
If... Then...
The driver’s and front
passenger’s safety belts are
buckled before the ignition
switch is turned to the on
position or less than
1-2 minutes have elapsed since
the ignition switch has been
turned on...The Belt-Minderfeature will not
activate.
The driver’s or front
passenger’s safety belt is not
buckled when the vehicle has
reached at least 3 mph
(5 km/h) and 1-2 minutes have
elapsed since the ignition
switch has been turned to on...The Belt-Minderfeature is activated
- the safety belt warning light
illuminates and the warning chime
sounds for six seconds every
30 seconds, repeating for
approximately five minutes or until
the safety belts are buckled.
The driver’s or front
passenger’s safety belt becomes
unbuckled for approximately
1 minute while the vehicle is
traveling at least 3 mph
(5 km/h) and more than
1-2 minutes have elapsed since
the ignition switch has been
turned to on...The Belt-Minderfeature is activated
- the safety belt warning light
illuminates and the warning chime
sounds for six seconds every
30 seconds, repeating for
approximately five minutes or until
the safety belts are buckled.
Seating and Safety Restraints
154
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

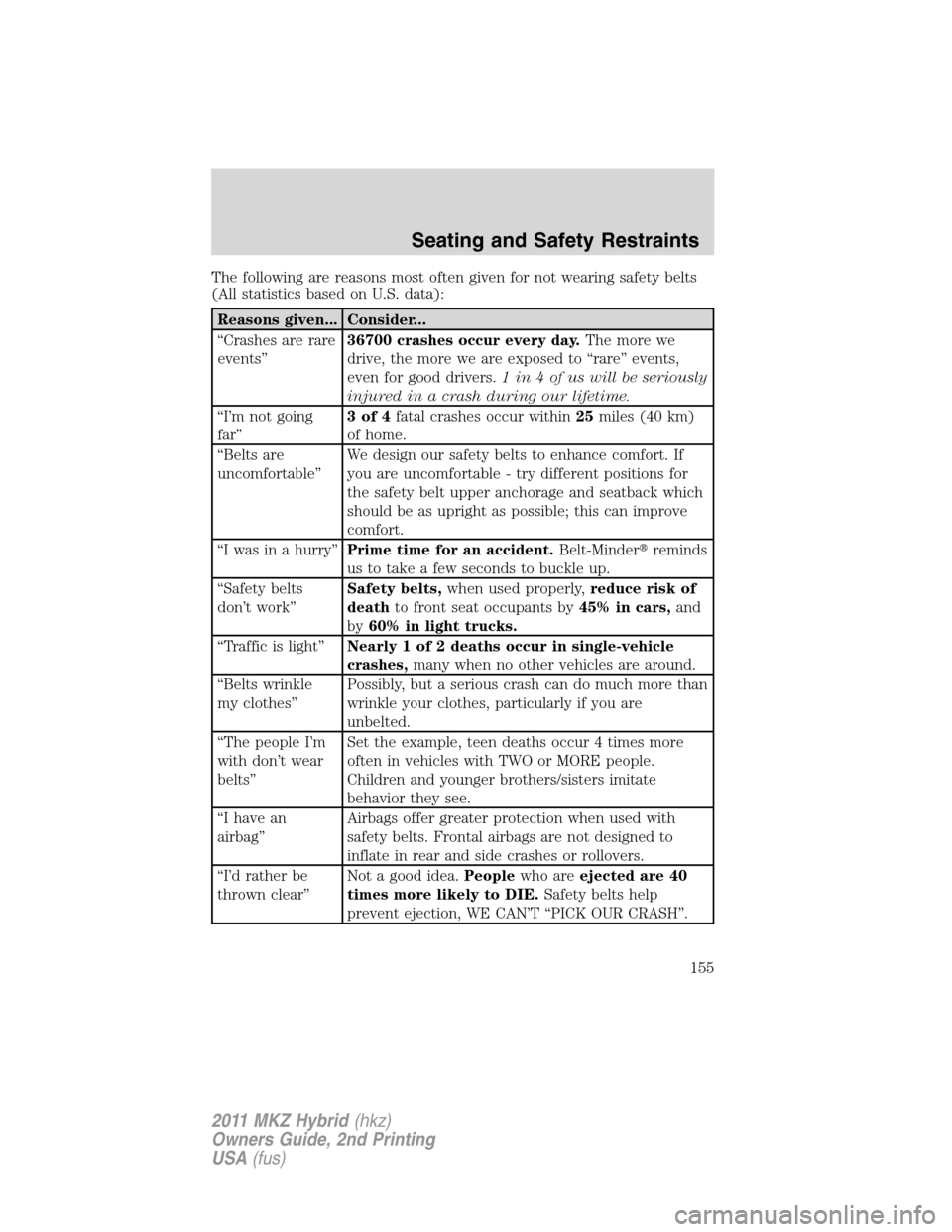

The following are reasons most often given for not wearing safety belts
(All statistics based on U.S. data):
Reasons given... Consider...
“Crashes are rare
events”36700 crashes occur every day.The more we
drive, the more we are exposed to “rare” events,
even for good drivers.1 in 4 of us will be seriously
injured in a crash during our lifetime.
“I’m not going
far”3of4fatal crashes occur within25miles (40 km)
of home.
“Belts are
uncomfortable”We design our safety belts to enhance comfort. If
you are uncomfortable - try different positions for
the safety belt upper anchorage and seatback which
should be as upright as possible; this can improve
comfort.
“I was in a hurry”Prime time for an accident.Belt-Minderreminds
us to take a few seconds to buckle up.
“Safety belts
don’t work”Safety belts,when used properly,reduce risk of
deathto front seat occupants by45% in cars,and
by60% in light trucks.
“Traffic is light”Nearly 1 of 2 deaths occur in single-vehicle
crashes,many when no other vehicles are around.
“Belts wrinkle
my clothes”Possibly, but a serious crash can do much more than
wrinkle your clothes, particularly if you are
unbelted.
“The people I’m
with don’t wear
belts”Set the example, teen deaths occur 4 times more
often in vehicles with TWO or MORE people.
Children and younger brothers/sisters imitate
behavior they see.
“I have an
airbag”Airbags offer greater protection when used with
safety belts. Frontal airbags are not designed to
inflate in rear and side crashes or rollovers.
“I’d rather be
thrown clear”Not a good idea.Peoplewho areejected are 40
times more likely to DIE.Safety belts help
prevent ejection, WE CAN’T “PICK OUR CRASH”.
Seating and Safety Restraints
155
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

WARNING:Do not sit on top of a buckled safety belt or insert a
latchplate into the buckle to avoid the Belt-Minderchime. To
do so may adversely affect the performance of the vehicle’s airbag
system.
One-time disable
If at any time the driver/front passenger quickly buckles then unbuckles
the safety belt for that seating position, the Belt-Minderis disabled for
the current ignition cycle. The Belt-Minderfeature will enable during
the same ignition cycle if the occupant buckles and remains buckled for
approximately 30 seconds. Confirmation is not given for the one-time
disable.
Deactivating/activating the Belt-Minderfeature
The driver and front passenger Belt-Minderare
deactivated/activated independently. When deactivating/activating
one seating position, do not buckle the other position as this will
terminate the process.
Read Steps1-4thoroughly before proceeding with the
deactivation/activation programming procedure.
Note: The driver and front passenger Belt-Minderfeatures must be
disabled/enabled separately. Both cannot be disable/enabled during the
same key cycle.
The driver and front passenger Belt-Minderfeatures can be
deactivated/activated by performing the following procedure:
Before following the procedure, make sure that:
•The parking brake is set
•The gearshift is in P (Park)
•The ignition switch is in the off position
•The driver and front passenger safety belts are unbuckled
WARNING:While the design allows you to deactivate your
Belt-Minder, this system is designed to improve your chances of
being safely belted and surviving an accident. We recommend you
leave the Belt-Mindersystem activated for yourself and others who
may use the vehicle. To reduce the risk of injury, do not
deactivate/activate the Belt-Minderfeature while driving the vehicle.
Seating and Safety Restraints
156
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

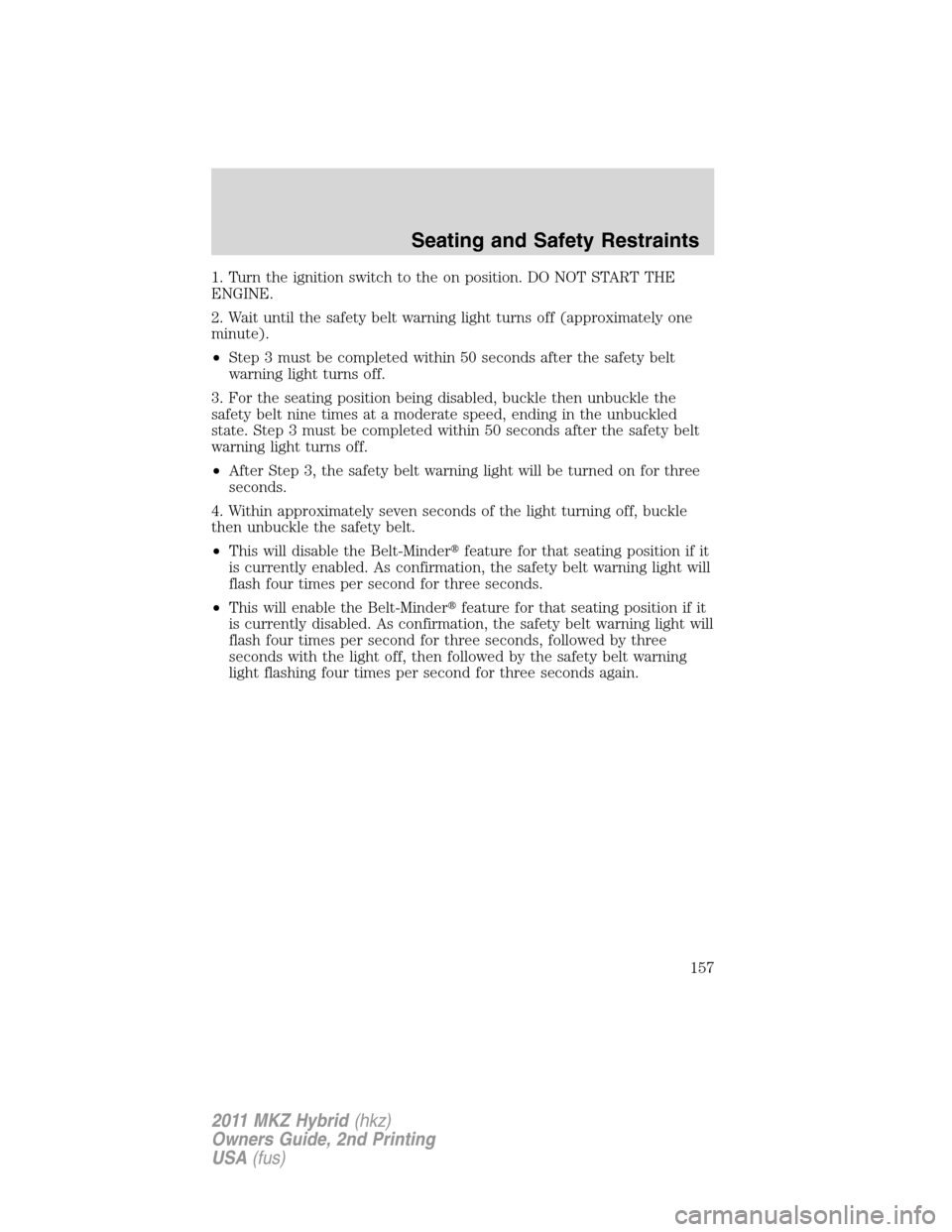

1. Turn the ignition switch to the on position. DO NOT START THE
ENGINE.
2. Wait until the safety belt warning light turns off (approximately one
minute).
•Step 3 must be completed within 50 seconds after the safety belt
warning light turns off.
3. For the seating position being disabled, buckle then unbuckle the
safety belt nine times at a moderate speed, ending in the unbuckled
state. Step 3 must be completed within 50 seconds after the safety belt
warning light turns off.
•After Step 3, the safety belt warning light will be turned on for three
seconds.
4. Within approximately seven seconds of the light turning off, buckle
then unbuckle the safety belt.
•This will disable the Belt-Minderfeature for that seating position if it
is currently enabled. As confirmation, the safety belt warning light will
flash four times per second for three seconds.
•This will enable the Belt-Minderfeature for that seating position if it
is currently disabled. As confirmation, the safety belt warning light will
flash four times per second for three seconds, followed by three
seconds with the light off, then followed by the safety belt warning
light flashing four times per second for three seconds again.
Seating and Safety Restraints
157
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

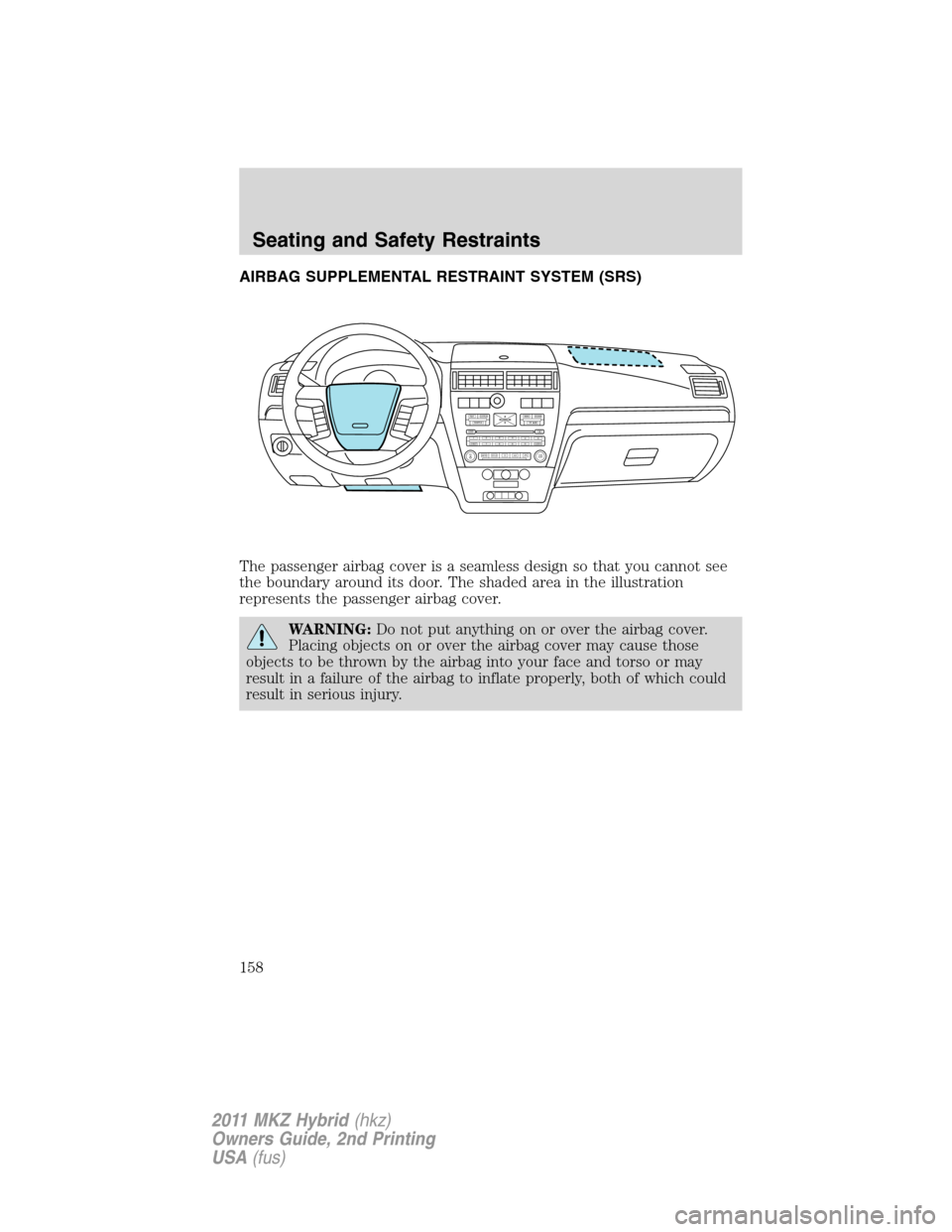

AIRBAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
The passenger airbag cover is a seamless design so that you cannot see
the boundary around its door. The shaded area in the illustration
represents the passenger airbag cover.
WARNING:Do not put anything on or over the airbag cover.
Placing objects on or over the airbag cover may cause those
objects to be thrown by the airbag into your face and torso or may
result in a failure of the airbag to inflate properly, both of which could
result in serious injury.
SOUND MENU
OKCAT/FLDTEXT
SHUFFLE
AM/FMSIRIUS
CD
AUXCLOCK #
DIRECT
1234
56
78
9
0
SEEK
VOL
TUNE
SCAN LOAD*
Seating and Safety Restraints
158
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

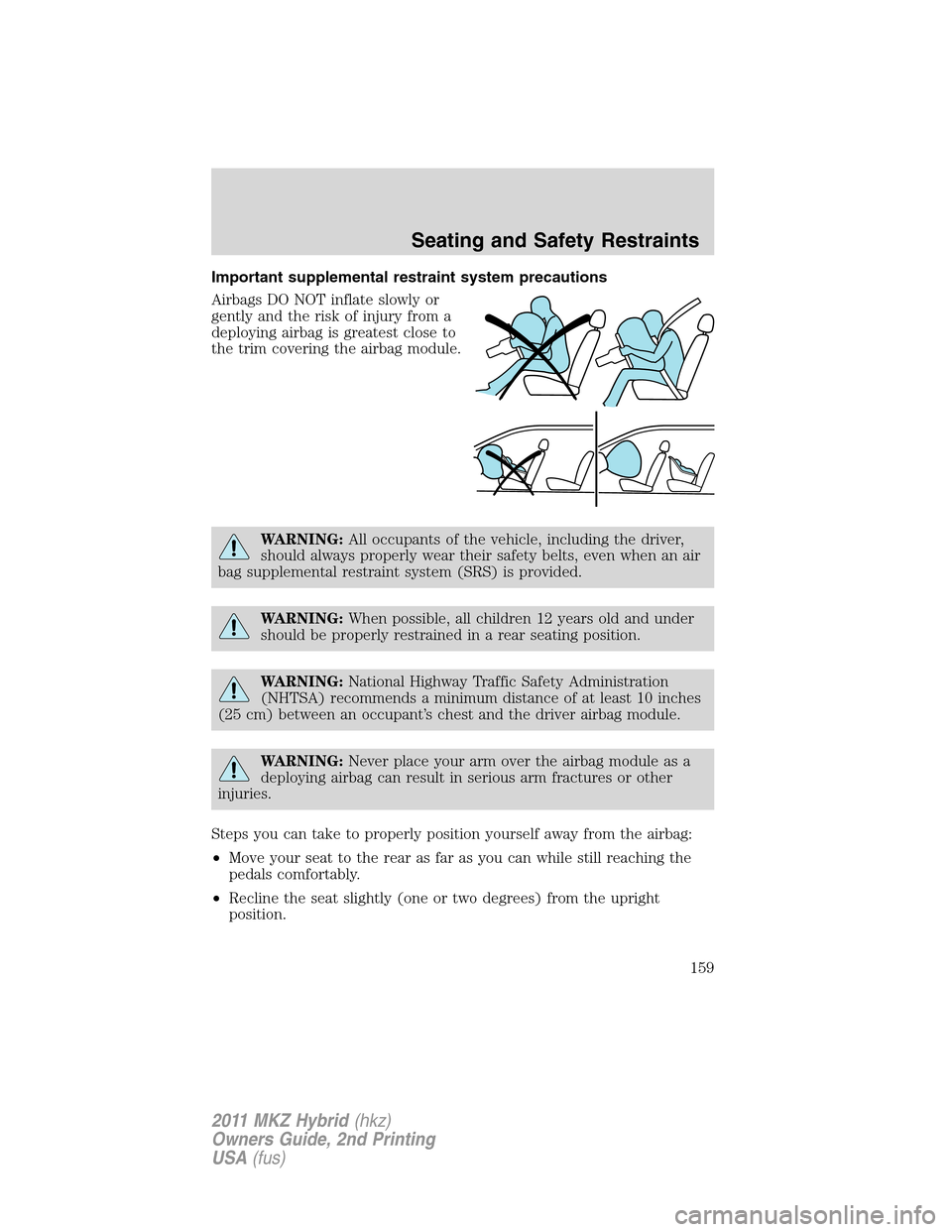

Important supplemental restraint system precautions
Airbags DO NOT inflate slowly or
gently and the risk of injury from a
deploying airbag is greatest close to
the trim covering the airbag module.
WARNING:All occupants of the vehicle, including the driver,
should always properly wear their safety belts, even when an air
bag supplemental restraint system (SRS) is provided.
WARNING:When possible, all children 12 years old and under
should be properly restrained in a rear seating position.
WARNING:National Highway Traffic Safety Administration
(NHTSA) recommends a minimum distance of at least 10 inches
(25 cm) between an occupant’s chest and the driver airbag module.
WARNING:Never place your arm over the airbag module as a
deploying airbag can result in serious arm fractures or other
injuries.
Steps you can take to properly position yourself away from the airbag:
•Move your seat to the rear as far as you can while still reaching the
pedals comfortably.
•Recline the seat slightly (one or two degrees) from the upright
position.
Seating and Safety Restraints
159
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

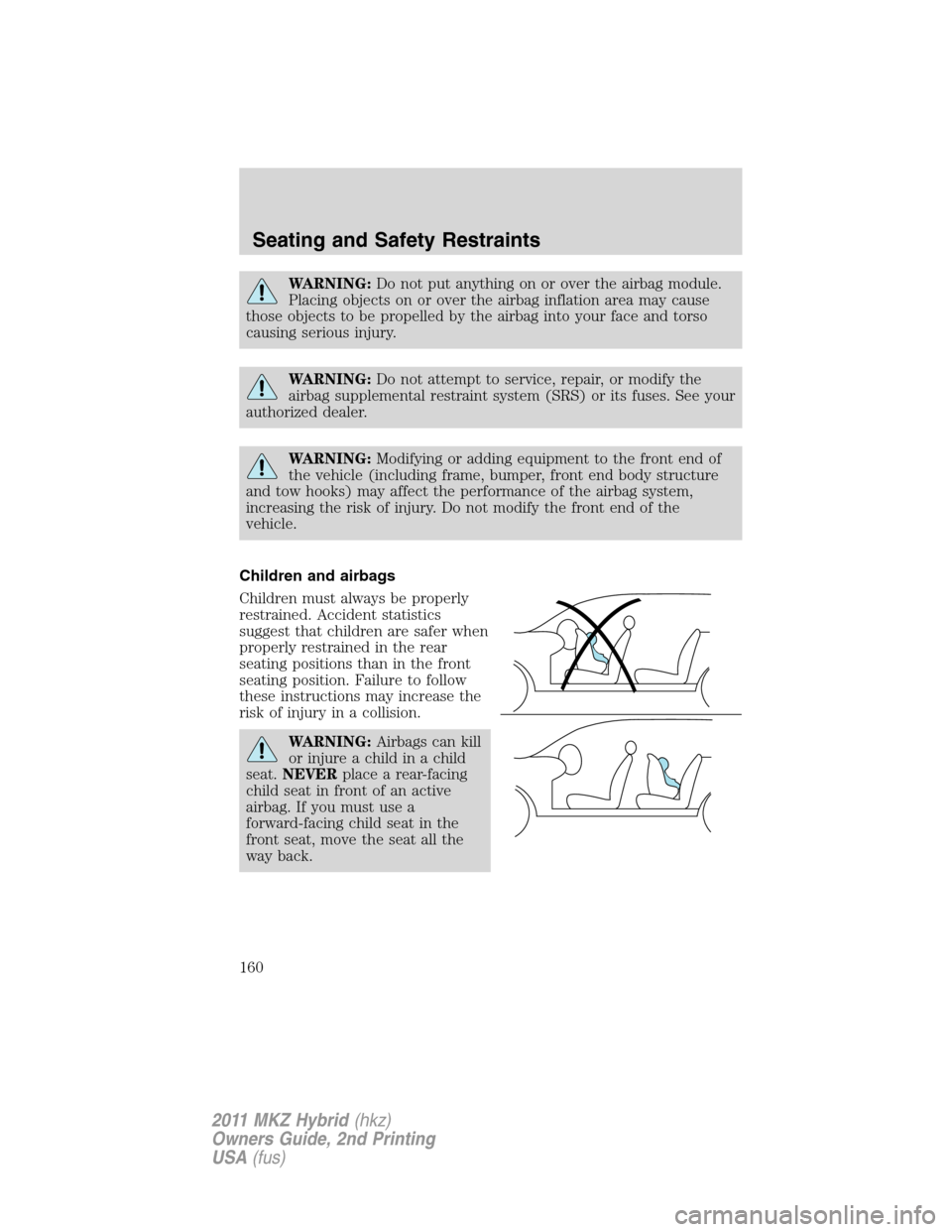

WARNING:Do not put anything on or over the airbag module.
Placing objects on or over the airbag inflation area may cause
those objects to be propelled by the airbag into your face and torso
causing serious injury.
WARNING:Do not attempt to service, repair, or modify the
airbag supplemental restraint system (SRS) or its fuses. See your
authorized dealer.
WARNING:Modifying or adding equipment to the front end of
the vehicle (including frame, bumper, front end body structure
and tow hooks) may affect the performance of the airbag system,
increasing the risk of injury. Do not modify the front end of the
vehicle.
Children and airbags
Children must always be properly
restrained. Accident statistics
suggest that children are safer when
properly restrained in the rear
seating positions than in the front
seating position. Failure to follow
these instructions may increase the
risk of injury in a collision.
WARNING:Airbags can kill
or injure a child in a child
seat.NEVERplace a rear-facing
child seat in front of an active
airbag. If you must use a
forward-facing child seat in the
front seat, move the seat all the
way back.
Seating and Safety Restraints
160
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)
