LINCOLN MKZ HYBRID 2011 User Guide

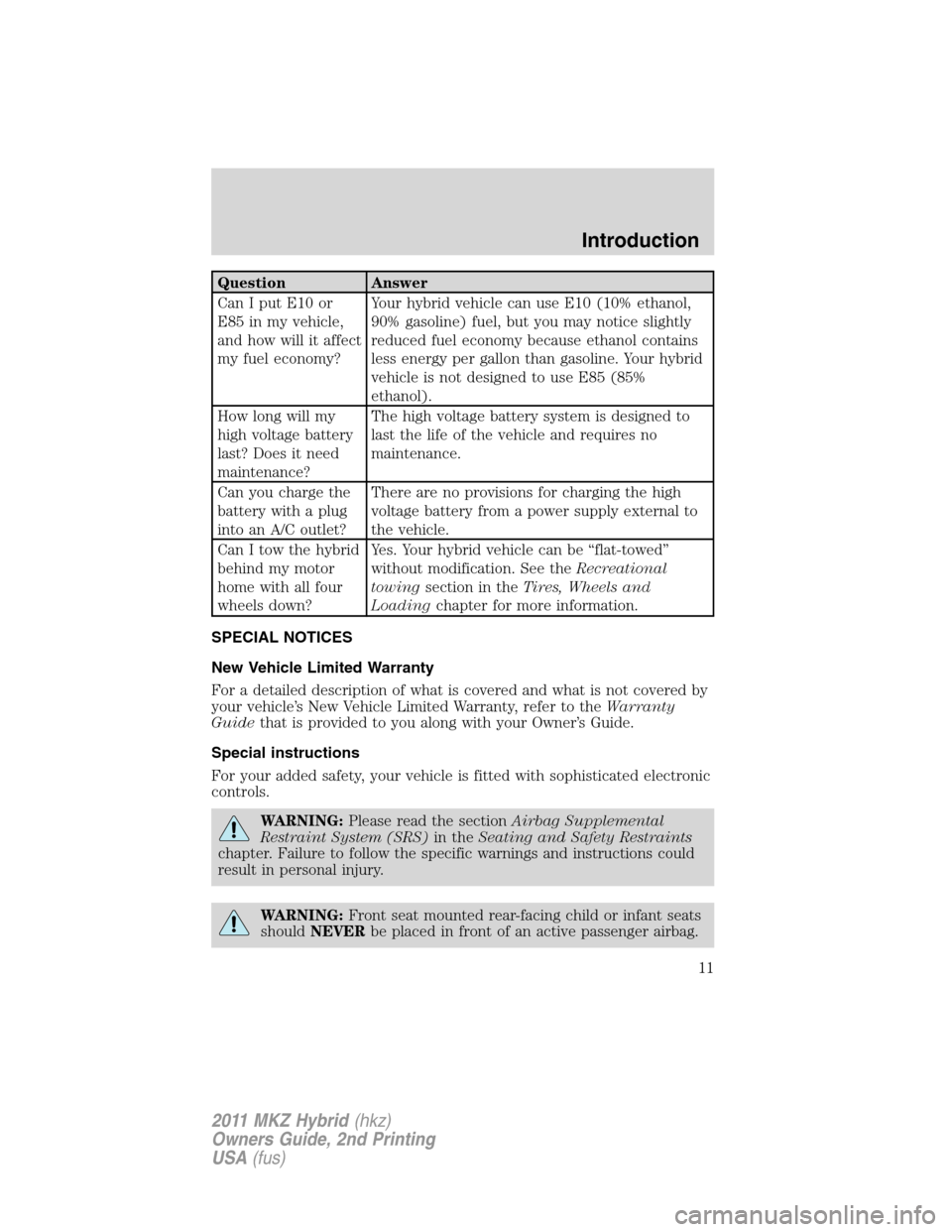

Question Answer
Can I put E10 or
E85 in my vehicle,
and how will it affect
my fuel economy?Your hybrid vehicle can use E10 (10% ethanol,
90% gasoline) fuel, but you may notice slightly
reduced fuel economy because ethanol contains
less energy per gallon than gasoline. Your hybrid
vehicle is not designed to use E85 (85%
ethanol).
How long will my
high voltage battery
last? Does it need
maintenance?The high voltage battery system is designed to
last the life of the vehicle and requires no
maintenance.
Can you charge the
battery with a plug
into an A/C outlet?There are no provisions for charging the high
voltage battery from a power supply external to
the vehicle.
Can I tow the hybrid
behind my motor
home with all four
wheels down?Yes. Your hybrid vehicle can be “flat-towed”
without modification. See theRecreational
towingsection in theTires, Wheels and
Loadingchapter for more information.
SPECIAL NOTICES
New Vehicle Limited Warranty
For a detailed description of what is covered and what is not covered by
your vehicle’s New Vehicle Limited Warranty, refer to theWarranty
Guidethat is provided to you along with your Owner’s Guide.
Special instructions
For your added safety, your vehicle is fitted with sophisticated electronic
controls.
WARNING:Please read the sectionAirbag Supplemental
Restraint System (SRS)in theSeating and Safety Restraints
chapter. Failure to follow the specific warnings and instructions could
result in personal injury.
WARNING:Front seat mounted rear-facing child or infant seats
shouldNEVERbe placed in front of an active passenger airbag.
Introduction
11
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

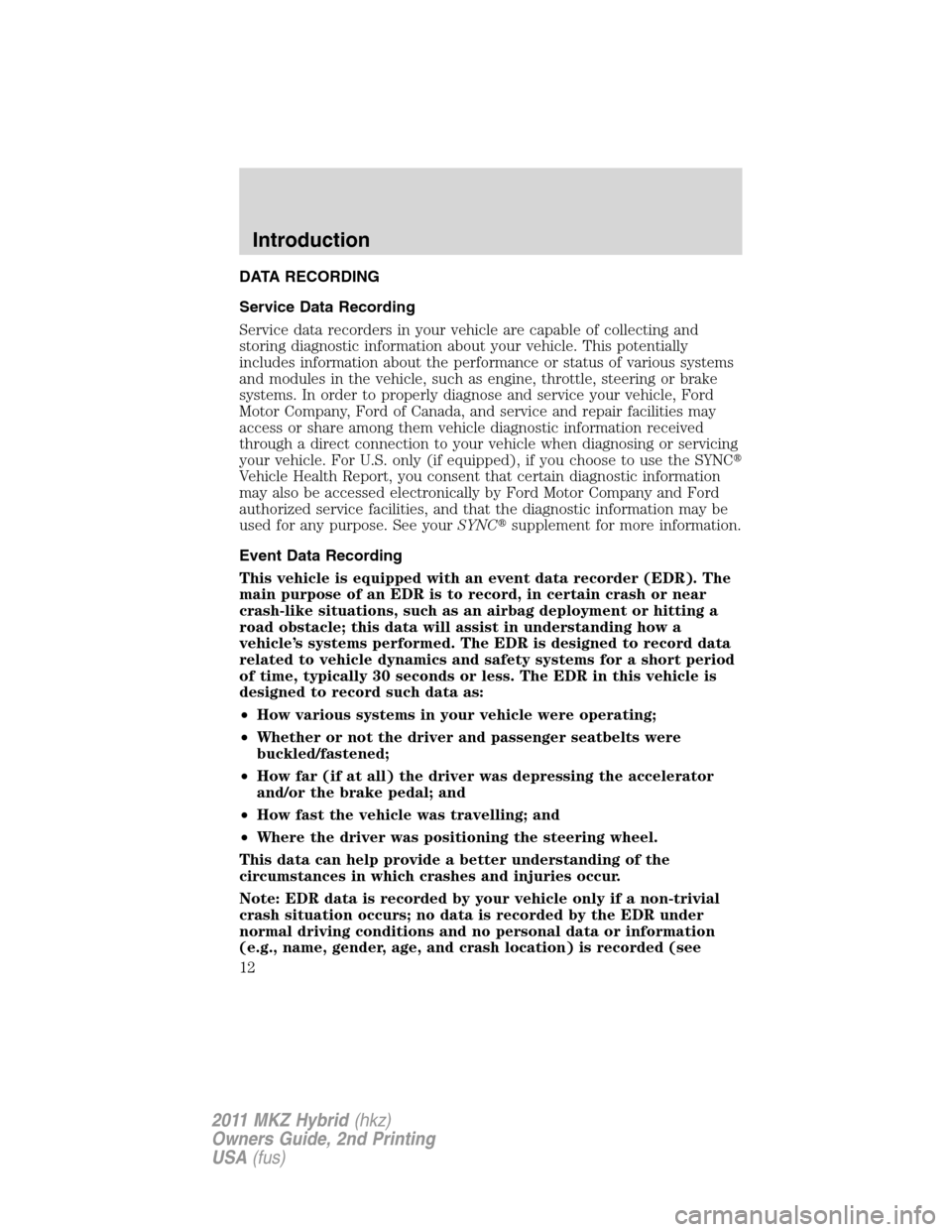

DATA RECORDING
Service Data Recording
Service data recorders in your vehicle are capable of collecting and
storing diagnostic information about your vehicle. This potentially
includes information about the performance or status of various systems
and modules in the vehicle, such as engine, throttle, steering or brake
systems. In order to properly diagnose and service your vehicle, Ford
Motor Company, Ford of Canada, and service and repair facilities may
access or share among them vehicle diagnostic information received
through a direct connection to your vehicle when diagnosing or servicing
your vehicle. For U.S. only (if equipped), if you choose to use the SYNC
Vehicle Health Report, you consent that certain diagnostic information
may also be accessed electronically by Ford Motor Company and Ford
authorized service facilities, and that the diagnostic information may be
used for any purpose. See yourSYNCsupplement for more information.
Event Data Recording
This vehicle is equipped with an event data recorder (EDR). The
main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an airbag deployment or hitting a
road obstacle; this data will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data
related to vehicle dynamics and safety systems for a short period
of time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
•How various systems in your vehicle were operating;
•Whether or not the driver and passenger seatbelts were
buckled/fastened;
•How far (if at all) the driver was depressing the accelerator
and/or the brake pedal; and
•How fast the vehicle was travelling; and
•Where the driver was positioning the steering wheel.
This data can help provide a better understanding of the
circumstances in which crashes and injuries occur.
Note: EDR data is recorded by your vehicle only if a non-trivial
crash situation occurs; no data is recorded by the EDR under
normal driving conditions and no personal data or information
(e.g., name, gender, age, and crash location) is recorded (see
Introduction
12
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

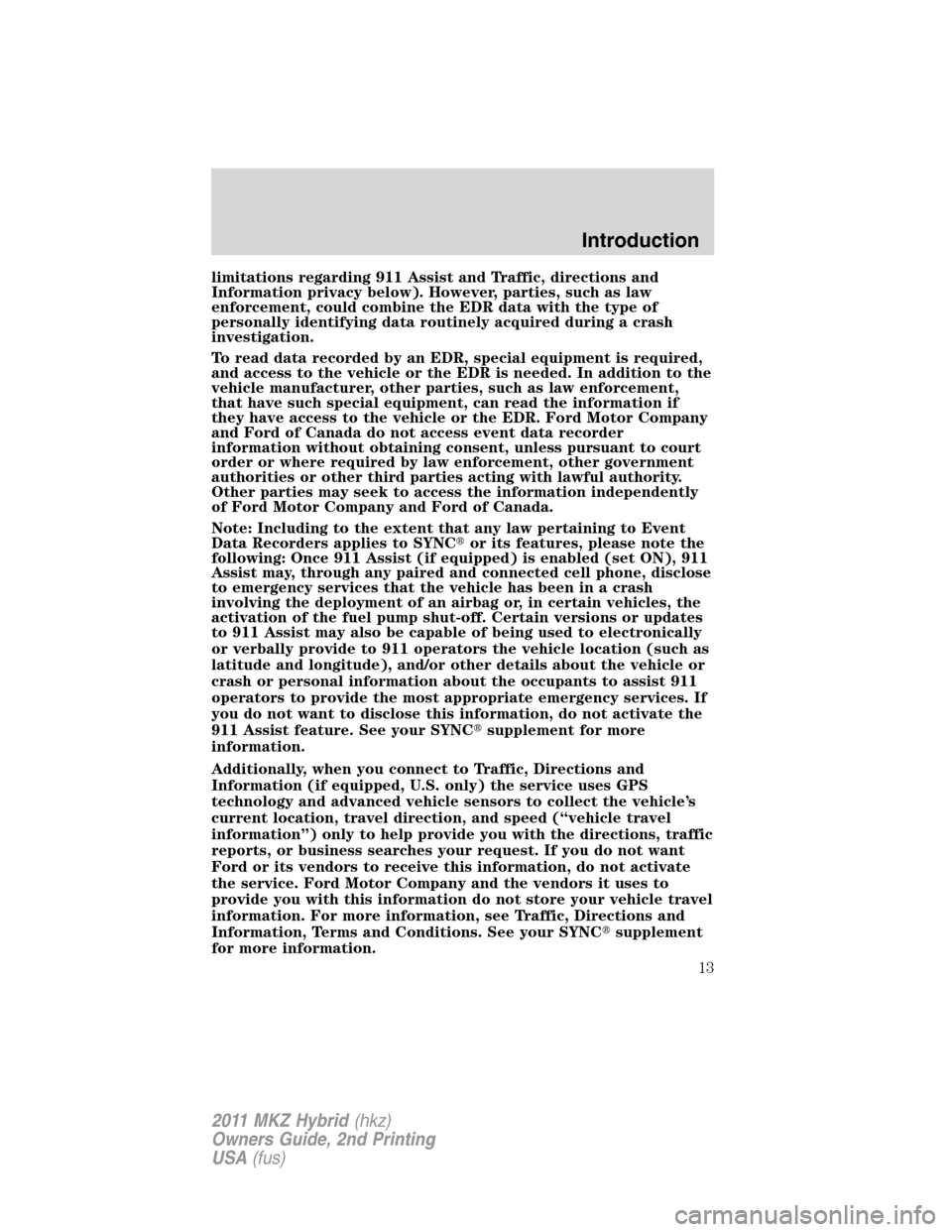

limitations regarding 911 Assist and Traffic, directions and
Information privacy below). However, parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an EDR, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement,
that have such special equipment, can read the information if
they have access to the vehicle or the EDR. Ford Motor Company
and Ford of Canada do not access event data recorder
information without obtaining consent, unless pursuant to court
order or where required by law enforcement, other government
authorities or other third parties acting with lawful authority.
Other parties may seek to access the information independently
of Ford Motor Company and Ford of Canada.
Note: Including to the extent that any law pertaining to Event
Data Recorders applies to SYNCor its features, please note the
following: Once 911 Assist (if equipped) is enabled (set ON), 911
Assist may, through any paired and connected cell phone, disclose
to emergency services that the vehicle has been in a crash
involving the deployment of an airbag or, in certain vehicles, the
activation of the fuel pump shut-off. Certain versions or updates
to 911 Assist may also be capable of being used to electronically
or verbally provide to 911 operators the vehicle location (such as
latitude and longitude), and/or other details about the vehicle or
crash or personal information about the occupants to assist 911
operators to provide the most appropriate emergency services. If
you do not want to disclose this information, do not activate the
911 Assist feature. See your SYNCsupplement for more
information.
Additionally, when you connect to Traffic, Directions and
Information (if equipped, U.S. only) the service uses GPS
technology and advanced vehicle sensors to collect the vehicle’s
current location, travel direction, and speed (“vehicle travel
information”) only to help provide you with the directions, traffic
reports, or business searches your request. If you do not want
Ford or its vendors to receive this information, do not activate
the service. Ford Motor Company and the vendors it uses to
provide you with this information do not store your vehicle travel
information. For more information, see Traffic, Directions and
Information, Terms and Conditions. See your SYNCsupplement
for more information.
Introduction
13
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

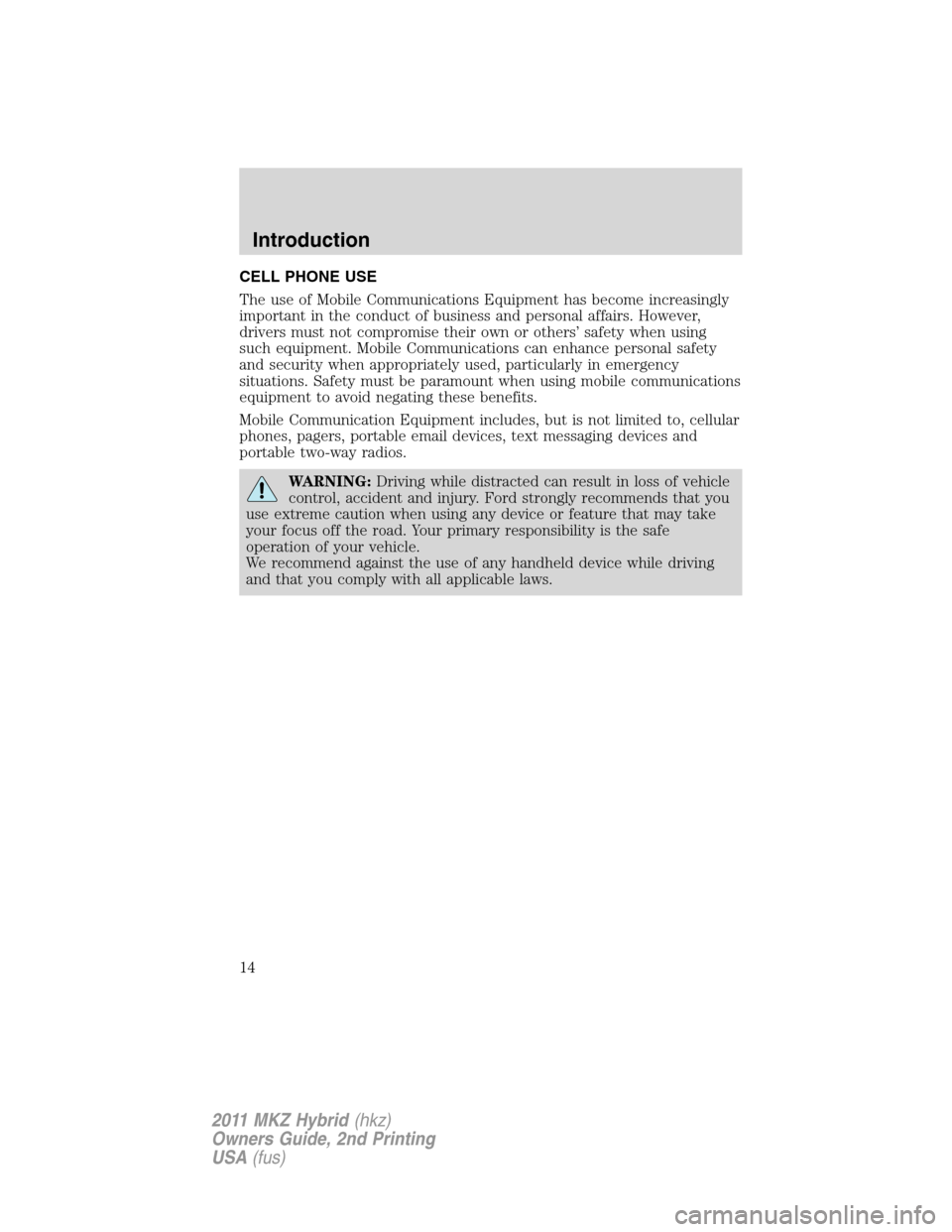

CELL PHONE USE
The use of Mobile Communications Equipment has become increasingly
important in the conduct of business and personal affairs. However,
drivers must not compromise their own or others’ safety when using
such equipment. Mobile Communications can enhance personal safety
and security when appropriately used, particularly in emergency
situations. Safety must be paramount when using mobile communications
equipment to avoid negating these benefits.
Mobile Communication Equipment includes, but is not limited to, cellular
phones, pagers, portable email devices, text messaging devices and
portable two-way radios.
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe
operation of your vehicle.
We recommend against the use of any handheld device while driving
and that you comply with all applicable laws.
Introduction
14
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

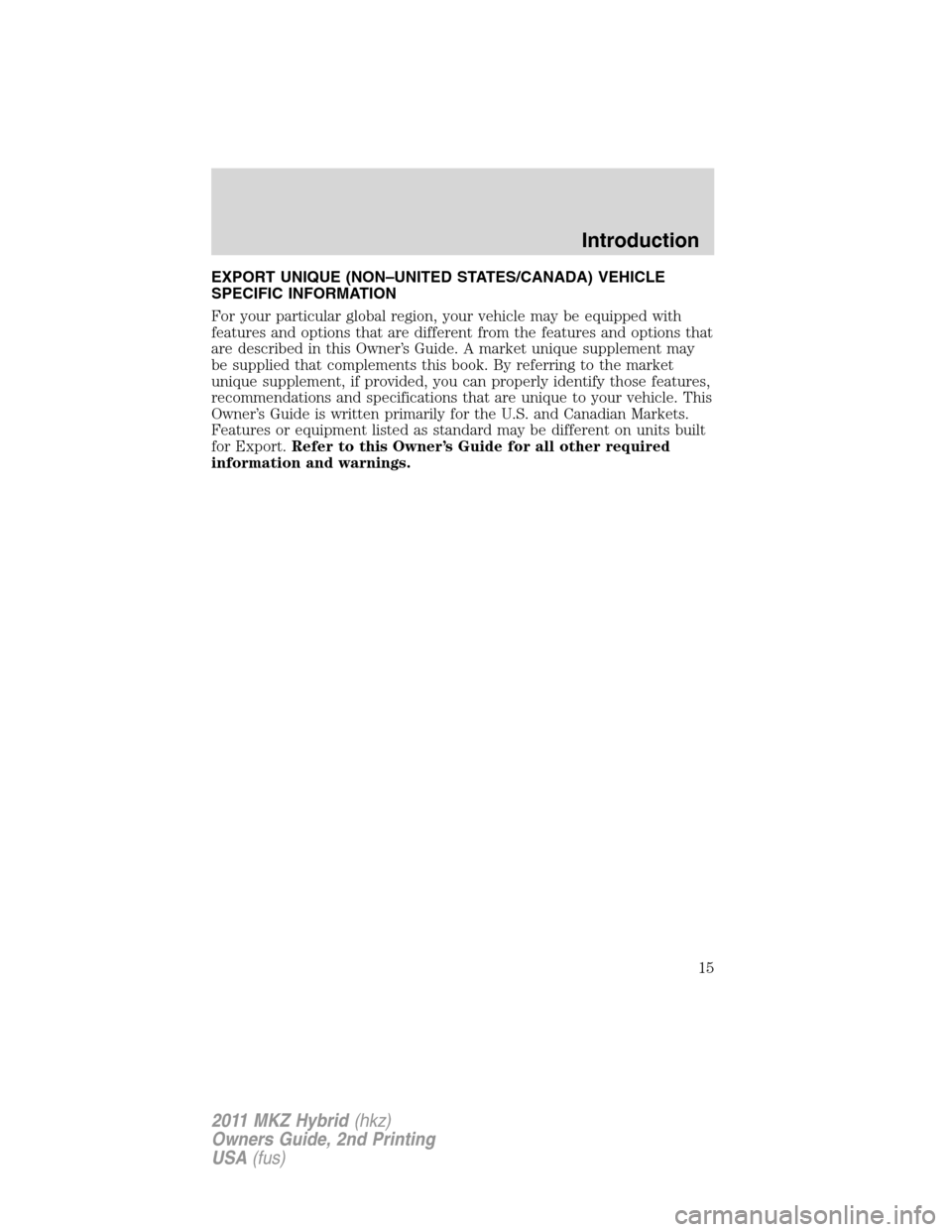

EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE
SPECIFIC INFORMATION
For your particular global region, your vehicle may be equipped with
features and options that are different from the features and options that
are described in this Owner’s Guide. A market unique supplement may
be supplied that complements this book. By referring to the market
unique supplement, if provided, you can properly identify those features,
recommendations and specifications that are unique to your vehicle. This
Owner’s Guide is written primarily for the U.S. and Canadian Markets.
Features or equipment listed as standard may be different on units built
for Export.Refer to this Owner’s Guide for all other required
information and warnings.
Introduction
15
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

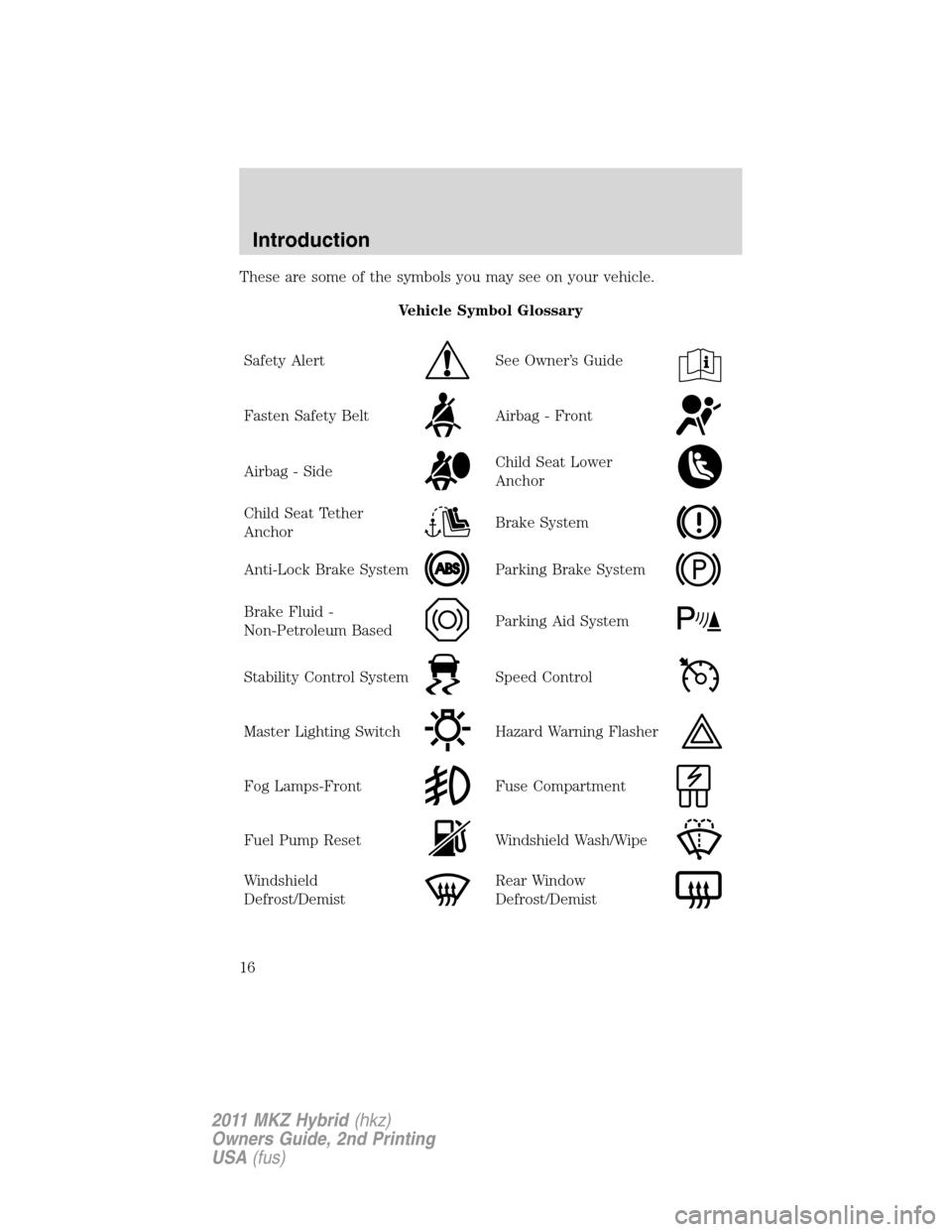

These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAirbag - Front
Airbag - SideChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemParking Brake System
Brake Fluid -
Non-Petroleum BasedParking Aid System
Stability Control SystemSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
Introduction
16
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

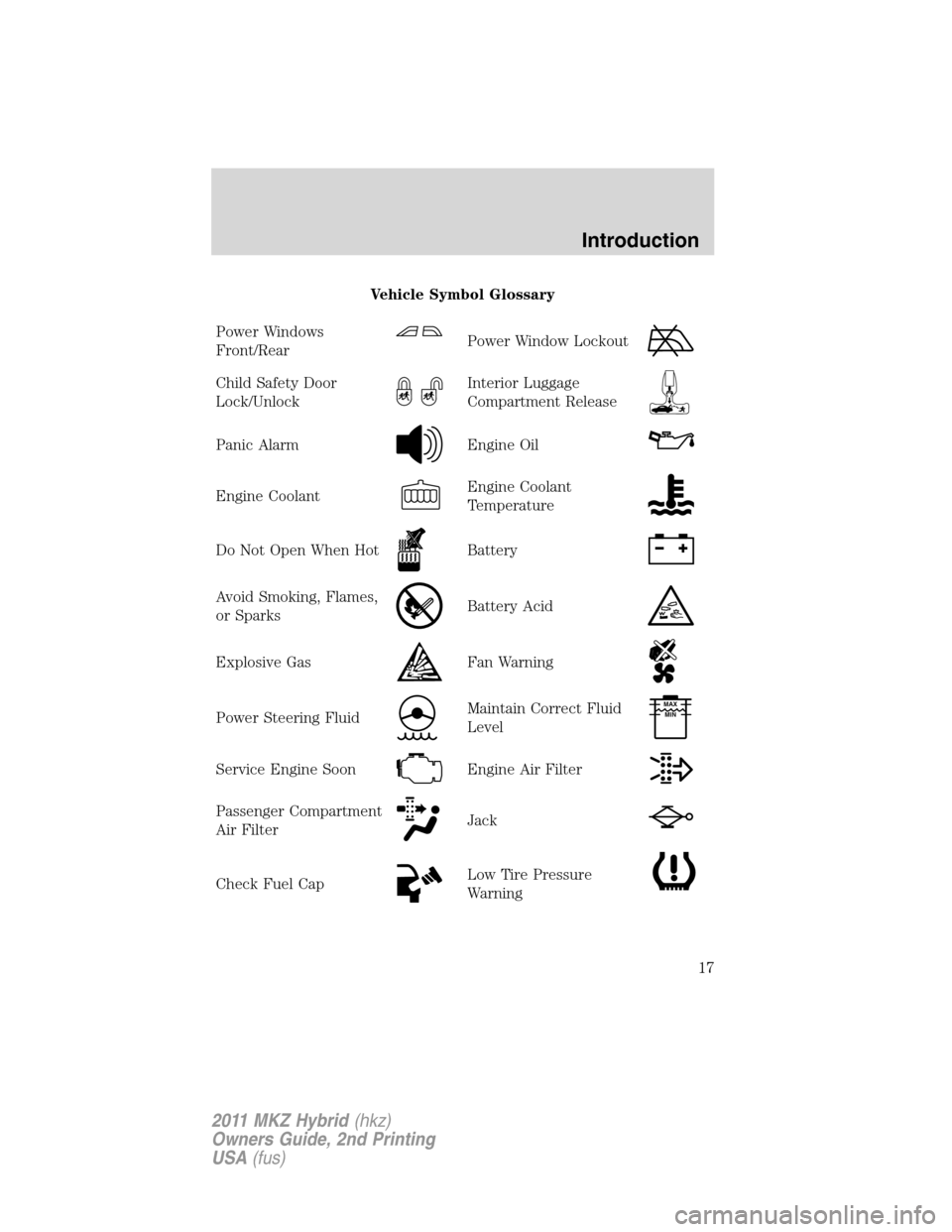

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
17
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

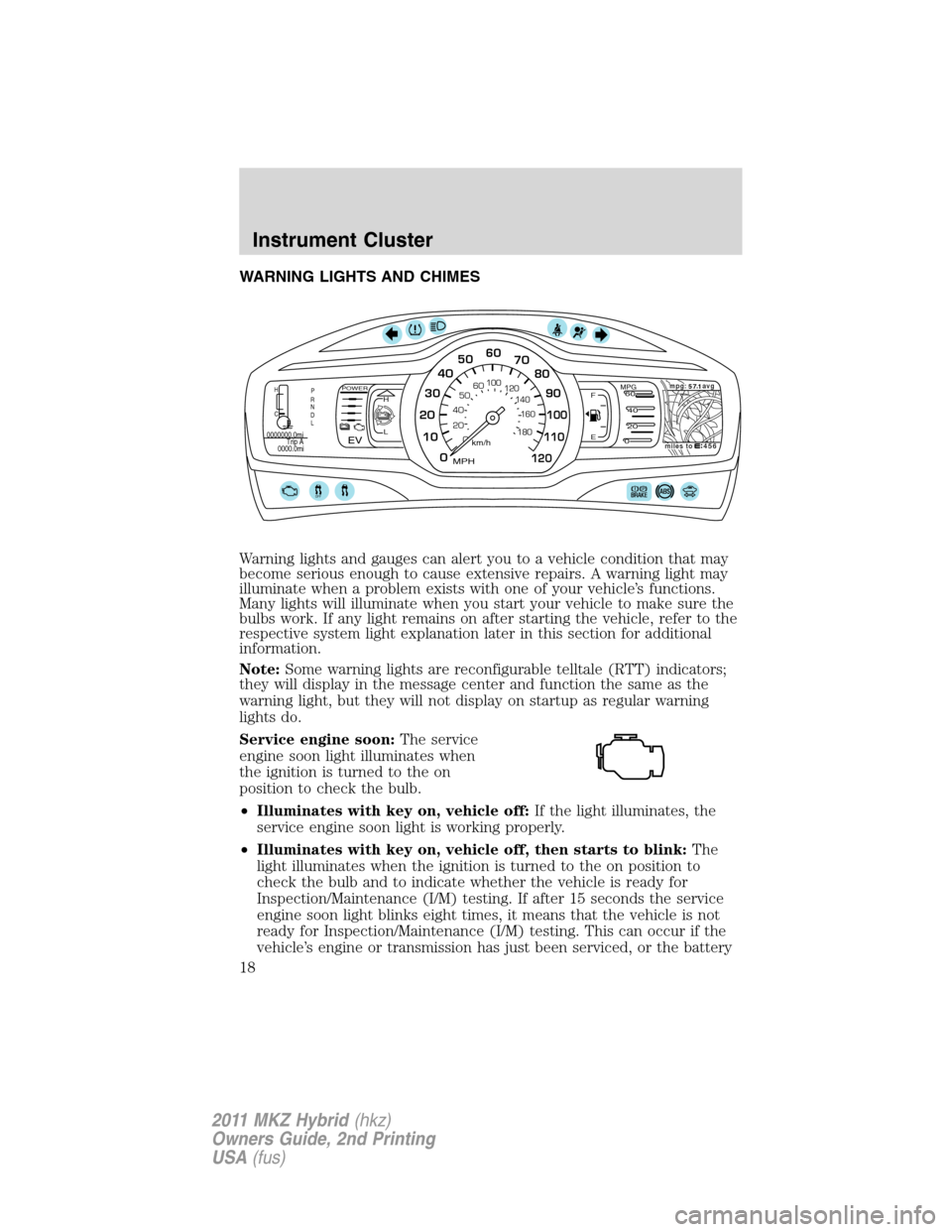

WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause extensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulbs work. If any light remains on after starting the vehicle, refer to the
respective system light explanation later in this section for additional
information.
Note:Some warning lights are reconfigurable telltale (RTT) indicators;
they will display in the message center and function the same as the
warning light, but they will not display on startup as regular warning
lights do.
Service engine soon:The service
engine soon light illuminates when
the ignition is turned to the on
position to check the bulb.
•Illuminates with key on, vehicle off:If the light illuminates, the
service engine soon light is working properly.
•Illuminates with key on, vehicle off, then starts to blink:The
light illuminates when the ignition is turned to the on position to
check the bulb and to indicate whether the vehicle is ready for
Inspection/Maintenance (I/M) testing. If after 15 seconds the service
engine soon light blinks eight times, it means that the vehicle is not
ready for Inspection/Maintenance (I/M) testing. This can occur if the
vehicle’s engine or transmission has just been serviced, or the battery
OFF
456miles tompg:avg
57 1.H
C
0000000.0mi
0000.0miTrip A
P
R
N
D
L
0
0 20 405060
100
120
140
160
180
10 2030405060
70
80
90
100
110
120
km/h
MPH
F
EMPG60
40
20
0H
LPOWER
EV
Instrument Cluster
18
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

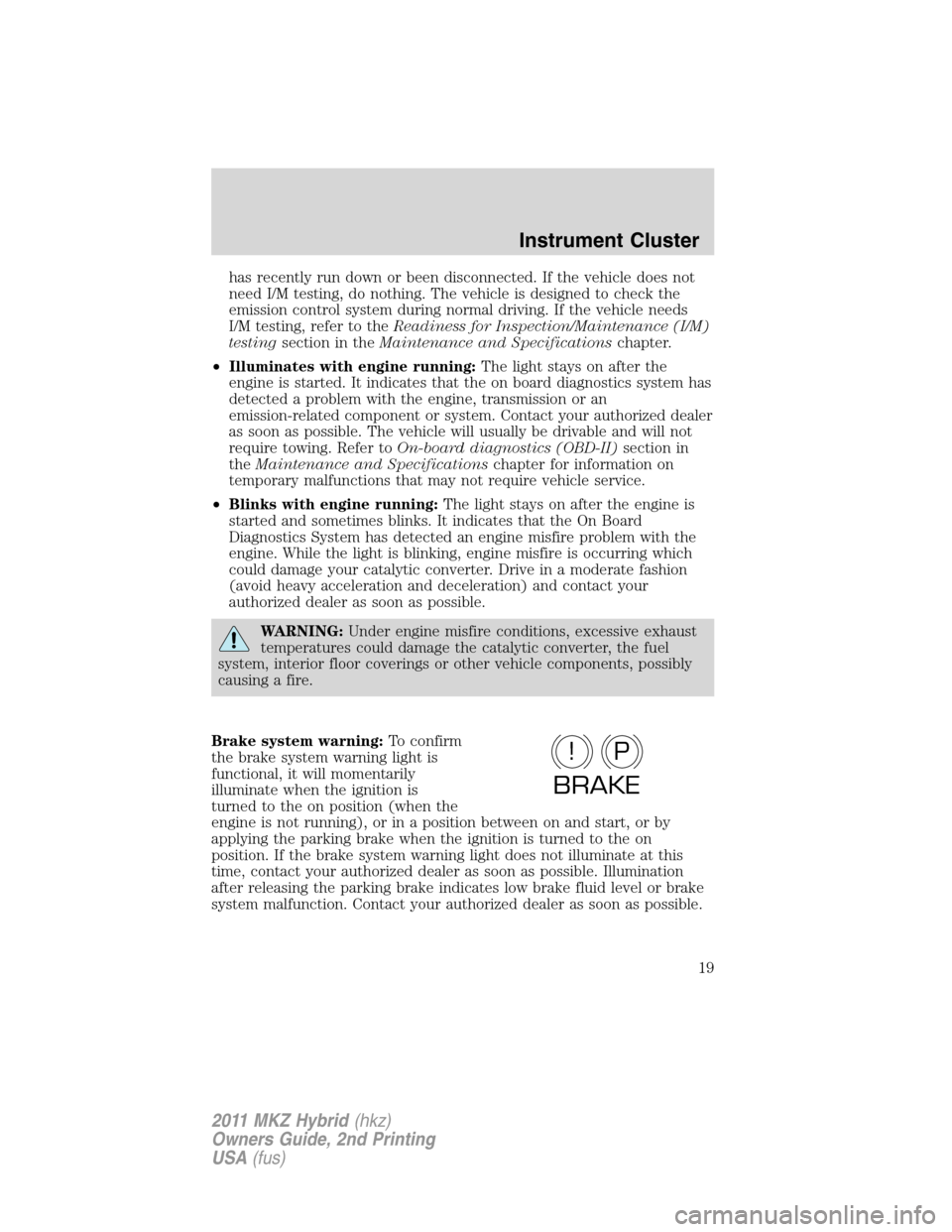

has recently run down or been disconnected. If the vehicle does not
need I/M testing, do nothing. The vehicle is designed to check the
emission control system during normal driving. If the vehicle needs
I/M testing, refer to theReadiness for Inspection/Maintenance (I/M)
testingsection in theMaintenance and Specificationschapter.
•Illuminates with engine running:The light stays on after the
engine is started. It indicates that the on board diagnostics system has
detected a problem with the engine, transmission or an
emission-related component or system. Contact your authorized dealer
as soon as possible. The vehicle will usually be drivable and will not
require towing. Refer toOn-board diagnostics (OBD-II)section in
theMaintenance and Specificationschapter for information on
temporary malfunctions that may not require vehicle service.
•Blinks with engine running:The light stays on after the engine is
started and sometimes blinks. It indicates that the On Board
Diagnostics System has detected an engine misfire problem with the
engine. While the light is blinking, engine misfire is occurring which
could damage your catalytic converter. Drive in a moderate fashion
(avoid heavy acceleration and deceleration) and contact your
authorized dealer as soon as possible.
WARNING:Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel
system, interior floor coverings or other vehicle components, possibly
causing a fire.
Brake system warning:To confirm
the brake system warning light is
functional, it will momentarily
illuminate when the ignition is
turned to the on position (when the
engine is not running), or in a position between on and start, or by
applying the parking brake when the ignition is turned to the on
position. If the brake system warning light does not illuminate at this
time, contact your authorized dealer as soon as possible. Illumination
after releasing the parking brake indicates low brake fluid level or brake
system malfunction. Contact your authorized dealer as soon as possible.
P!
BRAKE
Instrument Cluster
19
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

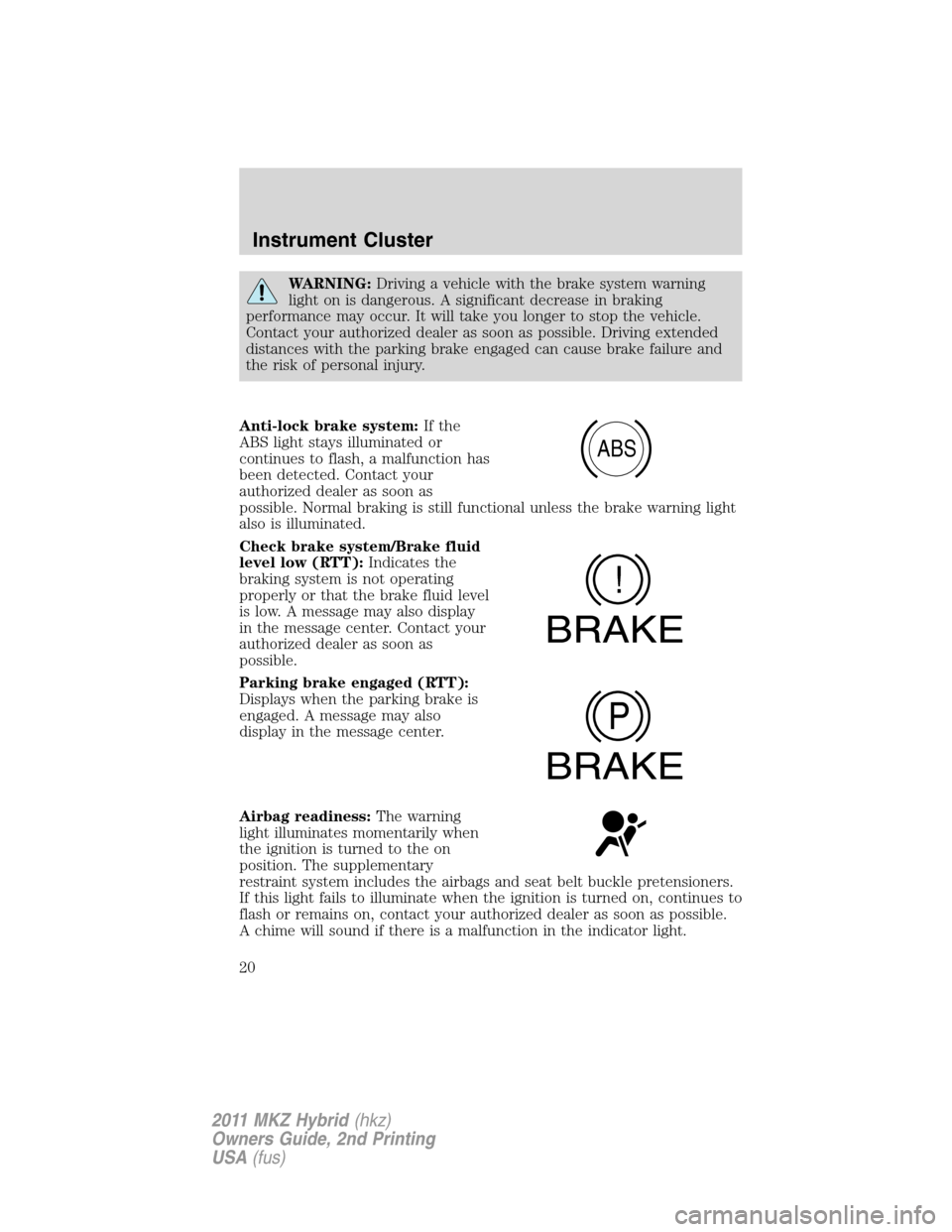

WARNING:Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking
performance may occur. It will take you longer to stop the vehicle.
Contact your authorized dealer as soon as possible. Driving extended
distances with the parking brake engaged can cause brake failure and
the risk of personal injury.
Anti-lock brake system:If the
ABS light stays illuminated or
continues to flash, a malfunction has
been detected. Contact your
authorized dealer as soon as
possible. Normal braking is still functional unless the brake warning light
also is illuminated.
Check brake system/Brake fluid
level low (RTT):Indicates the
braking system is not operating
properly or that the brake fluid level
is low. A message may also display
in the message center. Contact your
authorized dealer as soon as
possible.
Parking brake engaged (RTT):
Displays when the parking brake is
engaged. A message may also
display in the message center.
Airbag readiness:The warning
light illuminates momentarily when
the ignition is turned to the on
position. The supplementary
restraint system includes the airbags and seat belt buckle pretensioners.
If this light fails to illuminate when the ignition is turned on, continues to
flash or remains on, contact your authorized dealer as soon as possible.
A chime will sound if there is a malfunction in the indicator light.
ABS
!
BRAKE
P
BRAKE
Instrument Cluster
20
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)
