LINCOLN MKZ HYBRID 2011 Owner's Manual

Safety belt:The warning light
illuminates momentarily when the
ignition is turned to the on position.
Illuminates to remind you to fasten
your safety belt. A Belt-Minder
chime will also sound to remind you to fasten your safety belt. Refer to
theSeating and Safety Restraintschapter to activate/deactivate the
Belt-Minderchime feature.
Stop safely hazard warning
(RTT):Indicates Hybrid component
fault/failure that will cause the
vehicle to shutdown, fail to start or
enter into a limited operating mode. A message may also display in the
message center.
Note: If the vehicle is still running, the vehicle may soon
shutdown without further warning and should be stopped safely.
If this lamp is lit, stop the vehicle, shift to P (Park), turn the key to the
off position, and attempt to restart the vehicle. If the fault remains, the
vehicle may require refueling, jump starting or service. For information
regarding the low-voltage (12–volt) battery only, please refer toJump
starting (low voltage [underhood] battery only)in theRoadside
Emergencieschapter.
Ready to drive:Illuminates once
the vehicle has successfully started
and will remain lit throughout the
drive. Indicates the vehicle is ready
to drive even when you don’t hear
the gasoline engine running.
Ready to drive (RTT):Illuminates
briefly once the vehicle has
successfully started. Indicates that
the vehicle is ready to drive even
when you don’t hear the gasoline
engine running.
Charging system (RTT):
Illuminates when the low-voltage
(12-volt) battery is not charging
properly. The message center
displays CHECK CHARGING SYSTEM. If it stays on while the vehicle is
running (Ready to drive indicator is illuminated), there may be a
Instrument Cluster
21
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

malfunction with the charging system. Contact your authorized dealer as
soon as possible. This indicates a problem with the electrical system or a
related component.
Engine oil pressure (RTT):
Illuminates when the oil pressure
falls below the normal range. The
message center displays LOW OIL
PRESSURE when the engine oil level is low. Check the oil level and add
oil if needed. If the warning light or message stays on, even though the
oil level is correct, do not start the engine and contact your authorized
dealer as soon as possible. This indicates a problem with the engine or a
related component. Refer toEngine oilin theMaintenance and
Specificationschapter.
High engine or high motor
electronic coolant temperature
(RTT):Illuminates when the engine
coolant or motor electronics coolant temperature is high. The message
center displays HIGH ENGINE TEMPERATURE / HIGH MOTOR
TEMPERATURE when the engine coolant or motor electronics are
overheating. Stop the vehicle as soon as safely possible, turn off the
engine, and let it cool. Check the coolant and coolant level. If the light
and message stays on or continues to turn on after the vehicle warms
up, contact your authorized dealer as soon as possible. Continuing to
drive with an overheated engine can cause serious engine damage. This
indicates a problem with the engine or a related component. Refer to
Engine coolant and motor/electronics coolantin theMaintenance
and Specificationschapter.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
AdvanceTrac:Illuminates when
AdvanceTracis active. If the light
remains on, contact your authorized
dealer as soon as possible. Refer to
theDrivingchapter for more
information.
Instrument Cluster
22
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

AdvanceTracoff:Illuminates when
AdvanceTrachas been disabled by
the driver. Refer to theDriving
chapter for more information.
Low tire pressure warning:
Illuminates to warn you when your
tire pressure is low. If the telltale
remains on solid at start up or while
driving, the tire pressure should be
checked. The message center will also display LOW TIRE PRESSURE
when one or more tires on your vehicle have low tire pressure.
The telltale can also warn you when the system is malfunctioning. If the
telltale begins to flash, when the ignition is first turned on or while
driving, contact your authorized dealer as soon as possible. The message
center will also display TIRE PRESSURE SENSOR FAULT or TIRE
PRESSURE MONITOR FAULT when the system is malfunctioning.
Please note that if your spare tire is in use, the damaged road tire must
be re-installed on your vehicle to restore system functionality. For more
information on this system, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter.
Low fuel (RTT):Displays when
the fuel level in the fuel tank is at
or near empty. The fuel gage will
turn yellow and then red depending
on fuel level. A message may also display in the message center. Refer to
Fuel gaugein this chapter.
Speed control (RTT):The speed
control system indicator light
changes color to indicate what mode
the system is in:
•On (amber light):Illuminates
when the speed control system is turned on. Turns off when the speed
control system is engaged or turned off.
•Engaged (green light):Illuminates when the speed control system is
engaged. Turns off when the speed control system is disengaged.
OFF
Instrument Cluster
23
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

Throttle Control/Powertrain
malfunction (RTT):Illuminates
when a powertrain fault has been
detected. If the indicator stays on or
continues to come on, contact your
authorized dealer as soon as possible.
Door ajar (RTT):Displays when
the ignition is in the on position and
any door is not completely closed. A
message may also display in the
message center.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the off, lock or accessory position and the driver’s door is
opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
Parking brake on warning chime:Sounds when the parking brake is
left on and the vehicle is driven. If the warning stays on after the park
brake is off, contact your authorized dealer as soon as possible.
Turn signal on warning chime:Sounds when the turn signal has been
left on for an extended period of time.
HEV Engine off reminder chime:Sounds for 10 seconds when the
PRNDL is in the P (Park) position and the Driver’s door is ajar (open)
while ignition is on. Always turn your ignition key to off and remove key
before leaving your vehicle. (The engine may be off when the vehicle is
stopped, yet the key is on, and the engine can turn on at any time)
Message center activation chime:Sounds when some messages
appear in the message center display for the first time.
Memory seat feedback chime:Sounds during memory seat
programming to confirm that a memory position has been set.
Perimeter alarm warning chime:Sounds when using a key to unlock
the driver’s doors and the perimeter alarm is armed.
Instrument Cluster
24
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

GAUGES
Your vehicle is equipped with an LCD (liquid crystal display),
reconfigurable instrument cluster. You can choose from four information
levels, and also customize certain options within each level. The
instrument cluster also comes with a demo mode and tutorial feature to
demonstrate the four instrument cluster levels. Refer toMessage center
in the this chapter to choose the display level you’d like and to use the
demo and tutorial modes.
Inform instrument cluster
(standard cluster shown, metric similar)
The simplest of cluster displays.
F
EH
L
OFF
456miles tompg:avg
57 1.H
C
0000000.0mi
0000.0miTrip A
P
R
N
D
L
0
0 20 405060
100
120
140
160
180
10 2030405060
70
80
90
100
110
120km/h
MPH
Instrument Cluster
25
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

Enlighten instrument cluster
(standard cluster shown, metric similar)
Displays unique hybrid vehicle gauges, along with many of the familiar
gauges from a conventional gasoline vehicle.
456miles tompg:avg
57 1.H
C
0000000.0mi
0000.0miTrip A
P
R
N
D
L
0
0 20 405060
100
120
140
160
180
10 2030405060
70
80
90
100
110
120
km/h
MPH
F
EMPG60
40
20
0
RPMx10000246
OFF
Instrument Cluster
26
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

Engage instrument cluster
(standard cluster shown, metric similar)
The next step in hybrid vehicle information, including innovative
information displays intended to educate the driver about the hybrid
system.
456miles tompg:avg
57 1.H
C
0000000.0mi
0000.0miTrip A
P
R
N
D
L
0
0 20 405060
100
120
140
160
180
10 2030405060
70
80
90
100
110
120
km/h
MPH
F
EMPG60
0H
LPOWER
EV
4
0
2
0
OFF
Instrument Cluster
27
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

Empower instrument cluster
(standard cluster shown, metric similar)
The most information-rich display, with gauges designed to allow drivers
to decide for themselves what driving behavior is most efficient at any
given moment.
Speedometer:Indicates the
current vehicle speed.
456miles tompg:avg
57 1.H
C
0000000.0mi
0000.0miTrip A
P
R
N
D
L
0
0 20 405060
100
120
140
160
180
10 2030405060
70
80
90
100
110
120
km/h
MPH
H
LACCPWR
EV
F
EMPG60
40
20
0
OFF
0
0 20 405060
100
120
140
160
180
10 2030405060
70
80
90
100
110
120
km/h
MPH
Instrument Cluster
28
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

Engine coolant temperature
gauge:Indicates engine coolant
temperature. At normal operating
temperature, the level indicator will
be blue and will be in the normal
range (between “H” and “C”). If the
engine coolant temperature exceeds
the normal range, the level indicator
will change to red to indicate that
the engine is overheating. Stop the
vehicle as soon as safely possible,
switch off the engine and let the engine cool.
Empower instrument cluster level only:The
indicator next to the
gauge will illuminate in green or white to indicate the following:
•
Indicator white: This indicates that the hybrid system is not
warm enough to allow operation in electric vehicle mode only. The
gasoline engine will run continuously when the indicator is white.
Note:During silent key start mode, the
indicator will be white,
but the gasoline engine will not run. This is a result of the vehicle
computer allowing the engine to be cooler during the silent key start
period. This is normal operation and does not indicate a problem with
your vehicle. After the first engine start, the
indicator will turn
green when the gasoline engine is warm enough to turn off.
•
Indicator green: This indicates that the hybrid system is warm
enough to allow operation in electric vehicle mode.
If the vehicle operates in electric mode long enough, it is possible that
the gasoline engine may need to run to keep the system warm. In this
case, the
indicator will revert back to white.
High-voltage battery information
gauge:The fill level indicates the
amount of energy stored in the
high-voltage battery as a percent of
total energy capacity. The level will
increase and decrease as the battery
charges and discharges during
normal operation, but the hybrid
system will attempt to control the
level to approximately the middle of
the gauge under most driving
conditions.
Instrument Cluster
29
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)

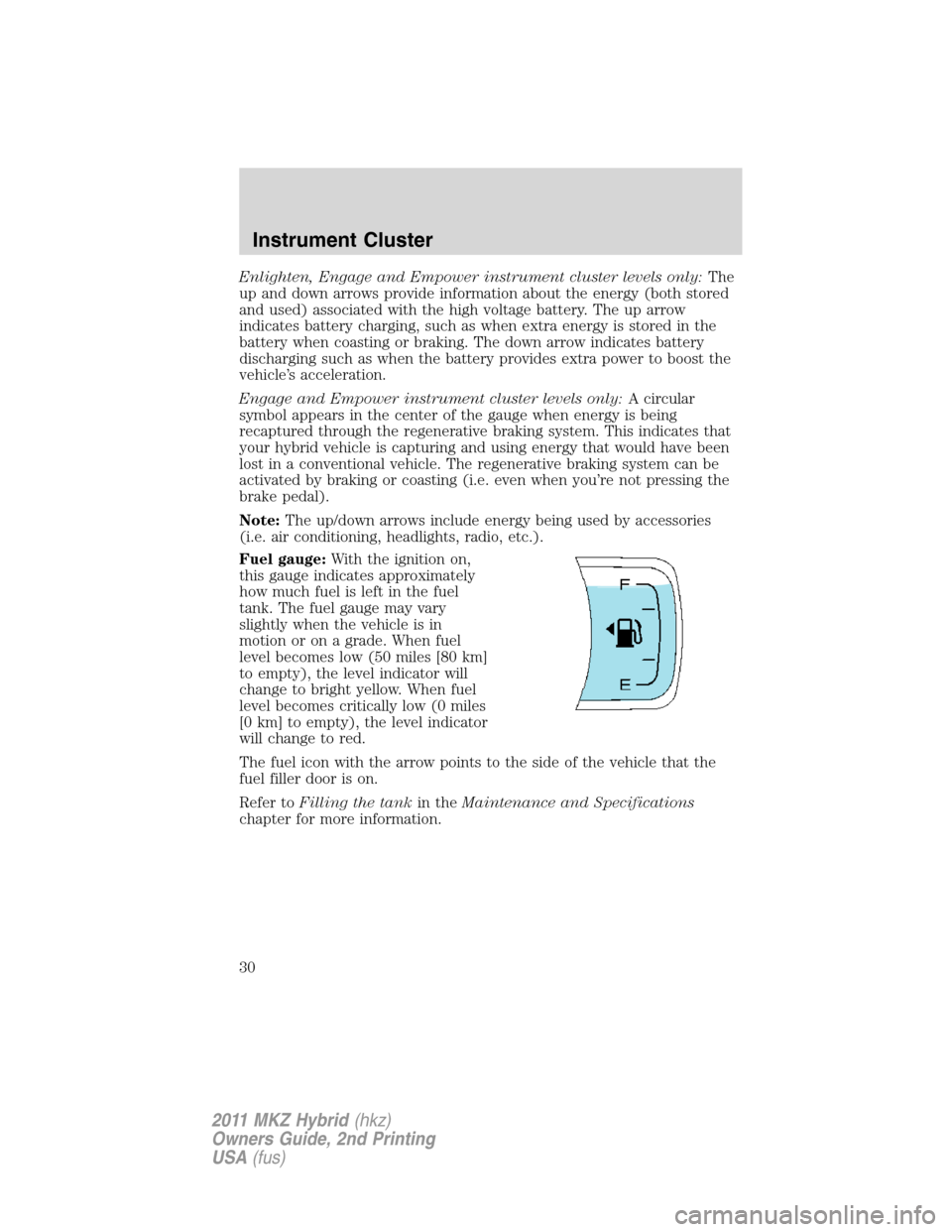

Enlighten, Engage and Empower instrument cluster levels only:The
up and down arrows provide information about the energy (both stored
and used) associated with the high voltage battery. The up arrow
indicates battery charging, such as when extra energy is stored in the
battery when coasting or braking. The down arrow indicates battery
discharging such as when the battery provides extra power to boost the
vehicle’s acceleration.
Engage and Empower instrument cluster levels only:A circular
symbol appears in the center of the gauge when energy is being
recaptured through the regenerative braking system. This indicates that
your hybrid vehicle is capturing and using energy that would have been
lost in a conventional vehicle. The regenerative braking system can be
activated by braking or coasting (i.e. even when you’re not pressing the
brake pedal).
Note:The up/down arrows include energy being used by accessories
(i.e. air conditioning, headlights, radio, etc.).
Fuel gauge:With the ignition on,
this gauge indicates approximately
how much fuel is left in the fuel
tank. The fuel gauge may vary
slightly when the vehicle is in
motion or on a grade. When fuel
level becomes low (50 miles [80 km]
to empty), the level indicator will
change to bright yellow. When fuel
level becomes critically low (0 miles
[0 km] to empty), the level indicator
will change to red.
The fuel icon with the arrow points to the side of the vehicle that the
fuel filler door is on.
Refer toFilling the tankin theMaintenance and Specifications
chapter for more information.
Instrument Cluster
30
2011 MKZ Hybrid(hkz)
Owners Guide, 2nd Printing
USA(fus)
