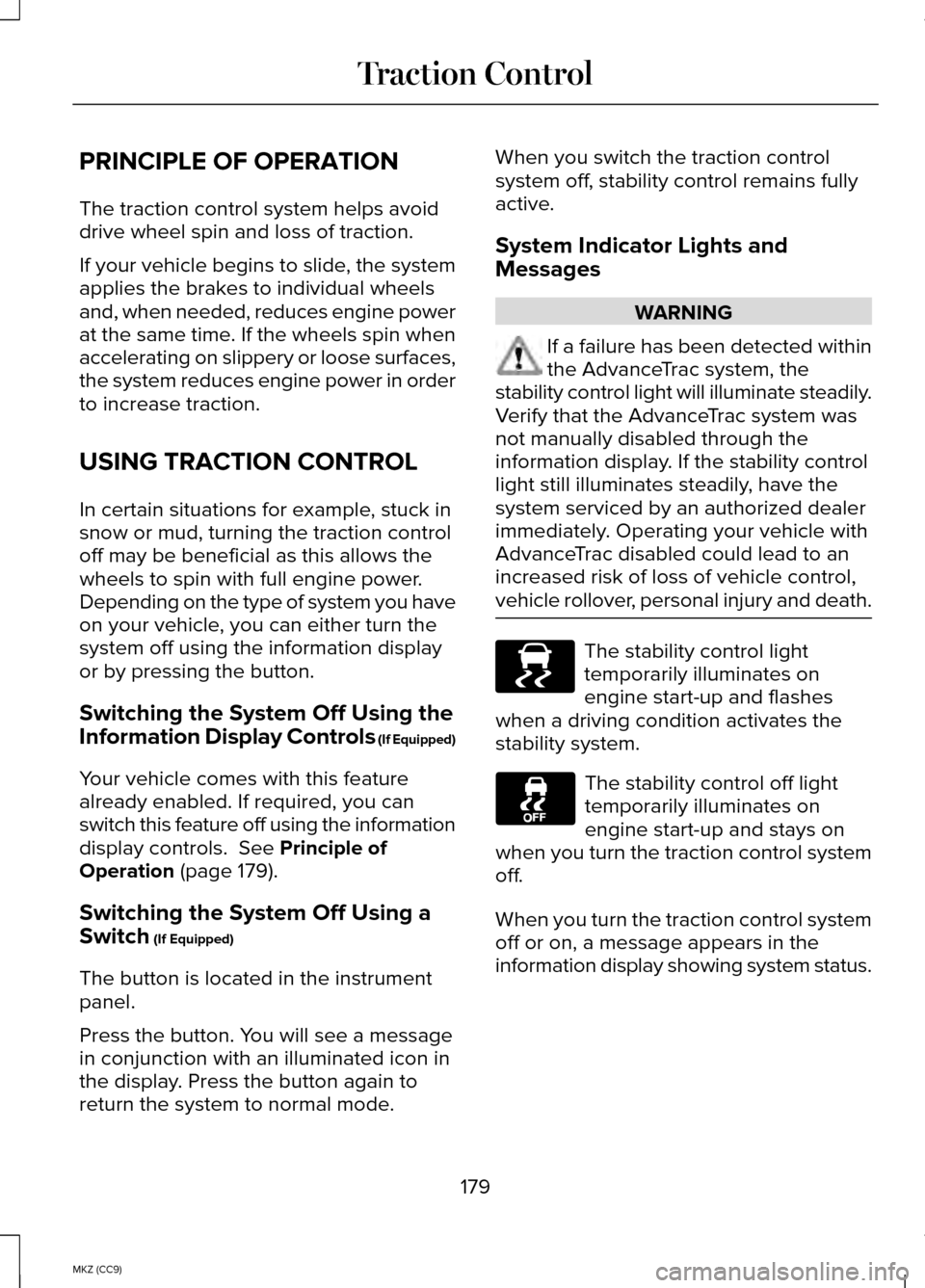

PRINCIPLE OF OPERATION
The traction control system helps avoid
drive wheel spin and loss of traction.
If your vehicle begins to slide, the system
applies the brakes to individual wheels
and, when needed, reduces engine power
at the same time. If the wheels spin when
accelerating on slippery or loose surfaces,
the system reduces engine power in order
to increase traction.
USING TRACTION CONTROL
In certain situations for example, stuck in
snow or mud, turning the traction control
off may be beneficial as this allows the
wheels to spin with full engine power.
Depending on the type of system you have
on your vehicle, you can either turn the
system off using the information display
or by pressing the button.
Switching the System Off Using the
Information Display Controls (If Equipped)
Your vehicle comes with this feature
already enabled. If required, you can
switch this feature off using the information
display controls. See Principle of
Operation (page 179).
Switching the System Off Using a
Switch
(If Equipped)
The button is located in the instrument
panel.
Press the button. You will see a message
in conjunction with an illuminated icon in
the display. Press the button again to
return the system to normal mode. When you switch the traction control
system off, stability control remains fully
active.
System Indicator Lights and
Messages
WARNING
If a failure has been detected within
the AdvanceTrac system, the
stability control light will illuminate steadily.
Verify that the AdvanceTrac system was
not manually disabled through the
information display. If the stability control
light still illuminates steadily, have the
system serviced by an authorized dealer
immediately. Operating your vehicle with
AdvanceTrac disabled could lead to an
increased risk of loss of vehicle control,
vehicle rollover, personal injury and death. The stability control light
temporarily illuminates on
engine start-up and flashes
when a driving condition activates the
stability system. The stability control off light
temporarily illuminates on
engine start-up and stays on
when you turn the traction control system
off.
When you turn the traction control system
off or on, a message appears in the
information display showing system status.
179
MKZ (CC9) Traction ControlE138639

Vehicles Sold In Canada : Using
Roadside Assistance
Canadian Roadside coverage and benefits
may differ from the United States
coverage. Please refer to your warranty
information or visit our website at
www.ford.ca for information on Canadian
services and benefits.
Canadian customers who need to obtain
roadside information, call 1-800-665-2006
or visit our website at
www.ford.ca.
HAZARD WARNING FLASHERS
Note: If used when the vehicle is not
running, the battery will lose charge. There
may be insufficient power to restart your
vehicle. The hazard warning button is
located on the instrument panel.
Use it when your vehicle is
creating a safety hazard for other
motorists.
• Press the button to turn on the hazard
warning function, and the front and
rear direction indicators will flash.
• Press the button again to turn them off.
FUEL SHUTOFF WARNING
Failure to inspect and, if necessary,
repair fuel leaks after a collision may
increase the risk of fire and serious injury.
Ford Motor Company recommends that
the fuel system be inspected by an
authorized dealer after any collision. In the event of a moderate to severe
collision, this vehicle is equipped with a
fuel pump shut-off feature that stops the
flow of fuel to the engine. Not every impact
will cause a shut-off.
Should your vehicle shut off after a
collision, you may restart your vehicle by
doing the following:
1. Turn the ignition off.
2. Turn the ignition to crank.
3. Turn the ignition off.
4.
Turn the ignition on again to re-enable
the fuel pump.
For vehicles equipped with a push button
start system:
1. Press the START/STOP button to turn
the ignition off.
2. Press the brake pedal and press the START/STOP
button (crank attempt).
3. Remove your foot from the brake pedal
and press the
START/STOP button
(ignition off ).
4. Press the
START/STOP button again
to re-enable the fuel system.
JUMP-STARTING THE VEHICLE WARNINGS
The gases around the battery can
explode if exposed to flames, sparks,
or lit cigarettes. An explosion could result
in injury or vehicle damage. Batteries contain sulfuric acid which
can burn skin, eyes and clothing, if
contacted. 226
MKZ (CC9) Roadside Emergencies

Whenever you add coolant, check the
coolant level in the inverter system
controller coolant reservoir the next few
times you drive the vehicle. If necessary,
add enough prediluted coolant to bring
the inverter system controller coolant level
to the proper level.
Recycled Engine Coolant
Ford Motor Company does not
recommend the use of recycled engine
coolant since a Ford-approved recycling
process is not yet available.
Used engine coolant should be disposed
of in an appropriate manner. Follow your
community’
s regulations and standards for
recycling and disposing of automotive
fluids.
Severe Climates
If you drive in extremely cold climates:
• It may be necessary to have an
authorized Ford dealer increase the
coolant concentration above 50%.
• A coolant concentration of 60% will
provide improved freeze point
protection. Engine coolant
concentrations above 60% will
decrease the overheat protection
characteristics of the engine coolant
and may cause engine damage. If you drive in extremely hot climates:
•
It may be necessary to have an
authorized Ford dealer decrease the
coolant concentration to 40%.
• A coolant concentration of 40% will
provide improved overheat protection.
Engine coolant concentrations below
40% will decrease the corrosion/freeze
protection characteristics of the engine
coolant and may cause engine
damage.
Vehicles driven year-round in non-extreme
climates should use prediluted coolant
meeting the Ford specification for optimum
cooling system and engine protection.
What You Should Know About Fail-
Safe Cooling
If the engine coolant supply is depleted,
this feature allows the vehicle to be driven
temporarily before incremental component
damage is incurred. The “fail-safe ”
distance depends on ambient
temperatures, vehicle load and terrain.
How Fail-Safe Cooling Works
If the engine begins to overheat, the
engine coolant temperature gauge will
move to the red (hot) area and: The coolant temperature
warning light will illuminate.
The service engine soon
indicator will illuminate.
If the engine reaches a preset
over-temperature condition, the engine
will automatically switch to alternating
cylinder operation. Each disabled cylinder
acts as an air pump and cools the engine.
258
MKZ (CC9) Maintenance

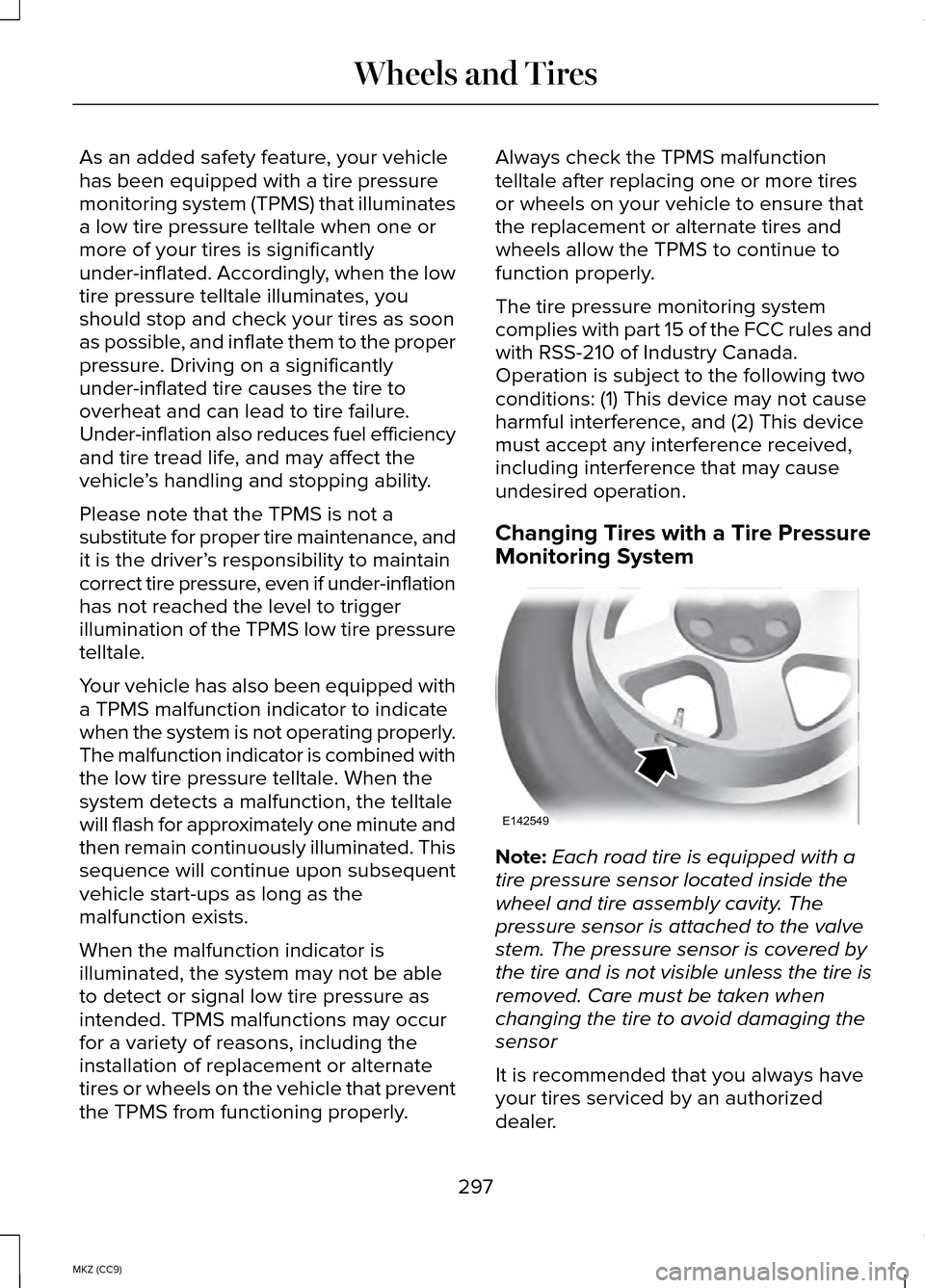

As an added safety feature, your vehicle
has been equipped with a tire pressure
monitoring system (TPMS) that illuminates
a low tire pressure telltale when one or
more of your tires is significantly
under-inflated. Accordingly, when the low
tire pressure telltale illuminates, you
should stop and check your tires as soon
as possible, and inflate them to the proper
pressure. Driving on a significantly
under-inflated tire causes the tire to
overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the
vehicle
’s handling and stopping ability.
Please note that the TPMS is not a
substitute for proper tire maintenance, and
it is the driver’ s responsibility to maintain
correct tire pressure, even if under-inflation
has not reached the level to trigger
illumination of the TPMS low tire pressure
telltale.
Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is not operating properly.
The malfunction indicator is combined with
the low tire pressure telltale. When the
system detects a malfunction, the telltale
will flash for approximately one minute and
then remain continuously illuminated. This
sequence will continue upon subsequent
vehicle start-ups as long as the
malfunction exists.
When the malfunction indicator is
illuminated, the system may not be able
to detect or signal low tire pressure as
intended. TPMS malfunctions may occur
for a variety of reasons, including the
installation of replacement or alternate
tires or wheels on the vehicle that prevent
the TPMS from functioning properly. Always check the TPMS malfunction
telltale after replacing one or more tires
or wheels on your vehicle to ensure that
the replacement or alternate tires and
wheels allow the TPMS to continue to
function properly.
The tire pressure monitoring system
complies with part 15 of the FCC rules and
with RSS-210 of Industry Canada.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.
Changing Tires with a Tire Pressure
Monitoring System
Note:
Each road tire is equipped with a
tire pressure sensor located inside the
wheel and tire assembly cavity. The
pressure sensor is attached to the valve
stem. The pressure sensor is covered by
the tire and is not visible unless the tire is
removed. Care must be taken when
changing the tire to avoid damaging the
sensor
It is recommended that you always have
your tires serviced by an authorized
dealer.
297
MKZ (CC9) Wheels and TiresE142549

Brake Fluid Check...................................260
Brakes..........................................................174
General Information.......................................174
Breaking-In................................................223
Bulb Specification Chart........................265
C
Cabin Air Filter...........................................126
California Proposition 65............................11
Capacities and Specifications..............302
Technical Specifications..............................306
Car Wash See: Cleaning the Exterior..........................268
Center Console.........................................146
Changing a Bulb
......................................264
Lamp Assembly Condensation..................264
Replacing Bulbs.............................................265
Changing a Fuse......................................249 Fuses................................................................249
Changing the 12V Battery.....................260
Changing the Engine Air Filter.............267 ........................................................................\
....267
Changing the Wiper Blades..................262
Checking MyKey System Status.............55
Checking the Wiper Blades..................262
Child Restraint and Safety Belt Maintenance ..............................................
37
Child Safety...................................................14
General Information..........................................14
Child Safety Locks.....................................28 Left-Hand Side..................................................28
Right-Hand Side...............................................28
Child Seat Positioning
...............................26
Cleaning Leather Seats..........................272
Cleaning Products...................................268
Cleaning the Alloy Wheels....................272
Cleaning the Engine...............................269 Cleaning the Exterior..............................268
Cleaning Plastic Exterior Parts...................269
Exterior Chrome............................................269
Stripes or Graphics (if equipped)...............268
Underbody......................................................269
Cleaning the Instrument Panel and Instrument Cluster Lens........................271
Cleaning the Interior...............................270
Cleaning the Windows and Wiper Blades......................................................270
Clearing All MyKeys...................................54
Climate........................................................376 Climate Control Voice Commands............378
Climate Control
..........................................124
Collision, Damage or Fire Event..........229 Guidance for Ford Motor Company Electric
and Hybrid-Electric Vehicles Equipped
With High Voltage Batteries...................229
Collision Warning System.......................210 PRINCIPLE OF OPERATION........................
210
Coolant Check See: Engine Coolant Check.......................
255
Crash Sensors and Airbag Indicator.....................................................46
Creating a MyKey
.......................................54
Programming/Changing Configurable
Settings..........................................................54
Cruise Control
.............................................72
Principle of Operation....................................191
Type 1..................................................................72
Type 2.................................................................72
Cruise control See: Using Cruise Control.............................191
Customer Assistance..............................232
D
Data Recording
..............................................9
Event Data Recording......................................10
Service Data Recording....................................9
Daytime Running Lamps...........................79
Direction Indicators
.....................................81
432
MKZ (CC9) Index

Exterior Mirrors............................................84
Auto-Dimming Feature...................................85
Blind Spot Monitor...........................................86
Fold-Away Exterior Mirrors............................85
Heated Exterior Mirrors..................................85
Integrated Blind Spot Mirrors.......................85
Memory Mirrors................................................85
Power Exterior Mirrors....................................84
Signal Indicator Mirrors..................................85
F
Fastening the Safety Belts.......................30 Rear Inflatable Safety Belt.............................33
Restraint of Pregnant Women........................31
Safety Belt Extension Assembly...................34
Safety Belt Locking Modes.............................
31
Flat Tire Inflation See: Temporary Mobility Kit........................276
Floor Mats
..................................................224
Fog Lamps - Front See: Front Fog Lamps....................................80
Ford Extended Service Plan (ESP)......409 SERVICE PLANS (CANADA ONLY)..............411
SERVICE PLANS (U.S. Only)........................409
Front Fog Lamps........................................80
Front Passenger Sensing System...........41
Fuel and Refueling...................................158
Fuel Consumption
....................................163
Calculating Fuel Economy...........................163
Filling the Tank................................................163
Fuel Filter
...................................................260
Fuel Quality................................................159 Choosing the Right Fuel...............................159
Octane Recommendations..........................159
Fuel Shutoff...............................................226
Fuses...........................................................239
Fuse Specification Chart........................239 Passenger Compartment Fuse Panel......246
Power Distribution Box................................239 G
Garage Door Opener
See: Universal Garage Door Opener........139
Gauges..........................................................89 Common Displays............................................90
Left Information Display.................................89
Right Information Display..............................90
General Information on Radio Frequencies..............................................48
Intelligent Access.............................................48
General Maintenance Information
........412
Multi-point Inspection....................................415
Owner Checks and Services.......................414
Protecting Your Investment..........................413
Why Maintain Your Vehicle?.........................412
Why Maintain Your Vehicle at Your
Dealership?..................................................412
Getting Assistance Outside the U.S. and Canada.....................................................235
Getting the Services You Need
............232
Away From Home..........................................232
Global Opening and Closing...................84 Closing the Windows......................................84
Opening the Windows....................................
84
H
Hazard Warning Flashers
......................226
Headlamp Exit Delay.................................78
Head Restraints.........................................129 Adjusting the Head Restraint......................130
Tilting Head Restraints ..................................131
Heated Seats
.............................................135
Rear Heated Seats.........................................136
Heated Steering Wheel.............................73
Heated Windows and Mirrors................126 Heated Exterior Mirror..................................126
Heated Rear Window....................................126
Heating See: Climate Control......................................124
434
MKZ (CC9) Index

W
Warning Lamps and Indicators................91
Adaptive Cruise Control.................................92
Anti-Lock Braking System..............................92
Battery................................................................92
Blind Spot Monitor...........................................92
Brake System....................................................92
Cruise Control...................................................92
Direction Indicator...........................................92
Door Ajar............................................................92
Electric Park Brake..........................................93
Engine Oil...........................................................93
Engine or Motor Coolant
Temperature.................................................93
Fasten Safety Belt............................................93
Front Airbag.......................................................93
Grade Assist......................................................93
Heads Up Display............................................93
High Beam.........................................................93
Hood Ajar...........................................................93
Lane Keeping Aid.............................................93
Low Fuel Level..................................................93
Low Tire Pressure Warning...........................94
Low Washer Fluid.............................................94
Parking Lamps..................................................94
Powertrain Fault...............................................94
Ready to Drive..................................................94
Service Engine Soon.......................................94
Stability Control................................................95
Stability Control Off.........................................95
Stop Safely.........................................................95
Trunk Ajar...........................................................95
Washer Fluid Check
................................260
Washers See: Cleaning the Exterior..........................268
See: Wipers and Washers..............................74
Waxing........................................................269
Wheels and Tires.....................................276 Technical Specifications...............................301
Windows and Mirrors................................83
Windshield Washers..................................75 Windshield Wipers......................................74
Intermittent Wipe..............................................74
Speed Dependent Wipers.............................
74
Wipers and Washers..................................74
441
MKZ (CC9) Index
