DAYTIME RUNNING LAMPS (IF
EQUIPPED) WARNING
Always remember to switch your
headlamps on in low light situations
or during inclement weather. The system
does not activate the tail lamps and may
not provide adequate lighting during these
conditions. Failure to activate your
headlamps under these conditions may
result in a collision. The system switches the signature lamps
on in day light conditions.
To switch the system on, switch the
ignition on, and switch the lighting control
to the off, autolamp, or parking lamp
position.
AUTOMATIC HIGH BEAM
CONTROL
(IF EQUIPPED)
The system will automatically turn on your
high beams if it is dark enough and no
other traffic is present. When it detects the
headlights of an approaching vehicle, the
tail lamps of the preceding vehicle or
street lighting, the system will turn off the
high beams before they distract other
drivers. The low beams remain on.
Note: If it appears that automatic control
of the high beams is not functioning
properly, check the windshield in front of
the camera for a blockage. A clear view
of the road is required for proper system
operation. Have any windshield damage
in the area of the camera ’s field-of-view
repaired. Note:
If the system detects a blockage
such as bird droppings, bug splatter, snow
or ice, and you do not observe changes,
the system will go into low beam mode
until you clear the blockage. A message
may also appear in the instrument cluster
display noting the front camera is blocked.
Note: Typical road dust, dirt and water
spots will not affect the performance of
the automatic high beam system .
However, in cold or inclement weather
conditions, you will notice a decrease in
the availability of the high beam system,
especially at start up. If you want to
change the beam state independently of
the system, you may switch the high
beams on or off using the multifunction
switch. Automatic control will resume
when conditions are correct.
Note: Modification of the vehicle ride
height such as using much larger tires,
may degrade feature performance.
A camera sensor, centrally mounted
behind the windshield of your vehicle,
continuously monitors conditions to decide
when to switch the high beams off and on.
Once the system is active, the high beams
will switch on if:
• the ambient light level is low enough
• there is no traffic in front of the vehicle
• the vehicle speed is greater than
25 mph (40 km/h)
The high beams will switch off if:
• the system detects the headlamps of
an approaching vehicle or the tail
lamps of a preceding vehicle.
• vehicle speed falls below
16 mph
(25 km/h)
79
MKZ (CC9) Lighting

•
the ambient light level is high enough
that high beams are not required
• the system detects severe rain, snow
or fog
• the camera is blocked
Activating the System
Switch on the system using the information
display and autolamps. See Information
Displays (page 97). See Autolamps
(page 77). Switch the lighting control to the
autolamps position.
Manually Overriding the System When the automatic control has activated
the high beams, pushing or pulling the
stalk will provide a temporary override to
low beam.
Use the information display menu to
permanently deactivate the system, or turn
the lighting control switch from autolamps
to headlamps.
FRONT FOG LAMPS
(IF EQUIPPED)
Press the control to switch the fog lamps
on or off.
You can switch the fog lamps on when the
lighting control is in any position except
Off and the high beams are not on.
ADAPTIVE HEADLAMPS
The headlamp beams move in the same
direction as the steering wheel. This
provides more visibility when driving
around curves.
A. Without adaptive headlamps
B. With adaptive headlamps
80
MKZ (CC9) LightingE142451 E169254 E142453

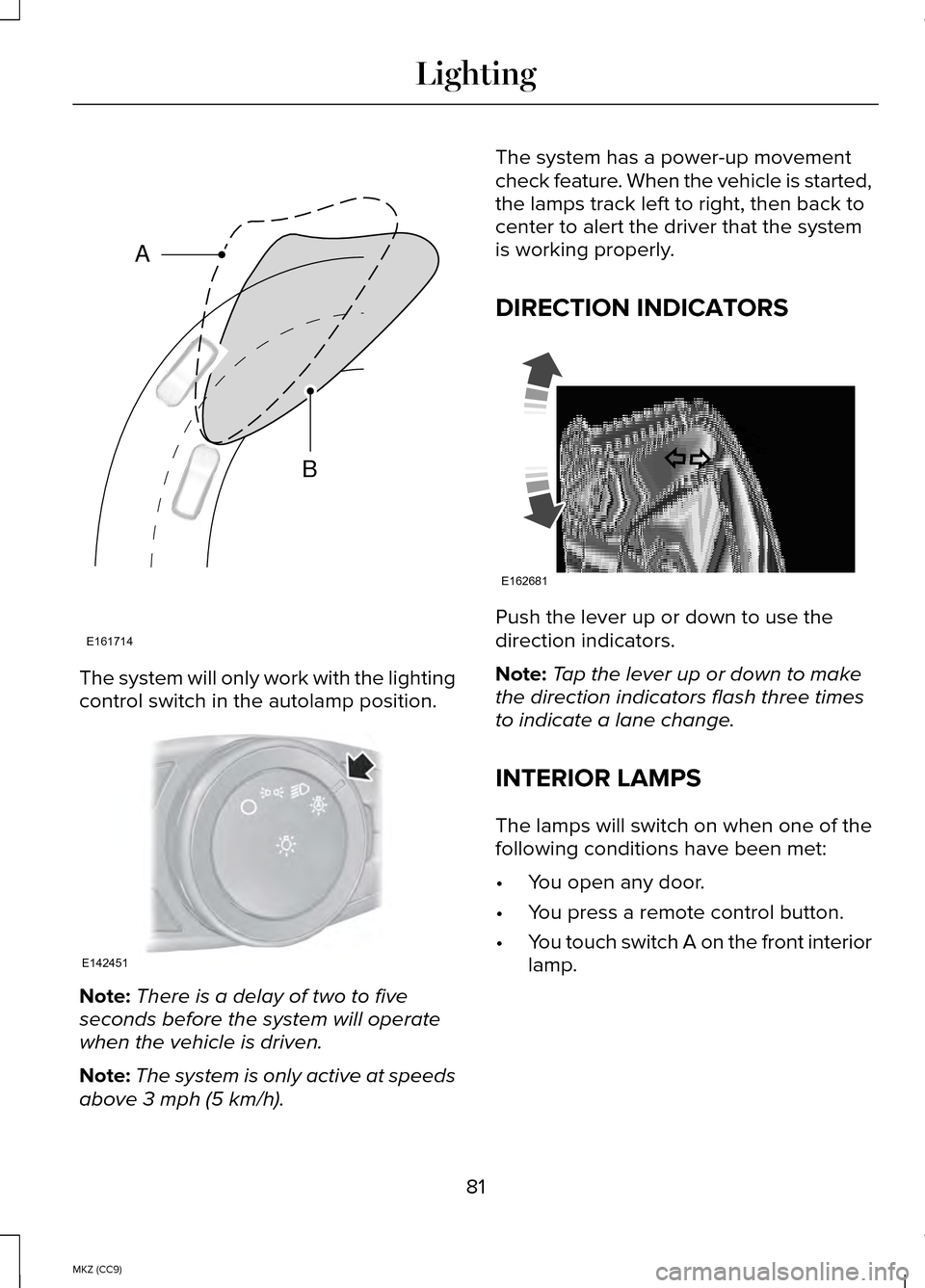

The system will only work with the lighting
control switch in the autolamp position.
Note:
There is a delay of two to five
seconds before the system will operate
when the vehicle is driven.
Note: The system is only active at speeds
above 3 mph (5 km/h). The system has a power-up movement
check feature. When the vehicle is started,
the lamps track left to right, then back to
center to alert the driver that the system
is working properly.
DIRECTION INDICATORS
Push the lever up or down to use the
direction indicators.
Note:
Tap the lever up or down to make
the direction indicators flash three times
to indicate a lane change.
INTERIOR LAMPS
The lamps will switch on when one of the
following conditions have been met:
• You open any door.
• You press a remote control button.
• You touch switch A on the front interior
lamp.
81
MKZ (CC9) LightingE161714
B
A E142451 E162681

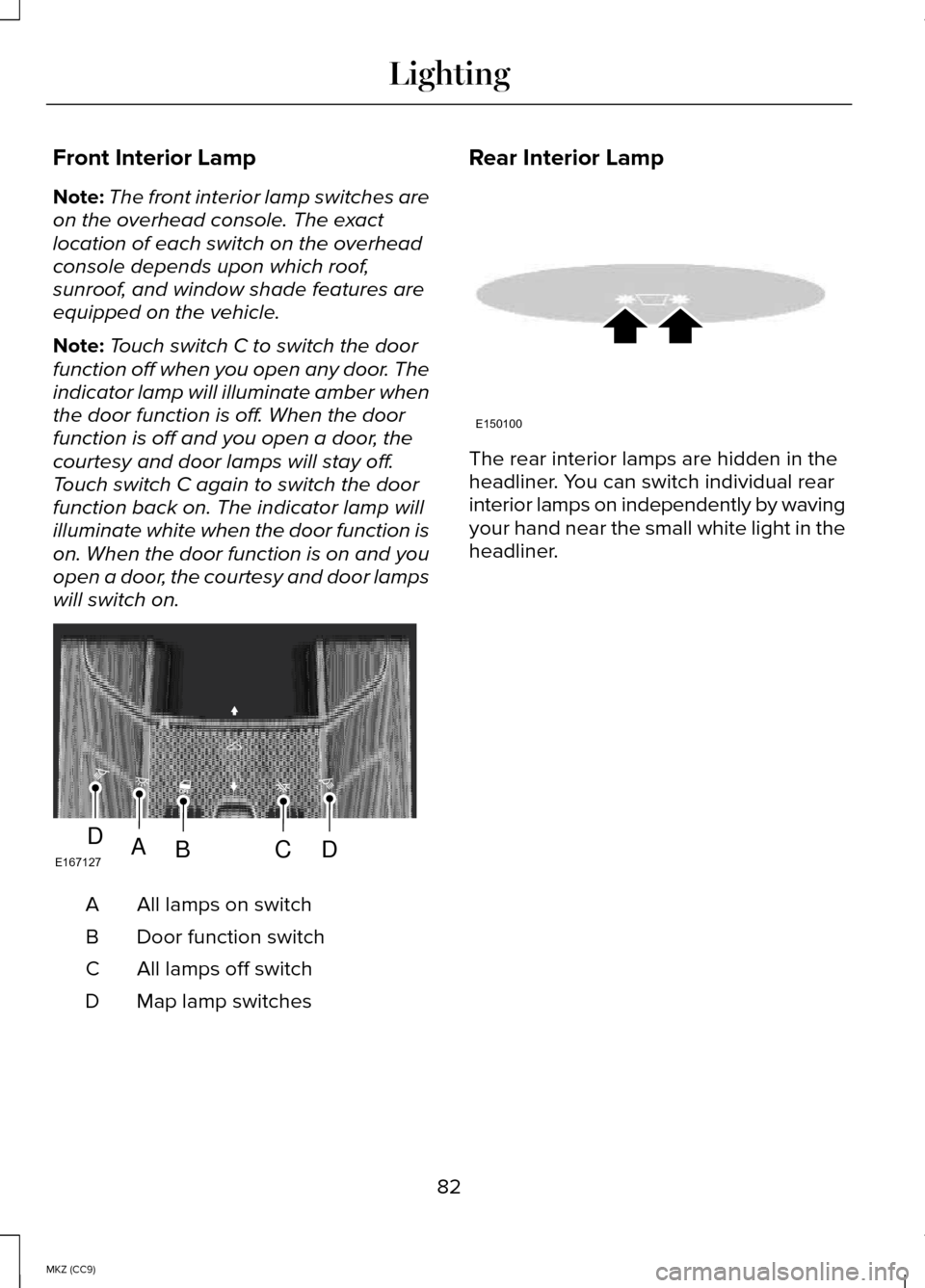

Front Interior Lamp
Note:
The front interior lamp switches are
on the overhead console. The exact
location of each switch on the overhead
console depends upon which roof,
sunroof, and window shade features are
equipped on the vehicle.
Note: Touch switch C to switch the door
function off when you open any door. The
indicator lamp will illuminate amber when
the door function is off. When the door
function is off and you open a door, the
courtesy and door lamps will stay off.
Touch switch C again to switch the door
function back on. The indicator lamp will
illuminate white when the door function is
on. When the door function is on and you
open a door, the courtesy and door lamps
will switch on. All lamps on switch
A
Door function switch
B
All lamps off switch
C
Map lamp switches
D Rear Interior Lamp
The rear interior lamps are hidden in the
headliner. You can switch individual rear
interior lamps on independently by waving
your hand near the small white light in the
headliner.
82
MKZ (CC9) LightingE167127ABCDD E150100

POWER WINDOWS
WARNINGS
Do not leave children unattended in
your vehicle and do not let them play
with the power windows. They may
seriously injure themselves. When closing the power windows,
you should verify they are free of
obstructions and make sure that children
and pets are not in the proximity of the
window openings. Note:
Window operation may stop or
delay during low battery conditions and
engine re-cranking. It will resume after the
engine starts. Note:
You may hear a pulsing noise when
just one of the windows are open. Lower
the opposite window slightly to reduce this
noise.
Press the switch to open the window.
Lift the switch to close the window.
One-Touch Down
Press the switch fully and release it. Press
again or lift it to stop the window. One-Touch Up
Lift the switch fully and release it. Press or
lift it again to stop the window.
Bounce-Back
The window will stop automatically while
closing. It will reverse some distance if
there is an obstacle in the way.
Overriding the Bounce-Back Feature
WARNING
When you override the bounce-back
feature, the window will not reverse
if it detects an obstacle. Take care when
closing the windows to avoid personal
injury or damage to your vehicle. Pull up the window switch and hold within
two seconds of the window reaching the
bounce-back position. The window will
travel up with no bounce-back protection.
The window will stop if you release the
switch before the window closes fully.
Window Lock
Press the control to lock or unlock the rear
window controls. It will illuminate when
you lock the rear window controls.
83
MKZ (CC9) Windows and MirrorsE146043 E144072

Accessory Delay
You can use the window switches for
several minutes after you switch the
ignition off or until you open either front
door.
GLOBAL OPENING AND
CLOSING
You can use the remote control to operate
the windows with the ignition off.
Note:
You can enable or disable this
feature in the information display or see
an authorized dealer. See General
Information (page 97).
Note: To operate this feature, accessory
delay must not be active.
Opening the Windows
You can only open the windows for a short
time after you unlock your vehicle with the
remote control. After you unlock your
vehicle, press and hold the remote control
unlock button to open the windows and
vent the moonroof. Release the button
once movement starts. Press the lock or
unlock button to stop movement.
Closing the Windows WARNING
When closing the windows and
moonroof, you should verify they are
free of obstructions and make sure that
children and pets are not in the proximity
of the window openings. To close the windows and moonroof, press
and hold the remote control lock button.
Release the button once movement starts.
Press the lock or unlock button to stop
movement.
EXTERIOR MIRRORS
Power Exterior Mirrors
WARNING
Do not adjust the mirrors when your
vehicle is moving.
Left-hand mirror
A
Adjustment control
B
Right-hand mirror
C
To adjust a mirror:
1. Select the mirror you want to adjust. The control will illuminate.
2. Adjust the position of the mirror.
3. Press the mirror switch again.
84
MKZ (CC9) Windows and MirrorsE144073

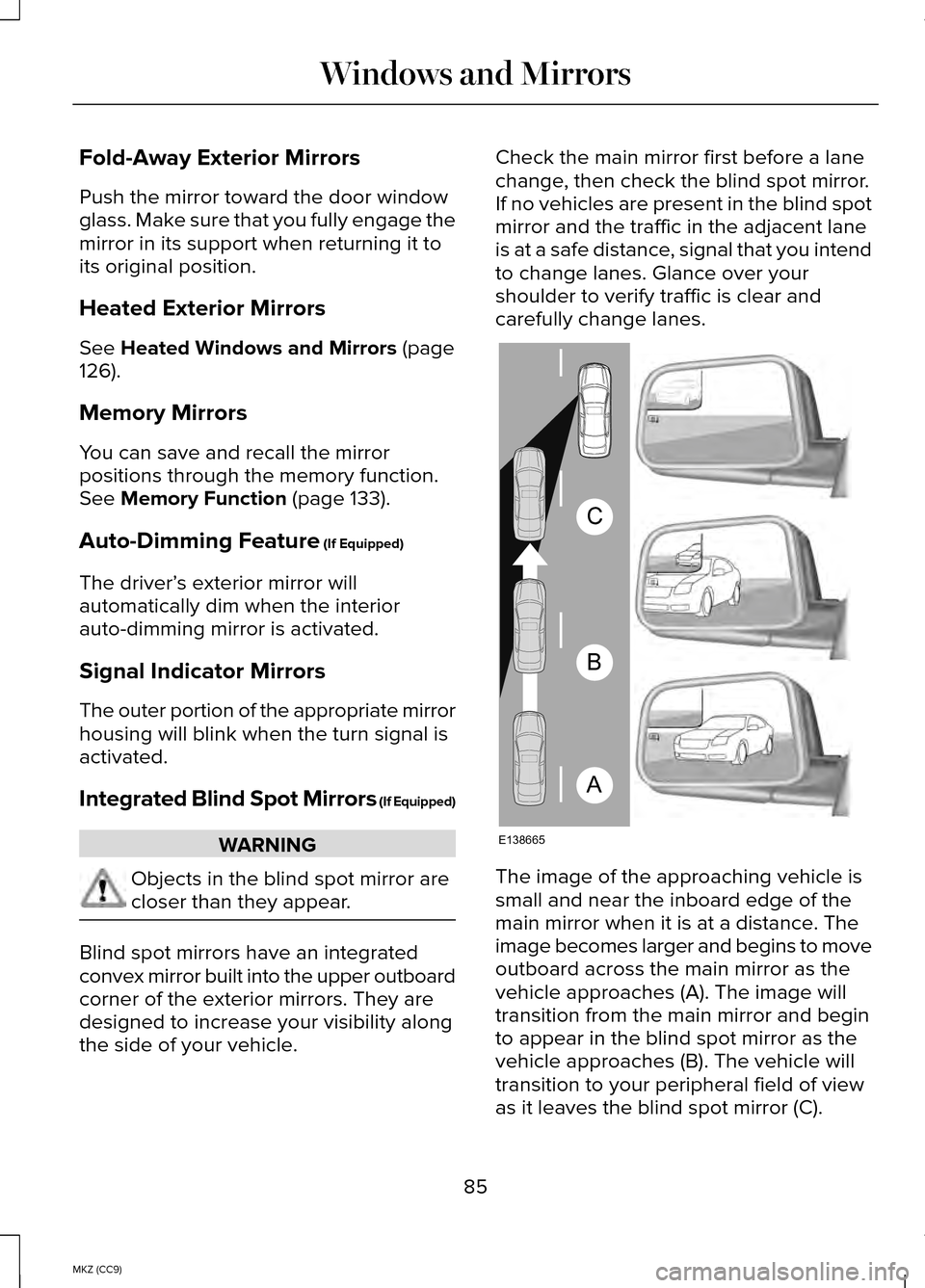

Fold-Away Exterior Mirrors
Push the mirror toward the door window
glass. Make sure that you fully engage the
mirror in its support when returning it to
its original position.
Heated Exterior Mirrors
See Heated Windows and Mirrors (page
126).
Memory Mirrors
You can save and recall the mirror
positions through the memory function.
See
Memory Function (page 133).
Auto-Dimming Feature
(If Equipped)
The driver’ s exterior mirror will
automatically dim when the interior
auto-dimming mirror is activated.
Signal Indicator Mirrors
The outer portion of the appropriate mirror
housing will blink when the turn signal is
activated.
Integrated Blind Spot Mirrors (If Equipped) WARNING
Objects in the blind spot mirror are
closer than they appear.
Blind spot mirrors have an integrated
convex mirror built into the upper outboard
corner of the exterior mirrors. They are
designed to increase your visibility along
the side of your vehicle. Check the main mirror first before a lane
change, then check the blind spot mirror.
If no vehicles are present in the blind spot
mirror and the traffic in the adjacent lane
is at a safe distance, signal that you intend
to change lanes. Glance over your
shoulder to verify traffic is clear and
carefully change lanes.
The image of the approaching vehicle is
small and near the inboard edge of the
main mirror when it is at a distance. The
image becomes larger and begins to move
outboard across the main mirror as the
vehicle approaches (A). The image will
transition from the main mirror and begin
to appear in the blind spot mirror as the
vehicle approaches (B). The vehicle will
transition to your peripheral field of view
as it leaves the blind spot mirror (C).
85
MKZ (CC9) Windows and MirrorsA
B
C
E138665

Blind Spot Monitor (If Equipped)
See Blind Spot Information System (page
205
).
INTERIOR MIRROR WARNING
Do not adjust the mirror when your
vehicle is moving.
Note:
Do not clean the housing or glass
of any mirror with harsh abrasives, fuel or
other petroleum or ammonia-based
cleaning products.
You can adjust the interior mirror to your
preference. Some mirrors also have a
second pivot point. This lets you move the
mirror head up or down and from side to
side.
Auto-Dimming Mirror
Note: Do not block the sensors on the
front and back of the mirror. Mirror
performance may be affected. A rear
center passenger or raised rear center
head restraint may also block light from
reaching the sensor.
The mirror will dim automatically to reduce
glare when bright lights are detected from
behind your vehicle. It will automatically
return to normal reflection when you select
reverse gear to make sure you have a
clear view when backing up. SUN VISORS
Rotate the sun visor toward the side
window and extend it rearward for extra
shade.
Illuminated Vanity Mirror
Lift the cover to switch the lamp on.
SUN SHADES
(IF EQUIPPED)
Note: Do not try to move the sun shade
manually.
The power rear sun shade covers the rear
window of the vehicle.
86
MKZ (CC9) Windows and MirrorsE138666 E162197

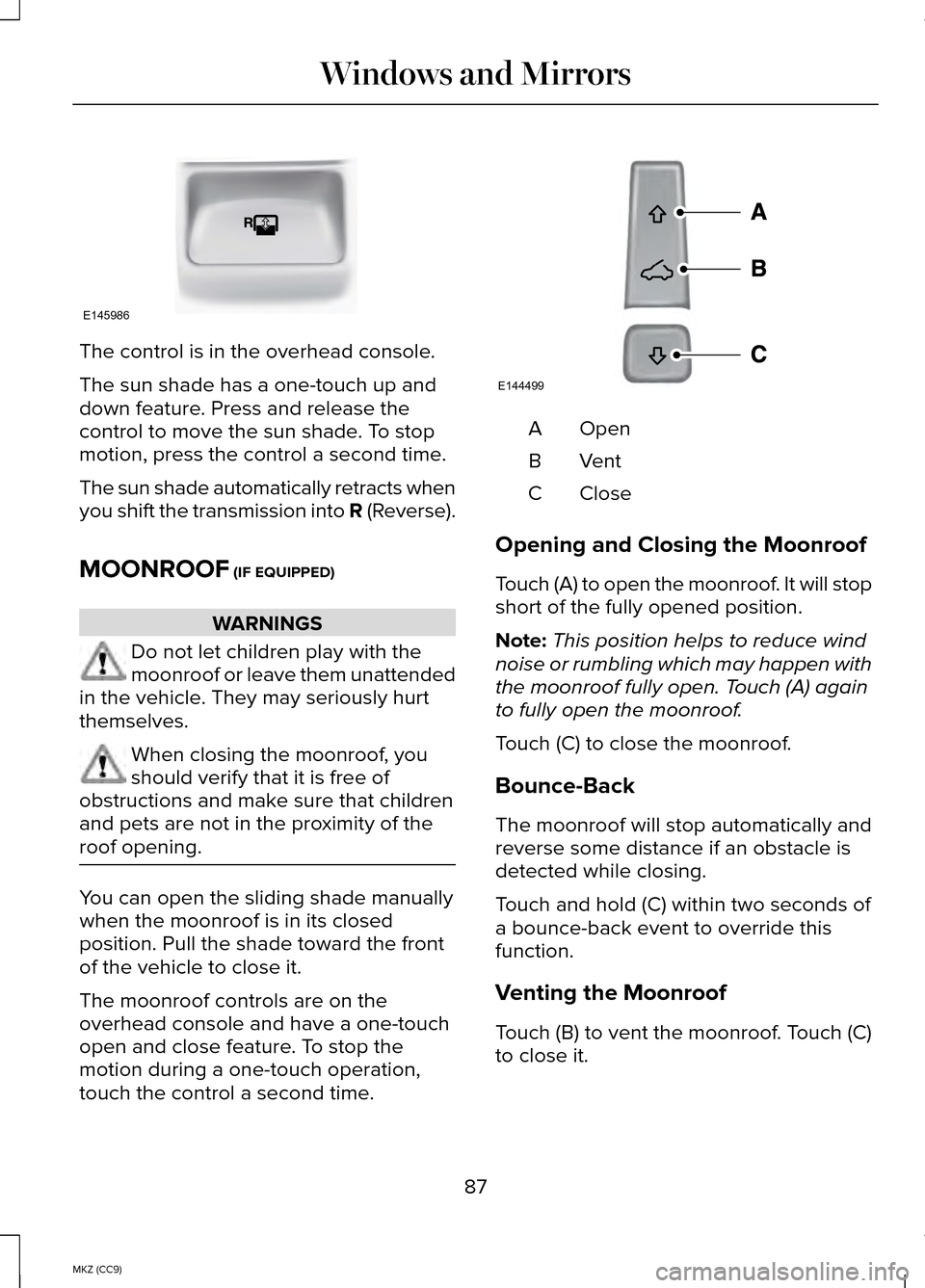

The control is in the overhead console.
The sun shade has a one-touch up and
down feature. Press and release the
control to move the sun shade. To stop
motion, press the control a second time.
The sun shade automatically retracts when
you shift the transmission into R (Reverse).
MOONROOF (IF EQUIPPED)
WARNINGS
Do not let children play with the
moonroof or leave them unattended
in the vehicle. They may seriously hurt
themselves. When closing the moonroof, you
should verify that it is free of
obstructions and make sure that children
and pets are not in the proximity of the
roof opening. You can open the sliding shade manually
when the moonroof is in its closed
position. Pull the shade toward the front
of the vehicle to close it.
The moonroof controls are on the
overhead console and have a one-touch
open and close feature. To stop the
motion during a one-touch operation,
touch the control a second time. OpenA
VentB
CloseC
Opening and Closing the Moonroof
Touch (A) to open the moonroof. It will stop
short of the fully opened position.
Note: This position helps to reduce wind
noise or rumbling which may happen with
the moonroof fully open. Touch (A) again
to fully open the moonroof.
Touch (C) to close the moonroof.
Bounce-Back
The moonroof will stop automatically and
reverse some distance if an obstacle is
detected while closing.
Touch and hold (C) within two seconds of
a bounce-back event to override this
function.
Venting the Moonroof
Touch (B) to vent the moonroof. Touch (C)
to close it.
87
MKZ (CC9) Windows and MirrorsE145986 E144499

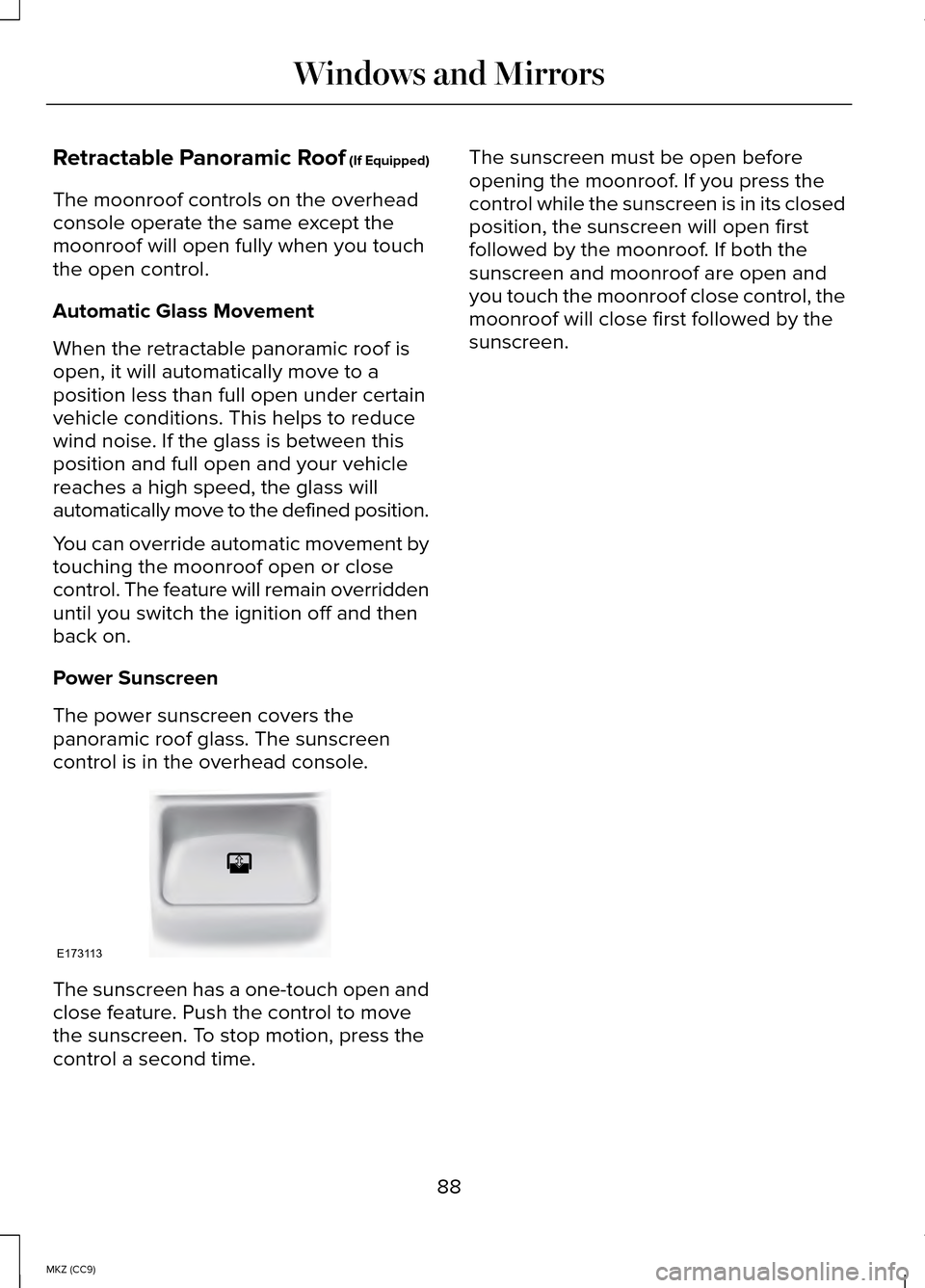

Retractable Panoramic Roof (If Equipped)
The moonroof controls on the overhead
console operate the same except the
moonroof will open fully when you touch
the open control.
Automatic Glass Movement
When the retractable panoramic roof is
open, it will automatically move to a
position less than full open under certain
vehicle conditions. This helps to reduce
wind noise. If the glass is between this
position and full open and your vehicle
reaches a high speed, the glass will
automatically move to the defined position.
You can override automatic movement by
touching the moonroof open or close
control. The feature will remain overridden
until you switch the ignition off and then
back on.
Power Sunscreen
The power sunscreen covers the
panoramic roof glass. The sunscreen
control is in the overhead console. The sunscreen has a one-touch open and
close feature. Push the control to move
the sunscreen. To stop motion, press the
control a second time. The sunscreen must be open before
opening the moonroof. If you press the
control while the sunscreen is in its closed
position, the sunscreen will open first
followed by the moonroof. If both the
sunscreen and moonroof are open and
you touch the moonroof close control, the
moonroof will close first followed by the
sunscreen.
88
MKZ (CC9) Windows and MirrorsE173113
