LINCOLN MKZ HYBRID 2014 Owners Manual

Action
Message
Displays when the electric parking brake is set and the vehicle is started.
Release Park Brake
Displays when the electric parking brake is set.
Park Brake Applied
Displays when the electric parking brake is released.
Park Brake Released
Power Steering Action
Message
The power steering system has detected a condition thatrequires service. See your authorized dealer.
Steering Fault Service
Now
The power steering system is not working. Stop the vehiclea safe place. Contact your authorized dealer.
Steering Loss Stop
Safely
The power steering system has detected a condition withinthe power steering system or passive entry or passive start system requires service. Contact your authorized dealer.
Steering Assist Fault
Service Required
Remote Start Action
Message
Displays as a reminder to turn the key on to drive the vehicle after a remote start.
To Drive: Turn Key to On
Displays as a reminder to apply the brake and the gear shiftbutton to drive the vehicle after a remote start.
To Drive: Press Brake
and Gear Shift Button
Seats Action
Message
Displays as a reminder that memory seats are not available while driving.
Memory Recall Not
Permitted While Driving
Displays to show where your memory setting has been saved.
Memory X Saved
119
MKZ (CC9) Information Displays

Starting System
Action
Message
Displays when starting the vehicle as a reminder to apply the brake.
Press Brake to Start
Displays when the starter has exceeded its cranking time inattempting to start the vehicle.
Cranking Time
Exceeded
Displays when the starter is attempting to start the vehicle.
Engine Start Pending
Please Wait
Displays when the pending start has been cancelled.
Pending Start Cancelled
Tire Pressure Monitoring System Action
Message
Displays when one or more tires on your vehicle have low
tire pressure. See Tire Pressure Monitoring System (page
296).
LOW Tire Pressure
Displays when the tire pressure monitoring system is
malfunctioning. If the warning stays on or continues to come on, contact your authorized dealer.
See Tire Pressure
Monitoring System (page 296).
Tire Pressure Monitor
Fault
Displayed when a tire pressure sensor is malfunctioning, oryour spare tire is in use. For more information on how the
system operates under these conditions, See Tire Pressure Monitoring System
(page 296). If the warning stays on or
continues to come on, contact your authorized dealer as soon as possible.
Tire Pressure Sensor
Fault
120
MKZ (CC9) Information Displays

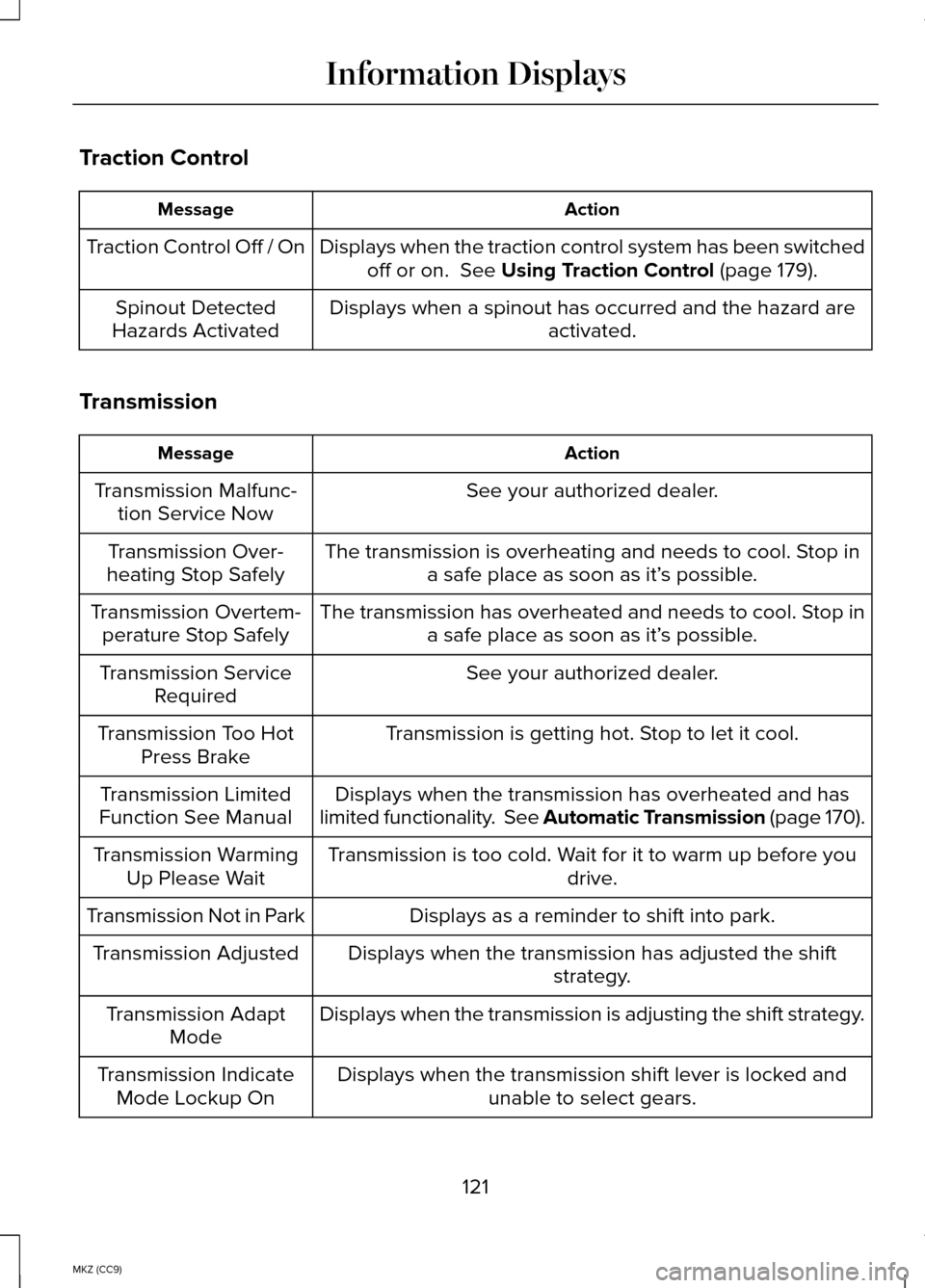

Traction Control
Action
Message
Displays when the traction control system has been switchedoff or on. See Using Traction Control (page 179).
Traction Control Off / On
Displays when a spinout has occurred and the hazard areactivated.
Spinout Detected
Hazards Activated
Transmission Action
Message
See your authorized dealer.
Transmission Malfunc-
tion Service Now
The transmission is overheating and needs to cool. Stop ina safe place as soon as it’ s possible.
Transmission Over-
heating Stop Safely
The transmission has overheated and needs to cool. Stop ina safe place as soon as it’ s possible.
Transmission Overtem-
perature Stop Safely
See your authorized dealer.
Transmission Service
Required
Transmission is getting hot. Stop to let it cool.
Transmission Too Hot
Press Brake
Displays when the transmission has overheated and has
limited functionality. See Automatic Transmission (page 170).
Transmission Limited
Function See Manual
Transmission is too cold. Wait for it to warm up before you drive.
Transmission Warming
Up Please Wait
Displays as a reminder to shift into park.
Transmission Not in Park
Displays when the transmission has adjusted the shiftstrategy.
Transmission Adjusted
Displays when the transmission is adjusting the shift strategy.
Transmission Adapt
Mode
Displays when the transmission shift lever is locked andunable to select gears.
Transmission Indicate
Mode Lockup On
121
MKZ (CC9) Information Displays

Action
Message

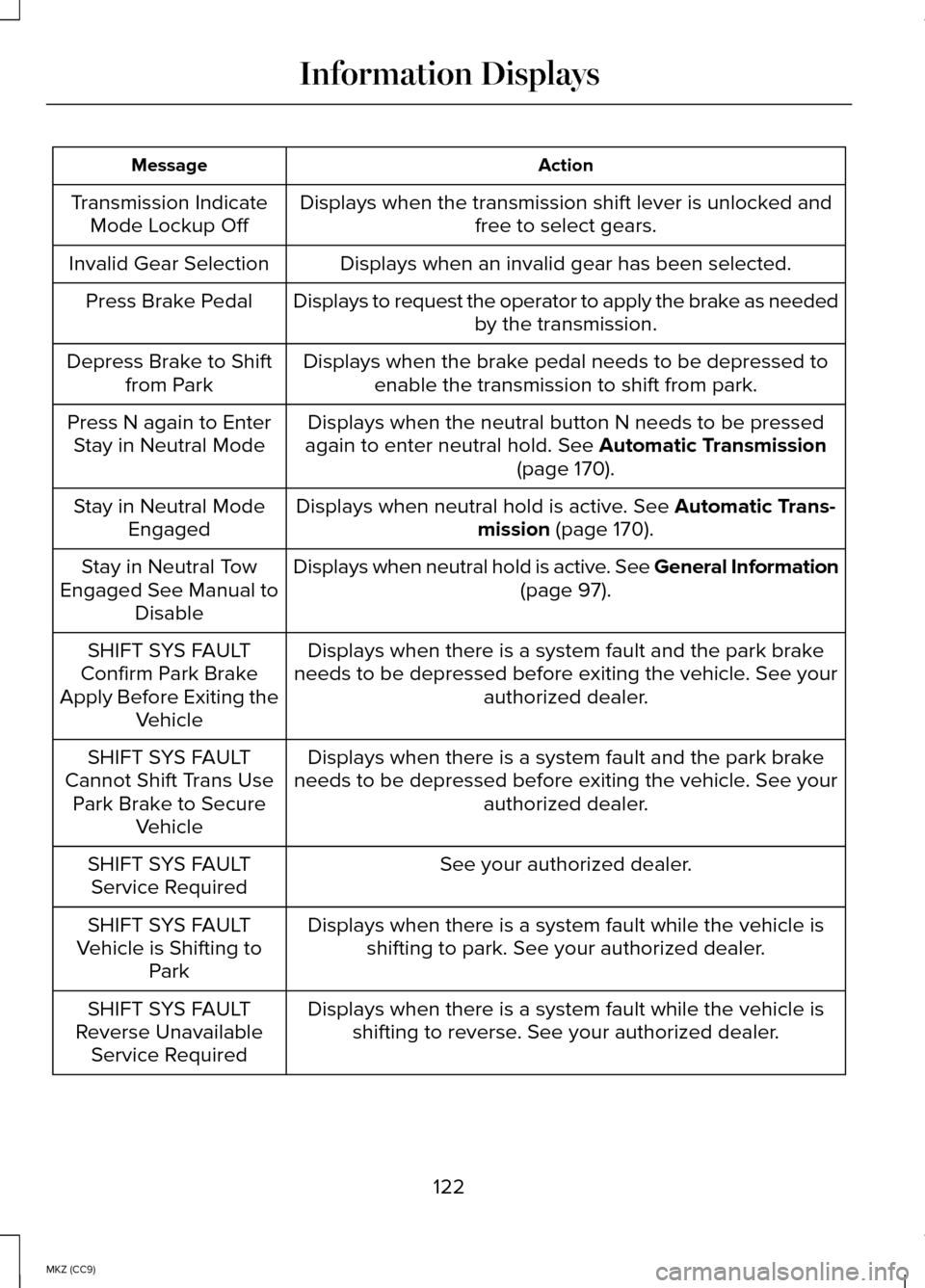

Displays when the transmission shift lever is unlocked and free to select gears.
Transmission Indicate
Mode Lockup Off
Displays when an invalid gear has been selected.
Invalid Gear Selection
Displays to request the operator to apply the brake as neededby the transmission.
Press Brake Pedal
Displays when the brake pedal needs to be depressed toenable the transmission to shift from park.
Depress Brake to Shift
from Park
Displays when the neutral button N needs to be pressed
again to enter neutral hold. See Automatic Transmission
(page 170).
Press N again to Enter
Stay in Neutral Mode
Displays when neutral hold is active.
See Automatic Trans-
mission (page 170).
Stay in Neutral Mode
Engaged
Displays when neutral hold is active.
See General Information
(page 97).
Stay in Neutral Tow
Engaged See Manual to Disable
Displays when there is a system fault and the park brake
needs to be depressed before exiting the vehicle. See your authorized dealer.
SHIFT SYS FAULT
Confirm Park Brake
Apply Before Exiting the Vehicle
Displays when there is a system fault and the park brake
needs to be depressed before exiting the vehicle. See your authorized dealer.
SHIFT SYS FAULT
Cannot Shift Trans Use Park Brake to Secure Vehicle
See your authorized dealer.
SHIFT SYS FAULT
Service Required
Displays when there is a system fault while the vehicle isshifting to park. See your authorized dealer.
SHIFT SYS FAULT
Vehicle is Shifting to Park
Displays when there is a system fault while the vehicle isshifting to reverse. See your authorized dealer.
SHIFT SYS FAULT
Reverse Unavailable Service Required
122
MKZ (CC9) Information Displays

Action
Message

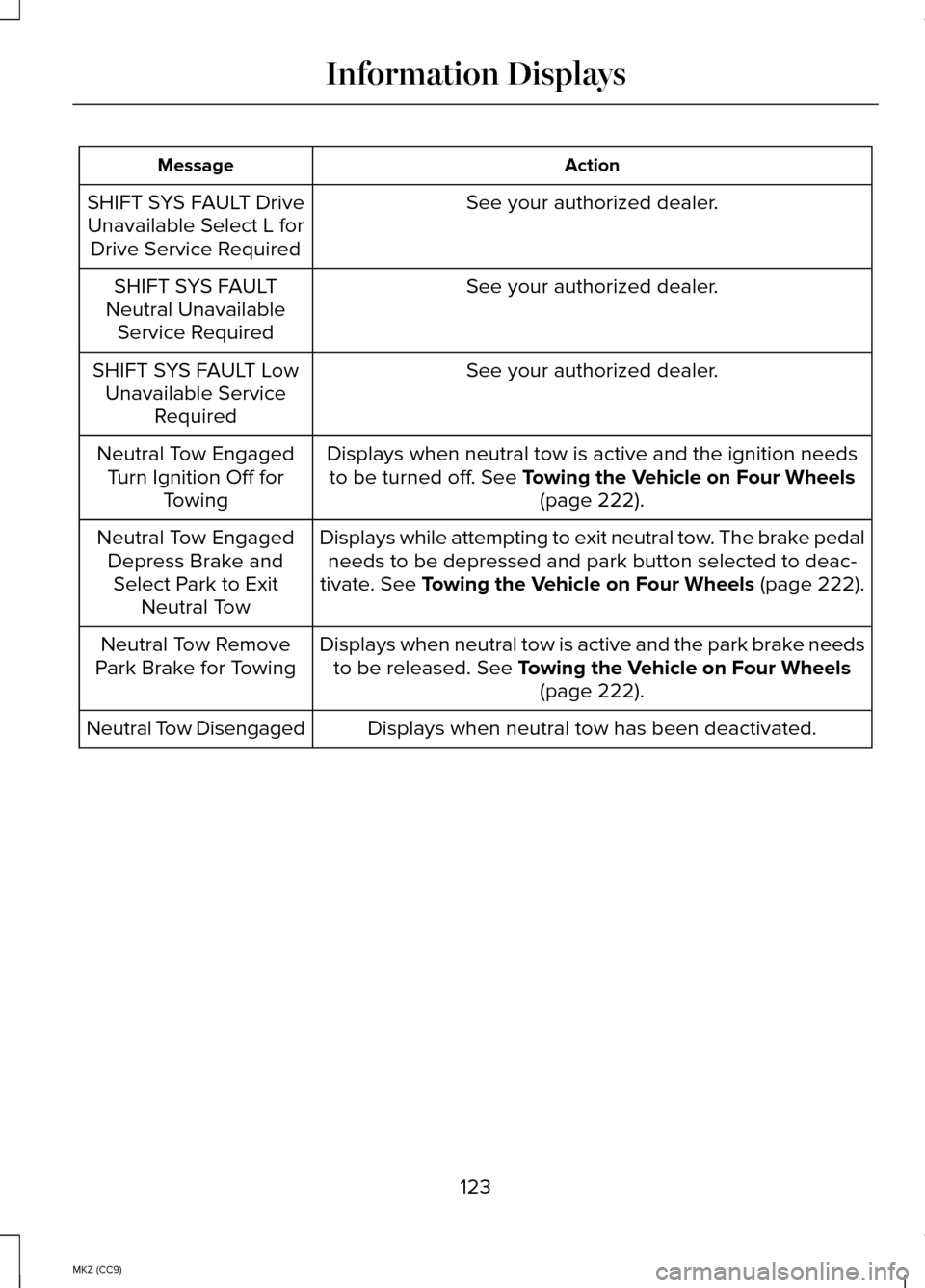

See your authorized dealer.
SHIFT SYS FAULT Drive
Unavailable Select L for Drive Service Required
See your authorized dealer.
SHIFT SYS FAULT
Neutral Unavailable Service Required
See your authorized dealer.
SHIFT SYS FAULT Low
Unavailable Service Required
Displays when neutral tow is active and the ignition needsto be turned off. See Towing the Vehicle on Four Wheels (page 222).
Neutral Tow Engaged
Turn Ignition Off for Towing
Displays while attempting to exit neutral tow. The brake pedalneeds to be depressed and park button selected to deac-
tivate.
See Towing the Vehicle on Four Wheels (page 222).
Neutral Tow Engaged
Depress Brake andSelect Park to Exit Neutral Tow
Displays when neutral tow is active and the park brake needsto be released.
See Towing the Vehicle on Four Wheels (page 222).
Neutral Tow Remove
Park Brake for Towing
Displays when neutral tow has been deactivated.
Neutral Tow Disengaged
123
MKZ (CC9) Information Displays

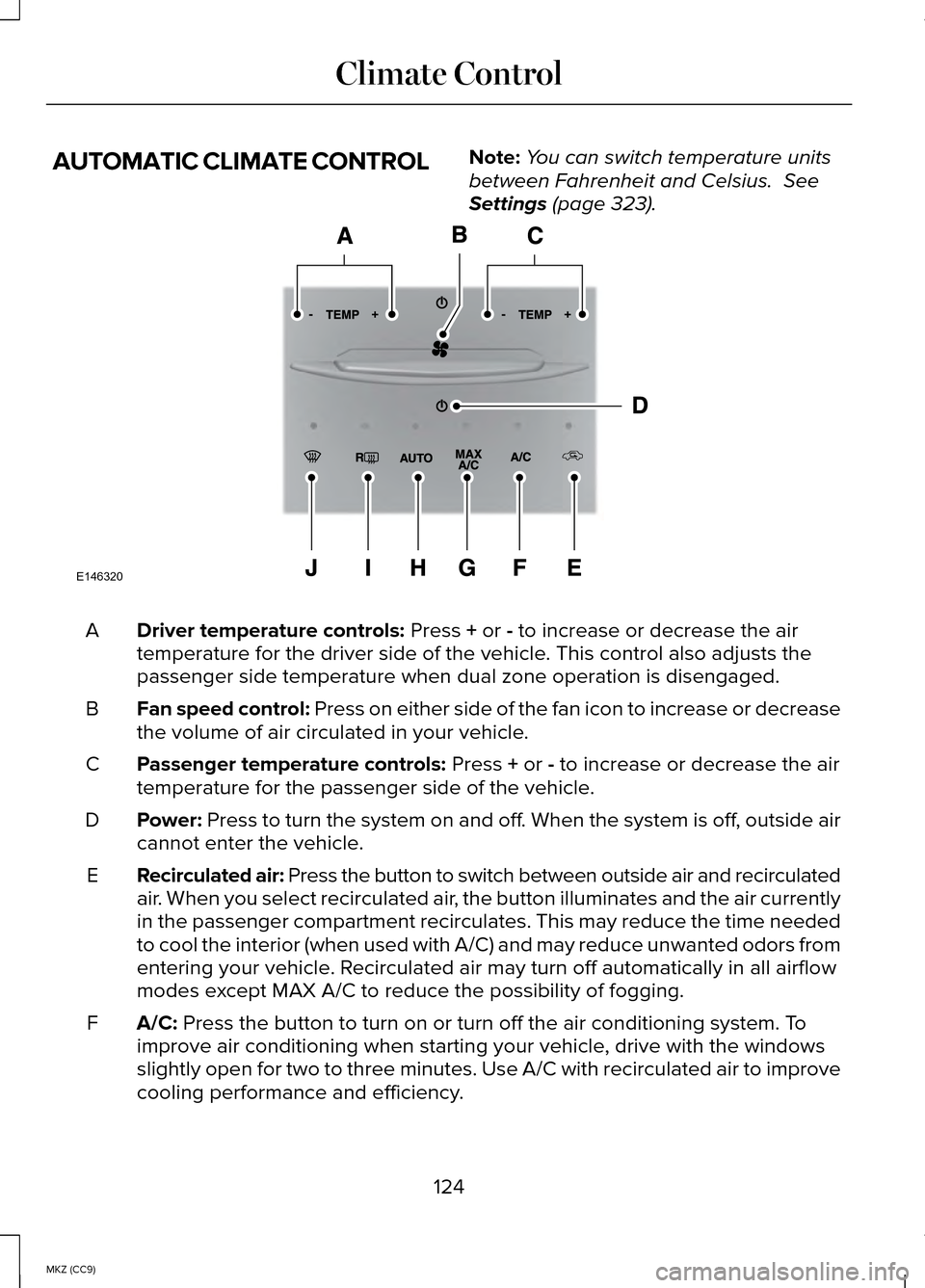

AUTOMATIC CLIMATE CONTROL
Note:
You can switch temperature units
between Fahrenheit and Celsius. See
Settings (page 323). Driver temperature controls:
Press + or - to increase or decrease the air
temperature for the driver side of the vehicle. This control also adjusts the
passenger side temperature when dual zone operation is disengaged.
A
Fan speed control: Press on either side of the fan icon to increase or decrease
the volume of air circulated in your vehicle.
B
Passenger temperature controls:
Press + or - to increase or decrease the air
temperature for the passenger side of the vehicle.
C
Power:
Press to turn the system on and off. When the system is off, outside air
cannot enter the vehicle.
D
Recirculated air: Press the button to switch between outside air and recirculated
air. When you select recirculated air, the button illuminates and the air currently
in the passenger compartment recirculates. This may reduce the time need\
ed
to cool the interior (when used with A/C) and may reduce unwanted odor\
s from
entering your vehicle. Recirculated air may turn off automatically in all airflow
modes except MAX A/C to reduce the possibility of fogging.
E
A/C:
Press the button to turn on or turn off the air conditioning system. To
improve air conditioning when starting your vehicle, drive with the windows
slightly open for two to three minutes. Use A/C with recirculated air to\
improve
cooling performance and efficiency.
F
124
MKZ (CC9) Climate ControlE146320

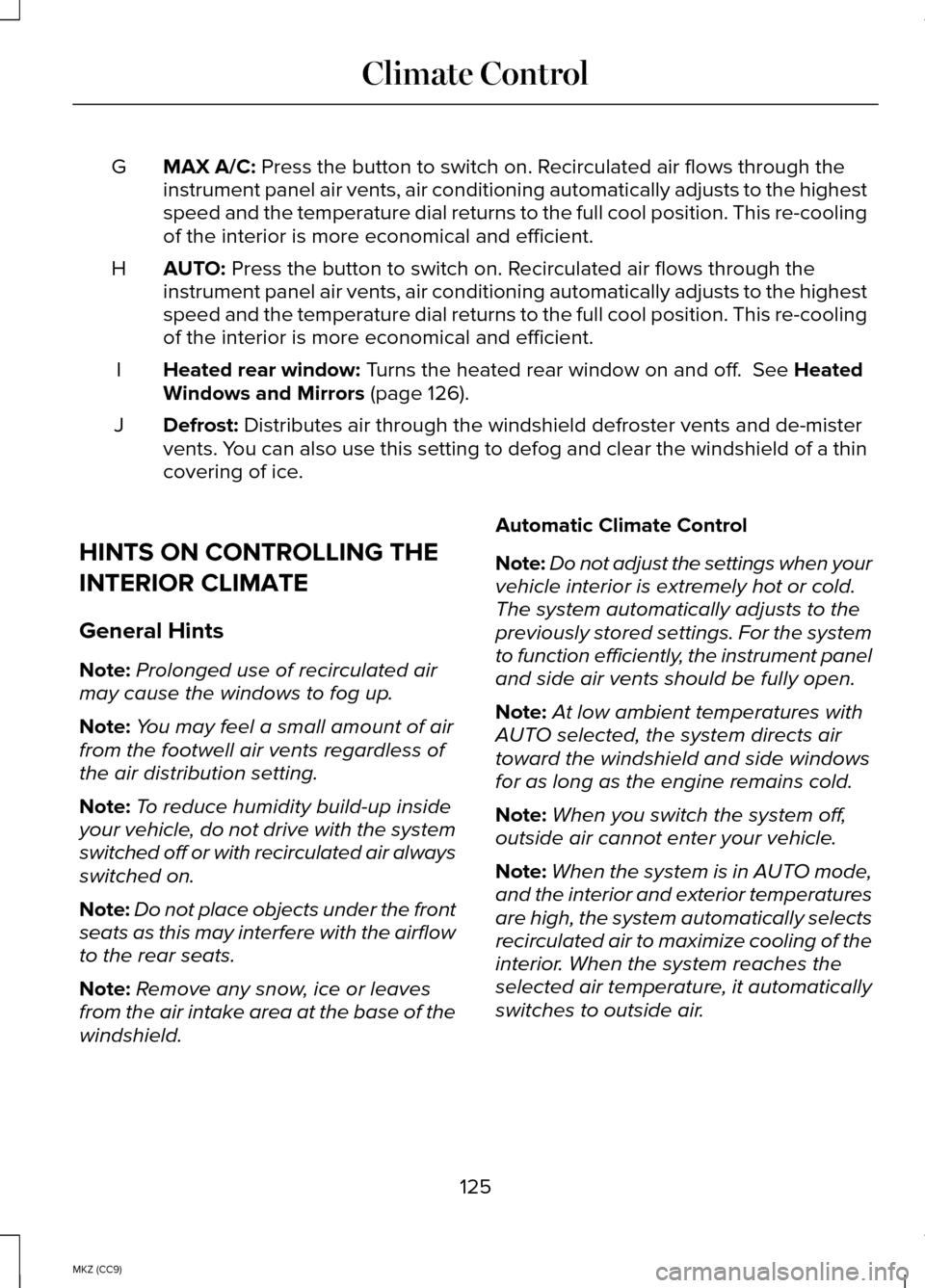

MAX A/C: Press the button to switch on. Recirculated air flows through the
instrument panel air vents, air conditioning automatically adjusts to th\
e highest
speed and the temperature dial returns to the full cool position. This r\
e-cooling
of the interior is more economical and efficient.
G
AUTO:
Press the button to switch on. Recirculated air flows through the
instrument panel air vents, air conditioning automatically adjusts to th\
e highest
speed and the temperature dial returns to the full cool position. This r\
e-cooling
of the interior is more economical and efficient.
H
Heated rear window:
Turns the heated rear window on and off. See Heated
Windows and Mirrors (page 126).
I
Defrost:
Distributes air through the windshield defroster vents and de-mister
vents. You can also use this setting to defog and clear the windshield of a thin\
covering of ice.
J
HINTS ON CONTROLLING THE
INTERIOR CLIMATE
General Hints
Note: Prolonged use of recirculated air
may cause the windows to fog up.
Note: You may feel a small amount of air
from the footwell air vents regardless of
the air distribution setting.
Note: To reduce humidity build-up inside
your vehicle, do not drive with the system
switched off or with recirculated air always
switched on.
Note: Do not place objects under the front
seats as this may interfere with the airflow
to the rear seats.
Note: Remove any snow, ice or leaves
from the air intake area at the base of the
windshield. Automatic Climate Control
Note:
Do not adjust the settings when your
vehicle interior is extremely hot or cold.
The system automatically adjusts to the
previously stored settings. For the system
to function efficiently, the instrument panel
and side air vents should be fully open.
Note: At low ambient temperatures with
AUTO selected, the system directs air
toward the windshield and side windows
for as long as the engine remains cold.
Note: When you switch the system off,
outside air cannot enter your vehicle.
Note: When the system is in AUTO mode,
and the interior and exterior temperatures
are high, the system automatically selects
recirculated air to maximize cooling of the
interior. When the system reaches the
selected air temperature, it automatically
switches to outside air.
125
MKZ (CC9) Climate Control

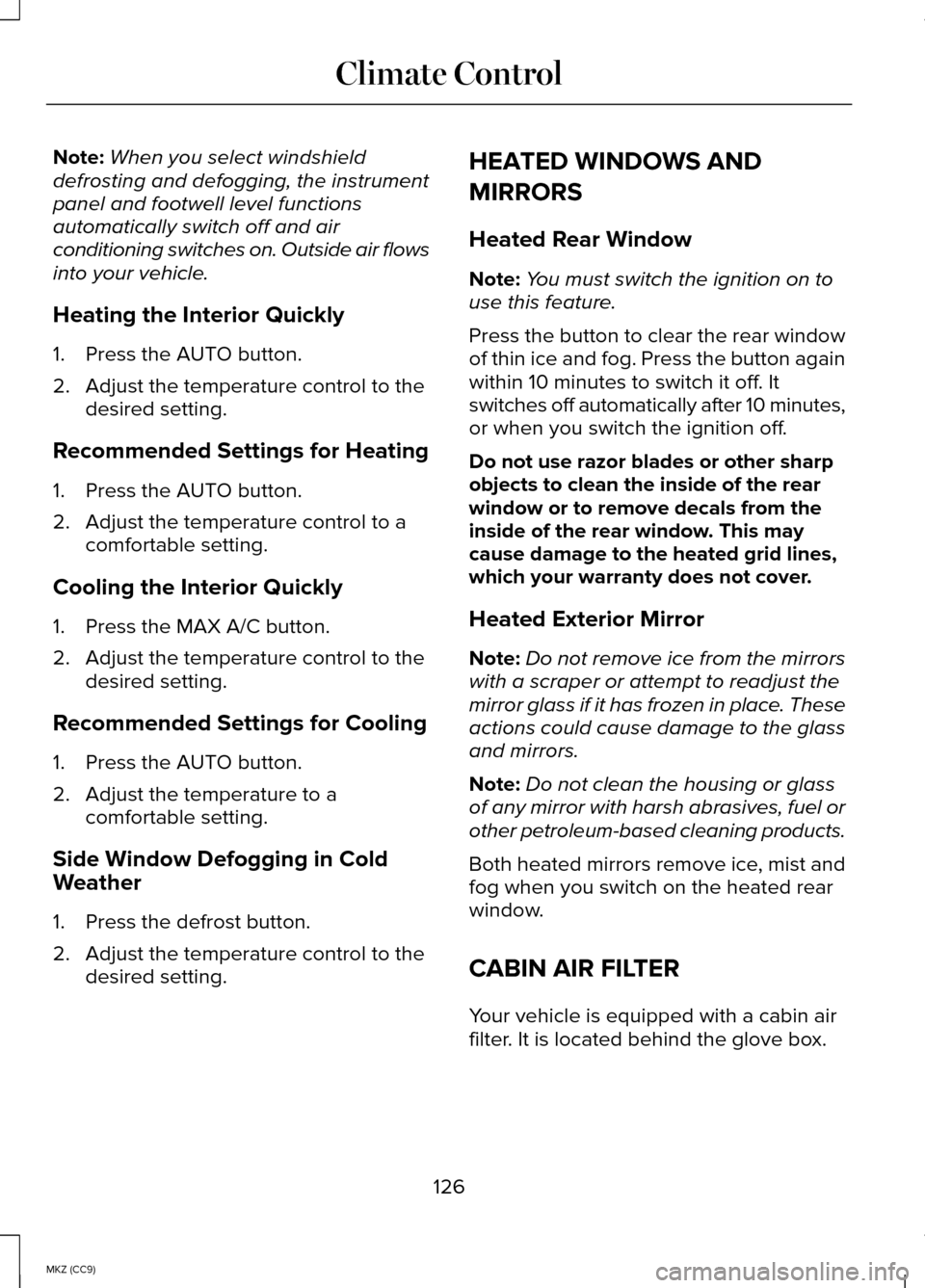

Note:
When you select windshield
defrosting and defogging, the instrument
panel and footwell level functions
automatically switch off and air
conditioning switches on. Outside air flows
into your vehicle.
Heating the Interior Quickly
1. Press the AUTO button.
2. Adjust the temperature control to the desired setting.
Recommended Settings for Heating
1. Press the AUTO button.
2. Adjust the temperature control to a comfortable setting.
Cooling the Interior Quickly
1. Press the MAX A/C button.
2. Adjust the temperature control to the desired setting.
Recommended Settings for Cooling
1. Press the AUTO button.
2. Adjust the temperature to a comfortable setting.
Side Window Defogging in Cold
Weather
1. Press the defrost button.
2. Adjust the temperature control to the desired setting. HEATED WINDOWS AND
MIRRORS
Heated Rear Window
Note:
You must switch the ignition on to
use this feature.
Press the button to clear the rear window
of thin ice and fog. Press the button again
within 10 minutes to switch it off. It
switches off automatically after 10 minutes,
or when you switch the ignition off.
Do not use razor blades or other sharp
objects to clean the inside of the rear
window or to remove decals from the
inside of the rear window. This may
cause damage to the heated grid lines,
which your warranty does not cover.
Heated Exterior Mirror
Note: Do not remove ice from the mirrors
with a scraper or attempt to readjust the
mirror glass if it has frozen in place. These
actions could cause damage to the glass
and mirrors.
Note: Do not clean the housing or glass
of any mirror with harsh abrasives, fuel or
other petroleum-based cleaning products.
Both heated mirrors remove ice, mist and
fog when you switch on the heated rear
window.
CABIN AIR FILTER
Your vehicle is equipped with a cabin air
filter. It is located behind the glove box.
126
MKZ (CC9) Climate Control

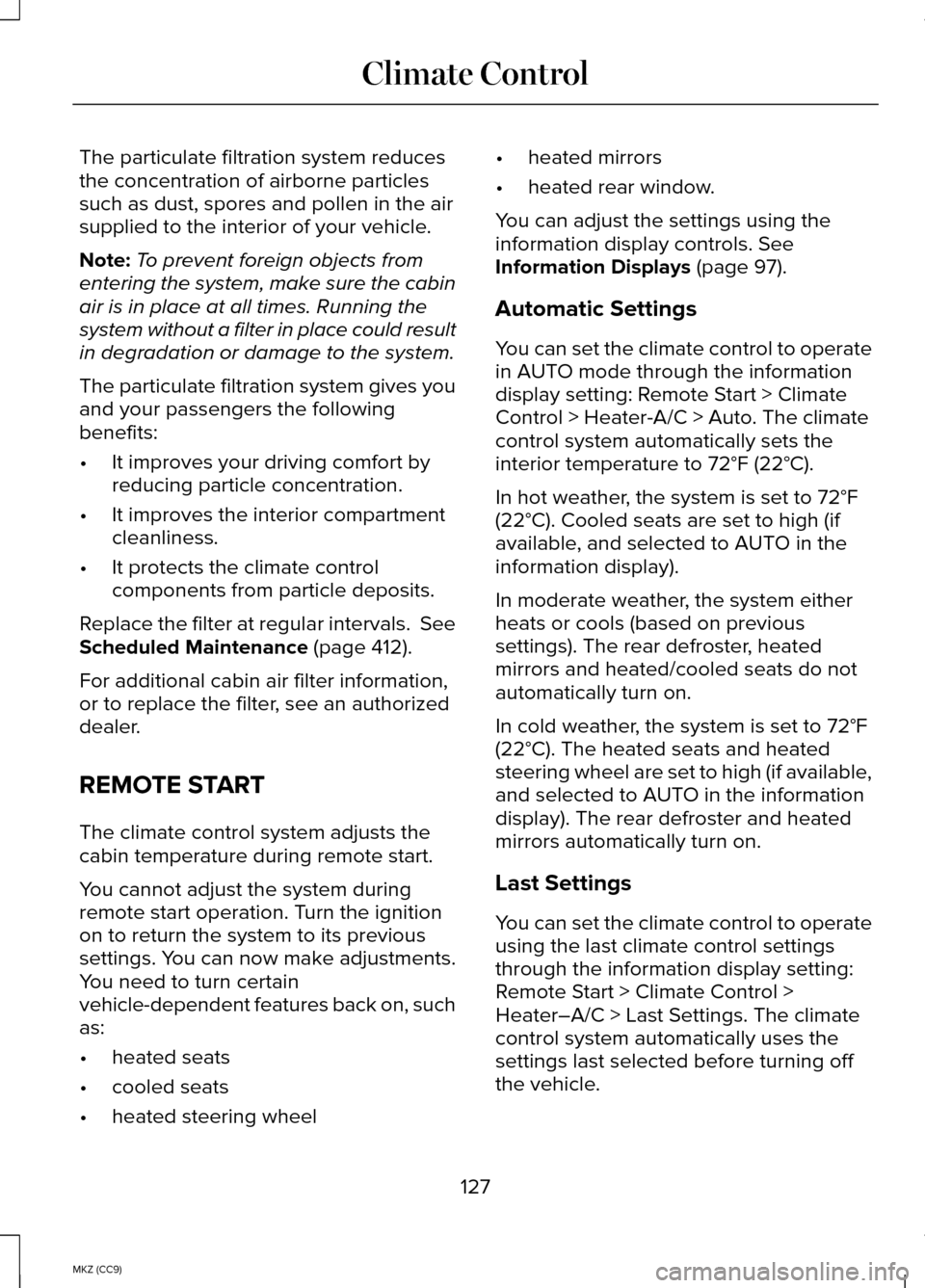

The particulate filtration system reduces
the concentration of airborne particles
such as dust, spores and pollen in the air
supplied to the interior of your vehicle.
Note:
To prevent foreign objects from
entering the system, make sure the cabin
air is in place at all times. Running the
system without a filter in place could result
in degradation or damage to the system.
The particulate filtration system gives you
and your passengers the following
benefits:
• It improves your driving comfort by
reducing particle concentration.
• It improves the interior compartment
cleanliness.
• It protects the climate control
components from particle deposits.
Replace the filter at regular intervals. See
Scheduled Maintenance (page 412).
For additional cabin air filter information,
or to replace the filter, see an authorized
dealer.
REMOTE START
The climate control system adjusts the
cabin temperature during remote start.
You cannot adjust the system during
remote start operation. Turn the ignition
on to return the system to its previous
settings. You can now make adjustments.
You need to turn certain
vehicle-dependent features back on, such
as:
• heated seats
• cooled seats
• heated steering wheel •
heated mirrors
• heated rear window.
You can adjust the settings using the
information display controls.
See
Information Displays (page 97).
Automatic Settings
You can set the climate control to operate
in AUTO mode through the information
display setting: Remote Start > Climate
Control > Heater-A/C > Auto. The climate
control system automatically sets the
interior temperature to 72°F (22°C).
In hot weather, the system is set to 72°F
(22°C). Cooled seats are set to high (if
available, and selected to AUTO in the
information display).
In moderate weather, the system either
heats or cools (based on previous
settings). The rear defroster, heated
mirrors and heated/cooled seats do not
automatically turn on.
In cold weather, the system is set to 72°F
(22°C). The heated seats and heated
steering wheel are set to high (if available,
and selected to AUTO in the information
display). The rear defroster and heated
mirrors automatically turn on.
Last Settings
You can set the climate control to operate
using the last climate control settings
through the information display setting:
Remote Start > Climate Control >
Heater–A/C > Last Settings. The climate
control system automatically uses the
settings last selected before turning off
the vehicle.
127
MKZ (CC9) Climate Control

Heated and Cooled Devices
The climate control system controls other
heated and cooled devices inside the
vehicle. These devices (if available and
selected to AUTO in the information
displays) may switch on during remote
start. Heated devices typically switch on
during cold weather, and cooled devices
during hot weather.
128
MKZ (CC9) Climate Control
