LINCOLN MKZ HYBRID 2015 Owners Manual

Protected components
Fuse amp rating
Fuse or relay number
Power decklid
30A 1
80
Inverter
40A 1
81
Not used
–
82
Wiper motor #1
25A 1
83
Not used
-
84
Panoramic roof #2
30A 1
85
1 M-type fuse
2 J-type fuse

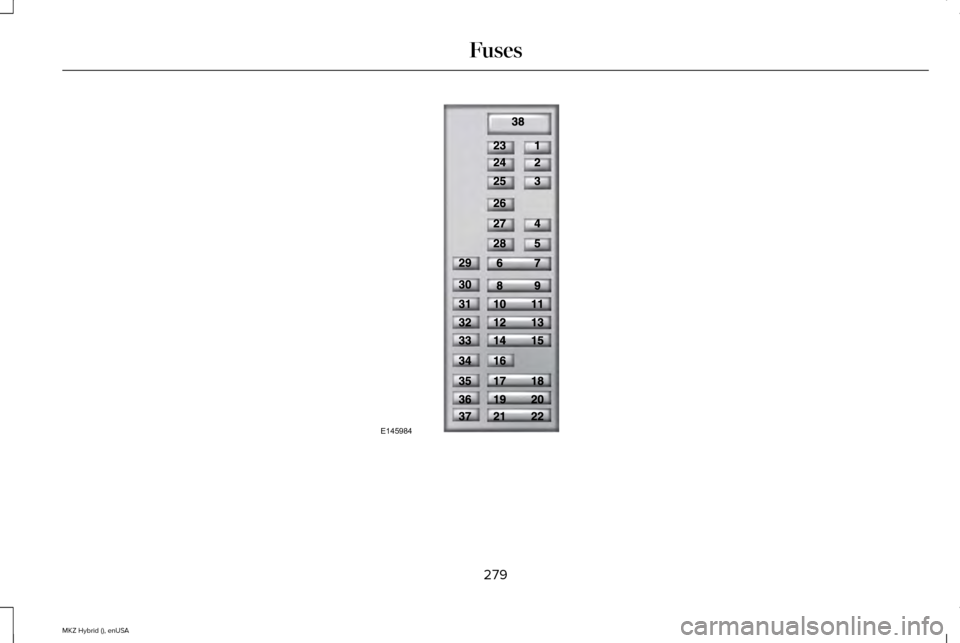

Passenger Compartment Fuse Panel
The fuse panel is under the instrument panel
to the left of the steering column.
278
MKZ Hybrid (), enUSA Fuses

279
MKZ Hybrid (), enUSA FusesE145984

Protected components
Fuse amp rating
Fuse or relay number
Lighting (ambient, glove box, vanity, dome, trunk)
10A 1
1
Memory seats, Lumbar, Power mirror
7.5A 1
2
Driver door unlock
20A 1
3
Not used (spare)
5A 1
4
Subwoofer amplifier, THX amplifier
20A 1
5
Heated seat relay coil
10A 2
6
Not used (spare)
10A 2
7
Not used (spare)
10A 2
8
Not used (spare)
10A 2
9
Power trunk logic eypad
5A 2
10
Keypad
Not used (spare)
5A 2
11
280
MKZ Hybrid (), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number
Climate control
7.5A 2
12
Gear shift
Steering wheel column
7.5A 2
13
Instrument cluster
Datalink logic
Battery electronic control module
10A 2
14
DCDC
Datalink/Gateway module
10A 2
15
Decklid/Liftglass release
15A 1
16
Child lock
Not used (spare)
5A 2
17
Ignition
5A 2
18
Push button start/stop
Passenger airbag disabled indicator, Transmission range
5A 2
19
Adaptive headlamps
5A 2
20
Humidity and in-car temperature
5A 2
21
Blind spot
Rear video camera
281
MKZ Hybrid (), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number
Adaptive cruise control
Occupant classification sensor
5A 2
22
Delayed accessory (power inverter, moonroof, all smart
window, driver window switch pack)
10A 1
23
Central lock/unlock
30A 1
24
Driver door (window, mirror)
20A 1
25
Front passenger door (window, mirror)
30A 1
26
Moonroof
30A 1
27
THX amplifier
20A 1
28
Rear driver side door (window)
30A 1
29
Rear passenger side door (window)
30A 1
30
Not used (spare)
–
31
GPS
10A 1
32
Voice control
282
MKZ Hybrid (), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number
Display
Adaptive cruise control
Radio frequency receiver
Radio
20A 1
33
Run/start (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker)
30A 1
34
Restraints control module
5A 1
35
Auto-dimming rear view mirror
15A 1
36
Auto high beam
Heated seat module
All-wheel drive
CCD
Lane keeping system
Not used (spare)
15A 1
37
Rear window shade
30A
38
1 Micro fuse
2 Dual micro fuse
283
MKZ Hybrid (), enUSA Fuses

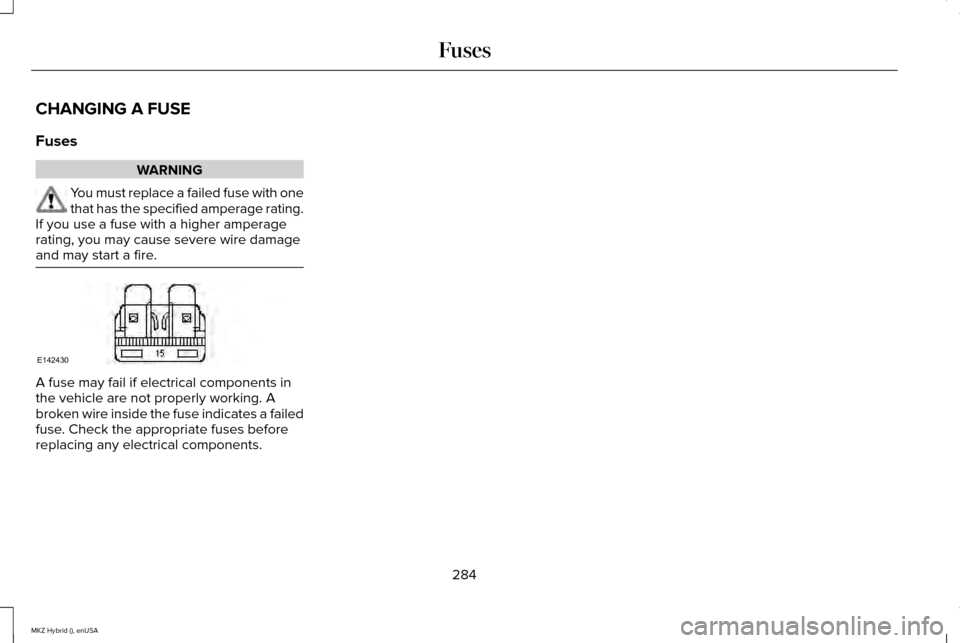

CHANGING A FUSE
Fuses
WARNING
You must replace a failed fuse with one
that has the specified amperage rating.
If you use a fuse with a higher amperage
rating, you may cause severe wire damage
and may start a fire. A fuse may fail if electrical components in
the vehicle are not properly working. A
broken wire inside the fuse indicates a failed
fuse. Check the appropriate fuses before
replacing any electrical components.
284
MKZ Hybrid (), enUSA FusesE142430

GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale value.
There is a large network of Ford authorized
dealers that are there to help you with their
professional servicing expertise. We believe
that their specially trained technicians are
best qualified to service your vehicle properly
and expertly. They are supported by a wide
range of highly specialized tools developed
specifically for servicing your vehicle.
To help you service your vehicle, we provide
scheduled maintenance information which
makes tracking routine service easy. See
Scheduled Maintenance (page 468).
If your vehicle requires professional service,
your authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which parts
and services are covered.
Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle. Precautions
•
Do not work on a hot engine.
• Make sure that nothing gets caught in
moving parts.
• Do not work on a vehicle with the engine
running in an enclosed space, unless you
are sure you have enough ventilation.
• Keep all open flames and other burning
material (such as cigarettes) away from
the battery and all fuel related parts.
Working with the Engine Off
1. Set the parking brake and shift to
P
(Park).
2. Turn off the engine and remove the key (if equipped).
3. Block the wheels. Working with the Engine On WARNING
To reduce the risk of vehicle damage
and/or personal burn injuries, do not
start your engine with the air cleaner
removed and do not remove it while the
engine is running. 1. Set the parking brake and shift to
P
(Park).
2. Block the wheels
285
MKZ Hybrid (), enUSA Maintenance

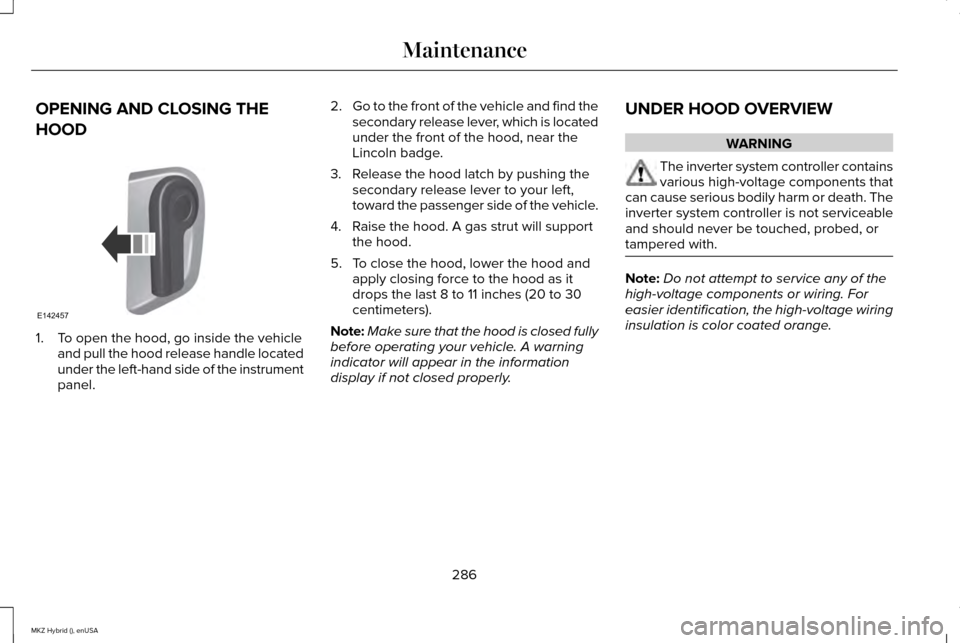

OPENING AND CLOSING THE
HOOD
1. To open the hood, go inside the vehicle
and pull the hood release handle located
under the left-hand side of the instrument
panel. 2.
Go to the front of the vehicle and find the
secondary release lever, which is located
under the front of the hood, near the
Lincoln badge.
3. Release the hood latch by pushing the secondary release lever to your left,
toward the passenger side of the vehicle.
4. Raise the hood. A gas strut will support the hood.
5. To close the hood, lower the hood and apply closing force to the hood as it
drops the last 8 to 11 inches (20 to 30
centimeters).
Note: Make sure that the hood is closed fully
before operating your vehicle. A warning
indicator will appear in the information
display if not closed properly. UNDER HOOD OVERVIEW WARNING
The inverter system controller contains
various high-voltage components that
can cause serious bodily harm or death. The
inverter system controller is not serviceable
and should never be touched, probed, or
tampered with. Note:
Do not attempt to service any of the
high-voltage components or wiring. For
easier identification, the high-voltage wiring
insulation is color coated orange.
286
MKZ Hybrid (), enUSA MaintenanceE142457

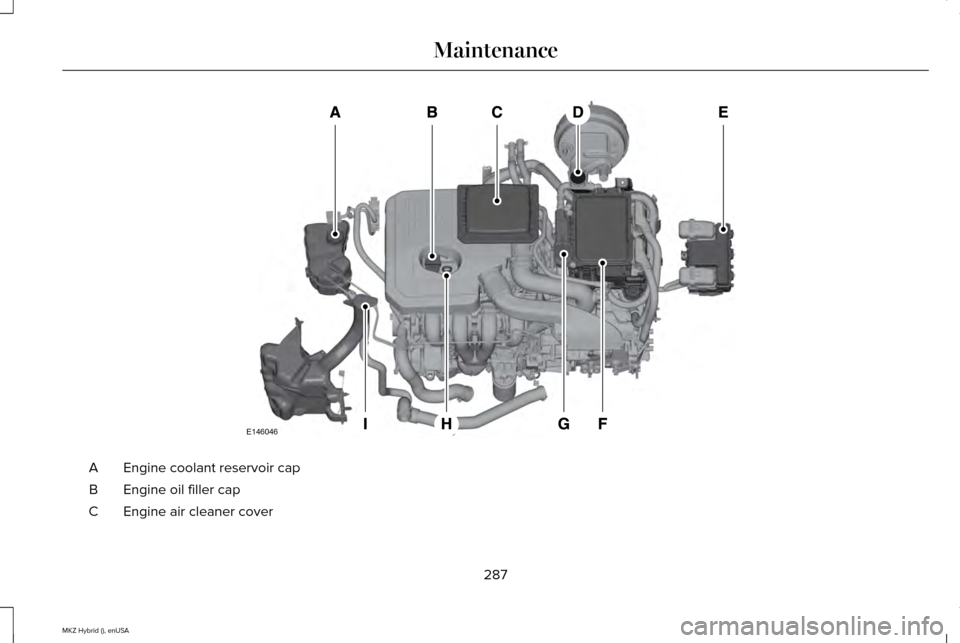

Engine coolant reservoir cap
A
Engine oil filler cap
B
Engine air cleaner cover
C
287
MKZ Hybrid (), enUSA MaintenanceE146046
