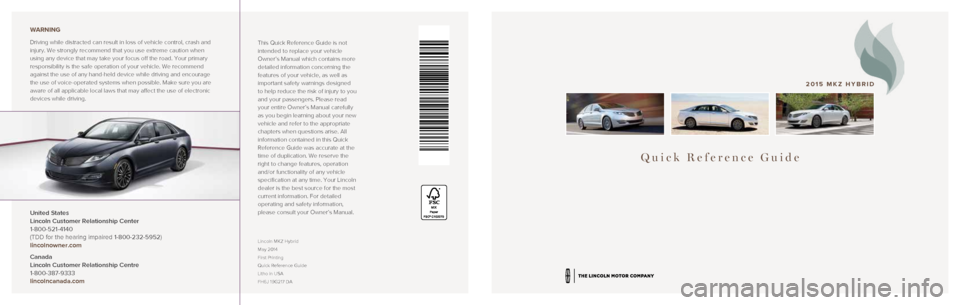

LINCOLN MKZ HYBRID 2015 Quick Reference Guide

Quick Reference Guide
2015 MKZ HYBRID
This Quick Reference Guide is not
intended to replace your vehicle
Owner’s Manual which contains more
detailed information concerning the
features of your vehicle, as well as
important safety warnings designed
to help reduce the risk of injury to you
and your passengers. Please read
your entire Owner’s Manual carefully
as you begin learning about your new
vehicle and refer to the appropriate
chapters when questions arise. All
information contained in this Quick
Reference Guide was accurate at the
time of duplication. We reserve the
right to change features, operation
and/or functionality of any vehicle
specification at any time. Your Lincoln
dealer is the best source for the most
current information. For detailed
operating and safety information,
please consult your Owner’s Manual.
Lincoln MKZ Hybrid
May 2014
First Printing
Quick Reference Guide
Litho in USA
FH6J 19G217 DA
United States
Lincoln Customer Relationship Center
1-800-521-4140
(TDD for the hearing impaired 1-800-232-5952)
lincolnowner.com
Canada
Lincoln Customer Relationship Centre
1-800-387-9333
lincolncanada.com WARNING
Driving while distracted can result in loss of vehicle control, crash an\
d
injury. We strongly recommend that you use extreme caution when
using any device that may take your focus off the road. Your primary
responsibility is the safe operation of your vehicle. We recommend
against the use of any hand-held device while driving and encourage
the use of voice-operated systems when possible. Make sure you are
aware of all applicable local laws that may affect the use of electronic\

devices while driving.

23
2 3

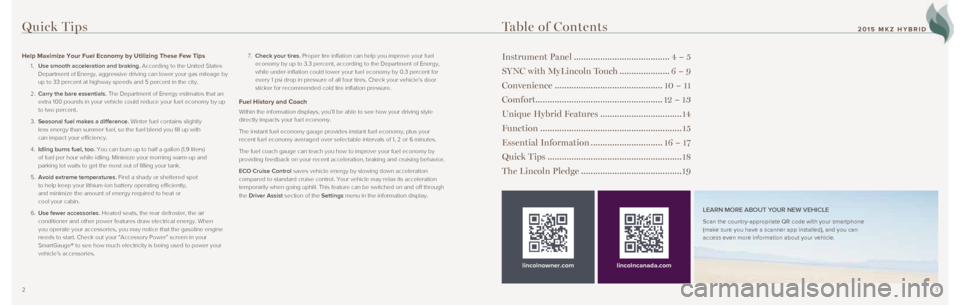

Help Maximize Your Fuel Economy by Utilizing These Few Tips
1. Use smooth acceleration and braking. According to the United States
Department of Energy, aggressive driving can lower your gas mileage by
up to 33 percent at highway speeds and 5 percent in the city.
2. Carry the bare essentials. The Department of Energy estimates that an
extra 100 pounds in your vehicle could reduce your fuel economy by up
to two percent.
3. Seasonal fuel makes a difference. Winter fuel contains slightly
less energy than summer fuel, so the fuel blend you fill up with
can impact your efficiency.
4. Idling burns fuel, too. You can burn up to half a gallon (1.9 liters)
of fuel per hour while idling. Minimize your morning warm-up and
parking lot waits to get the most out of filling your tank.
5. Avoid extreme temperatures. Find a shady or sheltered spot
to help keep your lithium-ion battery operating efficiently,
and minimize the amount of energy required to heat or
cool your cabin.
6. Use fewer accessories. Heated seats, the rear defroster, the air
conditioner and other power features draw electrical energy. When
you operate your accessories, you may notice that the gasoline engine
needs to start. Check out your “Accessory Power” screen in your
SmartGauge® to see how much electricity is being used to power your
vehicle’s accessories.
7. Check your tires. Proper tire inflation can help you improve your fuel
economy by up to 3.3 percent, according to the Department of Energy,
while under-inflation could lower your fuel economy by 0.3 percent for
every 1 psi drop in pressure of all four tires. Check your vehicle’s \
door
sticker for recommended cold tire inflation pressure.
Fuel History and Coach
Within the information displays, you’ll be able to see how your drivi\
ng style
directly impacts your fuel economy.
The instant fuel economy gauge provides instant fuel economy, plus your \
recent fuel economy averaged over selectable intervals of 1, 2 or 6 minu\
tes.
The fuel coach gauge can teach you how to improve your fuel economy by
providing feedback on your recent acceleration, braking and cruising beh\
avior.
ECO Cruise Control saves vehicle energy by slowing down acceleration
compared to standard cruise control. Your vehicle may relax its accelera\
tion
temporarily when going uphill. This feature can be switched on and off t\
hrough
the Driver Assist section of the Settings menu in the information display.
Table of Contents
Instrument Panel ........................................ 4 – 5
SYNC with MyLincoln Touch .....................6 – 9

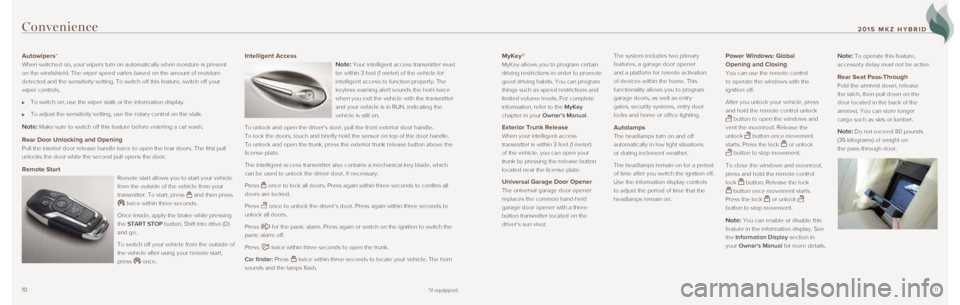

Convenience ............................................. 10 – 11

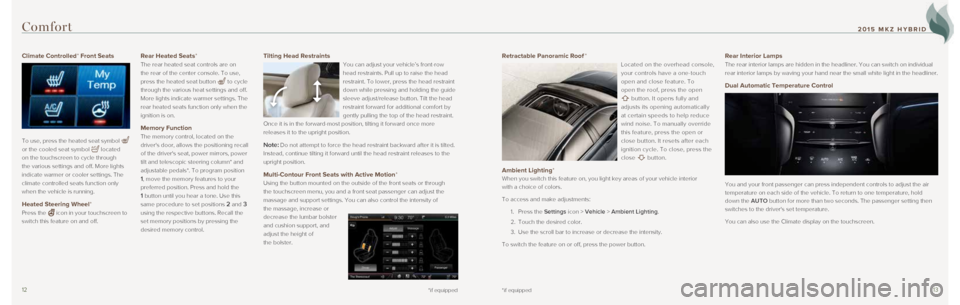

Comfort..................................................... 12 – 13
Unique Hybrid Features .................................. 14
Function ........................................................... 15

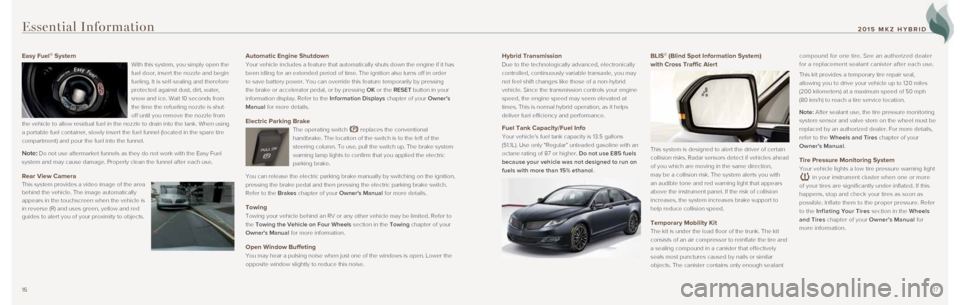

Essential Information .............................. 16 – 17
Quick Tips ........................................................ 18
The Lincoln Pledge .......................................... 19
lincolnowner.com LEARN MORE ABOUT YOUR NEW VEHICLE
Scan the country-appropriate QR code with your smartphone
(make sure you have a scanner app installed), and you can
access even more information about your vehicle.
lincolncanada.com

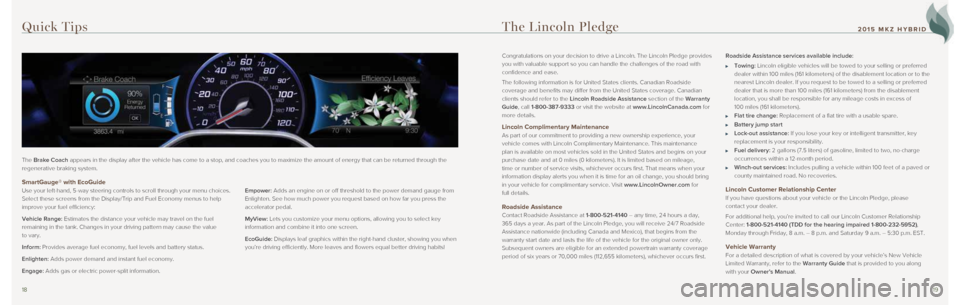

Quick Tips
2015 MKZ HYBRID

45

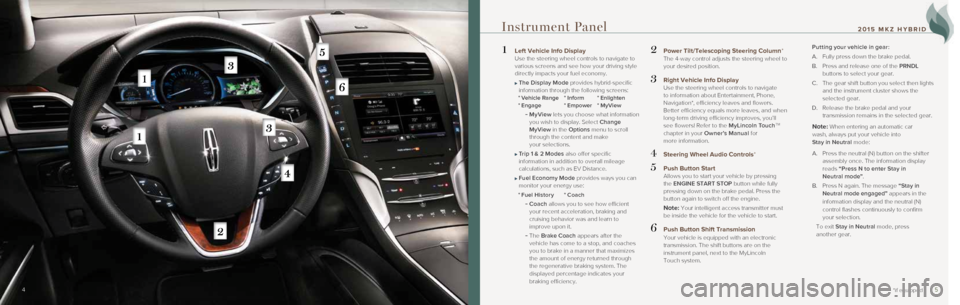

1 Left Vehicle Info Display Use the steering wheel controls to navigate to
various screens and see how your driving style
directly impacts your fuel economy.

The Display Mode provides hybrid-specific
information through the following screens:
° Vehicle Range ° Inform ° Enlighten
° Engage ° Empower ° MyView
- MyView lets you choose what information
you wish to display. Select Change
MyView in the Options menu to scroll
through the content and make
your selections.

Trip 1 & 2 Modes also offer specific
information in addition to overall mileage
calculations, such as EV Distance.

Fuel Economy Mode provides ways you can
monitor your energy use:
° Fuel History ° Coach
- Coach allows you to see how efficient
your recent acceleration, braking and
cruising behavior was and learn to
improve upon it.
- The Brake Coach appears after the
vehicle has come to a stop, and coaches
you to brake in a manner that maximizes
the amount of energy returned through
the regenerative braking system. The
displayed percentage indicates your
braking efficiency.
2 Power Tilt/Telescoping Steering Column* The 4-way control adjusts the steering wheel to
your desired position.

3 Right Vehicle Info Display Use the steering wheel controls to navigate
to information about Entertainment, Phone,
Navigation*, efficiency leaves and flowers.
Better efficiency equals more leaves, and when
long-term driving efficiency improves, you’ll
see flowers! Refer to the MyLincoln Touch
TM
chapter in your Owner’s Manual for
more information.
4 Steering Wheel Audio Controls*
5 Push Button Start Allows you to start your vehicle by pressing
the ENGINE START STOP button while fully
pressing down on the brake pedal. Press the
button again to switch off the engine.

Note: Your intelligent access transmitter must
be inside the vehicle for the vehicle to start.
6 Push Button Shift Transmission Your vehicle is equipped with an electronic
transmission. The shift buttons are on the
instrument panel, next to the MyLincoln
Touch system.
Putting your vehicle in gear:
A. Fully press down the brake pedal.
B. Press and release one of the PRNDL
buttons to select your gear.
C. The gear shift button you select then lights
and the instrument cluster shows the
selected gear.
D. Release the brake pedal and your
transmission remains in the selected gear.
Note: When entering an automatic car
wash, always put your vehicle into
Stay in Neutral mode:
A. Press the neutral (N) button on the shifter
assembly once. The information display
reads “Press N to enter Stay in
Neutral mode” .
B. Press N again. The message “Stay in
Neutral mode engaged” appears in the
information display and the neutral (N)
control flashes continuously to confirm
your selection.
To exit Stay in Neutral mode, press
another gear.
4
*if equipped
Instrument Panel
2015 MKZ HYBRID

67
Why You Need a SYNC
Owner Account
A SYNC owner account lets you
receive the latest software updates
that add new places, directions and
information, and if you have questions,
you'll get free customer support. Visit
the website or call the toll-free number
for more information. See the inside
front cover of this guide for details.
Pairing Your Phone with SYNC 1. Make sure that your vehicle is in
park (P) and you switch on your
radio and ignition. Touch Add
Phone in the upper left corner
of the touchscreen. Find SYNC
appears on the screen and
instructs you to begin the pairing
process from your device.
2. Make sure that Bluetooth is set to
ON and that your cellular phone
is in the proper mode. See your
phone’s manual, if necessary.
Select SYNC and a six-digit PIN
appears on your device. 3.
If you are prompted to enter a
PIN on your device, it does not
support Secure Simple Pairing.
To pair, enter the PIN displayed
on the touchscreen, and then skip
the next step.
4. When prompted on your
phone’s display, confirm that
the PIN provided by SYNC
matches the PIN displayed
on your cellular phone.
5. The display indicates when the
pairing is successful.
Note: The system may prompt you to
set your phone as the primary/favorite
(the primary phone receives messages
and voicemail); download your phone
book (required to use the full set
of voice commands) and switch on
911 Assist
®.
Tips Make sure you accept the request
from SYNC to access your phone.
To pair subsequent phones, please
refer to Pairing Subsequent
Phones in the MyLincoln Touch
chapter of your Owner’s Manual.
If you are experiencing pairing
problems, try performing a clean
pairing by deleting your services
from SYNC, deleting the SYNC
connection from your phone, and
then repeating the Pairing Your
Phone with SYNC process.
Phone
Voice-control your phone to
connect with many other features:
Connects automatically with a
911 Operator in the event of an
accident (feature must be on prior
to an event).
Transfer calls seamlessly from
SYNC to phone as you get in or
out of your vehicle.
Refer to the MyLincoln Touch
chapter of your Owner's Manual
for complete details.

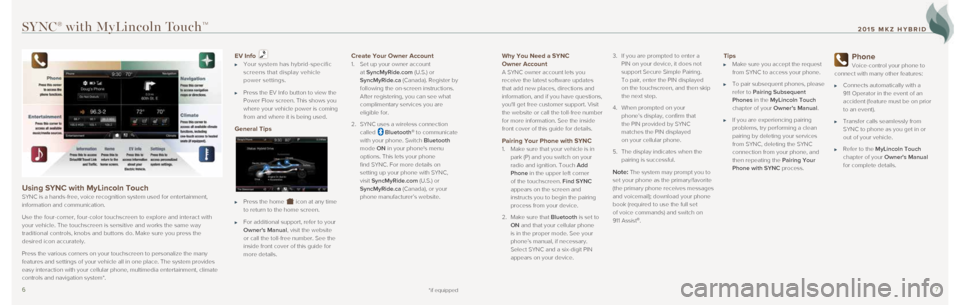

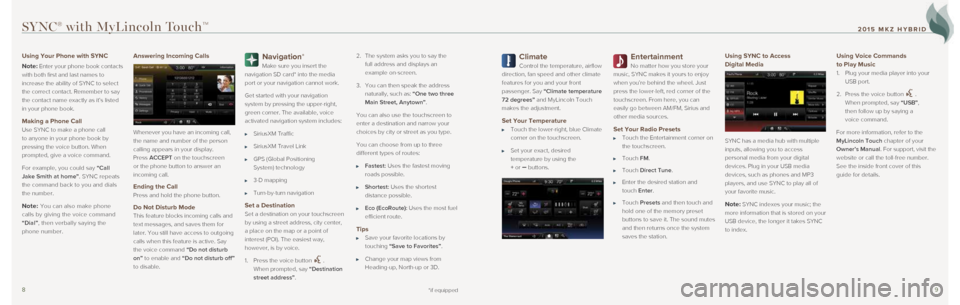

Using SYNC with MyLincoln Touch SYNC is a hands-free, voice recognition system used for entertainment,
information and communication.
Use the four-corner, four-color touchscreen to explore and interact with\

your vehicle. The touchscreen is sensitive and works the same way
traditional controls, knobs and buttons do. Make sure you press the
desired icon accurately.
Press the various corners on your touchscreen to personalize the many
features and settings of your vehicle all in one place. The system provi\
des
easy interaction with your cellular phone, multimedia entertainment, cli\
mate
controls and navigation system*.
*if equipped
EV Info Your system has hybrid-specific
screens that display vehicle
power settings.
Press the EV Info button to view the
Power Flow screen. This shows you
where your vehicle power is coming
from and where it is being used.
General Tips
Press the home icon at any time
to return to the home screen.
For additional support, refer to your
Owner's Manual, visit the website
or call the toll-free number. See the
inside front cover of this guide for
more details.
Create Your Owner Account 1. Set up your owner account
at SyncMyRide.com (U.S.) or
SyncMyRide.ca (Canada). Register by
following the on-screen instructions.
After registering, you can see what
complimentary services you are
eligible for.
2. SYNC uses a wireless connection
called
Bluetooth® to communicate
with your phone. Switch Bluetooth
mode ON in your phone's menu
options. This lets your phone
find SYNC. For more details on
setting up your phone with SYNC,
visit SyncMyRide.com (U.S.) or
SyncMyRide.ca (Canada), or your
phone manufacturer’s website.
SYNC® with MyLincoln TouchTM
2015 MKZ HYBRID

89
Climate
Control the temperature, airflow
direction, fan speed and other climate
features for you and your front
passenger. Say “Climate temperature
72 degrees” and MyLincoln Touch
makes the adjustment.
Set Your Temperature
Touch the lower-right, blue Climate
corner on the touchscreen.
Set your exact, desired
temperature by using the
+ or – buttons.
Entertainment
No matter how you store your
music, SYNC makes it yours to enjoy
when you’re behind the wheel. Just
press the lower-left, red corner of the
touchscreen. From here, you can
easily go between AM/FM, Sirius and
other media sources.
Set Your Radio Presets
Touch the Entertainment corner on
the touchscreen.
Touch FM.
Touch Direct Tune.
Enter the desired station and
touch Enter.
Touch Presets and then touch and
hold one of the memory preset
buttons to save it. The sound mutes
and then returns once the system
saves the station.
Using SYNC to Access
Digital Media
SYNC has a media hub with multiple
inputs, allowing you to access
personal media from your digital
devices. Plug in your USB media
devices, such as phones and MP3
players, and use SYNC to play all of
your favorite music.
Note: SYNC indexes your music; the
more information that is stored on your
USB device, the longer it takes SYNC
to index.
Using Voice Commands
to Play Music
1. Plug your media player into your
USB port.
2. Press the voice
button .
When prompted, say “USB”,
then follow up by saying a
voice command.
For more information, refer to the
MyLincoln Touch chapter of your
Owner’s Manual. For support, visit the
website or call the toll-free number.
See the inside front cover of this
guide for details.
*if equipped
Using Your Phone with SYNC
Note:
Enter your phone book contacts
with both first and last names to
increase the ability of SYNC to select
the correct contact. Remember to say
the contact name exactly as it’s listed
in your phone book.
Making a Phone Call
Use SYNC to make a phone call
to anyone in your phone book by
pressing the voice button. When
prompted, give a voice command.
For example, you could say “Call
Jake Smith at home”. SYNC repeats
the command back to you and dials
the number.
Note: You can also make phone
calls by giving the voice command
“Dial”, then verbally saying the
phone number.
Answering Incoming Calls
Whenever you have an incoming call,
the name and number of the person
calling appears in your display.
Press ACCEPT on the touchscreen
or the phone button to answer an
incoming call.
Ending the Call
Press and hold the phone button.
Do Not Disturb Mode
This feature blocks incoming calls and
text messages, and saves them for
later. You still have access to outgoing
calls when this feature is active. Say
the voice command
“Do not disturb
on” to enable and “Do not disturb off”
to disable.
Navigation*
Make sure you insert the
navigation SD card* into the media
port or your navigation cannot work.
Get started with your navigation
system by pressing the upper-right,
green corner. The available, voice
activated navigation system includes:
SiriusXM Traffic
SiriusXM Travel Link
GPS (Global Positioning
System) technology
3-D mapping
Turn-by-turn navigation
Set a Destination
Set a destination on your touchscreen
by using a street address, city center,
a place on the map or a point of
interest (POI). The easiest way,
however, is by voice.
1. Press the voice button
.
When prompted, say “Destination
street address”. 2.
The system asks you to say the
full address and displays an
example on-screen.
3. You can then speak the address
naturally, such as: “One two three
Main Street, Anytown”.
You can also use the touchscreen to
enter a destination and narrow your
choices by city or street as you type.
You can choose from up to three
different types of routes:
Fastest: Uses the fastest moving
roads possible.
Shortest: Uses the shortest
distance possible.
Eco (EcoRoute): Uses the most fuel
efficient route.
Tips
Save your favorite locations by
touching “Save to Favorites”.
Change your map views from
Heading-up, North-up or 3D.
SYNC® with MyLincoln TouchTM
2015 MKZ HYBRID

1011
Convenience
Autowipers*
When switched on, your wipers turn on automatically when moisture is pre\
sent
on the windshield. The wiper speed varies based on the amount of moistur\
e
detected and the sensitivity setting. To switch off this feature, switch\
off your
wiper controls.
To switch on, use the wiper stalk or the information display.
To adjust the sensitivity setting, use the rotary control on the stalk.
Note: Make sure to switch off this feature before entering a car wash.
Rear Door Unlocking and Opening
Pull the interior door release handle twice to open the rear doors. The \
first pull
unlocks the door while the second pull opens the door.
Remote Start
Remote start allows you to start your vehicle
from the outside of the vehicle from your
transmitter. To start, press
and then press
twice within three seconds.
Once inside, apply the brake while pressing
the START STOP button. Shift into drive (D)
and go.
To switch off your vehicle from the outside of
the vehicle after using your remote start,
press
once.
Intelligent Access Note:
Your intelligent access transmitter must
be within 3 feet (1 meter) of the vehicle for
intelligent access to function properly. The
keyless warning alert sounds the horn twice
when you exit the vehicle with the transmitter
and your vehicle is in RUN, indicating the
vehicle is still on.
To unlock and open the driver’s door, pull the front exterior door ha\
ndle.
To lock the doors, touch and briefly hold the sensor on top of the door \
handle.
To unlock and open the trunk, press the exterior trunk release button ab\
ove the
license plate.
The intelligent access transmitter also contains a mechanical key blade,\
which
can be used to unlock the driver door, if necessary.
Press
once to lock all doors. Press again within three seconds to confirm all\

doors are locked.
Press
once to unlock the driver’s door. Press again within three seconds t\
o
unlock all doors.
Press
for the panic alarm. Press again or switch on the ignition to switch th\
e
panic alarm off.
Press
twice within three seconds to open the trunk.
Car finder: Press
twice within three seconds to locate your vehicle. The horn
sounds and the lamps flash.
*if equipped
MyKey®
MyKey allows you to program certain
driving restrictions in order to promote
good driving habits. You can program
things such as speed restrictions and
limited volume levels. For complete
information, refer to the MyKey
chapter in your Owner’s Manual.
Exterior Trunk Release
When your intelligent access
transmitter is within 3 feet (1 meter)
of the vehicle, you can open your
trunk by pressing the release button
located near the license plate.
Universal Garage Door Opener
The universal garage door opener
replaces the common hand-held
garage door opener with a three-
button transmitter located on the
driver’s sun visor.
The system includes two primary
features, a garage door opener
and a platform for remote activation
of devices within the home. This
functionality allows you to program
garage doors, as well as entry
gates, security systems, entry door
locks and home or office lighting.
Autolamps
The headlamps turn on and off
automatically in low light situations
or during inclement weather.
The headlamps remain on for a period
of time after you switch the ignition off.
Use the information display controls
to adjust the period of time that the
headlamps remain on.

Power Windows: Global
Opening and Closing

You can use the remote control
to operate the windows with the
ignition off.
After you unlock your vehicle, press
and hold the remote control unlock
button to open the windows and
vent the moonroof. Release the
unlock
button once movement
starts. Press the lock
or unlock
button to stop movement.
To close the windows and moonroof,
press and hold the remote control
lock
button. Release the lock
button once movement starts.
Press the lock
or unlock
button to stop movement.
Note: You can enable or disable this
feature in the information display. See
the Information Display section in
your Owner's Manual for more details.
Note: To operate this feature,
accessory delay must not be active.
Rear Seat Pass-Through
Fold the armrest down, release
the latch, then pull down on the
door located in the back of the
armrest. You can store longer
cargo such as skis or lumber.
Note: Do not exceed 80 pounds
(36 kilograms) of weight on
the pass-through door.
2015 MKZ HYBRID

1213*if equipped
Climate Controlled* Front Seats
To use, press the heated seat symbol
or the cooled seat symbol
located
on the touchscreen to cycle through
the various settings and off. More lights
indicate warmer or cooler settings. The
climate controlled seats function only
when the vehicle is running.
Heated Steering Wheel*
Press the icon in your touchscreen to
switch this feature on and off.
Rear Heated Seats*
The rear heated seat controls are on
the rear of the center console. To use,
press the heated seat button
to cycle
through the various heat settings and off.
More lights indicate warmer settings. The
rear heated seats function only when the
ignition is on.
Memory Function
The memory control, located on the
driver's door, allows the positioning recall
of the driver's seat, power mirrors, power
tilt and telescopic steering column* and
adjustable pedals*. To program position
1, move the memory features to your
preferred position. Press and hold the
1 button until you hear a tone. Use this
same procedure to set positions
2 and 3
using the respective buttons. Recall the
set memory positions by pressing the
desired memory control.
Comfort
Retractable Panoramic Roof *
Located on the overhead console,
your controls have a one-touch
open and close feature. To
open the roof, press the open
button. It opens fully and
adjusts its opening automatically
at certain speeds to help reduce
wind noise. To manually override
this feature, press the open or
close button. It resets after each
ignition cycle. To close, press the
close
button.
Ambient Lighting*
When you switch this feature on, you light key areas of your vehicle int\
erior
with a choice of colors.
To access and make adjustments:
1. Press the Settings icon > Vehicle > Ambient Lighting.
2. Touch the desired color.
3. Use the scroll bar to increase or decrease the intensity.
To switch the feature on or off, press the power button.
Rear Interior Lamps
The rear interior lamps are hidden in the headliner. You can switch on i\
ndividual
rear interior lamps by waving your hand near the small white light in th\
e headliner.
Dual Automatic Temperature Control
You and your front passenger can press independent controls to adjust th\
e air
temperature on each side of the vehicle. To return to one temperature, h\
old
down the AUTO button for more than two seconds. The passenger setting then
switches to the driver's set temperature.
You can also use the Climate display on the touchscreen.
*if equipped
Tilting Head Restraints
You can adjust your vehicle’s front-row
head restraints. Pull up to raise the head
restraint. To lower, press the head restraint
down while pressing and holding the guide
sleeve adjust/release button. Tilt the head
restraint forward for additional comfort by
gently pulling the top of the head restraint.
Once it is in the forward-most position, tilting it forward once more
releases it to the upright position.
Note: Do not attempt to force the head restraint backward after it is tilted. \
Instead, continue tilting it forward until the head restraint releases t\
o the
upright position.
Multi-Contour Front Seats with Active Motion*
Using the button mounted on the outside of the front seats or through
the touchscreen menu, you and a front seat passenger can adjust the
massage and support settings. You can also control the intensity of
the massage, increase or
decrease the lumbar bolster
and cushion support, and
adjust the height of
the bolster.
2015 MKZ HYBRID

1415
Active Park Assist*
The feature detects
an available parallel
parking space and
automatically steers
the vehicle into the
space (hands-free)
while you control the
accelerator, gearshift and brakes.
The system visually and audibly
instructs you to park your vehicle.
To use:
Press the button located on the
right side of the instrument panel.
To stop the parking procedure,
grab the steering wheel or press
the control again. For complete
information, refer to the
Parking Aids chapter of
your Owner’s Manual.
Note: The driver is always responsible
for controlling the vehicle, supervising
the system and intervening, if required.
Front and Rear Sensing System*
The front sensors are active when
the gearshift is in any position other
than park (P) or neutral (N) and the
vehicle speed is below 6 mph
(10 km/h).The rear sensors are active
when the transmission is in reverse
(R). As the vehicle moves closer to
the obstacle, the rate of the audible
warning increases. This system sounds
a warning tone if there is an obstacle
near the vehicle’s front or rear bumper,
and increases in frequency as the
object gets closer.
MyLincoln® Mobile App*
The smartphone-compatible app
combines vehicle service, client
support and driver convenience
features. For more details, visit
http://support.lincoln.com/owner-
services/mylincoln-mobile-app.

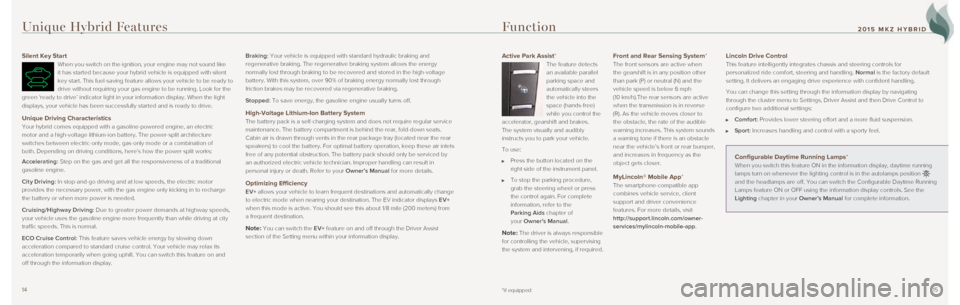

Silent Key Start
When you switch on the ignition, your engine may not sound like
it has started because your hybrid vehicle is equipped with silent
key start. This fuel-saving feature allows your vehicle to be ready to
drive without requiring your gas engine to be running. Look for the
green ‘ready to drive’ indicator light in your information display\
. When the light
displays, your vehicle has been successfully started and is ready to dri\
ve.
Unique Driving Characteristics
Your hybrid comes equipped with a gasoline-powered engine, an electric
motor and a high-voltage lithium-ion battery. The power-split architectu\
re
switches between electric-only mode, gas-only mode or a combination of
both. Depending on driving conditions, here’s how the power split wor\
ks:
Accelerating: Step on the gas and get all the responsiveness of a traditional
gasoline engine.
City Driving: In stop-and-go driving and at low speeds, the electric motor
provides the necessary power, with the gas engine only kicking in to rec\
harge
the battery or when more power is needed.
Cruising/Highway Driving: Due to greater power demands at highway speeds,
your vehicle uses the gasoline engine more frequently than while driving\
at city
traffic speeds. This is normal.
ECO Cruise Control: This feature saves vehicle energy by slowing down
acceleration compared to standard cruise control. Your vehicle may relax\
its
acceleration temporarily when going uphill. You can switch this feature \
on and
off through the information display. Braking:
Your vehicle is equipped with standard hydraulic braking and
regenerative braking. The regenerative braking system allows the energy \
normally lost through braking to be recovered and stored in the high-vol\
tage
battery. With this system, over 90% of braking energy normally lost thro\
ugh
friction brakes may be recovered via regenerative braking.
Stopped: To save energy, the gasoline engine usually turns off.
High-Voltage Lithium-Ion Battery System
The battery pack is a self-charging system and does not require regular \
service
maintenance. The battery compartment is behind the rear, fold-down seats\
.
Cabin air is drawn through vents in the rear package tray (located near\
the rear
speakers) to cool the battery. For optimal battery operation, keep thes\
e air inlets
free of any potential obstruction. The battery pack should only be servi\
ced by
an authorized electric vehicle technician. Improper handling can result \
in
personal injury or death. Refer to your Owner’s Manual for more details.
Optimizing Efficiency
EV+ allows your vehicle to learn frequent destinations and automatically ch\
ange
to electric mode when nearing your destination. The EV indicator display\
s EV+
when this mode is active. You should see this about 1/8 mile (200 meter\
s) from
a frequent destination.
Note: You can switch the EV+ feature on and off through the Driver Assist
section of the Setting menu within your information display.
Function
Lincoln Drive Control
This feature intelligently integrates chassis and steering controls for \

personalized ride comfort, steering and handling. Normal is the factory default
setting. It delivers an engaging drive experience with confident handlin\
g.
You can change this setting through the information display by navigatin\
g
through the cluster menu to Settings, Driver Assist and then Drive Contr\
ol to
configure two additional settings:
Comfort: Provides lower steering effort and a more fluid suspension.
Sport: Increases handling and control with a sporty feel.
*if equipped
Configurable Daytime Running Lamps*
When you switch this feature ON in the information display, daytime runn\
ing
lamps turn on whenever the lighting control is in the autolamps position\


and the headlamps are off. You can switch the Configurable Daytime Runni\
ng
Lamps feature ON or OFF using the information display controls. See the \
Lighting chapter in your Owner’s Manual for complete information.
Unique Hybrid Features
2015 MKZ HYBRID

1617
Hybrid Transmission
Due to the technologically advanced, electronically
controlled, continuously variable transaxle, you may
not feel shift changes like those of a non-hybrid
vehicle. Since the transmission controls your engine
speed, the engine speed may seem elevated at
times. This is normal hybrid operation, as it helps
deliver fuel efficiency and performance.
Fuel Tank Capacity/Fuel Info
Your vehicle’s fuel tank capacity is 13.5 gallons
(51.1L). Use only “Regular” unleaded gasoline with an
octane rating of 87 or higher. Do not use E85 fuels
because your vehicle was not designed to run on
fuels with more than 15% ethanol.
BLIS® (Blind Spot Information System)
with Cross Traffic Alert
This system is designed to alert the driver of certain
collision risks. Radar sensors detect if vehicles ahead
of you which are moving in the same direction,
may be a collision risk. The system alerts you with
an audible tone and red warning light that appears
above the instrument panel. If the risk of collision
increases, the system increases brake support to
help reduce collision speed.
Temporary Mobility Kit
The kit is under the load floor of the trunk. The kit
consists of an air compressor to reinflate the tire and
a sealing compound in a canister that effectively
seals most punctures caused by nails or similar
objects. The canister contains only enough sealant compound for one tire. See an authorized dealer
for a replacement sealant canister after each use.
This kit provides a temporary tire repair seal,
allowing you to drive your vehicle up to 120 miles
(200 kilometers) at a maximum speed of 50 mph
(80 km/h) to reach a tire service location.
Note: After sealant use, the tire pressure monitoring
system sensor and valve stem on the wheel must be
replaced by an authorized dealer. For more details,
refer to the Wheels and Tires
chapter of your
Owner’s Manual .
Tire Pressure Monitoring System
Your vehicle lights a low tire pressure warning light
in your instrument cluster when one or more
of your tires are significantly under-inflated. If this
happens, stop and check your tires as soon as
possible. Inflate them to the proper pressure. Refer
to the Inflating Your Tires section in the Wheels
and Tires chapter of your Owner’s Manual for
more information.
Essential Information
Easy Fuel® System
With this system, you simply open the
fuel door, insert the nozzle and begin
fueling. It is self-sealing and therefore
protected against dust, dirt, water,
snow and ice. Wait 10 seconds from
the time the refueling nozzle is shut-
off until you remove the nozzle from
the vehicle to allow residual fuel in the nozzle to drain into the tank.\
When using
a portable fuel container, slowly insert the fuel funnel (located in th\
e spare tire
compartment) and pour the fuel into the funnel.
Note: Do not use aftermarket funnels as they do not work with the Easy Fuel
system and may cause damage. Properly clean the funnel after each use.
Rear View Camera This system provides a video image of the area
behind the vehicle. The image automatically
appears in the touchscreen when the vehicle is
in reverse (R) and uses green, yellow and red
guides to alert you of your proximity to objects.
Automatic Engine Shutdown
Your vehicle includes a feature that automatically shuts down the engine\
if it has
been idling for an extended period of time. The ignition also turns off \
in order
to save battery power. You can override this feature temporarily by pres\
sing
the brake or accelerator pedal, or by pressing OK or the RESET button in your
information display. Refer to the Information Displays chapter of your Owner’s
Manual for more details.
Electric Parking Brake
The operating switch replaces the conventional
handbrake. The location of the switch is to the left of the
steering column. To use, pull the switch up. The brake system
warning lamp lights to confirm that you applied the electric
parking brake.
You can release the electric parking brake manually by switching on the \
ignition,
pressing the brake pedal and then pressing the electric parking brake sw\
itch.
Refer to the Brakes chapter of your Owner's Manual for more details.
Towing
Towing your vehicle behind an RV or any other vehicle may be limited. Re\
fer to
the Towing the Vehicle on Four Wheels section in the Towing chapter of your
Owner's Manual for more information.
Open Window Buffeting
You may hear a pulsing noise when just one of the windows is open. Lower\
the
opposite window slightly to reduce this noise.
2015 MKZ HYBRID

1819
Congratulations on your decision to drive a Lincoln. The Lincoln Pledge \
provides
you with valuable support so you can handle the challenges of the road w\
ith
confidence and ease.
The following information is for United States clients. Canadian Roadsid\
e
coverage and benefits may differ from the United States coverage. Canadi\
an
clients should refer to the Lincoln Roadside Assistance section of the Warranty
Guide, call 1-800-387-9333 or visit the website at www.LincolnCanada.com for
more details.
Lincoln Complimentary Maintenance
As part of our commitment to providing a new ownership experience, your \
vehicle comes with Lincoln Complimentary Maintenance. This maintenance
plan is available on most vehicles sold in the United States and begins \
on your
purchase date and at 0 miles (0 kilometers). It is limited based on mi\
leage,
time or number of service visits, whichever occurs first. That means whe\
n your
information display alerts you when it is time for an oil change, you sh\
ould bring
in your vehicle for complimentary service. Visit www.LincolnOwner.com for
full details.
Roadside Assistance
Contact Roadside Assistance at 1-800-521-4140 – any time, 24 hours a day,
365 days a year. As part of the Lincoln Pledge, you will receive 24/7 Ro\
adside
Assistance nationwide (including Canada and Mexico), that begins from \
the
warranty start date and lasts the life of the vehicle for the original o\
wner only.
Subsequent owners are eligible for an extended powertrain warranty cover\
age
period of six years or 70,000 miles (112,655 kilometers), whichever oc\
curs first.
The Brake Coach appears in the display after the vehicle has come to a stop, and coache\
s you to maximize the amount of energy that can be returned through the
regenerative braking system.
SmartGauge® with EcoGuide
Use your left-hand, 5-way steering controls to scroll through your menu \
choices.
Select these screens from the Display/Trip and Fuel Economy menus to hel\
p
improve your fuel efficiency:
Vehicle Range: Estimates the distance your vehicle may travel on the fuel
remaining in the tank. Changes in your driving pattern may cause the val\
ue
to vary.
Inform: Provides average fuel economy, fuel levels and battery status.
Enlighten: Adds power demand and instant fuel economy.
Engage: Adds gas or electric power-split information.
Empower: Adds an engine on or off threshold to the power demand gauge from
Enlighten. See how much power you request based on how far you press the\

accelerator pedal.
MyView: Lets you customize your menu options, allowing you to select key
information and combine it into one screen.
EcoGuide: Displays leaf graphics within the right-hand cluster, showing you when \
you’re driving efficiently. More leaves and flowers equal better driv\
ing habits!
The Lincoln Pledge
Roadside Assistance services available include:
Towing: Lincoln eligible vehicles will be towed to your selling or preferred
dealer within 100 miles (161 kilometers) of the disablement location o\
r to the
nearest Lincoln dealer. If you request to be towed to a selling or prefe\
rred
dealer that is more than 100 miles (161 kilometers) from the disableme\
nt
location, you shall be responsible for any mileage costs in excess of
100 miles (161 kilometers).
Flat tire change: Replacement of a flat tire with a usable spare.
Battery jump start

Lock-out assistance: If you lose your key or intelligent transmitter, key
replacement is your responsibility.
Fuel delivery: 2 gallons (7.5 liters) of gasoline, limited to two, no-charge
occurrences within a 12-month period.
Winch-out services: Includes pulling a vehicle within 100 feet of a paved or
county maintained road. No recoveries.
Lincoln Customer Relationship Center
If you have questions about your vehicle or the Lincoln Pledge, please
contact your dealer.
For additional help, you’re invited to call our Lincoln Customer Rela\
tionship
Center: 1-800-521-4140 (TDD for the hearing impaired 1-800-232-5952),
Monday through Friday, 8 a.m. – 8 p.m. and Saturday 9 a.m. – 5:30 \
p.m. EST.
Vehicle Warranty
For a detailed description of what is covered by your vehicle’s New V\
ehicle
Limited Warranty, refer to the Warranty Guide that is provided to you along
with your Owner’s Manual.
Quick Tips
2015 MKZ HYBRID
