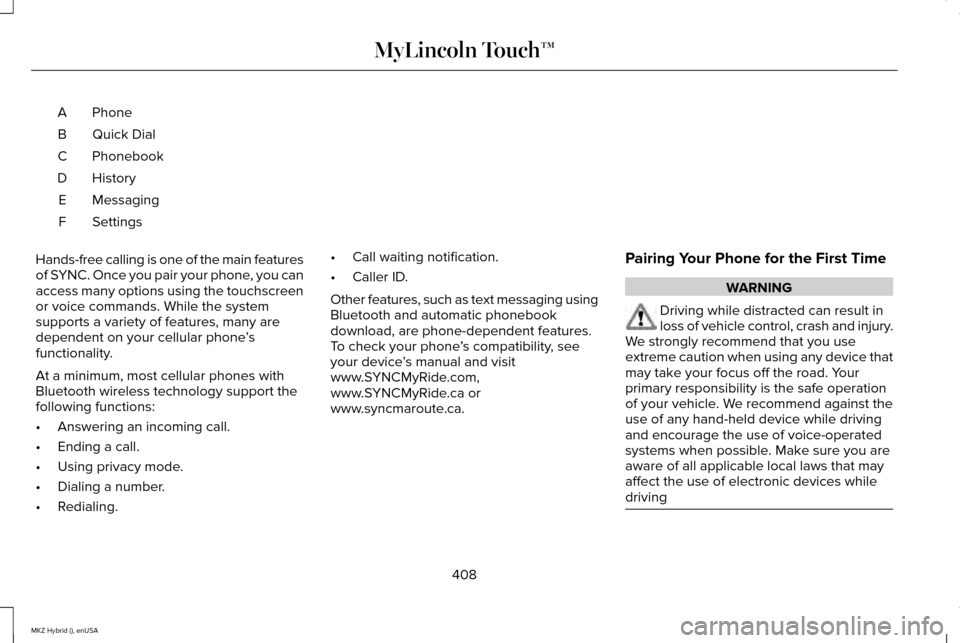

LINCOLN MKZ HYBRID 2015 Owners Manual

Phone
A
Quick Dial
B
Phonebook
C
History
D
Messaging
E
Settings
F
Hands-free calling is one of the main features
of SYNC. Once you pair your phone, you can
access many options using the touchscreen
or voice commands. While the system
supports a variety of features, many are
dependent on your cellular phone ’s
functionality.
At a minimum, most cellular phones with
Bluetooth wireless technology support the
following functions:
• Answering an incoming call.
• Ending a call.
• Using privacy mode.
• Dialing a number.
• Redialing. •
Call waiting notification.
• Caller ID.
Other features, such as text messaging using
Bluetooth and automatic phonebook
download, are phone-dependent features.
To check your phone ’s compatibility, see
your device ’s manual and visit
www.SYNCMyRide.com,
www.SYNCMyRide.ca or
www.syncmaroute.ca. Pairing Your Phone for the First Time WARNING
Driving while distracted can result in
loss of vehicle control, crash and injury.
We strongly recommend that you use
extreme caution when using any device that
may take your focus off the road. Your
primary responsibility is the safe operation
of your vehicle. We recommend against the
use of any hand-held device while driving
and encourage the use of voice-operated
systems when possible. Make sure you are
aware of all applicable local laws that may
affect the use of electronic devices while
driving 408
MKZ Hybrid (), enUSA MyLincoln Touch™

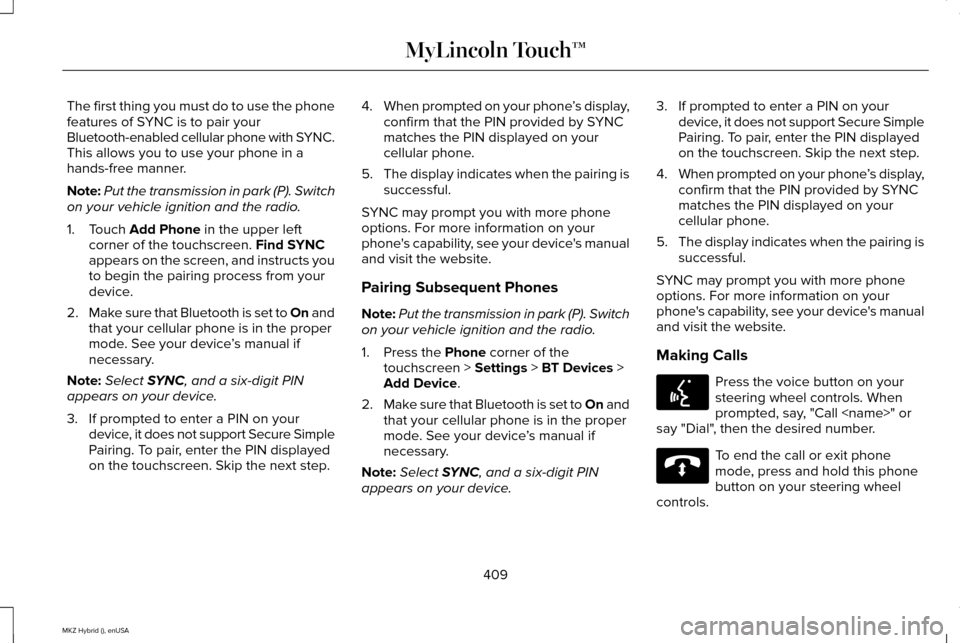

The first thing you must do to use the phone
features of SYNC is to pair your
Bluetooth-enabled cellular phone with SYNC.
This allows you to use your phone in a
hands-free manner.
Note:
Put the transmission in park (P). Switch
on your vehicle ignition and the radio.
1. Touch Add Phone in the upper left
corner of the touchscreen. Find SYNC
appears on the screen, and instructs you
to begin the pairing process from your
device.
2. Make sure that Bluetooth is set to On and
that your cellular phone is in the proper
mode. See your device ’s manual if
necessary.
Note: Select
SYNC, and a six-digit PIN
appears on your device.
3. If prompted to enter a PIN on your device, it does not support Secure Simple
Pairing. To pair, enter the PIN displayed
on the touchscreen. Skip the next step. 4.
When prompted on your phone ’s display,
confirm that the PIN provided by SYNC
matches the PIN displayed on your
cellular phone.
5. The display indicates when the pairing is
successful.
SYNC may prompt you with more phone
options. For more information on your
phone's capability, see your device's manual
and visit the website.
Pairing Subsequent Phones
Note: Put the transmission in park (P). Switch
on your vehicle ignition and the radio.
1. Press the
Phone corner of the
touchscreen > Settings > BT Devices >
Add Device.
2. Make sure that Bluetooth is set to On and
that your cellular phone is in the proper
mode. See your device ’s manual if
necessary.
Note: Select
SYNC, and a six-digit PIN
appears on your device. 3. If prompted to enter a PIN on your
device, it does not support Secure Simple
Pairing. To pair, enter the PIN displayed
on the touchscreen. Skip the next step.
4. When prompted on your phone ’s display,
confirm that the PIN provided by SYNC
matches the PIN displayed on your
cellular phone.
5. The display indicates when the pairing is
successful.
SYNC may prompt you with more phone
options. For more information on your
phone's capability, see your device's manual
and visit the website.
Making Calls Press the voice button on your
steering wheel controls. When
prompted, say, "Call " or
say "Dial", then the desired number. To end the call or exit phone
mode, press and hold this phone
button on your steering wheel
controls.
409
MKZ Hybrid (), enUSA MyLincoln Touch™E142599 E142632

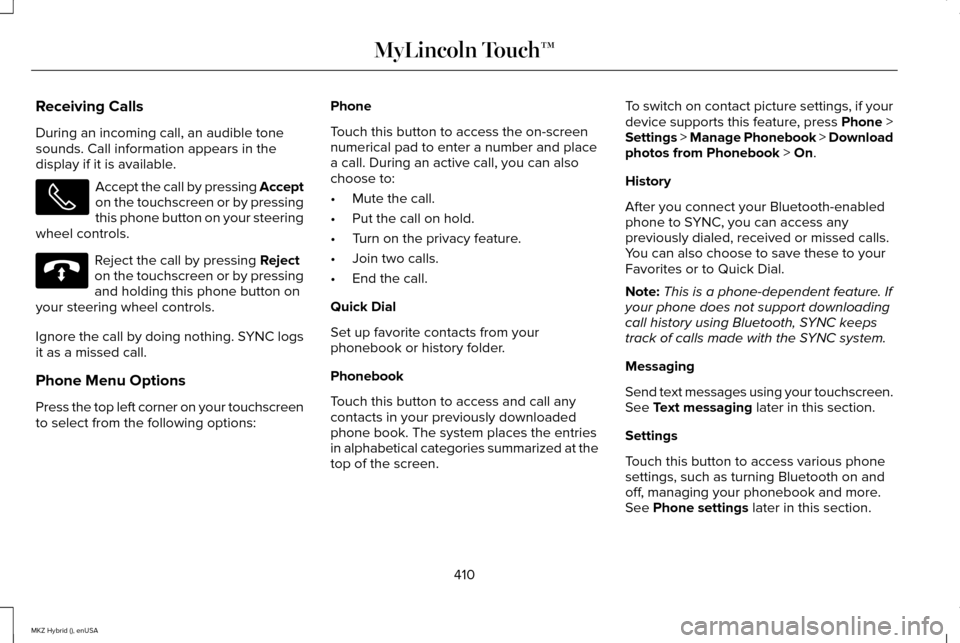

Receiving Calls
During an incoming call, an audible tone
sounds. Call information appears in the
display if it is available.
Accept the call by pressing Accept
on the touchscreen or by pressing
this phone button on your steering
wheel controls. Reject the call by pressing Reject
on the touchscreen or by pressing
and holding this phone button on
your steering wheel controls.
Ignore the call by doing nothing. SYNC logs
it as a missed call.
Phone Menu Options
Press the top left corner on your touchscreen
to select from the following options: Phone
Touch this button to access the on-screen
numerical pad to enter a number and place
a call. During an active call, you can also
choose to:
•
Mute the call.
• Put the call on hold.
• Turn on the privacy feature.
• Join two calls.
• End the call.
Quick Dial
Set up favorite contacts from your
phonebook or history folder.
Phonebook
Touch this button to access and call any
contacts in your previously downloaded
phone book. The system places the entries
in alphabetical categories summarized at the
top of the screen. To switch on contact picture settings, if your
device supports this feature, press
Phone >
Settings > Manage Phonebook > Download
photos from Phonebook > On.
History
After you connect your Bluetooth-enabled
phone to SYNC, you can access any
previously dialed, received or missed calls.
You can also choose to save these to your
Favorites or to Quick Dial.
Note: This is a phone-dependent feature. If
your phone does not support downloading
call history using Bluetooth, SYNC keeps
track of calls made with the SYNC system.
Messaging
Send text messages using your touchscreen.
See
Text messaging later in this section.
Settings
Touch this button to access various phone
settings, such as turning Bluetooth on and
off, managing your phonebook and more.
See
Phone settings later in this section.
410
MKZ Hybrid (), enUSA MyLincoln Touch™ E142632

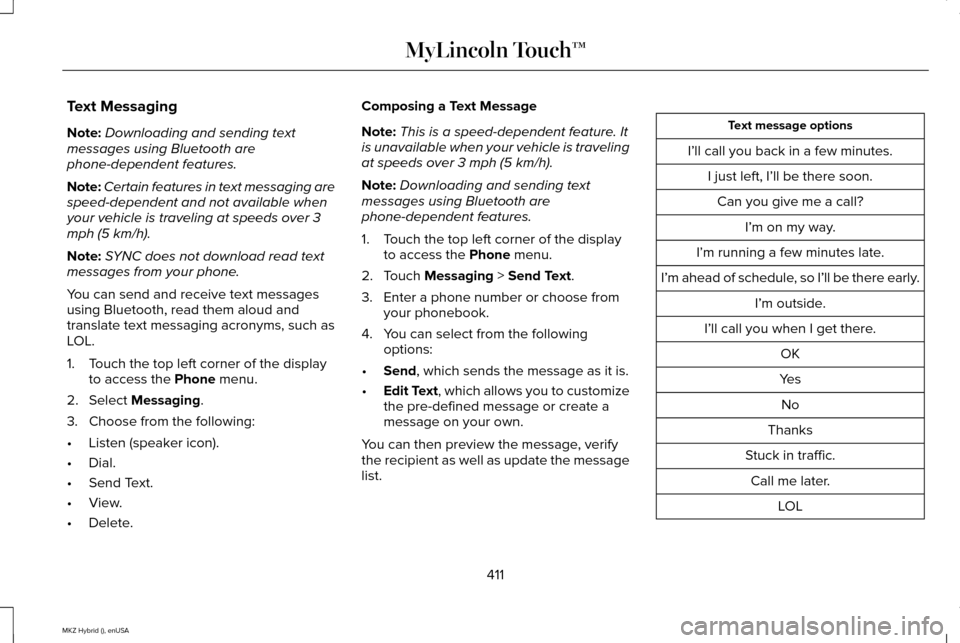

Text Messaging
Note:
Downloading and sending text
messages using Bluetooth are
phone-dependent features.
Note: Certain features in text messaging are
speed-dependent and not available when
your vehicle is traveling at speeds over 3
mph (5 km/h).
Note: SYNC does not download read text
messages from your phone.
You can send and receive text messages
using Bluetooth, read them aloud and
translate text messaging acronyms, such as
LOL.
1. Touch the top left corner of the display to access the Phone menu.
2. Select
Messaging.
3. Choose from the following:
• Listen (speaker icon).
• Dial.
• Send Text.
• View.
• Delete. Composing a Text Message
Note:
This is a speed-dependent feature. It
is unavailable when your vehicle is traveling
at speeds over 3 mph (5 km/h).
Note: Downloading and sending text
messages using Bluetooth are
phone-dependent features.
1. Touch the top left corner of the display to access the
Phone menu.
2. Touch
Messaging > Send Text.
3. Enter a phone number or choose from your phonebook.
4. You can select from the following options:
• Send
, which sends the message as it is.
• Edit Text
, which allows you to customize
the pre-defined message or create a
message on your own.
You can then preview the message, verify
the recipient as well as update the message
list. Text message options
I’ll call you back in a few minutes. I just left, I’ll be there soon.Can you give me a call? I’m on my way.
I’m running a few minutes late.
I’m ahead of schedule, so I’ll be there early. I’m outside.
I’ll call you when I get there. OK
Yes No
Thanks
Stuck in traffic. Call me later. LOL
411
MKZ Hybrid (), enUSA MyLincoln Touch™

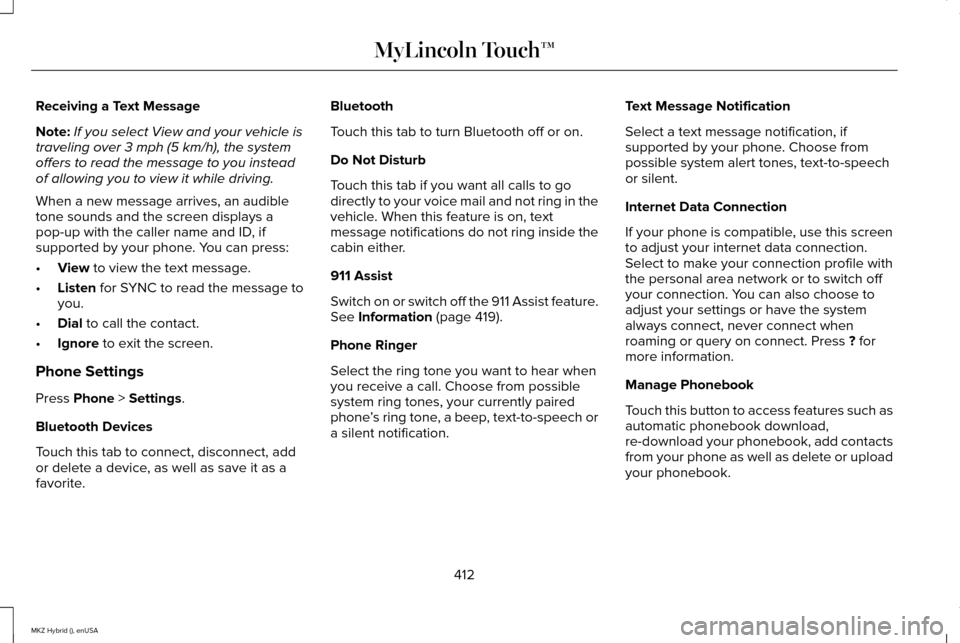

Receiving a Text Message
Note:
If you select View and your vehicle is
traveling over 3 mph (5 km/h), the system
offers to read the message to you instead
of allowing you to view it while driving.
When a new message arrives, an audible
tone sounds and the screen displays a
pop-up with the caller name and ID, if
supported by your phone. You can press:
• View to view the text message.
• Listen
for SYNC to read the message to
you.
• Dial
to call the contact.
• Ignore
to exit the screen.
Phone Settings
Press
Phone > Settings.
Bluetooth Devices
Touch this tab to connect, disconnect, add
or delete a device, as well as save it as a
favorite. Bluetooth
Touch this tab to turn Bluetooth off or on.
Do Not Disturb
Touch this tab if you want all calls to go
directly to your voice mail and not ring in the
vehicle. When this feature is on, text
message notifications do not ring inside the
cabin either.
911 Assist
Switch on or switch off the 911 Assist feature.
See
Information (page 419).
Phone Ringer
Select the ring tone you want to hear when
you receive a call. Choose from possible
system ring tones, your currently paired
phone ’s ring tone, a beep, text-to-speech or
a silent notification. Text Message Notification
Select a text message notification, if
supported by your phone. Choose from
possible system alert tones, text-to-speech
or silent.
Internet Data Connection
If your phone is compatible, use this screen
to adjust your internet data connection.
Select to make your connection profile with
the personal area network or to switch off
your connection. You can also choose to
adjust your settings or have the system
always connect, never connect when
roaming or query on connect. Press
? for
more information.
Manage Phonebook
Touch this button to access features such as
automatic phonebook download,
re-download your phonebook, add contacts
from your phone as well as delete or upload
your phonebook.
412
MKZ Hybrid (), enUSA MyLincoln Touch™

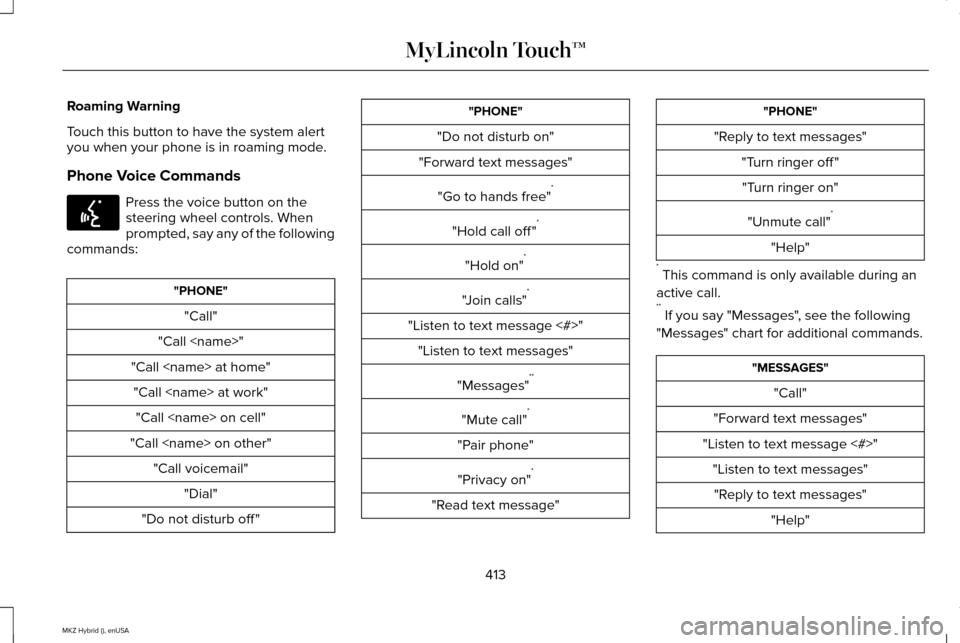

Roaming Warning
Touch this button to have the system alert
you when your phone is in roaming mode.
Phone Voice Commands
Press the voice button on the
steering wheel controls. When
prompted, say any of the following
commands: "PHONE"
"Call"
"Call "
"Call at home" "Call at work""Call on cell"
"Call on other" "Call voicemail" "Dial"
"Do not disturb off " "PHONE"
"Do not disturb on"
"Forward text messages"
"Go to hands free" *
"Hold call off " *
"Hold on" *
"Join calls" *
"Listen to text message <#>" "Listen to text messages"
"Messages" **
"Mute call" *
"Pair phone" "Privacy on" *
"Read text message" "PHONE"
"Reply to text messages" "Turn ringer off ""Turn ringer on"
"Unmute call" *
"Help"
* This command is only available during an
active call.
** If you say "Messages", see the following
"Messages" chart for additional commands. "MESSAGES"
"Call"
"Forward text messages"
"Listen to text message <#>" "Listen to text messages""Reply to text messages" "Help"
413
MKZ Hybrid (), enUSA MyLincoln Touch™E142599

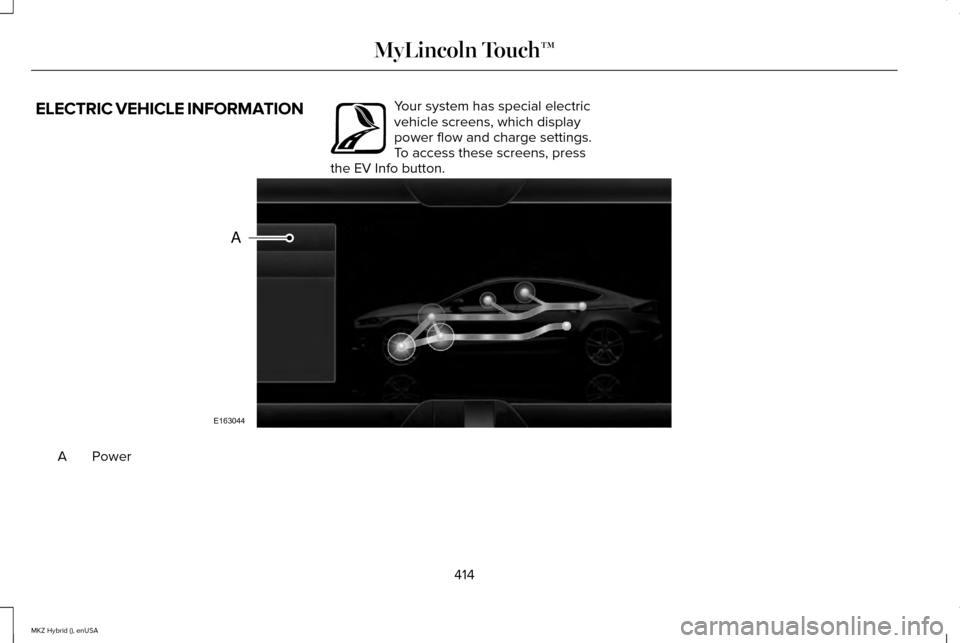

ELECTRIC VEHICLE INFORMATION Your system has special electric
vehicle screens, which display
power flow and charge settings.
To access these screens, press
the EV Info button. Power
A
414

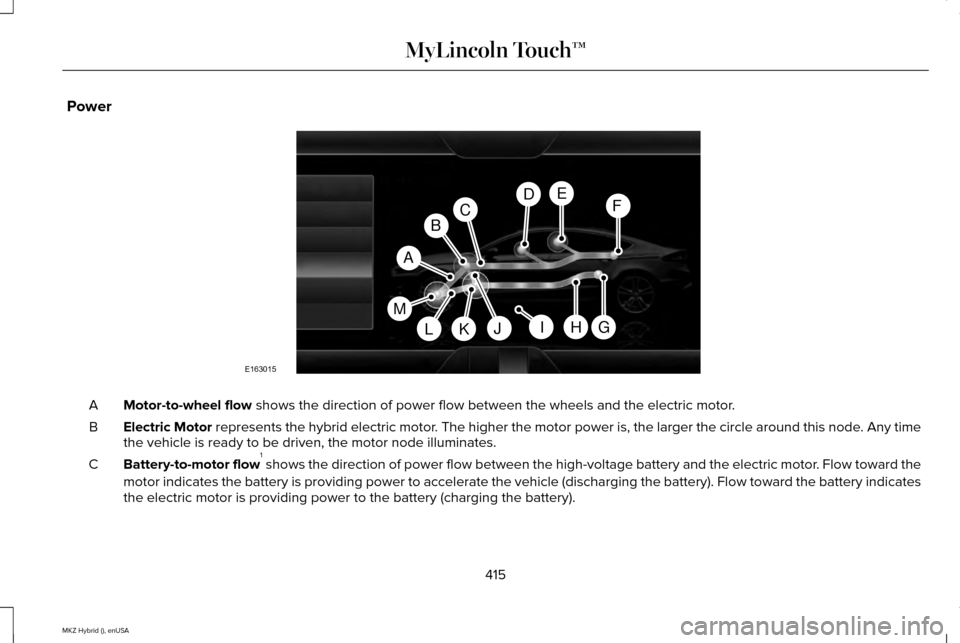

MKZ Hybrid (), enUSA MyLincoln Touch™E161716 E163044
A

Power
Motor-to-wheel flow shows the direction of power flow between the wheels and the electric m\
otor.
A
Electric Motor
represents the hybrid electric motor. The higher the motor power is, the larger the circle around this node. Any time
the vehicle is ready to be driven, the motor node illuminates.
B
Battery-to-motor flow 1
shows the direction of power flow between the high-voltage battery and \
the electric motor. Flow toward the
motor indicates the battery is providing power to accelerate the vehicle\
(discharging the battery). Flow toward the battery indicates
the electric motor is providing power to the battery (charging the batt\
ery).
C
415
MKZ Hybrid (), enUSA MyLincoln Touch™A
G
FDE
BC
HJLKI
E163015
M

Other
2
includes all power usage from the low voltage accessories such as the c\
limate control fan, headlights and heated seats. The
higher the power usage is from these accessories, the larger the circle \
around the node. This node illuminates anytime the vehicle
is on since there is always some low level power in use.
D
Climate 2,3
includes the power usage from the high-voltage climate control componen\
ts such as the electric A/C compressor. The
higher the power usage is from these components, the larger the circle a\
round this node.
E
High voltage battery power represents your high-voltage battery. A circle illuminates around the node when the high-voltage
battery is receiving power from regenerative braking or engine charging.\
The higher the power going into the high-voltage battery ,
the larger the circle around this node.
F
Fuel
represents the fuel tank in the vehicle.
G
Fuel-to-engine flow shows flow from the fuel tank to the engine when the engine is on and u\
sing fuel (there are some cases where
the engine is on, but not using any fuel). When the engine is on, but n\
ot using fuel, the engine node is active, but the fuel flow path
is off. An example of this is when your foot is off the accelerator pedal and \
the vehicle is traveling at a high speed.
H
Engine On due to provides you with the reason(s) the gasoline engine is on. When the g\
asoline engine is off, this display does not
appear.
Engine On due to reasons displayed by the system are in a chart following this list.
I
Motor-to-engine flow
shows the direction of power flow between the engine and the electric m\
otor. The direction indicates if the
engine is providing power to the high-voltage electrical system, or if t\
he high-voltage electrical system is providing power to control
or start the engine.
J
Engine power
represents the gasoline engine. It illuminates only when the gasoline engine is on. The higher the eng\
ine power is,
the larger the circle around this node.
K
Engine-to-wheels flow
shows the direction of the power flow between the engine and the wheels\
.
L
Drive power
represents the power going to the wheels. The higher the wheel power is\
, the larger the circle around this node. When
the engine is off, drive power is shown in blue. When the engine is on, drive power is shown in grey.
M
416
MKZ Hybrid (), enUSA MyLincoln Touch™

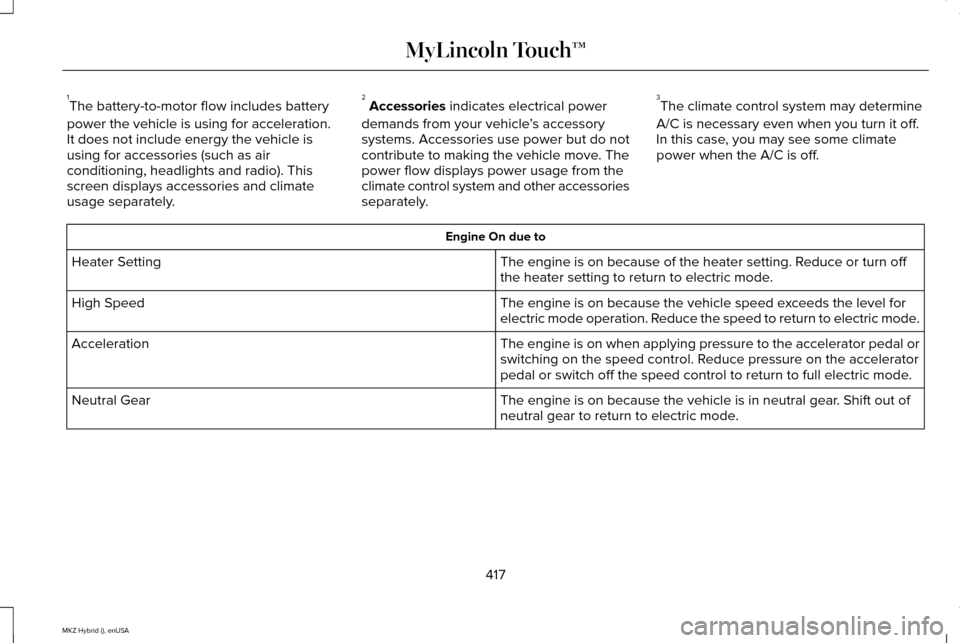

1
The battery-to-motor flow includes battery
power the vehicle is using for acceleration.
It does not include energy the vehicle is
using for accessories (such as air
conditioning, headlights and radio). This
screen displays accessories and climate
usage separately. 2
Accessories indicates electrical power
demands from your vehicle ’s accessory
systems. Accessories use power but do not
contribute to making the vehicle move. The
power flow displays power usage from the
climate control system and other accessories
separately. 3
The climate control system may determine
A/C is necessary even when you turn it off.
In this case, you may see some climate
power when the A/C is off. Engine On due to
The engine is on because of the heater setting. Reduce or turn off
the heater setting to return to electric mode.
Heater Setting
The engine is on because the vehicle speed exceeds the level for
electric mode operation. Reduce the speed to return to electric mode.
High Speed
The engine is on when applying pressure to the accelerator pedal or
switching on the speed control. Reduce pressure on the accelerator
pedal or switch off the speed control to return to full electric mode.
Acceleration
The engine is on because the vehicle is in neutral gear. Shift out of
neutral gear to return to electric mode.
Neutral Gear
417
MKZ Hybrid (), enUSA MyLincoln Touch™
