spark plugs replace LINCOLN MKZ HYBRID 2019 Owners Manual

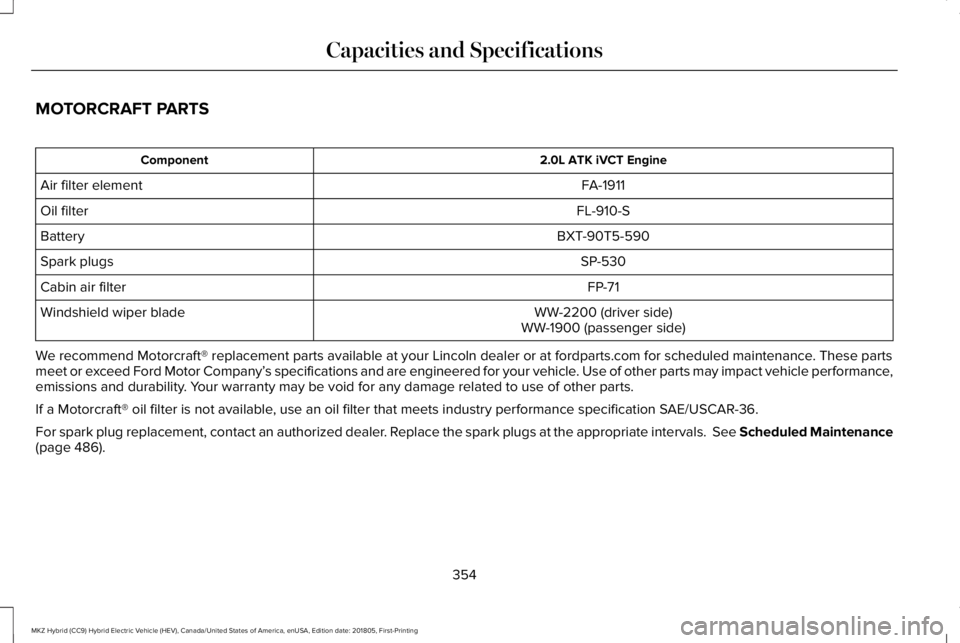

MOTORCRAFT PARTS
2.0L ATK iVCT EngineComponent
FA-1911Air filter element
FL-910-SOil filter
BXT-90T5-590Battery
SP-530Spark plugs
FP-71Cabin air filter
WW-2200 (driver side)Windshield wiper bladeWW-1900 (passenger side)
We recommend Motorcraft® replacement parts available at your Lincoln dealer or at fordparts.com for scheduled maintenance. These partsmeet or exceed Ford Motor Company’s specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance,emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance(page 486).
354
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Capacities and Specifications

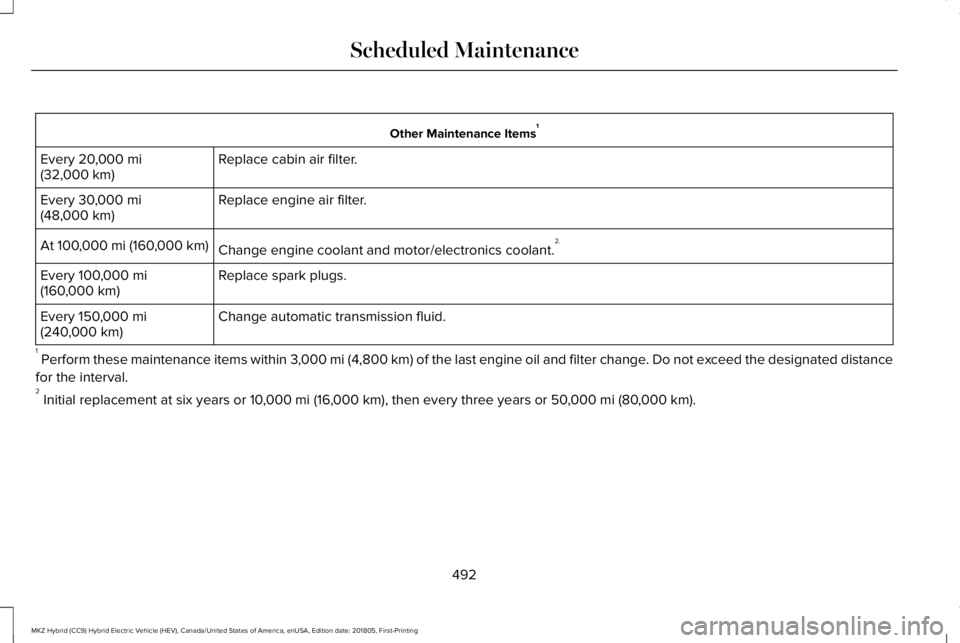

Other Maintenance Items1
Replace cabin air filter.Every 20,000 mi(32,000 km)
Replace engine air filter.Every 30,000 mi(48,000 km)
Change engine coolant and motor/electronics coolant.2.At 100,000 mi (160,000 km)
Replace spark plugs.Every 100,000 mi(160,000 km)
Change automatic transmission fluid.Every 150,000 mi(240,000 km)
1 Perform these maintenance items within 3,000 mi (4,800 km) of the last engine oil and filter change. Do not exceed the designated distance
for the interval.2 Initial replacement at six years or 10,000 mi (16,000 km), then every three years or 50,000 mi (80,000 km).
492
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Scheduled Maintenance

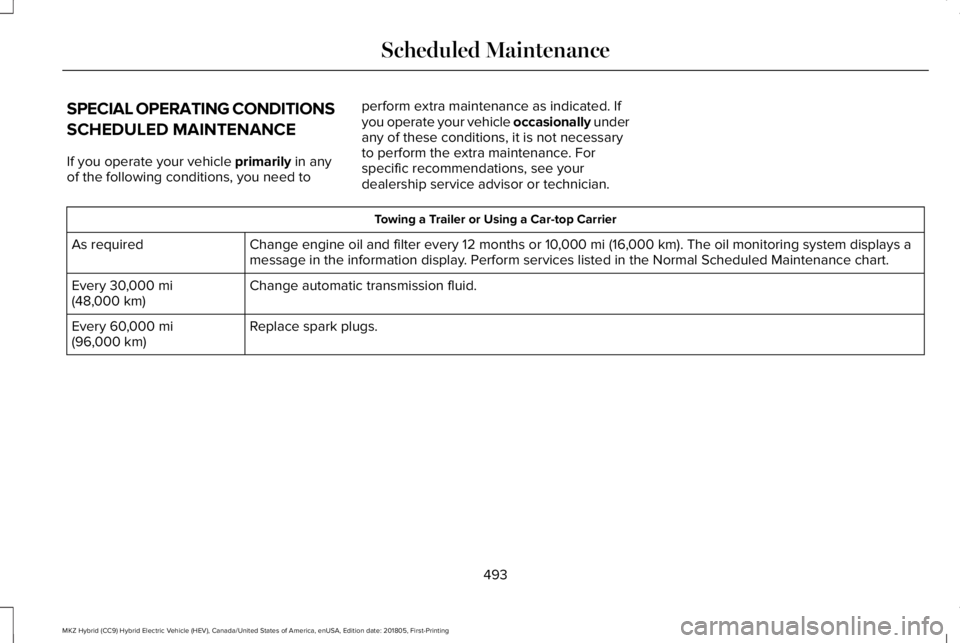

SPECIAL OPERATING CONDITIONS
SCHEDULED MAINTENANCE
If you operate your vehicle primarily in anyof the following conditions, you need to
perform extra maintenance as indicated. Ifyou operate your vehicle occasionally underany of these conditions, it is not necessaryto perform the extra maintenance. Forspecific recommendations, see yourdealership service advisor or technician.
Towing a Trailer or Using a Car-top Carrier
Change engine oil and filter every 12 months or 10,000 mi (16,000 km). The oil monitoring system displays amessage in the information display. Perform services listed in the Normal Scheduled Maintenance chart.As required
Change automatic transmission fluid.Every 30,000 mi(48,000 km)
Replace spark plugs.Every 60,000 mi(96,000 km)
493
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Scheduled Maintenance

Extensive Idling or Low-speed Driving for Long Distances, as in Heavy Commercial Use (Such as Delivery, Taxi, Patrol Car or Livery)
Change engine oil and filter every 12 months or 10,000 mi (16,000 km). The oil monitoring system displays amessage in the information display. Perform services listed in the Normal Scheduled Maintenance chart.As required
Replace cabin air filter.Inspect frequently, serviceas requiredReplace engine air filter.
Replace spark plugs.Every 60,000 mi(96,000 km)
Operating in Dusty or Sandy Conditions (Such as Unpaved or Dusty Roads)
Replace cabin air filter.Inspect frequently, serviceas requiredReplace engine air filter.
Inspect the wheels and related components for abnormal noise, wear, looseness or drag.Every 5,000 mi (8,000 km)
Rotate tires, inspect tires for wear and measure tread depth.
Change engine oil and filter.Every 5,000 mi (8,000 km)or six monthsPerform multi-point inspection.
494
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Scheduled Maintenance
