Fuses
Fuse Precautions.........................................323
Under Hood Fuse Box...............................323
Body Control Module Fuse Box..............333
Identifying Fuse Types...............................338
Fuses – Troubleshooting..........................338
Maintenance
Maintenance Precautions.........................339
Opening and Closing the Hood..............339
Under Hood Overview - 2.0L....................341
Under Hood Overview - 2.7L....................343
Engine Oil......................................................345
Checking the Coolant................................347
Changing the Engine Air Filter.................351
Changing the Fuel Filter............................352
Drive Belt Routing Overview - 2.0L........352
Drive Belt Routing Overview - 2.7L.........352
Changing the 12V Battery.........................353
Adjusting the Headlamps.........................355
Exterior Bulbs...............................................358
Interior Bulbs.................................................361
Vehicle Care
Cleaning Products......................................362
Cleaning the Exterior.................................363
Waxing...........................................................365
Cleaning the Interior..................................365
Repairing Minor Paint Damage................367
Body Styling Kits
Body Styling Kit Precautions....................368
Storing Your Vehicle
Preparing Your Vehicle for Storage........369
Removing Your Vehicle From Storage......................................................................370
Wheel and Tire Information
Locating the Tire label................................371
Department of Transportation Uniform TireQuality Grades..........................................371
Information on the Tire Sidewall.............372
Glossary of Tire Terminology....................377
Tire Replacement Requirements.............377
Using Snow Chains....................................380
Tire Care
Checking the Tire Pressures....................382
Inflating the Tires........................................382
Inspecting the Tire for Wear.....................382
Inspecting the Tire for Damage...............383
Inspecting the Wheel Valve Stems.........384
Tire Rotation.................................................384
11
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingTable of Contents
Page 327 of 586

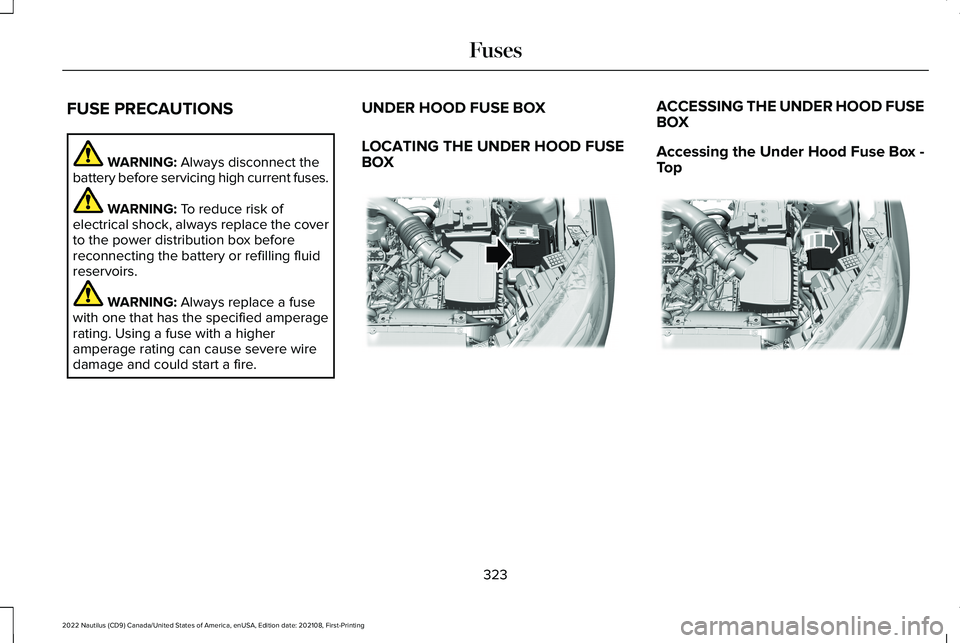

FUSE PRECAUTIONS
WARNING: Always disconnect thebattery before servicing high current fuses.
WARNING: To reduce risk ofelectrical shock, always replace the coverto the power distribution box beforereconnecting the battery or refilling fluidreservoirs.
WARNING: Always replace a fusewith one that has the specified amperagerating. Using a fuse with a higheramperage rating can cause severe wiredamage and could start a fire.
UNDER HOOD FUSE BOX
LOCATING THE UNDER HOOD FUSEBOX
ACCESSING THE UNDER HOOD FUSEBOX
Accessing the Under Hood Fuse Box -Top
323
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingFusesE327062 E330178
Page 328 of 586

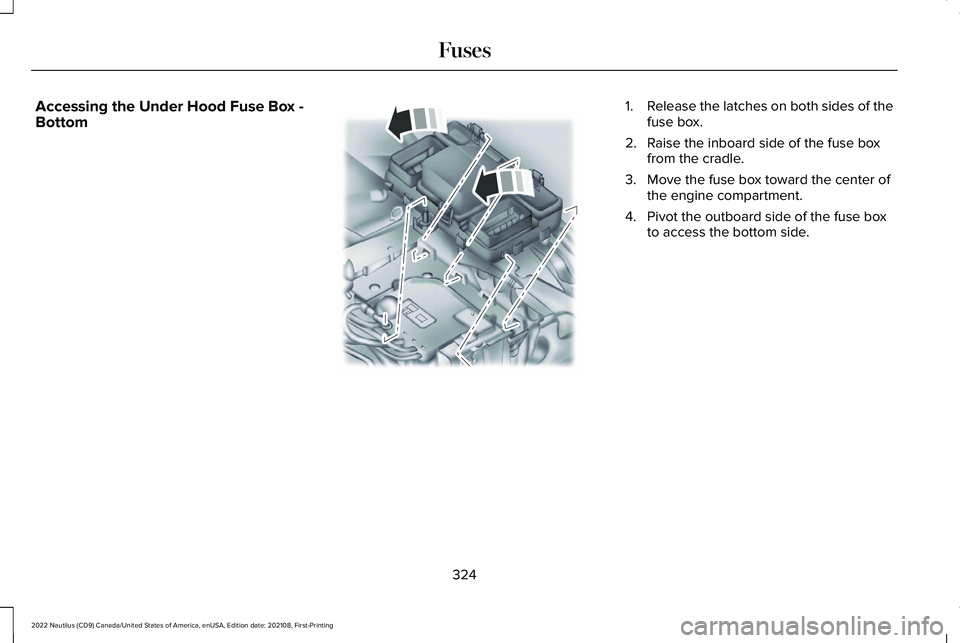

Accessing the Under Hood Fuse Box -Bottom
1.Release the latches on both sides of thefuse box.
2.Raise the inboard side of the fuse boxfrom the cradle.
3.Move the fuse box toward the center ofthe engine compartment.
4.Pivot the outboard side of the fuse boxto access the bottom side.
324
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingFusesE145983
Page 329 of 586

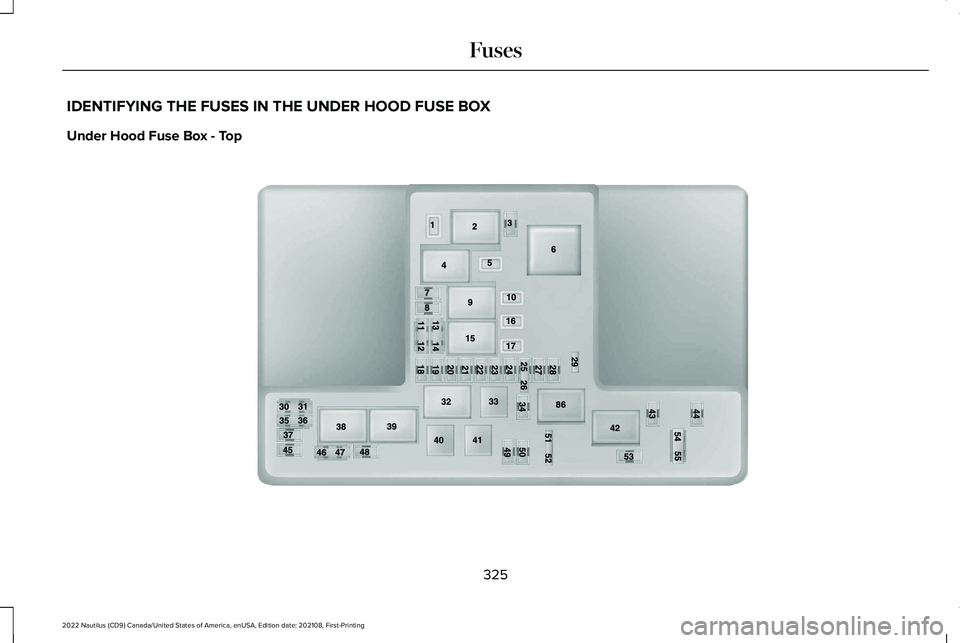

IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
Under Hood Fuse Box - Top
325
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingFusesE190797
Page 334 of 586

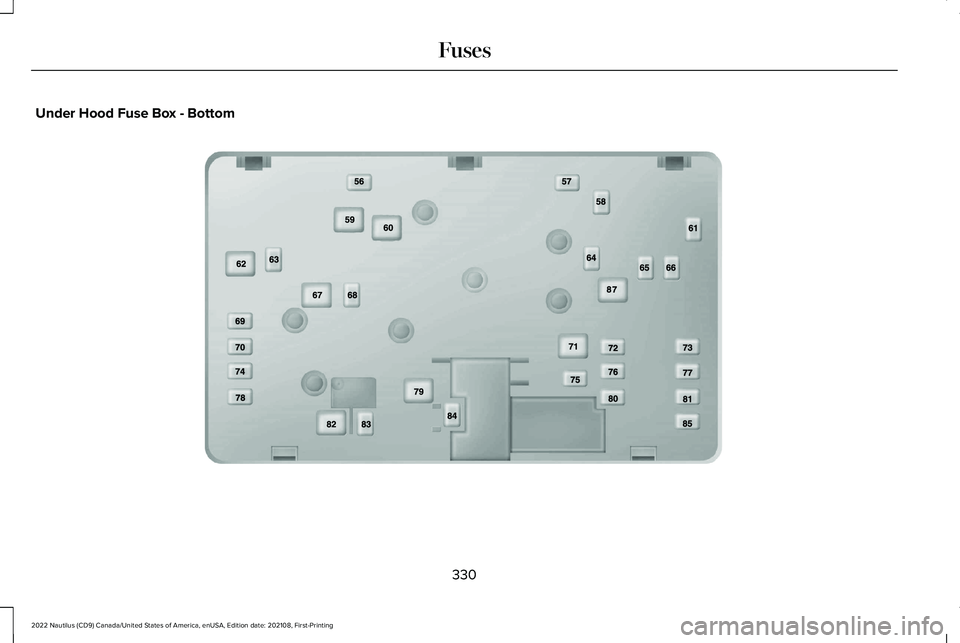

Under Hood Fuse Box - Bottom
330
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingFusesE190798
Page 337 of 586

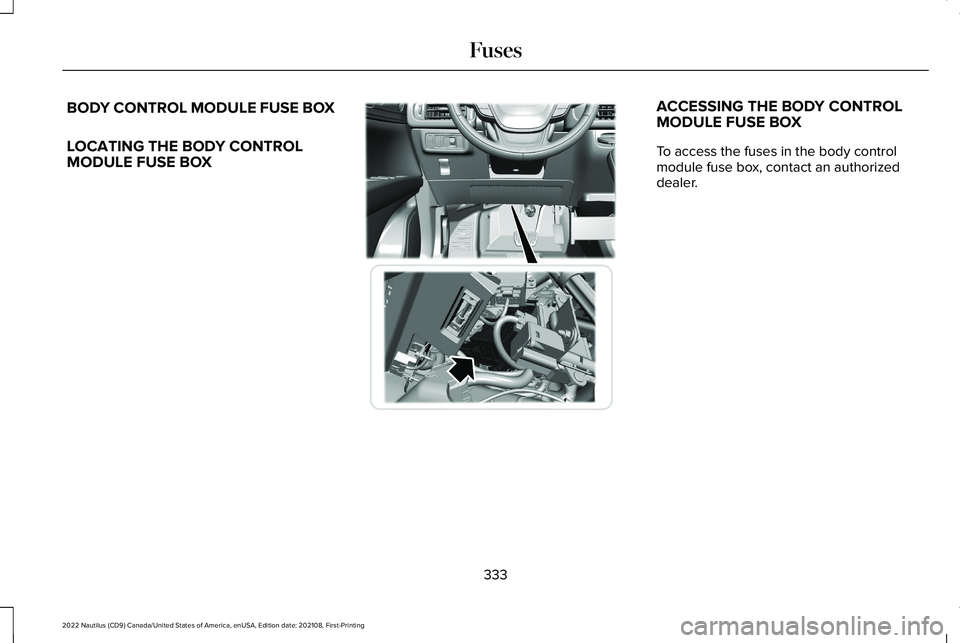

BODY CONTROL MODULE FUSE BOX
