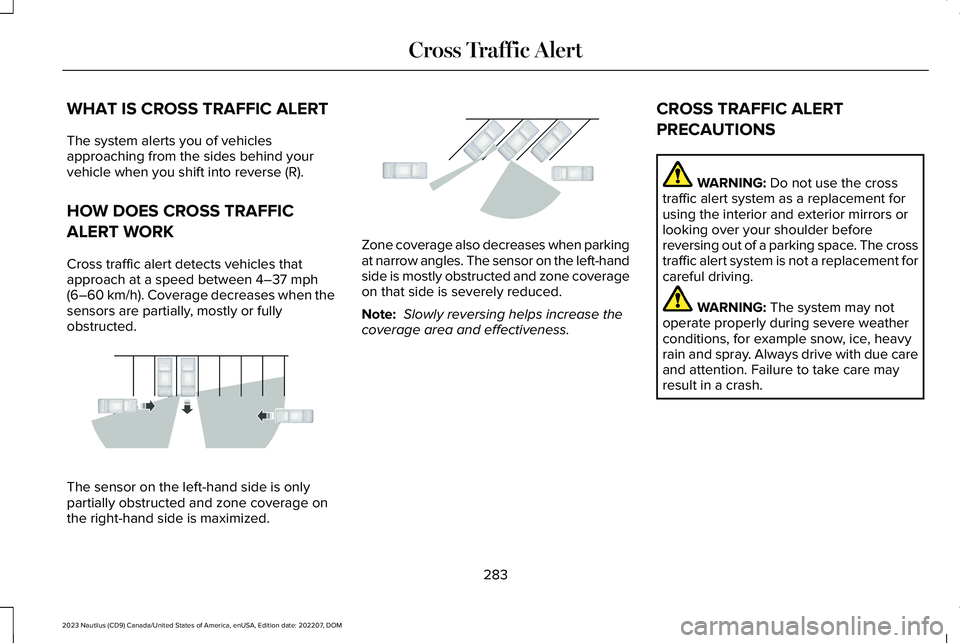

WHAT IS CROSS TRAFFIC ALERT
The system alerts you of vehiclesapproaching from the sides behind yourvehicle when you shift into reverse (R).
HOW DOES CROSS TRAFFIC
ALERT WORK
Cross traffic alert detects vehicles thatapproach at a speed between 4–37 mph(6–60 km/h). Coverage decreases when thesensors are partially, mostly or fullyobstructed.
The sensor on the left-hand side is onlypartially obstructed and zone coverage onthe right-hand side is maximized.
Zone coverage also decreases when parkingat narrow angles. The sensor on the left-handside is mostly obstructed and zone coverageon that side is severely reduced.
Note: Slowly reversing helps increase thecoverage area and effectiveness.
CROSS TRAFFIC ALERT
PRECAUTIONS
WARNING: Do not use the crosstraffic alert system as a replacement forusing the interior and exterior mirrors orlooking over your shoulder beforereversing out of a parking space. The crosstraffic alert system is not a replacement forcareful driving.
WARNING: The system may notoperate properly during severe weatherconditions, for example snow, ice, heavyrain and spray. Always drive with due careand attention. Failure to take care mayresult in a crash.
283
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMCross Traffic AlertE142440 E142441

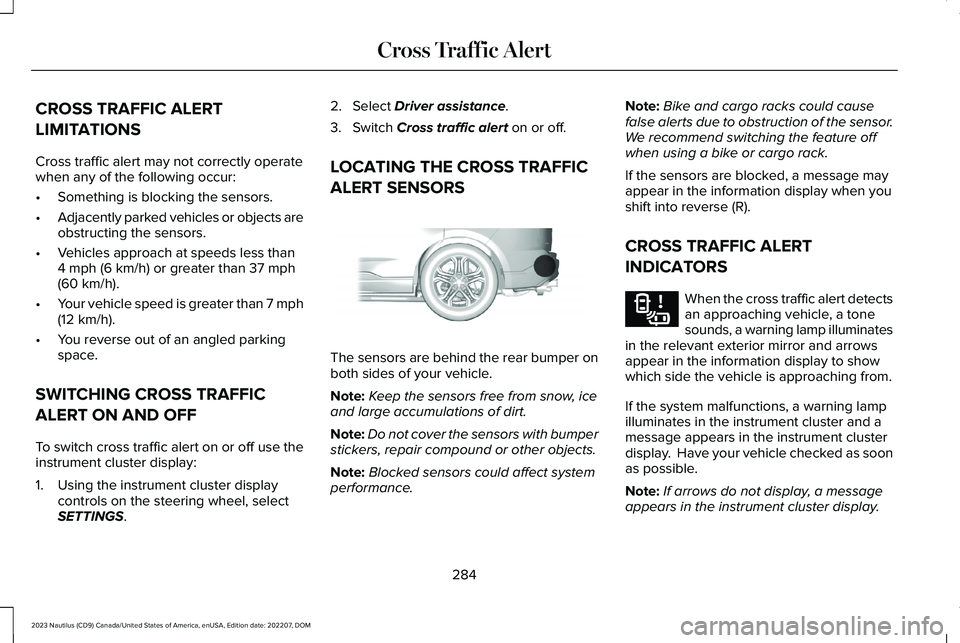

CROSS TRAFFIC ALERT
LIMITATIONS
Cross traffic alert may not correctly operatewhen any of the following occur:
•Something is blocking the sensors.
•Adjacently parked vehicles or objects areobstructing the sensors.
•Vehicles approach at speeds less than4 mph (6 km/h) or greater than 37 mph(60 km/h).
•Your vehicle speed is greater than 7 mph(12 km/h).
•You reverse out of an angled parkingspace.
SWITCHING CROSS TRAFFIC
ALERT ON AND OFF
To switch cross traffic alert on or off use theinstrument cluster display:
1.Using the instrument cluster displaycontrols on the steering wheel, selectSETTINGS.
2.Select Driver assistance.
3.Switch Cross traffic alert on or off.
LOCATING THE CROSS TRAFFIC
ALERT SENSORS
The sensors are behind the rear bumper onboth sides of your vehicle.
Note:Keep the sensors free from snow, iceand large accumulations of dirt.
Note:Do not cover the sensors with bumperstickers, repair compound or other objects.
Note:Blocked sensors could affect systemperformance.
Note:Bike and cargo racks could causefalse alerts due to obstruction of the sensor.We recommend switching the feature offwhen using a bike or cargo rack.
If the sensors are blocked, a message mayappear in the information display when youshift into reverse (R).
CROSS TRAFFIC ALERT
INDICATORS
When the cross traffic alert detectsan approaching vehicle, a tonesounds, a warning lamp illuminatesin the relevant exterior mirror and arrowsappear in the information display to showwhich side the vehicle is approaching from.
If the system malfunctions, a warning lampilluminates in the instrument cluster and amessage appears in the instrument clusterdisplay. Have your vehicle checked as soonas possible.
Note:If arrows do not display, a messageappears in the instrument cluster display.
284
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMCross Traffic AlertE205199 E268294

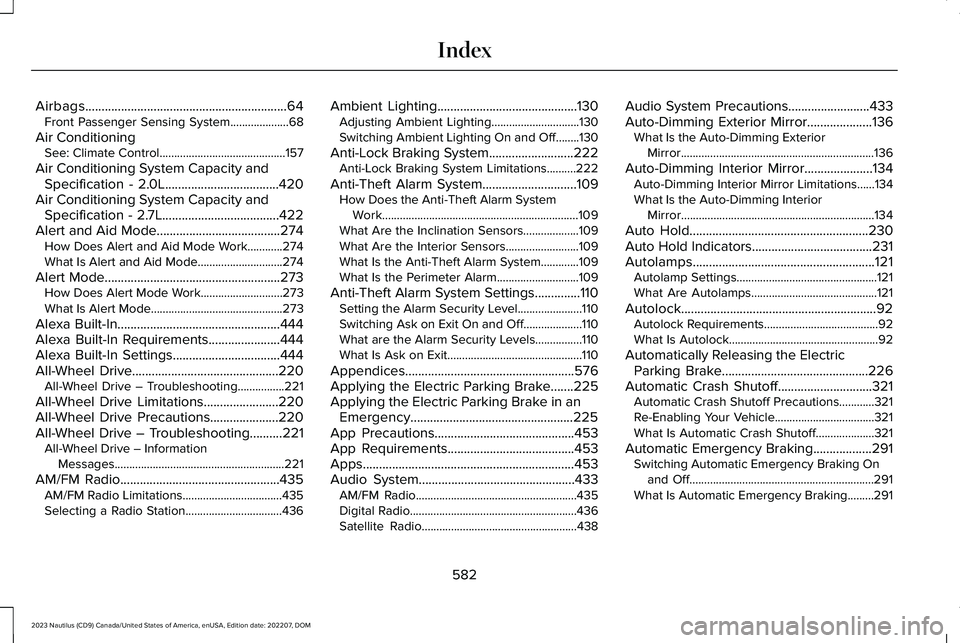

Airbags..............................................................64Front Passenger Sensing System....................68
Air ConditioningSee: Climate Control...........................................157
Air Conditioning System Capacity andSpecification - 2.0L...................................420Air Conditioning System Capacity andSpecification - 2.7L....................................422Alert and Aid Mode......................................274How Does Alert and Aid Mode Work............274What Is Alert and Aid Mode.............................274
Alert Mode......................................................273How Does Alert Mode Work............................273What Is Alert Mode.............................................273
Alexa Built-In..................................................444Alexa Built-In Requirements......................444Alexa Built-In Settings.................................444All-Wheel Drive.............................................220All-Wheel Drive – Troubleshooting................221
All-Wheel Drive Limitations.......................220All-Wheel Drive Precautions.....................220All-Wheel Drive – Troubleshooting..........221All-Wheel Drive – InformationMessages..........................................................221
AM/FM Radio.................................................435AM/FM Radio Limitations..................................435Selecting a Radio Station.................................436
Ambient Lighting...........................................130Adjusting Ambient Lighting..............................130Switching Ambient Lighting On and Off........130
Anti-Lock Braking System..........................222Anti-Lock Braking System Limitations..........222
Anti-Theft Alarm System.............................109How Does the Anti-Theft Alarm SystemWork...................................................................109What Are the Inclination Sensors...................109What Are the Interior Sensors.........................109What Is the Anti-Theft Alarm System.............109What Is the Perimeter Alarm............................109
Anti-Theft Alarm System Settings..............110Setting the Alarm Security Level......................110Switching Ask on Exit On and Off....................110What are the Alarm Security Levels................110What Is Ask on Exit..............................................110
Appendices....................................................576Applying the Electric Parking Brake.......225Applying the Electric Parking Brake in anEmergency..................................................225App Precautions...........................................453App Requirements.......................................453Apps.................................................................453Audio System................................................433AM/FM Radio.......................................................435Digital Radio.........................................................436Satellite Radio.....................................................438
Audio System Precautions.........................433Auto-Dimming Exterior Mirror....................136What Is the Auto-Dimming ExteriorMirror..................................................................136
Auto-Dimming Interior Mirror.....................134Auto-Dimming Interior Mirror Limitations......134What Is the Auto-Dimming InteriorMirror..................................................................134
Auto Hold.......................................................230Auto Hold Indicators.....................................231Autolamps........................................................121Autolamp Settings................................................121What Are Autolamps...........................................121
Autolock............................................................92Autolock Requirements.......................................92What Is Autolock...................................................92
Automatically Releasing the ElectricParking Brake.............................................226Automatic Crash Shutoff.............................321Automatic Crash Shutoff Precautions............321Re-Enabling Your Vehicle..................................321What Is Automatic Crash Shutoff....................321
Automatic Emergency Braking..................291Switching Automatic Emergency Braking Onand Off...............................................................291What Is Automatic Emergency Braking.........291
582
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex

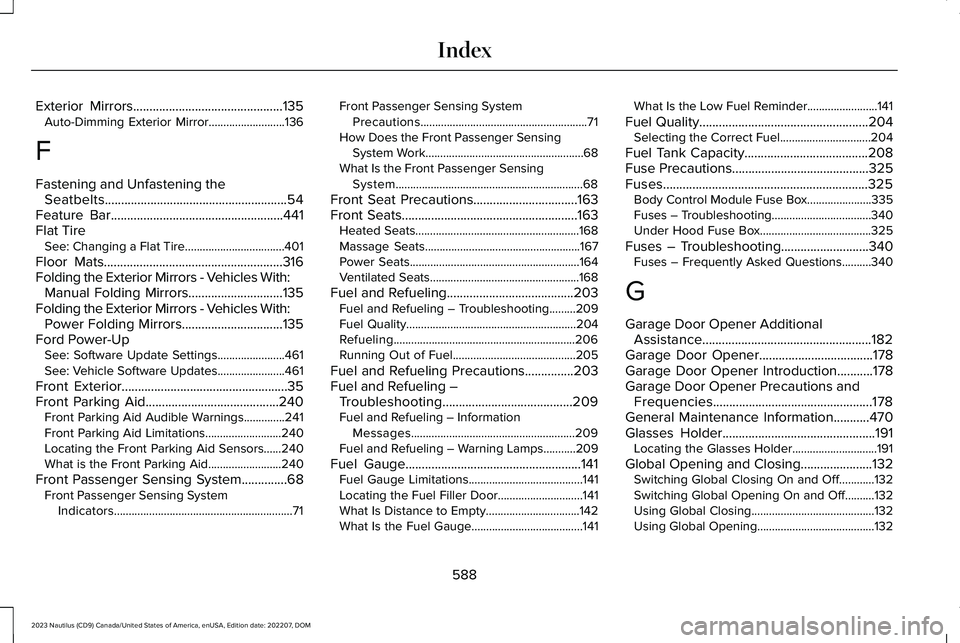

Exterior Mirrors..............................................135Auto-Dimming Exterior Mirror..........................136
F
Fastening and Unfastening theSeatbelts........................................................54Feature Bar.....................................................441Flat TireSee: Changing a Flat Tire..................................401
Floor Mats.......................................................316Folding the Exterior Mirrors - Vehicles With:Manual Folding Mirrors.............................135Folding the Exterior Mirrors - Vehicles With:Power Folding Mirrors...............................135Ford Power-UpSee: Software Update Settings.......................461See: Vehicle Software Updates.......................461
Front Exterior...................................................35Front Parking Aid.........................................240Front Parking Aid Audible Warnings..............241Front Parking Aid Limitations..........................240Locating the Front Parking Aid Sensors......240What is the Front Parking Aid.........................240
Front Passenger Sensing System..............68Front Passenger Sensing SystemIndicators.............................................................71
Front Passenger Sensing SystemPrecautions.........................................................71How Does the Front Passenger SensingSystem Work......................................................68What Is the Front Passenger SensingSystem................................................................68
Front Seat Precautions................................163Front Seats......................................................163Heated Seats........................................................168Massage Seats.....................................................167Power Seats..........................................................164Ventilated Seats...................................................168
Fuel and Refueling.......................................203Fuel and Refueling – Troubleshooting.........209Fuel Quality..........................................................204Refueling..............................................................206Running Out of Fuel..........................................205
Fuel and Refueling Precautions...............203Fuel and Refueling –Troubleshooting........................................209Fuel and Refueling – InformationMessages........................................................209Fuel and Refueling – Warning Lamps...........209
Fuel Gauge......................................................141Fuel Gauge Limitations.......................................141Locating the Fuel Filler Door.............................141What Is Distance to Empty................................142What Is the Fuel Gauge......................................141
What Is the Low Fuel Reminder........................141
Fuel Quality....................................................204Selecting the Correct Fuel...............................204
Fuel Tank Capacity......................................208Fuse Precautions..........................................325Fuses...............................................................325Body Control Module Fuse Box......................335Fuses – Troubleshooting..................................340Under Hood Fuse Box......................................325
Fuses – Troubleshooting...........................340Fuses – Frequently Asked Questions..........340
G
Garage Door Opener AdditionalAssistance....................................................182Garage Door Opener...................................178Garage Door Opener Introduction...........178Garage Door Opener Precautions andFrequencies.................................................178General Maintenance Information...........470Glasses Holder...............................................191Locating the Glasses Holder.............................191
Global Opening and Closing......................132Switching Global Closing On and Off............132Switching Global Opening On and Off..........132Using Global Closing..........................................132Using Global Opening........................................132
588
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex

Switching Lane Centering On and Off..........267
Lane Keeping System Indicators..............274Lane Keeping System..................................271Aid Mode..............................................................273Alert and Aid Mode............................................274Alert Mode............................................................273Lane Keeping System –Troubleshooting.............................................276
Lane Keeping System Limitations............272Lane Keeping System Precautions...........271Lane Keeping System Settings.................273Lane Keeping System –Troubleshooting.........................................276Lane Keeping System – Frequently AskedQuestions.........................................................277Lane Keeping System – InformationMessages.........................................................276
Launching or Retrieving a Boat or PersonalWatercraft....................................................309Liftgate..............................................................101Closing the Liftgate.............................................104Liftgate – Troubleshooting...............................106Opening the Liftgate...........................................101
Liftgate Obstacle Detection.......................106Liftgate Precautions.......................................101Liftgate – Troubleshooting.........................106Liftgate – Frequently Asked Questions........108Liftgate – Information Messages.....................107
Liftgate – Warning Lamps.................................106
Lincoln Personal Assistant.........................442Lincoln Personal Assistant – Frequently AskedQuestions.........................................................442Lincoln Personal Assistant Settings...............442Using Lincoln Personal Assistant...................442
Lincoln Protect..............................................467Linking or Unlinking a Personal Profile toa Device.......................................................457Linking or Unlinking a Personal Profile toa Remote Control.......................................457Live Traffic......................................................458Switching Live Traffic On and Off...................458What Is Live Traffic.............................................458
Load Carrying................................................296Roof Rack.............................................................300
Load Carrying Precautions........................296Loading Your Trailer.....................................308Locating the 360 Degree Cameras.........248Locating the Blind Spot Information SystemSensors........................................................280Locating the Brake Fluid Reservoir.........222Locating the Cross Traffic AlertSensors........................................................284Locating the Fuel Filler Funnel.................204Locating the Keyless Entry Keypad...........96Locating the Memory FunctionButtons..........................................................176
Locating the Power Outlets........................185Locating the Pre-Collision AssistSensors........................................................288Locating the Rear View Camera...............244Locating the Safety ComplianceCertification Labels...................................297Locating the Tire label................................375Locating the Tire Sealant and InflatorKit...................................................................389Locating the USB Ports................................183Locating the Wireless AccessoryCharger.........................................................188Locating Your Vehicle....................................77Locking the Rear Window Controls..........133Luggage Compartment..............................302Luggage Compartment Precautions.......302
M
Maintenance...................................................341Engine Air Filter..................................................353Engine Oil.............................................................347Exterior Bulbs.......................................................361Interior Bulbs.......................................................364
Maintenance Precautions...........................341Making and Receiving a Phone Call........448Manually Releasing the Electric ParkingBrake............................................................225
591
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex

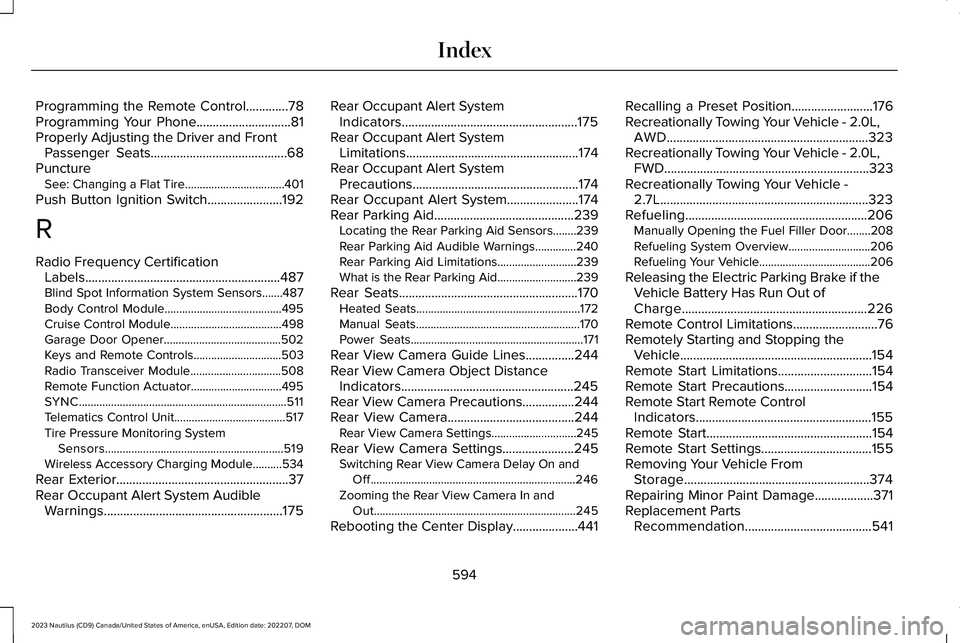

Programming the Remote Control.............78Programming Your Phone.............................81Properly Adjusting the Driver and FrontPassenger Seats..........................................68PunctureSee: Changing a Flat Tire..................................401
Push Button Ignition Switch.......................192
R
Radio Frequency CertificationLabels............................................................487Blind Spot Information System Sensors.......487Body Control Module........................................495Cruise Control Module......................................498Garage Door Opener........................................502Keys and Remote Controls..............................503Radio Transceiver Module...............................508Remote Function Actuator...............................495SYNC.......................................................................511Telematics Control Unit......................................517Tire Pressure Monitoring SystemSensors.............................................................519Wireless Accessory Charging Module..........534
Rear Exterior.....................................................37Rear Occupant Alert System AudibleWarnings.......................................................175
Rear Occupant Alert SystemIndicators......................................................175Rear Occupant Alert SystemLimitations.....................................................174Rear Occupant Alert SystemPrecautions...................................................174Rear Occupant Alert System......................174Rear Parking Aid...........................................239Locating the Rear Parking Aid Sensors........239Rear Parking Aid Audible Warnings..............240Rear Parking Aid Limitations...........................239What is the Rear Parking Aid...........................239
Rear Seats.......................................................170Heated Seats........................................................172Manual Seats........................................................170Power Seats...........................................................171
Rear View Camera Guide Lines...............244Rear View Camera Object DistanceIndicators.....................................................245Rear View Camera Precautions................244Rear View Camera.......................................244Rear View Camera Settings.............................245
Rear View Camera Settings......................245Switching Rear View Camera Delay On andOff......................................................................246Zooming the Rear View Camera In andOut.....................................................................245
Rebooting the Center Display....................441
Recalling a Preset Position.........................176Recreationally Towing Your Vehicle - 2.0L,AWD..............................................................323Recreationally Towing Your Vehicle - 2.0L,FWD...............................................................323Recreationally Towing Your Vehicle -2.7L................................................................323Refueling........................................................206Manually Opening the Fuel Filler Door........208Refueling System Overview............................206Refueling Your Vehicle......................................206
Releasing the Electric Parking Brake if theVehicle Battery Has Run Out ofCharge.........................................................226Remote Control Limitations..........................76Remotely Starting and Stopping theVehicle...........................................................154Remote Start Limitations.............................154Remote Start Precautions...........................154Remote Start Remote ControlIndicators......................................................155Remote Start...................................................154Remote Start Settings..................................155Removing Your Vehicle FromStorage.........................................................374Repairing Minor Paint Damage..................371Replacement PartsRecommendation.......................................541
594
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex

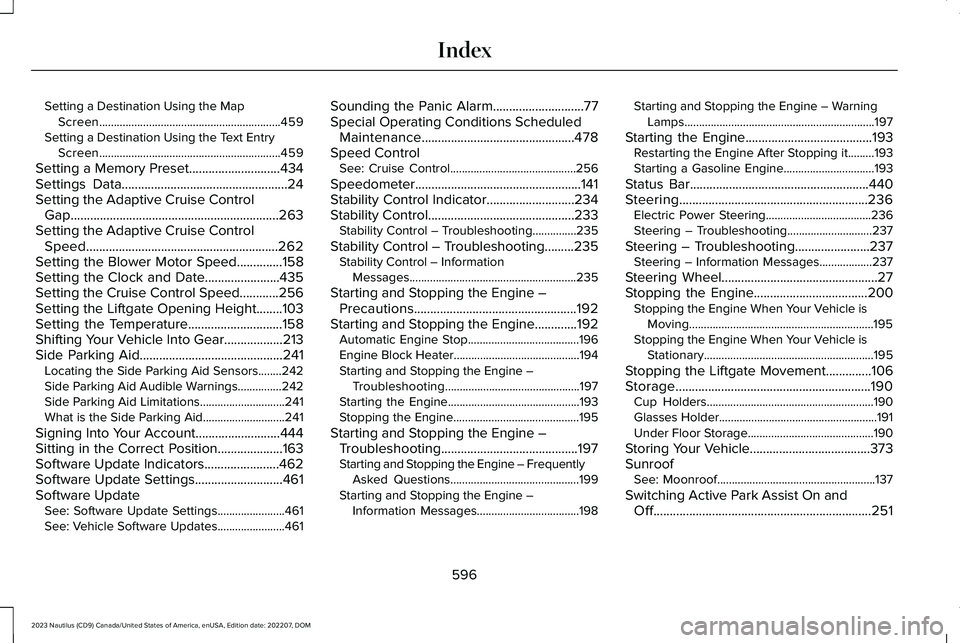

Setting a Destination Using the MapScreen..............................................................459Setting a Destination Using the Text EntryScreen..............................................................459
Setting a Memory Preset............................434Settings Data...................................................24Setting the Adaptive Cruise ControlGap................................................................263Setting the Adaptive Cruise ControlSpeed...........................................................262Setting the Blower Motor Speed..............158Setting the Clock and Date.......................435Setting the Cruise Control Speed............256Setting the Liftgate Opening Height........103Setting the Temperature.............................158Shifting Your Vehicle Into Gear..................213Side Parking Aid............................................241Locating the Side Parking Aid Sensors........242Side Parking Aid Audible Warnings...............242Side Parking Aid Limitations.............................241What is the Side Parking Aid............................241
Signing Into Your Account..........................444Sitting in the Correct Position....................163Software Update Indicators.......................462Software Update Settings...........................461Software UpdateSee: Software Update Settings.......................461See: Vehicle Software Updates.......................461
Sounding the Panic Alarm............................77Special Operating Conditions ScheduledMaintenance...............................................478Speed ControlSee: Cruise Control...........................................256
Speedometer...................................................141Stability Control Indicator...........................234Stability Control.............................................233Stability Control – Troubleshooting...............235
Stability Control – Troubleshooting.........235Stability Control – InformationMessages.........................................................235
Starting and Stopping the Engine –Precautions..................................................192Starting and Stopping the Engine.............192Automatic Engine Stop......................................196Engine Block Heater...........................................194Starting and Stopping the Engine –Troubleshooting..............................................197Starting the Engine.............................................193Stopping the Engine...........................................195
Starting and Stopping the Engine –Troubleshooting..........................................197Starting and Stopping the Engine – FrequentlyAsked Questions............................................199Starting and Stopping the Engine –Information Messages...................................198
Starting and Stopping the Engine – WarningLamps.................................................................197
Starting the Engine.......................................193Restarting the Engine After Stopping it.........193Starting a Gasoline Engine...............................193
Status Bar.......................................................440Steering..........................................................236Electric Power Steering....................................236Steering – Troubleshooting.............................237
Steering – Troubleshooting.......................237Steering – Information Messages..................237
Steering Wheel................................................27Stopping the Engine...................................200Stopping the Engine When Your Vehicle isMoving...............................................................195Stopping the Engine When Your Vehicle isStationary..........................................................195
Stopping the Liftgate Movement..............106Storage............................................................190Cup Holders.........................................................190Glasses Holder......................................................191Under Floor Storage...........................................190
Storing Your Vehicle.....................................373SunroofSee: Moonroof......................................................137
Switching Active Park Assist On andOff...................................................................251
596
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex
