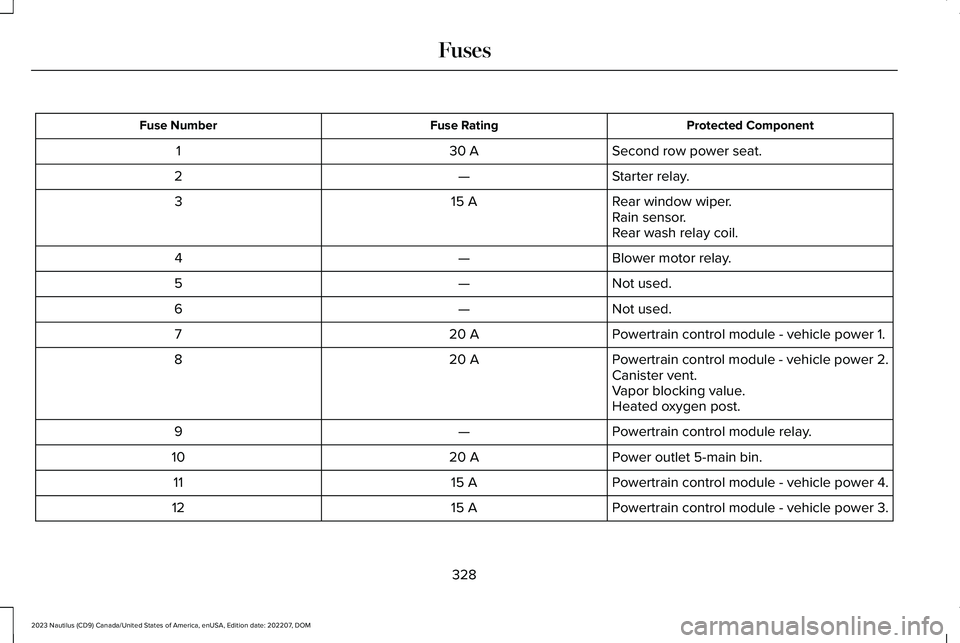

Protected ComponentFuse RatingFuse Number
Second row power seat.30 A1
Starter relay.—2
Rear window wiper.15 A3Rain sensor.Rear wash relay coil.
Blower motor relay.—4
Not used.—5
Not used.—6
Powertrain control module - vehicle power 1.20 A7
Powertrain control module - vehicle power 2.20 A8Canister vent.Vapor blocking value.Heated oxygen post.
Powertrain control module relay.—9
Power outlet 5-main bin.20 A10
Powertrain control module - vehicle power 4.15 A11
Powertrain control module - vehicle power 3.15 A12
328
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

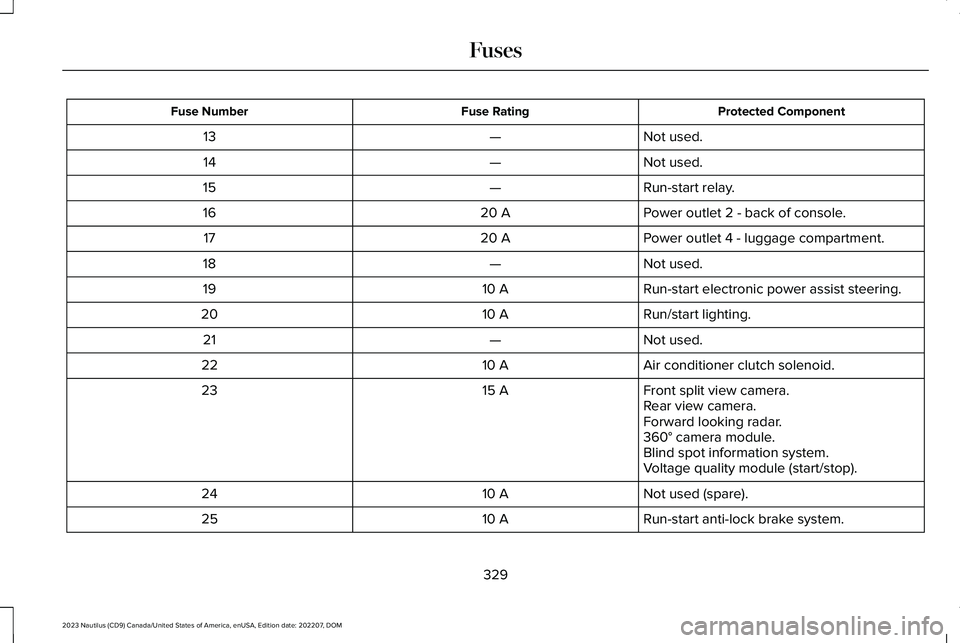

Protected ComponentFuse RatingFuse Number
Not used.—13
Not used.—14
Run-start relay.—15
Power outlet 2 - back of console.20 A16
Power outlet 4 - luggage compartment.20 A17
Not used.—18
Run-start electronic power assist steering.10 A19
Run/start lighting.10 A20
Not used.—21
Air conditioner clutch solenoid.10 A22
Front split view camera.15 A23Rear view camera.Forward looking radar.360° camera module.Blind spot information system.Voltage quality module (start/stop).
Not used (spare).10 A24
Run-start anti-lock brake system.10 A25
329
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

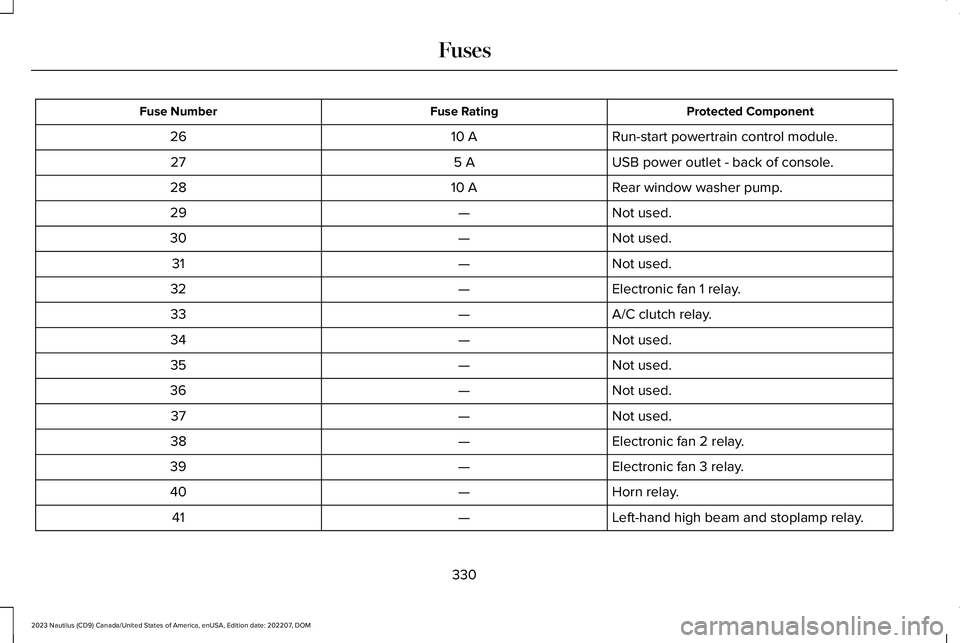

Protected ComponentFuse RatingFuse Number
Run-start powertrain control module.10 A26
USB power outlet - back of console.5 A27
Rear window washer pump.10 A28
Not used.—29
Not used.—30
Not used.—31
Electronic fan 1 relay.—32
A/C clutch relay.—33
Not used.—34
Not used.—35
Not used.—36
Not used.—37
Electronic fan 2 relay.—38
Electronic fan 3 relay.—39
Horn relay.—40
Left-hand high beam and stoplamp relay.—41
330
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

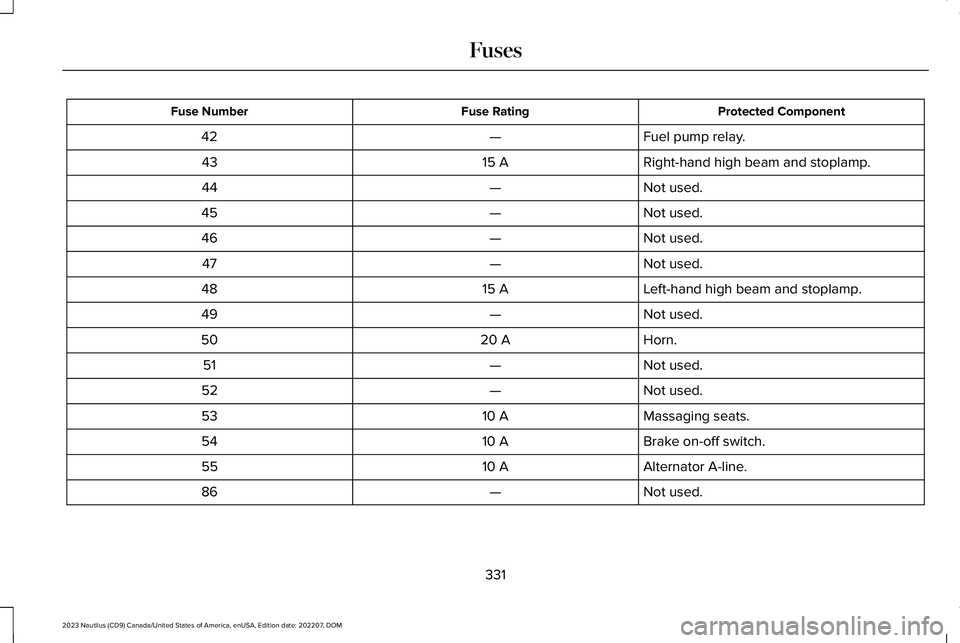

Protected ComponentFuse RatingFuse Number
Fuel pump relay.—42
Right-hand high beam and stoplamp.15 A43
Not used.—44
Not used.—45
Not used.—46
Not used.—47
Left-hand high beam and stoplamp.15 A48
Not used.—49
Horn.20 A50
Not used.—51
Not used.—52
Massaging seats.10 A53
Brake on-off switch.10 A54
Alternator A-line.10 A55
Not used.—86
331
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

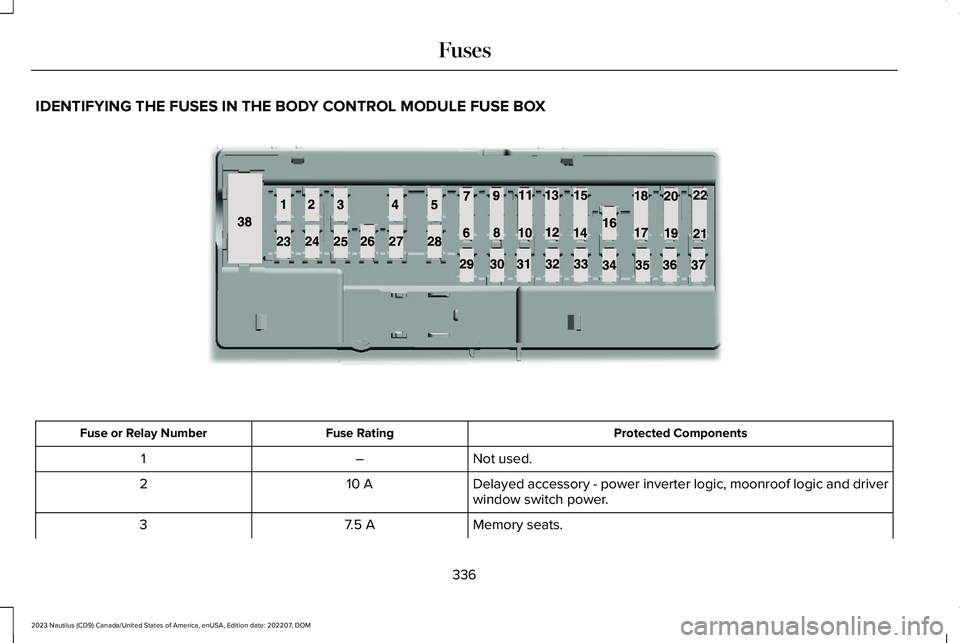

IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
Protected ComponentsFuse RatingFuse or Relay Number
Not used.–1
Delayed accessory - power inverter logic, moonroof logic and driverwindow switch power.10 A2
Memory seats.7.5 A3
336
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFusesE145984

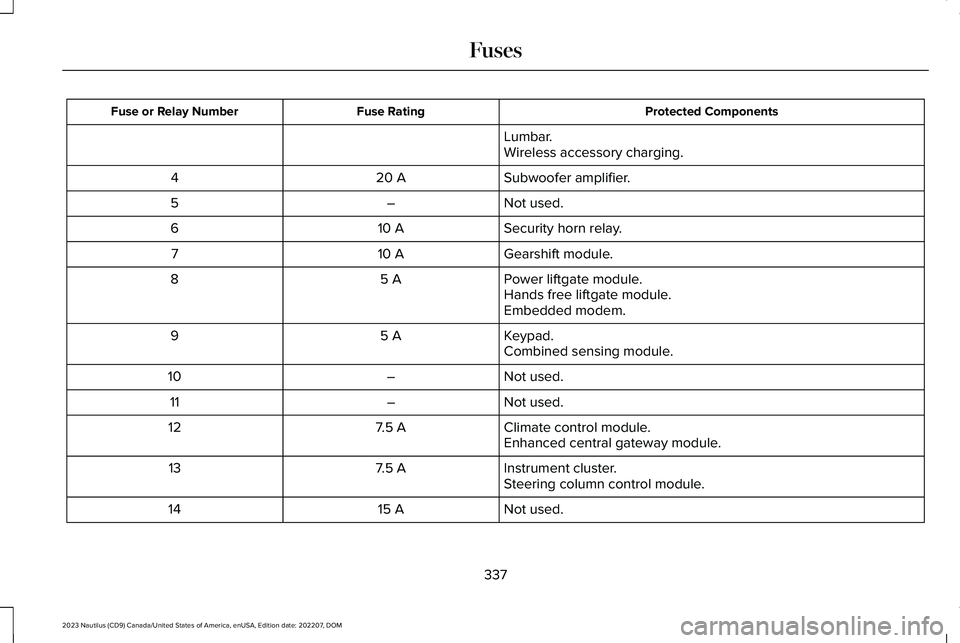

Protected ComponentsFuse RatingFuse or Relay Number
Lumbar.Wireless accessory charging.
Subwoofer amplifier.20 A4
Not used.–5
Security horn relay.10 A6
Gearshift module.10 A7
Power liftgate module.5 A8Hands free liftgate module.Embedded modem.
Keypad.5 A9Combined sensing module.
Not used.–10
Not used.–11
Climate control module.7.5 A12Enhanced central gateway module.
Instrument cluster.7.5 A13Steering column control module.
Not used.15 A14
337
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

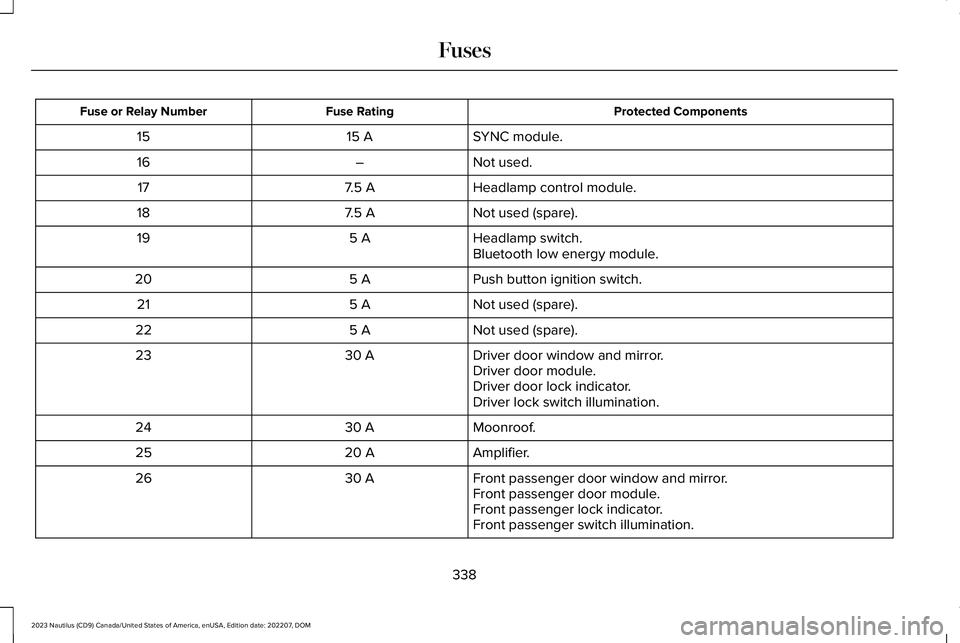

Protected ComponentsFuse RatingFuse or Relay Number
SYNC module.15 A15
Not used.–16
Headlamp control module.7.5 A17
Not used (spare).7.5 A18
Headlamp switch.5 A19Bluetooth low energy module.
Push button ignition switch.5 A20
Not used (spare).5 A21
Not used (spare).5 A22
Driver door window and mirror.30 A23Driver door module.Driver door lock indicator.Driver lock switch illumination.
Moonroof.30 A24
Amplifier.20 A25
Front passenger door window and mirror.30 A26Front passenger door module.Front passenger lock indicator.Front passenger switch illumination.
338
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses

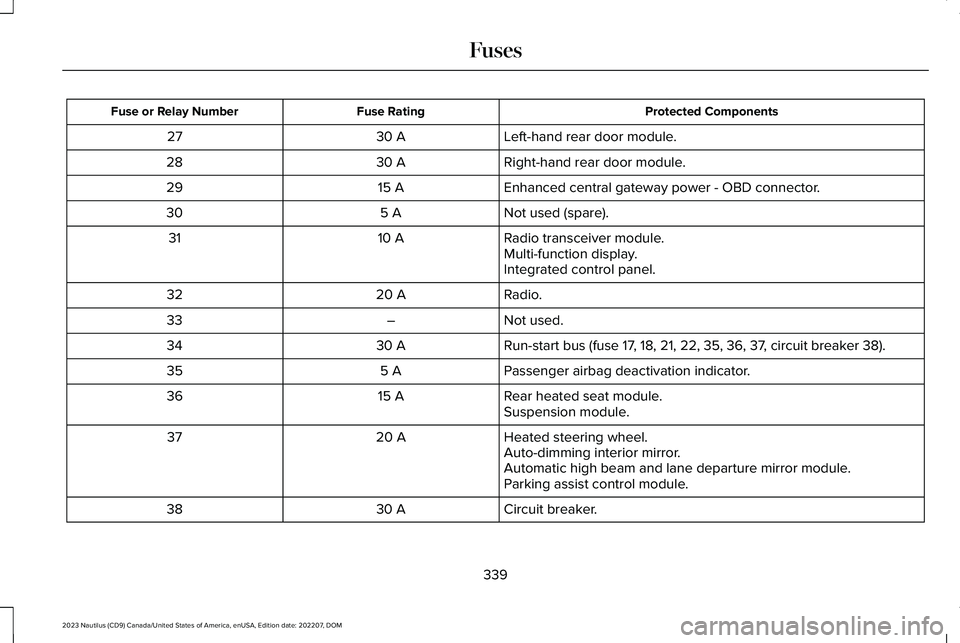

Protected ComponentsFuse RatingFuse or Relay Number
Left-hand rear door module.30 A27
Right-hand rear door module.30 A28
Enhanced central gateway power - OBD connector.15 A29
Not used (spare).5 A30
Radio transceiver module.10 A31Multi-function display.Integrated control panel.
Radio.20 A32
Not used.–33
Run-start bus (fuse 17, 18, 21, 22, 35, 36, 37, circuit breaker 38).30 A34
Passenger airbag deactivation indicator.5 A35
Rear heated seat module.15 A36Suspension module.
Heated steering wheel.20 A37Auto-dimming interior mirror.Automatic high beam and lane departure mirror module.Parking assist control module.
Circuit breaker.30 A38
339
