Seating and Safety Restraints 169Seating 169
Safety restraints 183
Air bags 195
Child restraints 203
Driving 217Starting 217
Brakes 221
Air suspension 225
Transmission operation 231
Vehicle loading 252
Trailer towing 254
Roadside Emergencies 262Getting roadside assistance 262
Hazard flasher switch 263
Fuel pump shut-off switch 263
Fuses and relays 265
Changing tires 275
Jump starting 282
Wrecker towing 288
Customer Assistance 290Reporting safety defects (U.S. only) 298
Cleaning 299
2004 Navigator (nav)
Owners Guide (post-2002-fmt)
USA English (fus)Table of Contents
2

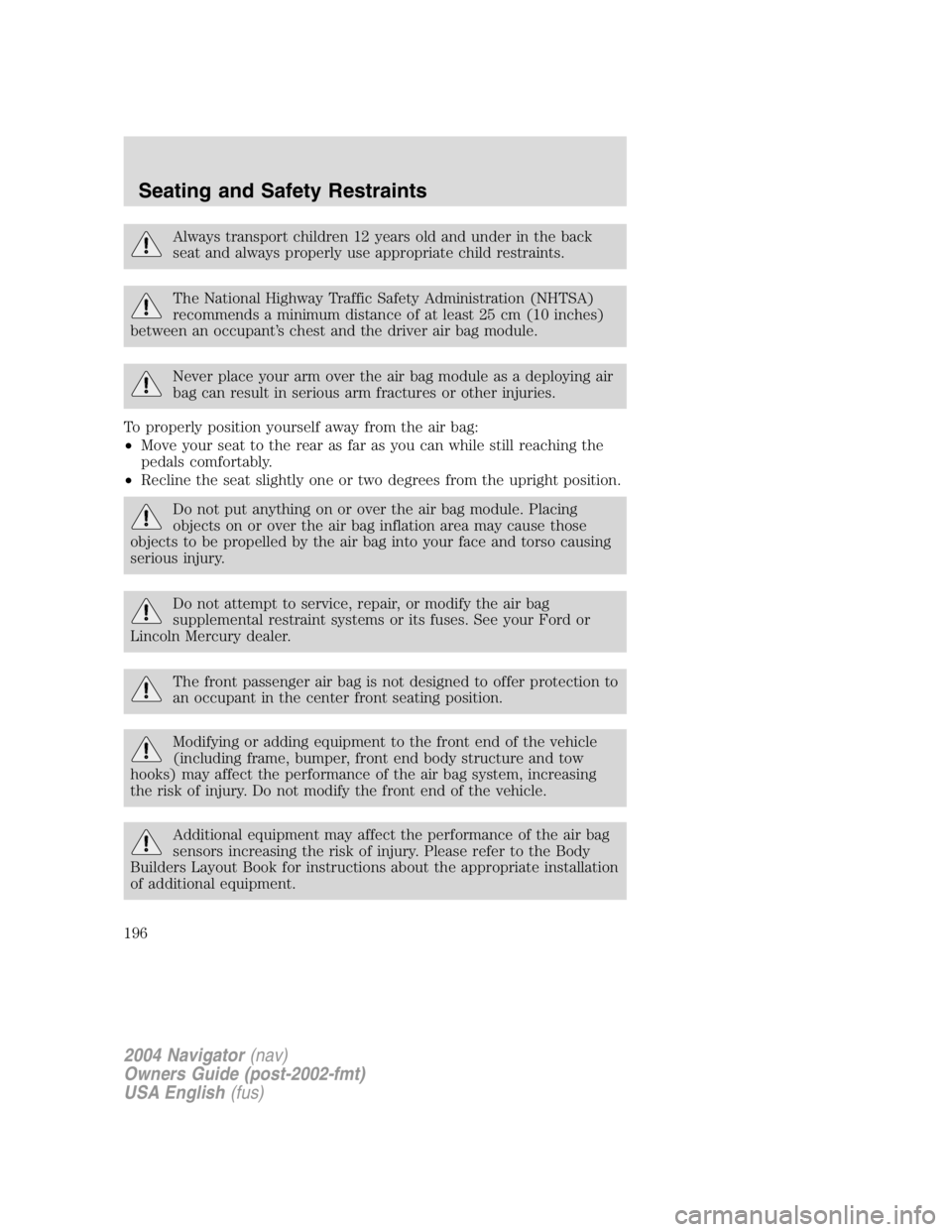

Always transport children 12 years old and under in the back
seat and always properly use appropriate child restraints.
The National Highway Traffic Safety Administration (NHTSA)
recommends a minimum distance of at least 25 cm (10 inches)
between an occupant ’ s chest and the driver air bag module.
Never place your arm over the air bag module as a deploying air
bag can result in serious arm fractures or other injuries.
To properly position yourself away from the air bag:
• Move your seat to the rear as far as you can while still reaching the
pedals comfortably.
• Recline the seat slightly one or two degrees from the upright position.
Do not put anything on or over the air bag module. Placing
objects on or over the air bag inflation area may cause those
objects to be propelled by the air bag into your face and torso causing
serious injury.
Do not attempt to service, repair, or modify the air bag
supplemental restraint systems or its fuses. See your Ford or
Lincoln Mercury dealer.
The front passenger air bag is not designed to offer protection to
an occupant in the center front seating position.
Modifying or adding equipment to the front end of the vehicle
(including frame, bumper, front end body structure and tow
hooks) may affect the performance of the air bag system, increasing
the risk of injury. Do not modify the front end of the vehicle.
Additional equipment may affect the performance of the air bag
sensors increasing the risk of injury. Please refer to the Body
Builders Layout Book for instructions about the appropriate installation
of additional equipment.
2004 Navigator (nav)
Owners Guide (post-2002-fmt)
USA English (fus)Seating and Safety Restraints
196

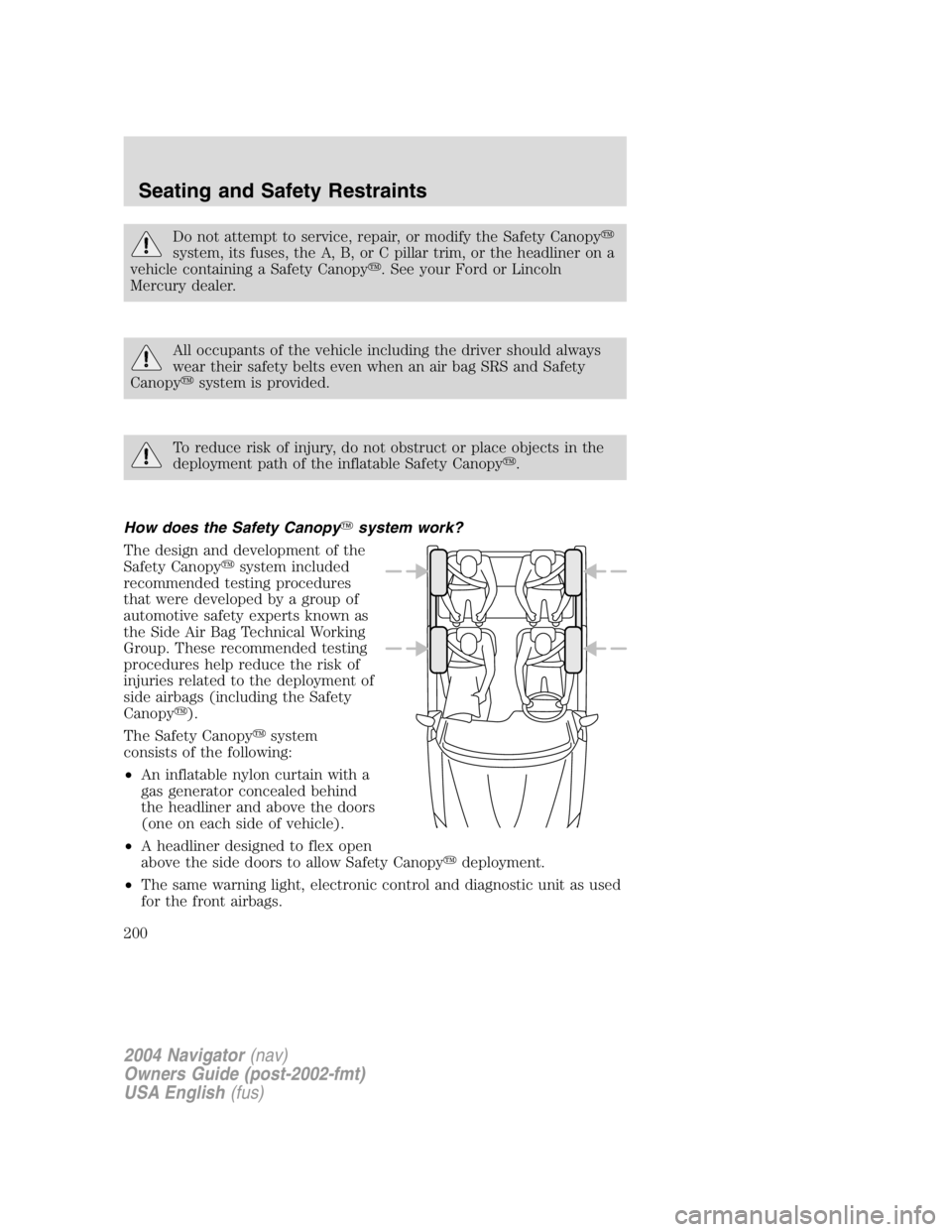

Do not attempt to service, repair, or modify the Safety Canopy

system, its fuses, the A, B, or C pillar trim, or the headliner on a
vehicle containing a Safety Canopy
. See your Ford or Lincoln
Mercury dealer.
All occupants of the vehicle including the driver should always
wear their safety belts even when an air bag SRS and Safety
Canopy
system is provided.
To reduce risk of injury, do not obstruct or place objects in the
deployment path of the inflatable Safety Canopy
.
How does the Safety Canopy  system work?
The design and development of the
Safety Canopy
system included
recommended testing procedures
that were developed by a group of
automotive safety experts known as
the Side Air Bag Technical Working
Group. These recommended testing
procedures help reduce the risk of
injuries related to the deployment of
side airbags (including the Safety
Canopy
).
The Safety Canopy
system
consists of the following:
• An inflatable nylon curtain with a
gas generator concealed behind
the headliner and above the doors
(one on each side of vehicle).
• A headliner designed to flex open
above the side doors to allow Safety Canopy
deployment.
• The same warning light, electronic control and diagnostic unit as used
for the front airbags.
2004 Navigator (nav)
Owners Guide (post-2002-fmt)
USA English (fus)Seating and Safety Restraints
200

Do not alter or modify your vehicle ’ s suspension or steering; the
resulting changes to the vehicle ’ s handling can adversely affect
the Roll Stability Control system. Also, do not install a stereo
loudspeaker near the front center console or under either front
seat. The speaker vibrations can adversely affect the Roll
Stability Control sensors located in this area.
Note: Pressing the Roll Stability Control button will disable the Roll
Stability Control.

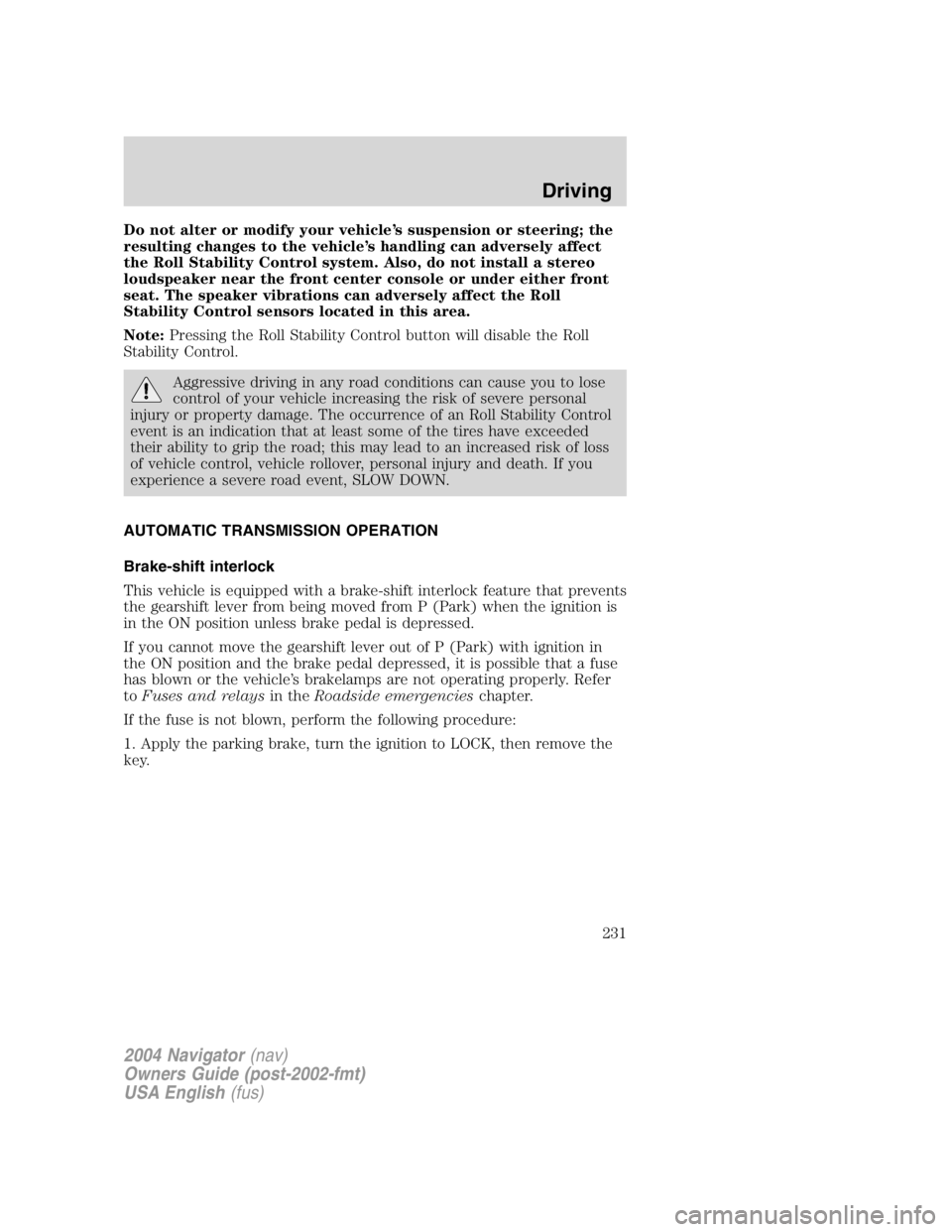

Aggressive driving in any road conditions can cause you to lose
control of your vehicle increasing the risk of severe personal
injury or property damage. The occurrence of an Roll Stability Control
event is an indication that at least some of the tires have exceeded
their ability to grip the road; this may lead to an increased risk of loss
of vehicle control, vehicle rollover, personal injury and death. If you
experience a severe road event, SLOW DOWN.
AUTOMATIC TRANSMISSION OPERATION
Brake-shift interlock
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the ON position unless brake pedal is depressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the ON position and the brake pedal depressed, it is possible that a fuse
has blown or the vehicle ’ s brakelamps are not operating properly. Refer
to Fuses and relays in the Roadside emergencies chapter.
If the fuse is not blown, perform the following procedure:
1. Apply the parking brake, turn the ignition to LOCK, then remove the
key.
2004 Navigator (nav)
Owners Guide (post-2002-fmt)
USA English (fus) Driving
231

The fuel pump shut-off switch has a
red reset button on top of it and is
located beneath the air suspension
switch (if equipped). If the vehicle
is not equipped with air suspension,
the fuel pump shut-off switch ’ s red
reset button will still be visible
behind this access panel.
Use the following procedure to reset the fuel pump shut-off switch.
1. Turn the ignition to the OFF position.
2. Check the fuel system for leaks.
3. If no fuel leak is apparent, reset the fuel pump shut-off switch by
pushing in on the reset button.
4. Turn the ignition to the ON position. Pause for a few seconds and
return the key to the OFF position.
5. Make a further check for leaks in the fuel system.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components. 15
2004 Navigator (nav)
Owners Guide (post-2002-fmt)
USA English (fus) Roadside Emergencies
265

Note: Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
Standard fuse amperage rating and color
COLOR
Fuse
rating Mini
fuses Standard
fuses Maxi
fuses Cartridge
maxi
fuses Fuse link
cartridge
2A Grey Grey ———
3A Violet Violet ———
4A Pink Pink ———
5A Tan Tan ———
7.5A Brown Brown ———
10A Red Red ———
15A Blue Blue ———
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural ———
30A Green Green Green Pink Pink
40A —— Orange Green Green
50A —— Red Red Red
60A —— Blue — Yellow
70A —— Ta n — Brown
80A —— Natural — Black
Passenger compartment fuse panel / power distribution box
The fuse panel is located under the right-hand side of the instrument
panel.
2004 Navigator (nav)
Owners Guide (post-2002-fmt)
USA English (fus)Roadside Emergencies
266

The fuses are coded as follows.
Fuse/Relay
Location Fuse Amp
Rating Passenger Compartment Fuse Panel
Description
1 10A* Run/Accessory - Instrument cluster, Front
wiper motor, Rear wiper motor, Tire
Pressure Monitor System (TPMS) module
2 20A* Brake On/Off (stoplamp) switch, Turn
signal/Hazard flasher, AdvanceTrac

stoplamps relay, Stoplamps, Center
High-Mounted Stoplamp (CHMSL), Turn
signal lamps
3 7.5A* Power mirror switch, Memory module (logic
power), Driver seat switch (memory)
4 15A* Rear seat audio controls, Navigation module,
DVD player
2004 Navigator (nav)
Owners Guide (post-2002-fmt)
USA English (fus)Roadside Emergencies
268

Fuse/Relay
Location Fuse Amp
Rating Passenger Compartment Fuse Panel
Description
R04 Rear window
defrost relay Fuse 8 (heated mirrors), Rear window
defroster, Heated outside mirrors, Rear
window defroster indicator (climate control
head)
R05 Trailer tow
battery
charge relay Trailer tow 7 – wire connector (battery
charge)
R06 Front blower
relay Front blower motor
R201 Trailer tow
park lamp
relay Trailer tow 7 – and 4 – wire connectors (park
lamps)
R202 Foglamp
relay Front foglamps
R203 PCM relay Fuse 32, Fuse 33, Fuse 34, Fuel pump relay,
Fuel pump, PCM solenoids and sensors
R301 Trailer tow
back-up lamp
relay Trailer tow 7 – wire connector (back-up
lamps)
R302 Speed
control relay Speed control servo
R303 Fuel pump
relay Fuel pump shut-off switch, PCM (fuel pump
monitor), Fuel pump
R304 Battery saver
relay Roof rail lamps, Vanity mirror lamps,
Map/Dome lamp, Glove box lamp, Cargo
area lamp, Outside mirror puddle lamps,
Instrument cluster (interior lamps)
R305 Horn relay Dual note horn
* Mini Fuses ** Maxi Fuses
Note: Relays R301 – R305 are not serviceable components; see your
dealer or a qualified technician for assistance.
2004 Navigator (nav)
Owners Guide (post-2002-fmt)
USA English (fus)Roadside Emergencies
274

change oil soon warning,
message center .......................308
checking and adding ..............308
dipstick ....................................308
filter, specifications ........310, 348
recommendations ...................310
refill capacities ........................349
specifications ..................351, 354
Exhaust fumes ..........................220
Extended Rear Park Assist ......238
F
Fail safe cooling ........................317
Floor mats .................................149
Fluid capacities .........................349
Foglamps .....................................99
Four-Wheel Drive vehicles .......240
control trac .............................240
description ..............................241
driving off road .......................243
electronic shift ........................242
indicator light .........................240
preparing to drive your
vehicle .....................................227
Fuel ............................................319
calculating fuel
economy ..........................139, 323
cap ...........................................321
capacity ...................................349
choosing the right fuel ...........321
comparisons with EPA fuel
economy estimates .................326
detergent in fuel .....................322
filling your vehicle with
fuel ...........................319, 321, 323
filter, specifications ........323, 348
fuel pump shut-off switch .....263
improving fuel economy ........323
octane rating ...................322, 354 quality ......................................322
running out of fuel .................322
safety information relating to
automotive fuels .....................319
Fuses ..................................265 – 266
G
Garage Door Opener (see
Homelink wireless control
system) ......................................132
Gas cap (see Fuel cap) ............321
Gas mileage (see Fuel
economy) ...................................323
Gauges .........................................14
GAWR (Gross Axle Weight
Rating) .......................................252
calculating ...............................254
definition .................................252
driving with a heavy load ......252
location ....................................252
GVWR (Gross Vehicle Weight
Rating) .......................................252
calculating .......................252, 254
definition .................................252
driving with a heavy load ......252
location ....................................252
H
Hazard flashers .........................263
Headlamps ...................................99
aiming ......................................101
autolamp system .......................99
bulb specifications ..................103
daytime running lights ...........100
flash to pass ............................100
high beam ...............................100
replacing bulbs .......................105
turning on and off ....................99
2004 Navigator (nav)
Owners Guide (post-2002-fmt)
USA English (fus) Index
363

side view mirrors (power) .....124
Motorcraft parts ................323, 348
N
Navigation system .......................43
cd functions ..............................59
destination mode ......................71
DVD location .............................92
map mode .................................62
quick start .................................45
radio functions ..........................51
O
Octane rating ............................322
Oil (see Engine oil) ..................308
P
Panic alarm feature, remote
entry system ..............................157
Parking brake ............................223
Parts (see Motorcraft parts) ....348
Pedals (see Power adjustable
foot pedals) ...............................125
Power adjustable foot pedals ...125
Power distribution box
(see Fuses) ...............................266
Power door locks ..............153, 162
Power liftgate ............................149
Power point ...............................118
Power steering ..........................224
fluid, checking and adding ....328
fluid, refill capacity ................349
fluid, specifications .........351, 354
Power Windows .........................119 Preparing to drive your
vehicle ........................................227
R
Radio ......................................16, 21
Rear window defroster ...............98
Relays ........................................265
Remote entry system .......154, 157
illuminated entry ....................162
locking/unlocking
doors ........................153 – 155, 163
opening the trunk ...........156 – 157
panic alarm .............................157
replacement/additional
transmitters .............................161
Roadside assistance ..................262
Roof rack ...................................152
S
Safety Belt Maintenance ..........194
Safety belts (see Safety
restraints) ..................183, 186 – 190
Safety defects, reporting ..........298
Safety restraints ........183, 186 – 190
belt minder .............................191
extension assembly ................194
for adults .........................187 – 189
for children .............................203
safety belt maintenance .........194
warning light and
chime ...............................190 – 191
Safety seats for children ..........206
Seat belts
(see Safety restraints) .............183
Seats ..........................................169
child safety seats ....................206
2004 Navigator (nav)
Owners Guide (post-2002-fmt)
USA English (fus) Index
365
