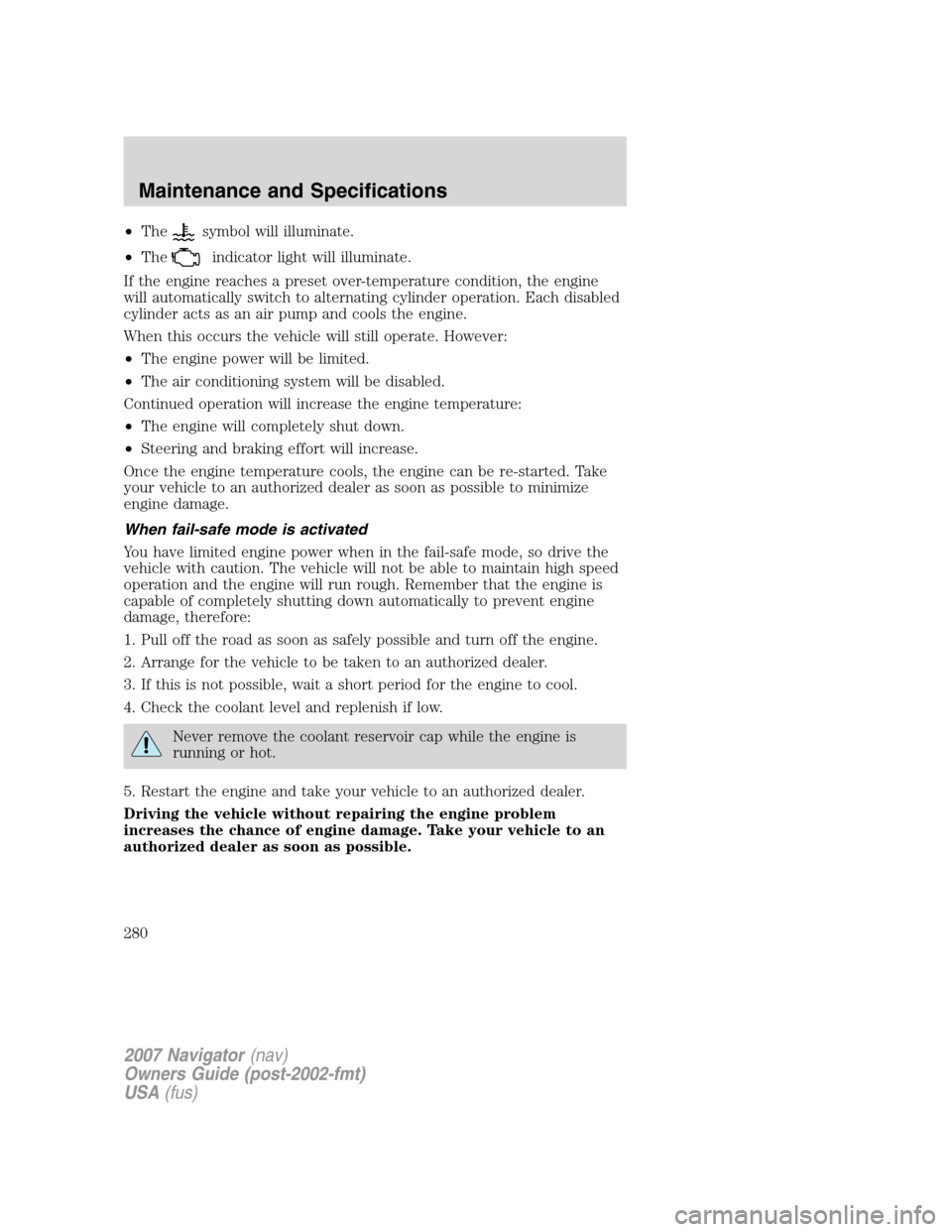

•Thesymbol will illuminate.
•The
indicator light will illuminate.
If the engine reaches a preset over-temperature condition, the engine
will automatically switch to alternating cylinder operation. Each disabled
cylinder acts as an air pump and cools the engine.
When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
Continued operation will increase the engine temperature:
•The engine will completely shut down.
•Steering and braking effort will increase.
Once the engine temperature cools, the engine can be re-started. Take
your vehicle to an authorized dealer as soon as possible to minimize
engine damage.
When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to an authorized dealer.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
Never remove the coolant reservoir cap while the engine is
running or hot.
5. Restart the engine and take your vehicle to an authorized dealer.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to an
authorized dealer as soon as possible.
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
280

•Theindicator may come on. For more information on the “check
engine” or the “service engine soon” indicator, refer toWarning lights
and chimesin theInstrument Clusterchapter.
ESSENTIALS OF GOOD FUEL ECONOMY
Measuring techniques
Your best source of information about actual fuel economy is you, the
driver. You must gather information as accurately and consistently as
possible. Fuel expense, frequency of fill-ups or fuel gauge readings are
NOT accurate as a measure of fuel economy. We do not recommend
taking fuel economy measurements during the first 1,000 miles
(1,600 km) of driving (engine break-in period). You will get a more
accurate measurement after 2,000 miles-3,000 miles
(3,000 km–5,000 km).
Filling the tank
The advertised fuel capacity of the fuel tank on your vehicle is equal to
the rated refill capacity of the fuel tank as listed in theMaintenance
product specifications and capacitiessection of this chapter.
The advertised capacity is the amount of the indicated capacity and the
empty reserve combined. Indicated capacity is the difference in the
amount of fuel in a full tank and a tank when the fuel gauge indicates
empty. Empty reserve is the small amount of fuel remaining in the fuel
tank after the fuel gauge indicates empty.
The amount of usable fuel in the empty reserve varies and should
not be relied upon to increase driving range. When refueling your
vehicle after the fuel gauge indicates empty, you might not be
able to refuel the full amount of the advertised capacity of the
fuel tank due to the empty reserve still present in the tank.
For consistent results when filling the fuel tank:
•Turn the engine/ignition switch to the off position prior to refueling,
an error in the reading will result if the engine is left running.
•Use the same filling rate setting (low — medium — high) each time
the tank is filled.
•Allow no more than two automatic click-offs when filling.
•Always use fuel with the recommended octane rating.
•Use a known quality gasoline, preferably a national brand.
•Use the same side of the same pump and have the vehicle facing the
same direction each time you fill up.
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
286

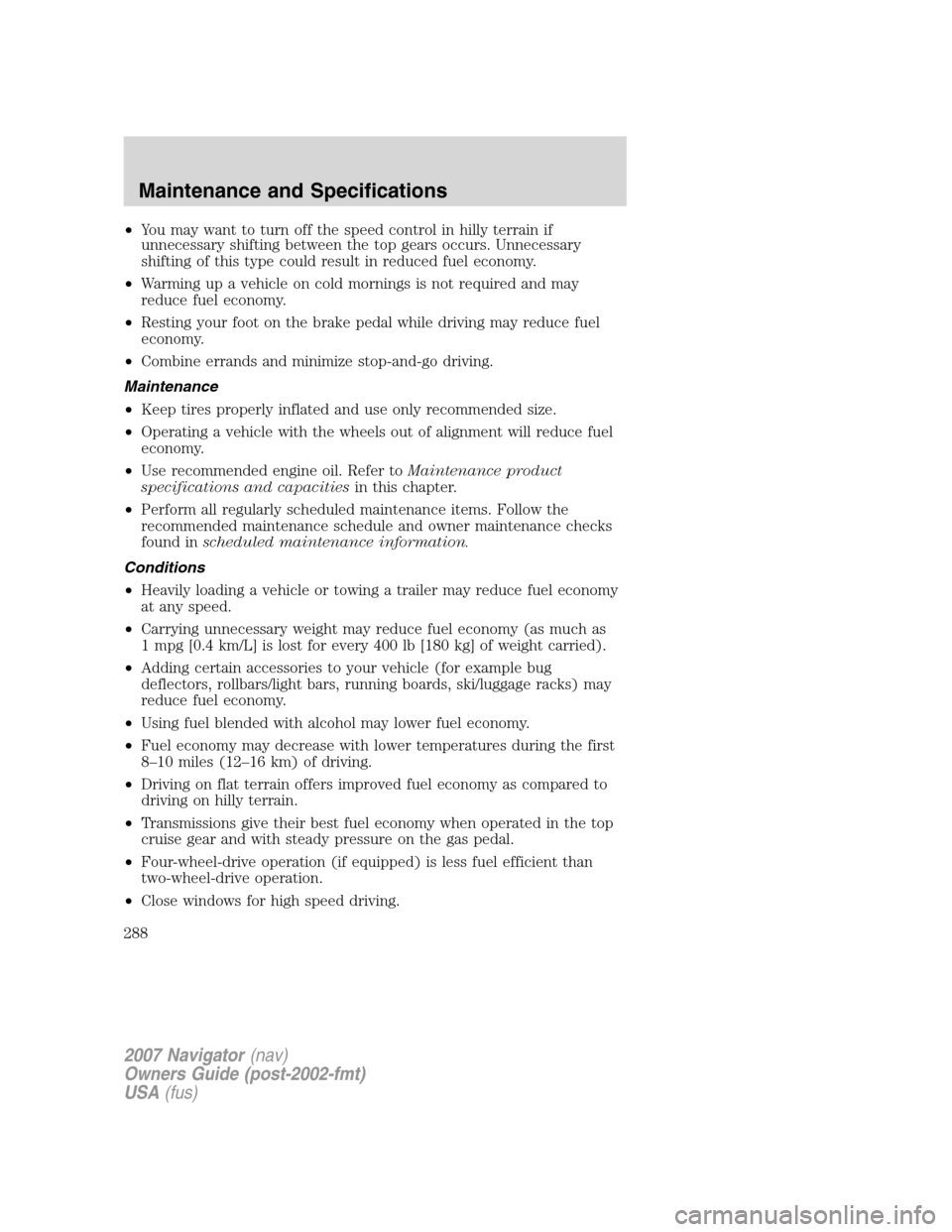

•You may want to turn off the speed control in hilly terrain if
unnecessary shifting between the top gears occurs. Unnecessary
shifting of this type could result in reduced fuel economy.
•Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
•Resting your foot on the brake pedal while driving may reduce fuel
economy.
•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toMaintenance product
specifications and capacitiesin this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
•Carrying unnecessary weight may reduce fuel economy (as much as
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
•Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the gas pedal.
•Four-wheel-drive operation (if equipped) is less fuel efficient than
two-wheel-drive operation.
•Close windows for high speed driving.
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
288

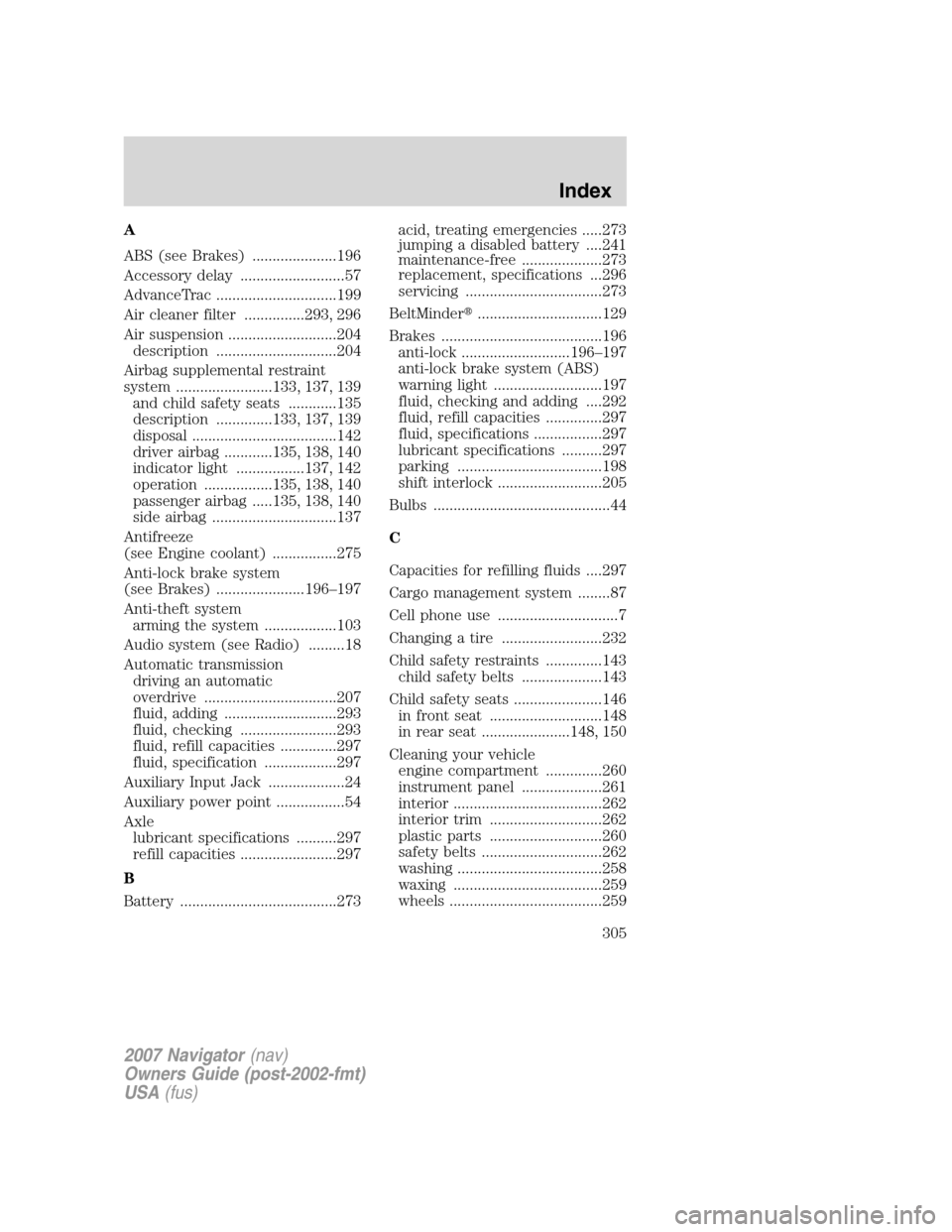

A
ABS (see Brakes) .....................196
Accessory delay ..........................57
AdvanceTrac ..............................199
Air cleaner filter ...............293, 296
Air suspension ...........................204
description ..............................204
Airbag supplemental restraint
system ........................133, 137, 139
and child safety seats ............135
description ..............133, 137, 139
disposal ....................................142
driver airbag ............135, 138, 140
indicator light .................137, 142
operation .................135, 138, 140
passenger airbag .....135, 138, 140
side airbag ...............................137
Antifreeze
(see Engine coolant) ................275
Anti-lock brake system
(see Brakes) ......................196–197
Anti-theft system
arming the system ..................103
Audio system (see Radio) .........18
Automatic transmission
driving an automatic
overdrive .................................207
fluid, adding ............................293
fluid, checking ........................293
fluid, refill capacities ..............297
fluid, specification ..................297
Auxiliary Input Jack ...................24
Auxiliary power point .................54
Axle
lubricant specifications ..........297
refill capacities ........................297
B
Battery .......................................273acid, treating emergencies .....273
jumping a disabled battery ....241
maintenance-free ....................273
replacement, specifications ...296
servicing ..................................273
BeltMinder
...............................129
Brakes ........................................196
anti-lock ...........................196–197
anti-lock brake system (ABS)
warning light ...........................197
fluid, checking and adding ....292
fluid, refill capacities ..............297
fluid, specifications .................297
lubricant specifications ..........297
parking ....................................198
shift interlock ..........................205
Bulbs ............................................44
C
Capacities for refilling fluids ....297
Cargo management system ........87
Cell phone use ..............................7
Changing a tire .........................232
Child safety restraints ..............143
child safety belts ....................143
Child safety seats ......................146
in front seat ............................148
in rear seat ......................148, 150
Cleaning your vehicle
engine compartment ..............260
instrument panel ....................261
interior .....................................262
interior trim ............................262
plastic parts ............................260
safety belts ..............................262
washing ....................................258
waxing .....................................259
wheels ......................................259
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Index
305

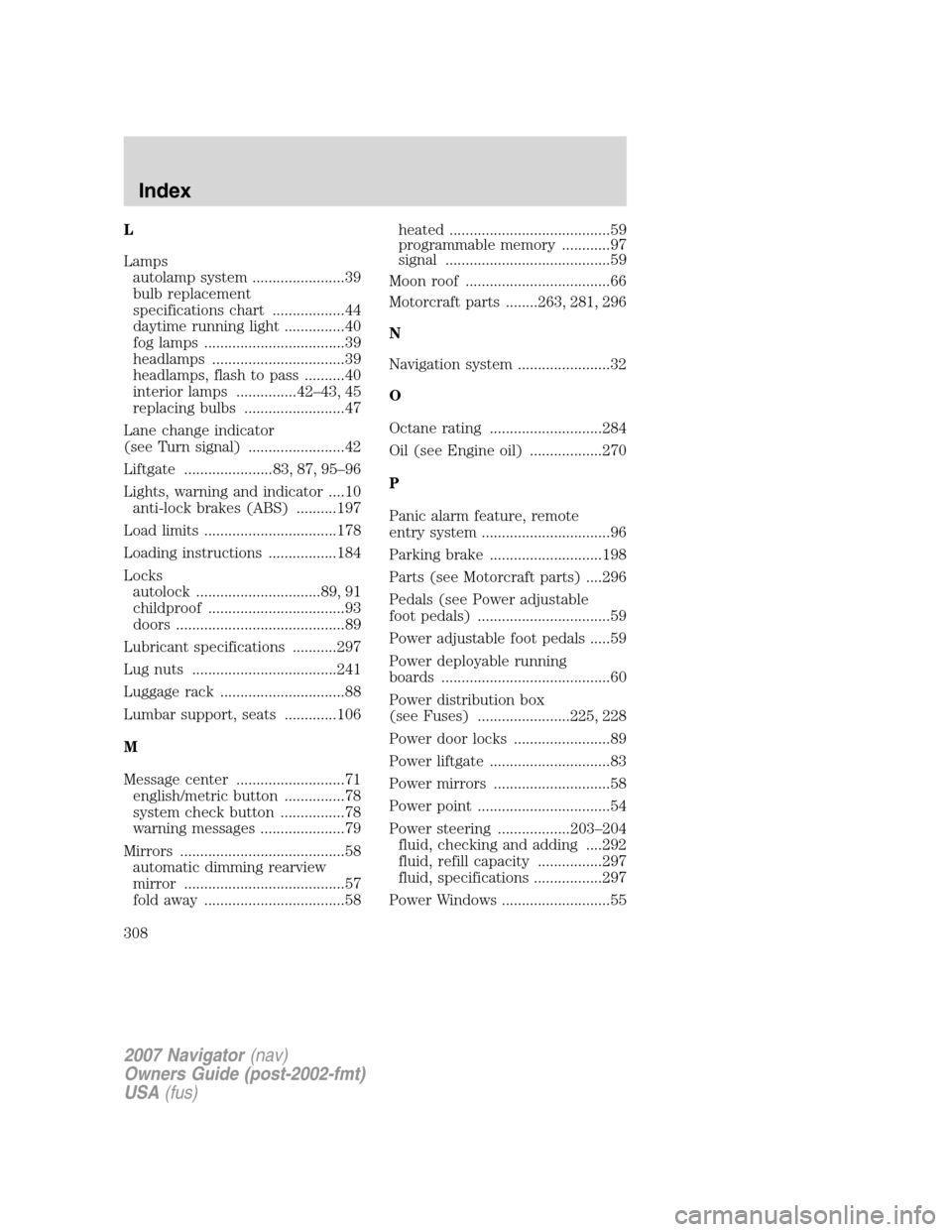

L
Lamps
autolamp system .......................39
bulb replacement
specifications chart ..................44
daytime running light ...............40
fog lamps ...................................39
headlamps .................................39
headlamps, flash to pass ..........40
interior lamps ...............42–43, 45
replacing bulbs .........................47
Lane change indicator
(see Turn signal) ........................42
Liftgate ......................83, 87, 95–96
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........197
Load limits .................................178
Loading instructions .................184
Locks
autolock ...............................89, 91
childproof ..................................93
doors ..........................................89
Lubricant specifications ...........297
Lug nuts ....................................241
Luggage rack ...............................88
Lumbar support, seats .............106
M
Message center ...........................71
english/metric button ...............78
system check button ................78
warning messages .....................79
Mirrors .........................................58
automatic dimming rearview
mirror ........................................57
fold away ...................................58heated ........................................59
programmable memory ............97
signal .........................................59
Moon roof ....................................66
Motorcraft parts ........263, 281, 296
N
Navigation system .......................32
O
Octane rating ............................284
Oil (see Engine oil) ..................270
P
Panic alarm feature, remote
entry system ................................96
Parking brake ............................198
Parts (see Motorcraft parts) ....296
Pedals (see Power adjustable
foot pedals) .................................59
Power adjustable foot pedals .....59
Power deployable running
boards ..........................................60
Power distribution box
(see Fuses) .......................225, 228
Power door locks ........................89
Power liftgate ..............................83
Power mirrors .............................58
Power point .................................54
Power steering ..................203–204
fluid, checking and adding ....292
fluid, refill capacity ................297
fluid, specifications .................297
Power Windows ...........................55
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Index
308
