LINCOLN NAVIGATOR 2008 Owners Manual

Item Capacity Ford part nameFord part number /
Ford specification
Windshield washer fluid 4.5 quarts (4.1L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank (Standard)28.0 gallons
(106.0L)——
Fuel tank (Navigator L)33.5 gallons
(126.8L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler.4Automatic transmissions that require MERCON
SP should only use MERCON
SP fluid. Use of a
dual usage fluid in an automatic transmission requiring MERCON
SP may cause transmission
damage. Refer toscheduled maintenance informationto determine the correct service interval.
Use of any fluid other than the recommended fluid may cause transmission damage.5Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants are not to be checked or changed unless a leak is suspected, service is
required or the axle has been submerged in water. The axle lubricant should be changed any time
the axle has been submerged in water.
2008 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
341

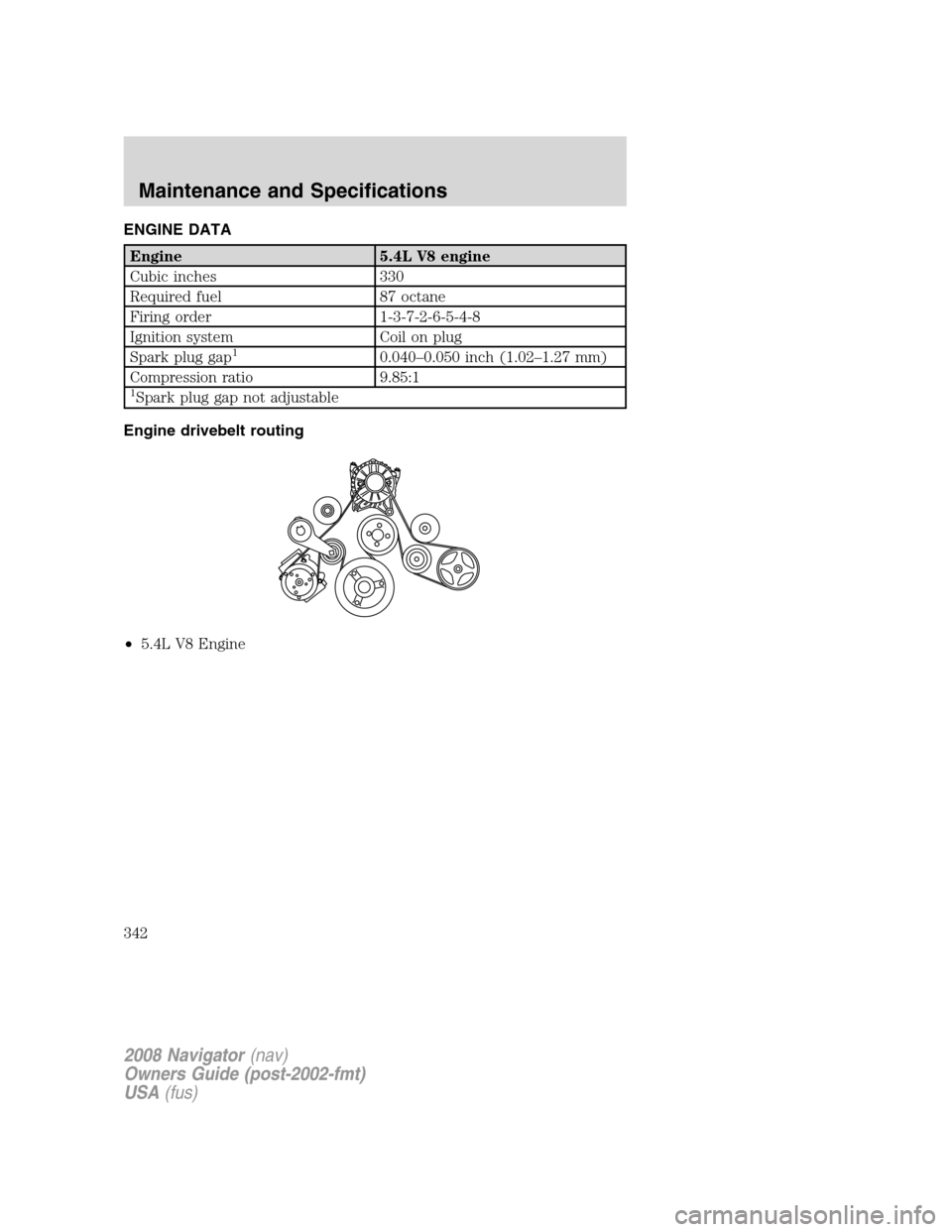

ENGINE DATA
Engine 5.4L V8 engine
Cubic inches 330
Required fuel 87 octane
Firing order 1-3-7-2-6-5-4-8
Ignition system Coil on plug
Spark plug gap
10.040–0.050 inch (1.02–1.27 mm)
Compression ratio 9.85:1
1Spark plug gap not adjustable
Engine drivebelt routing
•5.4L V8 Engine
2008 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
342

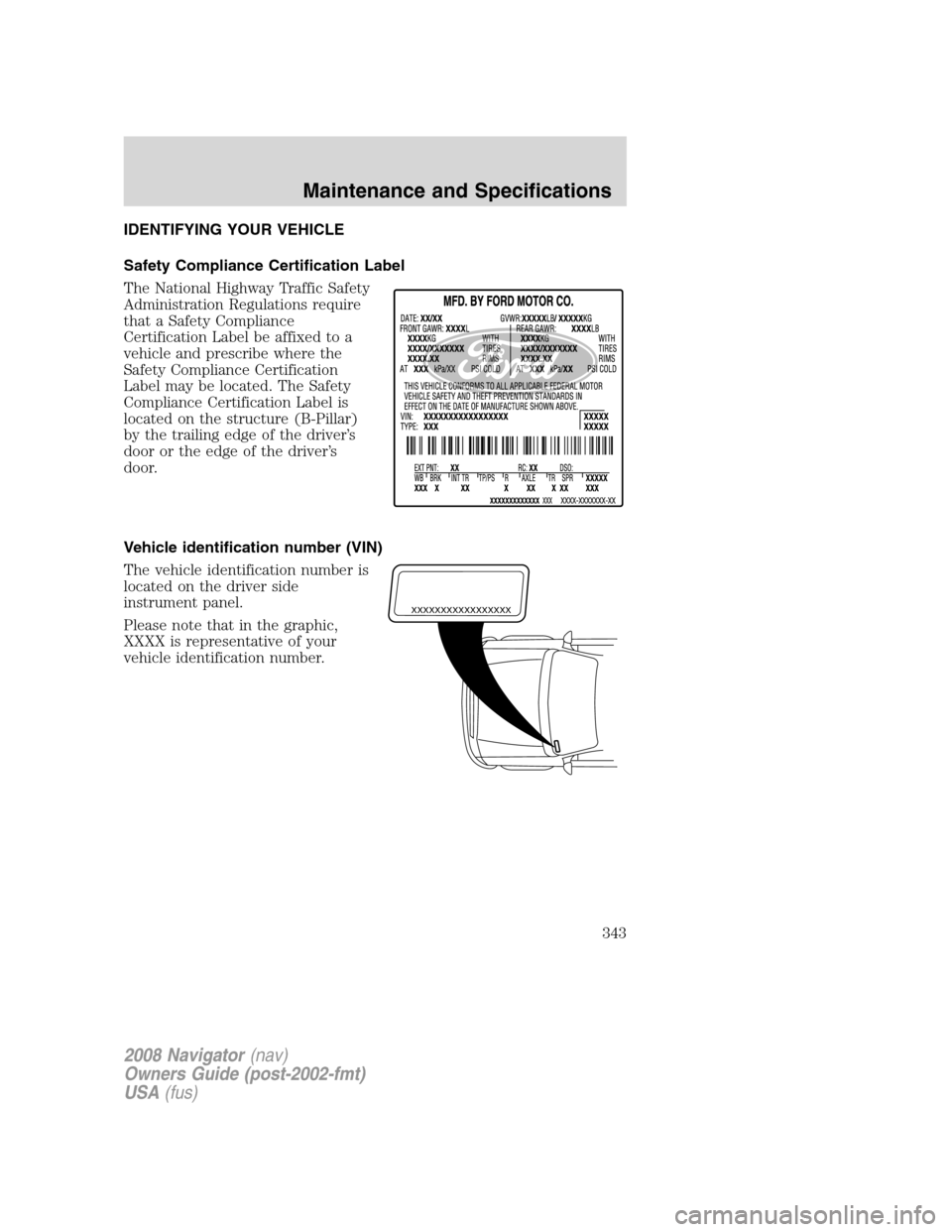

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2008 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
343

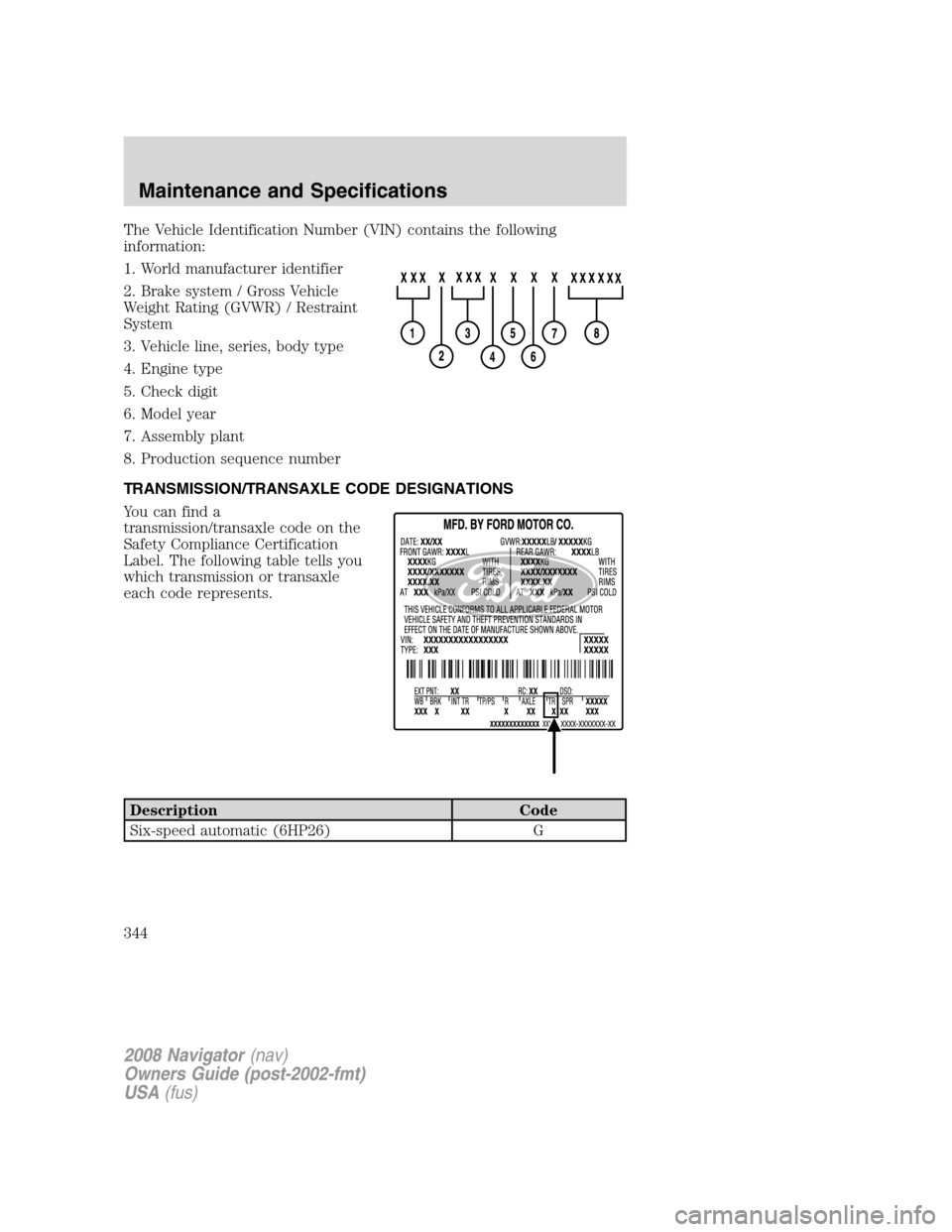

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Six-speed automatic (6HP26) G
2008 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
344

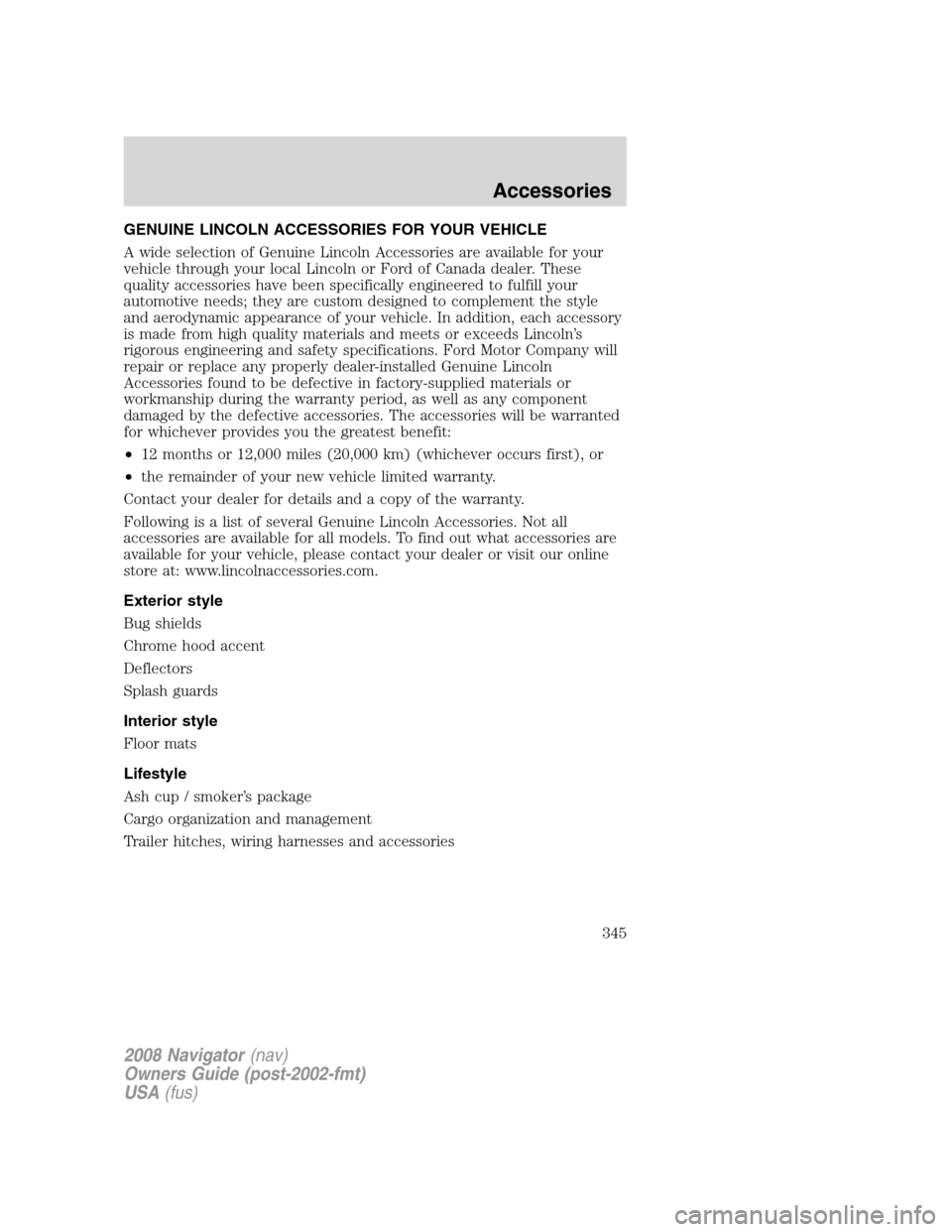

GENUINE LINCOLN ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Lincoln Accessories are available for your
vehicle through your local Lincoln or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Lincoln’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Lincoln
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Following is a list of several Genuine Lincoln Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.lincolnaccessories.com.
Exterior style
Bug shields
Chrome hood accent
Deflectors
Splash guards
Interior style
Floor mats
Lifestyle
Ash cup / smoker’s package
Cargo organization and management
Trailer hitches, wiring harnesses and accessories
2008 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
345

Peace of mind
Mobile-Ease™ hands-free communication system
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2008 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
346

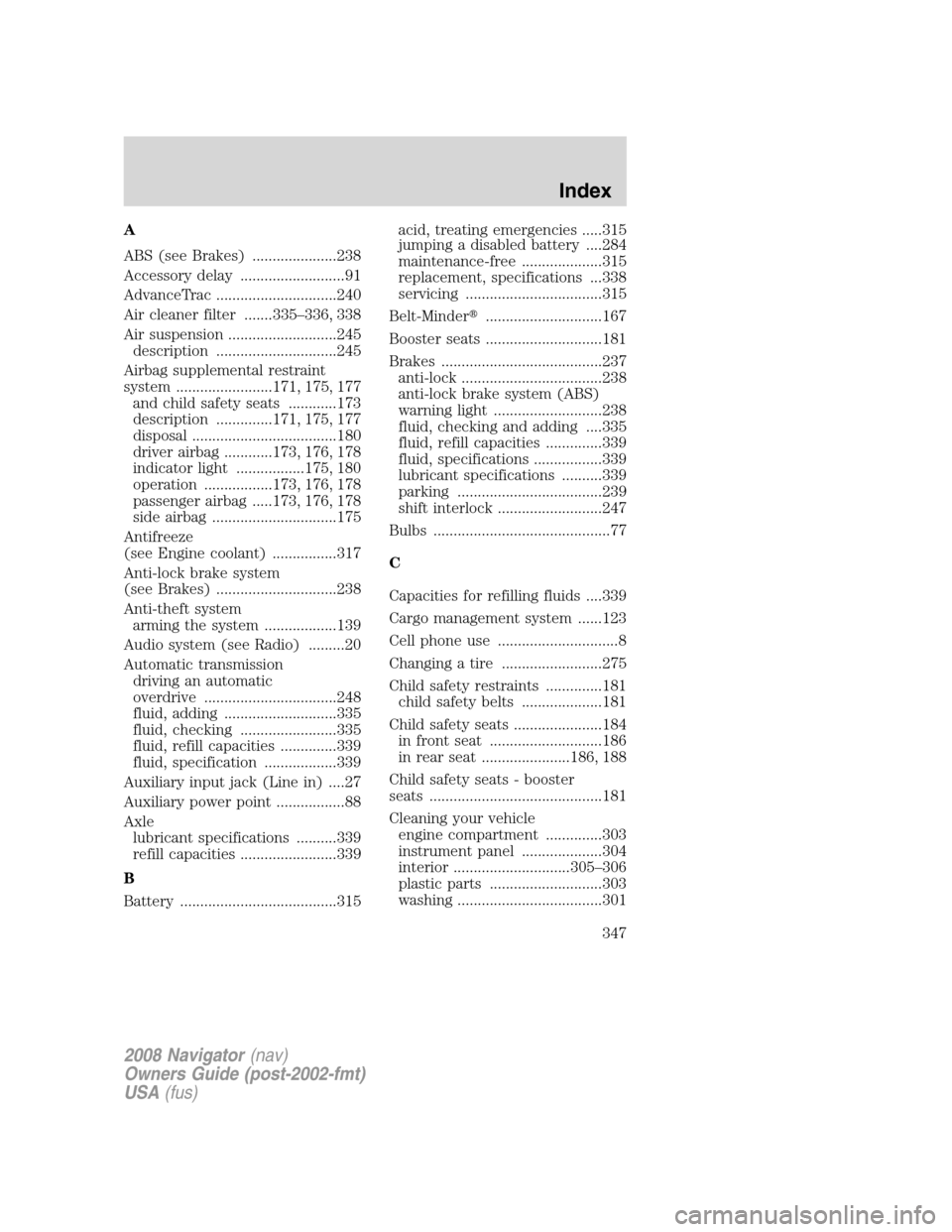

A
ABS (see Brakes) .....................238
Accessory delay ..........................91
AdvanceTrac ..............................240
Air cleaner filter .......335–336, 338
Air suspension ...........................245
description ..............................245
Airbag supplemental restraint
system ........................171, 175, 177
and child safety seats ............173
description ..............171, 175, 177
disposal ....................................180
driver airbag ............173, 176, 178
indicator light .................175, 180
operation .................173, 176, 178
passenger airbag .....173, 176, 178
side airbag ...............................175
Antifreeze
(see Engine coolant) ................317
Anti-lock brake system
(see Brakes) ..............................238
Anti-theft system
arming the system ..................139
Audio system (see Radio) .........20
Automatic transmission
driving an automatic
overdrive .................................248
fluid, adding ............................335
fluid, checking ........................335
fluid, refill capacities ..............339
fluid, specification ..................339
Auxiliary input jack (Line in) ....27
Auxiliary power point .................88
Axle
lubricant specifications ..........339
refill capacities ........................339
B
Battery .......................................315acid, treating emergencies .....315
jumping a disabled battery ....284
maintenance-free ....................315
replacement, specifications ...338
servicing ..................................315
Belt-Minder
.............................167
Booster seats .............................181
Brakes ........................................237
anti-lock ...................................238
anti-lock brake system (ABS)
warning light ...........................238
fluid, checking and adding ....335
fluid, refill capacities ..............339
fluid, specifications .................339
lubricant specifications ..........339
parking ....................................239
shift interlock ..........................247
Bulbs ............................................77
C
Capacities for refilling fluids ....339
Cargo management system ......123
Cell phone use ..............................8
Changing a tire .........................275
Child safety restraints ..............181
child safety belts ....................181
Child safety seats ......................184
in front seat ............................186
in rear seat ......................186, 188
Child safety seats - booster
seats ...........................................181
Cleaning your vehicle
engine compartment ..............303
instrument panel ....................304
interior .............................305–306
plastic parts ............................303
washing ....................................301
2008 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Index
347

waxing .....................................302
wheels ......................................302
wiper blades ............................304
Clock ............................................88
Compass, electronic
set zone adjustment ...............107
Console ........................................87
overhead ..............................86–87
Controls
power seat ...............................143
steering column ........................99
Coolant
checking and adding ..............317
refill capacities ................320, 339
specifications ..........................339
Cruise control
(see Speed control) ....................96
Customer Assistance ................265
Ford Extended Service
Plan ..........................................297
Getting assistance outside the
U.S. and Canada .....................298
Getting roadside assistance ...265
Getting the service
you need .................................293
Ordering additional owner’s
literature .................................299
Utilizing the
Mediation/Arbitration
Program ...................................297
D
Daytime running lamps
(see Lamps) ................................73
Defrost
rear window ..............................71Dipstick
automatic transmission
fluid ..........................................335
engine oil .................................312
Driving under special
conditions ..................250, 259, 262
sand .........................................261
snow and ice ...........................263
through water .................261, 264
DVD system .................................35
E
Electronic message center .......106
Emergencies, roadside
jump-starting ..........................284
Emission control system ..........331
Engine ........................................342
cleaning ...................................303
coolant .....................................317
fail-safe cooling .......................321
idle speed control ...................315
lubrication specifications .......339
refill capacities ........................339
service points ..........................309
starting after a collision .........267
Engine block heater .................235
Engine oil ..................................312
change oil soon warning,
message center .......................312
checking and adding ..............312
dipstick ....................................312
filter, specifications ........314, 338
recommendations ...................314
refill capacities ........................339
specifications ..........................339
Event data recording ....................7
Exhaust fumes ..........................235
F
Fail safe cooling ........................321
2008 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Index
348

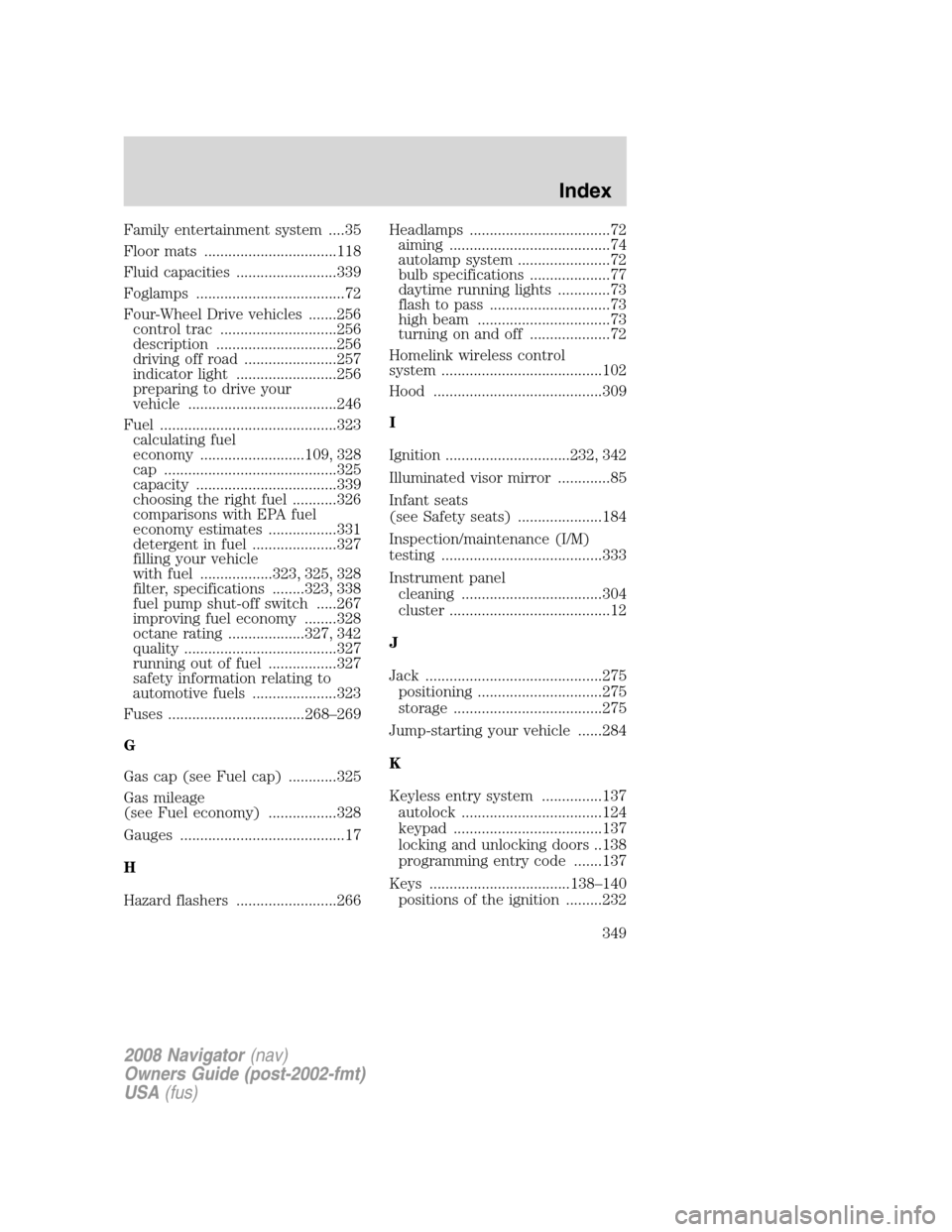

Family entertainment system ....35
Floor mats .................................118
Fluid capacities .........................339
Foglamps .....................................72
Four-Wheel Drive vehicles .......256
control trac .............................256
description ..............................256
driving off road .......................257
indicator light .........................256
preparing to drive your
vehicle .....................................246
Fuel ............................................323
calculating fuel
economy ..........................109, 328
cap ...........................................325
capacity ...................................339
choosing the right fuel ...........326
comparisons with EPA fuel
economy estimates .................331
detergent in fuel .....................327
filling your vehicle
with fuel ..................323, 325, 328
filter, specifications ........323, 338
fuel pump shut-off switch .....267
improving fuel economy ........328
octane rating ...................327, 342
quality ......................................327
running out of fuel .................327
safety information relating to
automotive fuels .....................323
Fuses ..................................268–269
G
Gas cap (see Fuel cap) ............325
Gas mileage
(see Fuel economy) .................328
Gauges .........................................17
H
Hazard flashers .........................266Headlamps ...................................72
aiming ........................................74
autolamp system .......................72
bulb specifications ....................77
daytime running lights .............73
flash to pass ..............................73
high beam .................................73
turning on and off ....................72
Homelink wireless control
system ........................................102
Hood ..........................................309
I
Ignition ...............................232, 342
Illuminated visor mirror .............85
Infant seats
(see Safety seats) .....................184
Inspection/maintenance (I/M)
testing ........................................333
Instrument panel
cleaning ...................................304
cluster ........................................12
J
Jack ............................................275
positioning ...............................275
storage .....................................275
Jump-starting your vehicle ......284
K
Keyless entry system ...............137
autolock ...................................124
keypad .....................................137
locking and unlocking doors ..138
programming entry code .......137
Keys ...................................138–140
positions of the ignition .........232
2008 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Index
349

L
Lamps
autolamp system .......................72
bulb replacement
specifications chart ..................77
daytime running light ...............73
fog lamps ...................................72
headlamps .................................72
headlamps, flash to pass ..........73
interior lamps .....................76, 78
replacing bulbs .........................81
Lane change indicator
(see Turn signal) ........................75
Liftgate ..............119, 122, 130–131
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........238
Load limits .................................217
Loading instructions .................223
Locks
autolock ...................................124
childproof ................................128
doors ........................................124
Lubricant specifications ...........339
Lug nuts ....................................283
Luggage rack .............................123
Lumbar support, seats .............142
M
Message center .........................106
english/metric button .............113
system check button ..............114
warning messages ...................114
Mirrors ...................................91–92
automatic dimming rearview
mirror ........................................92
fold away ...................................93heated ........................................93
programmable memory ..........132
signal .........................................94
Moon roof ..................................101
Motorcraft parts ........306, 323, 338
N
Navigation system .......................64
O
Octane rating ............................327
Oil (see Engine oil) ..................312
P
Panic alarm feature, remote
entry system ..............................131
Parking brake ............................239
Parts (see Motorcraft parts) ....338
Pedals (see Power adjustable
foot pedals) .................................94
Power adjustable foot pedals .....94
Power deployable running
boards ..........................................94
Power distribution box
(see Fuses) .......................269, 271
Power door locks ......................124
Power liftgate ............................119
Power mirrors .............................92
Power point .................................88
Power steering ..................244–245
fluid, checking and adding ....334
fluid, refill capacity ................339
fluid, specifications .................339
Power Windows ...........................89
2008 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Index
350
