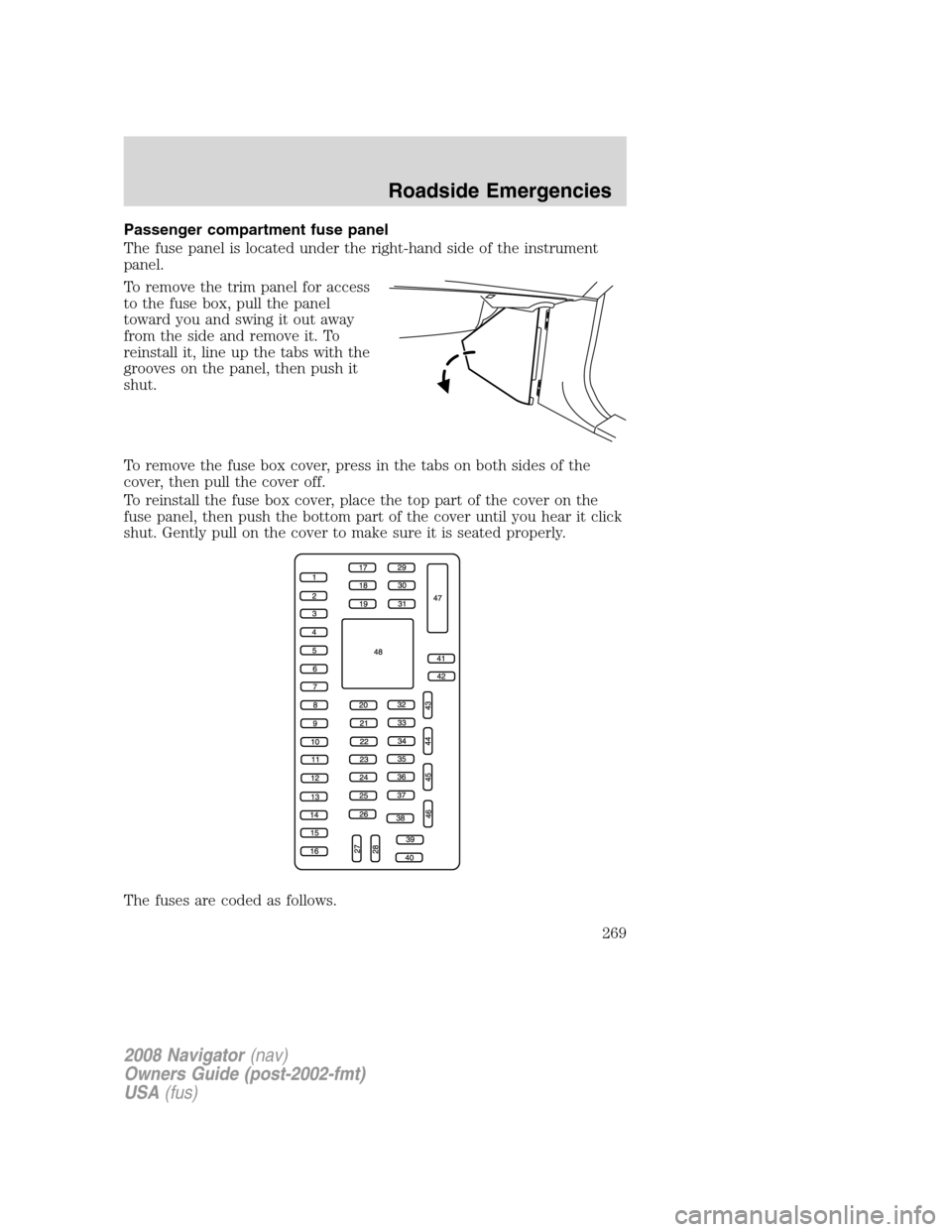

LINCOLN NAVIGATOR 2008  Owners Manual Passenger compartment fuse panel
The fuse panel is located under the right-hand side of the instrument
panel.
To remove the trim panel for access
to the fuse box, pull the panel
toward you and swing i

Page 270 of 352

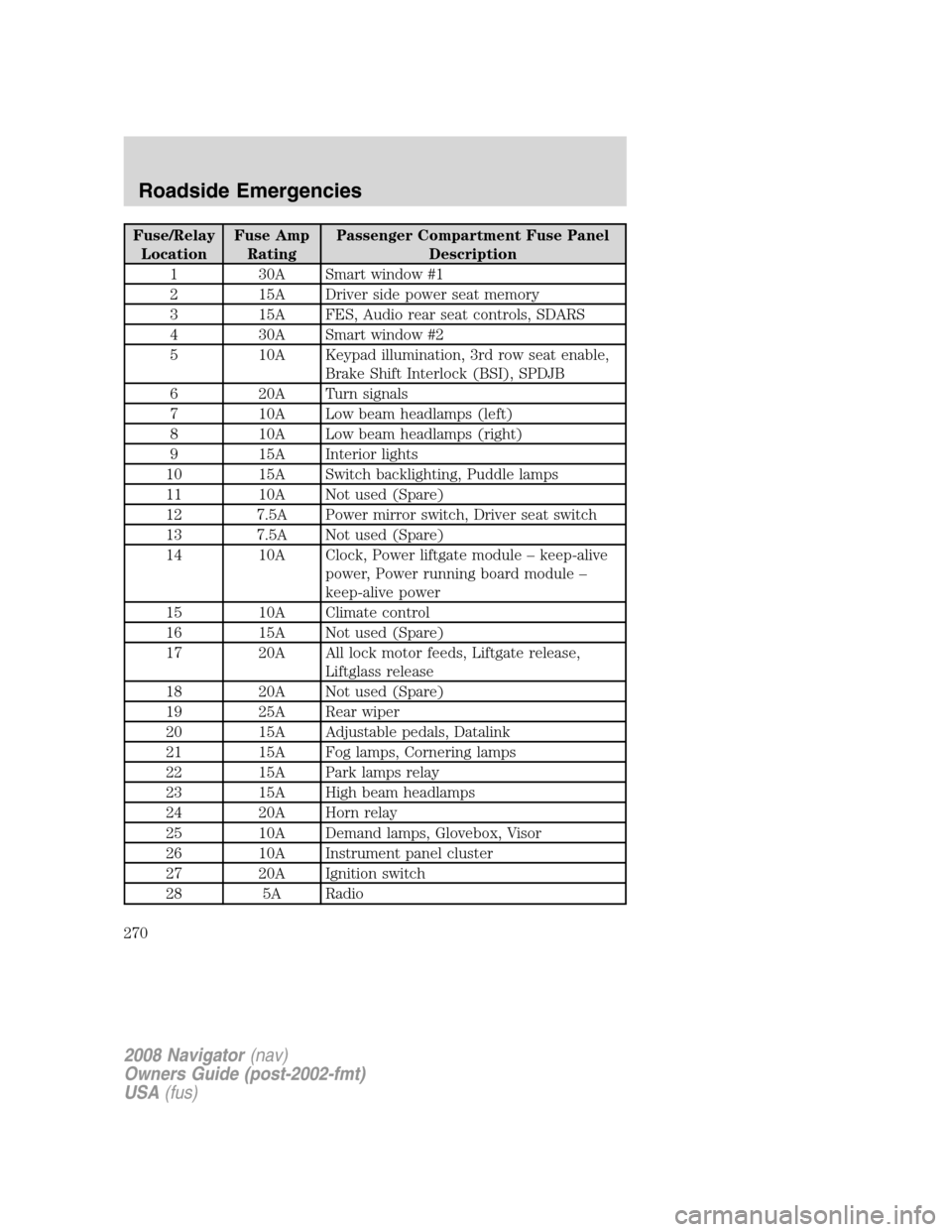

LINCOLN NAVIGATOR 2008  Owners Manual Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
1 30A Smart window #1
2 15A Driver side power seat memory
3 15A FES, Audio rear seat controls, SDARS
4 30A Smart window #

Page 271 of 352

LINCOLN NAVIGATOR 2008  Owners Manual Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
29 5A Instrument panel cluster
30 5A Not used (Spare)
31 10A Compass, Automatic dimming rear view
mirror
32 10A Restraint

Page 272 of 352

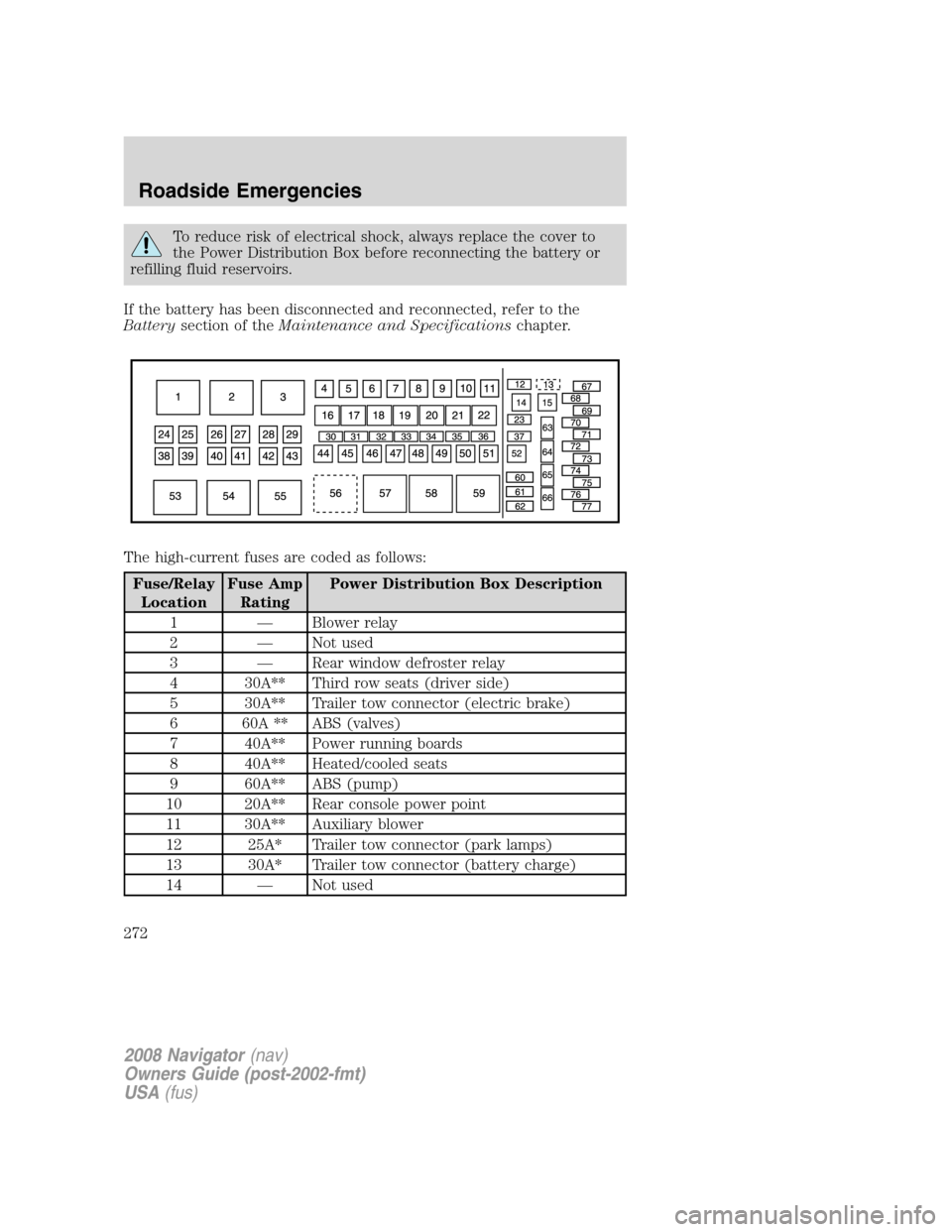

LINCOLN NAVIGATOR 2008  Owners Manual To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and recon

Page 273 of 352

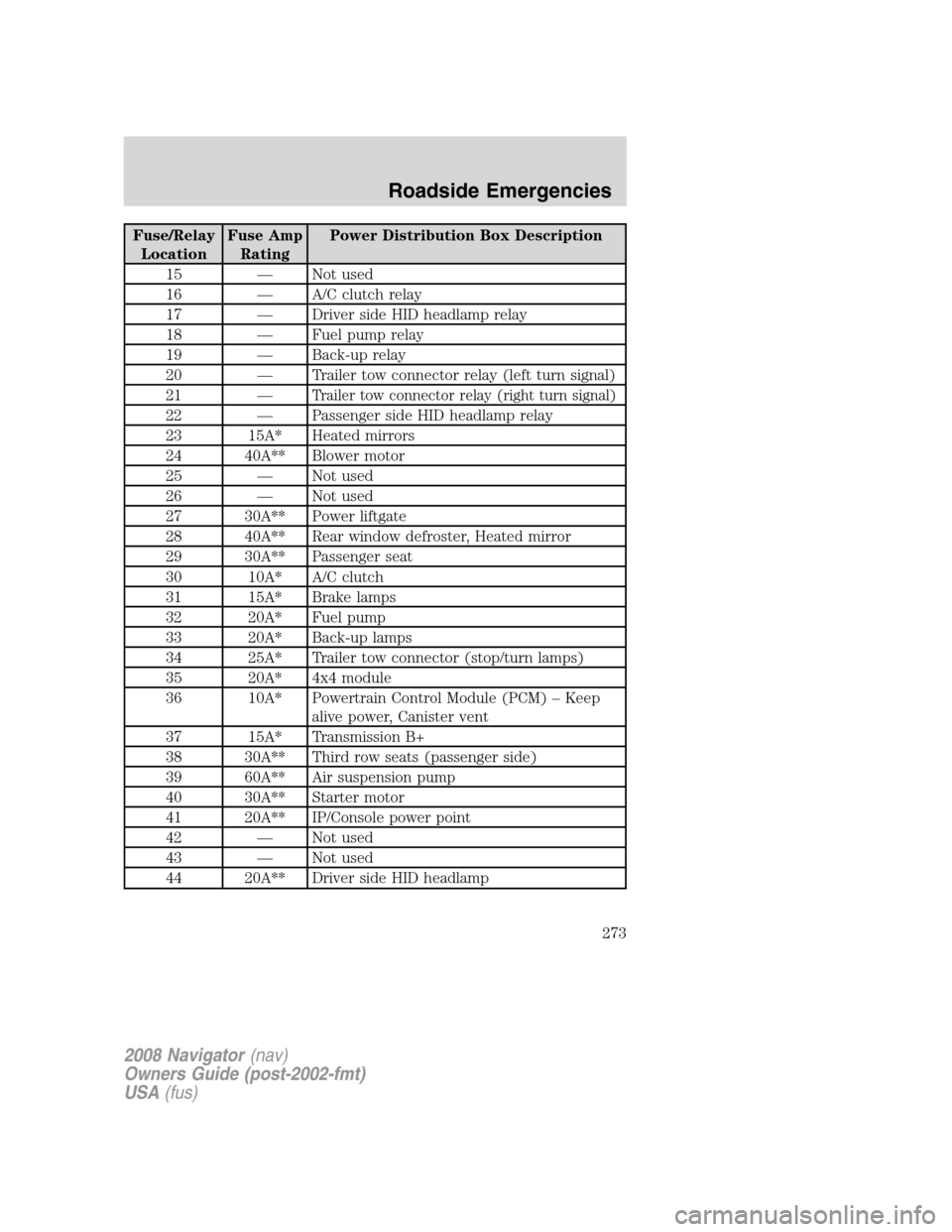

LINCOLN NAVIGATOR 2008  Owners Manual Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
15 — Not used
16 — A/C clutch relay
17 — Driver side HID headlamp relay
18 — Fuel pump relay
19 — Back-up relay
20 — Tr

Page 274 of 352

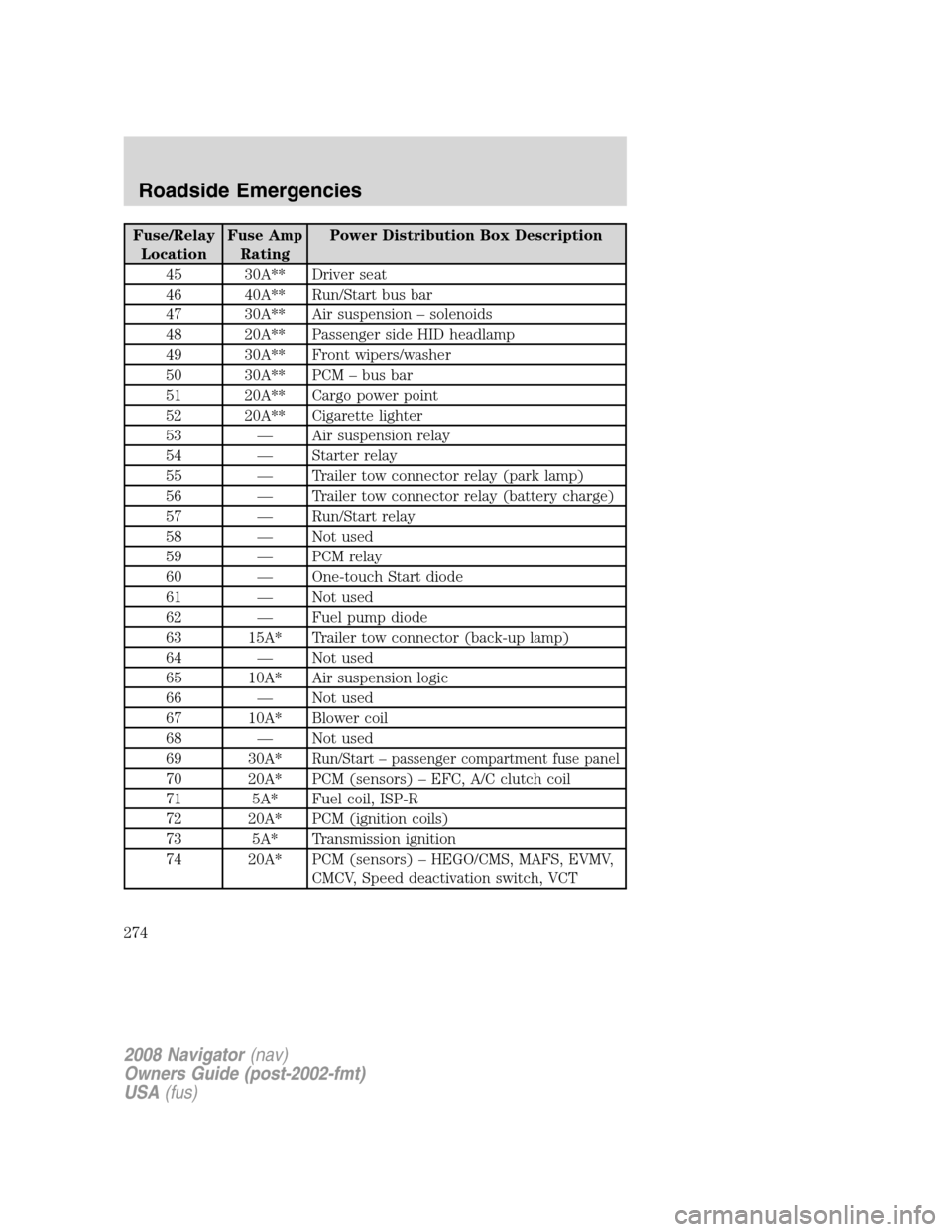

LINCOLN NAVIGATOR 2008  Owners Manual Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
45 30A** Driver seat
46 40A** Run/Start bus bar
47 30A** Air suspension – solenoids
48 20A** Passenger side HID headlamp
49 30A**

Page 275 of 352

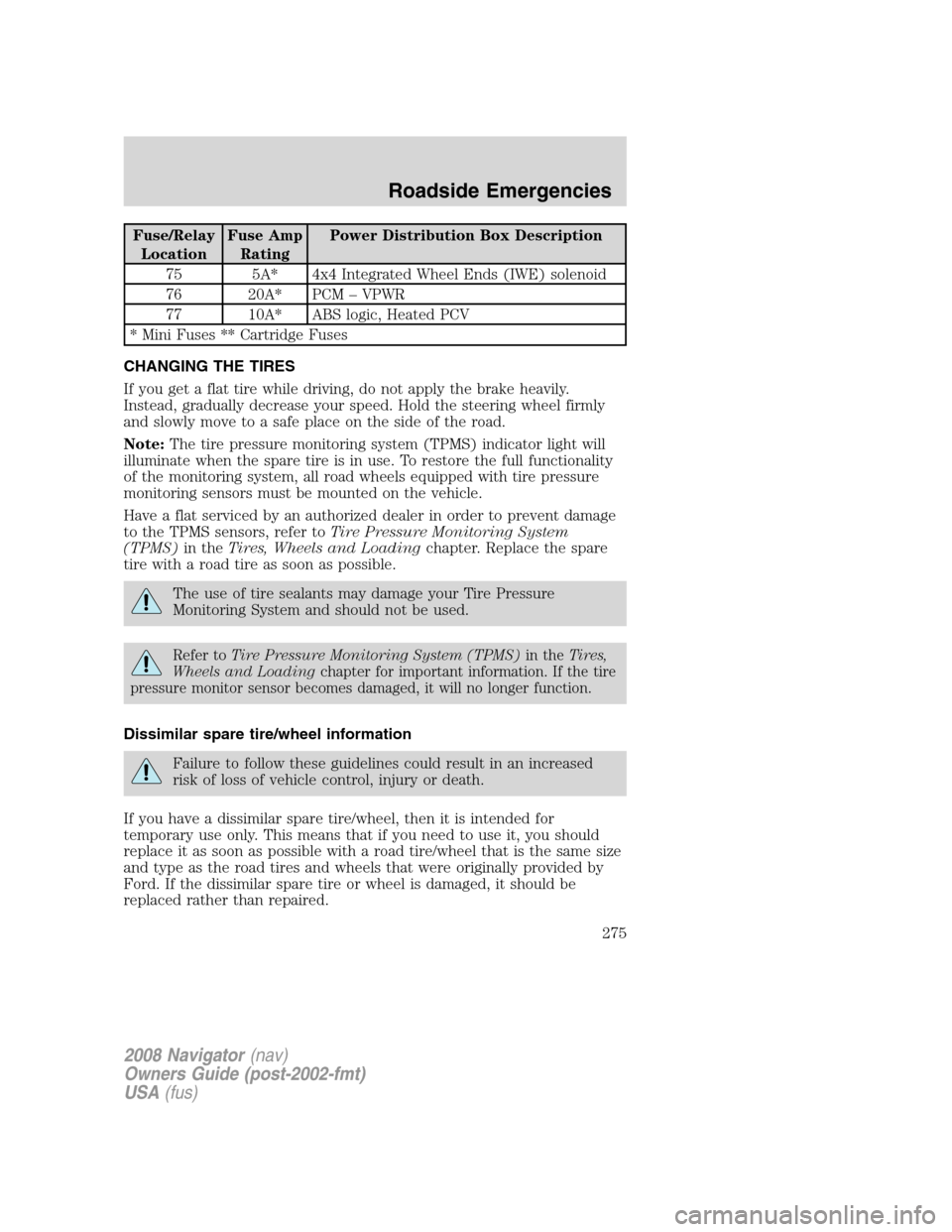

LINCOLN NAVIGATOR 2008  Owners Manual Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
75 5A* 4x4 Integrated Wheel Ends (IWE) solenoid
76 20A* PCM – VPWR
77 10A* ABS logic, Heated PCV
* Mini Fuses ** Cartridge Fuses
