language LINCOLN NAVIGATOR 2009 Navigation Manual

Navigation
bezel control Steering wheel
control Function
SEEK,
,
Press to access the previous/next
preset radio station, preset satellite
channel (if activated) or CD track.
Press and hold to seek to the next
satellite channel (if activated).
N/A OK Press to confirm your selection.
MEDIA N/A Press repeatedly to access all available media sources in your
vehicle such as: CD, DVD, Jukebox,
Rear Zone, Rear AUX, Rear DVD,
Line In, and User Device (if
equipped with SYNC).
PHONE N/A Press to access SYNC PHONE features.
SYSTEM MENU FEATURES
Your system has many menu features such as allowing you to adjust the
touchscreen brightness, adjusting the time and languages, adjusting the
feedback and system settings. To access, press the MENU hard button on
the navigation system.
2009 Centerstack (ng1)
Supplement
USA (fus)
System overview
26

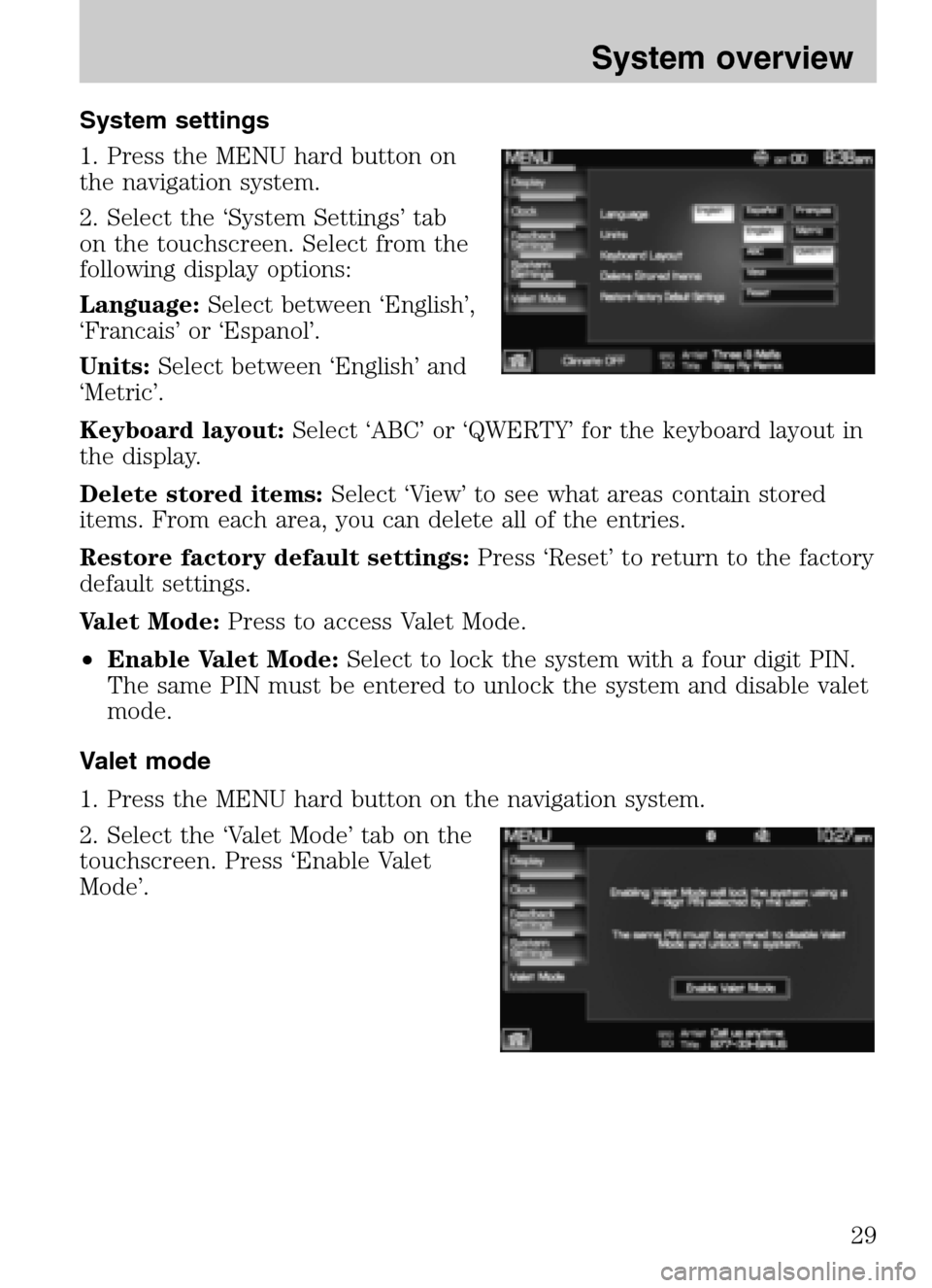

System settings
1. Press the MENU hard button on
the navigation system.
2. Select the ‘System Settings’ tab
on the touchscreen. Select from the
following display options:
Language: Select between ‘English’,
‘Francais’ or ‘Espanol’.
Units: Select between ‘English’ and
‘Metric’.
Keyboard layout: Select ‘ABC’ or ‘QWERTY’ for the keyboard layout in
the display.
Delete stored items: Select ‘View’ to see what areas contain stored
items. From each area, you can delete all of the entries.
Restore factory default settings: Press ‘Reset’ to return to the factory
default settings.
Valet Mode: Press to access Valet Mode.
• Enable Valet Mode: Select to lock the system with a four digit PIN.
The same PIN must be entered to unlock the system and disable valet
mode.
Valet mode
1. Press the MENU hard button on the navigation system.
2. Select the ‘Valet Mode’ tab on the
touchscreen. Press ‘Enable Valet
Mode’.
2009 Centerstack (ng1)
Supplement
USA (fus)
System overview
29

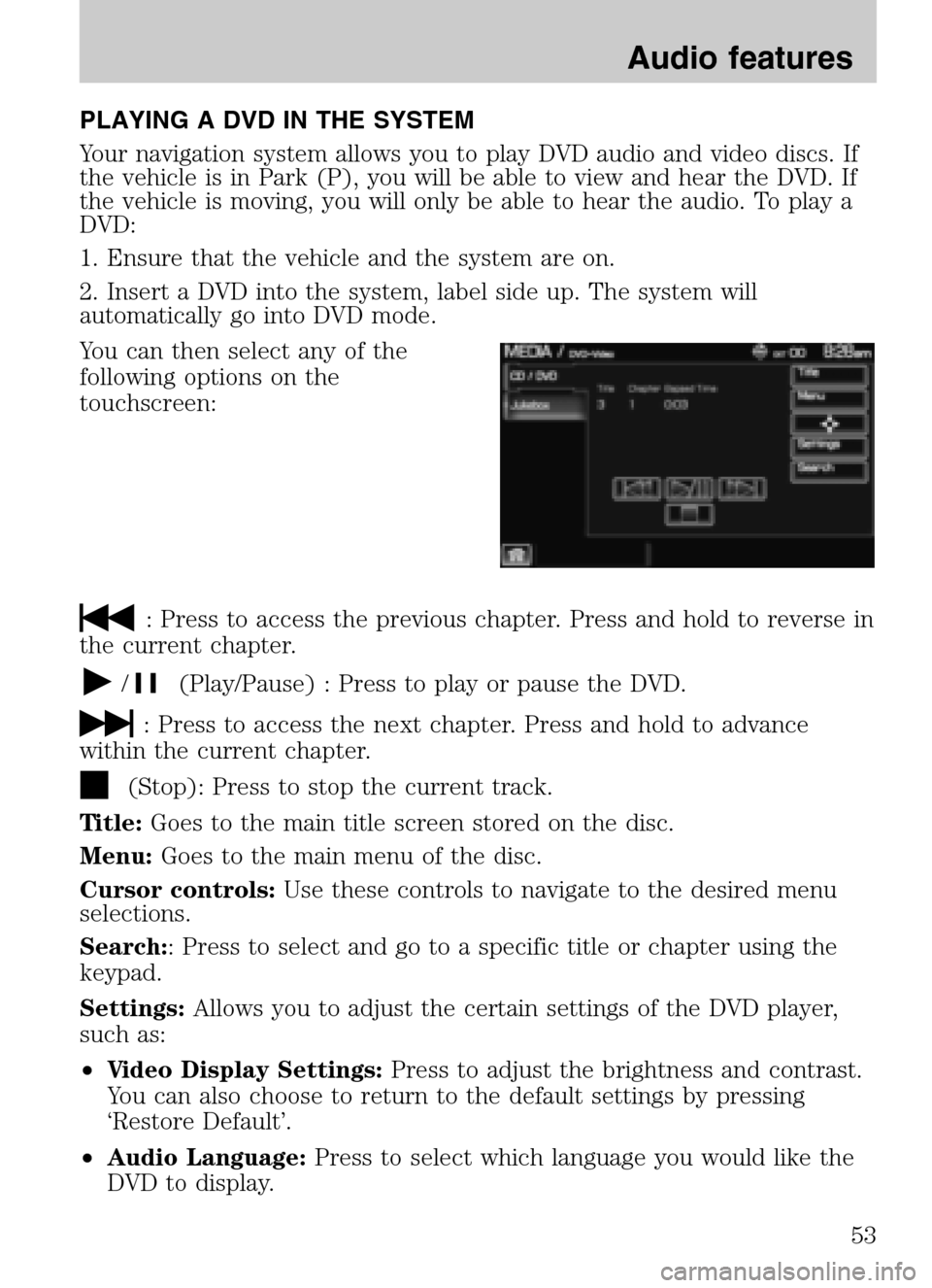

PLAYING A DVD IN THE SYSTEM
Your navigation system allows you to play DVD audio and video discs. If
the vehicle is in Park (P), you will be able to view and hear the DVD. If
the vehicle is moving, you will only be able to hear the audio. To play a
DVD:
1. Ensure that the vehicle and the system are on.
2. Insert a DVD into the system, label side up. The system will
automatically go into DVD mode.
You can then select any of the
following options on the
touchscreen:
: Press to access the previous chapter. Press and hold to reverse in
the current chapter.
/(Play/Pause) : Press to play or pause the DVD.
: Press to access the next chapter. Press and hold to advance
within the current chapter.
(Stop): Press to stop the current track.
Title: Goes to the main title screen stored on the disc.
Menu: Goes to the main menu of the disc.
Cursor controls: Use these controls to navigate to the desired menu
selections.
Search: : Press to select and go to a specific title or chapter using the
keypad.
Settings: Allows you to adjust the certain settings of the DVD player,
such as:
• Video Display Settings: Press to adjust the brightness and contrast.
You can also choose to return to the default settings by pressing
‘Restore Default’.
• Audio Language: Press to select which language you would like the
DVD to display.
2009 Centerstack (ng1)
Supplement
USA (fus)
Audio features
53

•Subtitle Display: Press to turn subtitles on/off.
• Subtitle Language: Press to select in which language you would like
the subtitles to appear.
• Aspect Ratio: Press to select from wide, full, normal and cinema
display.
• Angle Mark Notification: Some DVD discs may have more viewing
angles from which to select. Once you have made your selection, press
ENTER to confirm. This is disc dependent feature.
Note: Some of the above settings are DVD dependent and
availability/operation will vary among DVDs.
Dolby  noise reduction is manufactured under license from Dolby
Laboratories Licensing Corporation. “Dolby ” and the double-D symbol
are registered trademarks of Dolby Laboratories Licensing Corporation.
During DVD play, you can also
touch the screen to access the
‘virtual remote’ which will allow you
to ‘Move controls’ on the screen as
well as use the cursor controls,
‘Enter’ and ‘Return’ to navigate and
make selections within the menus.
DVD voice commands (if equipped)
While watching a DVD, press
or VOICE on the steering wheel
controls. When prompted, you may say any of the following commands:
• Play •Pause
• Menu •Menu title
• Play next title •Play previous title
• Play title <1–99> •Play next chapter
• Play previous chapter •Play chapter <1–999>
• Play next group •Play group <1–9>
• Repeat •Repeat off
• Play next track <1–512> •Play previous track
Note: If you are not watching a DVD, press
or VOICE on the
steering wheel controls. When prompted, say, “DVD” and then any of the
above commands.
2009 Centerstack (ng1)
Supplement
USA (fus)
Audio features
54

Setting a destination by voice
Press
or VOICE on the steering wheel. A tone will sound followed by
“Please say a command.”
VOICE/Main Menu and
will appear in the status bar first. Then, a
tone will sound and the icon will change toListening.
• To enter an address, say “Destination street address ”.
• To find a POI by its category, say “Destination ”. (For
example, “Destination restaurants”). You may also say “Destination
POI category” and “Destination nearest POI ”.
• To find a POI by its name, say “Destination POI”. Follow the prompts
to say a POI by name. (For example, “Starbucks”.) You will need to
specify the POI category when prompted.
• If you want to route to a previous destination, say, “Destination
previous destination ”.
• If you have programmed a home entry, you may set this as your
destination by saying, Destination home ”.
• If you have created nametags for any of your address book entries,
you may set any of them as your destination by saying, “Destination
< nametag>”.
• For Help, say, “Destination Help ”.
Note: If the system’s language is set to French or Spanish, the city and
street names will need to be spelled. When in ‘Spelling mode’, you may
speak letters or say, “line # ”. The system is designed to work even if you
have made a spelling error.
ACCESSING YOUR QUICK DESTINATION OPTIONS
To access your Quick Destination options:
1. Press the DEST hard button on the navigation system.
2009 Centerstack (ng1)
Supplement
USA (fus)
Setting a destination
85

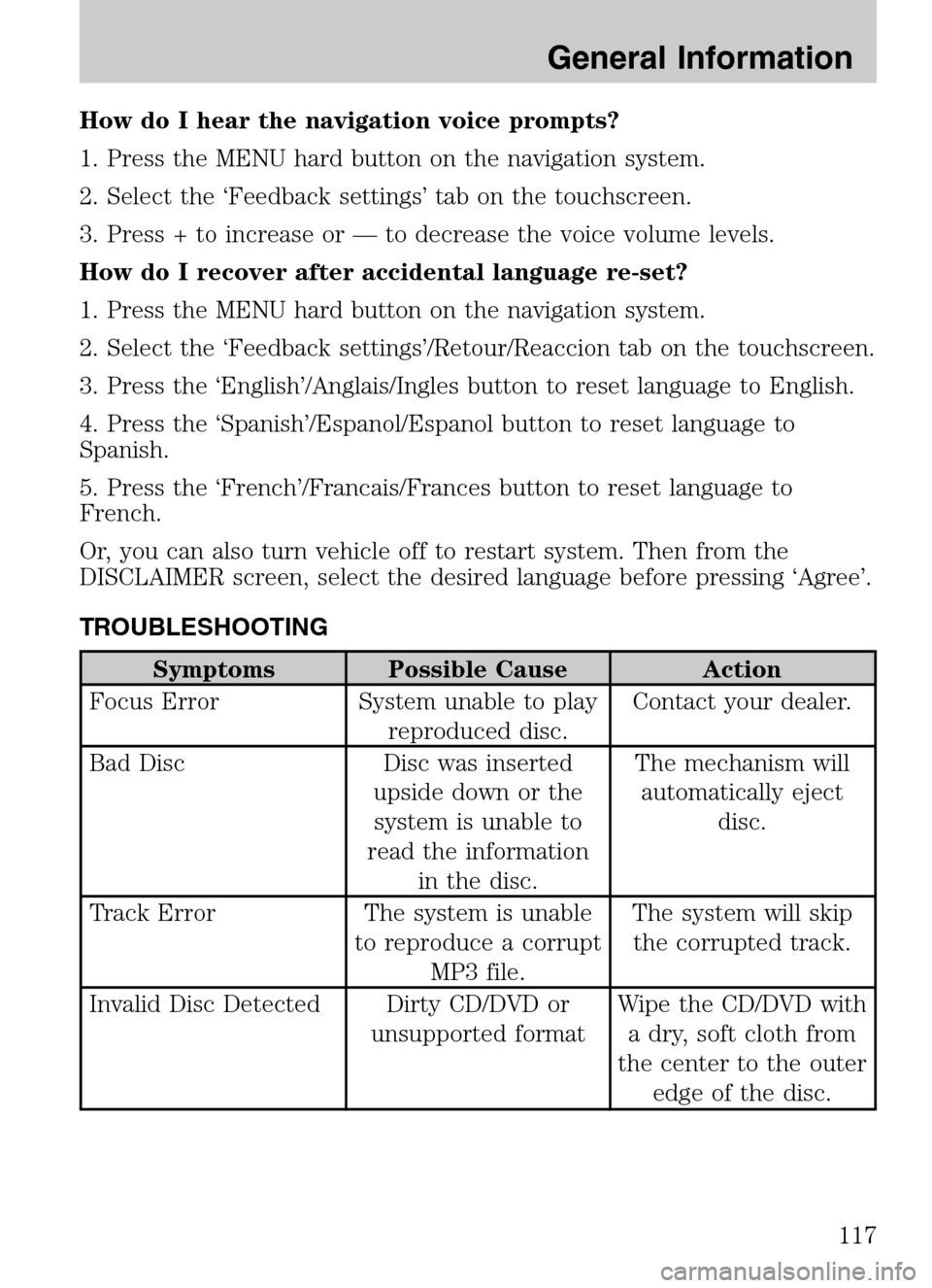

How do I hear the navigation voice prompts?
1. Press the MENU hard button on the navigation system.
2. Select the ‘Feedback settings’ tab on the touchscreen.
3. Press + to increase or — to decrease the voice volume levels.
How do I recover after accidental language re-set?
1. Press the MENU hard button on the navigation system.
2. Select the ‘Feedback settings’/Retour/Reaccion tab on the touchscreen.
3. Press the ‘English’/Anglais/Ingles button to reset language to English.
4. Press the ‘Spanish’/Espanol/Espanol button to reset language to
Spanish.
5. Press the ‘French’/Francais/Frances button to reset language to
French.
Or, you can also turn vehicle off to restart system. Then from the
DISCLAIMER screen, select the desired language before pressing ‘Agree’.
TROUBLESHOOTING
Symptoms Possible Cause Action
Focus Error System unable to play reproduced disc. Contact your dealer.
Bad Disc Disc was inserted upside down or thesystem is unable to
read the information in the disc. The mechanism will
automatically eject disc.
Track Error The system is unable to reproduce a corruptMP3 file. The system will skip
the corrupted track.
Invalid Disc Detected Dirty CD/DVD or unsupported format Wipe the CD/DVD with
a dry, soft cloth from
the center to the outer edge of the disc.
2009 Centerstack (ng1)
Supplement
USA (fus)
General Information
117

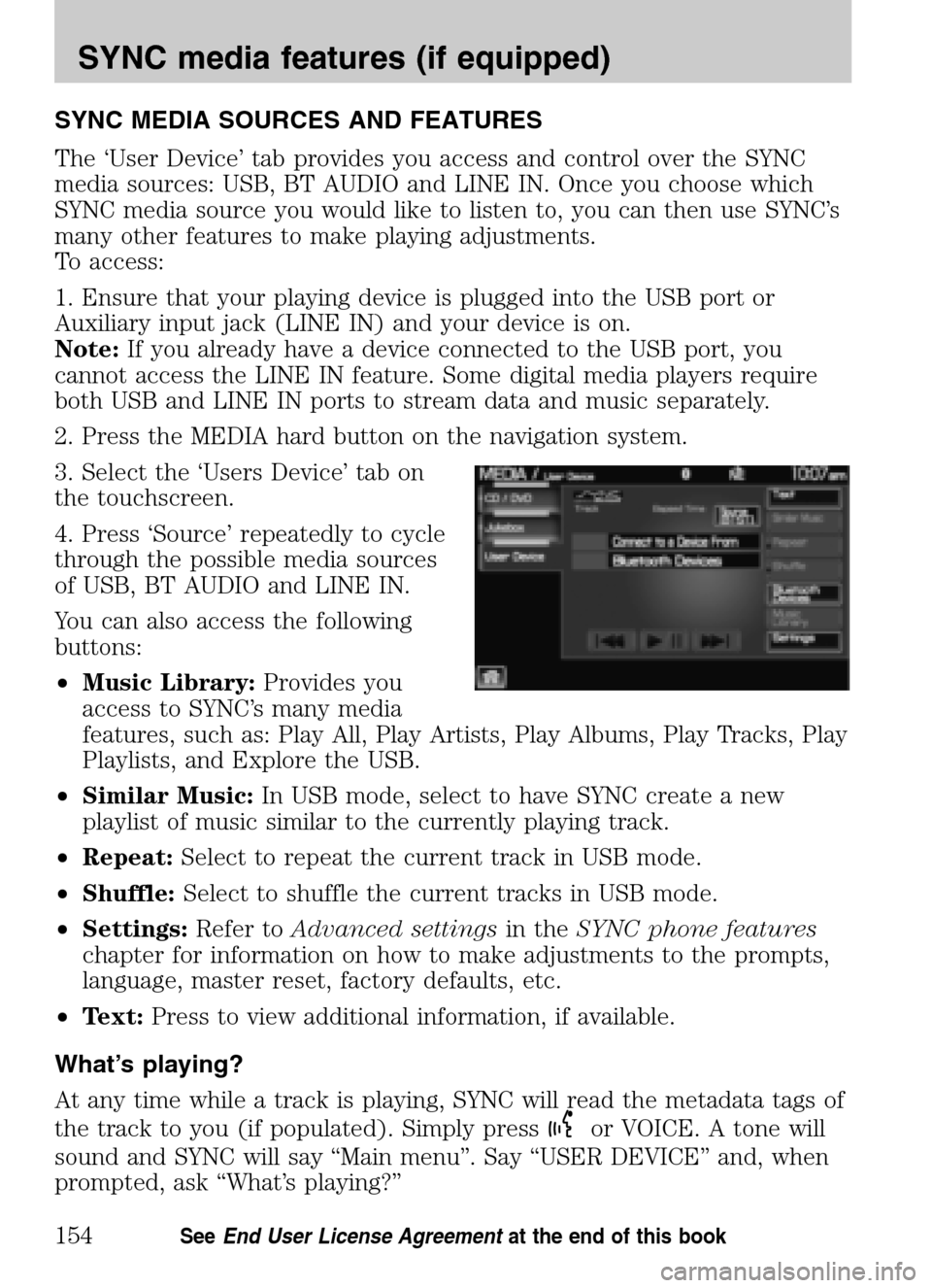

SYNC MEDIA SOURCES AND FEATURES
The ‘User Device’ tab provides you access and control over the SYNC
media sources: USB, BT AUDIO and LINE IN. Once you choose which
SYNC media source you would like to listen to, you can then use SYNC’s
many other features to make playing adjustments.
To access:
1. Ensure that your playing device is plugged into the USB port or
Auxiliary input jack (LINE IN) and your device is on.
Note: If you already have a device connected to the USB port, you
cannot access the LINE IN feature. Some digital media players require
both USB and LINE IN ports to stream data and music separately.
2. Press the MEDIA hard button on the navigation system.
3. Select the ‘Users Device’ tab on
the touchscreen.
4. Press ‘Source’ repeatedly to cycle
through the possible media sources
of USB, BT AUDIO and LINE IN.
You can also access the following
buttons:
• Music Library: Provides you
access to SYNC’s many media
features, such as: Play All, Play Artists, Play Albums, Play Tracks, Play
Playlists, and Explore the USB.
• Similar Music: In USB mode, select to have SYNC create a new
playlist of music similar to the currently playing track.
• Repeat: Select to repeat the current track in USB mode.
• Shuffle: Select to shuffle the current tracks in USB mode.
• Settings: Refer toAdvanced settings in theSYNC phone features
chapter for information on how to make adjustments to the prompts,
language, master reset, factory defaults, etc.
• Text: Press to view additional information, if available.
What’s playing?
At any time while a track is playing, SYNC will read the metadata tags of
the track to you (if populated). Simply press
or VOICE. A tone will
sound and SYNC will say “Main menu”. Say “USER DEVICE” and, when
prompted, ask “What’s playing?”
2009 Centerstack (ng1)
Supplement
USA (fus)
SYNC media features (if equipped)
154SeeEnd User License Agreement at the end of this book
