pairing phone LINCOLN NAVIGATOR 2009 Navigation Manual

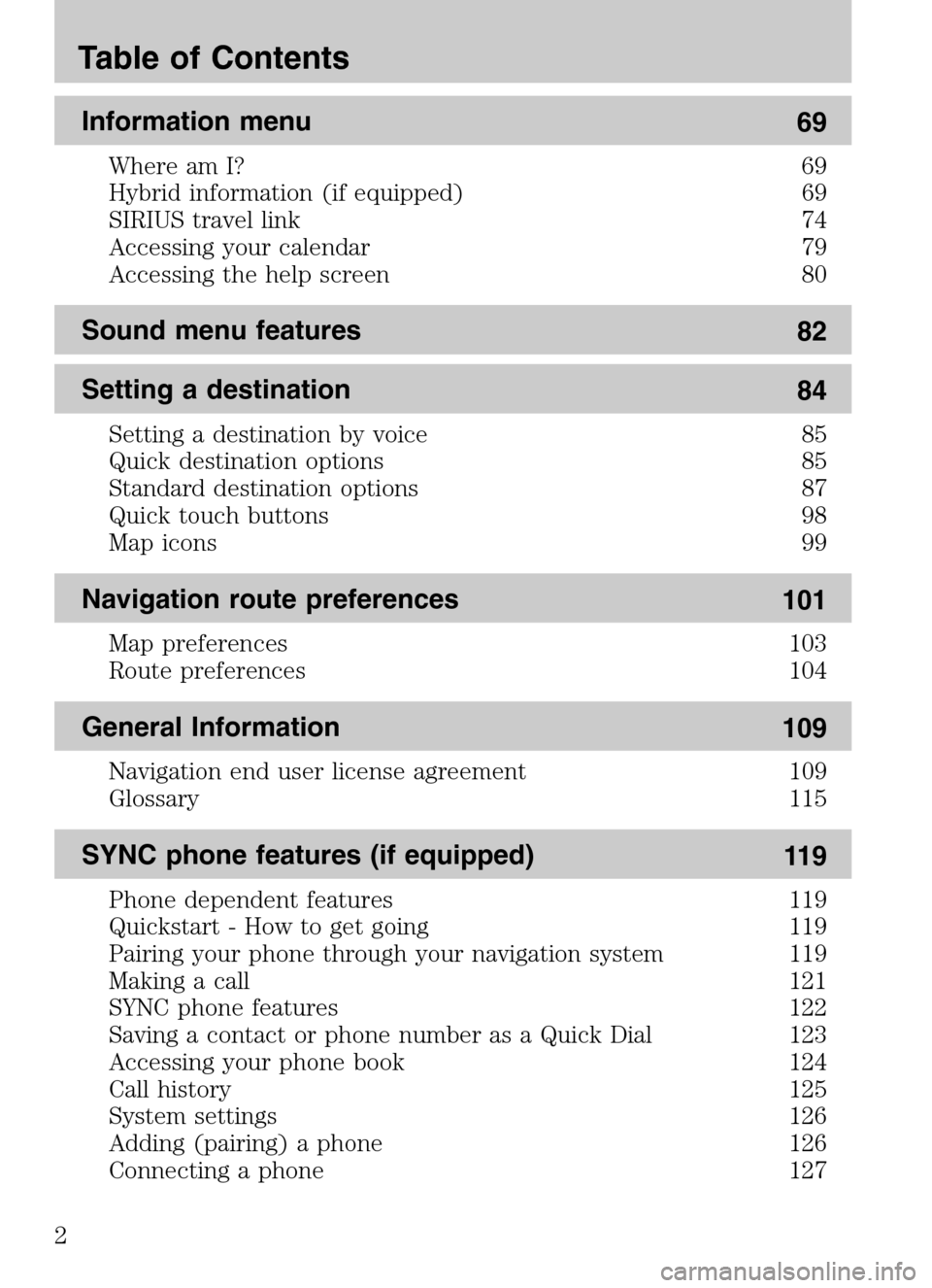

Information menu 69
Where am I? 69
Hybrid information (if equipped) 69
SIRIUS travel link 74
Accessing your calendar 79
Accessing the help screen 80
Sound menu features 82
Setting a destination 84
Setting a destination by voice 85
Quick destination options 85
Standard destination options 87
Quick touch buttons 98
Map icons 99
Navigation route preferences
101
Map preferences 103
Route preferences 104
General Information 109
Navigation end user license agreement 109
Glossary 115
SYNC phone features (if equipped) 11 9
Phone dependent features 119
Quickstart - How to get going 119
Pairing your phone through your navigation system 119
Making a call 121
SYNC phone features 122
Saving a contact or phone number as a Quick Dial 123
Accessing your phone book 124
Call history 125
System settings 126
Adding (pairing) a phone 126
Connecting a phone 127
Table of Contents
2
2009 Centerstack (ng1)
Supplement
USA (fus)

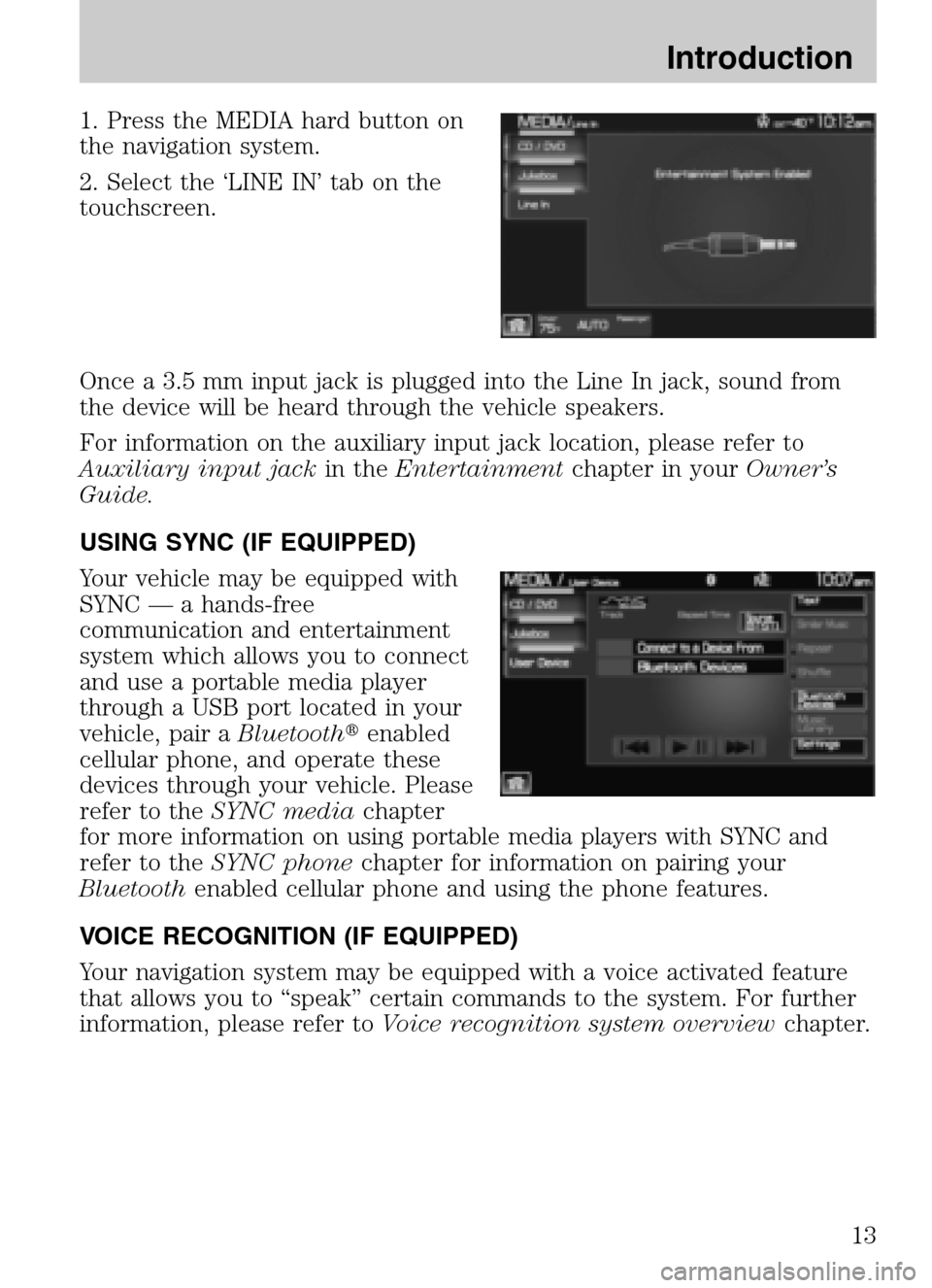

1. Press the MEDIA hard button on
the navigation system.
2. Select the ‘LINE IN’ tab on the
touchscreen.
Once a 3.5 mm input jack is plugged into the Line In jack, sound from
the device will be heard through the vehicle speakers.
For information on the auxiliary input jack location, please refer to
Auxiliary input jack in theEntertainment chapter in yourOwner’s
Guide.
USING SYNC (IF EQUIPPED)
Your vehicle may be equipped with
SYNC — a hands-free
communication and entertainment
system which allows you to connect
and use a portable media player
through a USB port located in your
vehicle, pair a Bluetoothenabled
cellular phone, and operate these
devices through your vehicle. Please
refer to the SYNC media chapter
for more information on using portable media players with SYNC and
refer to the SYNC phone chapter for information on pairing your
Bluetooth enabled cellular phone and using the phone features.
VOICE RECOGNITION (IF EQUIPPED)
Your navigation system may be equipped with a voice activated feature
that allows you to “speak” certain commands to the system. For further
information, please refer to Voice recognition system overview chapter.
2009 Centerstack(ng1)
Supplement
USA (fus)
Introduction
13

Indexing:A process in which SYNC builds a voice recognition grammar
for the media content of your digital media player. While indexing, SYNC
will play already indexed media if Autoplay is on. However, voice
recognition is not available for the media until the indexing process is
complete.
Metadata: Descriptive tags embedded in your digital media which
provide SYNC with information such as ARTIST, ALBUM, GENRE and
TRACK.
Pairing: To use your Bluetoothenabled cellular phone with SYNC, you
must go through a pairing (bonding) process. “Pairing” is a special
process used when two devices connect for the first time. The pairing
process is used to generate a link key that is used for authentication
purposes during subsequent Bluetoothconnections between the two
devices.
PIN (Personal Identification number): This six digit number
(sometimes referred to as a passkey) will be shown in the radio display
during the pairing process with your Bluetoothenabled device. You do
not need to write down this number as it will only be used for that
specific pairing procedure.
POI: Point(s) Of Interest
PROV: Province
PTY: Program Type
RDS: Radio Data System
SAT: Satellite Radio
SCV: Speed Compensated Volume
Smart Speller: Feature that provides a number of available candidates
matching partial input entered by the user.
Touchscreen: A touch-sensitive screen that lets the user make choices
by touching icons or graphical buttons on the screen.
Waypoint: An intermediate stop or destination before the final
destination.
FREQUENTLY ASKED QUESTIONS (FAQS)
How do I turn off the Navigation System?
Press and hold the Volume control for at least 3 seconds.
2009 Centerstack (ng1)
Supplement
USA (fus)
General Information
116

PHONE DEPENDENT FEATURES
While SYNC supports a variety of features, many are dependent upon the
functionality of your cell phone with Bluetoothwireless technology. At
a minimum, most cellular phones with Bluetoothwireless technology
support the following functions:
• Answering an incoming call
• Ending a call
• Using privacy mode
• Dial a number
• Redial
• Call waiting notification
• Caller ID
Other features, such as text messaging via Bluetooth, and automatic
phone book download are phone dependent features. To ensure that you
have a compatible cellular phone, refer to your phone’s user manual and
visit www.SyncMyRide.com.
QUICK START — HOW TO GET GOING
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. The drivers primary responsibility is the safe
operation of their vehicle. Only use cell phones and other devices not
essential to the driving task when it is safe to do so.
Pairing your phone through your navigation system
Note: This is a speed dependent feature and will not work if your
vehicle is traveling at speeds greater than 3 mph (5 km/h).
The first thing you will need to do to get going is to pair your
Bluetooth  enabled cellular phone with SYNC.
1. Press the PHONE hard button on the navigation system.
2009 Centerstack (ng1)
Supplement
USA (fus)
SYNC phone features (if equipped)
119SeeEnd User License Agreement at the end of this book

2. The screen will read NO PHONE
CONNECTED. Press the ‘Settings’
tab on the touchscreen.
3. Press ‘Add’.
4. If Bluetooth is on, SYNC will
begin the pairing process between
your Bluetooth enabled phone or
device and SYNC.
Note: Please refer to your phone’s user guide for specific pairing
instructions.
5. SYNC will give you a six digit Pass-key (PIN) that you will need to
enter into your phone or device when prompted.
When the pairing is complete, PAIRING SUCCESSFUL and then DEVICE
NAME CONNECTED will appear on the screen.
6. Press YES or NO when SYNC prompts you to set the phone as the
FAVORITE PHONE.
As a ‘favorite phone’, SYNC will search for this phone upon each
connection cycle. If a phone is not set as a primary, it will still be stored
in the device listing to enable you to reconnect to it at any time.
7. If supported by your Bluetoothenabled cellular phone, SYNC will
prompt you to download your phone book/call history. Press YES or NO.
Note: Selecting YES will tell SYNC to re-download the phone book and
call history information from your Bluetoothenabled cellular phone (if
supported) EVERY time your phone reconnects to SYNC. If you have
made any changes to your phone book/call history in SYNC, they will be
overwritten with the new download.
SYNC will confirm when the phone book and call history are downloaded.
2009 Centerstack (ng1)
Supplement
USA (fus)
SYNC phone features (if equipped)
120SeeEnd User License Agreement at the end of this book

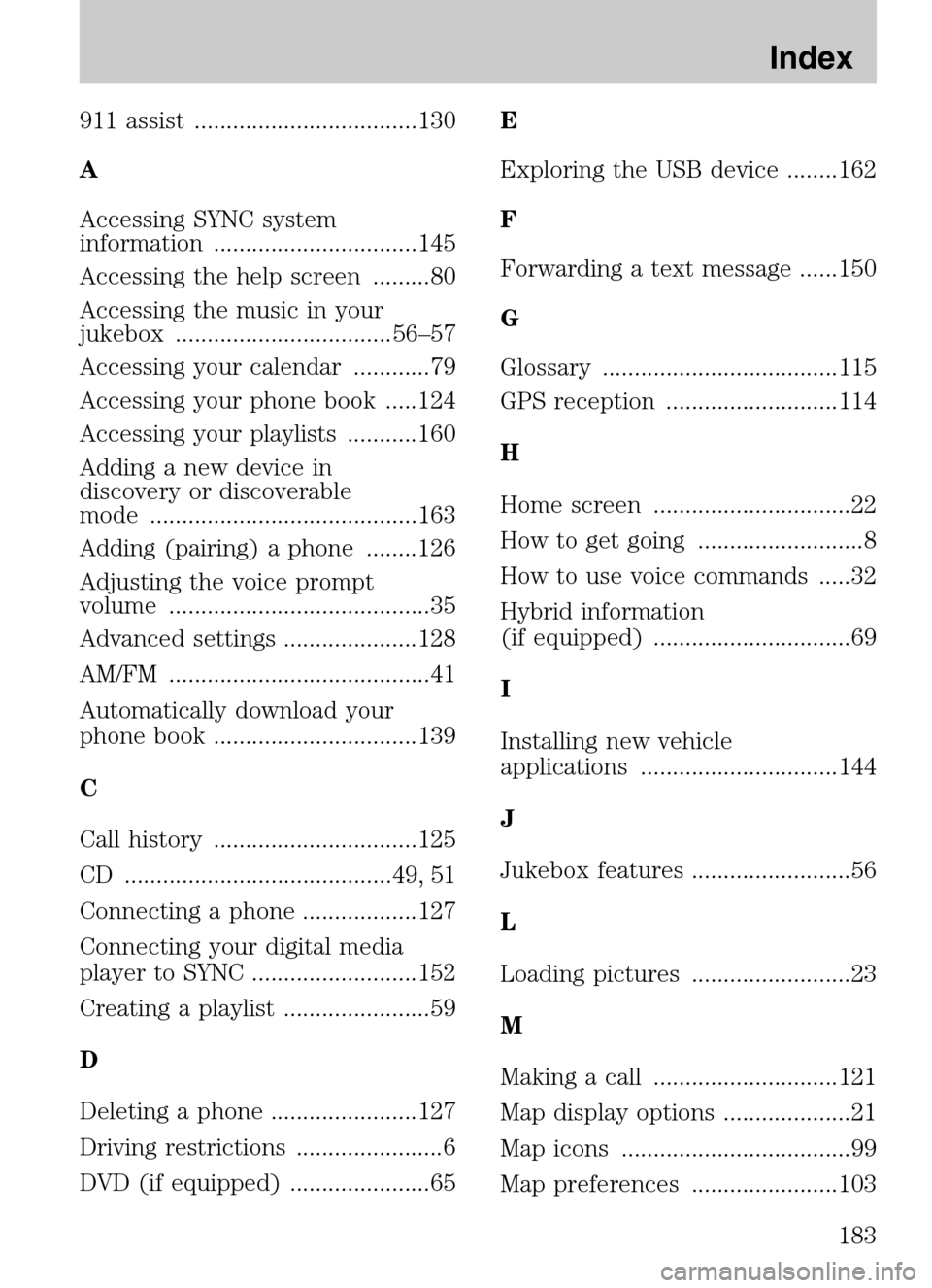

911 assist ...................................130
A
Accessing SYNC system
information ................................145
Accessing the help screen .........80
Accessing the music in your
jukebox ..................................56–57
Accessing your calendar ............79
Accessing your phone book .....124
Accessing your playlists ...........160
Adding a new device in
discovery or discoverable
mode ..........................................163
Adding (pairing) a phone ........126
Adjusting the voice prompt
volume .........................................35
Advanced settings .....................128
AM/FM .........................................41
Automatically download your
phone book ................................139
C
Call history ................................125
CD ..........................................49, 51
Connecting a phone ..................127
Connecting your digital media
player to SYNC ..........................152
Creating a playlist .......................59
D
Deleting a phone .......................127
Driving restrictions .......................6
DVD (if equipped) ......................65 E
Exploring the USB device ........162
F
Forwarding a text message ......150
G
Glossary .....................................115
GPS reception ...........................114
H
Home screen ...............................22
How to get going ..........................8
How to use voice commands .....32
Hybrid information
(if equipped) ...............................69
I
Installing new vehicle
applications ...............................144
J
Jukebox features .........................56
L
Loading pictures .........................23
M
Making a call .............................121
Map display options ....................21
Map icons ....................................99
Map preferences .......................103
2009 Centerstack
(ng1)
Supplement
USA (fus)
Index
183

Message notification .................138
Modifying your phone book
and call history .........................140
N
Navigation end user license
agreement ..................................109
P
Pairing your phone through
your navigation system ............119
Performing a master reset .......144
Phone dependent features .......119
Playing a DVD in the system .....53
Playing a specific track ............161
Q
Quick destination options ..........85
Quick reference chart ................25
Quick touch buttons ...................98
R
Returning to factory defaults ..143
Reverse camera ...........................24
$Route preferences ..................104
S
Safety information ........................8
Satellite Radio (if equipped) .....46
Saving a contact or phone
number as Quick Dial ...............123
Selecting and playing specific
albums .......................................159 Selecting and playing specific
artists .........................................159
Selecting different genres ........160
Setting a destination by voice ...85
Setting a ring tone ....................137
Setting the clock .........................27
SIRIUS travel link .......................74
Standard destination options .....87
Status bars ..................................22
Streaming music from your
phone .........................................156
Supported player, media
formats and metadata
information ................................155
SYNC media features ................154
SYNC phone features ...............122
System introduction .....................5
System limitations ....................114
System overview ...................14, 18
System settings .........................126
T
Text messaging with your
navigation system .....................146
Troubleshooting ........................117
Turning Bluetooth on/off ..........129
Turning prompts on/off ............142
U
USB port ....................................155
User Device (if equipped) .........62
User profiles ................................37
2009 Centerstack
(ng1)
Supplement
USA (fus)
Index
184
