LINCOLN NAVIGATOR 2009 Owners Manual
Manufacturer: LINCOLN, Model Year: 2009, Model line: NAVIGATOR, Model: LINCOLN NAVIGATOR 2009Pages: 375, PDF Size: 3.09 MB
Page 361 of 375
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
MOTORCRAFT PART NUMBERS
Component 5.4L 3V V8 engine
Air filter element FA-1883
BatteryBXT-65-650 or BXT-65-750 (if
equipped)
Fuel filter FG-1036
2
Oil filter FL-820-S
Spark plugs1
1
For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
2Long wheel base only
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
2009 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
361
Page 362 of 375
MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item Capacity Ford part nameFord part number /
Ford specification
Brake fluidBetween MIN and
MAX on reservoirMotorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Hinges, latches, striker
plates and rotors, seat
tracks, fuel filler door
hinge and spring— Multi-Purpose GreaseXG-4 or XL-5 /
ESB-M1C93-B
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
Engine coolant (Base
radiator without aux
rear heat)16.4 quarts
(15.5L)
Motorcraft Premium
Gold Engine Coolant
(yellow-colored)
1
VC-7-B /
WSS-M97B51-A1 Engine coolant (Heavy
duty trailer tow radiator
without aux rear heat)16.9 quarts
(16.0L)
Engine coolant (Base
radiator with aux rear
heat)19.0 quarts
(18.0L)
Engine coolant (Heavy
duty trailer tow radiator
with aux rear heat)19.5 quarts
(18.5L)
2009 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
362
Page 363 of 375
Item Capacity Ford part nameFord part number /
Ford specification
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Engine oil 7.0 quarts (6.6 L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil
Motorcraft SAE 5W-20
Super Premium Motor
Oil
2
XO-5W20-QSP (US)
CXO-5W20- LSP12
(Canada) /
WSS-M2C930-A and API
Certification Mark
Automatic transmission
fluid
(6R80)11.0 quarts
(10.5L)
3
Motorcraft
MERCONLV AT F
4
XT-10-QLV /
MERCONLV
Power steering fluidFill between MIN
and MAX lines on
reservoirMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Front axle fluid (4X4) 3.5 pints (1.7L)Motorcraft SAE 80W-90
Premium Rear Axle LubeXY-80W90-QL /
WSP-M2C197-A
Rear axle
fluid–Conventional
differential
(9.75 inch axle)4.5 pints (2.13L)Motorcraft SAE 75W-140
Synthetic Rear Axle
Lube
5
XY-75W140-QL /
WSL-M2C192-A
Transfer case fluid
(4X4)1.6-1.8 quarts
(1.5-1.7L)Motorcraft Transfer Case
FluidXL–12 /
—
2009 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
363
Page 364 of 375
Item Capacity Ford part nameFord part number /
Ford specification
Windshield washer fluid 4.5 quarts (4.1L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank (Standard)28.0 gallons
(106.0L)——
Fuel tank (Navigator L)33.5 gallons
(126.8L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler.4Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.5Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants are not to be checked or changed unless a leak is suspected, service is
required or the axle has been submerged in water. The axle lubricant should be changed any time
the axle has been submerged in water.
2009 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
364
Page 365 of 375
ENGINE DATA
Engine 5.4L V8 engine
Cubic inches 330
Fuel 87 octane or (E-85)
Firing order 1-3-7-2-6-5-4-8
Ignition system Coil on plug
Spark plug gap 0.039–0.043 inch (1.05 +/–
0.05mm)
Compression ratio 9.85:1
Engine drivebelt routing
2009 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
365
Page 366 of 375

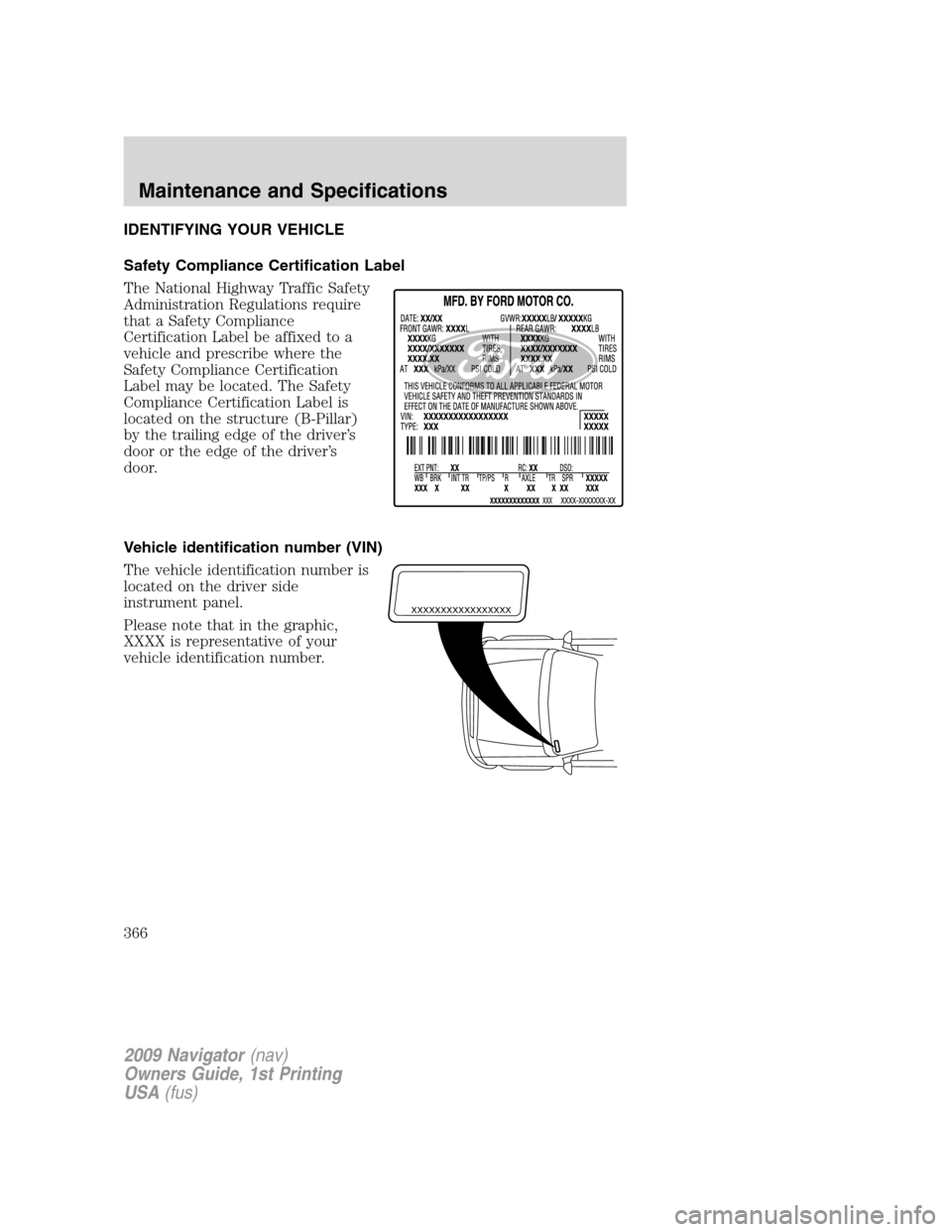

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2009 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
366
Page 367 of 375

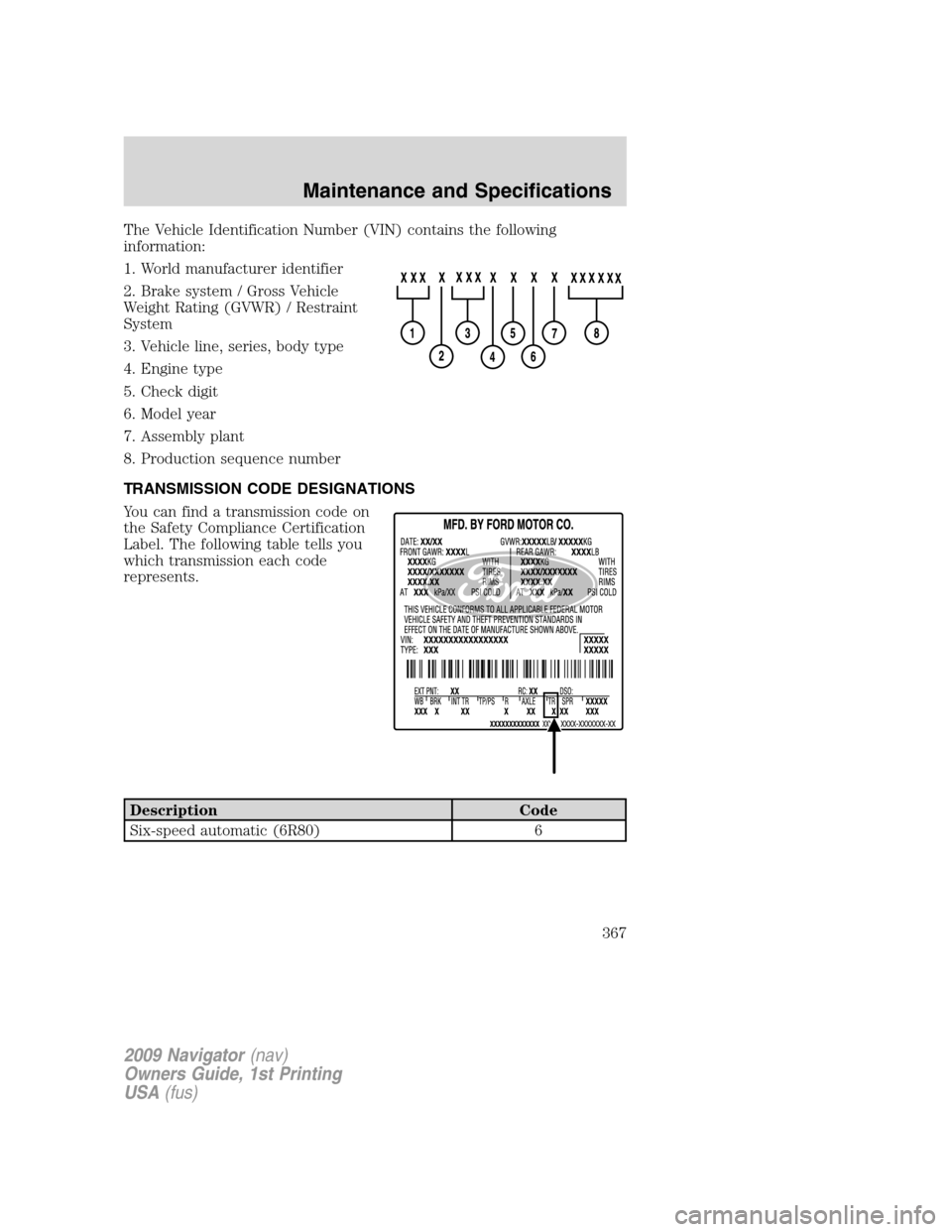

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Six-speed automatic (6R80) 6
2009 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
367
Page 368 of 375
GENUINE LINCOLN ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Lincoln Accessories are available for your
vehicle through your local Lincoln or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Lincoln’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Lincoln
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Following is a list of several Genuine Lincoln Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.lincolnaccessories.com.
Exterior style
Bug shields
Chrome hood accent
Deflectors
Splash guards
Interior style
Floor mats
Lifestyle
Ash cup / smoker’s package
Cargo organization and management
Trailer hitches, wiring harnesses and accessories
Peace of mind
Mobile-Ease™ hands-free communication system
Remote start
2009 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
Accessories
368
Page 369 of 375

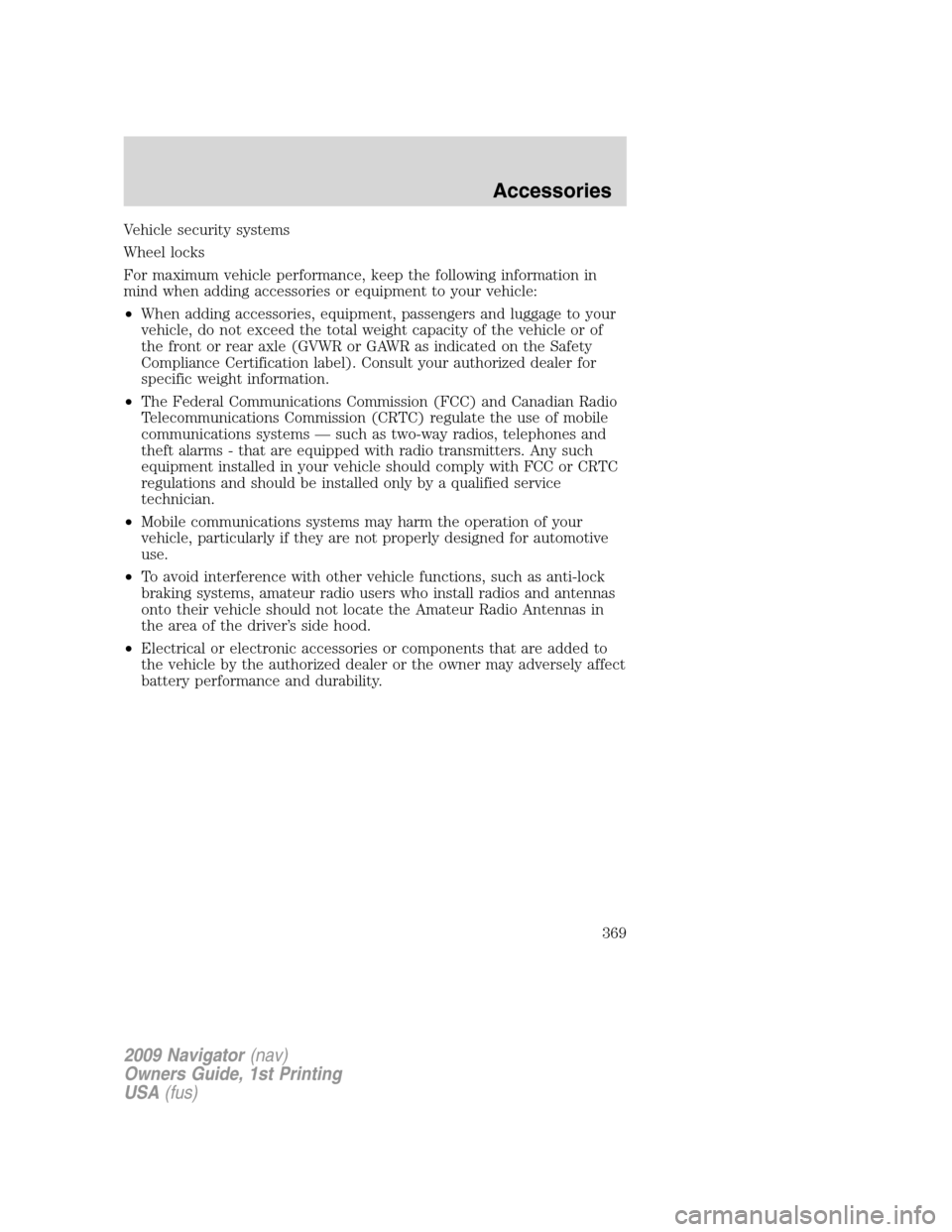

Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2009 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
Accessories
369
Page 370 of 375
A
ABS (see Brakes) .....................257
Accessory delay ..........................96
AdvanceTrac ..............................259
Air cleaner filter ...............358, 361
Air suspension ...........................264
description ..............................264
Airbag supplemental restraint
system ........................184, 188, 190
and child safety seats ............186
description ..............184, 188, 190
disposal ....................................194
driver airbag ............186, 189, 191
indicator light .................188, 193
operation .................186, 189, 191
passenger airbag .....186, 189, 191
side airbag ...............................188
Antifreeze
(see Engine coolant) ................338
Anti-lock brake system
(see Brakes) ..............................257
Anti-theft system ..............146, 149
arming the system ..................149
disarming a triggered
system .....................................150
Audio system (see Radio) .........20
Automatic transmission
driving an automatic
overdrive .................................267
fluid, adding ............................358
fluid, checking ........................358
fluid, refill capacities ..............362
fluid, specification ..................362
Auxiliary input jack (Line in) ....26
Auxiliary power point .................92
Axle
lubricant specifications ..........362refill capacities ........................362
B
Battery .......................................336
acid, treating emergencies .....336
jumping a disabled battery ....305
maintenance-free ....................336
replacement, specifications ...361
servicing ..................................336
Belt-Minder.............................180
Booster seats .............................208
Brakes ........................................256
anti-lock ...................................257
anti-lock brake system (ABS)
warning light ...........................257
fluid, checking and adding ....357
fluid, refill capacities ..............362
fluid, specifications .................362
lubricant specifications ..........362
parking ....................................258
shift interlock ..........................266
Bulbs ............................................82
C
Capacities for refilling fluids ....362
Cargo cover ...............................128
Cargo management system ......128
Cell phone use ..............................8
Changing a tire .........................295
Child safety seats ......................198
in front seat ............................198
in rear seat ..............................198
LATCH .....................................201
recommendations ...................196
Child safety seats - booster
seats ...........................................208
Index
370
