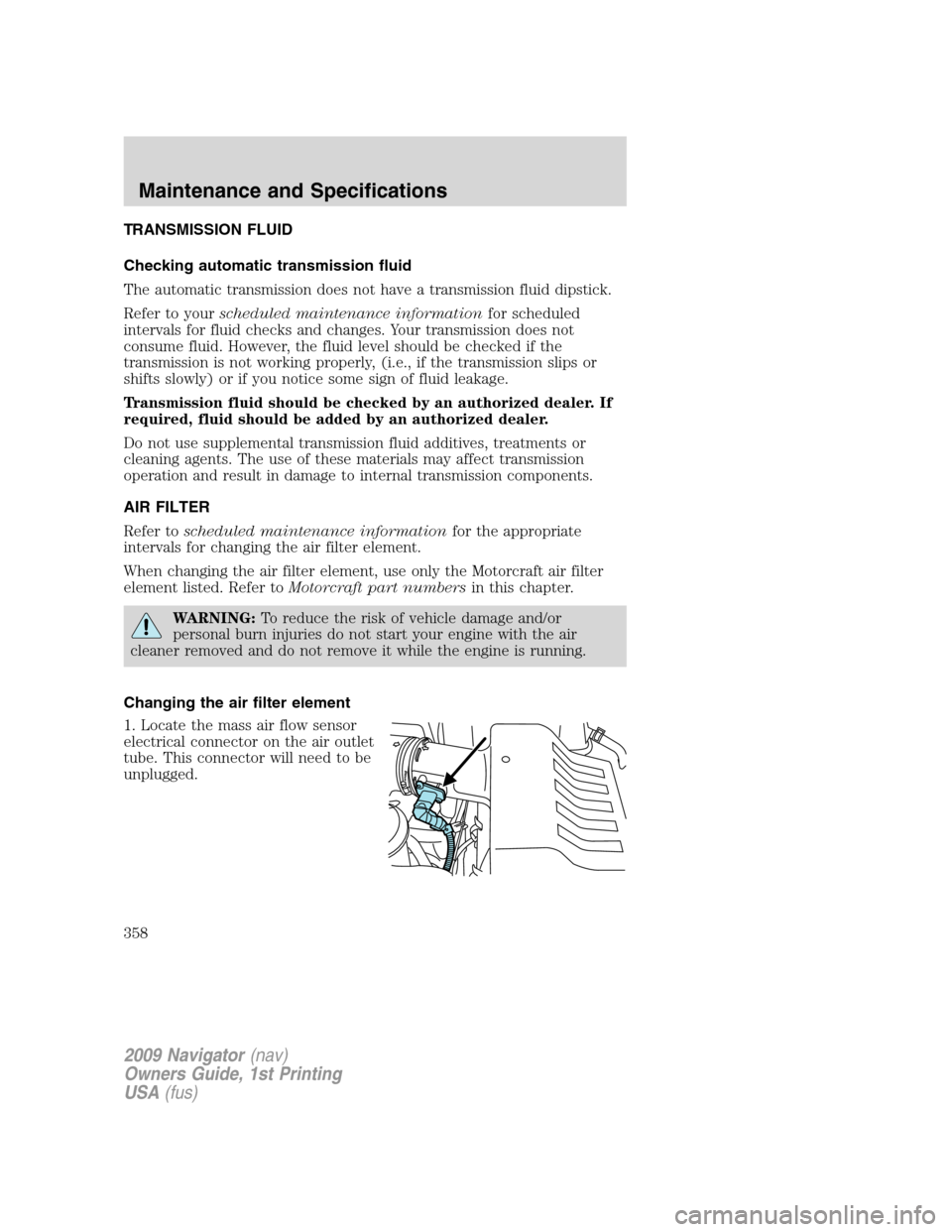

TRANSMISSION FLUID
Checking automatic transmission fluid
The automatic transmission does not have a transmission fluid dipstick.
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, (i.e., if the transmission slips or
shifts slowly) or if you notice some sign of fluid leakage.
Transmission fluid should be checked by an authorized dealer. If
required, fluid should be added by an authorized dealer.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
Changing the air filter element
1. Locate the mass air flow sensor
electrical connector on the air outlet
tube. This connector will need to be
unplugged.
2009 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
358

Item Capacity Ford part nameFord part number /
Ford specification
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Engine oil 7.0 quarts (6.6 L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil
Motorcraft SAE 5W-20
Super Premium Motor
Oil
2
XO-5W20-QSP (US)
CXO-5W20- LSP12
(Canada) /
WSS-M2C930-A and API
Certification Mark
Automatic transmission
fluid
(6R80)11.0 quarts
(10.5L)
3
Motorcraft
MERCON
LV AT F
4
XT-10-QLV /
MERCON
LV
Power steering fluidFill between MIN
and MAX lines on
reservoirMotorcraft
MERCON
VATFXT-5-QM /
MERCON
V
Front axle fluid (4X4) 3.5 pints (1.7L)Motorcraft SAE 80W-90
Premium Rear Axle LubeXY-80W90-QL /
WSP-M2C197-A
Rear axle
fluid–Conventional
differential
(9.75 inch axle)4.5 pints (2.13L)Motorcraft SAE 75W-140
Synthetic Rear Axle
Lube
5
XY-75W140-QL /
WSL-M2C192-A
Transfer case fluid
(4X4)1.6-1.8 quarts
(1.5-1.7L)Motorcraft Transfer Case
FluidXL–12 /
—
2009 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
363

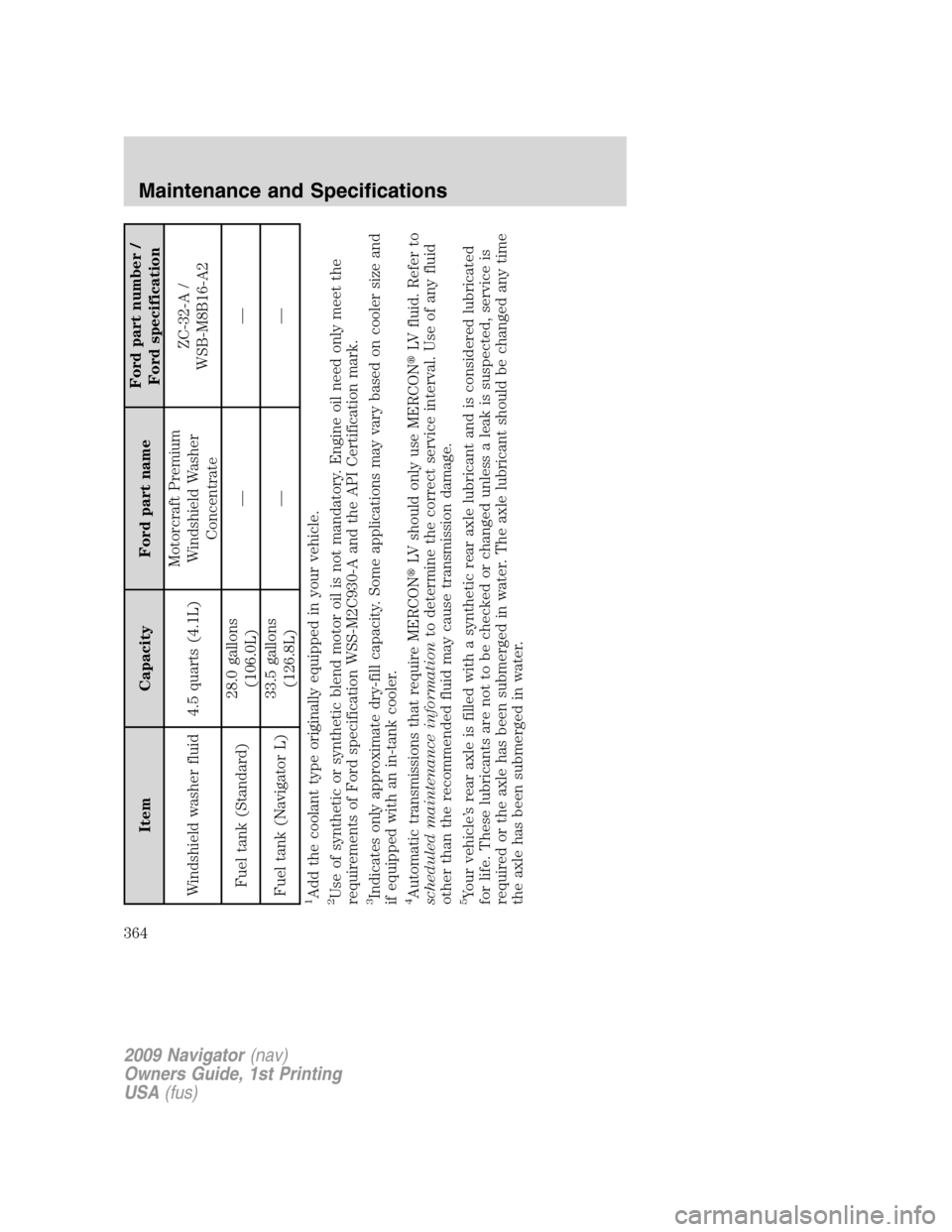

Item Capacity Ford part nameFord part number /
Ford specification
Windshield washer fluid 4.5 quarts (4.1L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank (Standard)28.0 gallons
(106.0L)——
Fuel tank (Navigator L)33.5 gallons
(126.8L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler.4Automatic transmissions that require MERCON
LV should only use MERCON
LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.5Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants are not to be checked or changed unless a leak is suspected, service is
required or the axle has been submerged in water. The axle lubricant should be changed any time
the axle has been submerged in water.
2009 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
364

A
ABS (see Brakes) .....................257
Accessory delay ..........................96
AdvanceTrac ..............................259
Air cleaner filter ...............358, 361
Air suspension ...........................264
description ..............................264
Airbag supplemental restraint
system ........................184, 188, 190
and child safety seats ............186
description ..............184, 188, 190
disposal ....................................194
driver airbag ............186, 189, 191
indicator light .................188, 193
operation .................186, 189, 191
passenger airbag .....186, 189, 191
side airbag ...............................188
Antifreeze
(see Engine coolant) ................338
Anti-lock brake system
(see Brakes) ..............................257
Anti-theft system ..............146, 149
arming the system ..................149
disarming a triggered
system .....................................150
Audio system (see Radio) .........20
Automatic transmission
driving an automatic
overdrive .................................267
fluid, adding ............................358
fluid, checking ........................358
fluid, refill capacities ..............362
fluid, specification ..................362
Auxiliary input jack (Line in) ....26
Auxiliary power point .................92
Axle
lubricant specifications ..........362refill capacities ........................362
B
Battery .......................................336
acid, treating emergencies .....336
jumping a disabled battery ....305
maintenance-free ....................336
replacement, specifications ...361
servicing ..................................336
Belt-Minder
.............................180
Booster seats .............................208
Brakes ........................................256
anti-lock ...................................257
anti-lock brake system (ABS)
warning light ...........................257
fluid, checking and adding ....357
fluid, refill capacities ..............362
fluid, specifications .................362
lubricant specifications ..........362
parking ....................................258
shift interlock ..........................266
Bulbs ............................................82
C
Capacities for refilling fluids ....362
Cargo cover ...............................128
Cargo management system ......128
Cell phone use ..............................8
Changing a tire .........................295
Child safety seats ......................198
in front seat ............................198
in rear seat ..............................198
LATCH .....................................201
recommendations ...................196
Child safety seats - booster
seats ...........................................208
Index
370

Cleaning your vehicle
engine compartment ..............323
instrument panel ....................325
interior .............................325–326
plastic parts ............................324
washing ....................................321
waxing .....................................322
wheels
......................................322
wiper blades
............................324
Clock
............................................92
Compass, electronic
set zone adjustment
...............117
Console
........................................92
overhead
..............................90–91
Controls
power seat
...............................155
steering column
......................104
Coolant
checking and adding
..............338
refill capacities
................342, 362
specifications
..........................362
Cruise control
(see Speed control)
..................101
Customer Assistance
................285
Ford Extended Service
Plan
..........................................318
Getting assistance outside the
U.S. and Canada
.....................318
Getting roadside assistance
...285
Getting the service you
need
.........................................314
Ordering additional owner’s
literature
.................................319
Utilizing the
Mediation/Arbitration
Program
...................................317D
Daytime running lamps
(see Lamps) ................................77
Dipstick
automatic transmission
fluid ..........................................358
engine oil .................................333
Driving under special
conditions ..................270, 279, 282
sand .........................................281
snow and ice ...........................283
through water .................281, 284
DVD system .................................37
E
Electronic message center .......110
Emergencies, roadside
jump-starting ..........................305
running out of fuel .........305, 349
Emission control system ..........354
Engine ........................................365
cleaning ...................................323
coolant .....................................338
fail-safe cooling .......................342
idle speed control ...................336
lubrication specifications .......362
refill capacities ........................362
service points ..........................330
starting after a collision .........287
Engine block heater .................254
Engine oil ..................................333
change oil soon warning,
message center .......................333
checking and adding ..............333
dipstick ....................................333
filter, specifications ........335, 361
recommendations ...................335
refill capacities ........................362
Index
371

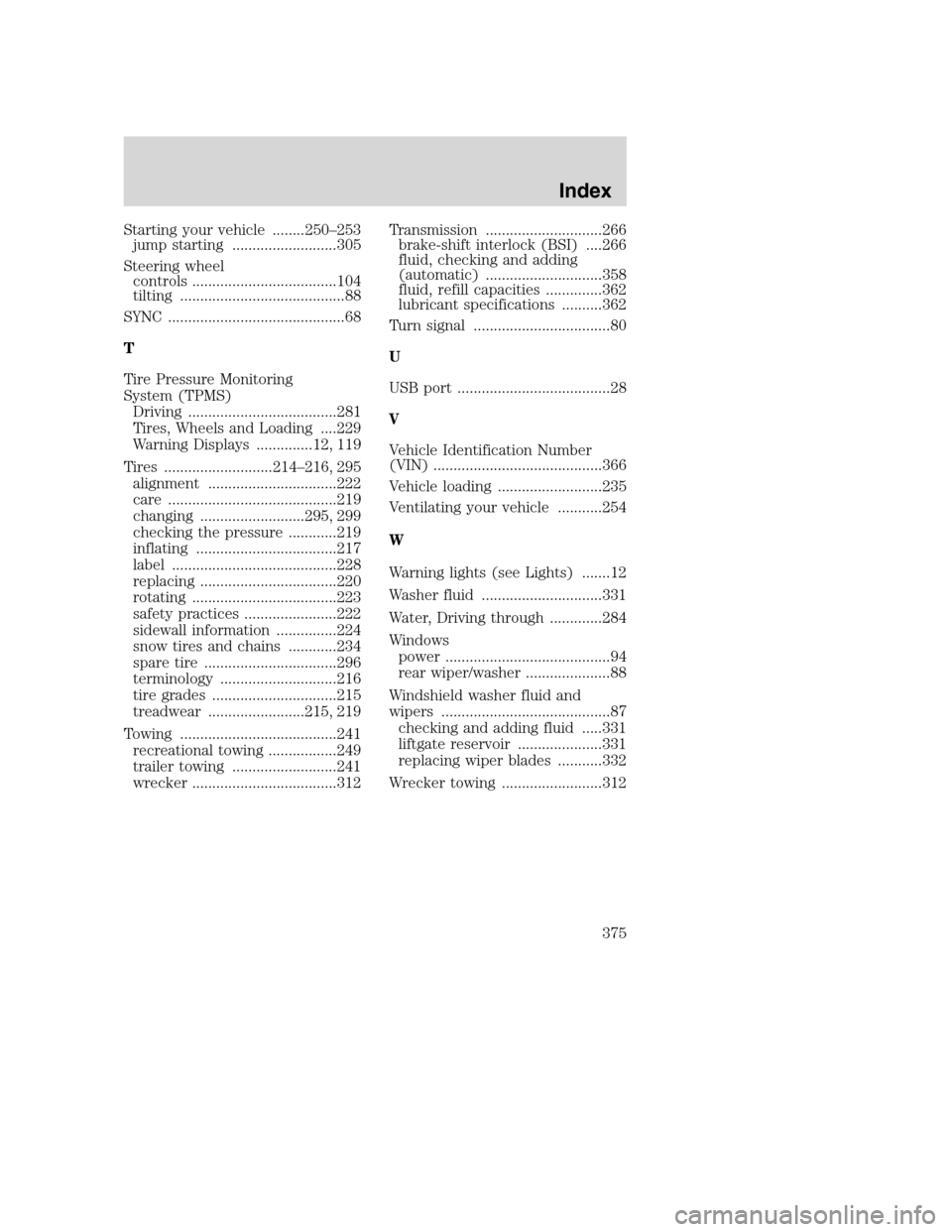

Starting your vehicle ........250–253
jump starting ..........................305
Steering wheel
controls ....................................104
tilting .........................................88
SYNC ............................................68
T
Tire Pressure Monitoring
System (TPMS)
Driving .....................................281
Tires, Wheels and Loading ....229
Warning Displays ..............12, 119
Tires ...........................214–216, 295
alignment ................................222
care ..........................................219
changing ..........................295, 299
checking the pressure ............219
inflating ...................................217
label .........................................228
replacing ..................................220
rotating ....................................223
safety practices .......................222
sidewall information ...............224
snow tires and chains ............234
spare tire .................................296
terminology .............................216
tire grades ...............................215
treadwear ........................215, 219
Towing .......................................241
recreational towing .................249
trailer towing ..........................241
wrecker ....................................312Transmission .............................266
brake-shift interlock (BSI) ....266
fluid, checking and adding
(automatic) .............................358
fluid, refill capacities ..............362
lubricant specifications ..........362
Turn signal ..................................80
U
USB port ......................................28
V
Vehicle Identification Number
(VIN) ..........................................366
Vehicle loading ..........................235
Ventilating your vehicle ...........254
W
Warning lights (see Lights) .......12
Washer fluid ..............................331
Water, Driving through .............284
Windows
power .........................................94
rear wiper/washer .....................88
Windshield washer fluid and
wipers ..........................................87
checking and adding fluid .....331
liftgate reservoir .....................331
replacing wiper blades ...........332
Wrecker towing .........................312
Index
375
