LINCOLN NAVIGATOR 2010 Owners Manual

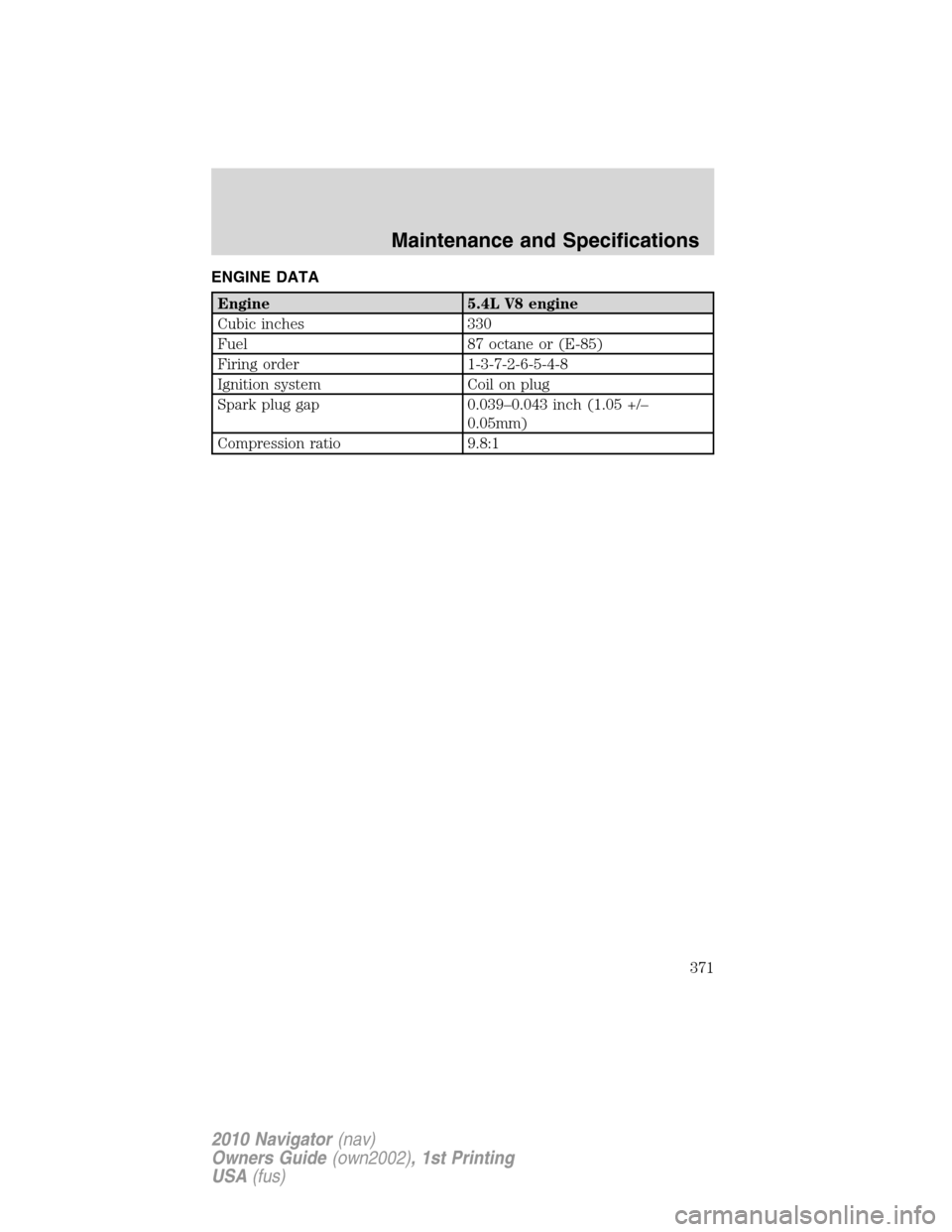

ENGINE DATA
Engine 5.4L V8 engine
Cubic inches 330
Fuel 87 octane or (E-85)
Firing order 1-3-7-2-6-5-4-8
Ignition system Coil on plug
Spark plug gap 0.039–0.043 inch (1.05 +/–
0.05mm)
Compression ratio 9.8:1
Maintenance and Specifications
371
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

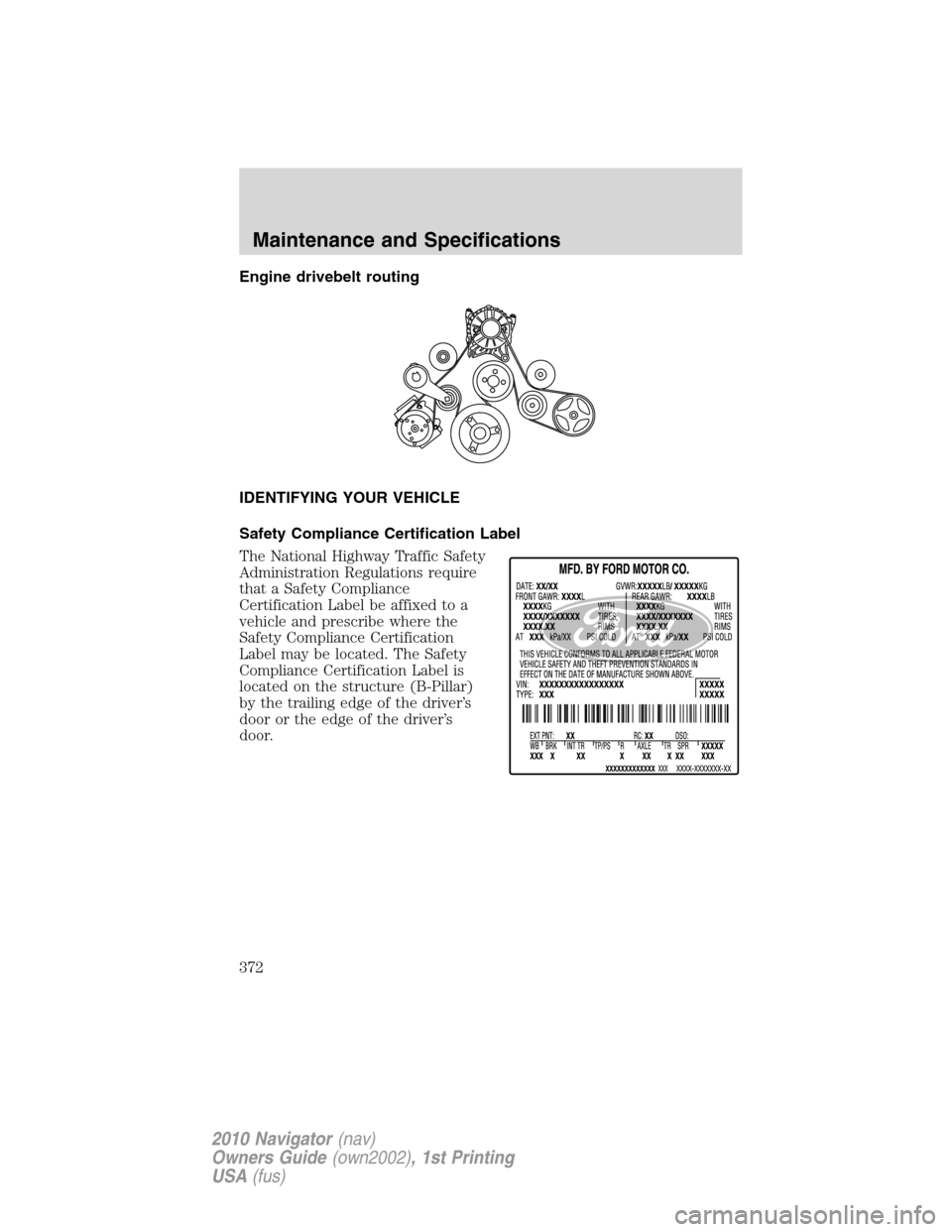

Engine drivebelt routing
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Maintenance and Specifications
372
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

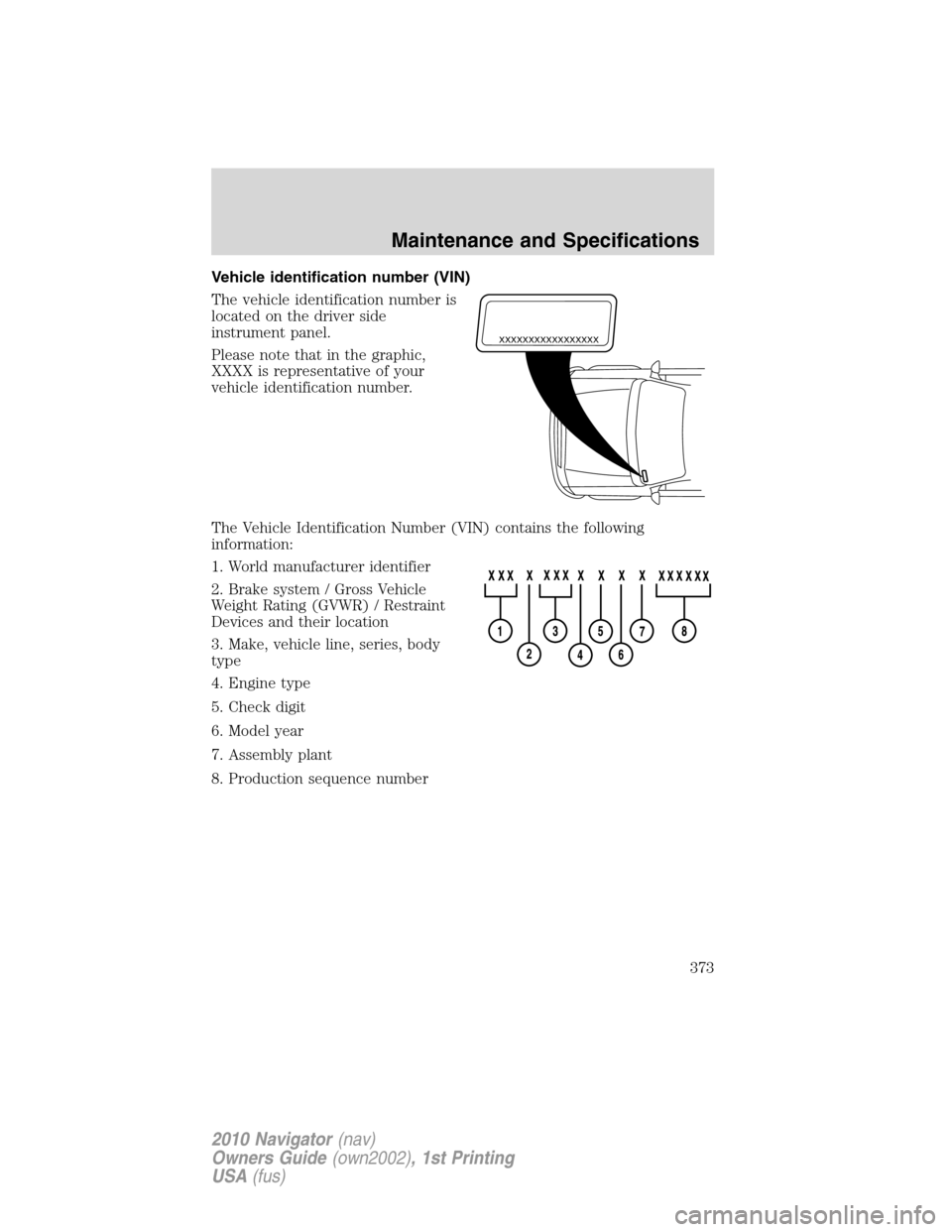

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
373
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

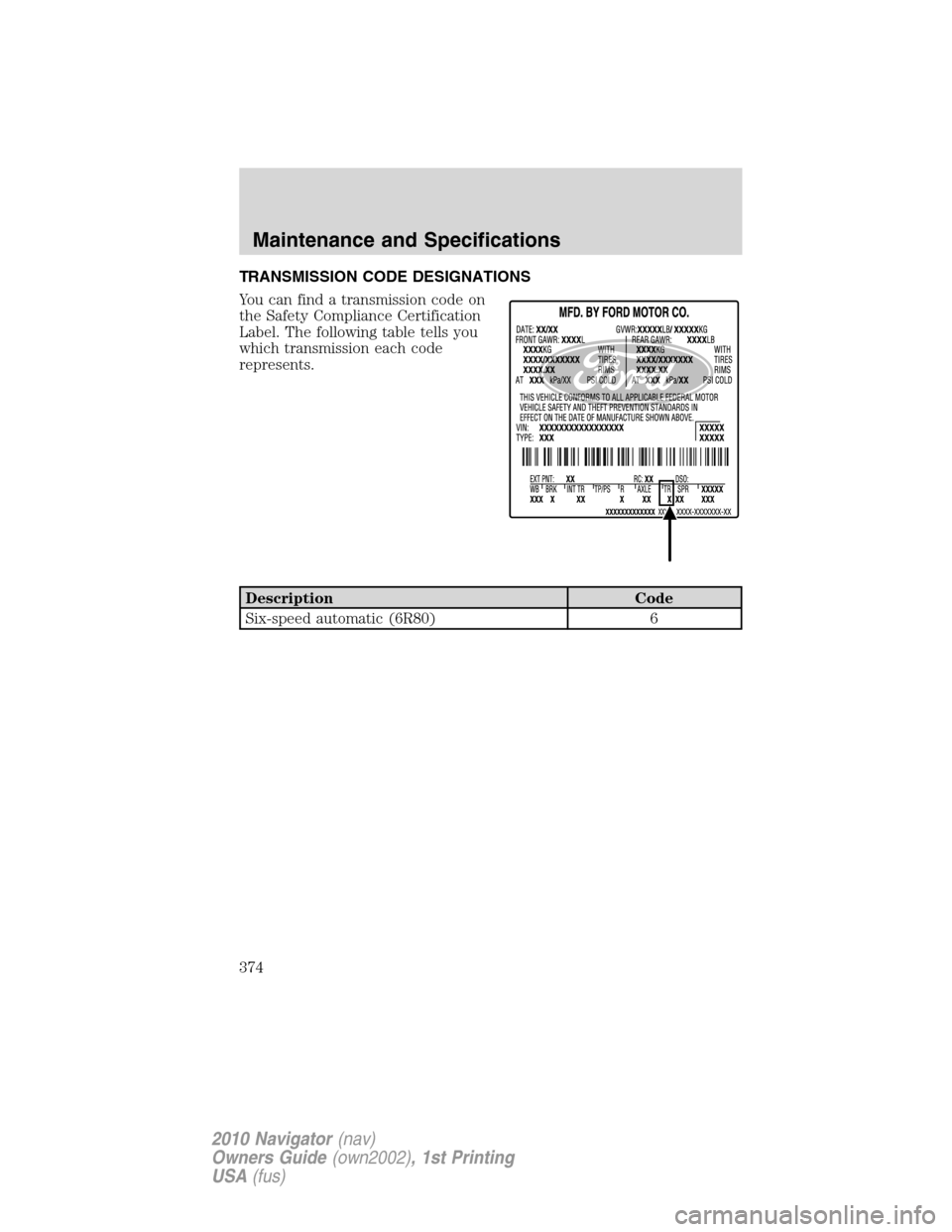

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Six-speed automatic (6R80) 6
Maintenance and Specifications
374
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

GENUINE LINCOLN ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Lincoln Accessories are available for your
vehicle through your local Lincoln or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Lincoln’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Lincoln
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Following is a list of several Genuine Lincoln Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.lincolnaccessories.com.
Exterior style
Bug shields
Chrome hood accent
Deflectors
Interior style
Ambient lighting
Backlit door sill plates
Floor mats
Lifestyle
Ash cup / smoker’s package
Cargo organization and management
Trailer towing accessories
Peace of mind
Remote start
Vehicle security systems
Accessories
375
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

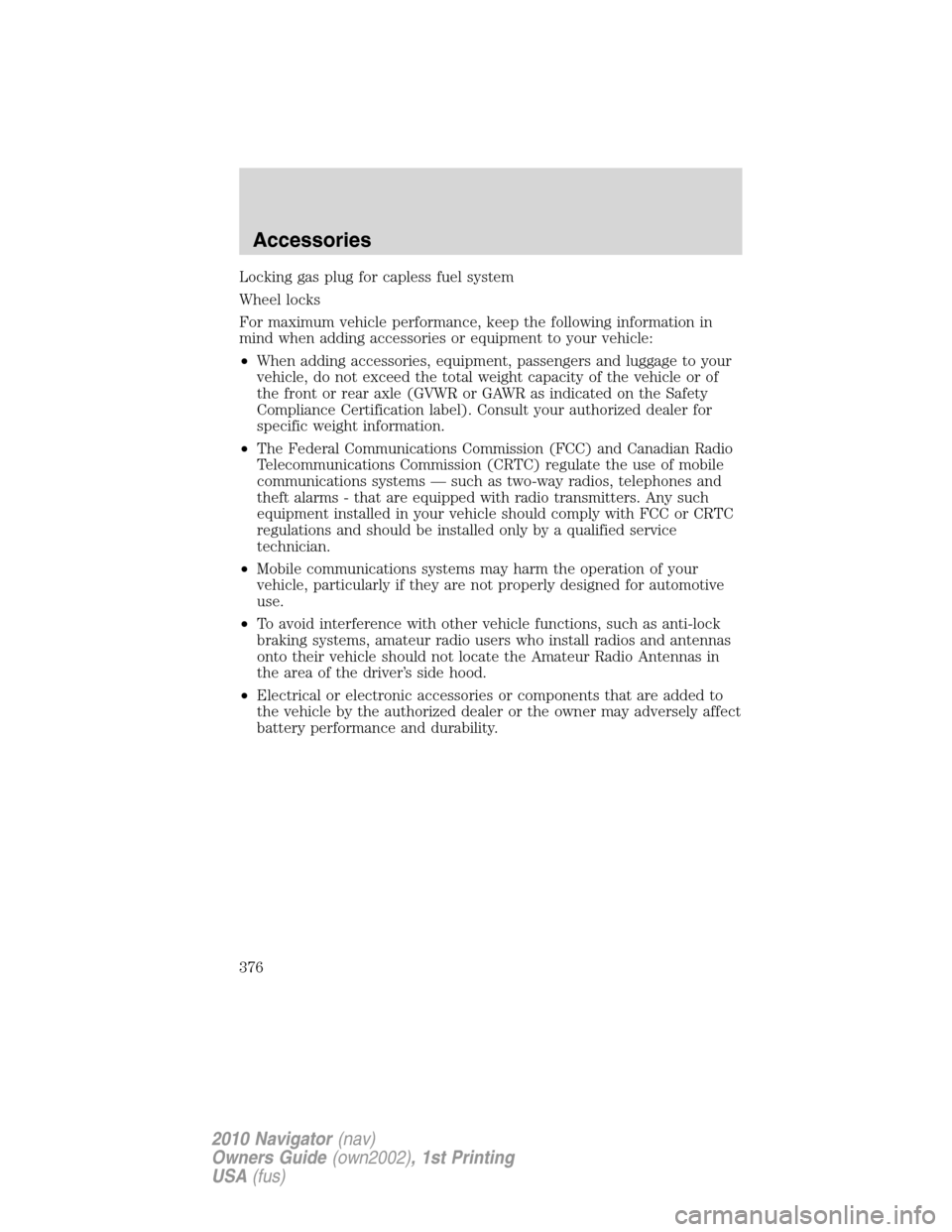

Locking gas plug for capless fuel system
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
Accessories
376
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

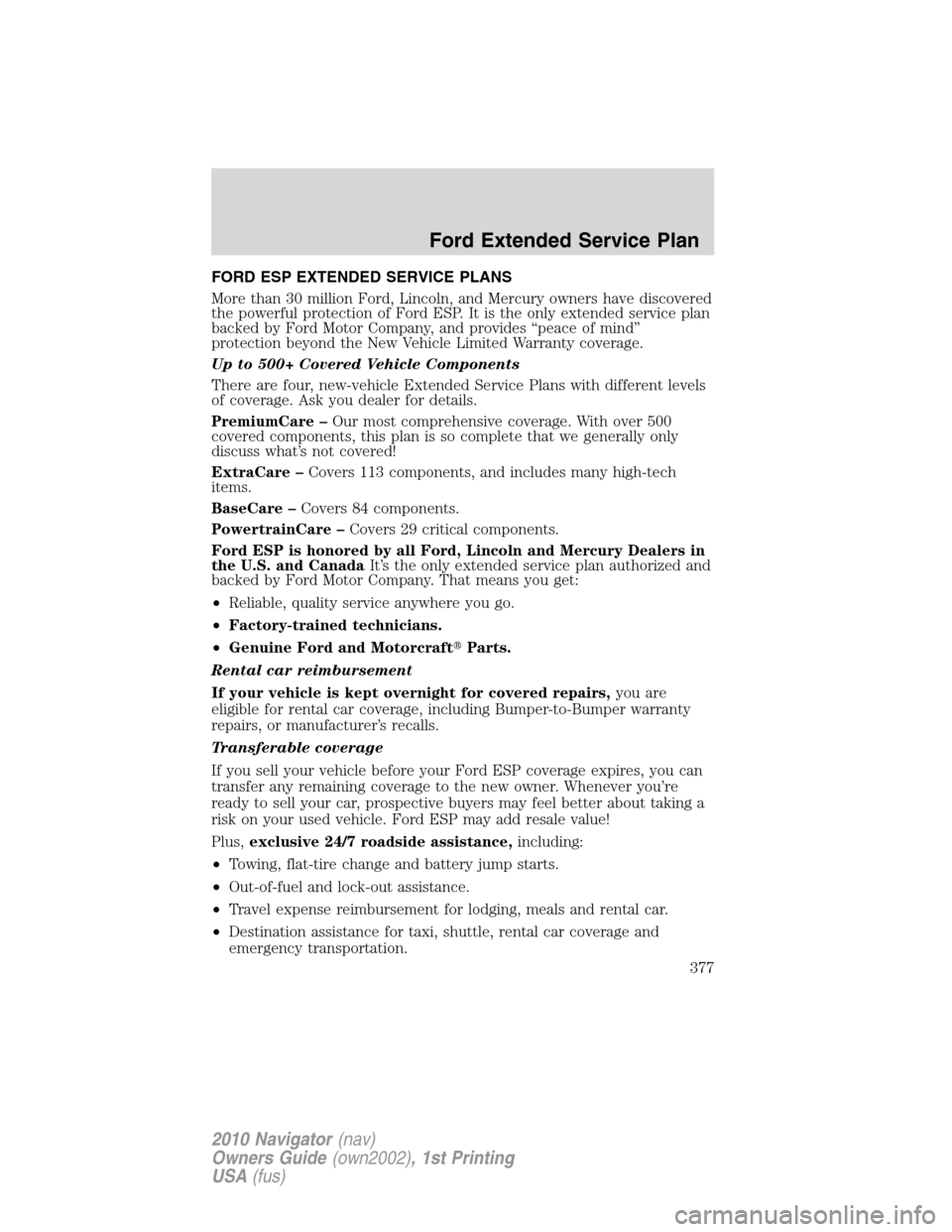

FORD ESP EXTENDED SERVICE PLANS
More than 30 million Ford, Lincoln, and Mercury owners have discovered
the powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask you dealer for details.
PremiumCare –Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare –Covers 113 components, and includes many high-tech
items.
BaseCare –Covers 84 components.
PowertrainCare –Covers 29 critical components.
Ford ESP is honored by all Ford, Lincoln and Mercury Dealers in
the U.S. and CanadaIt’s the only extended service plan authorized and
backed by Ford Motor Company. That means you get:
•Reliable, quality service anywhere you go.
•Factory-trained technicians.
•Genuine Ford and Motorcraft
Parts.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs,you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
Ford Extended Service Plan
377
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford ESP Service Contract. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Avoid the rising cost of properly maintaining your vehicle!
Ford ESP also offers a Premium Maintenance Plan that covers items that
routinely wear out,like brakes and shocks.
The coverage is prepaid, so you never have to worry about affording
your vehicle maintenance. It covers regular checkups, routine
inspections, preventive care and replacement of items that require
periodic attention fornormal “wear”:
•Wiper blades•Brake pads and linings
•Spark plugs (except
California)•Shock absorbers
•Clutch disc•Belts and hoses
Contact your selling Ford, Lincoln, or Mercury dealership today so they
can customize a Ford Extended Service Plan that fits your driving
lifestyle and budget.
Ford Extended Service Plan
378
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

Ford Extended Service Plan
379
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

A
ABS (see Brakes) .....................261
Accessory delay ........................105
AdvanceTrac ..............................263
Air cleaner filter .......364–365, 367
Air suspension ...........................269
description ..............................269
Airbag supplemental restraint
system ........................186, 190, 192
and child safety seats ............188
description ..............186, 190, 192
disposal ....................................196
driver airbag ............188, 191, 193
indicator light .................190, 195
operation .................188, 191, 193
passenger airbag .....188, 191, 193
side airbag ...............................190
Antifreeze
(see Engine coolant) ................345
Anti-lock brake system
(see Brakes) ..............................261
Anti-theft system ..............144, 151
arming the system ..................151
disarming a triggered
system .....................................153
Audio system (see Radio) .........30
Automatic transmission
driving an automatic
overdrive .................................272
fluid, adding ............................364
fluid, checking ........................364
fluid, refill capacities ..............368
fluid, specification ..................368
Auxiliary input jack (Line in) ....36
Auxiliary power point ...............103
Axle
lubricant specifications ..........368refill capacities ........................368
B
Battery .......................................343
acid, treating emergencies .....343
jumping a disabled battery ....313
maintenance-free ....................343
replacement, specifications ...367
servicing ..................................343
Belt-Minder
.............................182
Booster seats .............................211
Brakes ........................................260
anti-lock ...................................261
anti-lock brake system (ABS)
warning light ...........................261
fluid, checking and adding ....364
fluid, refill capacities ..............368
fluid, specifications .................368
lubricant specifications ..........368
parking ....................................262
shift interlock ..........................271
Bulbs ............................................92
C
Capacities for refilling fluids ....368
Car2U garage door opener .......119
Cargo cover ...............................129
Cargo management system ......129
Cell phone use ..............................8
Changing a tire .........................303
Child safety seats ......................200
in front seat ............................201
in rear seat ..............................201
LATCH .....................................204
recommendations ...................198
