Power steering fluid LINCOLN NAVIGATOR 2010 Owners Manual

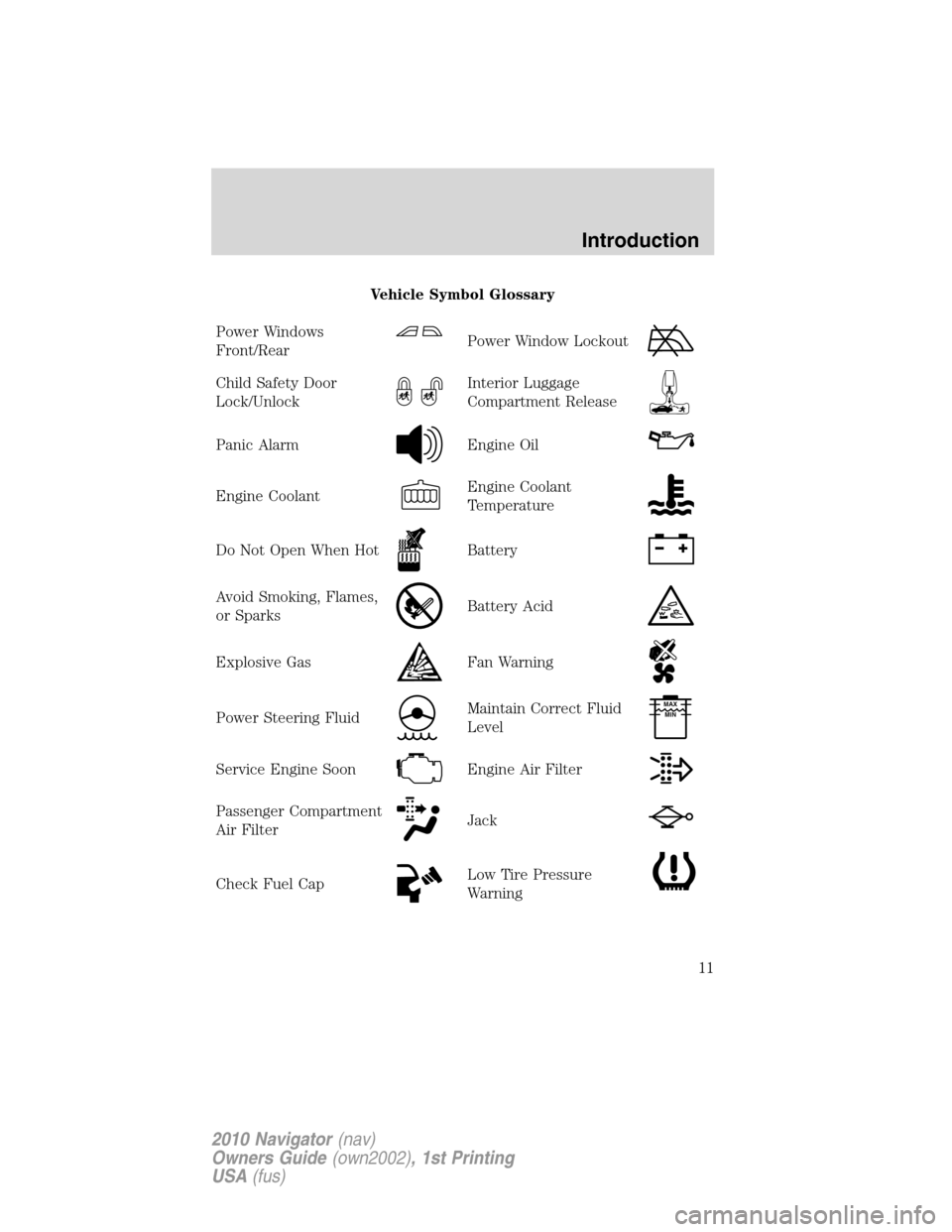

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
11
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

During trailer sway control events the “sliding car”icon in the
instrument cluster will flash momentarily. The cluster message center
will also displayTRAILER SWAY REDUCE SPEED. In some cases
when trailer sway is detected, the vehicle speed is too high and may be
above a speed at which trailer sway will not grow continuously. This may
cause the system to activate multiple times, causing a gradual reduction
in speed.
Note:The trailer sway control will only activate at speeds greater than
40 mph (64 km/h).
Disabling Trailer Sway Control
Trailer sway control can be disabled during any key cycle. SeeMessage
centerin theInstrument Clusterchapter. Note that regardless of
chosen enable state, trailer sway control will be re-enabled at each new
key cycle.
WARNING:Turning off trailer sway control increases the risk of
loss of vehicle control, serious injury, or death. Ford does not
recommend disabling this feature except in situations where speed
reduction may be detrimental (e.g., hill climbing), the driver has
significant trailer towing experience, and can control trailer sway and
maintain safe operation.
STEERING
Your vehicle is equipped with power steering. Power steering uses energy
from the engine to decrease the driver’s effort in steering the vehicle.
To help prevent damage to the power steering pump:
•Never hold the steering wheel to the extreme right or the extreme left
for more than a few seconds when the engine is running.
•Do not operate the vehicle with the power steering pump fluid level
below the MIN mark on the reservoir.
•Some noise is normal during operation. If the noise is excessive, check
for low power steering pump fluid level before seeking service by your
authorized dealer.
•Heavy or uneven steering efforts may be caused by low power steering
pump fluid level. Check for low power steering pump fluid level before
seeking service by your authorized dealer.
•Do not fill the power steering pump reservoir above the MAX mark on
the reservoir, as this may result in leaks from the reservoir.
Driving
268
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

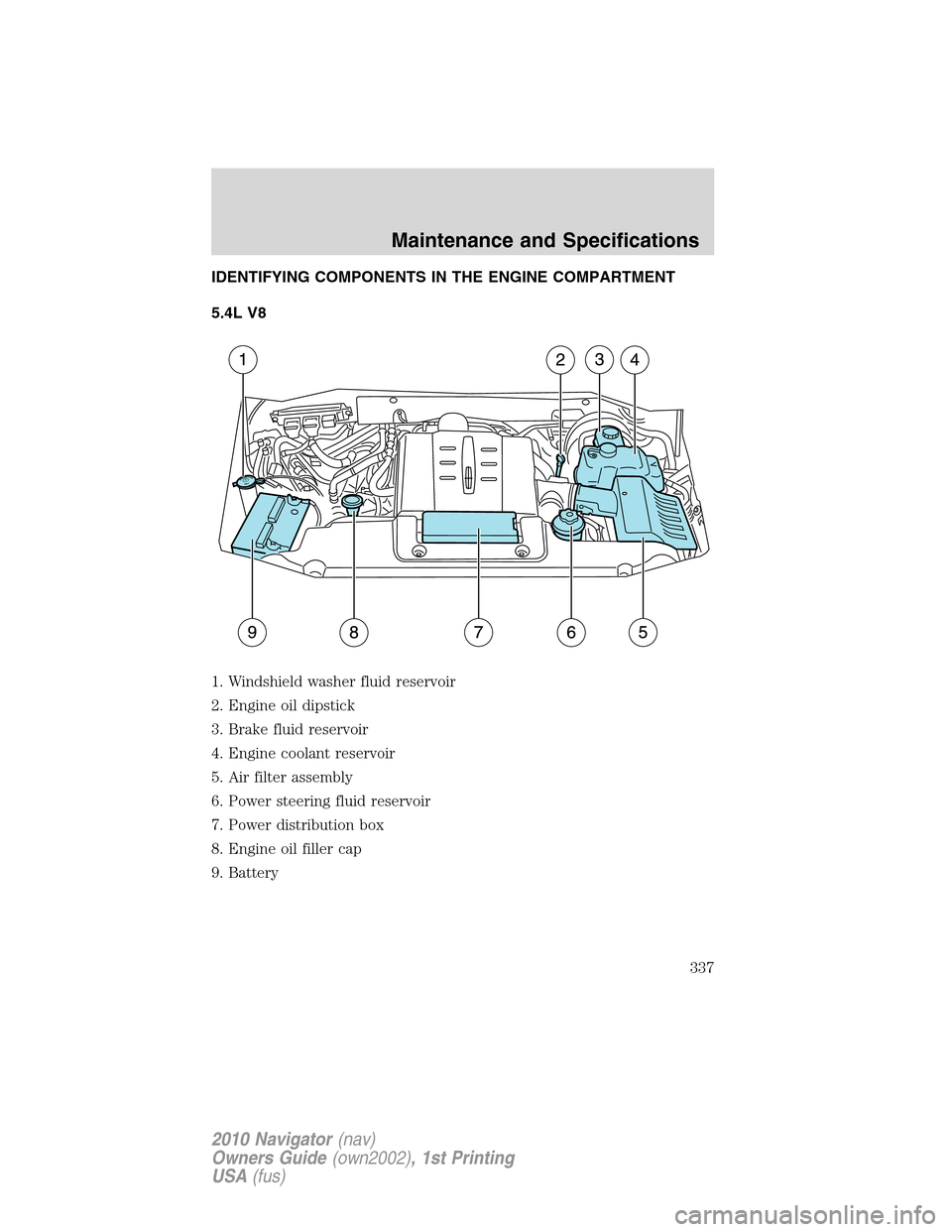

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
5.4L V8
1. Windshield washer fluid reservoir
2. Engine oil dipstick
3. Brake fluid reservoir
4. Engine coolant reservoir
5. Air filter assembly
6. Power steering fluid reservoir
7. Power distribution box
8. Engine oil filler cap
9. Battery
Maintenance and Specifications
337
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

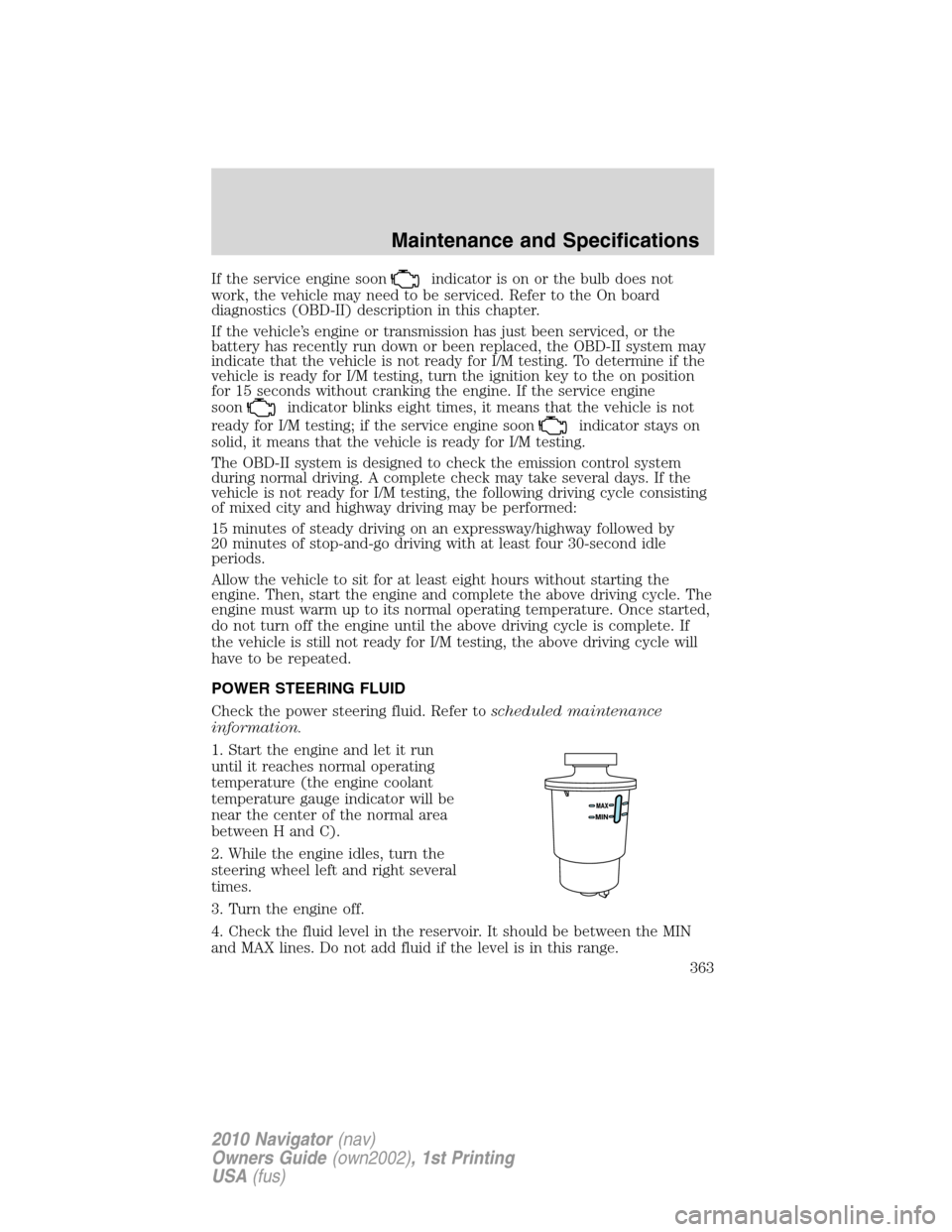

If the service engine soonindicator is on or the bulb does not
work, the vehicle may need to be serviced. Refer to the On board
diagnostics (OBD-II) description in this chapter.
If the vehicle’s engine or transmission has just been serviced, or the
battery has recently run down or been replaced, the OBD-II system may
indicate that the vehicle is not ready for I/M testing. To determine if the
vehicle is ready for I/M testing, turn the ignition key to the on position
for 15 seconds without cranking the engine. If the service engine
soon
indicator blinks eight times, it means that the vehicle is not
ready for I/M testing; if the service engine soon
indicator stays on
solid, it means that the vehicle is ready for I/M testing.
The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cycle consisting
of mixed city and highway driving may be performed:
15 minutes of steady driving on an expressway/highway followed by
20 minutes of stop-and-go driving with at least four 30-second idle
periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
POWER STEERING FLUID
Check the power steering fluid. Refer toscheduled maintenance
information.
1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir. It should be between the MIN
and MAX lines. Do not add fluid if the level is in this range.
Maintenance and Specifications
363
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

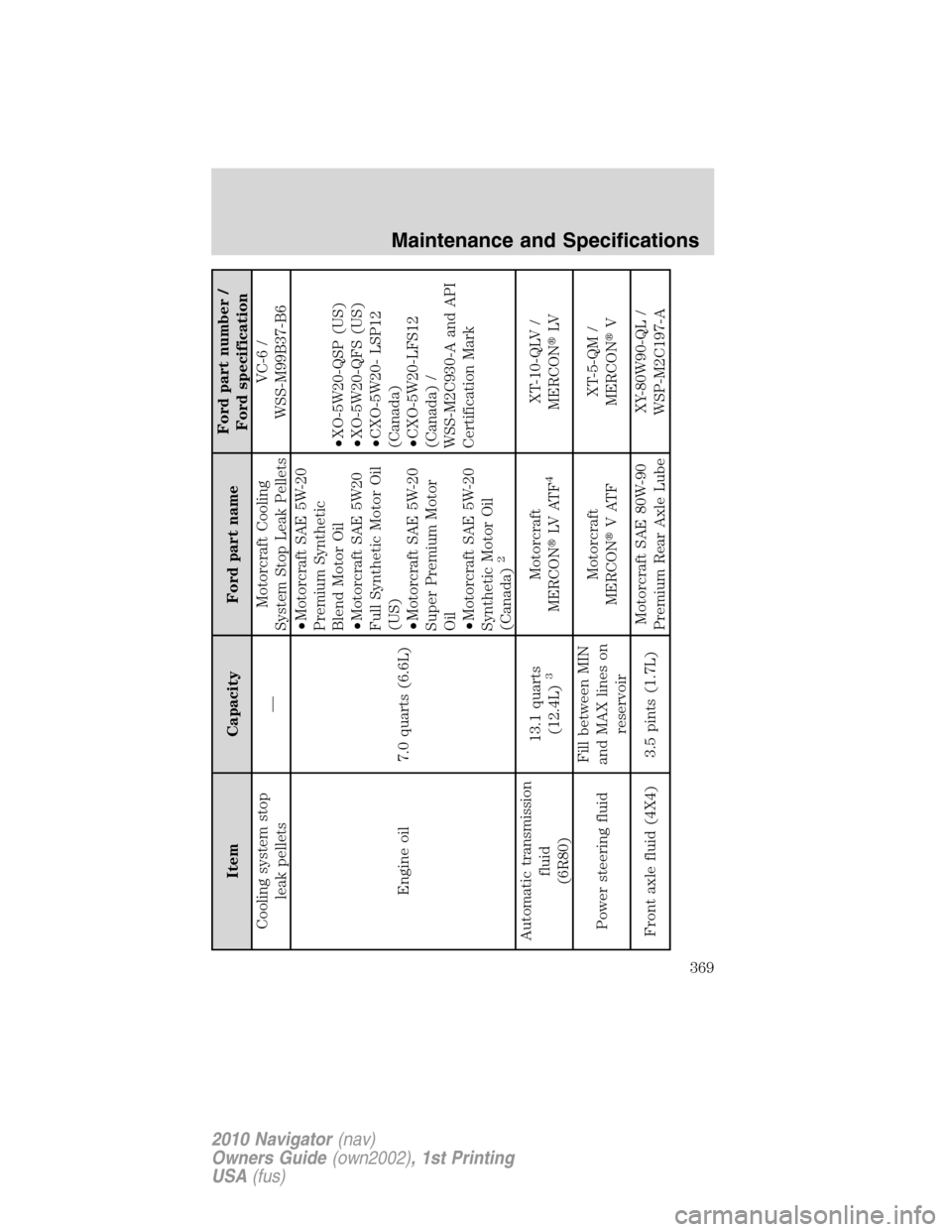

Item Capacity Ford part nameFord part number /
Ford specification
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Engine oil 7.0 quarts (6.6L)•Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil
•Motorcraft SAE 5W20
Full Synthetic Motor Oil
(US)
•Motorcraft SAE 5W-20
Super Premium Motor
Oil
•Motorcraft SAE 5W-20
Synthetic Motor Oil
(Canada)
2
•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20- LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C930-A and API
Certification Mark
Automatic transmission
fluid
(6R80)13.1 quarts
(12.4L)
3
Motorcraft
MERCON
LV AT F
4
XT-10-QLV /
MERCON
LV
Power steering fluidFill between MIN
and MAX lines on
reservoirMotorcraft
MERCON
VATFXT-5-QM /
MERCON
V
Front axle fluid (4X4) 3.5 pints (1.7L)Motorcraft SAE 80W-90
Premium Rear Axle LubeXY-80W90-QL /
WSP-M2C197-A
Maintenance and Specifications
369
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

Child safety seats - booster
seats ...........................................211
Cleaning your vehicle
engine compartment ..............330
instrument panel ....................332
interior .............................332–333
plastic parts ............................331
washing ....................................328
waxing .....................................329
wheels ......................................329
wiper blades ............................331
Clock ..........................................103
Compass, electronic
set zone adjustment .................25
Console ......................................102
overhead ..........................101–102
Controls
power seat ...............................157
steering column ......................112
Coolant
checking and adding ..............345
refill capacities ................348, 368
specifications ..........................368
Cruise control
(see Speed control) ..................110
Customer Assistance ................292
Ford Extended Service Plan...377
Getting assistance outside the
U.S. and Canada .....................325
Getting roadside assistance ...292
Getting the service you
need .........................................321
Ordering additional owner’s
literature .................................326
Utilizing the
Mediation/Arbitration
Program ...................................325D
Daytime running lamps
(see Lamps) ................................87
Dipstick
automatic transmission fluid...364
engine oil .................................340
Driving under special
conditions ..................275, 285, 288
sand .........................................286
snow and ice ...........................289
through water .................287, 291
DVD system .................................47
E
Electronic message center .........19
Emergencies, roadside
jump-starting ..........................313
running out of fuel .........312, 356
Emission control system ..........360
Engine ................................371–372
cleaning ...................................330
coolant .....................................345
fail-safe cooling .......................349
idle speed control ...................343
lubrication specifications .......368
refill capacities ........................368
service points ..........................337
starting after a collision .........294
Engine block heater .................258
Engine oil ..................................340
change oil soon warning,
message center .......................340
checking and adding ..............340
dipstick ....................................340
filter, specifications ........342, 367
recommendations ...................342
refill capacities ........................368
specifications ..........................368
Index
381
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

Power deployable running
boards ........................................109
Power distribution box
(see Fuses) .......................296, 299
Power door locks ......................133
Power liftgate ............................125
Power mirrors ...........................107
Power point ...............................103
Power steering ..................268–269
fluid, checking and adding ....363
fluid, refill capacity ................368
fluid, specifications .................368
Power Windows .........................104
Preparing to drive your
vehicle ........................................270
R
Radio ............................................30
Rear heated seats .....................169
Rear seat entertainment
system ..........................................47
Rear-view camera system .........279
Recommendations for
attaching safety restraints for
children ......................................198
Relays ........................................295
Remote entry system .......137–138
illuminated entry ....................142
locking/unlocking
doors ................................138–139
opening the trunk ...................139
panic alarm .............................140
replacement/additional
transmitters .............................141
replacing the batteries ...........141
Reverse sensing system ...........276Roadside assistance ..................292
Roll stability control .................263
S
Safety Belt Maintenance ..........214
Safety belts (see Safety
restraints) ..........173, 175, 177–180
Safety Canopy ...................190, 192
Safety defects, reporting ..........327
Safety
restraints ...........173, 175, 177–180
Belt-Minder
...........................182
extension assembly ................181
for adults .........................177–179
for children .............................196
safety belt maintenance .........214
warning light and chime ........182
Safety restraints - LATCH
anchors ......................................204
Safety seats for children ..........200
Safety Compliance
Certification Label ....................372
Satellite Radio Information ........44
Seats ..........................................154
child safety seats ....................200
climate control ........................161
heated ......................................169
memory seat ...................140, 159
SecuriCode keyless entry
system ........................................142
SecuriLock passive anti-theft
system ........................................144
Servicing your vehicle ..............335
Snowplowing .................................6
SOS Post Crash Alert ...............195
Index
384
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

Spark plugs,
specifications .............367, 371–372
Special notice
utility-type vehicles ....................6
Specification chart,
lubricants ...................................368
Speed control ............................110
Stability system .........................263
Starting a flex fuel vehicle .......257
Starting your vehicle ........254–257
jump starting ..........................313
Steering wheel
controls ....................................112
tilting .........................................99
SYNC
..........................................78
T
Third-row power fold seat .......172
Tire Pressure Monitoring
System (TPMS)
Driving .....................................286
Tires, Wheels and Loading ....232
Warning Displays ................12, 26
Tires ...........................217–219, 303
alignment ................................226
care ..........................................222
changing ..........................303, 307
checking the pressure ............222
inflating ...................................220
label .........................................231
replacing ..................................223
rotating ....................................226
safety practices .......................225
sidewall information ...............227
snow tires and chains ............237
spare tire .................................303
terminology .............................219
tire grades ...............................218treadwear ........................218, 222
Towing .......................................244
recreational towing .................253
trailer towing ..........................244
wrecker ....................................319
Transmission .............................272
brake-shift interlock (BSI) ....271
fluid, checking and adding
(automatic) .............................364
fluid, refill capacities ..............368
lubricant specifications ..........368
Turn signal ..................................90
U
Universal garage door
opener ........................................114
USB port ......................................38
V
Vehicle Identification Number
(VIN) ..........................................373
Vehicle loading ..........................237
Ventilating your vehicle ...........258
W
Warning lights (see Lights) .......12
Washer fluid ..............................338
Water, Driving through .............291
Windows
power .......................................104
rear wiper/washer .....................99
Windshield washer fluid and
wipers ..........................................97
checking and adding fluid .....338
liftgate reservoir .....................338
replacing wiper blades ...........339
Wrecker towing .........................319
Index
385
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)
