Page 2 of 385
Locks and Security 132
Keys 132
Locks 133
Anti-theft system 144
Seating and Safety Restraints 154
Seating 154
Safety restraints 173
Airbags 186
Child restraints 196
Tires, Wheels and Loading 215
Tire information 217
Tire inflation 220
Tire Pressure Monitoring System (TPMS) 232
Vehicle loading 237
Trailer towing 244
Recreational towing 253
Driving 254
Starting 254
Brakes 260
AdvanceTrac263
Air suspension 269
Transmission operation 272
Forward and reverse sensing system 276
Rear-view camera system 279
Roadside Emergencies 292
Getting roadside assistance 292
Hazard flasher control 293
Fuel pump shut-off switch 294
Fuses and relays 295
Changing tires 303
Wheel lug nut torque 311
Jump starting 313
Wrecker towing 319
Table of Contents
2
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 245 of 385
•Thoroughly prepare your vehicle for towing. Refer toPreparing to
towin this chapter.
•Use extra caution when driving while trailer towing. Refer toDriving
while you towin this chapter.
•Service your vehicle more frequently if you tow a trailer. Refer to the
severe duty schedule in the scheduled maintenance guide.
•Do not tow a trailer until your vehicle has been driven at least
500 miles (800 km). Additionally, during the first 500 miles (800 km)
that you tow a trailer, do not drive over 70 mph (113 km/h) and do
not make starts at full throttle.
•Refer to the instructions included with towing accessories for the
proper installation and adjustment specifications.
Trailer towing (standard equipment):
Your vehicle is equipped with a integrated trailer hitch and a Class I
(4-pin) trailer electrical connector. The 4-pin connector supplies power
to tail lamps, stop lamps, and turn lamps. See the trailer towing chart for
the trailer towing weight recommendation.
Trailer towing (optionally equipped trailer tow package):
The optional trailer tow package includes heavy duty trailer tow wiring.
Both a Class I (4-pin) and IV (7-pin) trailer electrical connector are
provided. Under the instrument panel a electrical connector is provided
for a customer supplied aftermarket electronic brake controller. For
installing a customer supplied electronic brake controller, a electrical
jumper harness and trailer tow electrical instructions are included with
the optional trailer tow package.
The kit containing a electrical jumper and trailer tow electrical
instructions may be purchased from any authorized dealer (Part number
4L1Z-14A348-AA)
Note:Before towing a trailer, make sure the trailer brakes (if equipped)
and lamps are properly connected and functional. Electronic trailer
brakes (if equipped) refer to the instructions provided by the
aftermarket electronic brake controller manufacture for determining
trailer brake functionality.
Tires, Wheels and Loading
245
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 292 of 385

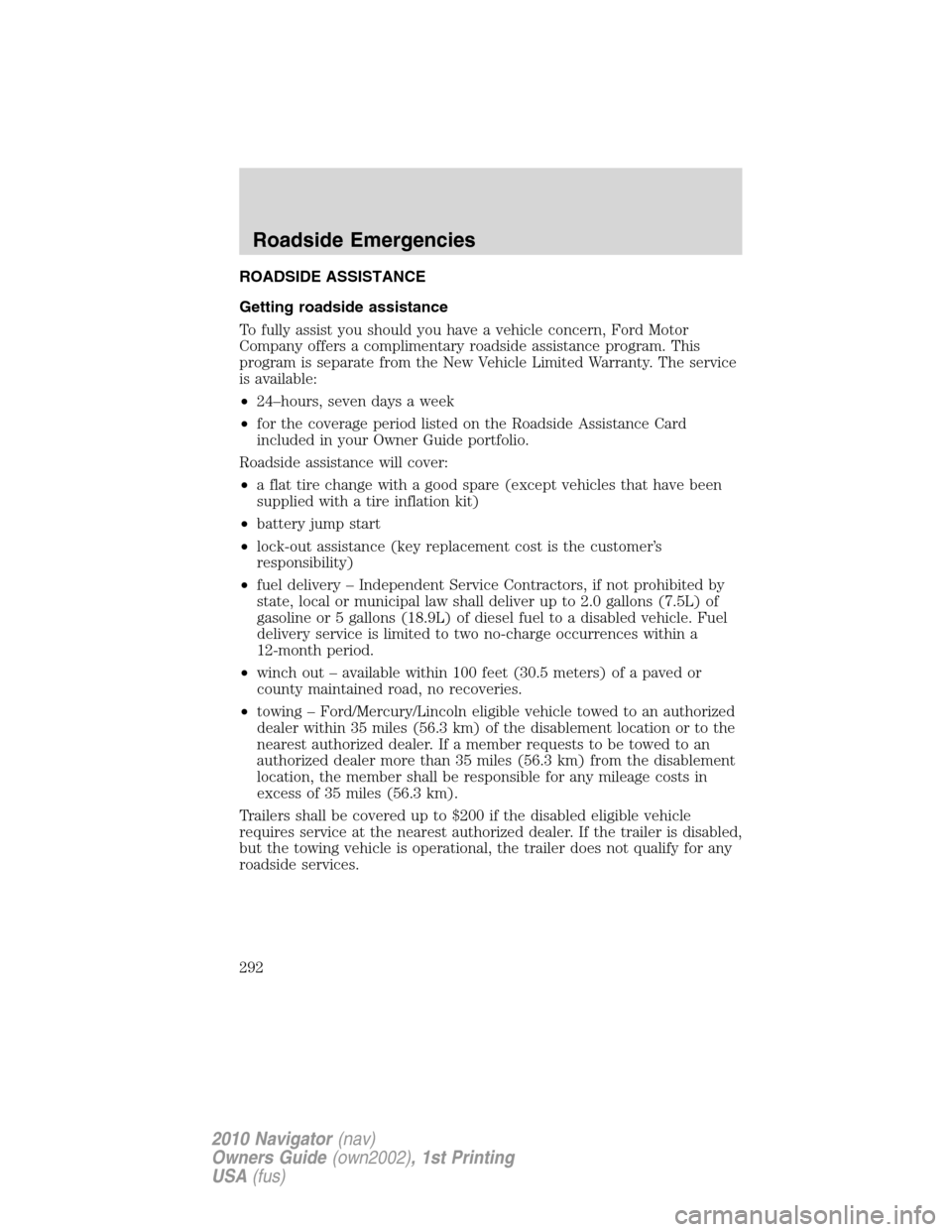

ROADSIDE ASSISTANCE
Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24–hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford/Mercury/Lincoln eligible vehicle towed to an authorized
dealer within 35 miles (56.3 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56.3 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56.3 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
Roadside Emergencies
292
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 313 of 385
JUMP STARTING
WARNING:The gases around the battery can explode if
exposed to flames, sparks, or lit cigarettes. An explosion could
result in injury or vehicle damage.
WARNING:Batteries contain sulfuric acid which can burn skin,
eyes and clothing, if contacted.
Do not attempt to push-start your automatic transmission
vehicle. Automatic transmissions do not have push-start
capability. Attempting to push-start a vehicle with an automatic
transmission may cause transmission damage.
Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
automatic transmission must relearn its shift strategy. As a result, the
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect from any electrical
surges. Turn all other accessories off.
Roadside Emergencies
313
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 315 of 385
4. Make the final connection of the negative (-) cable to the jump
starting stud located in the engine compartment, near the washer fluid
bottle.
Note:Do not attach the negative (-) cable to fuel lines, engine rocker
covers, the intake manifold or electrical components asgrounding
points.
WARNING:Do not connect the end of the second cable to the
negative (-) terminal of the battery to be jumped. A spark may
cause an explosion of the gases that surround the battery.
5. Ensure that the cables are clear of fan blades, belts, moving parts of
both engines, or any fuel delivery system parts.
+–+–
Roadside Emergencies
315
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 316 of 385
Jump starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
2. Start the engine of the disabled vehicle.
3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
Removing the jumper cables
Remove the jumper cables in the reverse order that they were
connected.
1. Remove the jumper cable from the jump starting stud.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
+–+–
Roadside Emergencies
316
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 318 of 385
4. Remove the jumper cable from the positive (+) terminal of the
disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearnits idle conditions.
+–+–
Roadside Emergencies
318
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 377 of 385
FORD ESP EXTENDED SERVICE PLANS
More than 30 million Ford, Lincoln, and Mercury owners have discovered
the powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask you dealer for details.
PremiumCare –Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare –Covers 113 components, and includes many high-tech
items.
BaseCare –Covers 84 components.
PowertrainCare –Covers 29 critical components.
Ford ESP is honored by all Ford, Lincoln and Mercury Dealers in
the U.S. and CanadaIt’s the only extended service plan authorized and
backed by Ford Motor Company. That means you get:
•Reliable, quality service anywhere you go.
•Factory-trained technicians.
•Genuine Ford and MotorcraftParts.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs,you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
Ford Extended Service Plan
377
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 381 of 385
Child safety seats - booster
seats ...........................................211
Cleaning your vehicle
engine compartment ..............330
instrument panel ....................332
interior .............................332–333
plastic parts ............................331
washing ....................................328
waxing .....................................329
wheels ......................................329
wiper blades ............................331
Clock ..........................................103
Compass, electronic
set zone adjustment .................25
Console ......................................102
overhead ..........................101–102
Controls
power seat ...............................157
steering column ......................112
Coolant
checking and adding ..............345
refill capacities ................348, 368
specifications ..........................368
Cruise control
(see Speed control) ..................110
Customer Assistance ................292
Ford Extended Service Plan...377
Getting assistance outside the
U.S. and Canada .....................325
Getting roadside assistance ...292
Getting the service you
need .........................................321
Ordering additional owner’s
literature .................................326
Utilizing the
Mediation/Arbitration
Program ...................................325D
Daytime running lamps
(see Lamps) ................................87
Dipstick
automatic transmission fluid...364
engine oil .................................340
Driving under special
conditions ..................275, 285, 288
sand .........................................286
snow and ice ...........................289
through water .................287, 291
DVD system .................................47
E
Electronic message center .........19
Emergencies, roadside
jump-starting ..........................313
running out of fuel .........312, 356
Emission control system ..........360
Engine ................................371–372
cleaning ...................................330
coolant .....................................345
fail-safe cooling .......................349
idle speed control ...................343
lubrication specifications .......368
refill capacities ........................368
service points ..........................337
starting after a collision .........294
Engine block heater .................258
Engine oil ..................................340
change oil soon warning,
message center .......................340
checking and adding ..............340
dipstick ....................................340
filter, specifications ........342, 367
recommendations ...................342
refill capacities ........................368
specifications ..........................368
Index
381
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 383 of 385
J
Jack ............................................303
positioning ...............................303
storage .....................................303
Jump-starting your vehicle ......313
K
Keyless entry system
autolock ...................................133
keypad .....................................143
locking and unlocking
doors ........................................144
programming entry code .......143
Keys ...................................132, 146
positions of the ignition .........254
L
Lamps
autolamp system .......................86
bulb replacement
specifications chart ..................92
daytime running light ...............87
fog lamps ...................................87
headlamps .................................86
headlamps, flash to pass ..........87
interior lamps .....................90, 93
replacing bulbs .........................96
LATCH anchors .........................204
Liftgate ..............................125, 139
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........261
Load limits .................................237
Loading instructions .................244
Locks
autolock ...................................133
childproof ................................137
doors ........................................133Lubricant specifications ...........368
Lug nuts ....................................311
Lumbar support, seats .............157
M
Message center ...........................19
english/metric button ...............25
system check button ................25
warning messages .....................26
Mirrors ...............................106–107
automatic dimming rearview
mirror ......................................106
fold away .................................107
heated ......................................108
programmable memory ..........140
signal .......................................108
Moon roof ..................................113
Motorcraft parts ................334, 367
MyKey ........................................148
N
Navigation system .......................78
O
Octane rating ............................355
Oil (see Engine oil) ..................340
P
Parental MyKey programming..148
Parking brake ............................262
Parts (see Motorcraft parts) ....367
Pedals (see Power adjustable
foot pedals) ...............................108
Power adjustable foot pedals ...108
Index
383
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)
