LINCOLN NAVIGATOR 2011 Rear Seat Entertainment System Supplement Manual
Manufacturer: LINCOLN, Model Year: 2011, Model line: NAVIGATOR, Model: LINCOLN NAVIGATOR 2011Pages: 32, PDF Size: 3.87 MB
Page 11 of 32

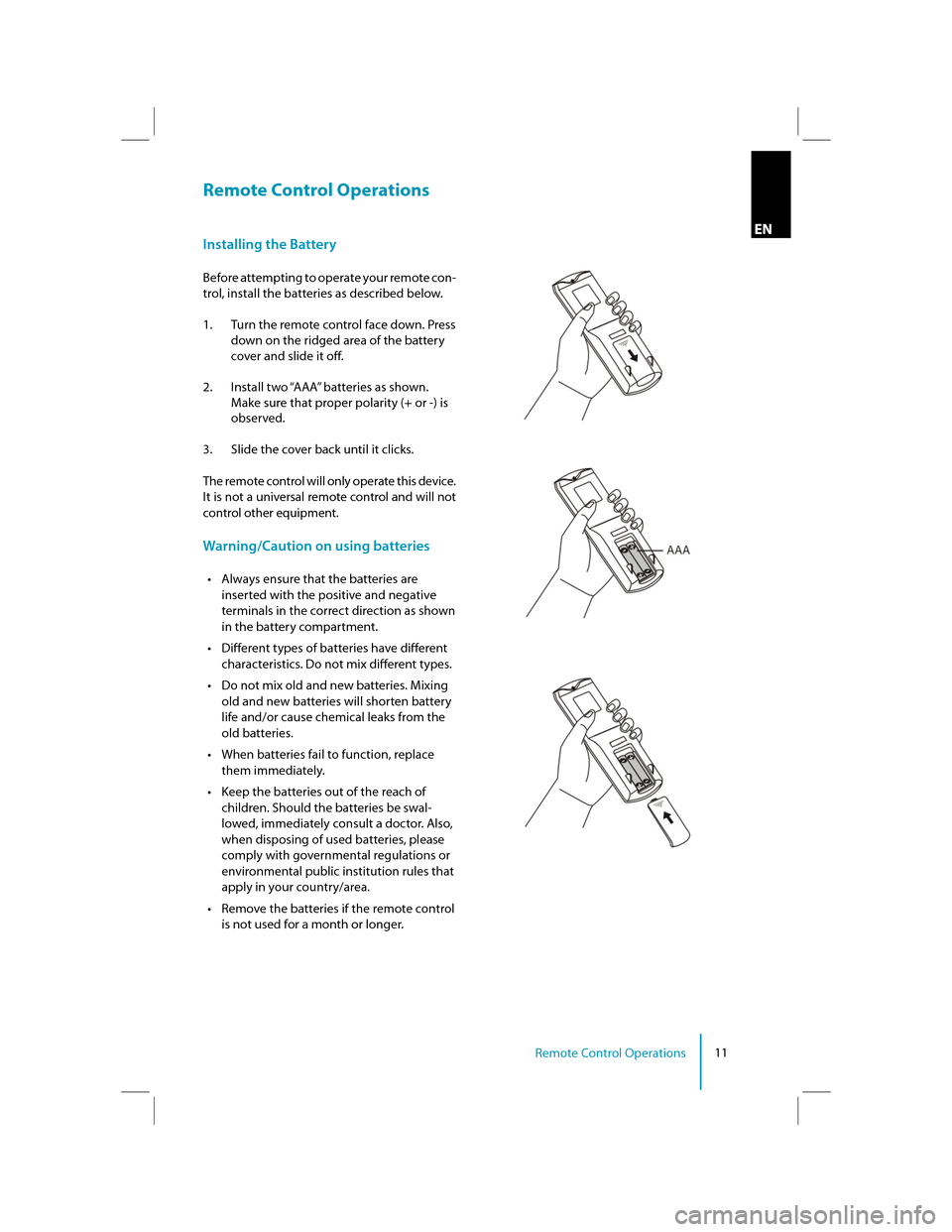

11Remote Control Operations
EN
Remote Control Operations
Installing the Battery
Before attempting to operate your remote con-
trol, install the batteries as described below.
1. Turn the remote control face down. Press down on the ridged area of the battery
cover and slide it of.
2. Install two “AAA” batteries as shown. Make sure that proper polarity (+ or -) is
observed.
3. Slide the cover back until it clicks.
The remote control will only operate this device.
It is not a universal remote control and will not
control other equipment.
Warning/Caution on using batteries
t Always ensure that the batteries are
inserted with the positive and negative
terminals in the correct direction as shown
in the battery compartment.
t Diferent types of batteries have diferent
characteristics. Do not mix diferent types.
t Do not mix old and new batteries. Mixing
old and new batteries will shorten battery
life and/or cause chemical leaks from the
old batteries.
t When batteries fail to function, replace
them immediately.
t Keep the batteries out of the reach of
children. Should the batteries be swal-
lowed, immediately consult a doctor. Also,
when disposing of used batteries, please
comply with governmental regulations or
environmental public institution rules that
apply in your country/area.
t Remove the batteries if the remote control
is not used for a month or longer.
Page 12 of 32

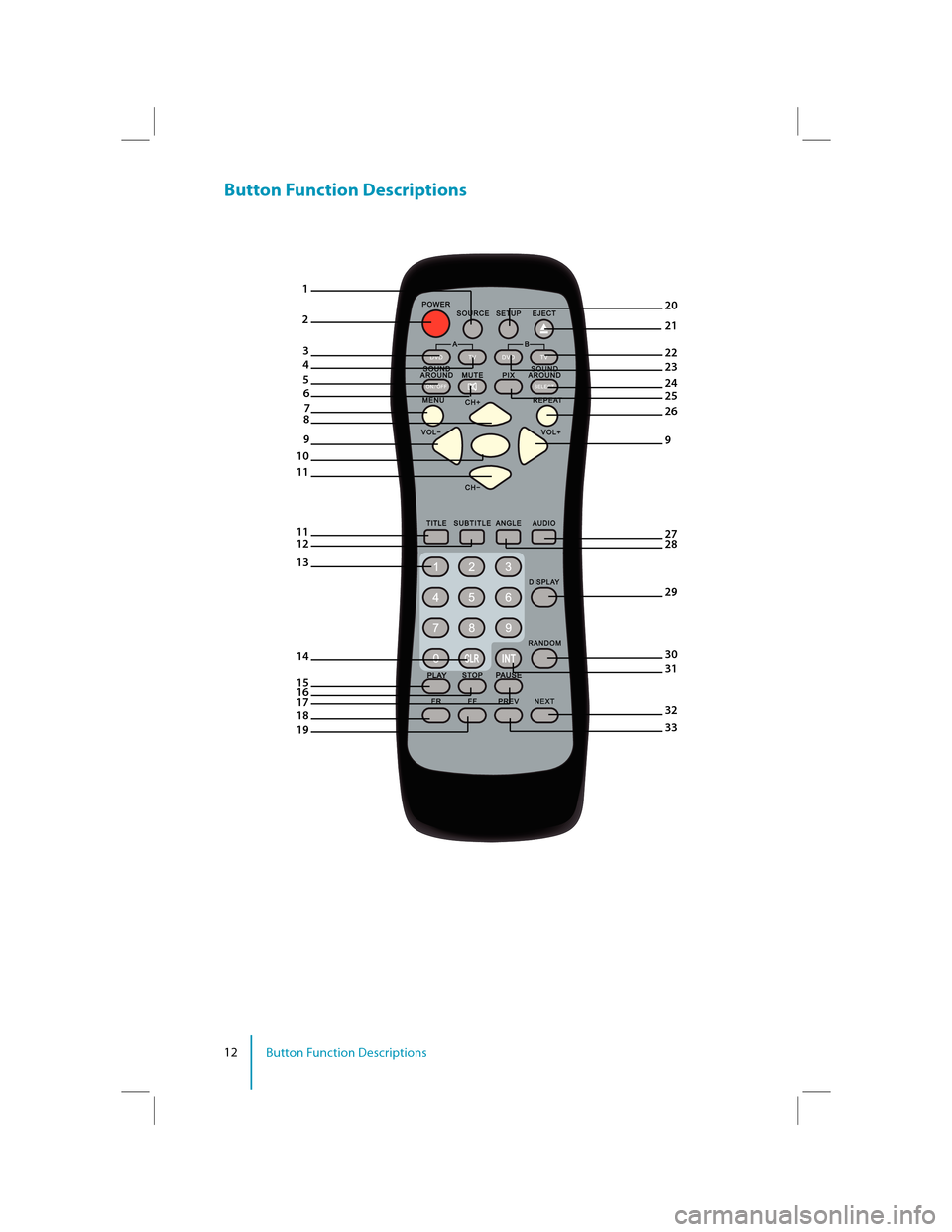

12Button Function Descriptions
Button Function Descriptions
PLAYPAUSECLRINT
1 2
3 4 5 6
7
8 9
10
11
11
12
13
14
15
16
17
18
19 20
21
22
23
24
25
26 9
27
28
29
30
31
32
33
Page 13 of 32

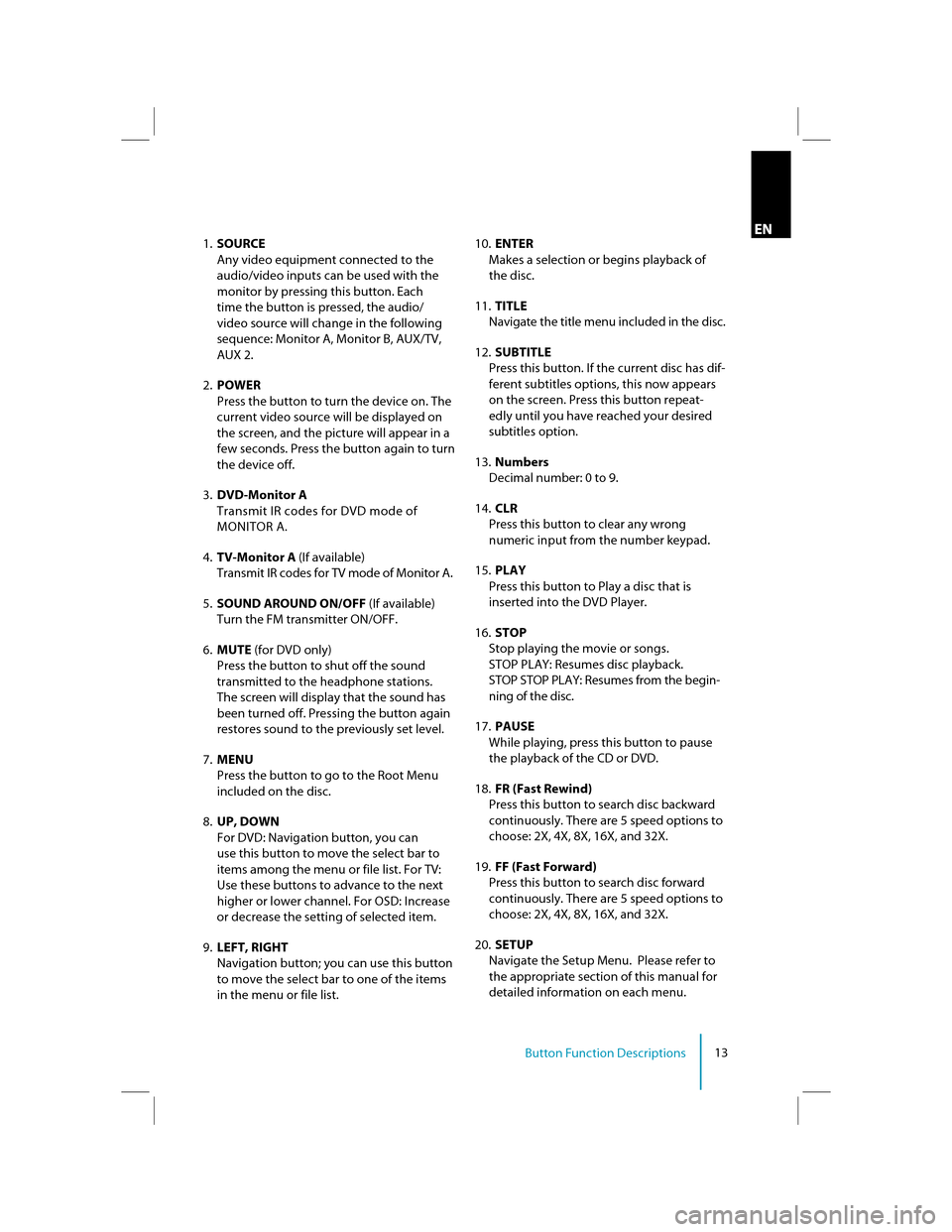

13Button Function Descriptions
EN1. SOURCE
Any video equipment connected to the
audio/video inputs can be used with the
monitor by pressing this button. Each
time the button is pressed, the audio/
video source will change in the following
sequence: Monitor A, Monitor B, AUX/TV,
AUX 2.
2. POWER
Press the button to turn the device on. The
current video source will be displayed on
the screen, and the picture will appear in a
few seconds. Press the button again to turn
the device off.
3. DVD-Monitor A
Transmit IR codes for DVD mode of
MONITOR A.
4. TV-Monitor A (If available)
Transmit IR codes for TV mode of Monitor A.
5. SOUND AROUND ON/OFF (If available)
Turn the FM transmitter ON/OFF.
6. MUTE (for DVD only)
Press the button to shut off the sound
transmitted to the headphone stations.
The screen will display that the sound has
been turned off. Pressing the button again
restores sound to the previously set level.
7. MENU
Press the button to go to the Root Menu
included on the disc.
8. UP, DOWN
For DVD: Navigation button, you can
use this button to move the select bar to
items among the menu or file list. For TV:
Use these buttons to advance to the next
higher or lower channel. For OSD: Increase
or decrease the setting of selected item.
9. LEFT, RIGHT
Navigation button; you can use this button
to move the select bar to one of the items
in the menu or file list. 10.
ENTER
Makes a selection or begins playback of
the disc.
11. TITLE
Navigate the title menu included in the disc.
12. SUBTITLE
Press this button. If the current disc has dif-
ferent subtitles options, this now appears
on the screen. Press this button repeat-
edly until you have reached your desired
subtitles option.
13. Numbers
Decimal number: 0 to 9.
14. CLR
Press this button to clear any wrong
numeric input from the number keypad.
15. PLAY
Press this button to Play a disc that is
inserted into the DVD Player.
16. STOP
Stop playing the movie or songs.
STOP PLAY: Resumes disc playback.
STOP STOP PLAY: Resumes from the begin-
ning of the disc.
17. PAUSE
While playing, press this button to pause
the playback of the CD or DVD.
18. FR (Fast Rewind)
Press this button to search disc backward
continuously. There are 5 speed options to
choose: 2X, 4X, 8X, 16X, and 32X.
19. FF (Fast Forward)
Press this button to search disc forward
continuously. There are 5 speed options to
choose: 2X, 4X, 8X, 16X, and 32X.
20. SETUP
Navigate the Setup Menu. Please refer to
the appropriate section of this manual for
detailed information on each menu.
Page 14 of 32
14Button Function Descriptions
21. EJECT
Eject the disc from the disc compartment
or load the disc into the disc compartment.
22. TV-Monitor B (If available)
Transmit IR codes for TV mode of Monitor B.
23. 24. DVD-Monitor B
Transmit IR codes for DVD mode of Monitor B.
24. SOUND AROUND SELECT (If available)
Select a FM transmitter channel.
25. PIX (Picture Selection)
Each time the button is pressed, the picture
adjustment OSD, cycles through bars for
BRIGHTNESS, CONTRAST, SATURATION,
HUE, SHARPNESS, IR HEADPHONE, and
RESET. Once the desired adjustment bar
is displayed, use the UP/DOWN button
to adjust the setting. The bar display will
automatically disappear, if no adjustments
are made within 6 seconds or if any button
is pressed.
26. REPEAT
Press this button to switch the repeat mode
by ALL, TITLE, CHAPTER and cancel the repeat
mode while playing DVD-video. Other disc
types such as VCD, CD, and SVCD that only
have two repeat modes that can be selected:
TRACK and ALL
Note: Both repeat functions of VCD and SVCD
need the PBC status set to ON when available.
27. AUDIO
Press this button if the current disc has
different language options.
Press this button repeatedly until you have
reached your desired language option.
28. ANGLE
View with a different camera angle (the
button takes effect only on the DVD that
supports frames with multiple angles).
Press this button repeatedly until you have
reached your desired viewing angle. 29.
DISPLAY
Show information on the screen including
title, chapter/track, time elapsed, and time
remaining, or turn off the display.
30. RANDOM
Play titles randomly.
31. INT (Intro/Scan)
Press this button to play each audio file for
10 seconds to scan/review the files. This
button acts as a toggle for this feature.
32. NEXT
When a disc has more than one Chapter,
Track, or File, you can move to another
Chapter/Track/File.
Press the button briefly during play to
select the next Chapter for DVD-video or
Track/File for VCD, SVCD, MP3, CD, etc.
33. PREV
When a disc has more than one Chapter,
Track, or File, you can move to another
Chapter/Track/File.
Press this button briefly during play to step
back to the previous Chapter for DVD-video
or Track/File for VCD, SVCD, MP3, CD, etc.
Note:
The remote control incorporates an infrared
sensor that relays signals from the remote
control to be controlled simply by pointing its
remote control at the remote sensor eye. This
provides control of auxiliary equipment such
as a video DVD player. The infrared sensor can-
not relay signals from any other manufacturer’s
remote control to its respective component
connected to the AUX input, such as a DVD
player. In this case, you must use the remote
control supplied with the device.

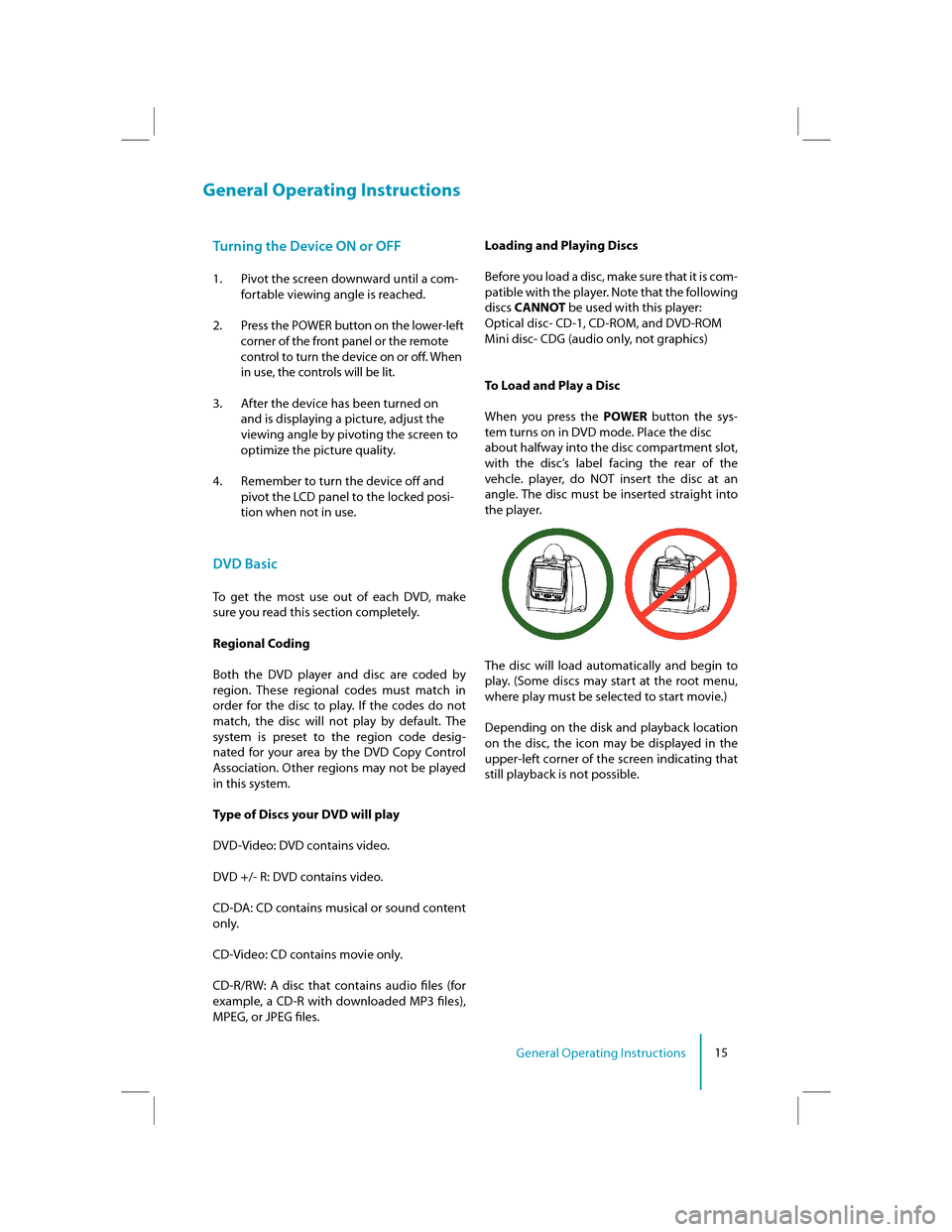

Page 15 of 32
15General Operating Instructions
General Operating Instructions
Turning the Device ON or OFF
1. Pivot the screen downward until a com-
fortable viewing angle is reached.
2. Press the POWER button on the lower-left corner of the front panel or the remote
control to turn the device on or of. When
in use, the controls will be lit.
3. After the device has been turned on and is displaying a picture, adjust the
viewing angle by pivoting the screen to
optimize the picture quality.
4. Remember to turn the device of and pivot the LCD panel to the locked posi-
tion when not in use.
DVD Basic
To get the most use out of each DVD, make
sure you read this section completely.
Regional Coding
Both the DVD player and disc are coded by
region. These regional codes must match in
order for the disc to play. If the codes do not
match, the disc will not play by default. The
system is preset to the region code desig-
nated for your area by the DVD Copy Control
Association. Other regions may not be played
in this system.
Type of Discs your DVD will play
DVD-Video: DVD contains video.
DVD +/- R: DVD contains video.
CD-DA: CD contains musical or sound content
only.
CD-Video: CD contains movie only.
CD-R/RW: A disc that contains audio fles (for
example, a CD-R with downloaded MP3 fles),
MPEG, or JPEG fles. Loading and Playing Discs
Before you load a disc, make sure that it is com-
patible with the player. Note that the following
discs
CANNOT be used with this player:
Optical disc- CD-1, CD-ROM, and DVD-ROM
Mini disc- CDG (audio only, not graphics)
To Load and Play a Disc
When you press the POWER button the sys-
tem turns on in DVD mode. Place the disc
about halfway into the disc compartment slot,
with the disc’s label facing the rear of the
vehcle. player, do NOT insert the disc at an
angle. The disc must be inserted straight into
the player.
The disc will load automatically and begin to
play. (Some discs may start at the root menu,
where play must be selected to start movie.)
Depending on the disk and playback location
on the disc, the icon may be displayed in the
upper-left corner of the screen indicating that
still playback is not possible.
Page 16 of 32
16General Operating Instructions

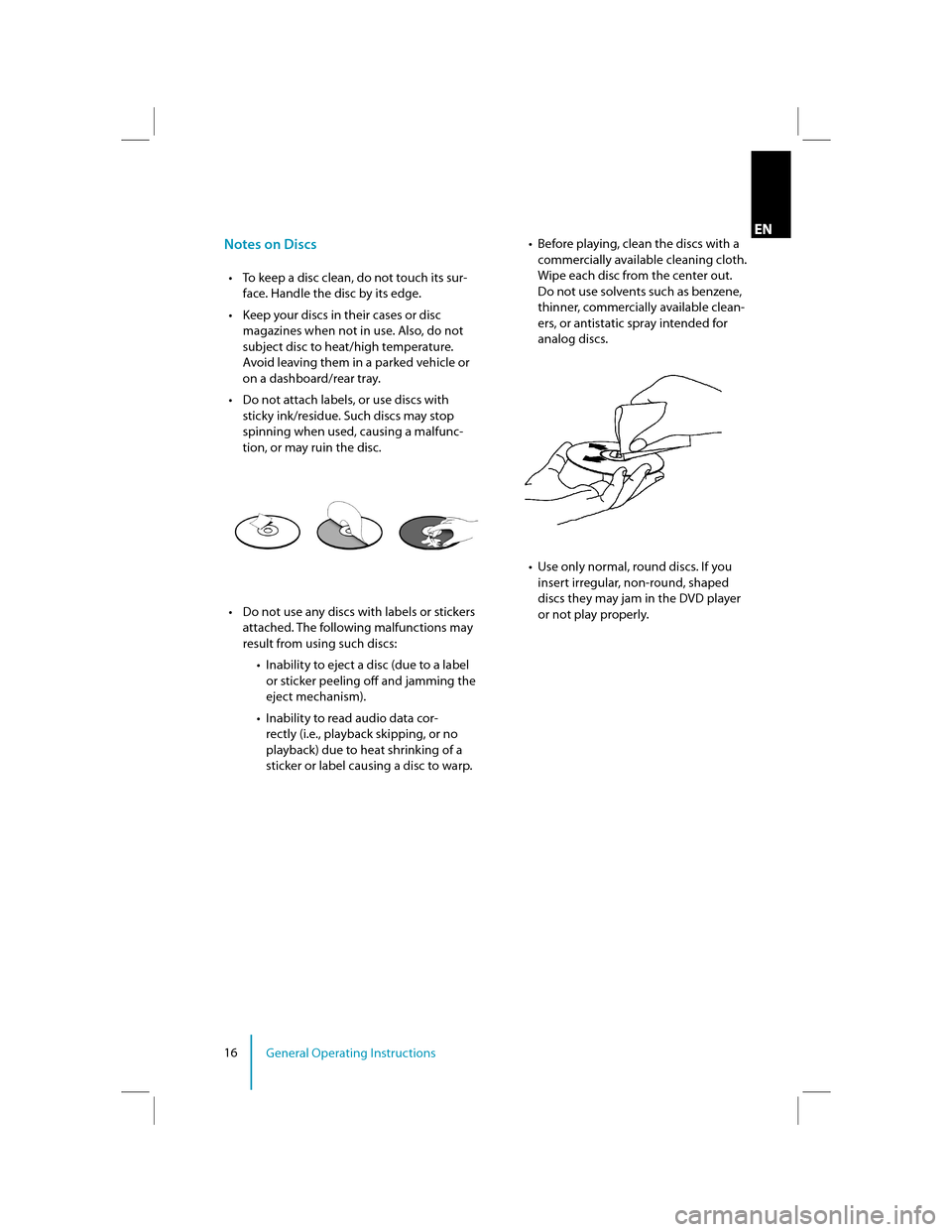

ENNotes on Discs
t To keep a disc clean, do not touch its sur-
face. Handle the disc by its edge.
t Keep your discs in their cases or disc
magazines when not in use. Also, do not
subject disc to heat/high temperature.
Avoid leaving them in a parked vehicle or
on a dashboard/rear tray.
t Do not attach labels, or use discs with
sticky ink/residue. Such discs may stop
spinning when used, causing a malfunc-
tion, or may ruin the disc.
t Do not use any discs with labels or stickers
attached. The following malfunctions may
result from using such discs:
t Inability to eject a disc (due to a label
or sticker peeling of and jamming the
eject mechanism).
t Inability to read audio data cor-
rectly (i.e., playback skipping, or no
playback) due to heat shrinking of a
sticker or label causing a disc to warp.
t
Before playing, clean the discs with a
commercially available cleaning cloth.
Wipe each disc from the center out.
Do not use solvents such as benzene,
thinner, commercially available clean-
ers, or antistatic spray intended for
analog discs.
t Use only normal, round discs. If you
insert irregular, non-round, shaped
discs they may jam in the DVD player
or not play properly.
Page 17 of 32

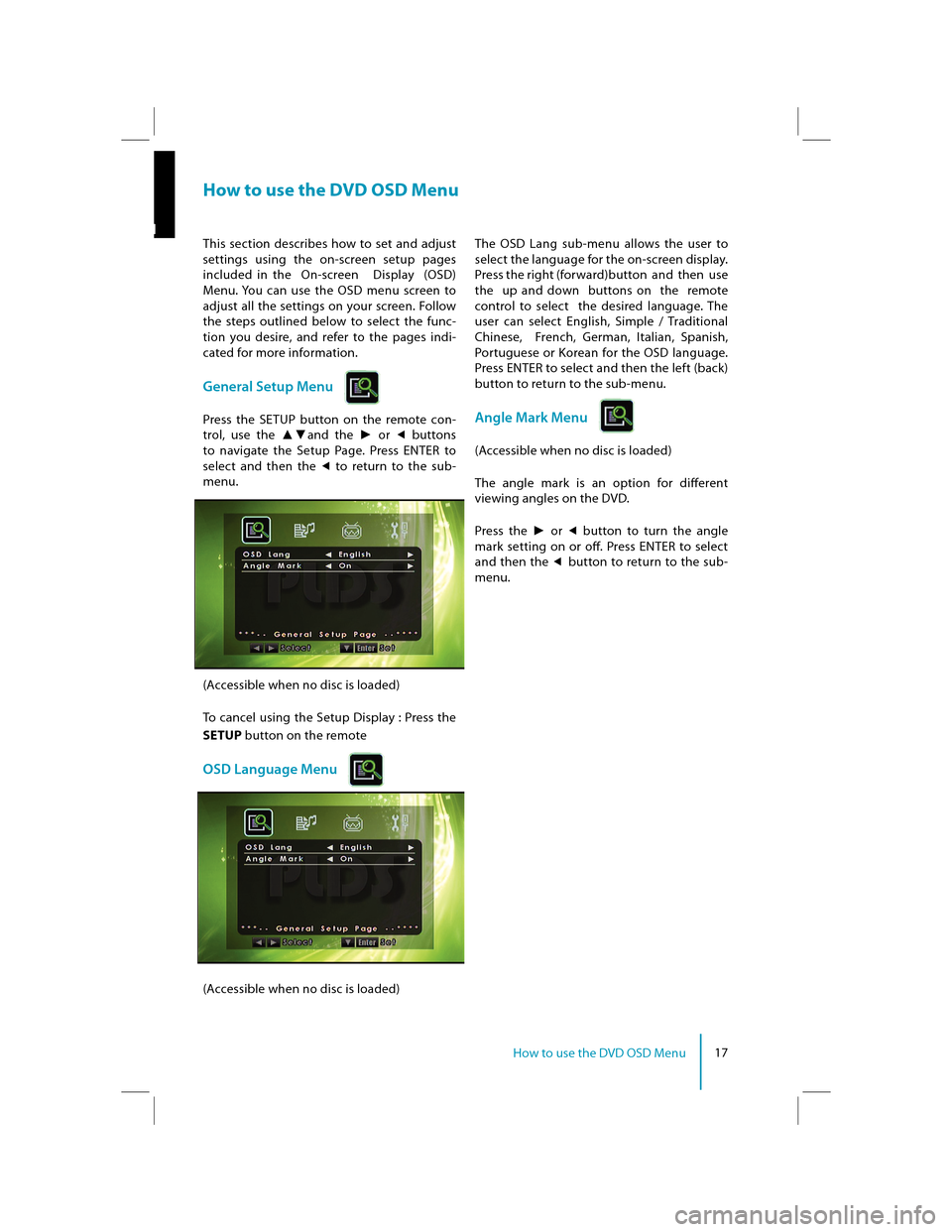

17How to use the DVD OSD Menu
EN
How to use the DVD OSD Menu
This section describes how to set and adjust
settings using the on-screen setup pages
included in the On-screen Display (OSD)
Menu. You can use the OSD menu screen to
adjust all the settings on your screen. Follow
the steps outlined below to select the func-
tion you desire, and refer to the pages indi-
cated for more information.
General Setup Menu
Press the SETUP button on the remote con-
trol, use the and the or buttons
to navigate the Setup Page. Press ENTER to
select and then the to return to the sub-
menu.
(Accessible when no disc is loaded)
To cancel using the Setup Display : Press the
SETUP button on the remote
OSD Language Menu
(Accessible when no disc is loaded) The OSD Lang sub-menu allows the user to
select the language for the on-screen display.
Press the right (forward)button and then use
the up and down buttons on the remote
control to select the desired language. The
user can select English, Simple / Traditional
Chinese, French, German, Italian, Spanish,
Portuguese or Korean for the OSD language.
Press ENTER to select and then the left (back)
button to return to the sub-menu.
Angle Mark Menu
(Accessible when no disc is loaded)
The angle mark is an option for diferent
viewing angles on the DVD.
Press the
or button to turn the angle
mark setting on or of. Press ENTER to select
and then the button to return to the sub-
menu.
Page 18 of 32
18

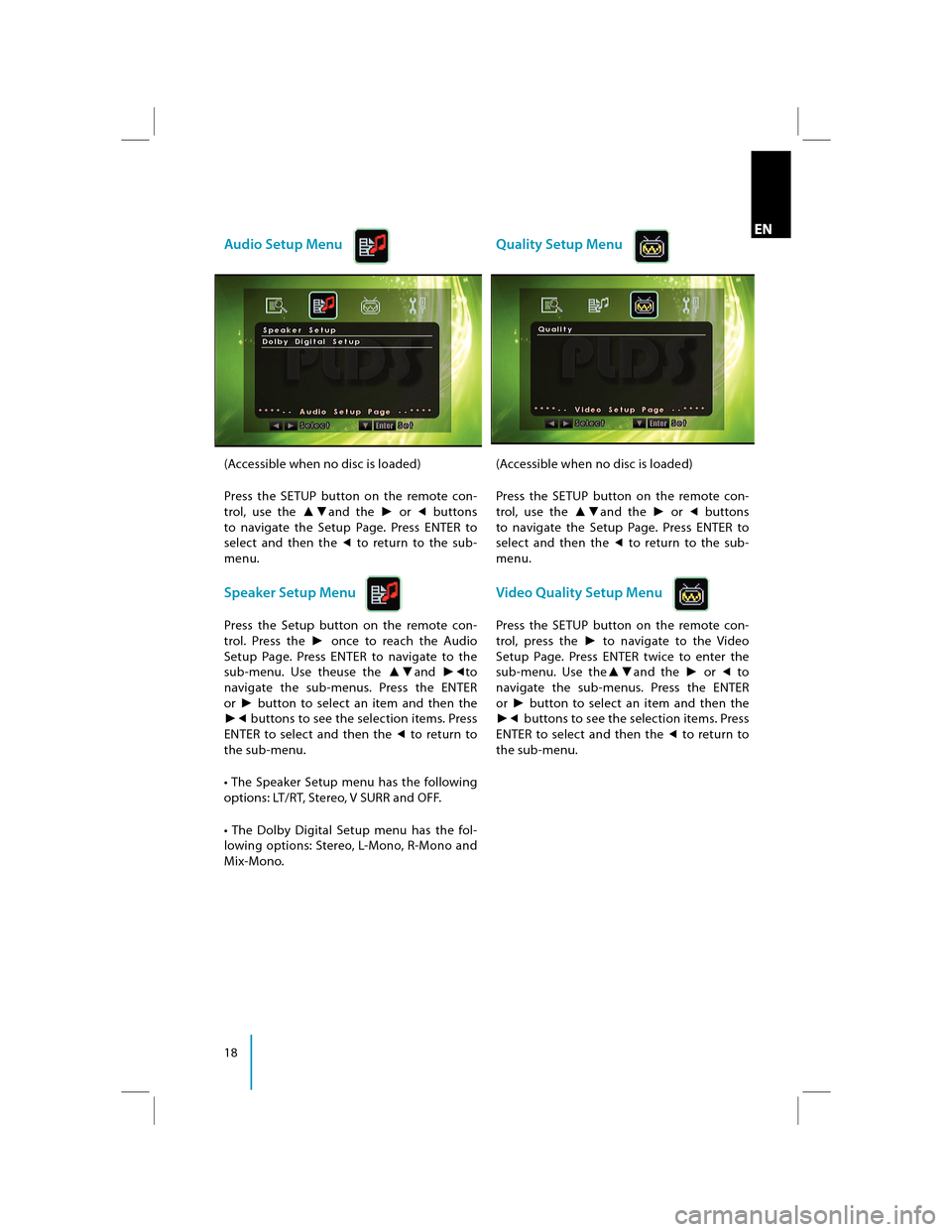

ENAudio Setup Menu
(Accessible when no disc is loaded)
Press the SETUP button on the remote con-
trol, use the and the or buttons
to navigate the Setup Page. Press ENTER to
select and then the to return to the sub-
menu.
Speaker Setup Menu
Press the Setup button on the remote con-
trol. Press the once to reach the Audio
Setup Page. Press ENTER to navigate to the
sub-menu. Use theuse the and to
navigate the sub-menus. Press the ENTER
or button to select an item and then the
buttons to see the selection items. Press
ENTER to select and then the to return to
the sub-menu.
t 5 I F 4 Q F B L F S 4 F U V Q N F O V I B T U I F G P M M P X J O H
options: LT/RT, Stereo, V SURR and OFF.
t 5 I F % P M C Z % J H J U B M 4 F U V Q N F O V I B T U I F G P M -
lowing options: Stereo, L-Mono, R-Mono and
Mix-Mono.
Quality Setup Menu
(Accessible when no disc is loaded)
Press the SETUP button on the remote con-
trol, use the and the or buttons
to navigate the Setup Page. Press ENTER to
select and then the to return to the sub-
menu.
Video Quality Setup Menu
Press the SETUP button on the remote con-
trol, press the to navigate to the Video
Setup Page. Press ENTER twice to enter the
sub-menu. Use the and the or to
navigate the sub-menus. Press the ENTER
or button to select an item and then the
buttons to see the selection items. Press
ENTER to select and then the to return to
the sub-menu.
Page 19 of 32
19

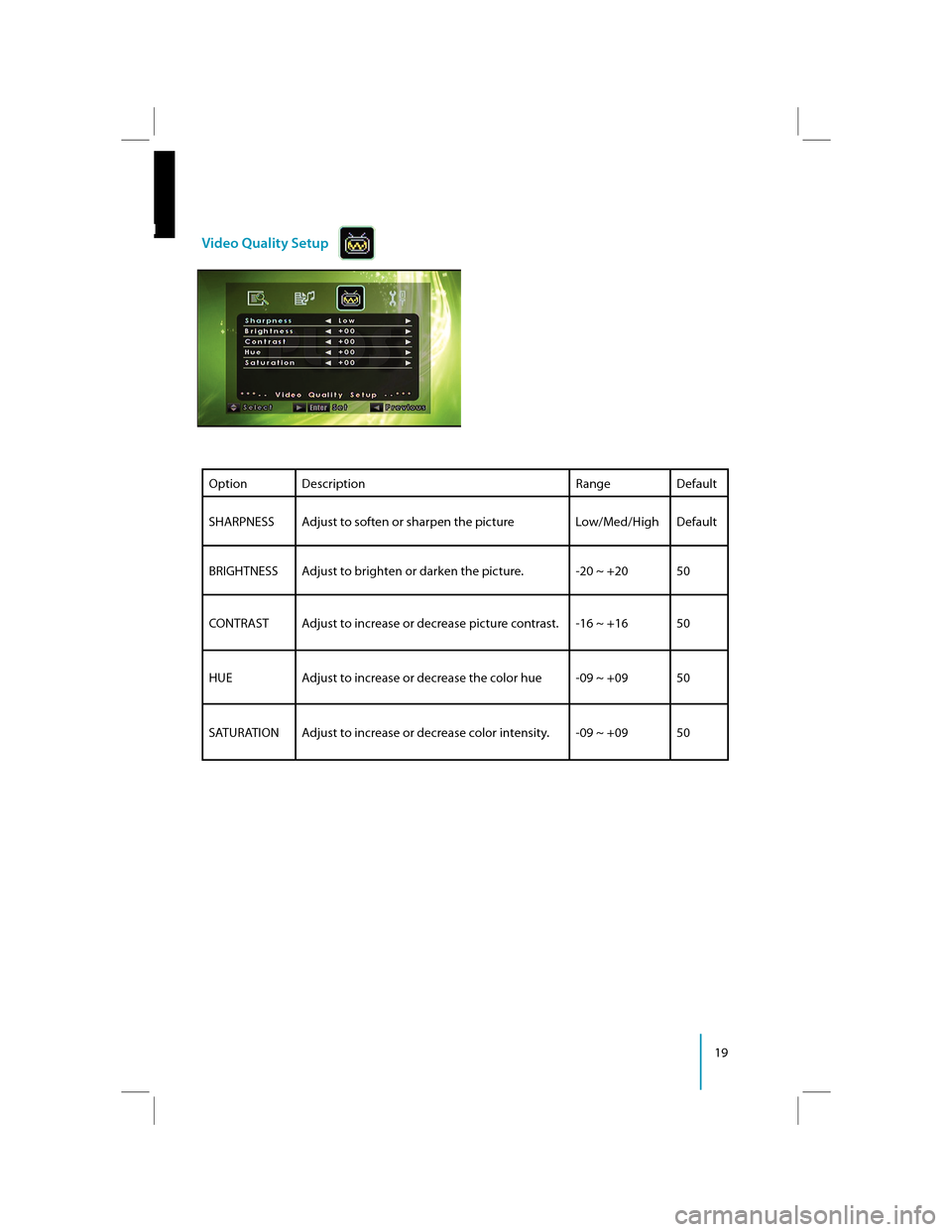

ENVideo Quality Setup
Option DescriptionRange Default
SHARPNESS Adjust to soften or sharpen the picture Low/Med/High Default
BRIGHTNESS Adjust to brighten or darken the picture. -20 ~ +20 50
CONTRAST Adjust to increase or decrease picture contrast. -16 ~ +16 50
HUE Adjust to increase or decrease the color hue -09 ~ +09 50
SATURATION Adjust to increase or decrease color intensity. -09 ~ +09 50
Page 20 of 32

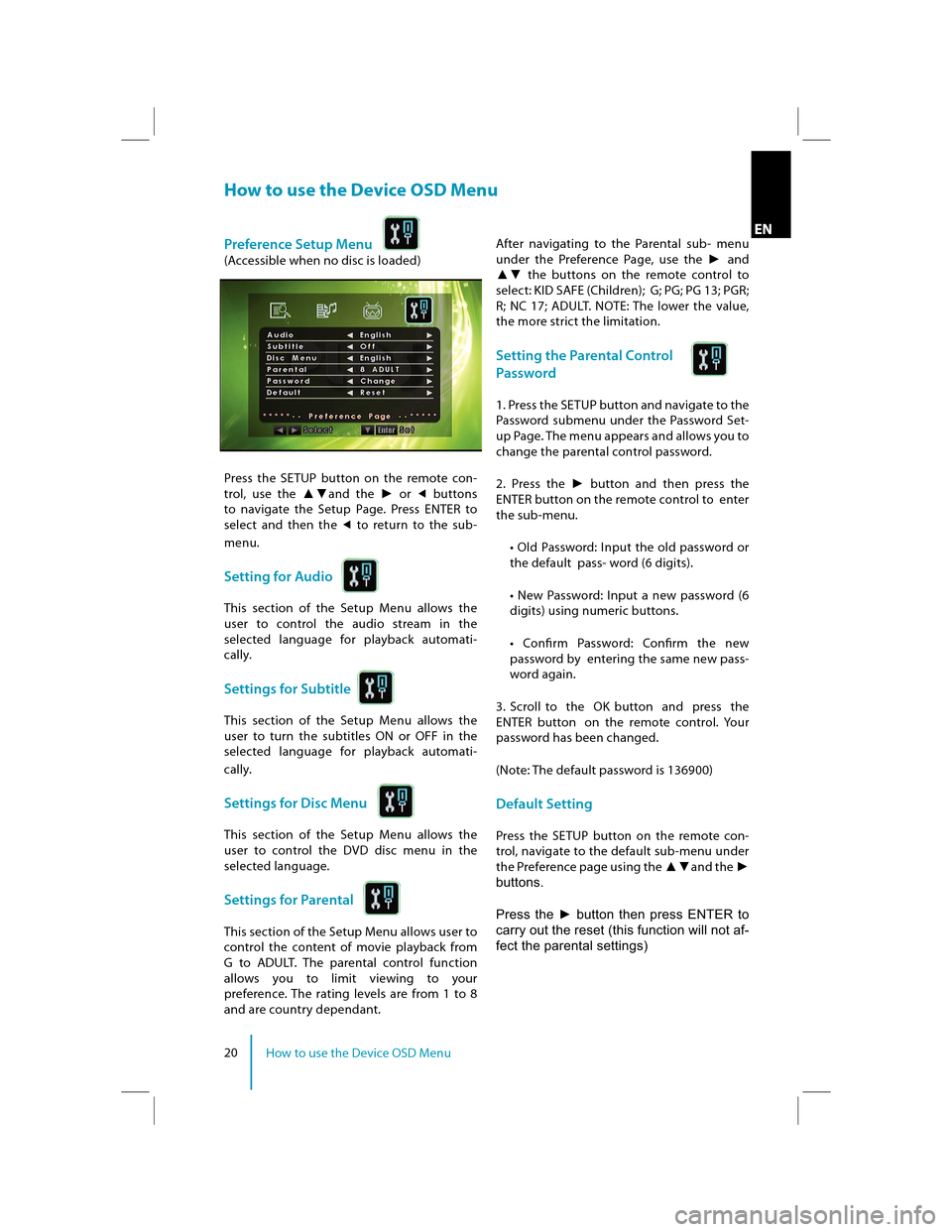

20How to use the Device OSD Menu
EN
How to use the Device OSD Menu
Preference Setup Menu(Accessible when no disc is loaded)
Press the SETUP button on the remote con-
trol, use the and the or buttons
to navigate the Setup Page. Press ENTER to
select and then the to return to the sub-
menu.
Setting for Audio
This section of the Setup Menu allows the
user to control the audio stream in the
selected language for playback automati-
cally.
Settings for Subtitle
This section of the Setup Menu allows the
user to turn the subtitles ON or OFF in the
selected language for playback automati-
cally.
Settings for Disc Menu
This section of the Setup Menu allows the
user to control the DVD disc menu in the
selected language.
Settings for Parental
This section of the Setup Menu allows user to
control the content of movie playback from
G to ADULT. The parental control function
allows you to limit viewing to your
preference. The rating levels are from 1 to 8
and are country dependant. After navigating to the Parental sub- menu
under the Preference Page, use the
and
the buttons on the remote control to
select: KID SAFE (Children); G; PG; PG 13; PGR;
R; NC 17; ADULT. NOTE: The lower the value,
the more strict the limitation.
Setting the Parental Control
Password
1. Press the SETUP button and navigate to the
Password submenu under the Password Set-
up Page. The menu appears and allows you to
change the parental control password.
2. Press the button and then press the
ENTER button on the remote control to enter
the sub-menu.
t 0 M E 1 B T T X P S E * O Q V U U I F P M E Q B T T X P S E P S
the default pass- word (6 digits).
t / F X 1 B T T X P S E * O Q V U B O F X Q B T T X P S E
digits) using numeric buttons.
t $ P O ö S N 1 B T T X P S E $ P O ö S N U I F O F X
password by entering the same new pass-
word again.
3. Scroll to the OK button and press the
ENTER button on the remote control. Your
password has been changed.
(Note: The default password is 136900)
Default Setting
Press the SETUP button on the remote con-
trol, navigate to the default sub-menu under
the Preference page using the and the
-
