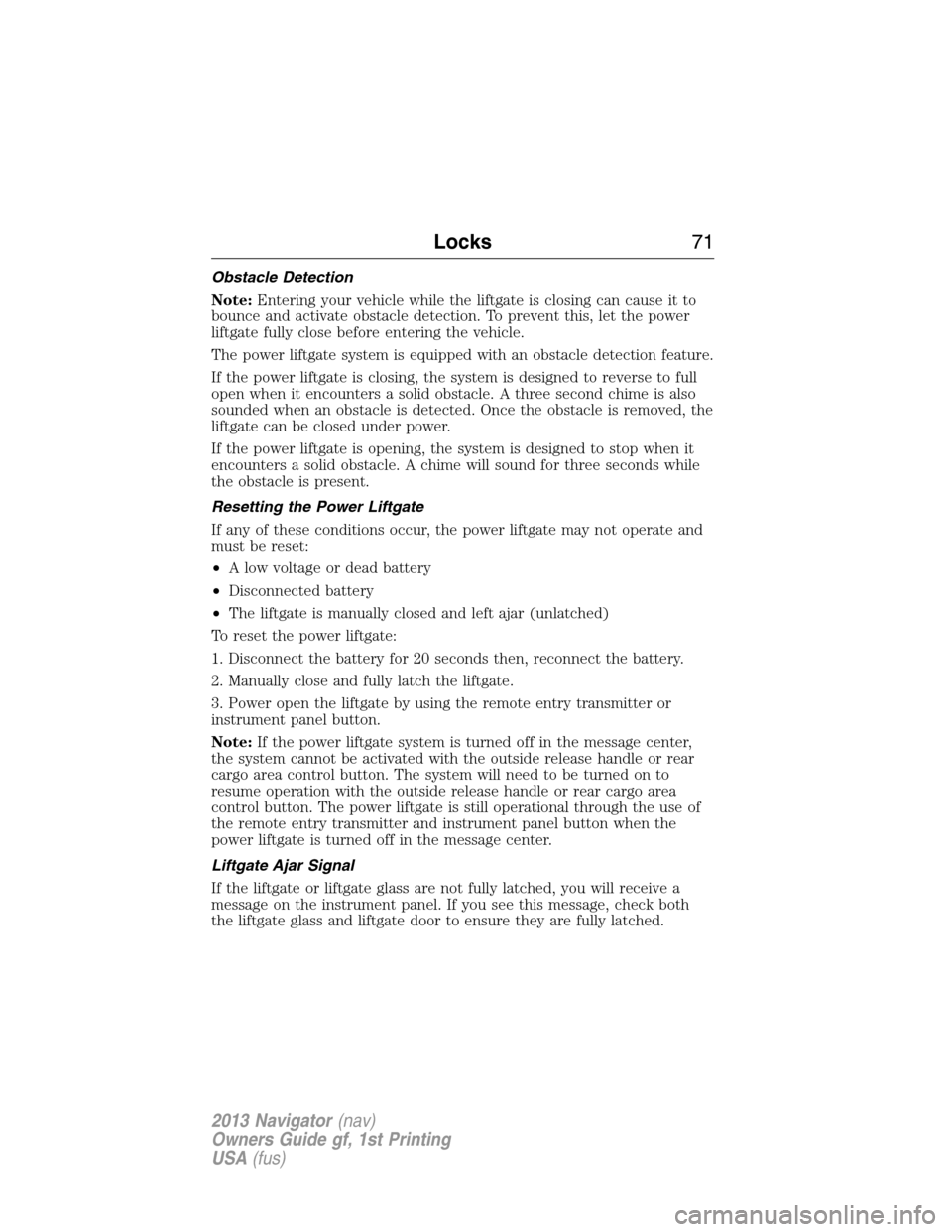

Obstacle Detection
Note:Entering your vehicle while the liftgate is closing can cause it to
bounce and activate obstacle detection. To prevent this, let the power
liftgate fully close before entering the vehicle.
The power liftgate system is equipped with an obstacle detection feature.
If the power liftgate is closing, the system is designed to reverse to full
open when it encounters a solid obstacle. A three second chime is also
sounded when an obstacle is detected. Once the obstacle is removed, the
liftgate can be closed under power.
If the power liftgate is opening, the system is designed to stop when it
encounters a solid obstacle. A chime will sound for three seconds while
the obstacle is present.
Resetting the Power Liftgate
If any of these conditions occur, the power liftgate may not operate and
must be reset:
•A low voltage or dead battery
•Disconnected battery
•The liftgate is manually closed and left ajar (unlatched)
To reset the power liftgate:
1. Disconnect the battery for 20 seconds then, reconnect the battery.
2. Manually close and fully latch the liftgate.
3. Power open the liftgate by using the remote entry transmitter or
instrument panel button.
Note:If the power liftgate system is turned off in the message center,
the system cannot be activated with the outside release handle or rear
cargo area control button. The system will need to be turned on to
resume operation with the outside release handle or rear cargo area
control button. The power liftgate is still operational through the use of
the remote entry transmitter and instrument panel button when the
power liftgate is turned off in the message center.
Liftgate Ajar Signal
If the liftgate or liftgate glass are not fully latched, you will receive a
message on the instrument panel. If you see this message, check both
the liftgate glass and liftgate door to ensure they are fully latched.
Locks71
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

Liftgate Window
To open the liftgate window, press
the button in the center of the
liftgate above the license plate.
SECURICODE™ KEYLESS ENTRY KEYPAD
You can use the keyless entry
keypad to lock or unlock the doors
or release the liftgate glass without
using a key.
The keypad can be operated with the factory set 5-digit entry code; this
code is located on the owner’s wallet card in the glove box and is
available from your authorized dealer. You can also create up to five of
your own 5-digit personal entry codes.
Programming a Personal Entry Code
You can store up to three personal entry codes.
To create your own personal entry code:
1. Enter the factory set code.
2. Press the1•2on the keypad within five seconds. The doors will lock
and then unlock to confirm that the system is in programming mode.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. Press1•2on the keypad to save personal entry code 1.
The doors will lock and then unlock to confirm that your personal entry
code has been programmed.
To program additional personal entry codes, repeat Steps 1–3, then for
Step 4:
•press3•4to save personal entry code 2, or
•press5•6,7•8,or9•0to save personal entry code 3.
72Locks
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

Tips:
•Do not set a code that uses five of the same number.
•Do not use five numbers in sequential order.
•The factory set code will work even if you have set your own personal
code.
Programming Memory to a Personal Entry Code
To program a personal entry code to recall a driver memory setting,
repeat Steps 1–4 above.
•Pressing1•2on the keypad in Step 4 will program the code to driver
memory setting 1.
•Pressing3•4in Step 4 will program the code to driver memory
setting 2.
Note:Pressing5•6,7•8,or9•0keypad numbers in Step 4 will not
program the code to recall a driver memory setting.
Note:The factory-set code cannot be associated with a memory setting.
Erasing Personal Code
1. Enter the factory set 5-digit code.
2. Press and release the1•2on the keypad within five seconds. The
doors will lock and then unlock to confirm that the system is in
programming mode.
3. Press and hold the1•2for two seconds. This must be done within
five seconds of completing Step 2.
All personal codes are now erased and only the factory set 5-digit code
will work.
Anti-Scan Feature
The keypad will go into an anti-scan mode if the wrong code has been
entered seven times (35 consecutive button presses). This mode disables
the keypad for one minute and the keypad lamp will flash.
The anti-scan feature will turn off after:
•one minute of keypad inactivity
•pressing the unlock button on the remote control
•the ignition is turned on.
Locks73
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

Unlocking and Locking the Doors and Liftgate
To unlock the driver’s door:enter the factory set 5-digit code or your
personal code. Each number must be pressed within five seconds of each
other. The interior lamps will illuminate.
To unlock all doors and liftgate:enter the factory set 5-digit code or
your personal code, then press the3•4control within five seconds.
To lock all doors and liftgate:press the7•8and the9•0at the
same time (with the driver’s door closed). You do not need to enter the
keypad code first.
To open the liftgate glass:enter the factory set 5-digit code or your
personal code, then press the5•6.
74Locks
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

SECURILOCKPASSIVE ANTI-THEFT SYSTEM
Note:The system is not compatible with non-Ford aftermarket remote
start systems. Use of these systems may result in vehicle starting
problems and a loss of security protection.
Note:Metallic objects, electronic devices or a second coded key on the
same key chain may cause vehicle starting issues if they are too close to
the key when starting the engine. Prevent these objects from touching
the coded key while starting the engine. Switch the ignition off, move all
objects on the key chain away from the coded key and restart the engine
if a problem occurs.
Note:Do not leave a duplicate coded key in the vehicle. Always take
your keys and lock all doors when leaving the vehicle.
The system is an engine immobilization system. It is designed to help
prevent the engine from being started unless a coded key programmed
to your vehicle is used. Using the wrong key may prevent the engine
from starting. A message may appear in the information display.
If you are unable to start the engine with a correctly coded key, a
malfunction has happened and a message may appear in the information
display.
Automatic Arming
The vehicle is armed immediately after switching the ignition off.
Anti-Theft Indicator
The anti-theft indicator is located in the instrument cluster.
•When the ignition is off, the indicator will flash once every
two seconds to indicate the SecuriLock system is functioning
as a theft deterrent.
•When the ignition is on, the indicator will glow for three seconds, then
turn off to indicate normal system functionality.
If a problem occurs with the SecuriLock system, the indicator will flash
rapidly or glow steadily when the ignition is on. If this occurs, switch the
ignition off then back on to make sure there was no electronic
interference with the programmed key. If your vehicle does not start, try
to start it with the second programmed key and if successful contact
your authorized dealership for key replacement. If the indicator still
flashes rapidly or glows steadily, your vehicle will not start. Contact your
authorized dealer as soon as possible for service.
Security75
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

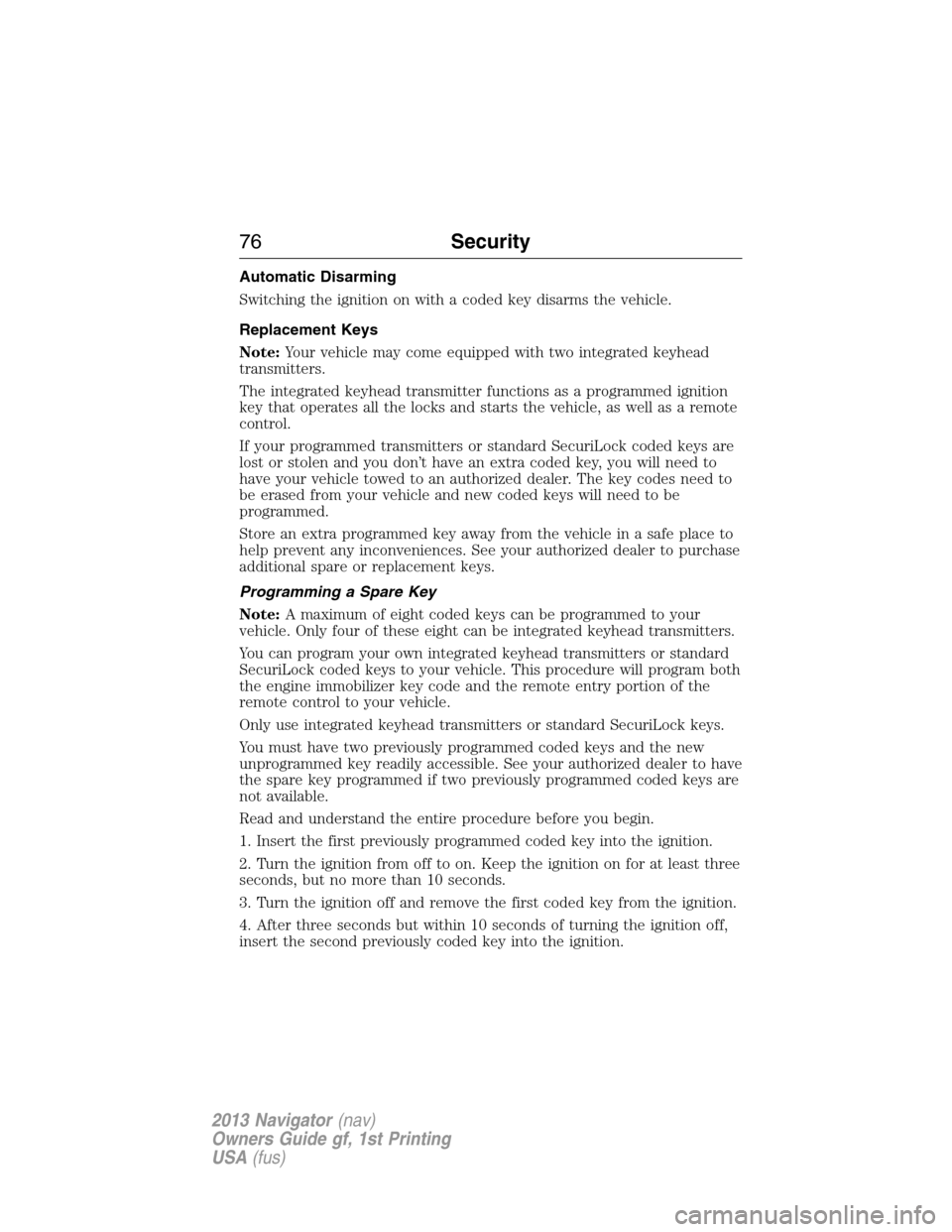

Automatic Disarming
Switching the ignition on with a coded key disarms the vehicle.
Replacement Keys
Note:Your vehicle may come equipped with two integrated keyhead
transmitters.
The integrated keyhead transmitter functions as a programmed ignition
key that operates all the locks and starts the vehicle, as well as a remote
control.
If your programmed transmitters or standard SecuriLock coded keys are
lost or stolen and you don’t have an extra coded key, you will need to
have your vehicle towed to an authorized dealer. The key codes need to
be erased from your vehicle and new coded keys will need to be
programmed.
Store an extra programmed key away from the vehicle in a safe place to
help prevent any inconveniences. See your authorized dealer to purchase
additional spare or replacement keys.
Programming a Spare Key
Note:A maximum of eight coded keys can be programmed to your
vehicle. Only four of these eight can be integrated keyhead transmitters.
You can program your own integrated keyhead transmitters or standard
SecuriLock coded keys to your vehicle. This procedure will program both
the engine immobilizer key code and the remote entry portion of the
remote control to your vehicle.
Only use integrated keyhead transmitters or standard SecuriLock keys.
You must have two previously programmed coded keys and the new
unprogrammed key readily accessible. See your authorized dealer to have
the spare key programmed if two previously programmed coded keys are
not available.
Read and understand the entire procedure before you begin.
1. Insert the first previously programmed coded key into the ignition.
2. Turn the ignition from off to on. Keep the ignition on for at least three
seconds, but no more than 10 seconds.
3. Turn the ignition off and remove the first coded key from the ignition.
4. After three seconds but within 10 seconds of turning the ignition off,
insert the second previously coded key into the ignition.
76Security
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

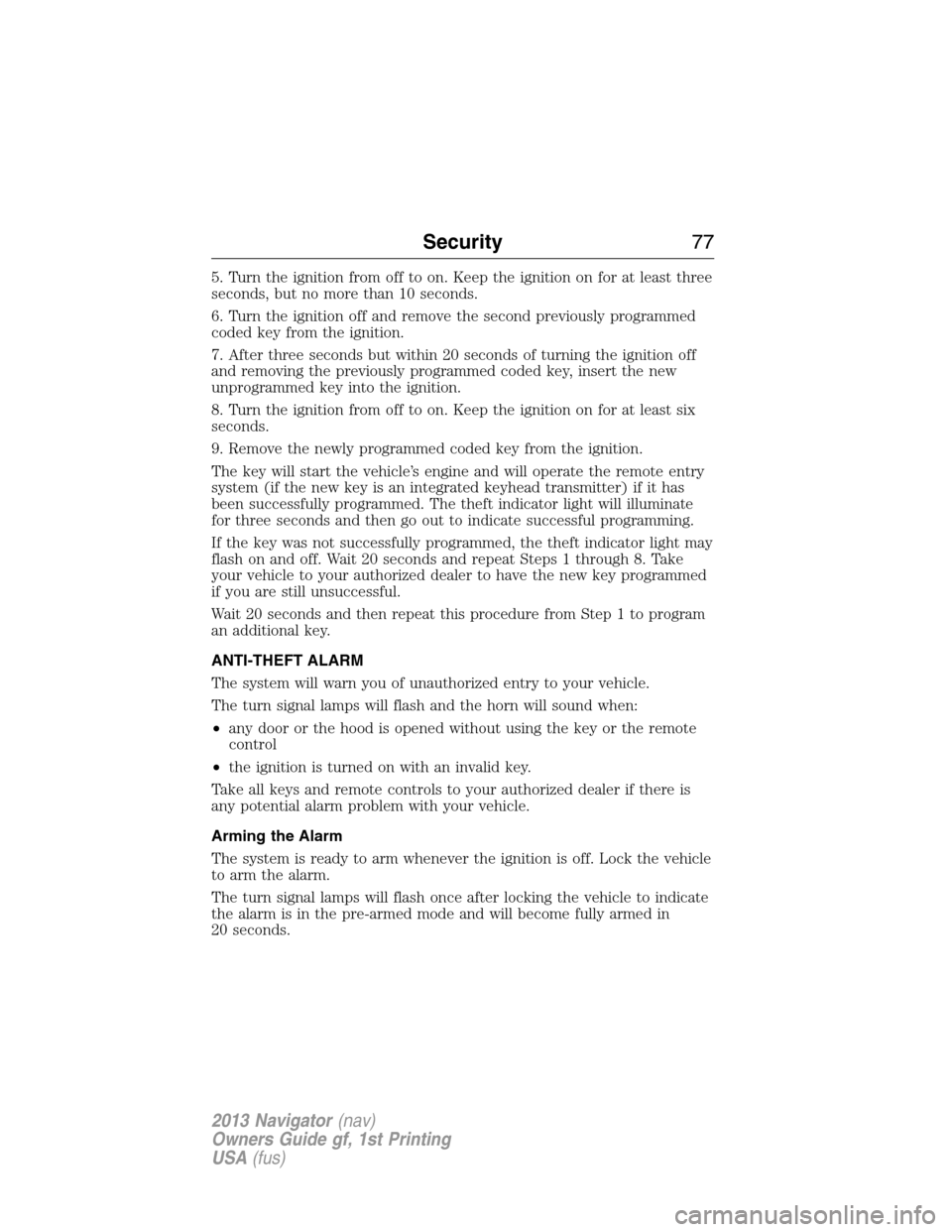

5. Turn the ignition from off to on. Keep the ignition on for at least three
seconds, but no more than 10 seconds.
6. Turn the ignition off and remove the second previously programmed
coded key from the ignition.
7. After three seconds but within 20 seconds of turning the ignition off
and removing the previously programmed coded key, insert the new
unprogrammed key into the ignition.
8. Turn the ignition from off to on. Keep the ignition on for at least six
seconds.
9. Remove the newly programmed coded key from the ignition.
The key will start the vehicle’s engine and will operate the remote entry
system (if the new key is an integrated keyhead transmitter) if it has
been successfully programmed. The theft indicator light will illuminate
for three seconds and then go out to indicate successful programming.
If the key was not successfully programmed, the theft indicator light may
flash on and off. Wait 20 seconds and repeat Steps 1 through 8. Take
your vehicle to your authorized dealer to have the new key programmed
if you are still unsuccessful.
Wait 20 seconds and then repeat this procedure from Step 1 to program
an additional key.
ANTI-THEFT ALARM
The system will warn you of unauthorized entry to your vehicle.
The turn signal lamps will flash and the horn will sound when:
•any door or the hood is opened without using the key or the remote
control
•the ignition is turned on with an invalid key.
Take all keys and remote controls to your authorized dealer if there is
any potential alarm problem with your vehicle.
Arming the Alarm
The system is ready to arm whenever the ignition is off. Lock the vehicle
to arm the alarm.
The turn signal lamps will flash once after locking the vehicle to indicate
the alarm is in the pre-armed mode and will become fully armed in
20 seconds.
Security77
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

Disarming the Alarm
To disarm the alarm, do any of the following:
•Press the power door unlock button within the 20-second pre-armed
mode.
•Press the unlock button on the remote control.
•Unlock the doors with the keyless entry pad.
•Turn the ignition on with a valid key.
•Press the panic button on the remote control. The alarm system will
still be armed, but this shuts off the horn and turn lamps when the
alarm is sounding.
Note:If the driver’s door is unlocked with a key, a chime will sound
when you open the door. You will have 12 seconds to disarm the alarm
using any of the actions above, otherwise the alarm will trigger.
78Security
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

ADJUSTING THE STEERING WHEEL
WARNING:Do not adjust the steering wheel when your vehicle
is moving.
Note:Make sure that you are sitting in the correct position. Refer to
Sitting in the Correct Positionin theSeatschapter.
Use the control on the side of the
steering column to tilt the position.
Memory Feature
The steering column positions are saved and recalled with the memory
feature. Refer to theSeatschapter.
Pressing the adjustment control during memory recall will cancel the
operation. The column will respond to the adjustment control.
Easy Entry and Exit Feature
The column will move to the full up position when the ignition is
switched off. It will return to the previous position when the ignition is
switched on. This feature can be switched on or off in the information
display.
TILT
Steering Wheel79
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

AUDIO CONTROL
A. Volume up
B. Seek up or next
C. Volume down
D. Seek down or previous
E. Media
Media
Press the media button repeatedly to scroll through available audio
modes.
Seek, Next or Previous
Press the seek button to:
•tune the radio to the next or previous stored preset
•play the next or previous track.
Press and hold the seek button to:
•tune the radio to the next station up or down the frequency band
•seek through a track.
MEDIA
- VOL +
OK
E
DB
A
C
80Steering Wheel
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)
