LINCOLN NAVIGATOR 2016 Owners Manual

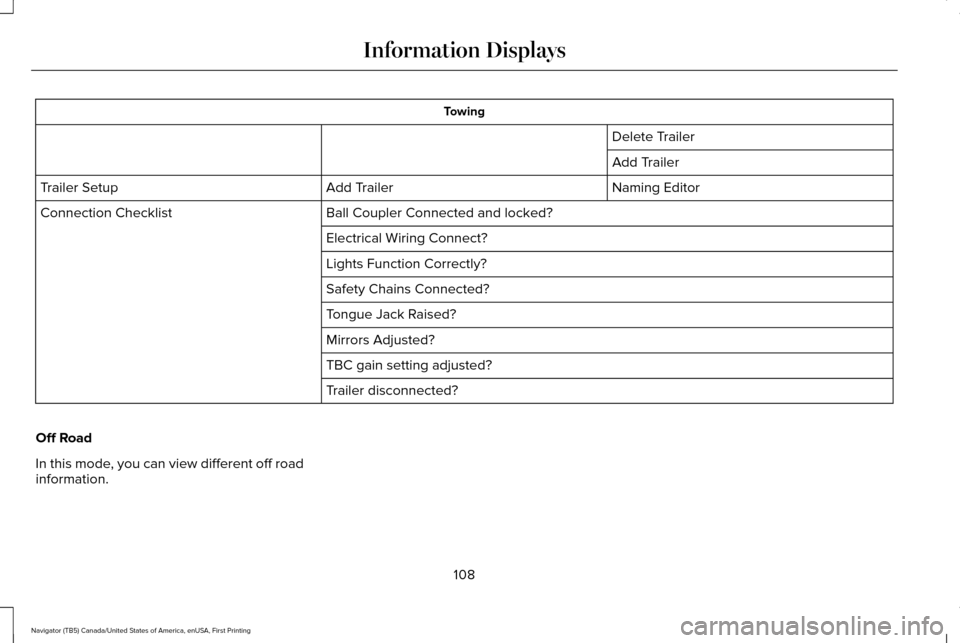

Towing
Delete Trailer
Add Trailer
Naming Editor
Add Trailer
Trailer Setup
Ball Coupler Connected and locked?
Connection Checklist
Electrical Wiring Connect?
Lights Function Correctly?
Safety Chains Connected?
Tongue Jack Raised?
Mirrors Adjusted?
TBC gain setting adjusted?
Trailer disconnected?
Off Road
In this mode, you can view different off road
information.
108
Navigator (TB5) Canada/United States of America, enUSA, First Printing Information Displays

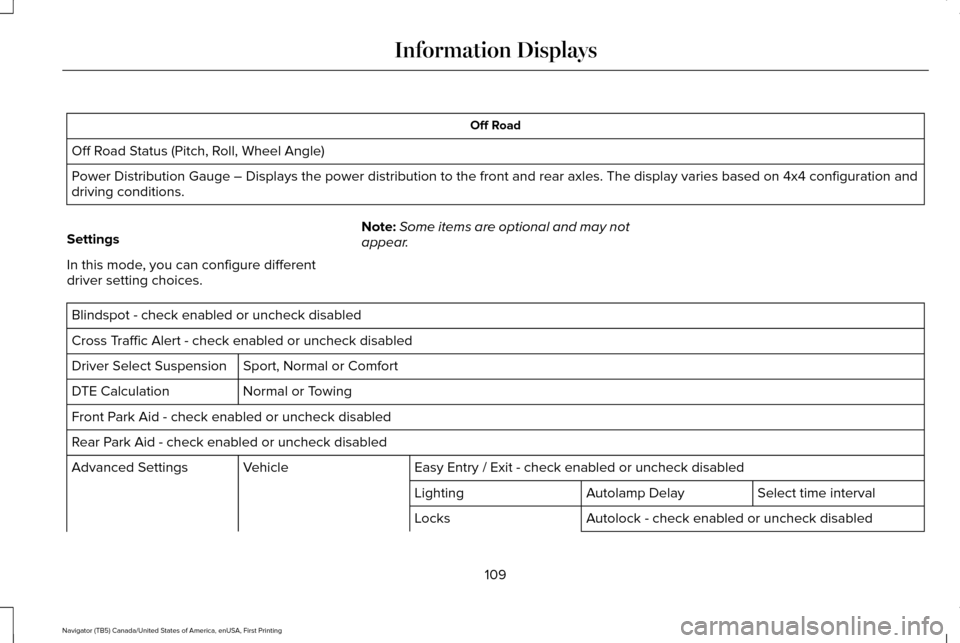

Off Road
Off Road Status (Pitch, Roll, Wheel Angle)
Power Distribution Gauge – Displays the power distribution to the front and rear axles. The displa\
y varies based on 4x4 configuration and
driving conditions.
Settings
In this mode, you can configure different
driver setting choices. Note:
Some items are optional and may not
appear. Blindspot - check enabled or uncheck disabled
Cross Traffic Alert - check enabled or uncheck disabled
Sport, Normal or Comfort
Driver Select Suspension
Normal or Towing
DTE Calculation
Front Park Aid - check enabled or uncheck disabled
Rear Park Aid - check enabled or uncheck disabled
Easy Entry / Exit - check enabled or uncheck disabled
Vehicle
Advanced Settings
Select time interval
Autolamp Delay
Lighting
Autolock - check enabled or uncheck disabled
Locks
109
Navigator (TB5) Canada/United States of America, enUSA, First Printing Information Displays

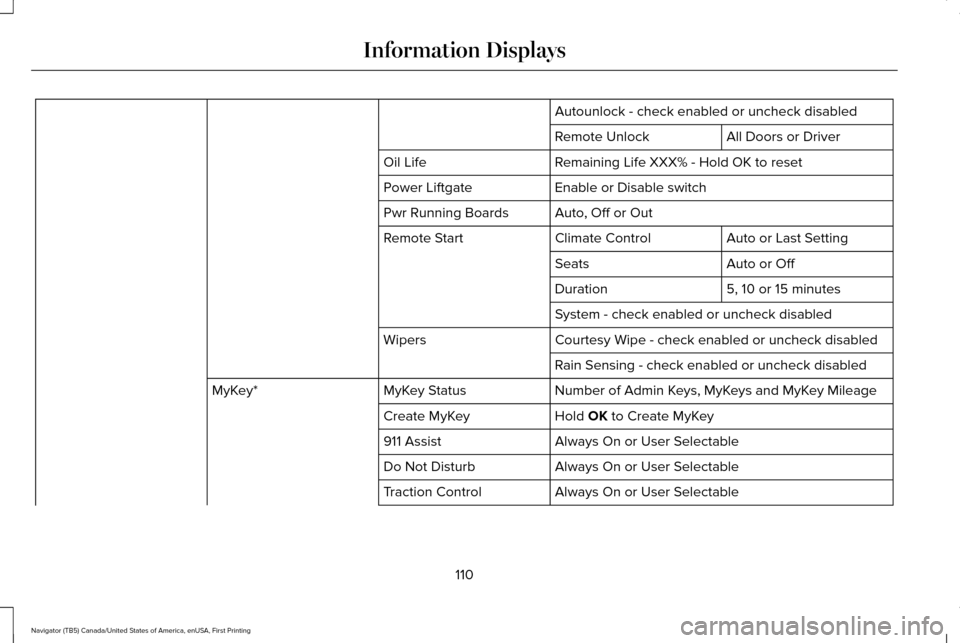

Autounlock - check enabled or uncheck disabled
All Doors or Driver
Remote Unlock
Remaining Life XXX% - Hold OK to reset
Oil Life
Enable or Disable switch
Power Liftgate
Auto, Off or Out
Pwr Running Boards
Auto or Last Setting
Climate Control
Remote Start
Auto or Off
Seats
5, 10 or 15 minutes
Duration
System - check enabled or uncheck disabled
Courtesy Wipe - check enabled or uncheck disabled
Wipers
Rain Sensing - check enabled or uncheck disabled
Number of Admin Keys, MyKeys and MyKey Mileage
MyKey Status
MyKey*
Hold OK to Create MyKey
Create MyKey
Always On or User Selectable
911 Assist
Always On or User Selectable
Do Not Disturb
Always On or User Selectable
Traction Control
110
Navigator (TB5) Canada/United States of America, enUSA, First Printing Information Displays

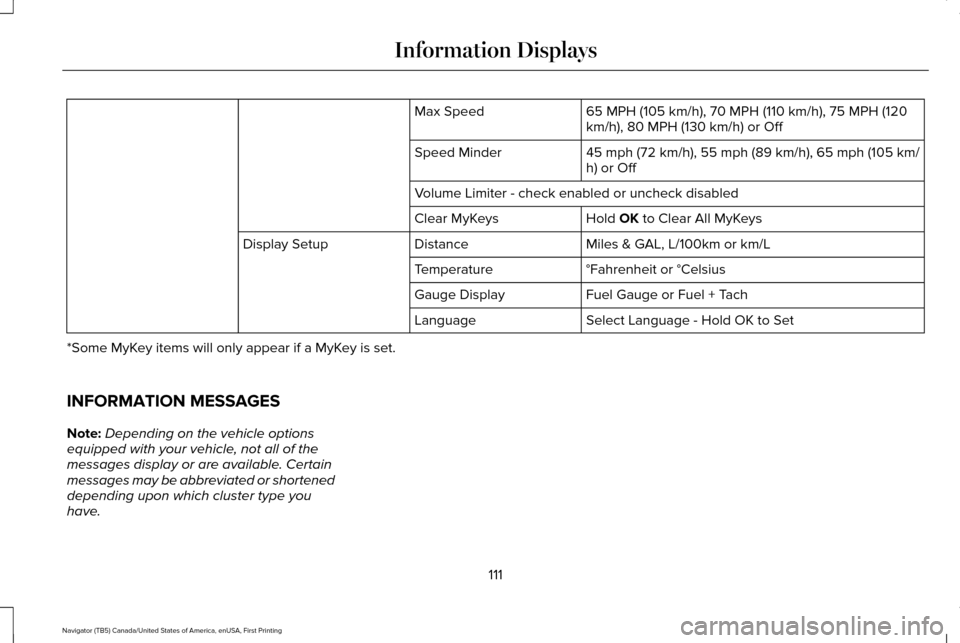

65 MPH (105 km/h), 70 MPH (110 km/h), 75 MPH (120
km/h), 80 MPH (130 km/h) or Off
Max Speed
45 mph (72 km/h), 55 mph (89 km/h), 65 mph (105 km/
h) or Off
Speed Minder
Volume Limiter - check enabled or uncheck disabled
Hold OK to Clear All MyKeys
Clear MyKeys
Miles & GAL, L/100km or km/L
Distance
Display Setup
°Fahrenheit or °Celsius
Temperature
Fuel Gauge or Fuel + Tach
Gauge Display
Select Language - Hold OK to Set
Language
*Some MyKey items will only appear if a MyKey is set.
INFORMATION MESSAGES
Note: Depending on the vehicle options
equipped with your vehicle, not all of the
messages display or are available. Certain
messages may be abbreviated or shortened
depending upon which cluster type you
have.
111
Navigator (TB5) Canada/United States of America, enUSA, First Printing Information Displays

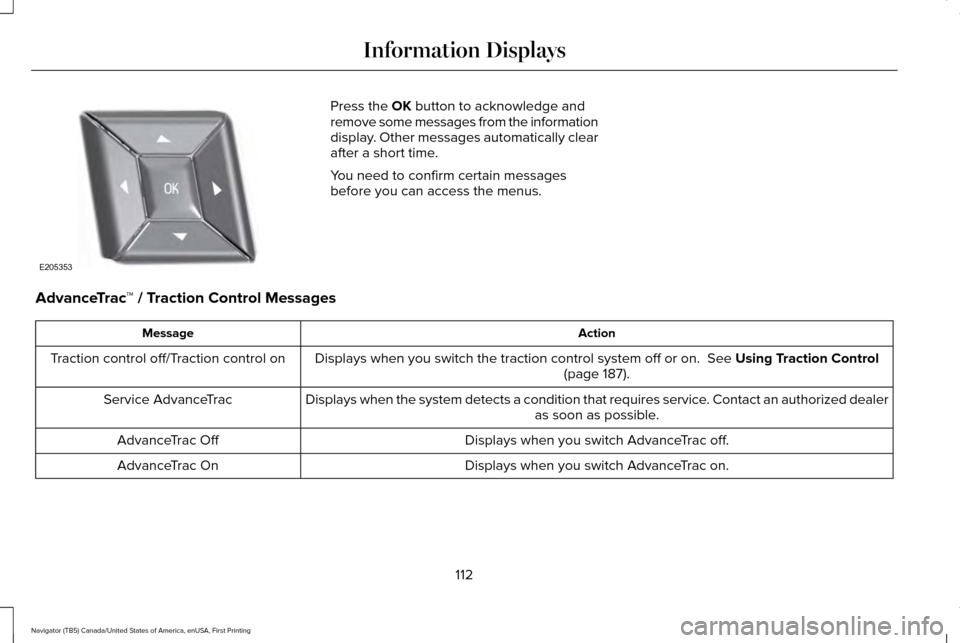

Press the OK button to acknowledge and
remove some messages from the information
display. Other messages automatically clear
after a short time.
You need to confirm certain messages
before you can access the menus.
AdvanceTrac ™ / Traction Control Messages Action
Message
Displays when you switch the traction control system off or on.
See Using Traction Control
(page 187).
Traction control off/Traction control on
Displays when the system detects a condition that requires service. Contact an authorized dealeras soon as possible.
Service AdvanceTrac
Displays when you switch AdvanceTrac off.
AdvanceTrac Off
Displays when you switch AdvanceTrac on.
AdvanceTrac On
112
Navigator (TB5) Canada/United States of America, enUSA, First Printing Information DisplaysE205353

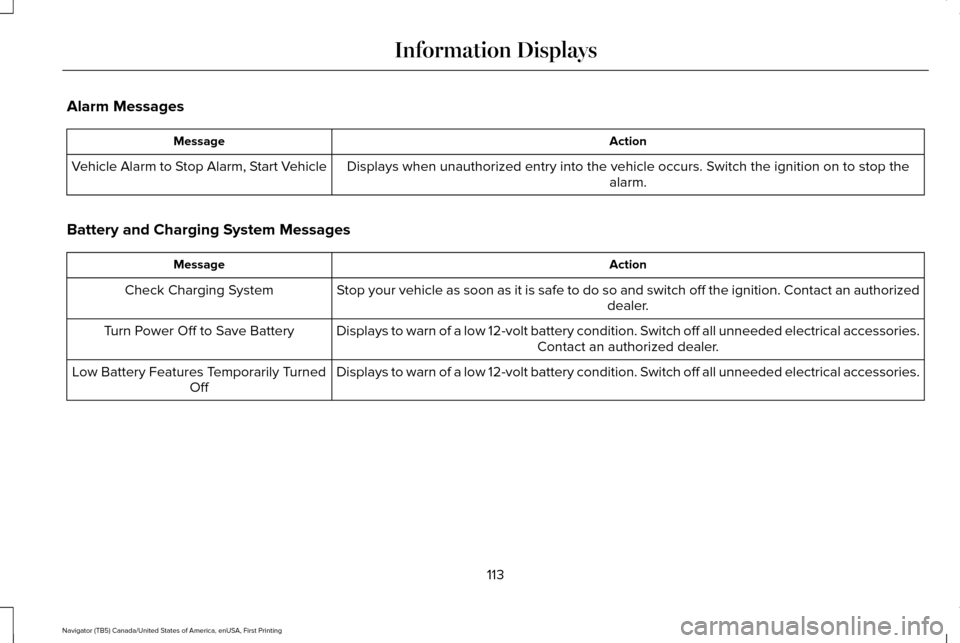

Alarm Messages
Action
Message
Displays when unauthorized entry into the vehicle occurs. Switch the ignition on to stop the alarm.
Vehicle Alarm to Stop Alarm, Start Vehicle
Battery and Charging System Messages Action
Message
Stop your vehicle as soon as it is safe to do so and switch off the ignit\
ion. Contact an authorized dealer.
Check Charging System
Displays to warn of a low 12-volt battery condition. Switch off all unneeded electrical accessories.Contact an authorized dealer.
Turn Power Off to Save Battery
Displays to warn of a low 12-volt battery condition. Switch off all unneeded electrical accessories.
Low Battery Features Temporarily Turned
Off
113
Navigator (TB5) Canada/United States of America, enUSA, First Printing Information Displays

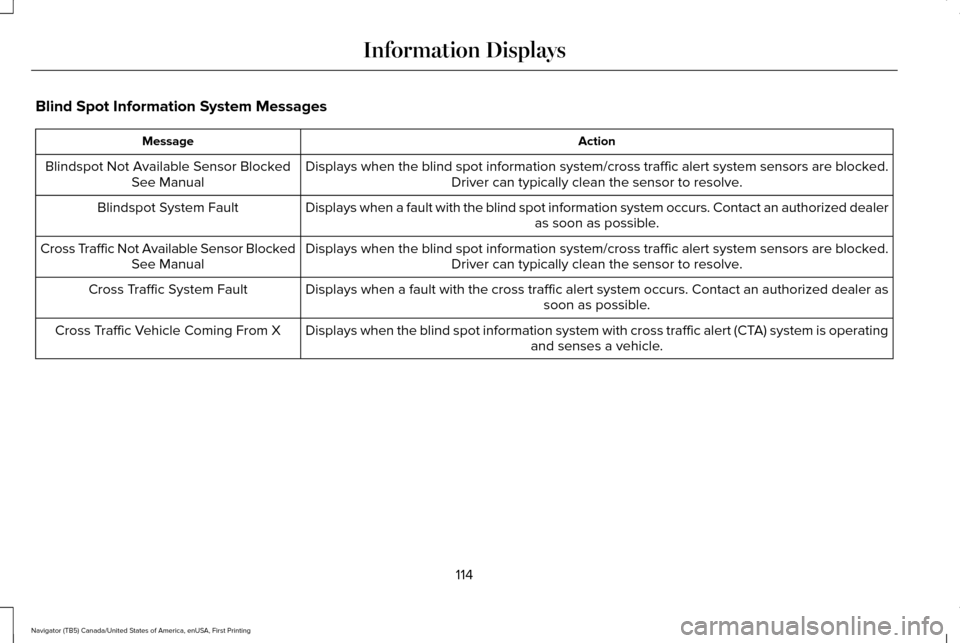

Blind Spot Information System Messages
Action
Message
Displays when the blind spot information system/cross traffic alert syst\
em sensors are blocked.Driver can typically clean the sensor to resolve.
Blindspot Not Available Sensor Blocked
See Manual
Displays when a fault with the blind spot information system occurs. Con\
tact an authorized dealer as soon as possible.
Blindspot System Fault
Displays when the blind spot information system/cross traffic alert syst\
em sensors are blocked.Driver can typically clean the sensor to resolve.
Cross Traffic Not Available Sensor Blocked
See Manual
Displays when a fault with the cross traffic alert system occurs. Contac\
t an authorized dealer as soon as possible.
Cross Traffic System Fault
Displays when the blind spot information system with cross traffic alert\
(CTA) system is operating and senses a vehicle.
Cross Traffic Vehicle Coming From X
114
Navigator (TB5) Canada/United States of America, enUSA, First Printing Information Displays

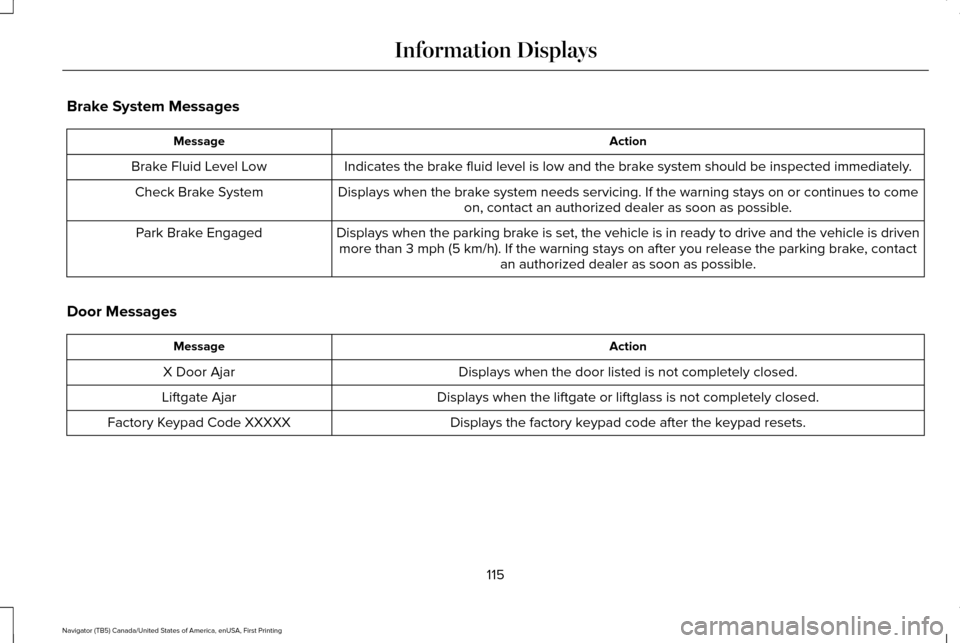

Brake System Messages
Action
Message
Indicates the brake fluid level is low and the brake system should be inspected immediately.
Brake Fluid Level Low
Displays when the brake system needs servicing. If the warning stays on or continues to comeon, contact an authorized dealer as soon as possible.
Check Brake System
Displays when the parking brake is set, the vehicle is in ready to drive and the vehicle is drivenmore than 3 mph (5 km/h). If the warning stays on after you release th\
e parking brake, contact an authorized dealer as soon as possible.
Park Brake Engaged
Door Messages Action
Message
Displays when the door listed is not completely closed.
X Door Ajar
Displays when the liftgate or liftglass is not completely closed.
Liftgate Ajar
Displays the factory keypad code after the keypad resets.
Factory Keypad Code XXXXX
115
Navigator (TB5) Canada/United States of America, enUSA, First Printing Information Displays

Engine Messages
Action
Message
Displays when the engine has reduced power to help reduce high enginetemperature.
Power Reduced to Lower Engine Temp
Informs you that you are exiting your vehicle and the engine is on.
Engine On
Fuel Messages Action
Message
Displays when the fuel fill inlet may not be properly closed.
Check Fuel Fill Inlet
Displays as an early reminder of a low fuel condition.
Fuel Level Low
116
Navigator (TB5) Canada/United States of America, enUSA, First Printing Information Displays

Keys and Intelligent Access Messages
Action
Message
Displas if the sytem does not detect the intelligent access key in the following three scenarios:When you press the start/stop button in an attempt to either start the e\
ngine or cycle through the ignition states. When the engine is running and a door is opened the\
n closed. When the vehicle’s speed exceeds 10 mph (16 km/h) for the first time after starting.
No Key Detected
Displays during spare key programming, when an intelligent access key is programmed to the system.
Key Programmed x Keys Total
Displays during spare key programming when the maximum number of keys have beenprogrammed.
Max Number of Keys Programmed
Displays when you press the start/stop button without applying the brake pedal. This is a reminderthat you must apply the brake pedal when pressing the start/stop button in order to start the engine.
Press Brake to Start
Displays when you press the start/stop button to shut off the engine and\
an Intelligent AccessKey is not detected inside the vehicle.
Restart Now or Key is Needed
Displays when the vehicle is in the accessory ignition state.
Accessory Power Active
This message displays when there is a problem with your vehicle ’s starting system. Contact an
authorized dealer for service.
Starting System Fault
117
