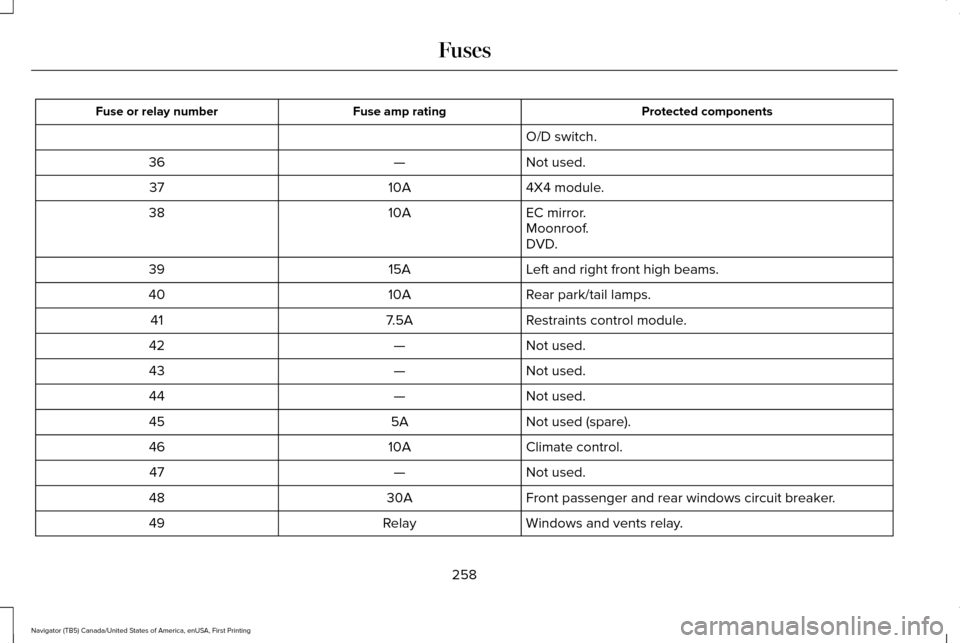

Protected components
Fuse amp rating
Fuse or relay number
O/D switch.
Not used.
—
36
4X4 module.
10A
37
EC mirror.
10A
38
Moonroof.
DVD.
Left and right front high beams.
15A
39
Rear park/tail lamps.
10A
40
Restraints control module.
7.5A
41
Not used.
—
42
Not used.
—
43
Not used.
—
44
Not used (spare).
5A
45
Climate control.
10A
46
Not used.
—
47
Front passenger and rear windows circuit breaker.
30A
48
Windows and vents relay.
Relay
49
258
Navigator (TB5) Canada/United States of America, enUSA, First Printing Fuses
