LINCOLN NAVIGATOR 2021 Owners Manual

Towing a Trailer or Using a Car-top Carrier
Change engine oil and filter as indicated by the information display and\
perform services listed in the Normal
Scheduled Maintenance chart.
As required
Inspect and lubricate U-joints (if equipped with grease fittings).
Inspect frequently, service
as required
See axle maintenance items under Exceptions.
Change transfer case fluid (Four-wheel drive vehicles).
Every
60,000 mi
(96,000 km) Replace spark plugs. Extensive Idling or Low-speed Driving for Long Distances, as in Heavy Commercial Use
Change engine oil and filter as indicated by the information display and\
perform services listed in the Normal
Scheduled Maintenance chart.
As required
Replace engine air filter.
Inspect frequently, service
as required
Replace cabin air filter.
Change transfer case fluid (Four-wheel drive vehicles).
Every
60,000 mi
(96,000 km) Replace spark plugs.
548
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Scheduled Maintenance

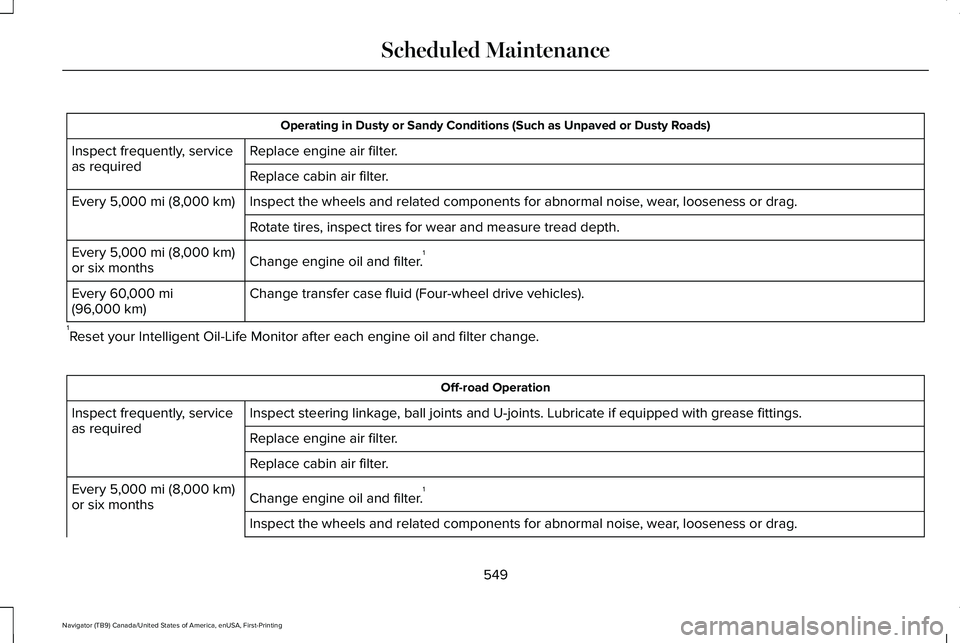

Operating in Dusty or Sandy Conditions (Such as Unpaved or Dusty Roads)
Replace engine air filter.
Inspect frequently, service
as required
Replace cabin air filter.
Inspect the wheels and related components for abnormal noise, wear, looseness or drag.
Every 5,000 mi (8,000 km)
Rotate tires, inspect tires for wear and measure tread depth.
Change engine oil and filter. 1
Every
5,000 mi (8,000 km)
or six months
Change transfer case fluid (Four-wheel drive vehicles).
Every
60,000 mi
(96,000 km)
1 Reset your Intelligent Oil-Life Monitor after each engine oil and filter \
change. Off-road Operation
Inspect steering linkage, ball joints and U-joints. Lubricate if equipped with grease fittings.
Inspect frequently, service
as required
Replace engine air filter.
Replace cabin air filter.
Change engine oil and filter.1
Every
5,000 mi (8,000 km)
or six months
Inspect the wheels and related components for abnormal noise, wear, looseness or drag.
549
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Scheduled Maintenance

Off-road Operation
Rotate tires, inspect tires for wear and measure tread depth.
Change transfer case fluid (Four-wheel drive vehicles).
Every 60,000 mi
(96,000 km)
1 Reset your Intelligent Oil-Life Monitor after each engine oil and filter \
change.
Exceptions
There are several exceptions to the Normal
Schedule.
Axle and Transfer Case Maintenance
Axle(s) and transfer case (Four-wheel drive
vehicles) fluid changes or level checks are
not required unless a leak is suspected or
the assembly has been submerged in water.
Contact an authorized dealer for service. California Fuel Filter Replacement
If you register your vehicle in California, the
California Air Resources Board has
determined that the failure to perform this
maintenance item does not nullify the
emission warranty or limit recall liability
before the completion of your vehicle's
useful life. The Lincoln Motor Company,
however, urges you to have all
recommended maintenance services
performed at the specified intervals and to
record all vehicle service.Hot Climate Oil Change Intervals
Vehicles operating in the Middle East, North
Africa, Sub-Saharan Africa or locations with
similar climates using an American Petroleum
Institute (API) Certified for Gasoline Engines
(Certification mark) oil of SM or SN quality,
the normal oil change interval is
3,000 mi
(4,800 km).
If the available API SM or SN oils are not
available, then the oil change interval is
1,800 mi (2,900 km)
.
Engine Air Filter Replacement
The life of the engine air filter is dependent
on exposure to dusty and dirty conditions.
Vehicles operated in these conditions
require frequent inspection and replacement
of the engine air filter.
550
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Scheduled Maintenance

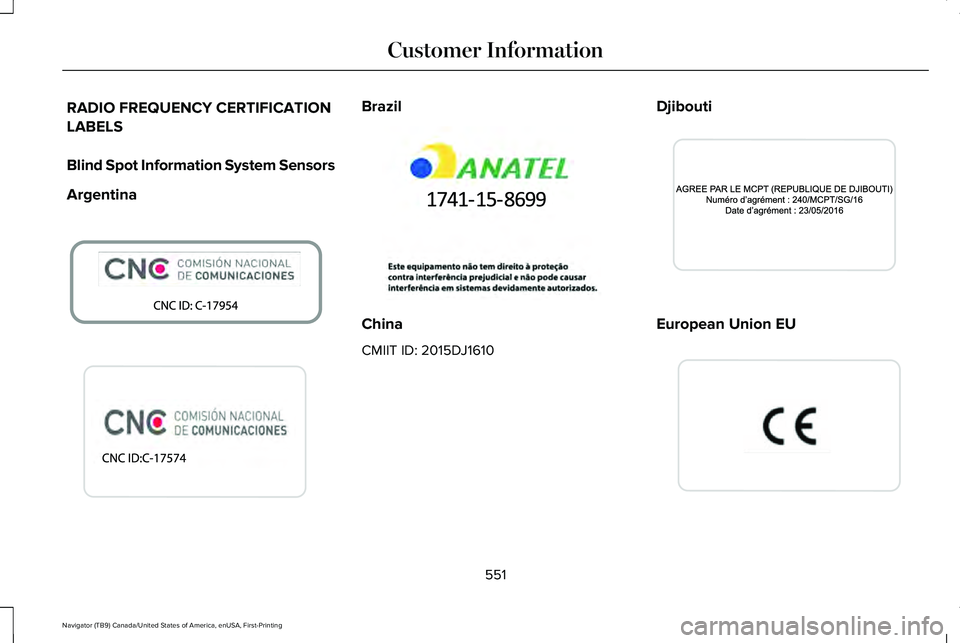

RADIO FREQUENCY CERTIFICATION
LABELS
Blind Spot Information System Sensors
Argentina Brazil
China
CMIIT ID: 2015DJ1610
Djibouti European Union EU
551
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Customer InformationE337180 E340516 E340204 E340826 E310043

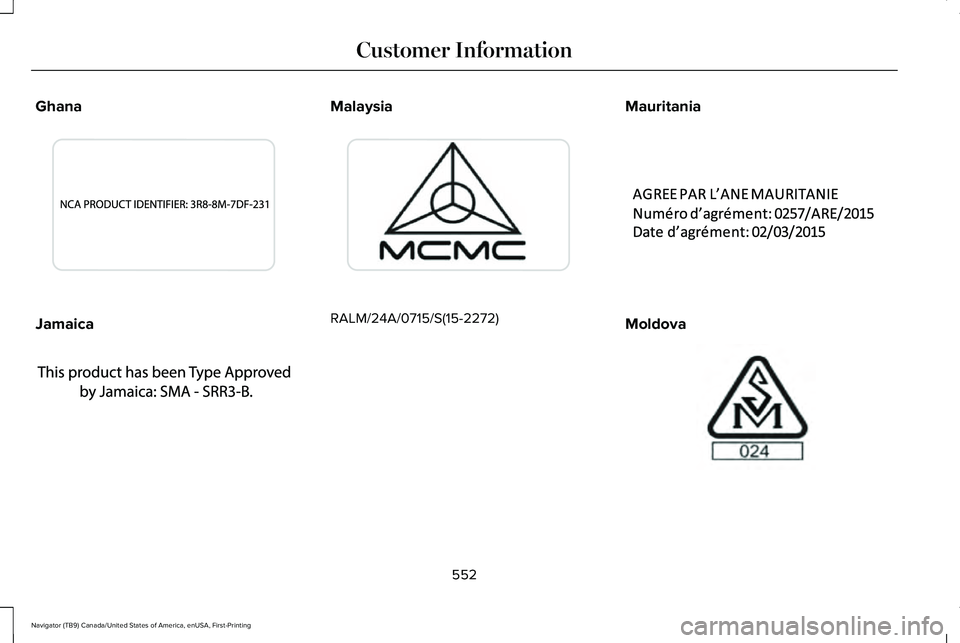

Ghana
Jamaica Malaysia
RALM/24A/0715/S(15-2272)
Mauritania Moldova
552
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Customer InformationE269695 E340517 E269697 E340199 E337971

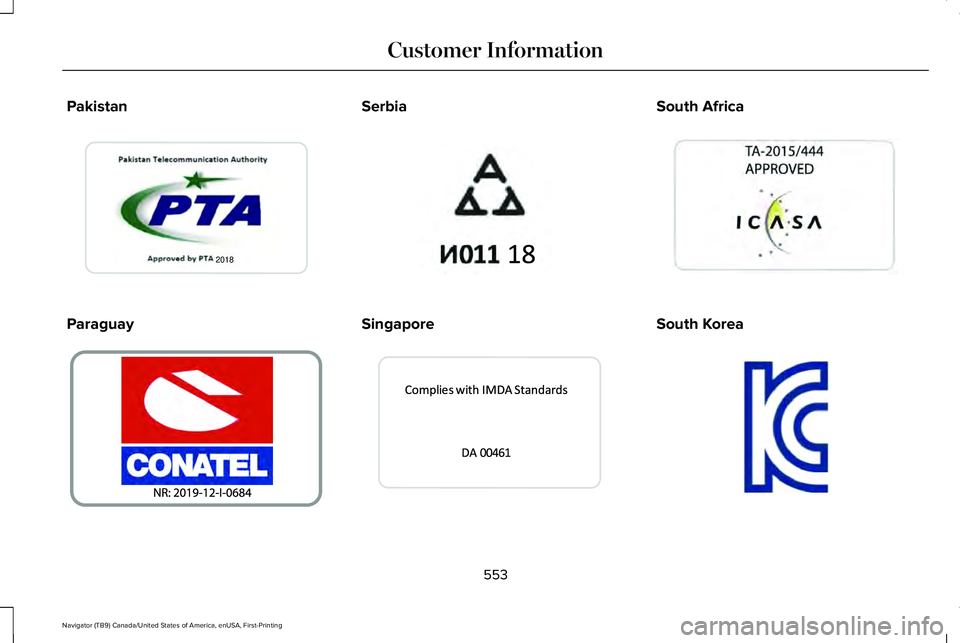

Pakistan
Paraguay Serbia
Singapore South Africa
South Korea
553
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Customer Information2018E340825 E337181 E340200 E339940 E269696 E339675

MSIP-CRM-8DC-SRR3B
Taiwan
Ukraine
United Arab Emirates (U.A.E.) United States and Canada
WARNING: Changes or modifications
not expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term "IC:" before the radio certification
number only signifies that Industry Canada
technical specifications were met.
FCC ID: OAYSRR3B
IC: 4135A-SRR3B
IC: RSS-310 compliant, Per FCC Test report
no.: 1-8707-14-01-03
This device complies with Part 15 of the FCC
Rules and with Innovation, Science and
Economic Development Canada ’s
licence-exempt RSS(s). Operation is subject
to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference
received, including interference that may
cause undesired operation.
554
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Customer InformationE340203 E338024 E338020

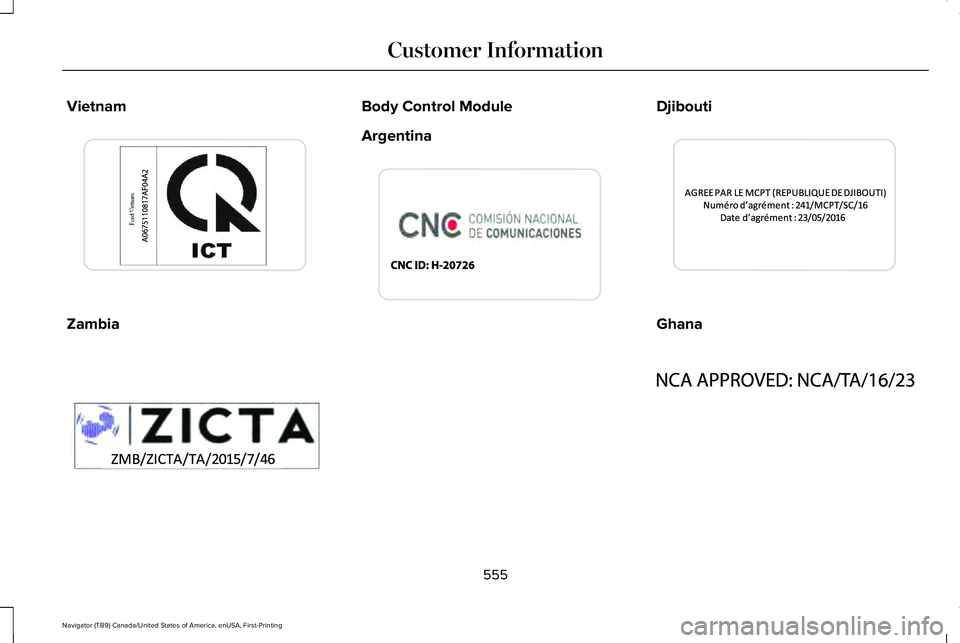

Vietnam
Zambia Body Control Module
Argentina Djibouti
Ghana
555
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Customer InformationE269693 E340205 E340512 E344539 E340513

Jamaica
Mauritania Morocco
Pakistan Paraguay
2018-08-I-000410
2013-08-I-0158
556
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Customer InformationE340514 E340515 E344540 E337974 E339812

South Africa
South Korea 2013-07-03
Syria
Ukraine
United Stand and Canada
WARNING: Changes or modifications
not expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term "IC:" before the radio certification
number only signifies that Industry Canada
technical specifications were met.
FCC ID: M3NA2C738448
IC: 7812A-A2C738448
557
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Customer Information E344541 E339675 E344542 E269682
