fuse box LINCOLN NAVIGATOR 2021 Owners Manual

FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
WARNING: Always disconnect the
battery before servicing high current fuses. WARNING:
To reduce risk of
electrical shock, always replace the cover
to the power distribution box before
reconnecting the battery or refilling fluid
reservoirs. The engine compartment fuse box is in the
engine compartment. It has high-current
fuses that protect your vehicle
’s main
electrical systems from overloads.
You need to reset some features when you,
or someone else, disconnects and
reconnects the battery.
See Changing the
12V Battery (page 390).
Replace fuses with the same type and rating.
See
Changing a Fuse (page 374).
360
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Fuses

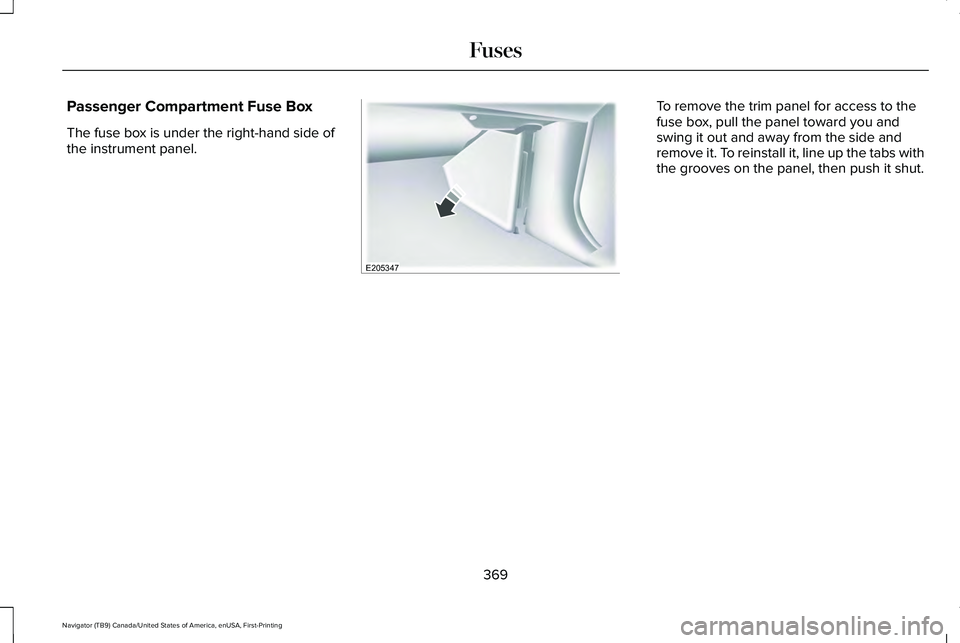

Passenger Compartment Fuse Box
The fuse box is under the right-hand side of
the instrument panel. To remove the trim panel for access to the
fuse box, pull the panel toward you and
swing it out and away from the side and
remove it. To reinstall it, line up the tabs with
the grooves on the panel, then push it shut.
369
Navigator (TB9) Canada/United States of America, enUSA, First-Printing FusesE205347

UNDER HOOD OVERVIEW
Windshield washer fluid reservoir. See Washer Fluid Check (page 394).
A.
Power distribution box.
See Changing a Fuse (page 374).
B.
Battery.
See Changing the 12V Battery (page 390).
C.
Engine oil filler cap.
See Engine Oil Check (page 380).
D.
Engine oil dipstick.
See Engine Oil Dipstick (page 380).
E.
379
Navigator (TB9) Canada/United States of America, enUSA, First-Printing MaintenanceE258054
