relay LINCOLN NAVIGATOR 2022 Owners Manual

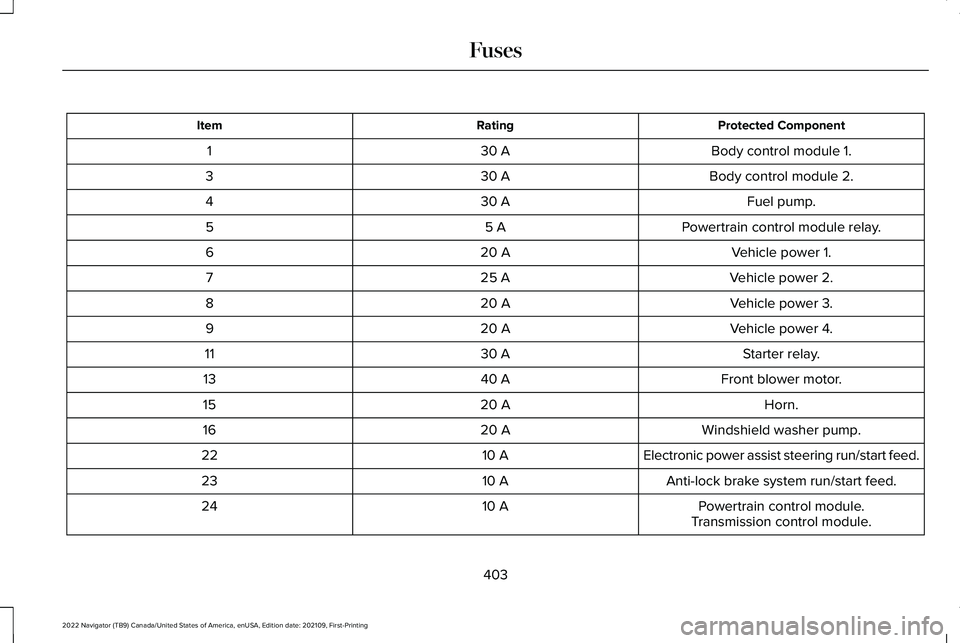

Protected Component
Rating
Item
Body control module 1.
30 A
1
Body control module 2.
30 A
3
Fuel pump.
30 A
4
Powertrain control module relay.
5 A
5
Vehicle power 1.
20 A
6
Vehicle power 2.
25 A
7
Vehicle power 3.
20 A
8
Vehicle power 4.
20 A
9
Starter relay.
30 A
11
Front blower motor.
40 A
13
Horn.
20 A
15
Windshield washer pump.
20 A
16
Electronic power assist steering run/start feed.
10 A
22
Anti-lock brake system run/start feed.
10 A
23
Powertrain control module.
10 A
24
Transmission control module.
403
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Fuses

Protected Component
Rating
Item
Trailer brake control module.
30 A
42
Lincoln star lamp.
5 A
43
Power point 5.
20 A
45
Electric fan 1.
50 A
47
Electric fan 2.
50 A
49
Heated rear window.
40 A
50
Electronic limited slip differential.
40 A
54
Trailer tow parking lamps relay.
30 A
55
Trailer tow backup lamps.
10 A
58
Rear multi-contour seats.
20 A
59
Four-wheel drive module 1.
25 A
64
Transmission run/start.
15 A
67
Left-hand side wiper motor.
30 A
69
Rear window wiper relay.
20 A
71
Power folding seat module - third row.
50 A
73
Four-wheel drive module 2.
25 A
82
405
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Fuses

Protected Component
Rating
Item
Auxiliary blower.
40 A
88
Trailer tow lighting module power.
20 A
91
Left-hand headlamp.
25 A
100
Right-hand headlamp.
25 A
101
Trailer battery charge.
30 A
107
Not used (spare).
20 A
108
Fuel injectors.
15 A
120
Rain sensor module.
5 A
124
USB smart charger 1.
5 A
125
Family entertainment system.
7.5 A
128
Multi-contour seats relay.
20 A
134
Advanced driver-assistance systems module.
20 A
137
Connected camera.
USB smart charger 2.
5 A
139
USB smart charger 3.
5 A
140
USB smart charger 5.
5 A
142
406
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Fuses

Protected Component
Rating
Item
Not used (spare).
40 A
147
Smart data link connector.
10 A
160
Headlamp control module.
5 A
181
Driver door control module.
60 A
182
Passenger door control module.
60 A
183
Body control module start stop.
30 A
210 Protected Component
Relay Number
Electric fan 1 relay.
R04
Electric fan 3 relay.
R06
407
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Fuses

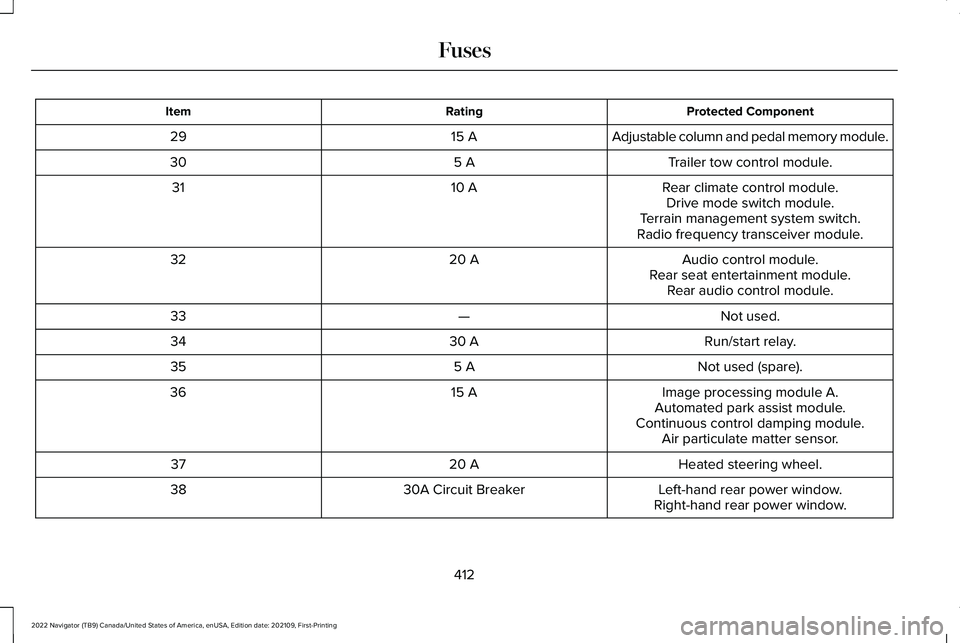

Protected Component
Rating
Item
Adjustable column and pedal memory module.
15 A
29
Trailer tow control module.
5 A
30
Rear climate control module.
10 A
31
Drive mode switch module.
Terrain management system switch.
Radio frequency transceiver module.
Audio control module.
20 A
32
Rear seat entertainment module.Rear audio control module.
Not used.
—
33
Run/start relay.
30 A
34
Not used (spare).
5 A
35
Image processing module A.
15 A
36
Automated park assist module.
Continuous control damping module. Air particulate matter sensor.
Heated steering wheel.
20 A
37
Left-hand rear power window.
30A Circuit Breaker
38
Right-hand rear power window.
412
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Fuses
