sensor LINCOLN NAVIGATOR 2022 Owners Manual

Contacting Us
Contacting Us
..................................................17
Introduction
About This Publication ..................................
19
Using This Publication ..................................
20
Symbols Glossary
Symbols Used on Your Vehicle ...................
21
Data Privacy
Data Privacy ....................................................
24
Service Data ....................................................
25
Event Data .......................................................
26
Settings Data ..................................................
26
Connected Vehicle Data ..............................
27
Mobile Device Data .......................................
27
Emergency Call System Data .....................
28
Visual Search
Steering Wheel ..............................................
29
Instrument Panel .............................................
31
Vehicle Interior ...............................................
33Front Exterior
..................................................
35
Rear Exterior ....................................................
37
Child Safety
Child Safety Precautions .............................
39
Child Restraint Anchor Points .....................
40
Child Restraints ...............................................
41
Installing Child Restraints ............................
44
Booster Seats .................................................
48
Child Safety Locks ..........................................
51
Seatbelts
Seatbelt Precautions ....................................
52
Fastening and Unfastening the Seatbelts ........................................................................\
.
53
Sensitive Locking Mode ...............................
54
Automatic Locking Mode .............................
54
Adjusting the Seatbelts During Pregnancy ........................................................................\
55
Adjusting the Seatbelt Height ....................
56
Seatbelt Reminder .........................................
56
Checking the Seatbelts ...............................
58
Seatbelt Extensions ......................................
58Personal Safety System
™
What Is the Personal Safety System .........
60
How Does the Personal Safety System Work .............................................................
60
Personal Safety System Components ........................................................................\
60
Airbags
How Do the Front Airbags Work ................
61
How Do the Side Airbags Work ..................
61
How Does the Safety Canopy™ Work .......
62
Airbag Precautions ........................................
63
Properly Adjusting the Driver and Front Passenger Seats ........................................
64
Children and Airbags ....................................
65
Front Passenger Sensing System .............
65
Crash Sensors and Airbag Indicator ........
68
Disposing of Airbags ....................................
69
911 Assist
What Is 911 Assist ...........................................
70
How Does 911 Assist Work ..........................
70
Emergency Call Requirements ...................
70
1
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Table of Contents

Selecting a Drive Mode
.............................294
Drive Modes .................................................
294
Drive Mode Control – Troubleshooting ......................................................................
297
Lane Keeping System
What Is the Lane Keeping System ..........
299
How Does the Lane Keeping System Work ......................................................................
299
Lane Keeping System Precautions ........
299
Lane Keeping System Limitations ..........
300
Switching the Lane Keeping System On and Off .......................................................
300
Switching the Lane Keeping System Mode ......................................................................
300
Alert Mode .....................................................
301
Aid Mode ........................................................
301
Alert and Aid Mode ....................................
302
Lane Keeping System Indicators ............
302
Blind Spot Assist .........................................
303
Blind Spot Assist with Trailer Coverage ......................................................................
306
Lane Keeping System – Troubleshooting ......................................................................
308 Blind Spot Information System
What Is Blind Spot Information System
........................................................................\
311
How Does Blind Spot Information System Work .............................................................
311
Blind Spot Information System Precautions ........................................................................\
311
Blind Spot Information System Limitations ........................................................................\
311
Blind Spot Information System Requirements ............................................
312
Switching Blind Spot Information System On and Off .................................................
312
Locating the Blind Spot Information System Sensors .......................................................
312
Blind Spot Information System With Trailer Coverage ...................................................
313
Blind Spot Information System Indicators .......................................................................
315
Blind Spot Information System – Troubleshooting .......................................
315
Cross Traffic Alert
What Is Cross Traffic Alert ..........................
316
How Does Cross Traffic Alert Work .........
316Cross Traffic Alert Precautions
.................
316
Cross Traffic Alert Limitations ....................
317
Switching Cross Traffic Alert On and Off .......................................................................
317
Locating the Cross Traffic Alert Sensors .......................................................................
317
Cross Traffic Alert Indicators .....................
318
Cross Traffic Alert – Troubleshooting .......................................................................
319
Pre-Collision Assist
What Is Pre-Collision Assist ......................
320
How Does Pre-Collision Assist Work ......
320
Pre-Collision Assist Precautions .............
320
Pre-Collision Assist Limitations .................
321
Switching Pre-Collision Assist On and Off ......................................................................
322
Locating the Pre-Collision Assist Sensors ......................................................................
323
Distance Indication .....................................
323
Distance Alert ...............................................
326
Automatic Emergency Braking ................
326
Evasive Steering Assist .............................
326
10
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Table of Contents

See Opening the Liftgate From Outside Your Vehicle (page 98).
A
See
Replacing the Rear Wiper Blades (page 117).
B
See
Locating the Rear Parking Aid Sensors (page 256).
C
See
Locating the 360 Degree Cameras (page 262).
D
38
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Visual Search

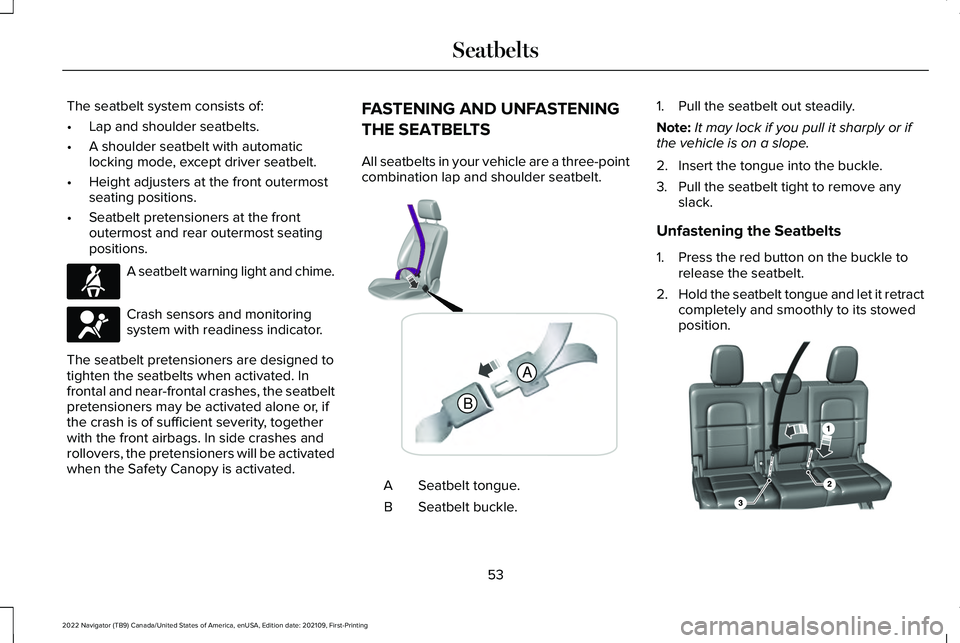

The seatbelt system consists of:
•
Lap and shoulder seatbelts.
• A shoulder seatbelt with automatic
locking mode, except driver seatbelt.
• Height adjusters at the front outermost
seating positions.
• Seatbelt pretensioners at the front
outermost and rear outermost seating
positions. A seatbelt warning light and chime.
Crash sensors and monitoring
system with readiness indicator.
The seatbelt pretensioners are designed to
tighten the seatbelts when activated. In
frontal and near-frontal crashes, the seatbelt
pretensioners may be activated alone or, if
the crash is of sufficient severity, together
with the front airbags. In side crashes and
rollovers, the pretensioners will be activated
when the Safety Canopy is activated. FASTENING AND UNFASTENING
THE SEATBELTS
All seatbelts in your vehicle are a three-point
combination lap and shoulder seatbelt.
Seatbelt tongue.
A
Seatbelt buckle.
B 1. Pull the seatbelt out steadily.
Note:
It may lock if you pull it sharply or if
the vehicle is on a slope.
2. Insert the tongue into the buckle.
3. Pull the seatbelt tight to remove any slack.
Unfastening the Seatbelts
1. Press the red button on the buckle to release the seatbelt.
2. Hold the seatbelt tongue and let it retract
completely and smoothly to its stowed
position. 53
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing SeatbeltsE71880 E67017 B
A E338014 E275033

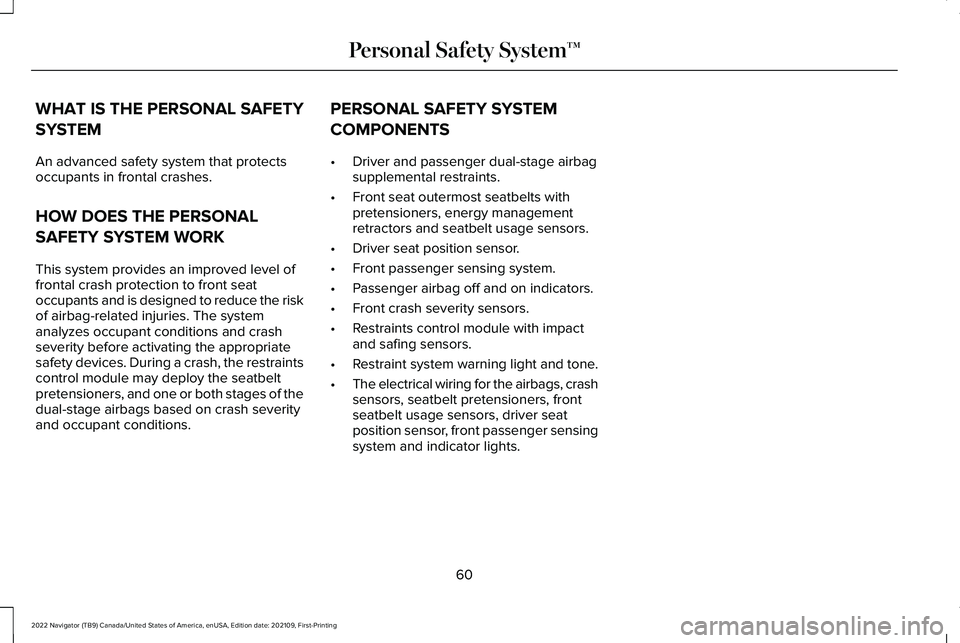

WHAT IS THE PERSONAL SAFETY
SYSTEM
An advanced safety system that protects
occupants in frontal crashes.
HOW DOES THE PERSONAL
SAFETY SYSTEM WORK
This system provides an improved level of
frontal crash protection to front seat
occupants and is designed to reduce the risk
of airbag-related injuries. The system
analyzes occupant conditions and crash
severity before activating the appropriate
safety devices. During a crash, the restraints
control module may deploy the seatbelt
pretensioners, and one or both stages of the
dual-stage airbags based on crash severity
and occupant conditions.
PERSONAL SAFETY SYSTEM
COMPONENTS
•
Driver and passenger dual-stage airbag
supplemental restraints.
• Front seat outermost seatbelts with
pretensioners, energy management
retractors and seatbelt usage sensors.
• Driver seat position sensor.
• Front passenger sensing system.
• Passenger airbag off and on indicators.
• Front crash severity sensors.
• Restraints control module with impact
and safing sensors.
• Restraint system warning light and tone.
• The electrical wiring for the airbags, crash
sensors, seatbelt pretensioners, front
seatbelt usage sensors, driver seat
position sensor, front passenger sensing
system and indicator lights.
60
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Personal Safety System
™

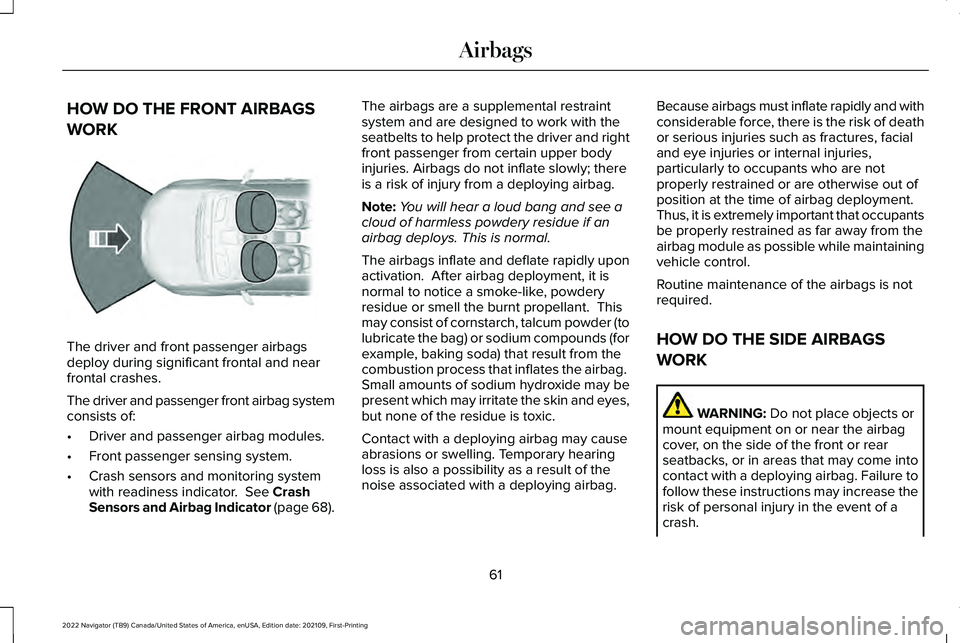

HOW DO THE FRONT AIRBAGS
WORK
The driver and front passenger airbags
deploy during significant frontal and near
frontal crashes.
The driver and passenger front airbag system
consists of:
•
Driver and passenger airbag modules.
• Front passenger sensing system.
• Crash sensors and monitoring system
with readiness indicator. See Crash
Sensors and Airbag Indicator (page 68). The airbags are a supplemental restraint
system and are designed to work with the
seatbelts to help protect the driver and right
front passenger from certain upper body
injuries. Airbags do not inflate slowly; there
is a risk of injury from a deploying airbag.
Note:
You will hear a loud bang and see a
cloud of harmless powdery residue if an
airbag deploys. This is normal.
The airbags inflate and deflate rapidly upon
activation. After airbag deployment, it is
normal to notice a smoke-like, powdery
residue or smell the burnt propellant. This
may consist of cornstarch, talcum powder (to
lubricate the bag) or sodium compounds (for
example, baking soda) that result from the
combustion process that inflates the airbag.
Small amounts of sodium hydroxide may be
present which may irritate the skin and eyes,
but none of the residue is toxic.
Contact with a deploying airbag may cause
abrasions or swelling. Temporary hearing
loss is also a possibility as a result of the
noise associated with a deploying airbag. Because airbags must inflate rapidly and with
considerable force, there is the risk of death
or serious injuries such as fractures, facial
and eye injuries or internal injuries,
particularly to occupants who are not
properly restrained or are otherwise out of
position at the time of airbag deployment.
Thus, it is extremely important that occupants
be properly restrained as far away from the
airbag module as possible while maintaining
vehicle control.
Routine maintenance of the airbags is not
required.
HOW DO THE SIDE AIRBAGS
WORK
WARNING:
Do not place objects or
mount equipment on or near the airbag
cover, on the side of the front or rear
seatbacks, or in areas that may come into
contact with a deploying airbag. Failure to
follow these instructions may increase the
risk of personal injury in the event of a
crash.
61
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing AirbagsE151127

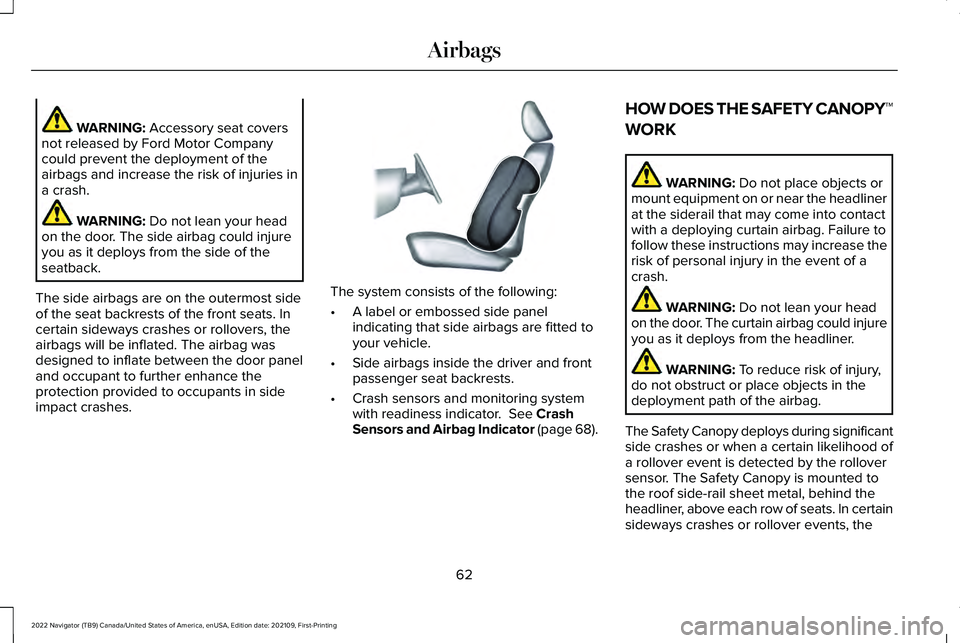

WARNING: Accessory seat covers
not released by Ford Motor Company
could prevent the deployment of the
airbags and increase the risk of injuries in
a crash. WARNING:
Do not lean your head
on the door. The side airbag could injure
you as it deploys from the side of the
seatback.
The side airbags are on the outermost side
of the seat backrests of the front seats. In
certain sideways crashes or rollovers, the
airbags will be inflated. The airbag was
designed to inflate between the door panel
and occupant to further enhance the
protection provided to occupants in side
impact crashes. The system consists of the following:
•
A label or embossed side panel
indicating that side airbags are fitted to
your vehicle.
• Side airbags inside the driver and front
passenger seat backrests.
• Crash sensors and monitoring system
with readiness indicator.
See Crash
Sensors and Airbag Indicator (page 68). HOW DOES THE SAFETY CANOPY™
WORK WARNING:
Do not place objects or
mount equipment on or near the headliner
at the siderail that may come into contact
with a deploying curtain airbag. Failure to
follow these instructions may increase the
risk of personal injury in the event of a
crash. WARNING:
Do not lean your head
on the door. The curtain airbag could injure
you as it deploys from the headliner. WARNING:
To reduce risk of injury,
do not obstruct or place objects in the
deployment path of the airbag.
The Safety Canopy deploys during significant
side crashes or when a certain likelihood of
a rollover event is detected by the rollover
sensor. The Safety Canopy is mounted to
the roof side-rail sheet metal, behind the
headliner, above each row of seats. In certain
sideways crashes or rollover events, the
62
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing AirbagsE152533

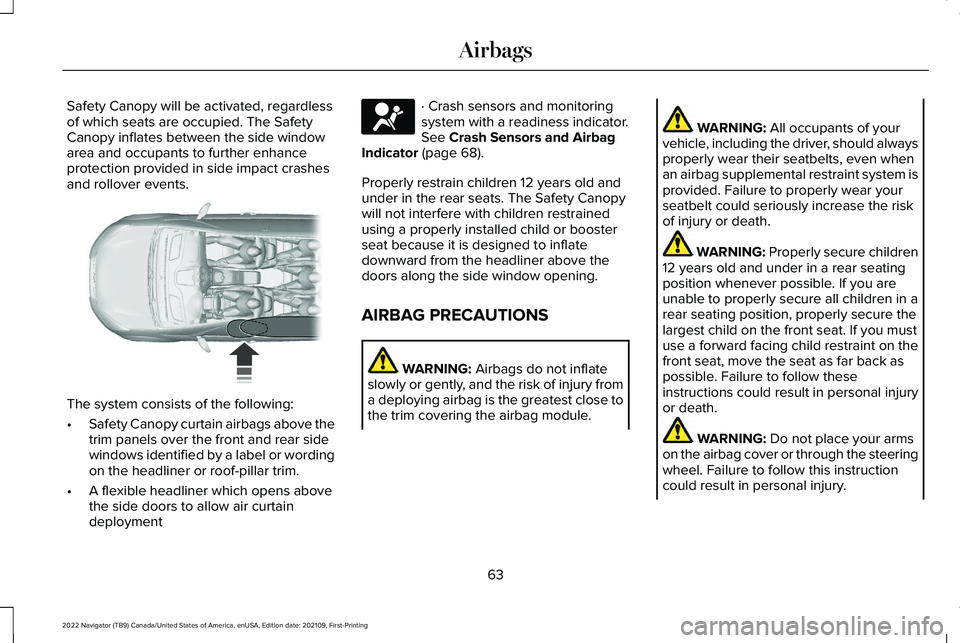

Safety Canopy will be activated, regardless
of which seats are occupied. The Safety
Canopy inflates between the side window
area and occupants to further enhance
protection provided in side impact crashes
and rollover events.
The system consists of the following:
•
Safety Canopy curtain airbags above the
trim panels over the front and rear side
windows identified by a label or wording
on the headliner or roof-pillar trim.
• A flexible headliner which opens above
the side doors to allow air curtain
deployment · Crash sensors and monitoring
system with a readiness indicator.
See Crash Sensors and Airbag
Indicator (page 68).
Properly restrain children 12 years old and
under in the rear seats. The Safety Canopy
will not interfere with children restrained
using a properly installed child or booster
seat because it is designed to inflate
downward from the headliner above the
doors along the side window opening.
AIRBAG PRECAUTIONS WARNING:
Airbags do not inflate
slowly or gently, and the risk of injury from
a deploying airbag is the greatest close to
the trim covering the airbag module. WARNING:
All occupants of your
vehicle, including the driver, should always
properly wear their seatbelts, even when
an airbag supplemental restraint system is
provided. Failure to properly wear your
seatbelt could seriously increase the risk
of injury or death. WARNING:
Properly secure children
12 years old and under in a rear seating
position whenever possible. If you are
unable to properly secure all children in a
rear seating position, properly secure the
largest child on the front seat. If you must
use a forward facing child restraint on the
front seat, move the seat as far back as
possible. Failure to follow these
instructions could result in personal injury
or death. WARNING:
Do not place your arms
on the airbag cover or through the steering
wheel. Failure to follow this instruction
could result in personal injury.
63
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Airbags E75004 E67017

•

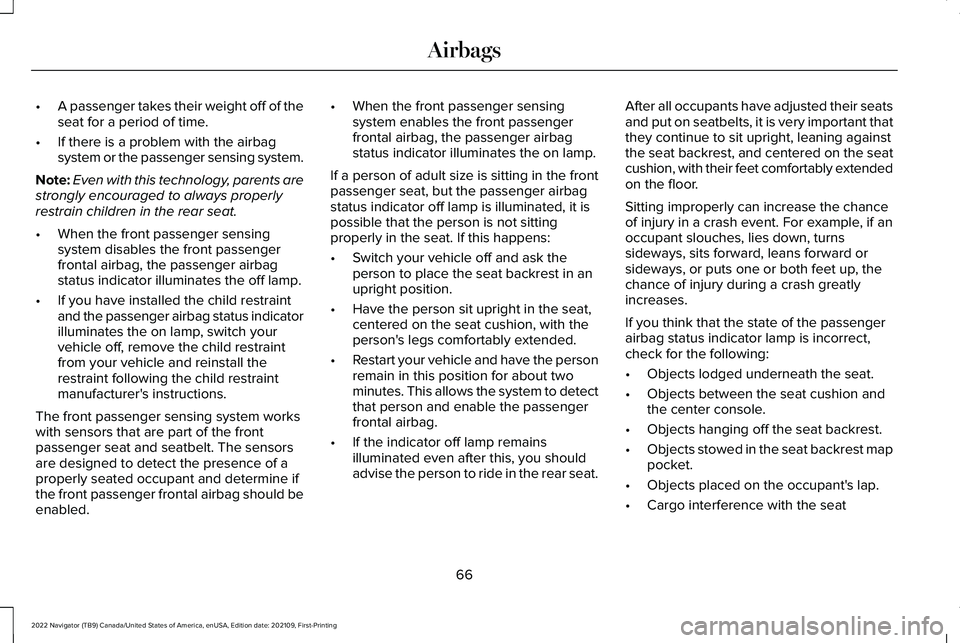

A passenger takes their weight off of the
seat for a period of time.
• If there is a problem with the airbag
system or the passenger sensing system.
Note: Even with this technology, parents are
strongly encouraged to always properly
restrain children in the rear seat.
• When the front passenger sensing
system disables the front passenger
frontal airbag, the passenger airbag
status indicator illuminates the off lamp.
• If you have installed the child restraint
and the passenger airbag status indicator
illuminates the on lamp, switch your
vehicle off, remove the child restraint
from your vehicle and reinstall the
restraint following the child restraint
manufacturer's instructions.
The front passenger sensing system works
with sensors that are part of the front
passenger seat and seatbelt. The sensors
are designed to detect the presence of a
properly seated occupant and determine if
the front passenger frontal airbag should be
enabled. •
When the front passenger sensing
system enables the front passenger
frontal airbag, the passenger airbag
status indicator illuminates the on lamp.
If a person of adult size is sitting in the front
passenger seat, but the passenger airbag
status indicator off lamp is illuminated, it is
possible that the person is not sitting
properly in the seat. If this happens:
• Switch your vehicle off and ask the
person to place the seat backrest in an
upright position.
• Have the person sit upright in the seat,
centered on the seat cushion, with the
person's legs comfortably extended.
• Restart your vehicle and have the person
remain in this position for about two
minutes. This allows the system to detect
that person and enable the passenger
frontal airbag.
• If the indicator off lamp remains
illuminated even after this, you should
advise the person to ride in the rear seat. After all occupants have adjusted their seats
and put on seatbelts, it is very important that
they continue to sit upright, leaning against
the seat backrest, and centered on the seat
cushion, with their feet comfortably extended
on the floor.
Sitting improperly can increase the chance
of injury in a crash event. For example, if an
occupant slouches, lies down, turns
sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the
chance of injury during a crash greatly
increases.
If you think that the state of the passenger
airbag status indicator lamp is incorrect,
check for the following:
•
Objects lodged underneath the seat.
• Objects between the seat cushion and
the center console.
• Objects hanging off the seat backrest.
• Objects stowed in the seat backrest map
pocket.
• Objects placed on the occupant's lap.
• Cargo interference with the seat
66
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Airbags

•
Other passengers pushing or pulling on
the seat.
• Rear passenger feet and knees resting
or pushing on the seat.
The listed conditions could cause the weight
of a properly seated occupant to be
incorrectly interpreted by the front passenger
sensing system. The person in the front
passenger seat could appear heavier or
lighter due to the conditions listed. Make sure the front passenger
sensing system is operating
properly. See Crash Sensors and
Airbag Indicator (page 68).
If the airbag readiness light is on, do the
following:
• Pull your vehicle over.
• Switch your vehicle off. •
Check for any objects lodged underneath
the front passenger seat or cargo
interfering with the seat.
• Remove the obstruction if found.
• Restart your vehicle.
• Wait at least two minutes and verify that
the airbag readiness light in the
instrument cluster is no longer
illuminated.
• If the airbag readiness light in the
instrument cluster remains illuminated,
there may be a problem due to the front
passenger sensing system.
Do not attempt to repair or service the
system. Take your vehicle in for service
immediately.
If it is necessary to modify an advanced front
airbag system to accommodate a person
with disabilities, contact your Customer
Relationship Center.
See Contacting Us
(page 17). FRONT PASSENGER SENSING
SYSTEM PRECAUTIONS WARNING: Sitting improperly, out of
position or with the seatback reclined too
far can take weight off the seat cushion
and affect the decision of the passenger
sensing system, resulting in serious injury
or death in the event of a crash. Always sit
upright against your seat back, with your
feet on the floor. WARNING:
Any alteration or
modification to the front passenger seat
may affect the performance of the front
passenger sensing system. This could
seriously increase the risk of injury or
death.
67
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing AirbagsE67017
