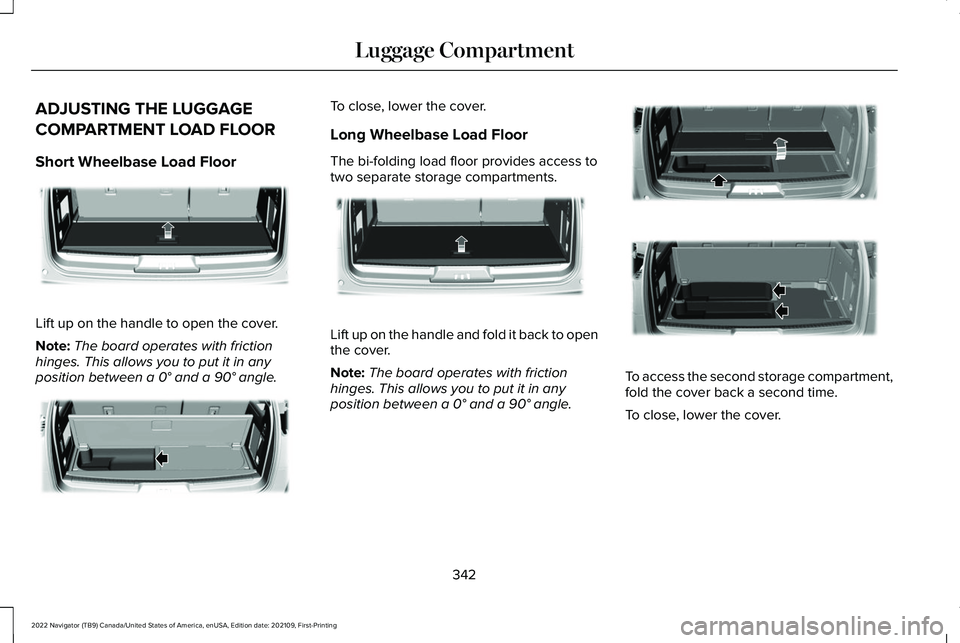

ADJUSTING THE LUGGAGE
COMPARTMENT LOAD FLOOR
Short Wheelbase Load Floor
Lift up on the handle to open the cover.
Note:
The board operates with friction
hinges. This allows you to put it in any
position between a 0° and a 90° angle. To close, lower the cover.
Long Wheelbase Load Floor
The bi-folding load floor provides access to
two separate storage compartments.
Lift up on the handle and fold it back to open
the cover.
Note:
The board operates with friction
hinges. This allows you to put it in any
position between a
0° and a 90° angle. To access the second storage compartment,
fold the cover back a second time.
To close, lower the cover.
342
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Luggage CompartmentE250821 E250823 E250822 E250824 E250825
ADJUSTING THE LUGGAGE
COMPARTMENT DIVIDER
Advanced Luggage Compartment
Divider (If Equipped)
WARNING:
Do not load any objects
on the shelf that may obstruct your vision
or strike occupants of the vehicle in the
case of a sudden stop or collision. WARNING:
Do not place people or
pets on or under the parcel shelf.
Forward Divider To move the board into the divider position,
lift up on the handle and position the board
vertically at a
90° angle.
Note: The board operates with friction
hinges. This allows you to put it in any
position between a
0° and a 90° angle.
Cargo Shelf To move the board into the shelf position,
lift the board and move it to the horizontal
position. Once the board is horizontal, insert
the forward-facing nubs into the hooks on
either side.For the short wheelbase, it is necessary to
raise up the second panel toward the front
of the vehicle when you have the seats
folded down.
For the long wheelbase, it is necessary to
raise up the second panel toward the front
of the vehicle.
Note:
Before moving the board into the shelf
position, you may need to flip down the
hooks.
Note: Do not put more than 50 lb (22 kg) on
the shelf.
Rear Barrier (Bulkhead Position) 343
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Luggage CompartmentE250828 E250829 E250830
