Page 166 of 306
SNOW TIRES AND CHAINS
WARNING:Snow tires must be the same size, load index, speed
rating as those originally provided by Ford. Use of any tire or
wheel not recommended by Ford can affect the safety and
performance of your vehicle, which could result in an increased risk of
loss of vehicle control, vehicle rollover, personal injury and death.
Additionally, the use of non-recommended tires and wheels could
cause steering, suspension, axle or transfer case/power transfer unit
failure.
The tires on your vehicle have all-weather treads to provide traction in
rain and snow. However, in some climates, you may need to use snow
tires and chains. If you need to use chains, it is recommended that steel
wheels (of the same size and specifications) be used, as chains may chip
aluminum wheels.
Note:The suspension insulation and bumpers will help prevent vehicle
damage. Do not remove these components from your vehicle when using
snow tires and chains.
Follow these guidelines when using snow tires and chains:
•If possible, avoid fully loading your vehicle.
•Use only cable type chains offered by Ford Motor Company as an
accessory or equivalent. Using SAE class S or other conventional link
type chains may cause damage to the vehicle’s wheel house and/or
body.
•Install chains securely, verifying that the chains do not touch any
wiring, brake lines or fuel lines.
•Do not exceed 30 mph (48 km/h) with tire cables on your vehicle.
•Drive cautiously. If you hear the chains rub or bang against your
vehicle, stop and retighten the chains. If this does not work, remove
the chains to prevent damage to your vehicle.
•Remove the tire chains when they are no longer needed. Do not use
tire chains on dry roads.
VEHICLE LOADING – WITH AND WITHOUT A TRAILER
This section will guide you in the proper loading of your vehicle and/or
trailer, to keep your loaded vehicle weight within its design rating
capability, with or without a trailer. Properly loading your vehicle will
provide maximum return of vehicle design performance. Before loading
Tires, Wheels and Loading
166
2011 Town Car(tow)
Owners Guide, 2nd Printing
USA(fus)

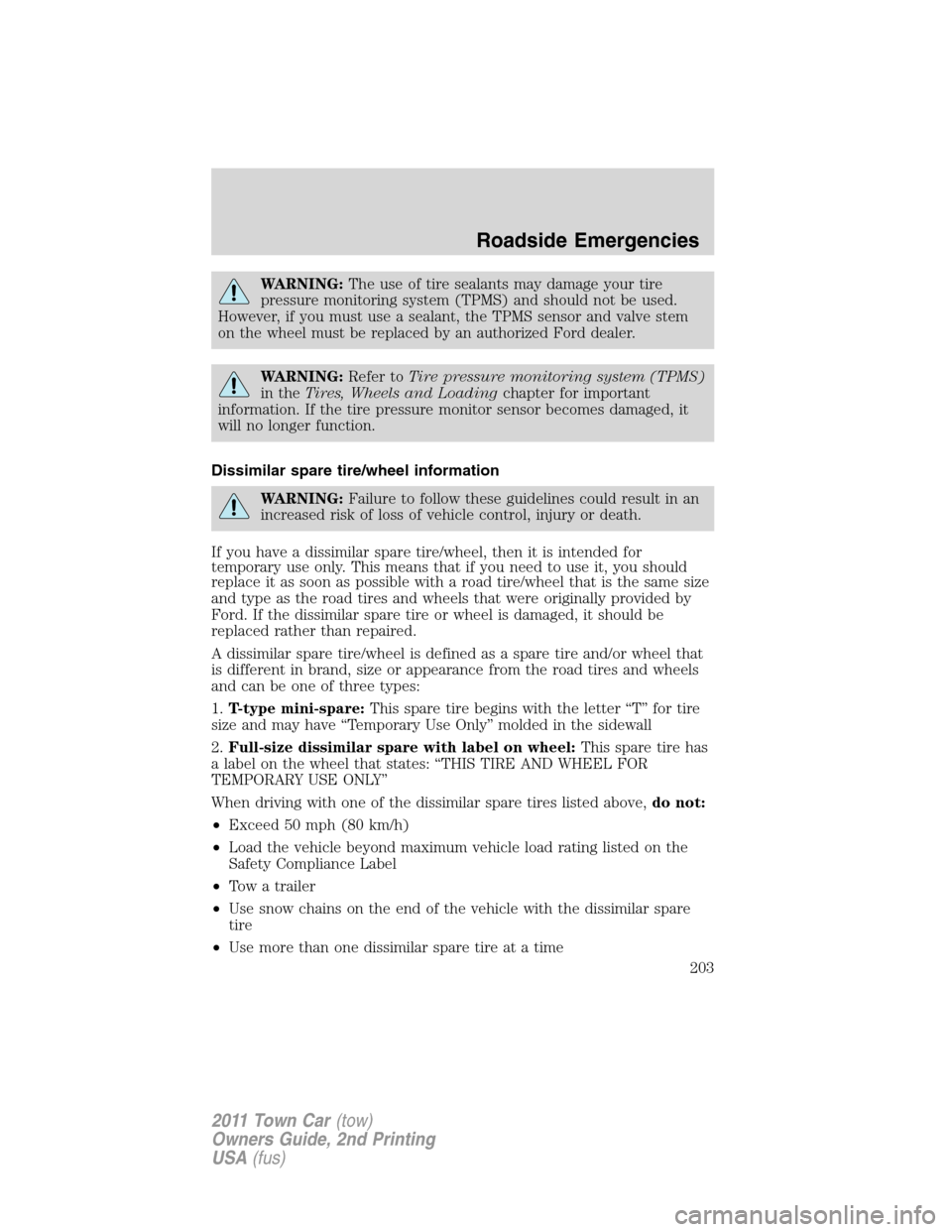

Page 203 of 306
WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
Roadside Emergencies
203
2011 Town Car(tow)
Owners Guide, 2nd Printing
USA(fus)
Page 204 of 306
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
Use of one of the dissimilar spare tires listed above at any one wheel
location can lead to impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
•All-wheel driving capability (if applicable)
3.Full-size dissimilar spare without label on wheel
When driving with the full-size dissimilar spare tire/wheel,do not:
•Exceed 70 mph (113 km/h)
•Use more than one dissimilar spare tire/wheel at a time
•Use commercial car washing equipment
•Use snow chains on the end of the vehicle with the dissimilar spare
tire/wheel
The usage of a full-size dissimilar spare tire/wheel can lead to
impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
•All-wheel driving capability (if applicable)
•Load leveling adjustment (if applicable)
When driving with the full-size dissimilar spare tire/wheel additional
caution should be given to:
•Towing a trailer
•Driving vehicles equipped with a camper body
•Driving vehicles with a load on the cargo rack
Drive cautiously when using a full-size dissimilar spare tire/wheel and
seek service as soon as possible.
Roadside Emergencies
204
2011 Town Car(tow)
Owners Guide, 2nd Printing
USA(fus)

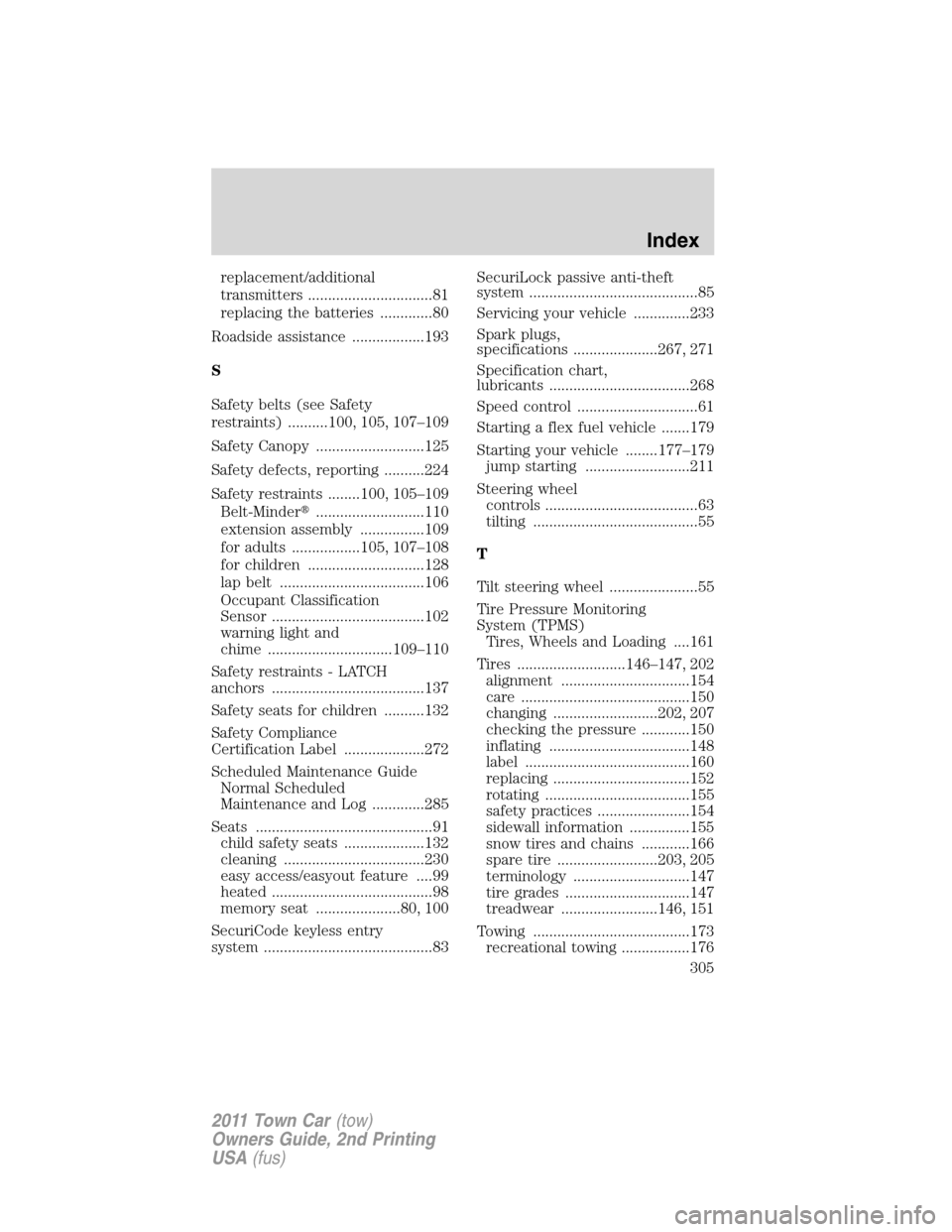

Page 305 of 306
replacement/additional
transmitters ...............................81
replacing the batteries .............80
Roadside assistance ..................193
S
Safety belts (see Safety
restraints) ..........100, 105, 107–109
Safety Canopy ...........................125
Safety defects, reporting ..........224
Safety restraints ........100, 105–109
Belt-Minder...........................110
extension assembly ................109
for adults .................105, 107–108
for children .............................128
lap belt ....................................106
Occupant Classification
Sensor ......................................102
warning light and
chime ...............................109–110
Safety restraints - LATCH
anchors ......................................137
Safety seats for children ..........132
Safety Compliance
Certification Label ....................272
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............285
Seats ............................................91
child safety seats ....................132
cleaning ...................................230
easy access/easyout feature ....99
heated ........................................98
memory seat .....................80, 100
SecuriCode keyless entry
system ..........................................83SecuriLock passive anti-theft
system ..........................................85
Servicing your vehicle ..............233
Spark plugs,
specifications .....................267, 271
Specification chart,
lubricants ...................................268
Speed control ..............................61
Starting a flex fuel vehicle .......179
Starting your vehicle ........177–179
jump starting ..........................211
Steering wheel
controls ......................................63
tilting .........................................55
T
Tilt steering wheel ......................55
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....161
Tires ...........................146–147, 202
alignment ................................154
care ..........................................150
changing ..........................202, 207
checking the pressure ............150
inflating ...................................148
label .........................................160
replacing ..................................152
rotating ....................................155
safety practices .......................154
sidewall information ...............155
snow tires and chains ............166
spare tire .........................203, 205
terminology .............................147
tire grades ...............................147
treadwear ........................146, 151
Towing .......................................173
recreational towing .................176
Index
305
2011 Town Car(tow)
Owners Guide, 2nd Printing
USA(fus)
