LINCOLN ZEPHYR 2006 Owner's Guide

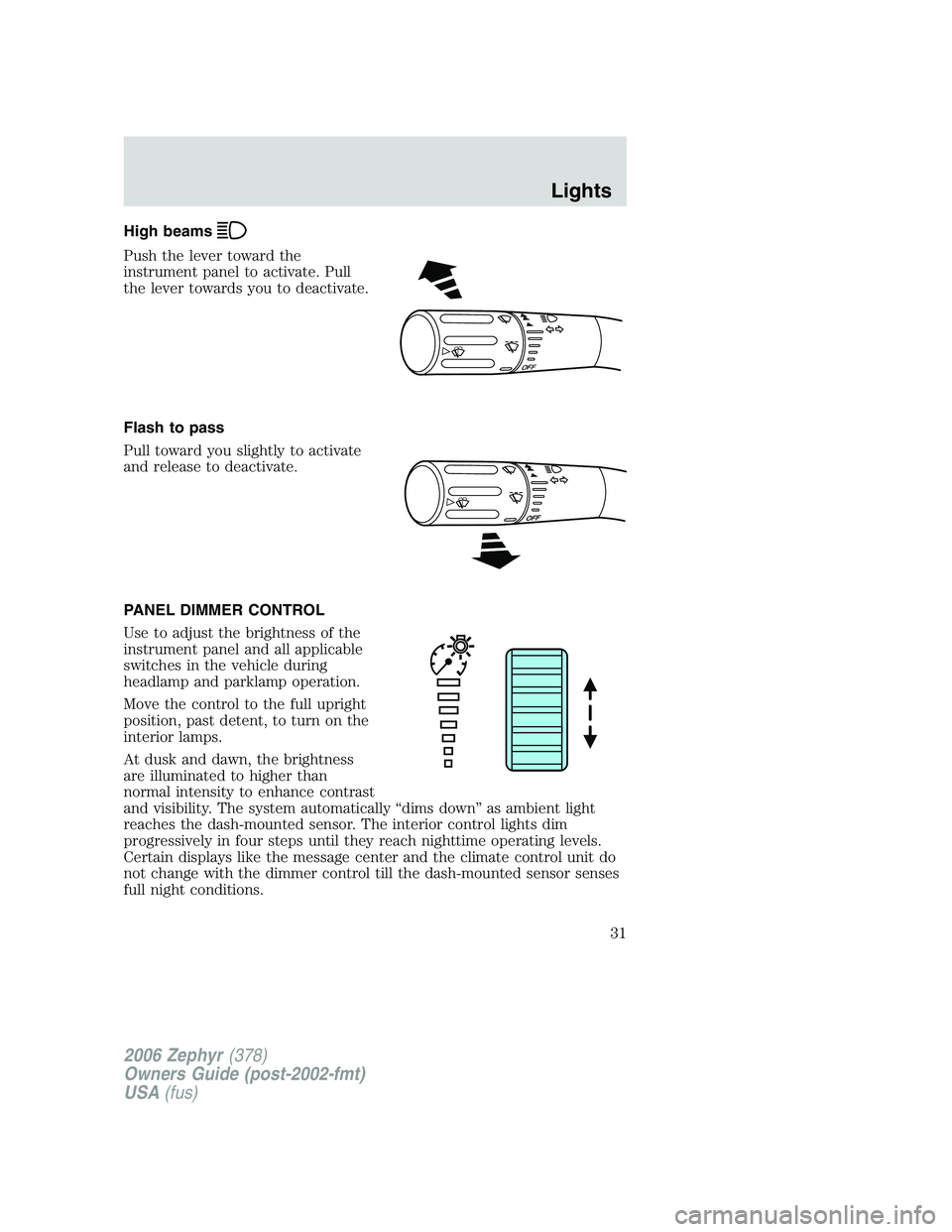

High beams
Push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.
Flash to pass
Pull toward you slightly to activate
and release to deactivate.
PANEL DIMMER CONTROL
Use to adjust the brightness of the
instrument panel and all applicable
switches in the vehicle during
headlamp and parklamp operation.
Move the control to the full upright
position, past detent, to turn on the
interior lamps.
At dusk and dawn, the brightness
are illuminated to higher than
normal intensity to enhance contrast
and visibility. The system automatically “dims down” as ambient light
reaches the dash-mounted sensor. The interior control lights dim
progressively in four steps until they reach nighttime operating levels.
Certain displays like the message center and the climate control unit do
not change with the dimmer control till the dash-mounted sensor senses
full night conditions. O F F
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus) Lights
31

AIMING THE HEADLAMPS
The headlamps on your vehicle are properly aimed at the assembly plant.
If your vehicle has been in an accident the alignment of your headlamps
should be checked by your authorized dealer.
Vertical aim adjustment
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters) away.
• (1) 8 feet (2.4 meters)
• (2) Center height of lamp to
ground
• (3) 25 feet (7.6 meters)
• (4) Horizontal reference line
2. Measure the height of the
headlamp bulb center from the
ground and mark an 8 foot (2.5
meter) horizontal reference line on
the vertical wall or screen at this
height (a piece of masking tape works well).
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood.
To see a clearer light pattern for adjusting, you may want to block the
light from one headlamp while adjusting the other.
4. On the wall or screen you will
observe an area of high intensity
light. The top of the high intensity
area should touch the horizontal
reference line, if not, the beam will
need to be adjusted using the next
step.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus)Lights
32

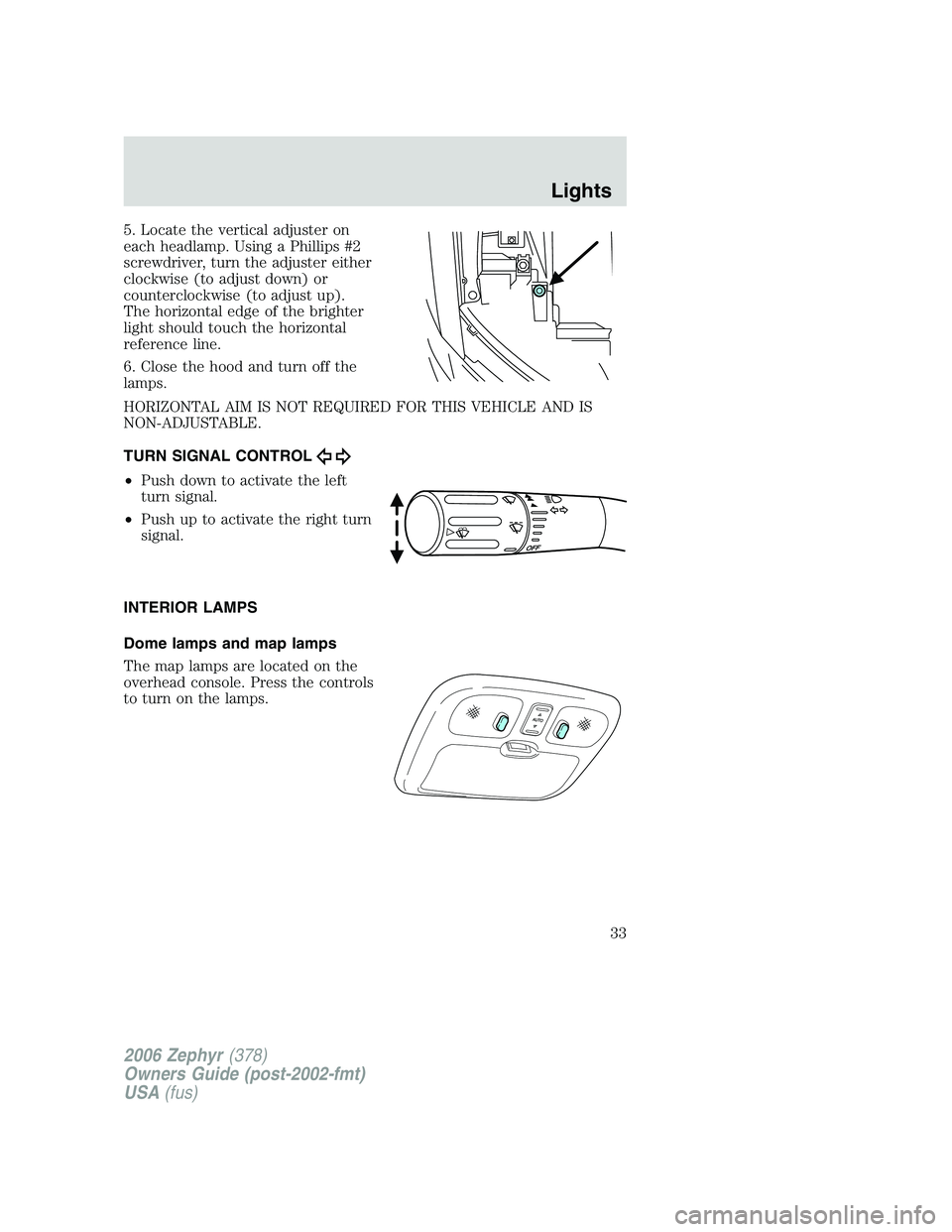

5. Locate the vertical adjuster on
each headlamp. Using a Phillips #2
screwdriver, turn the adjuster either
clockwise (to adjust down) or
counterclockwise (to adjust up).
The horizontal edge of the brighter
light should touch the horizontal
reference line.
6. Close the hood and turn off the
lamps.
HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.
TURN SIGNAL CONTROL
• Push down to activate the left
turn signal.
• Push up to activate the right turn
signal.
INTERIOR LAMPS
Dome lamps and map lamps
The map lamps are located on the
overhead console. Press the controls
to turn on the lamps.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus) Lights
33

Your vehicle may also have reading
lamps within the rear dome lamp(s).
Press the switches on either side of
the dome lamp to turn on the
lamps.
BULB REPLACEMENT
Headlamp Condensation
The headlamps are vented to equalize pressure. When moist air enters
the headlamp(s) through the vents, there is a possibility that
condensation can occur. This condensation is normal and will clear
within 45 minutes of headlamp operation.
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Number of bulbs Trade
number
Headlamp high beam 2 H7
Headlamp low beam 2 H11LL (HID
optional)
Front park/turn signal
lamp 2 3457AK
(amber)
Front redundant park
lamp 4 168 NA
*Rear sidemarker lamp N/A LED
*Stop/tail lamp N/A LED
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus)Lights
34

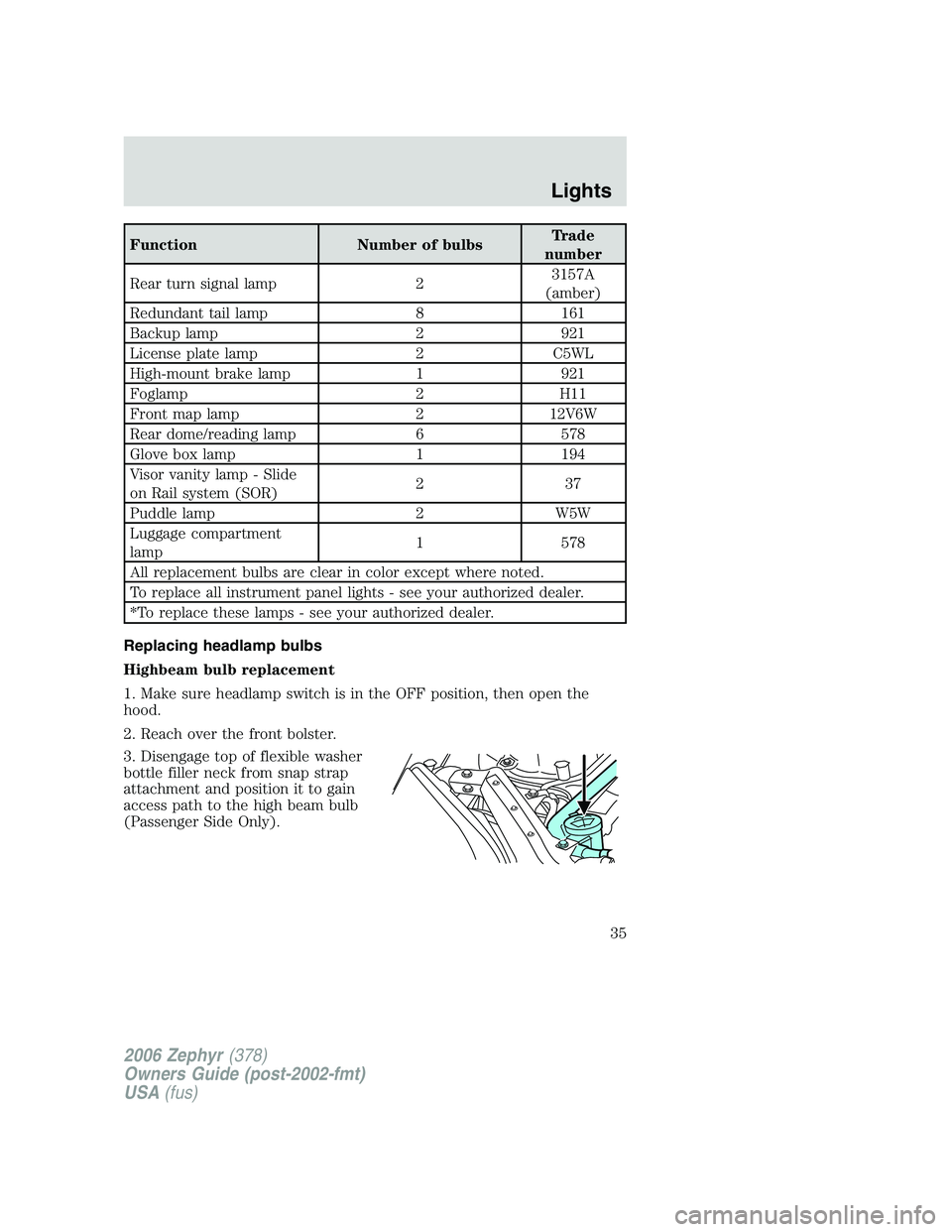

Function Number of bulbs Trade
number
Rear turn signal lamp 2 3157A
(amber)
Redundant tail lamp 8 161
Backup lamp 2 921
License plate lamp 2 C5WL
High-mount brake lamp 1 921
Foglamp 2 H11
Front map lamp 2 12V6W
Rear dome/reading lamp 6 578
Glove box lamp 1 194
Visor vanity lamp - Slide
on Rail system (SOR) 23 7
Puddle lamp 2 W5W
Luggage compartment
lamp 1 578
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized dealer.
*To replace these lamps - see your authorized dealer.
Replacing headlamp bulbs
Highbeam bulb replacement
1. Make sure headlamp switch is in the OFF position, then open the
hood.
2. Reach over the front bolster.
3. Disengage top of flexible washer
bottle filler neck from snap strap
attachment and position it to gain
access path to the high beam bulb
(Passenger Side Only).
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus) Lights
35

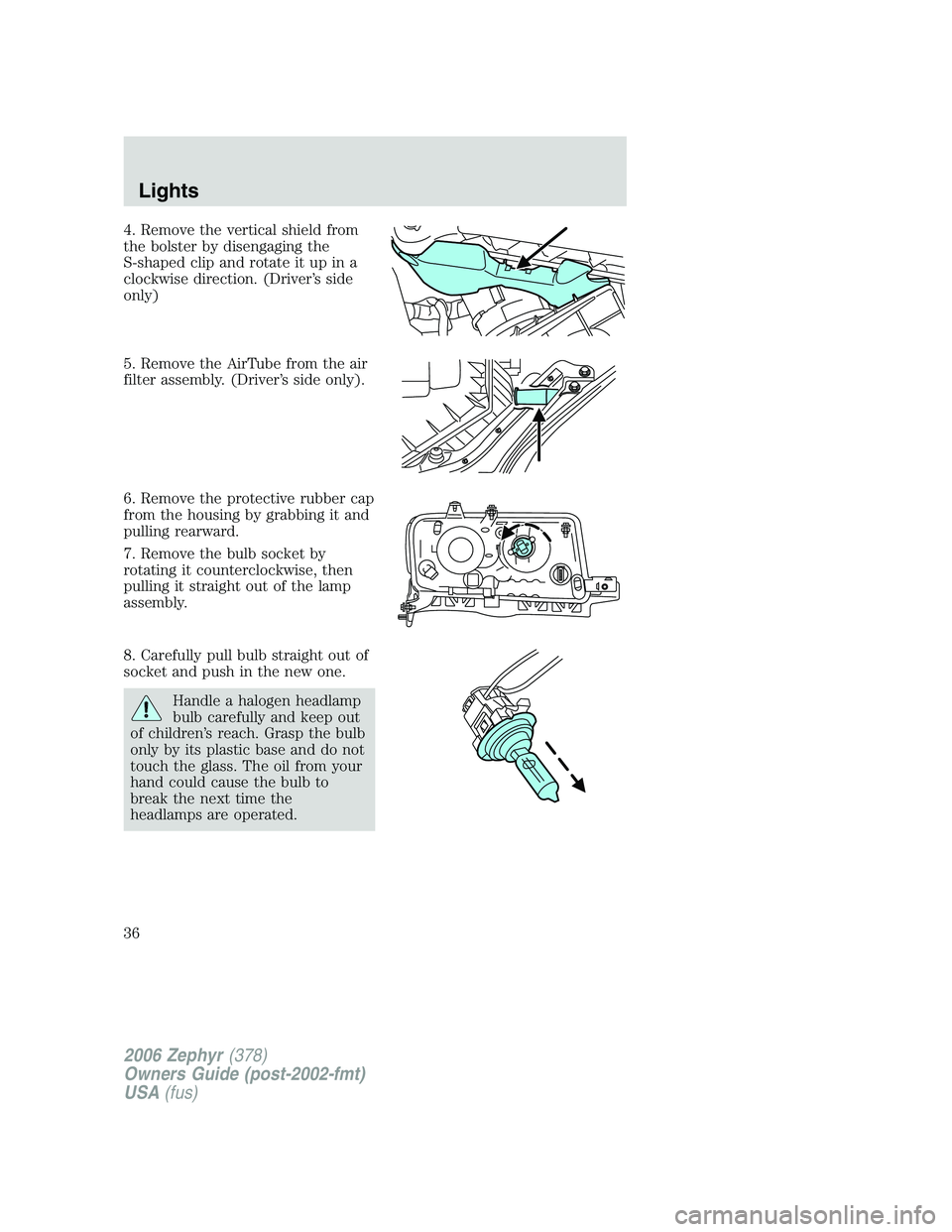

4. Remove the vertical shield from
the bolster by disengaging the
S-shaped clip and rotate it up in a
clockwise direction. (Driver’s side
only)
5. Remove the AirTube from the air
filter assembly. (Driver’s side only).
6. Remove the protective rubber cap
from the housing by grabbing it and
pulling rearward.
7. Remove the bulb socket by
rotating it counterclockwise, then
pulling it straight out of the lamp
assembly.
8. Carefully pull bulb straight out of
socket and push in the new one.
Handle a halogen headlamp
bulb carefully and keep out
of children’s reach. Grasp the bulb
only by its plastic base and do not
touch the glass. The oil from your
hand could cause the bulb to
break the next time the
headlamps are operated.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus)Lights
36

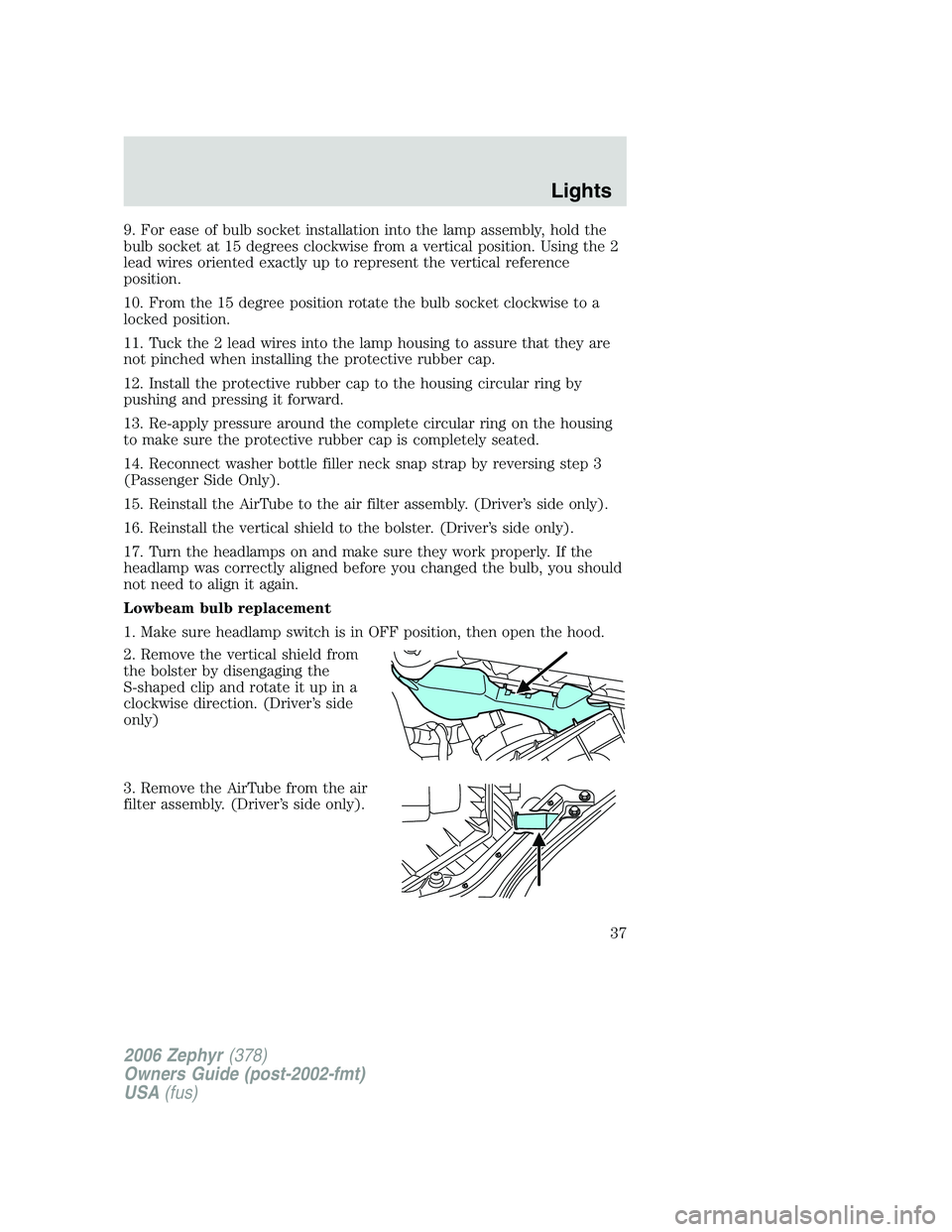

9. For ease of bulb socket installation into the lamp assembly, hold the
bulb socket at 15 degrees clockwise from a vertical position. Using the 2
lead wires oriented exactly up to represent the vertical reference
position.
10. From the 15 degree position rotate the bulb socket clockwise to a
locked position.
11. Tuck the 2 lead wires into the lamp housing to assure that they are
not pinched when installing the protective rubber cap.
12. Install the protective rubber cap to the housing circular ring by
pushing and pressing it forward.
13. Re-apply pressure around the complete circular ring on the housing
to make sure the protective rubber cap is completely seated.
14. Reconnect washer bottle filler neck snap strap by reversing step 3
(Passenger Side Only).
15. Reinstall the AirTube to the air filter assembly. (Driver’s side only).
16. Reinstall the vertical shield to the bolster. (Driver’s side only).
17. Turn the headlamps on and make sure they work properly. If the
headlamp was correctly aligned before you changed the bulb, you should
not need to align it again.
Lowbeam bulb replacement
1. Make sure headlamp switch is in OFF position, then open the hood.
2. Remove the vertical shield from
the bolster by disengaging the
S-shaped clip and rotate it up in a
clockwise direction. (Driver’s side
only)
3. Remove the AirTube from the air
filter assembly. (Driver’s side only).
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus) Lights
37

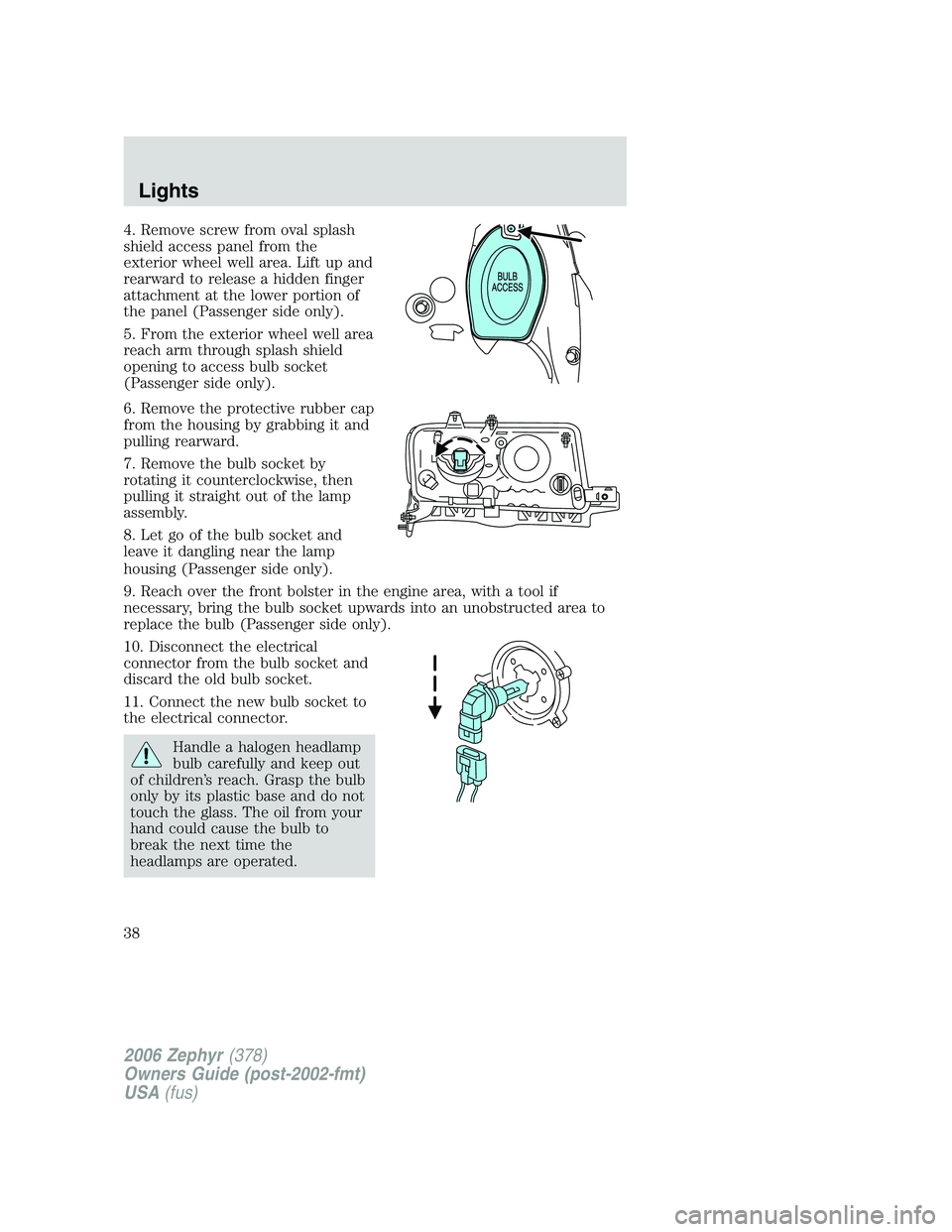

4. Remove screw from oval splash
shield access panel from the
exterior wheel well area. Lift up and
rearward to release a hidden finger
attachment at the lower portion of
the panel (Passenger side only).
5. From the exterior wheel well area
reach arm through splash shield
opening to access bulb socket
(Passenger side only).
6. Remove the protective rubber cap
from the housing by grabbing it and
pulling rearward.
7. Remove the bulb socket by
rotating it counterclockwise, then
pulling it straight out of the lamp
assembly.
8. Let go of the bulb socket and
leave it dangling near the lamp
housing (Passenger side only).
9. Reach over the front bolster in the engine area, with a tool if
necessary, bring the bulb socket upwards into an unobstructed area to
replace the bulb (Passenger side only).
10. Disconnect the electrical
connector from the bulb socket and
discard the old bulb socket.
11. Connect the new bulb socket to
the electrical connector.
Handle a halogen headlamp
bulb carefully and keep out
of children’s reach. Grasp the bulb
only by its plastic base and do not
touch the glass. The oil from your
hand could cause the bulb to
break the next time the
headlamps are operated.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus)Lights
38

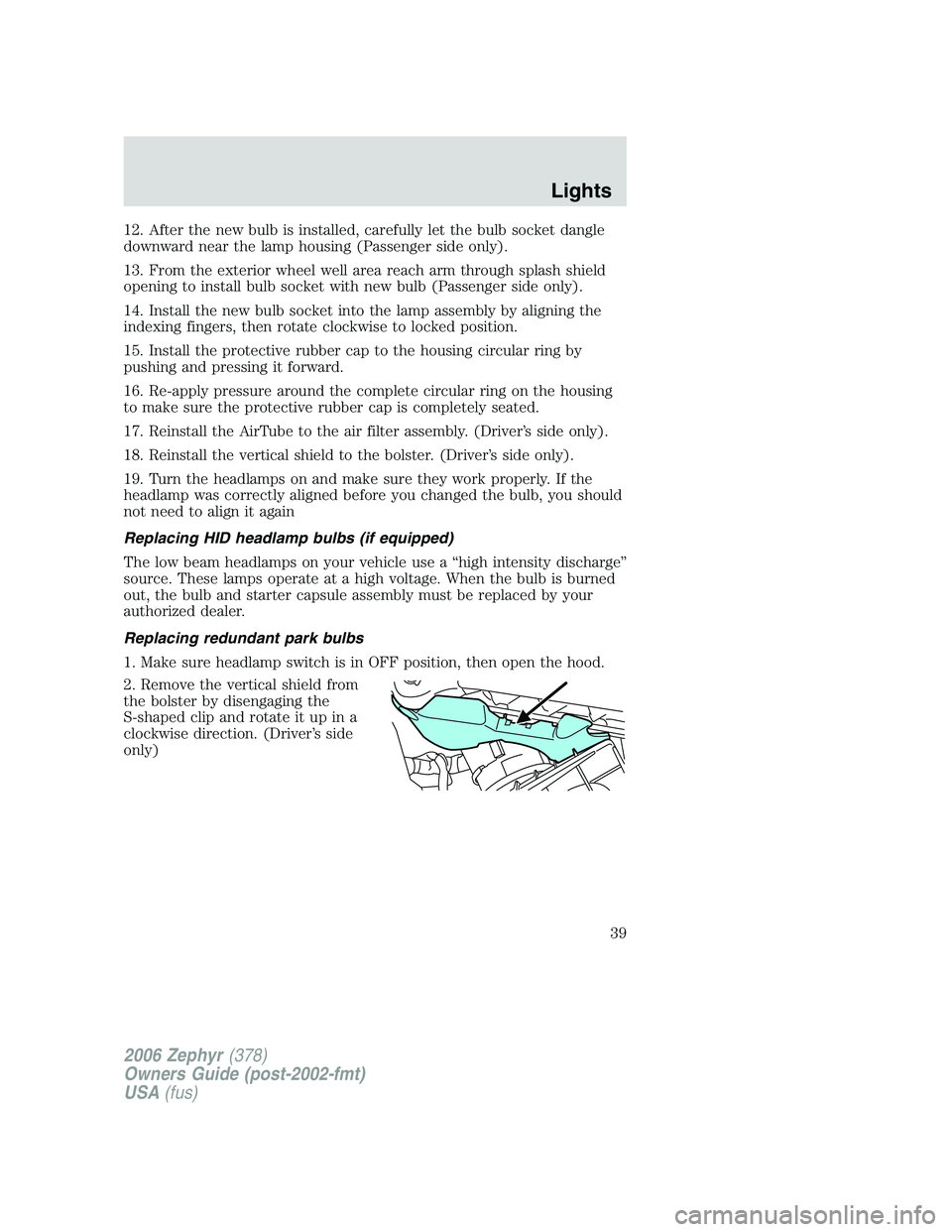

12. After the new bulb is installed, carefully let the bulb socket dangle
downward near the lamp housing (Passenger side only).
13. From the exterior wheel well area reach arm through splash shield
opening to install bulb socket with new bulb (Passenger side only).
14. Install the new bulb socket into the lamp assembly by aligning the
indexing fingers, then rotate clockwise to locked position.
15. Install the protective rubber cap to the housing circular ring by
pushing and pressing it forward.
16. Re-apply pressure around the complete circular ring on the housing
to make sure the protective rubber cap is completely seated.
17. Reinstall the AirTube to the air filter assembly. (Driver’s side only).
18. Reinstall the vertical shield to the bolster. (Driver’s side only).
19. Turn the headlamps on and make sure they work properly. If the
headlamp was correctly aligned before you changed the bulb, you should
not need to align it again
Replacing HID headlamp bulbs (if equipped)
The low beam headlamps on your vehicle use a “high intensity discharge”
source. These lamps operate at a high voltage. When the bulb is burned
out, the bulb and starter capsule assembly must be replaced by your
authorized dealer.
Replacing redundant park bulbs
1. Make sure headlamp switch is in OFF position, then open the hood.
2. Remove the vertical shield from
the bolster by disengaging the
S-shaped clip and rotate it up in a
clockwise direction. (Driver’s side
only)
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus) Lights
39

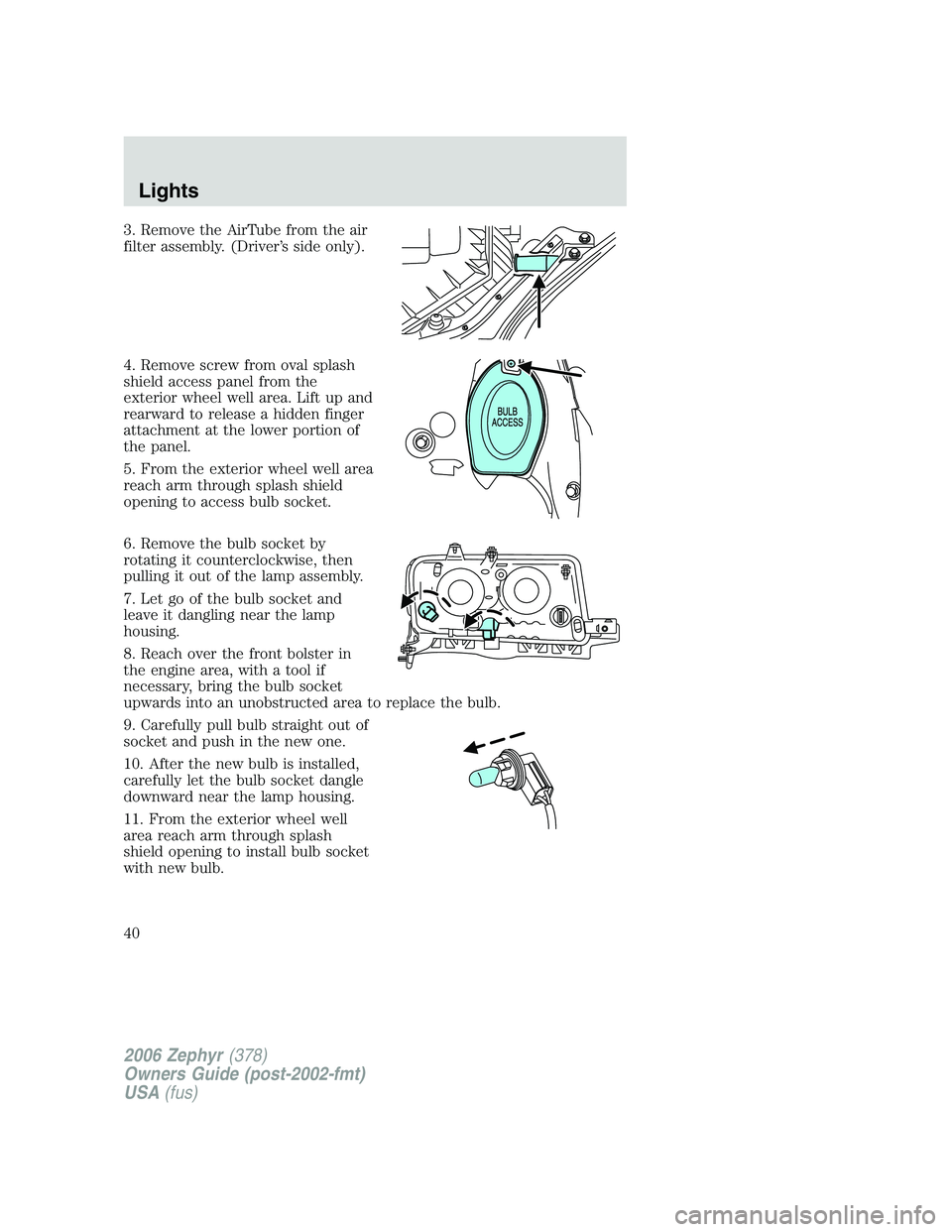

3. Remove the AirTube from the air
filter assembly. (Driver’s side only).
4. Remove screw from oval splash
shield access panel from the
exterior wheel well area. Lift up and
rearward to release a hidden finger
attachment at the lower portion of
the panel.
5. From the exterior wheel well area
reach arm through splash shield
opening to access bulb socket.
6. Remove the bulb socket by
rotating it counterclockwise, then
pulling it out of the lamp assembly.
7. Let go of the bulb socket and
leave it dangling near the lamp
housing.
8. Reach over the front bolster in
the engine area, with a tool if
necessary, bring the bulb socket
upwards into an unobstructed area to replace the bulb.
9. Carefully pull bulb straight out of
socket and push in the new one.
10. After the new bulb is installed,
carefully let the bulb socket dangle
downward near the lamp housing.
11. From the exterior wheel well
area reach arm through splash
shield opening to install bulb socket
with new bulb.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus)Lights
40
