Memory feature
The power side view mirror positions are saved when doing a memory
set function and can be recalled along with the vehicle personality
features when a memory position is selected through the remote entry
transmitter, keyless entry keypad or memory switch on the driver’s door
(if equipped with memory feature). Refer to Memory seats/steering
column/mirrors in the Seating and Safety Restraints chapter.
Heated mirrors
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause damage to the glass and mirrors.
SPEED CONTROL
With speed control set, you can maintain a speed of 30 mph (48 km/h)
or more without keeping your foot on the accelerator pedal. Speed
control does not work at speeds below 30 mph (48 km/h).
Do not use the speed control in heavy traffic or on roads that
are winding, slippery or unpaved.
Setting speed control
The controls for using your speed
control are located on the steering
wheel for your convenience.
1. Press the ON control and release
it.
2. Accelerate to the desired speed.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus) Driver Controls
53

DRIVER DOOR AJAR. Displayed when the driver’s door is not
completely closed.
PASSENGER DOOR AJAR. Displayed when the passenger side door is
not completely closed.
REAR LEFT DOOR AJAR. Displayed when the rear left door is not
completely closed.
REAR RIGHT DOOR AJAR. Displayed when the rear right door is not
completely closed.
PARK BRAKE ENGAGED. Displayed when the park brake is engaged.
If the warning stays on after the park brake is off, contact your
authorized dealer as soon as possible.
CHECK BRAKE SYSTEM. Displayed when the brake system needs
servicing. If the warning stays on or continues to come on, contact your
authorized dealer as soon as possible.
LOW BRAKE FLUID. Indicates the brake fluid level is low and the
brake system should be inspected immediately. Refer to Brake fluid
reservoir in the Maintenance and Specifications chapter.
TRUNK AJAR. Displayed when the trunk is not completely closed.
COMPASS ERROR. Displayed when the compass is not operating
properly. If the warning stays on or continues to come on, contact your
authorized dealer as soon as possible.
CHECK LEFT OR RIGHT HEADLAMPS (if equipped). Displayed
when the headlamps are activated and at least one low beam is burned
out. This warning will not display for the optional HID low beam bulb.
Check the lamps as soon as possible and have the burned out lamp
replaced. Refer to Replacing headlamp bulbs in the Lights chapter.
CHECK LF OR RF TURN LAMPS. Displayed when the turn signals are
activated and at least one is burned out. Check the lamps as soon as
safely possible and have the burned out lamp replaced. Refer to
Replacing headlamp bulbs in the Lights chapter.
CHECK LR OR RR TURN LAMPS. Displayed when the rear turn
signals are activated and at least one is burned out. Check the lamps as
soon as safely possible and have the burned out lamp replaced. Refer to
Replacing headlamp bulbs in the Lights chapter.
INTEGRATED KEY PROGRAMMING STATUS. Displayed when an
attempt is made to program a fifth Integrated Key to the Remote Key
Entry System. For more information on Integrated Key, refer to Locks
and Security chapter in this manual.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus)Driver Controls
70

INTERIOR TRUNK CONTROL
Press the remote trunk release
control on the instrument panel to
the left of the steering wheel.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus) Driver Controls
71

Note: Your vehicle’s IKTs were
issued with an adhesive security
label on them that provides
important vehicle key cut
information. It is recommended that
you maintain the label in a safe
place for future reference, such as
the inside front cover of this
Owner’s Guide.
RECOMMENDED HANDLING OF THE INTEGRATED KEYHEAD
TRANSMITTER (IKT)
To avoid inadvertently activating the remote entry functions of your
vehicle, it is recommended that the Integrated Keyhead Transmitter
(IKT) be handled properly when starting and turning off your vehicle.
When inserting the IKT into the
ignition cylinder, place your thumb
on the center thumb rest of the IKT
and forefinger on the logo badge on
the opposite side.
To gain more leverage when rotating
the IKT in the ignition lock cylinder,
you can readjust the location of
your thumb to grasp the IKT on the
outer edge next to the control.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus) Locks and Security
73

Likewise, when rotating the IKT to
the 1 (LOCK) position in the
ignition lock cylinder, the bottom
edge of the IKT adjacent to the
control can be utilized.
POWER DOOR LOCKS
• Press the control to unlock all
doors.
• Press the control to lock all
doors.
Smart locks
This feature attempts to help prevent you from locking yourself out of
the vehicle if your key is still in the ignition.
When you open one of the front doors and you lock the vehicle with the
power door lock control (on the driver or passenger door trim panel), all
the doors will lock, then all doors will automatically unlock reminding
you that your key is still in the ignition.
The vehicle can still be locked, with the key in the ignition, using the
manual lock control on the door, locking the driver’s door with a key, or
using the lock control on the remote entry transmitter portion of your
Integrated Keyhead Transmitter.
If both front doors are closed, the vehicle can be locked from any
method, regardless of whether the key is in the ignition or not.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus)Locks and Security
74

Power door lock/unlock inhibit feature
As a theft deterrent, the power door lock controls and interior trunk
release control can be disabled 20 seconds after the ignition has been
turned to the 1 (LOCK) position and the vehicle is locked using any of
the following:
• Remote entry transmitter portion of your Integrated Keyhead
Transmitter,
• Keyless entry keypad, or
• Driver power door lock control ( Note: The driver’s door must be
open, then closed).
The door lock controls are reenabled when any of the following occurs:
• Unlock using the keyless entry keypad,
• Unlock using the remote entry transmitter portion of your IKT,
• Opening any door from the interior of the vehicle, or
• Turning the key in the ignition to the 3 (RUN) position.
Note: This feature is configured off by default. This feature can be
turned on or off using the following procedure:
Before starting, ensure the ignition is in the 1 (LOCK) position and all
vehicle doors are closed. You must complete Steps 1–5 within 30 seconds
or the procedure will have to be repeated. If the procedure needs to be
repeated, wait a minimum of 30 seconds before beginning again.
1. Place the key in the ignition and turn the ignition to the 3 (RUN)
position.
2. Press the power door unlock control on the door panel three times.
3. Turn the ignition from the 3 (RUN) position to the 1 (LOCK) position.
4. Press the power door unlock control on the door panel three times.
5. Turn the ignition back to the 3 (RUN) position. The horn will chirp
one time to confirm programming mode has been entered and is active.
6. Press the power door lock control on the door panel two times within
five seconds. The horn will chirp one time to confirm the feature is off;
the horn will chirp one time and honk one time to confirm the feature is
on.
7. Turn the ignition from the 3 (RUN) position to the 1 (LOCK) position.
The horn will chirp one time to confirm the programming mode has been
exited.
Repeat the procedure to turn the feature on or off.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus) Locks and Security
75

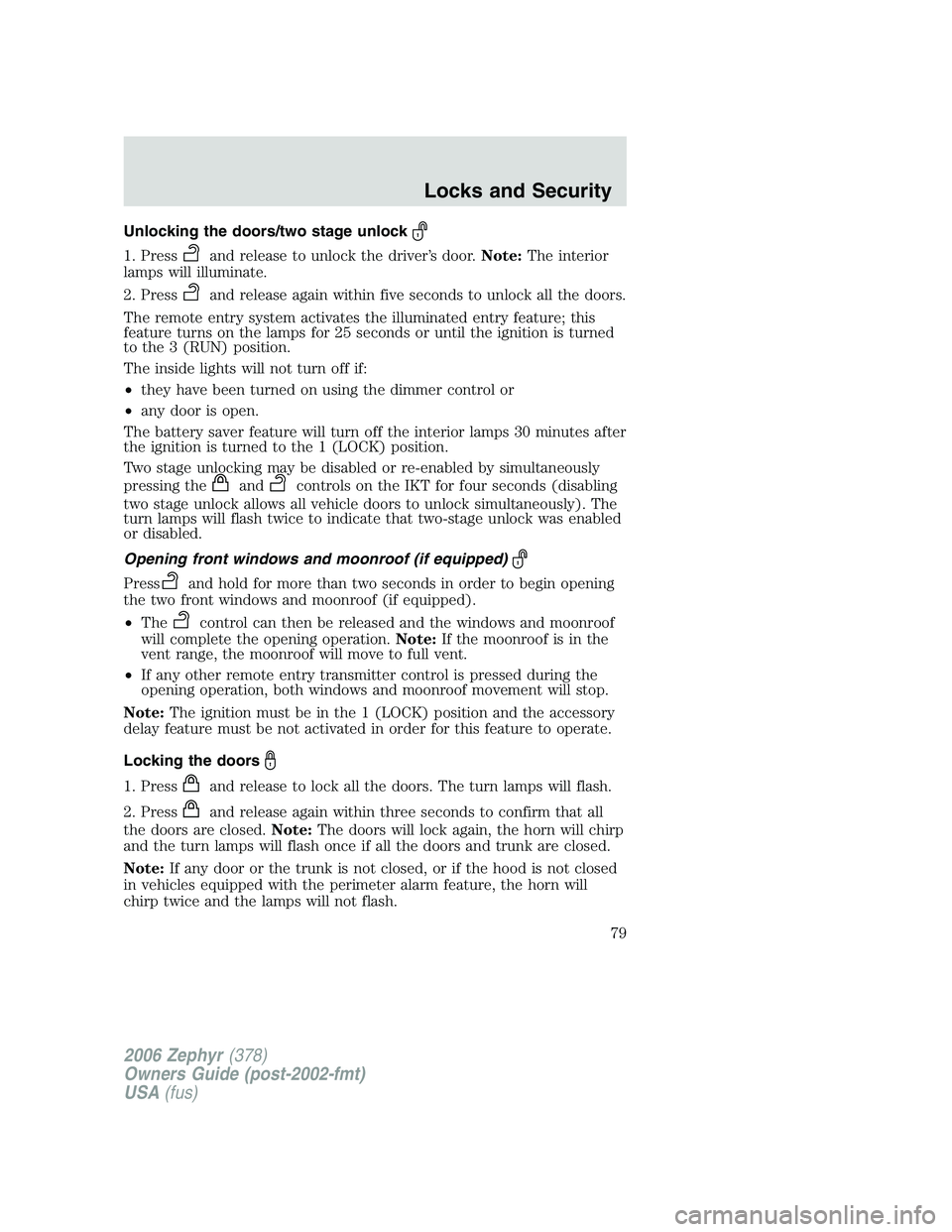

Unlocking the doors/two stage unlock
1. Press and release to unlock the driver’s door. Note: The interior
lamps will illuminate.
2. Press and release again within five seconds to unlock all the doors.
The remote entry system activates the illuminated entry feature; this
feature turns on the lamps for 25 seconds or until the ignition is turned
to the 3 (RUN) position.
The inside lights will not turn off if:
• they have been turned on using the dimmer control or
• any door is open.
The battery saver feature will turn off the interior lamps 30 minutes after
the ignition is turned to the 1 (LOCK) position.
Two stage unlocking may be disabled or re-enabled by simultaneously
pressing the and controls on the IKT for four seconds (disabling
two stage unlock allows all vehicle doors to unlock simultaneously). The
turn lamps will flash twice to indicate that two-stage unlock was enabled
or disabled.
Opening front windows and moonroof (if equipped)
Press and hold for more than two seconds in order to begin opening
the two front windows and moonroof (if equipped).
• The control can then be released and the windows and moonroof
will complete the opening operation. Note: If the moonroof is in the
vent range, the moonroof will move to full vent.
• If any other remote entry transmitter control is pressed during the
opening operation, both windows and moonroof movement will stop.
Note: The ignition must be in the 1 (LOCK) position and the accessory
delay feature must be not activated in order for this feature to operate.
Locking the doors
1. Press and release to lock all the doors. The turn lamps will flash.
2. Press and release again within three seconds to confirm that all
the doors are closed. Note: The doors will lock again, the horn will chirp
and the turn lamps will flash once if all the doors and trunk are closed.
Note: If any door or the trunk is not closed, or if the hood is not closed
in vehicles equipped with the perimeter alarm feature, the horn will
chirp twice and the lamps will not flash.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus) Locks and Security
79

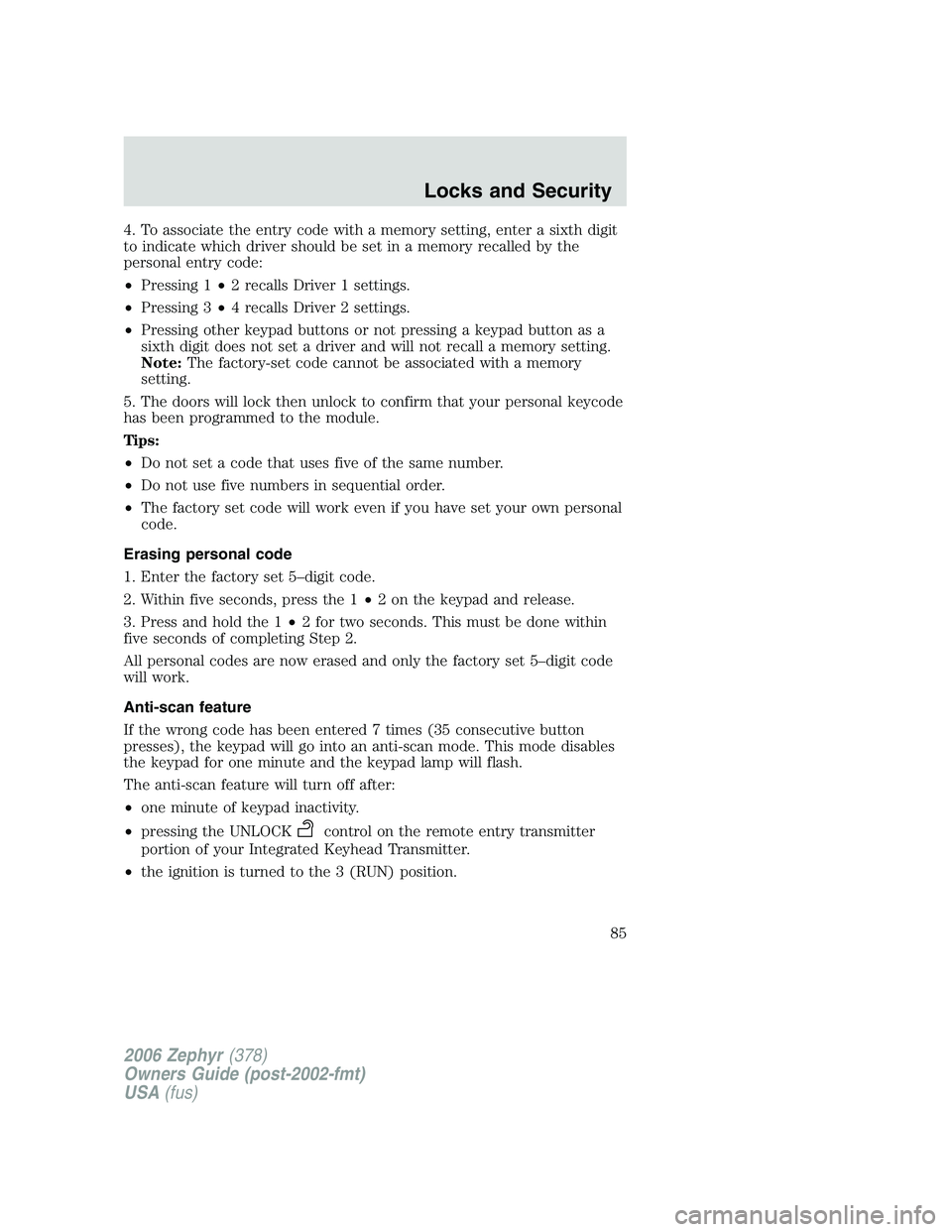

4. To associate the entry code with a memory setting, enter a sixth digit
to indicate which driver should be set in a memory recalled by the
personal entry code:
• Pressing 1 • 2 recalls Driver 1 settings.
• Pressing 3 • 4 recalls Driver 2 settings.
• Pressing other keypad buttons or not pressing a keypad button as a
sixth digit does not set a driver and will not recall a memory setting.
Note: The factory-set code cannot be associated with a memory
setting.
5. The doors will lock then unlock to confirm that your personal keycode
has been programmed to the module.
Tips:
• Do not set a code that uses five of the same number.
• Do not use five numbers in sequential order.
• The factory set code will work even if you have set your own personal
code.
Erasing personal code
1. Enter the factory set 5–digit code.
2. Within five seconds, press the 1 • 2 on the keypad and release.
3. Press and hold the 1 • 2 for two seconds. This must be done within
five seconds of completing Step 2.
All personal codes are now erased and only the factory set 5–digit code
will work.
Anti-scan feature
If the wrong code has been entered 7 times (35 consecutive button
presses), the keypad will go into an anti-scan mode. This mode disables
the keypad for one minute and the keypad lamp will flash.
The anti-scan feature will turn off after:
• one minute of keypad inactivity.
• pressing the UNLOCK control on the remote entry transmitter
portion of your Integrated Keyhead Transmitter.
• the ignition is turned to the 3 (RUN) position.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus) Locks and Security
85

5. Turn the ignition back to the 3 (RUN) position. The horn will chirp
one time to confirm programming mode has been entered and is active.
6. To enable/disable the autounlock feature, press the lock control, then
press the unlock control. The horn will chirp once if autounlock was
deactivated or twice (one short and one long chirp) if autounlock was
activated.
7. Turn the ignition to the 1 (LOCK) position. The horn will chirp once
to confirm the procedure is complete.
Keyless entry key pad procedure
1. Turn the ignition to the 1 (LOCK)
position.
2. Close all the doors.
3. Enter factory–set 5–digit entry
code.
4. Press and hold the 3 • 4. While holding the 3 • 4, press and release
the 7 • 8. While still holding the 3 • 4, press and release the 7 • 8a
second time.
5. Release the 3 • 4.
The user should receive a horn chirp to indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.
SECURILOCK  PASSIVE ANTI-THEFT SYSTEM
SecuriLock  passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless a coded Integrated Keyhead Transmitter (IKT)
programmed to your vehicle is used. The use of the wrong type of
coded key may lead to a “no-start” condition.
Your vehicle comes with two coded Integrated Keyhead Transmitters;
additional coded IKTs may be purchased from your authorized dealer.
Standard SecuriLock  keys without remote entry transmitter
functionality can also be purchased from your authorized dealer if
desired. The authorized dealer can program your spare IKTs to your
vehicle or you can program the IKTs yourself. Refer to Programming
spare Integrated Keyhead Transmitters for instructions on how to
program the coded key.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus) Locks and Security
89

PERIMETER ALARM SYSTEM
The perimeter anti-theft system will help prevent your vehicle from
unauthorized entry.
If there is any potential perimeter anti-theft problem with your vehicle,
ensure ALL Integrated Keyhead Transmitters are brought to the
authorized dealer to aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
turn signal lamps and will sound the horn.
The system is ready to arm whenever the key is in the 1(LOCK)
position, or is removed from the ignition. Either of the following actions
will prearm the alarm system:
• Press the control on the remote entry transmitter portion of your
Integrated Keyhead Transmitter.
When you press the lock control twice within three seconds on the
remote entry transmitter portion of your IKT, the horn will chirp once to
let you know that all doors, the hood and the trunk are closed. If any of
these are not closed, the horn will chirp twice to warn you that a door,
the hood or the trunk is still open.
• Press the driver or passenger
interior door lock control while
the door is open, then close the
door.
• Press the 7 • 8 and 9 • 0
controls on the keyless entry pad
at the same time to lock the
doors (driver’s door must be
closed).
There is a 20 second countdown when any of the above actions occur
before the vehicle becomes armed.
Each door, the hood or the trunk is armed individually, and if any are
open, they must be closed for the system to enter the 20 second
countdown.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus) Locks and Security
93
