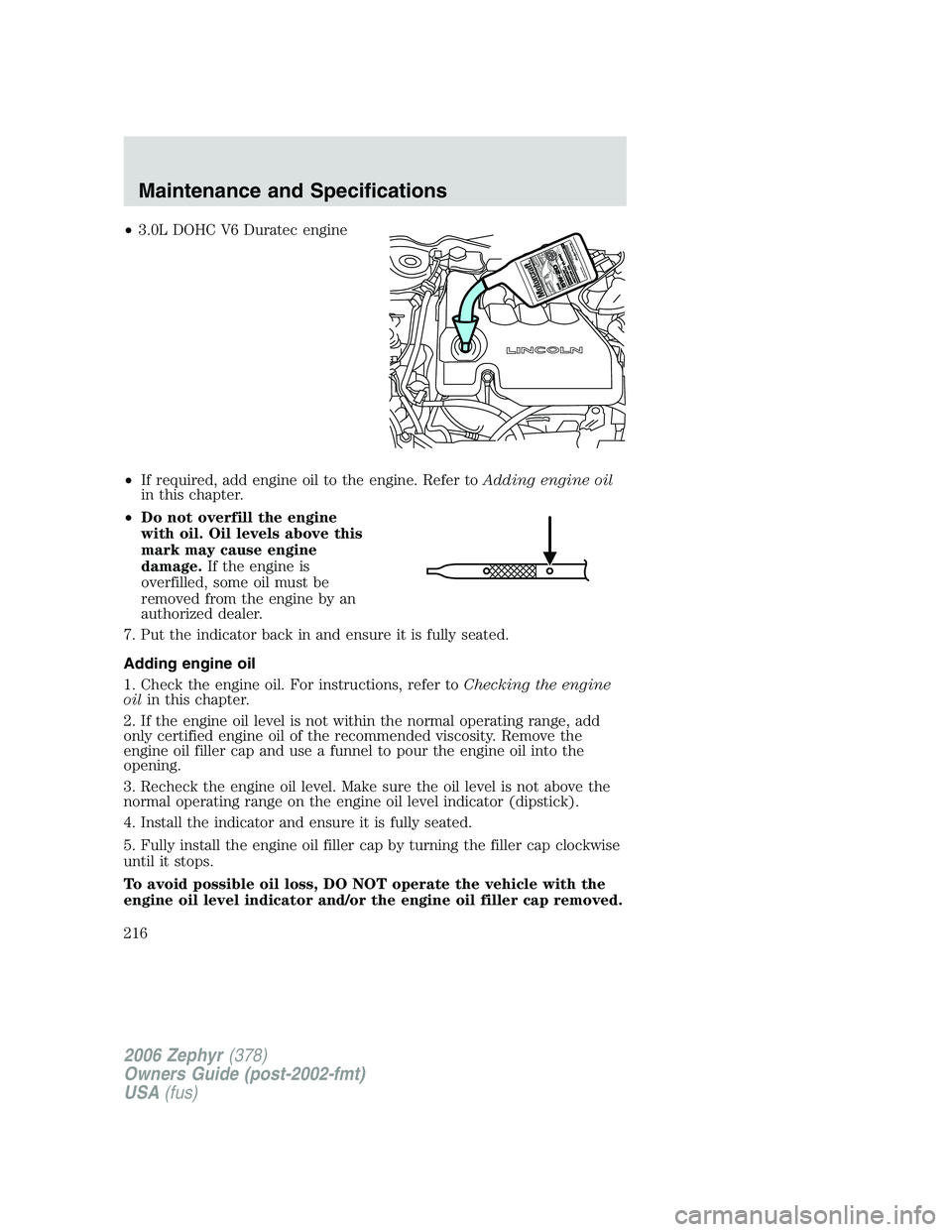

Page 216 of 256

• 3.0L DOHC V6 Duratec engine
• If required, add engine oil to the engine. Refer to Adding engine oil
in this chapter.
• Do not overfill the engine
with oil. Oil levels above this
mark may cause engine
damage. If the engine is
overfilled, some oil must be
removed from the engine by an
authorized dealer.
7. Put the indicator back in and ensure it is fully seated.
Adding engine oil
1. Check the engine oil. For instructions, refer to Checking the engine
oil in this chapter.
2. If the engine oil level is not within the normal operating range, add
only certified engine oil of the recommended viscosity. Remove the
engine oil filler cap and use a funnel to pour the engine oil into the
opening.
3. Recheck the engine oil level. Make sure the oil level is not above the
normal operating range on the engine oil level indicator (dipstick).
4. Install the indicator and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the filler cap clockwise
until it stops.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level indicator and/or the engine oil filler cap removed.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus)Maintenance and Specifications
216
Page 220 of 256

• Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
intervals listed in scheduled maintenance information. The coolant
concentration should be maintained at 50/50 coolant and distilled water,
which equates to a freeze point of -34°F (-36°C). Coolant concentration
testing is possible with a hydrometer or antifreeze tester (such as the
Rotunda Battery and Antifreeze Tester, 014–R1060). The level of coolant
should be maintained at the “FULL COLD” level or within the “COLD
FILL RANGE” in the coolant reservoir. If the level falls below, add
coolant per the instructions in the Adding engine coolant section.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly. A
50–50 mixture of coolant and water provides the following:
• Freeze protection down to -34°F (-36°C).
• Boiling protection up to 265°F (129°C).
• Protection against rust and other forms of corrosion.
• Enables calibrated gauges to work properly.
L E A D
RETURN
RECYCLE
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus)Maintenance and Specifications
220
Page 233 of 256

• Revving the engine before turning it off may reduce fuel economy.
• Using the air conditioner or defroster may reduce fuel economy.
• You may want to turn off the speed control in hilly terrain if
unnecessary shifting between third and fourth gear occurs.
Unnecessary shifting of this type could result in reduced fuel
economy.
• Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
• Resting your foot on the brake pedal while driving may reduce fuel
economy.
• Combine errands and minimize stop-and-go driving.
Maintenance
• Keep tires properly inflated and use only recommended size.
• Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
• Use recommended engine oil. Refer to Lubricant specifications in
this chapter.
• Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found in scheduled maintenance information.
Conditions
• Heavily loading a vehicle may reduce fuel economy at any speed.
• Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
• Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
• Using fuel blended with alcohol may lower fuel economy.
• Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
• Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
• Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the gas pedal.
• Close windows for high speed driving.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus) Maintenance and Specifications
233
Page 252 of 256

Clock ............................................48
Compass, electronic
set zone adjustment .................65
Console
overhead ....................................48
Controls
power seat .................................96
steering column ........................56
Coolant
checking and adding ..............220
refill capacities ................224, 241
specifications ..................242, 244
Cruise control
(see Speed control) ....................53
Cupholder(s) .............................102
Customer Assistance ................175
Ford Extended Service Plan ...200
Getting assistance outside
the U.S. and Canada ..............201
Getting roadside assistance ...175
Getting the service you need ..196
Ordering additional owner’s
literature .................................201
Utilizing the
Mediation/Arbitration
Program ...................................199
D
Daytime running lamps (see
Lamps) .........................................30
Dipstick
automatic transmission fluid .237
engine oil .................................214
Doors
lubricant specifications ..........242
Driving under special
conditions ..................................174
through water .........................174 E
Electronic message center .........63
Emergencies, roadside
jump-starting ..........................190
Emission control system ..........234
Engine ........................................244
cleaning ...................................205
coolant .....................................220
fail-safe cooling .......................225
idle speed control ...................218
lubrication specifications ......242,
244
refill capacities ........................241
service points ..........................212
starting after a collision .........177
Engine block heater .................167
Engine oil ..................................214
change oil soon warning,
message center .......................214
checking and adding ..............214
dipstick ....................................214
filter, specifications ........217, 240
recommendations ...................217
refill capacities ........................241
specifications ..................242, 244
Exhaust fumes ..........................167
F
Fail safe cooling ........................225
Fluid capacities .........................241
Foglamps .....................................30
Fuel ............................................226
calculating fuel economy ..64, 231
cap ...........................................228
capacity ...................................241
choosing the right fuel ...........229
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus)Index
252
Page 254 of 256

daytime running light ...............30
fog lamps ...................................30
headlamps .................................29
headlamps, flash to pass ..........31
instrument panel, dimming .....31
interior lamps ...........................33
replacing bulbs .........................35
Lane change indicator
(see Turn signal) ........................33
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........168
Load limits .................................157
Locks
autolock .....................................86
childproof ..................................76
doors ..........................................74
Lubricant specifications ...242, 244
Lug nuts ....................................189
Lumbar support, seats ...............98
M
Message center ...........................63
english/metric button ...............68
system check button ................67
warning messages .....................68
Mirrors .........................................52
automatic dimming rearview
mirror ........................................52
heated ........................................53
programmable memory ............80
side view mirrors (power) .......52
Moon roof ..............................57, 79
Motorcraft parts ........208, 226, 240
N
Navigation system .......................21
O
Octane rating ............................230 Oil (see Engine oil) ..................214
P
Parking brake ............................169
Parts (see Motorcraft parts) ....240
Passenger Occupant
Classification Sensor .................104
Power distribution box
(see Fuses) ...............................181
Power door locks ........................74
Power mirrors .............................52
Power point .................................49
Power steering ..........................171
fluid, checking and adding ....236
fluid, refill capacity ................241
fluid, specifications .........242, 244
Power Windows ...........................50
R
Relays ........................................177
Remote entry system ...........77, 79
illuminated entry ................82–83
locking/unlocking doors ...........79
opening the trunk .....................80
panic alarm ...............................80
replacement/additional
transmitters ...............................82
replacing the batteries .............81
Roadside assistance ..................175
S
Safety Belt Maintenance ..........115
Safety belts (see Safety
restraints) ..................102, 106–110
Safety Canopy ...........................125
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus)Index
254
