seat adjustment LINCOLN ZEPHYR 2006 Owners Manual

SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of personal injury to yourself or others? In
this guide, answers to such questions are contained in comments
highlighted by the warning triangle symbol. These comments should be
read and observed.
Warning symbols on your vehicle
When you see this symbol, it is
imperative that you consult the
relevant section of this guide before
touching or attempting adjustment
of any kind.
Protecting the environment
We must all play our part in
protecting the environment. Correct
vehicle usage and the authorized
disposal of waste, cleaning and
lubrication materials are significant
steps towards this aim. Information in this respect is highlighted in this
guide with the tree symbol.
BREAKING-IN YOUR VEHICLE
Your vehicle does not need an extensive break-in. Try not to drive
continuously at the same speed for the first 1,000 miles (1,600 km) of
new vehicle operation. Vary your speed frequently in order to give the
moving parts a chance to break in.
Do not add friction modifier compounds or special break-in oils during
the first few thousand miles (kilometers) of operation, since these
additives may prevent piston ring seating. See Engine oil in the
Maintenance and Specifications chapter for more information on oil
usage.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus) Introduction
5

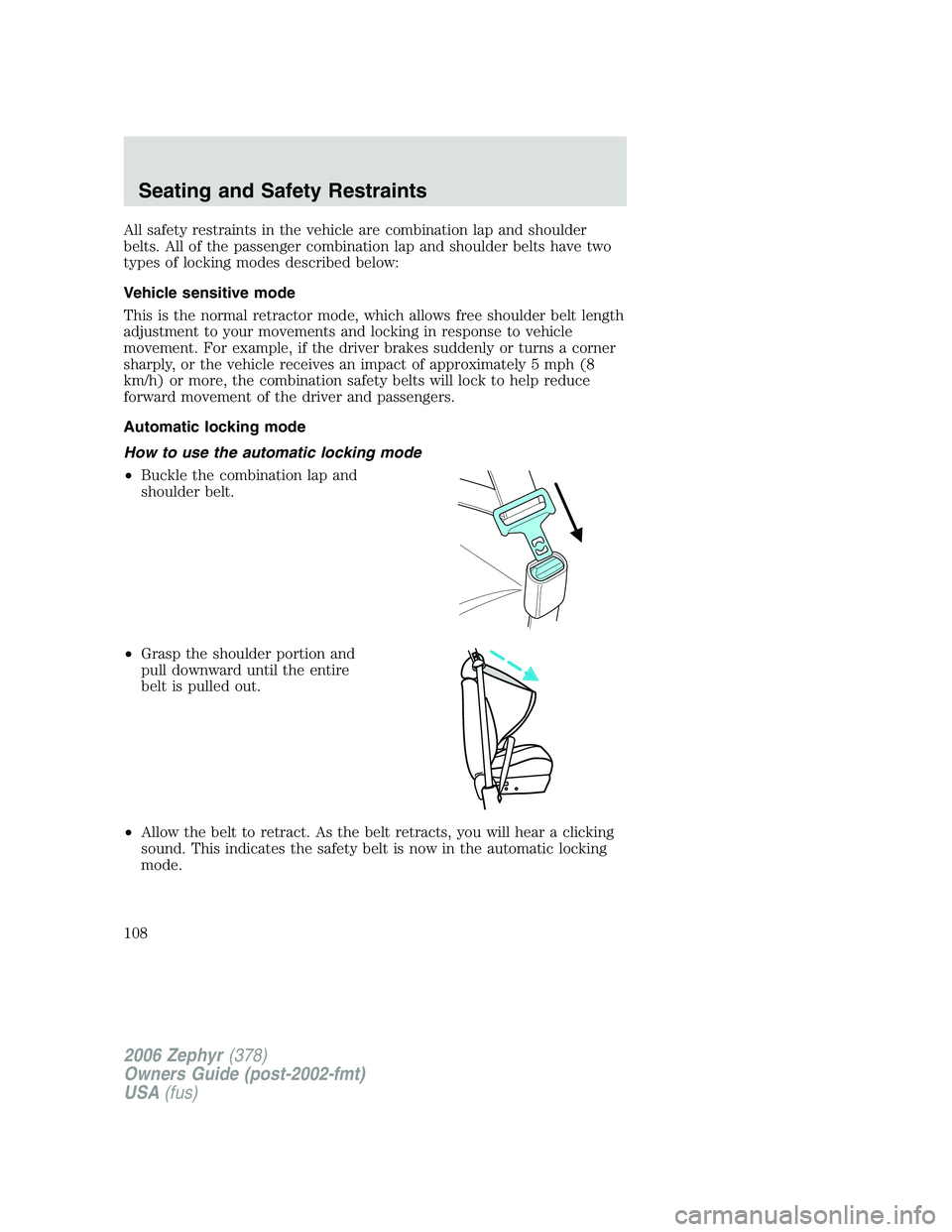

All safety restraints in the vehicle are combination lap and shoulder
belts. All of the passenger combination lap and shoulder belts have two
types of locking modes described below:
Vehicle sensitive mode
This is the normal retractor mode, which allows free shoulder belt length
adjustment to your movements and locking in response to vehicle
movement. For example, if the driver brakes suddenly or turns a corner
sharply, or the vehicle receives an impact of approximately 5 mph (8
km/h) or more, the combination safety belts will lock to help reduce
forward movement of the driver and passengers.
Automatic locking mode
How to use the automatic locking mode
• Buckle the combination lap and
shoulder belt.
• Grasp the shoulder portion and
pull downward until the entire
belt is pulled out.
• Allow the belt to retract. As the belt retracts, you will hear a clicking
sound. This indicates the safety belt is now in the automatic locking
mode.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus)Seating and Safety Restraints
108

Safety belt height adjustment
Your vehicle has safety belt height
adjustments at the front outboard
seating positions. Adjust the height
of the shoulder belt so the belt rests
across the middle of your shoulder.
To adjust the shoulder belt height,
pull on the center button and slide
the height adjuster up or down.
Release the button and pull down
on the height adjuster to make sure
it is locked in place.
Position the safety belt height adjusters so that the belt rests
across the middle of your shoulder. Failure to adjust the safety
belt properly could reduce the effectiveness of the safety belt and
increase the risk of injury in a collision.
Safety belt warning light and indicator chime
The safety belt warning light illuminates in the instrument cluster and a
chime sounds to remind the occupants to fasten their safety belts.
Conditions of operation
If... Then...
The driver’s safety belt is not
buckled before the ignition
switch is turned to the ON
position... The safety belt warning light
illuminates 1-2 minutes and the
warning chime sounds 4-8 seconds.
The driver’s safety belt is
buckled while the indicator
light is illuminated and the
warning chime is sounding... The safety belt warning light and
warning chime turn off.
The driver’s safety belt is
buckled before the ignition
switch is turned to the ON
position... The safety belt warning light and
indicator chime remain off.
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus)Seating and Safety Restraints
110

Clock ............................................48
Compass, electronic
set zone adjustment .................65
Console
overhead ....................................48
Controls
power seat .................................96
steering column ........................56
Coolant
checking and adding ..............220
refill capacities ................224, 241
specifications ..................242, 244
Cruise control
(see Speed control) ....................53
Cupholder(s) .............................102
Customer Assistance ................175
Ford Extended Service Plan ...200
Getting assistance outside
the U.S. and Canada ..............201
Getting roadside assistance ...175
Getting the service you need ..196
Ordering additional owner’s
literature .................................201
Utilizing the
Mediation/Arbitration
Program ...................................199
D
Daytime running lamps (see
Lamps) .........................................30
Dipstick
automatic transmission fluid .237
engine oil .................................214
Doors
lubricant specifications ..........242
Driving under special
conditions ..................................174
through water .........................174 E
Electronic message center .........63
Emergencies, roadside
jump-starting ..........................190
Emission control system ..........234
Engine ........................................244
cleaning ...................................205
coolant .....................................220
fail-safe cooling .......................225
idle speed control ...................218
lubrication specifications ......242,
244
refill capacities ........................241
service points ..........................212
starting after a collision .........177
Engine block heater .................167
Engine oil ..................................214
change oil soon warning,
message center .......................214
checking and adding ..............214
dipstick ....................................214
filter, specifications ........217, 240
recommendations ...................217
refill capacities ........................241
specifications ..................242, 244
Exhaust fumes ..........................167
F
Fail safe cooling ........................225
Fluid capacities .........................241
Foglamps .....................................30
Fuel ............................................226
calculating fuel economy ..64, 231
cap ...........................................228
capacity ...................................241
choosing the right fuel ...........229
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus)Index
252
