remove LOTUS ELISE 2005 Service Manual

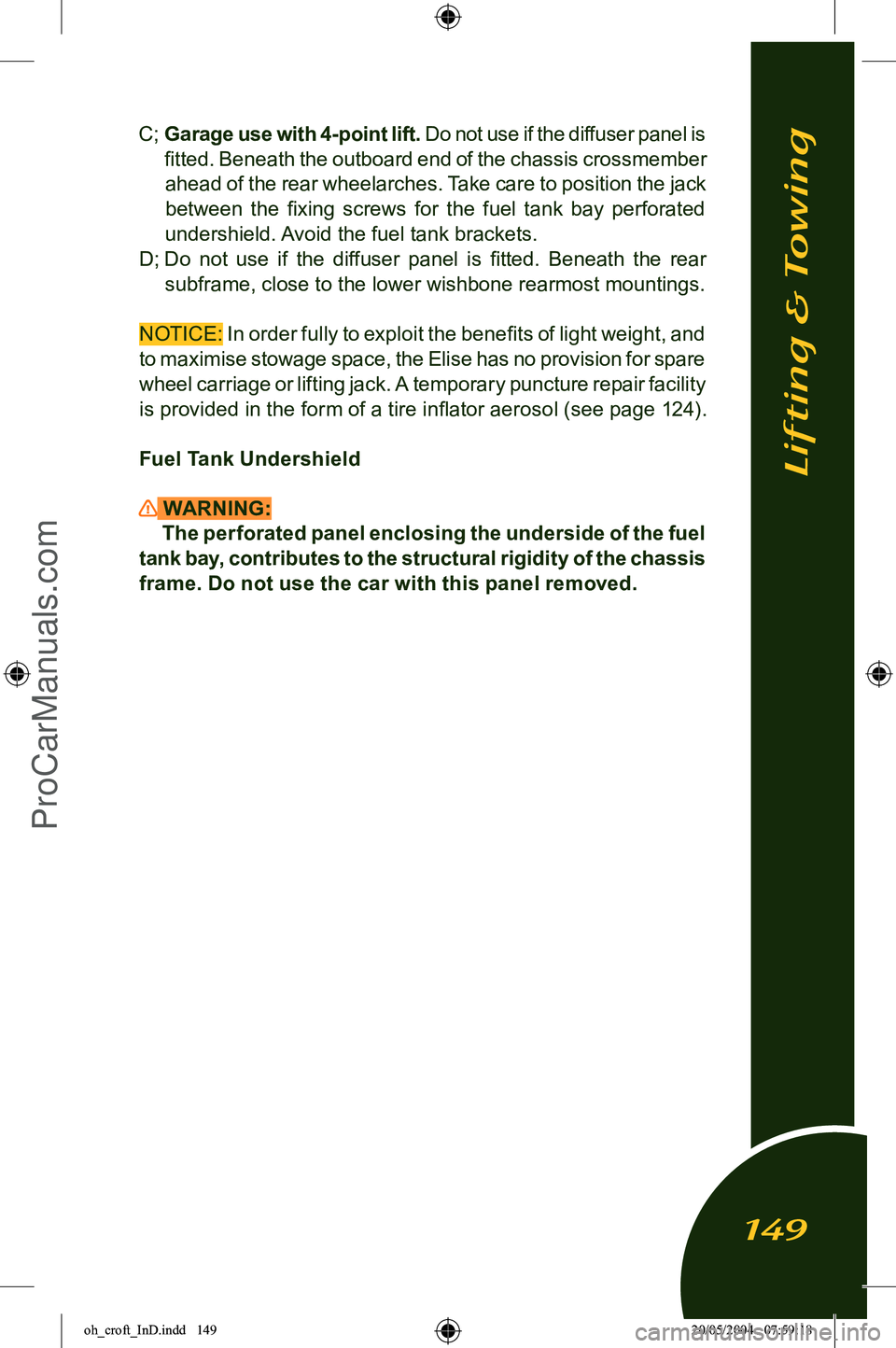

C; Garage use with 4-point lift. Do not use if the diffuser panel is
fitted. Beneath the outboard end of the chassis crossmember ahead of the rear wheelarches. Take care to position the jack
between the fixing screws for the fuel tank bay perforated
undershield. Avoid the fuel tank brackets.
D; Do not use if the diffuser panel is fitted. Beneath the rear
subframe, close to the lower wishbone rearmost mountings.
NOTICE: In order fully to exploit the benefits of light weight, and
to maximise stowage space, the Elise has no provision for spare
wheel carriage or lifting jack. A temporary puncture repair facility is provided in the form of a tire inflator aerosol (see page 124).
Fuel Tank Undershield
WARNING: The perforated panel enclosing the underside of the fuel
tank bay, contributes to the structural rigidity of the chassis
frame. Do not use the car with this panel removed.
Lifting & Towing
149

oh_croft_InD.indd 14920/05/2004 07:59:18ProCarManuals.com

Important Safety Information About ModificationsDo not remove any original equipment or modify your car
in any way that would alter its design or operation. This could
make your car unsafe or illegal to drive. For example, do not install wheels and tires with a differ
-
ent overall diameter. Such modifications can adversely affect handling, and interfere with the operation of the car’s anti-lock
brakes and other systems. In addition, any modifications that decrease ground clearance
beyond Lotus approval, increase the chance of undercarriage
parts striking a kerb, speed bump, or other raised object, which
could cause your airbags to deploy as well as damaging the
chassis and body underside. Do not modify your steering wheel or any other part of your air
-
bag system. Modifications could make the system ineffective.
WARNING: Do not attach or place objects on the airbag covers.
Any object attached to or placed on the covers marked
‘AIRBAG’, in the centre of the steering wheel and on top of the dashboard, could interfere with the proper operation of the airbags. Or, if the airbags inflate, the objects could be propelled inside the car and hurt someone.
Accessories
151

oh_croft_InD.indd 15120/05/2004 07:59:18ProCarManuals.com

Storing Your EliseIf you intend to store your Elise for a prolonged period, con
-
sult your Lotus dealer who will be pleased to advise you. We recommend that the car is stored inside a secure garage. The
following guidelines are provided for your information:
• Ensure the engine oil and filter, coolant and brake fluid have recently been renewed. The a.c. system should be in good
working order and fully charged.
• Thoroughly clean the inside and outside of the car, including the engine compartment. If necessary, use a ‘jet’ washer to remove dirt and salt deposits from the underside, but do not
use around bearings, hydraulic components, painted surfaces or the soft top roof. Allow to dry completely.
• Chock the road wheels, leave off the parking brake, and engage reverse gear.
• Increase the tire pressures to 60 psi (4 bar). If possible, move the car slightly every month to help avoid flat spots on the
Tires.
• Either leave the battery in the car and connect a battery management (conditioner) type of charger, or remove the battery and trickle charge every two months. Note that with
the battery disconnected or removed, the alarm system is
de-activated.
• Unless the garage is equipped with a de-humidifier, the use of drying agents (Silica-Gel) is recommended in cars with
leather upholstery and in conditions of high humidity.
• The use of unapproved car covers may have a detrimental effect on the car’s paint finish and such damage will not be
covered by your car’s warranty.
In general, the Elise will be kept in best operating condition
by regular use.
Accessories
152

oh_croft_InD.indd 15220/05/2004 07:59:19ProCarManuals.com
