MASERATI GHIBLI 2019 Owner's Manual
Manufacturer: MASERATI, Model Year: 2019, Model line: GHIBLI, Model: MASERATI GHIBLI 2019Pages: 384, PDF Size: 13.33 MB
Page 21 of 384
Summary of Program Benefits
and Services • Towing of a disabled registered
Maserati vehicle. In the event a
registered vehicle becomes disabled
in connection to a warranty related
concern it will be transported to the
nearest Authorized Maserati
Dealership . You may request that
the vehicle be taken to a different
Authorized Maserati Dealer , as long
as it is no more than 50 miles further
away from the nearest authorized
dealer (one tow per disablement).
• Battery jump start.
• Flat tire change providing the
vehicle is equipped with a spare tire.
• Fuel delivery (up to 2 gallons).
• Lockout Services.
• Service Loaner Vehicle: For warranty
repairs, your dealer may provide you
with a Maserati Service Loaner
Vehicle (if available) or provide you
with Rental Car allowance: in the
event your vehicle is disabled due to
a warranty related concern, we will
reimburse you up to $50 per day. A
five (5) day or $250 maximum
applies. In order to receive
reimbursement, you must supply the
following information within 20 days of the rental car transaction to
the address listed below; the original
pre-printed rental car receipt, which
must include your name, address,
telephone number, VIN, rental dates
and the corresponding warranty
repair order.
Maserati Roadside Assistance ATTN:
Maserati Rental Car Claims Dept.
P.O. Box 8140 Ft.
Washington, PA 19034
NOTE:
An authorized licensed driver must be
driving at the time of the disablement.
Items excluded from coverage:
• Parts, labor, tire repair, rental of
towing equipment, storage fees, or
any labor performed at the service
facility.
• Any form of impound towing, or
towing by someone other than a
licensed service station or garage.
• Assistance from a private citizen. NOTE:
Membership is intended to cover
emergencies and is not intended to be
a substitute for proper vehicle
maintenance or repair. Repeated calls
which are considered by Maserati
North America, Inc. Signature Motor
Club, Inc. or Signature Motor Club of
California, Inc. to be excessive may, at
our discretion, result in cancellation of
the membership.
Emergency road service providers are
independent contractors and are not
employees, agents or representatives
of Maserati North America, Inc.
Signature Motor Club, Inc. or
Signature Motor Club of California,
Inc.
Under this Agreement
• You will not be required to pay any
sum for services up to the mileage
limit on towing.
• Your registered Maserati vehicle is
the vehicle covered. The Vehicle
Identification Number (VIN) that
appears on the vehicle represents
your identification number with
Signature Motor Club, Inc. or
Signature Motor Club of California,
Inc.Introduction
1
17
Page 22 of 384

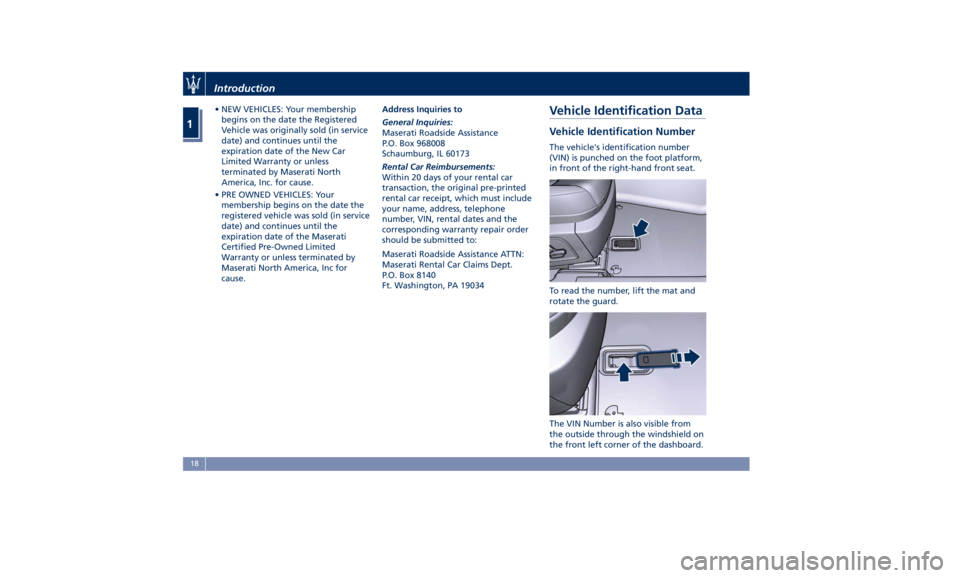

• NEW VEHICLES: Your membership
begins on the date the Registered
Vehicle was originally sold (in service
date) and continues until the
expiration date of the New Car
Limited Warranty or unless
terminated by Maserati North
America, Inc. for cause.
• PRE OWNED VEHICLES: Your
membership begins on the date the
registered vehicle was sold (in service
date) and continues until the
expiration date of the Maserati
Certified Pre-Owned Limited
Warranty or unless terminated by
Maserati North America, Inc for
cause. Address Inquiries to
General Inquiries:
Maserati Roadside Assistance
P.O. Box 968008
Schaumburg, IL 60173
Rental Car Reimbursements:
Within 20 days of your rental car
transaction, the original pre-printed
rental car receipt, which must include
your name, address, telephone
number, VIN, rental dates and the
corresponding warranty repair order
should be submitted to:
Maserati Roadside Assistance ATTN:
Maserati Rental Car Claims Dept.
P.O. Box 8140
Ft. Washington, PA 19034Vehicle Identification Data Vehicle Identification Number The vehicle's identification number
(VIN) is punched on the foot platform,
in front of the right-hand front seat.
To read the number, lift the mat and
rotate the guard.
The VIN Number is also visible from
the outside through the windshield on
the front left corner of the dashboard.Introduction
1
18
Page 23 of 384

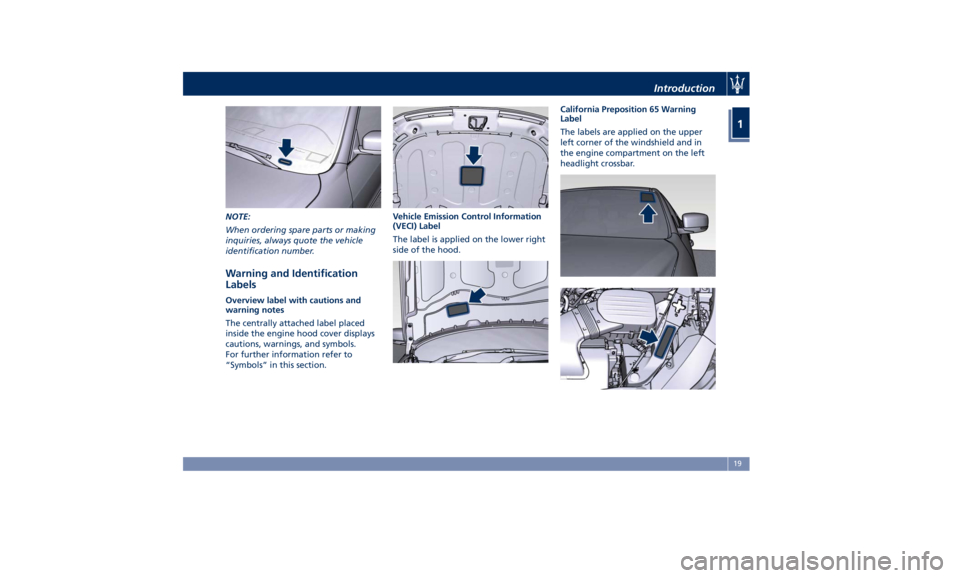

NOTE:
When ordering spare parts or making
inquiries, always quote the vehicle
identification number.
Warning and Identification
Labels Overview label with cautions and
warning notes
The centrally attached label placed
inside the engine hood cover displays
cautions, warnings, and symbols.
For further information refer to
“Symbols” in this section. Vehicle Emission Control Information
(VECI) Label
The label is applied on the lower right
side of the hood. California Preposition 65 Warning
Label
The labels are applied on the upper
left corner of the windshield and in
the engine compartment on the left
headlight crossbar.
Introduction
1
19
Page 24 of 384

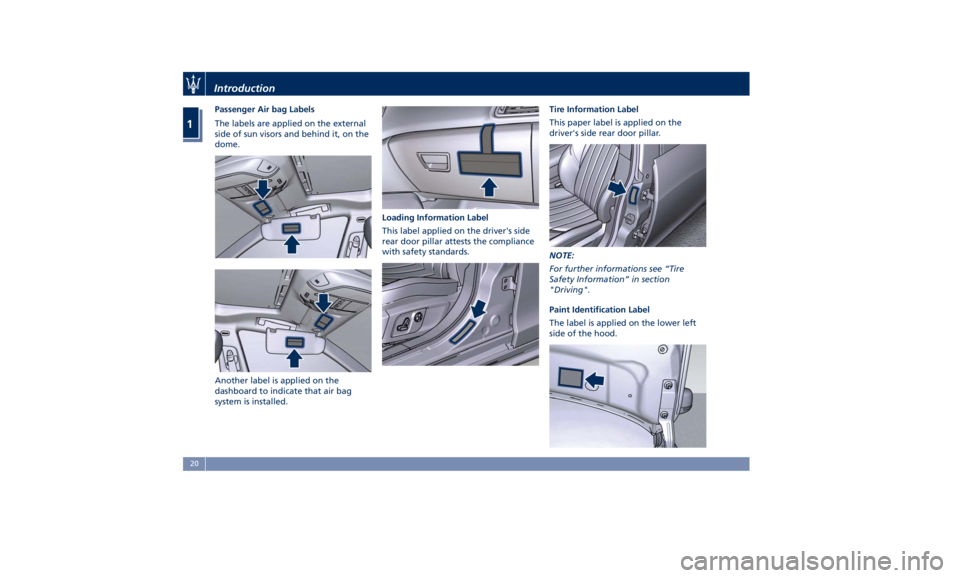

Passenger Air bag Labels
The labels are applied on the external
side of sun visors and behind it, on the
dome.
Another label is applied on the
dashboard to indicate that air bag
system is installed. Loading Information Label
This label applied on the driver's side
rear door pillar attests the compliance
with safety standards. Tire Information Label
This paper label is applied on the
driver's side rear door pillar.
NOTE:
For further informations see “Tire
Safety Information” in section
"Driving".
Paint Identification Label
The label is applied on the lower left
side of the hood.Introduction
1
20
Page 25 of 384

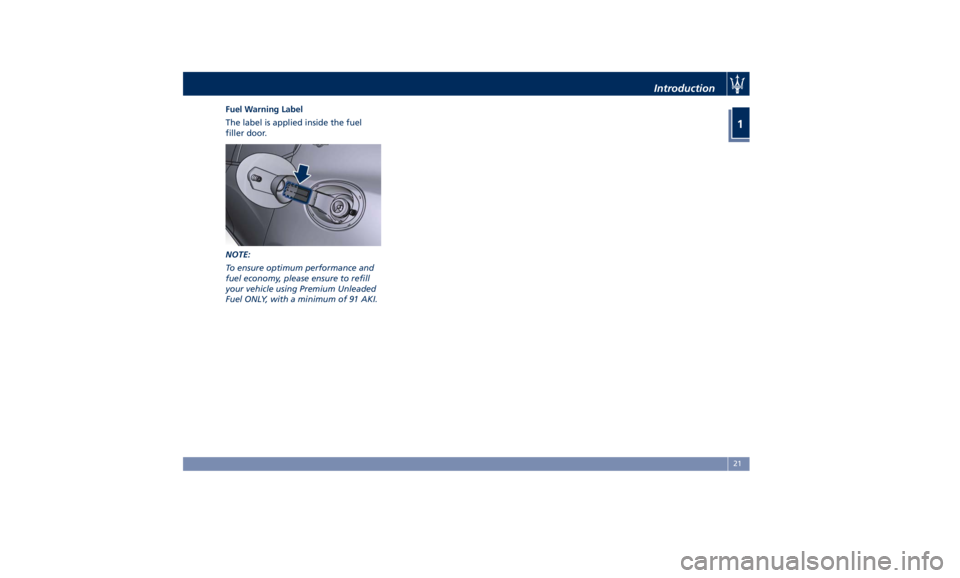

Fuel Warning Label
The label is applied inside the fuel
filler door.
NOTE:
To ensure optimum performance and
fuel economy, please ensure to refill
your vehicle using Premium Unleaded
Fuel ONLY, with a minimum of 91 AKI. Introduction
1
21
Page 26 of 384
Introduction
22
Page 27 of 384

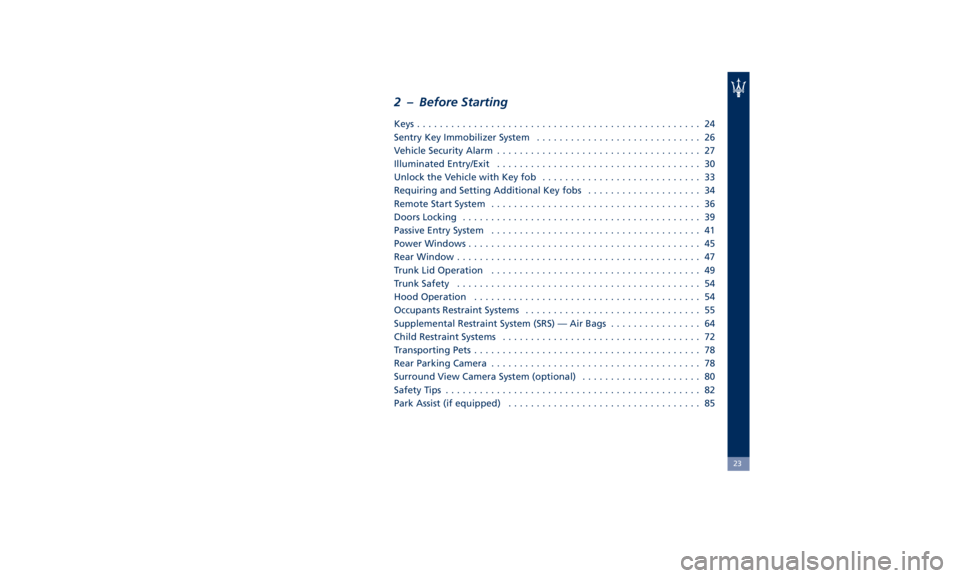

2 – Before Starting Keys .................................................. 24
Sentry Key Immobilizer System ............................. 26
Vehicle Security Alarm .................................... 27
Illuminated Entry/Exit .................................... 30
Unlock the Vehicle with Key fob ............................ 33
Requiring and Setting Additional Key fobs .................... 34
Remote Start System ..................................... 36
Doors Locking .......................................... 39
Passive Entry System ..................................... 41
Power Windows ......................................... 45
Rear Window ........................................... 47
Trunk Lid Operation ..................................... 49
Trunk Safety ........................................... 54
Hood Operation ........................................ 54
Occupants Restraint Systems ............................... 55
Supplemental Restraint System (SRS) — Air Bags ................ 64
Child Restraint Systems ................................... 72
Transporting Pets ........................................ 78
Rear Parking Camera ..................................... 78
Surround View Camera System (optional) ..................... 80
Safety Tips ............................................. 82
Park Assist (if equipped) .................................. 85
23
Page 28 of 384

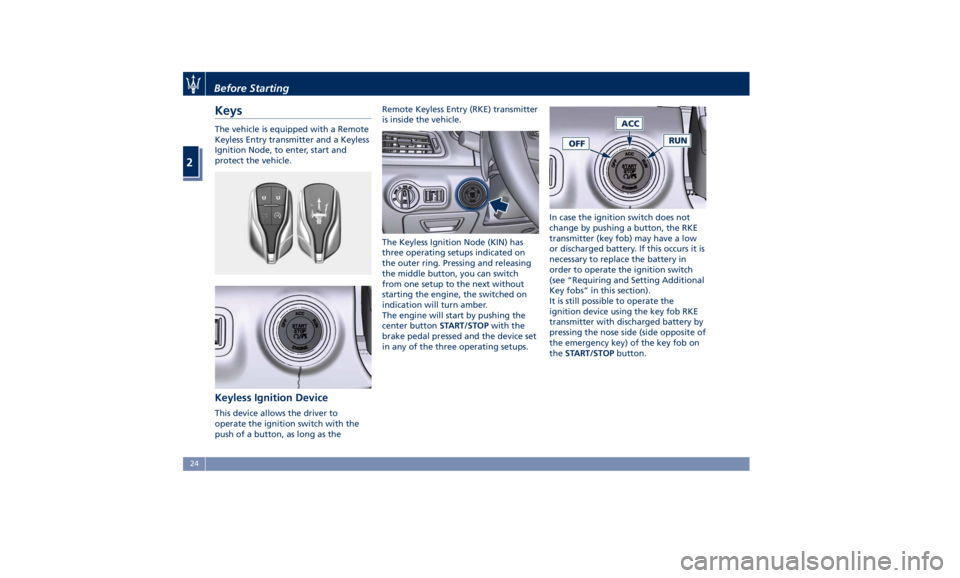

Keys The vehicle is equipped with a Remote
Keyless Entry transmitter and a Keyless
Ignition Node, to enter, start and
protect the vehicle.
Keyless Ignition Device This device allows the driver to
operate the ignition switch with the
push of a button, as long as the Remote Keyless Entry (RKE) transmitter
is inside the vehicle.
The Keyless Ignition Node (KIN) has
three operating setups indicated on
the outer ring. Pressing and releasing
the middle button, you can switch
from one setup to the next without
starting the engine, the switched on
indication will turn amber.
The engine will start by pushing the
center button START/STOP with the
brake pedal pressed and the device set
in any of the three operating setups. In case the ignition switch does not
change by pushing a button, the RKE
transmitter (key fob) may have a low
or discharged battery. If this occurs it is
necessary to replace the battery in
order to operate the ignition switch
(see “Requiring and Setting Additional
Key fobs” in this section).
It is still possible to operate the
ignition device using the key fob RKE
transmitter with discharged battery by
pressing the nose side (side opposite of
the emergency key) of the key fob on
the START/STOP button.Before Starting
2
24
Page 29 of 384

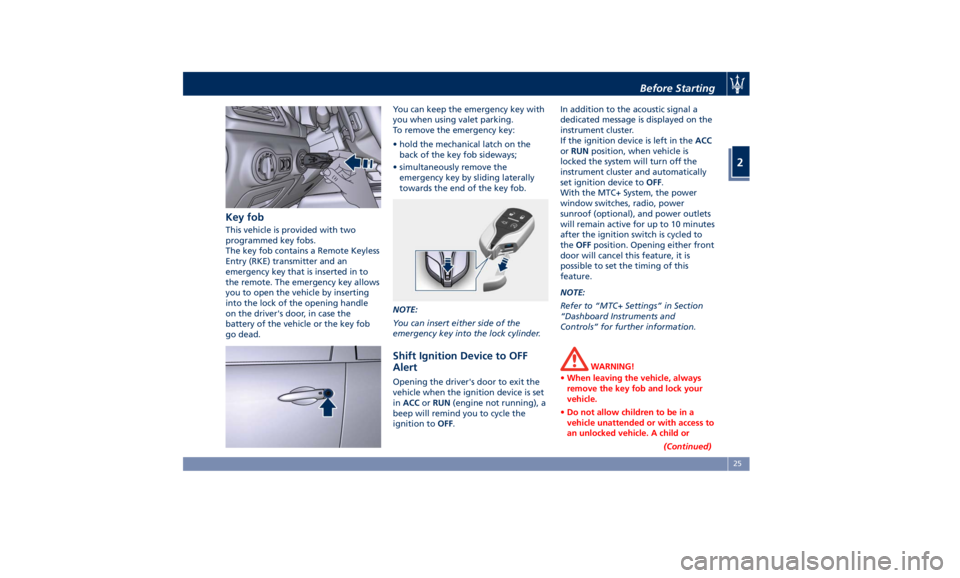

Key fob This vehicle is provided with two
programmed key fobs.
The key fob contains a Remote Keyless
Entry (RKE) transmitter and an
emergency key that is inserted in to
the remote. The emergency key allows
you to open the vehicle by inserting
into the lock of the opening handle
on the driver's door, in case the
battery of the vehicle or the key fob
go dead. You can keep the emergency key with
you when using valet parking.
To remove the emergency key:
• hold the mechanical latch on the
back of the key fob sideways;
• simultaneously remove the
emergency key by sliding laterally
towards the end of the key fob.
NOTE:
You can insert either side of the
emergency key into the lock cylinder.
Shift Ignition Device to OFF
Alert Opening the driver's door to exit the
vehicle when the ignition device is set
in ACC or RUN (engine not running), a
beep will remind you to cycle the
ignition to OFF . In addition to the acoustic signal a
dedicated message is displayed on the
instrument cluster.
If the ignition device is left in the ACC
or RUN position, when vehicle is
locked the system will turn off the
instrument cluster and automatically
set ignition device to OFF .
With the MTC+ System, the power
window switches, radio, power
sunroof (optional), and power outlets
will remain active for up to 10 minutes
after the ignition switch is cycled to
the OFF position. Opening either front
door will cancel this feature, it is
possible to set the timing of this
feature.
NOTE:
Refer to “MTC+ Settings” in Section
“Dashboard Instruments and
Controls” for further information.
WARNING!
• When leaving the vehicle, always
remove the key fob and lock your
vehicle.
• Do not allow children to be in a
vehicle unattended or with access to
an unlocked vehicle. A child or
(Continued)Before Starting
2
25

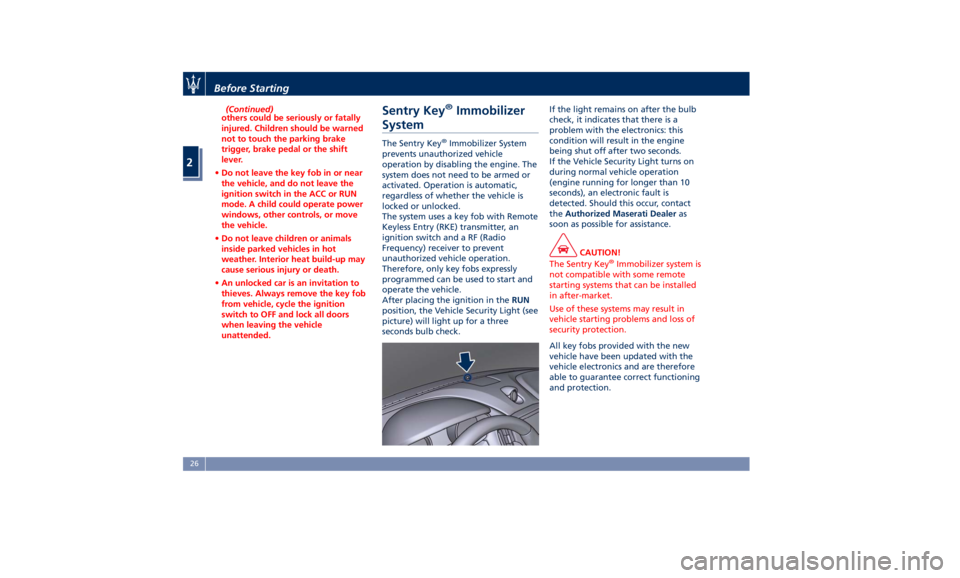

Page 30 of 384
(Continued)
others could be seriously or fatally
injured. Children should be warned
not to touch the parking brake
trigger, brake pedal or the shift
lever.
• Do not leave the key fob in or near
the vehicle, and do not leave the
ignition switch in the ACC or RUN
mode. A child could operate power
windows, other controls, or move
the vehicle.
• Do not leave children or animals
inside parked vehicles in hot
weather. Interior heat build-up may
cause serious injury or death.
• An unlocked car is an invitation to
thieves. Always remove the key fob
from vehicle, cycle the ignition
switch to OFF and lock all doors
when leaving the vehicle
unattended. Sentry Key ®
Immobilizer
System The Sentry Key ®
Immobilizer System
prevents unauthorized vehicle
operation by disabling the engine. The
system does not need to be armed or
activated. Operation is automatic,
regardless of whether the vehicle is
locked or unlocked.
The system uses a key fob with Remote
Keyless Entry (RKE) transmitter, an
ignition switch and a RF (Radio
Frequency) receiver to prevent
unauthorized vehicle operation.
Therefore, only key fobs expressly
programmed can be used to start and
operate the vehicle.
After placing the ignition in the RUN
position, the Vehicle Security Light (see
picture) will light up for a three
seconds bulb check. If the light remains on after the bulb
check, it indicates that there is a
problem with the electronics: this
condition will result in the engine
being shut off after two seconds.
If the Vehicle Security Light turns on
during normal vehicle operation
(engine running for longer than 10
seconds), an electronic fault is
detected. Should this occur, contact
the Authorized Maserati Dealer as
soon as possible for assistance.
CAUTION!
The Sentry Key ®
Immobilizer system is
not compatible with some remote
starting systems that can be installed
in after-market.
Use of these systems may result in
vehicle starting problems and loss of
security protection.
All key fobs provided with the new
vehicle
have been updated with the
vehicle electronics and are therefore
able to guarantee correct functioning
and protection.Before Starting
2
26
