MASERATI GRANTURISMO CONVERTIBLE 2019 Owner's Manual

• NEW VEHICLES: Your membership
begins on the date the Registered
Vehicle was originally sold (in service
date) and continues until the
expiration date of the New Car
Limited Warranty or unless
terminated by Maserati North
America, Inc. for cause.
• PRE OWNED VEHICLES: Your
membership begins on the date the
registered vehicle was sold (in service
date) and continues until the
expiration date of the Maserati
Certified Pre-Owned Limited
Warranty or unless terminated by
Maserati North America, Inc for
cause.
Address Inquiries to
General Inquiries:
Maserati Roadside Assistance
P.O. Box 968008
Schaumburg, IL 60173
Rental Car Reimbursements:
Within 20 days of your rental car
transaction, the original pre-printed
rental car receipt, which must include
your name, address, telephone
number, VIN, rental dates and the
corresponding warranty repair order
should be submitted to: Maserati Roadside Assistance ATTN:
Maserati Rental Car Claims Dept.
P.O. Box 8140
Ft. Washington, PA 19034

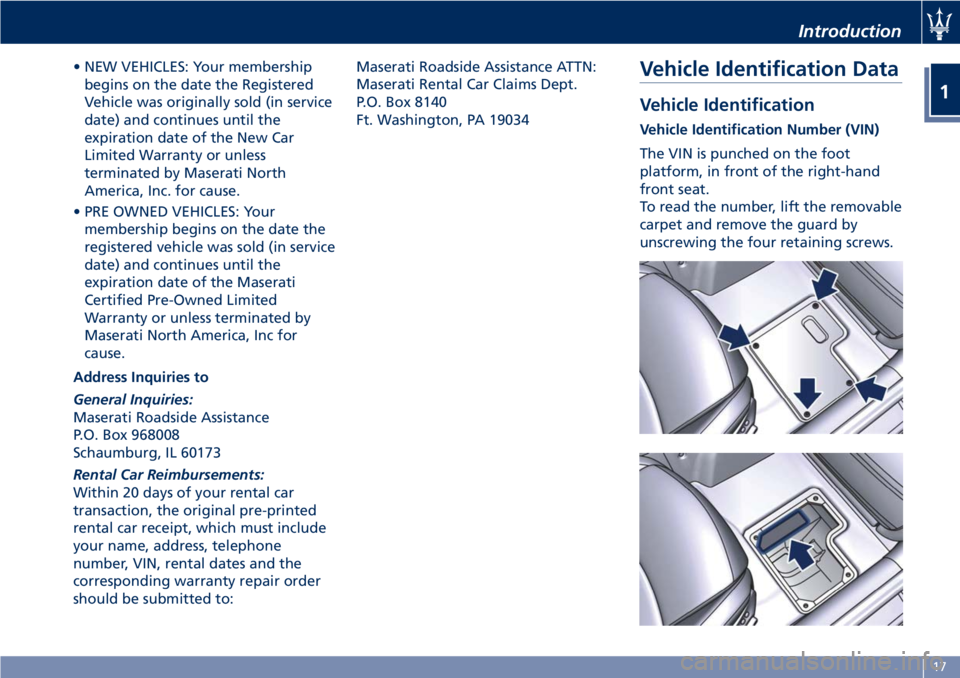

Vehicle Identification Data Vehicle Identification Vehicle Identification Number (VIN)
The VIN is punched on the foot
platform, in front of the right-hand
front seat.
To read the number, lift the removable
carpet and remove the guard by
unscrewing the four retaining screws. Introduction
1
17

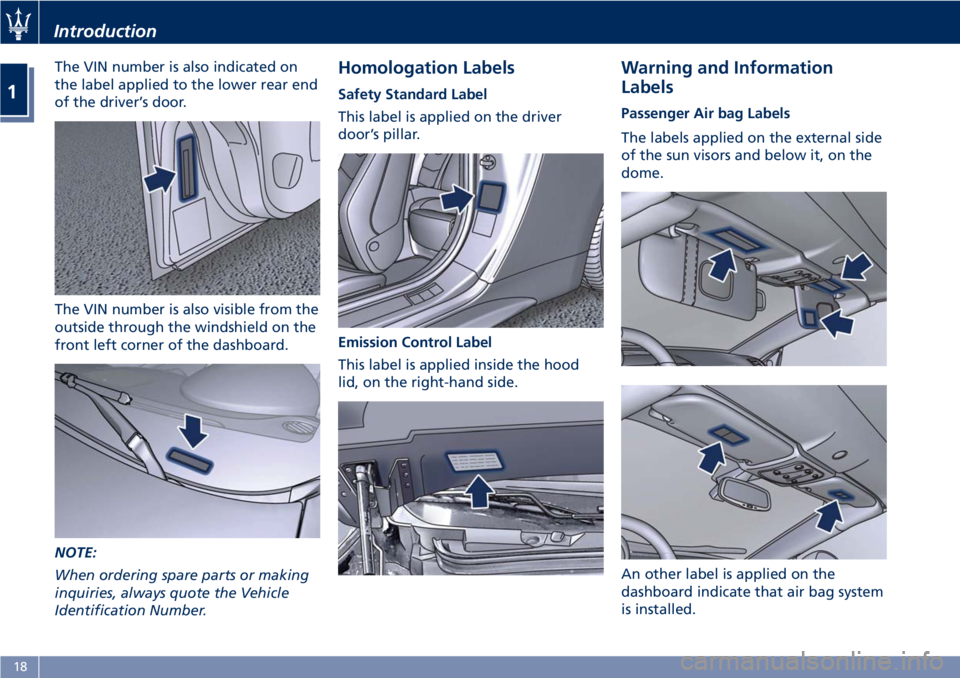

The VIN number is also indicated on
the label applied to the lower rear end
of the driver’s door.
The VIN number is also visible from the
outside through the windshield on the
front left corner of the dashboard.
NOTE:
When ordering spare parts or making
inquiries, always quote the Vehicle
Identification Number. Homologation Labels Safety Standard Label
This label is applied on the driver
door’s pillar.
Emission Control Label
This label is applied inside the hood
lid, on the right-hand side. Warning and Information
Labels Passenger Air bag Labels
The labels applied on the external side
of the sun visors and below it, on the
dome.
An other label is applied on the
dashboard indicate that air bag system
is installed.Introduction
1
18

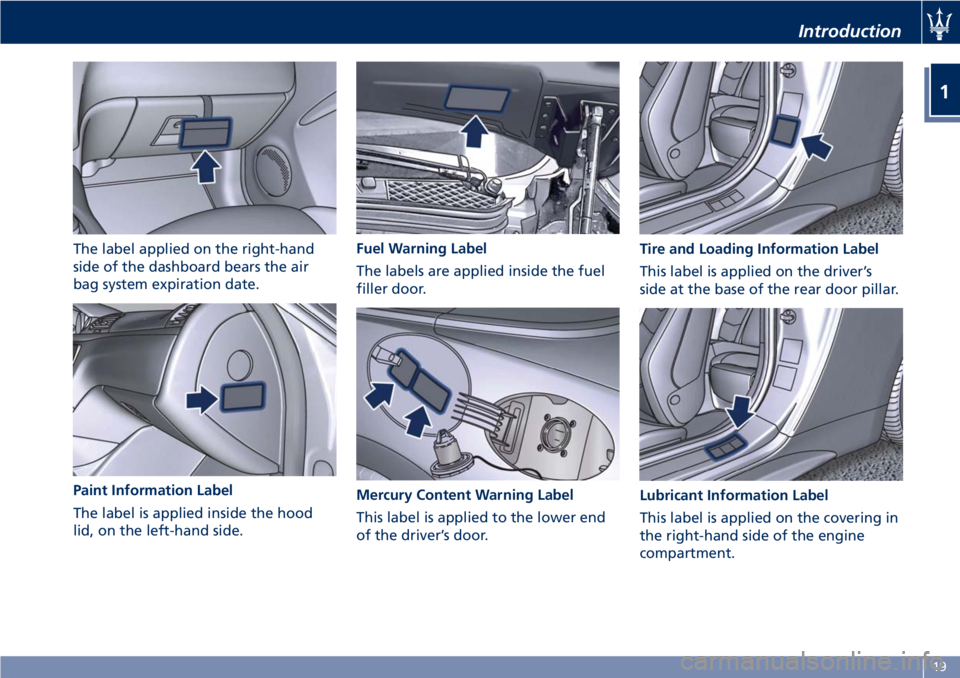

The label applied on the right-hand
side of the dashboard bears the air
bag system expiration date.
Paint Information Label
The label is applied inside the hood
lid, on the left-hand side. Fuel Warning Label
The labels are applied inside the fuel
filler door.
Mercury Content Warning Label
This label is applied to the lower end
of the driver’s door. Tire and Loading Information Label
This label is applied on the driver’s
side at the base of the rear door pillar.
Lubricant Information Label
This label is applied on the covering in
the right-hand side of the engine
compartment. Introduction
1
19

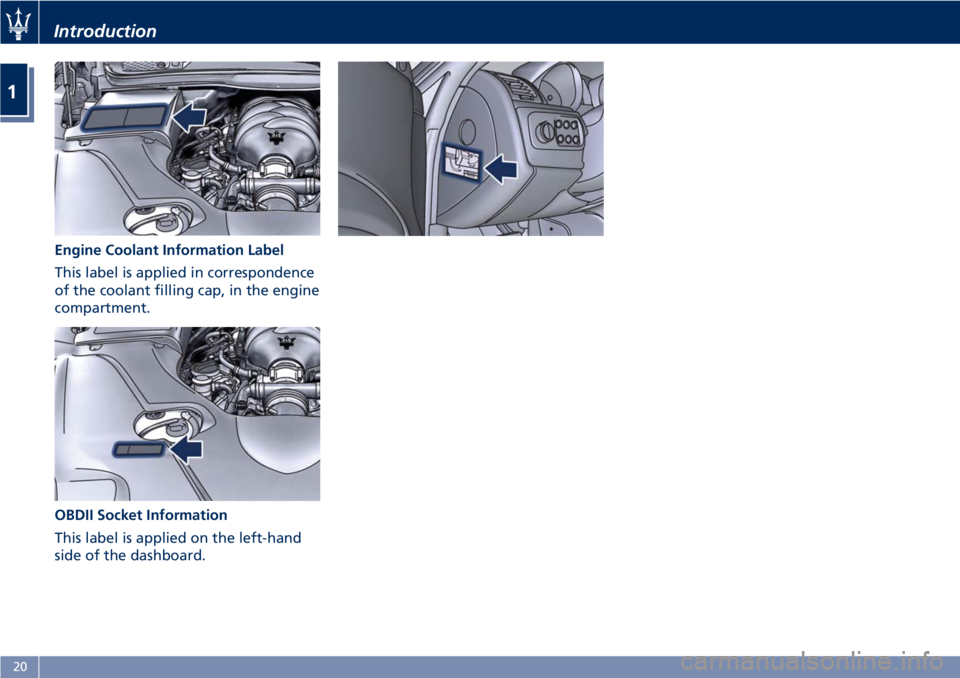

Engine Coolant Information Label
This label is applied in correspondence
of the coolant filling cap, in the engine
compartment.
OBDII Socket Information
This label is applied on the left-hand
side of the dashboard.Introduction
1
20

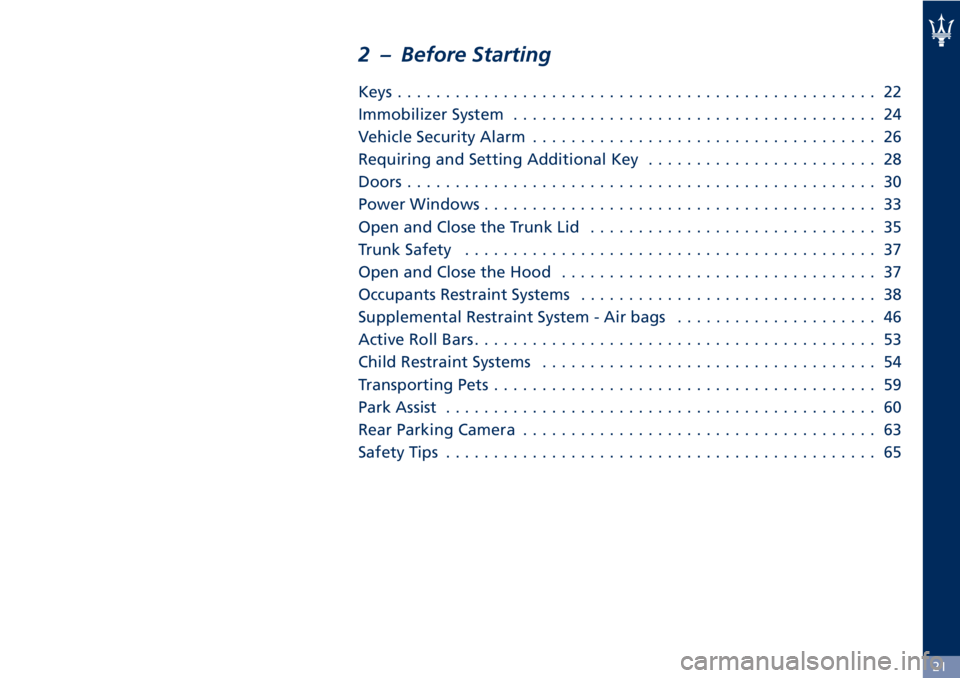

2 – Before Starting Keys .................................................. 22
Immobilizer System ...................................... 24
Vehicle Security Alarm .................................... 26
Requiring and Setting Additional Key ........................ 28
Doors ................................................. 30
Power Windows ......................................... 33
Open and Close the Trunk Lid .............................. 35
Trunk Safety ........................................... 37
Open and Close the Hood ................................. 37
Occupants Restraint Systems ............................... 38
Supplemental Restraint System - Air bags ..................... 46
Active Roll Bars .......................................... 53
Child Restraint Systems ................................... 54
Transporting Pets ........................................ 59
Park Assist ............................................. 60
Rear Parking Camera ..................................... 63
Safety Tips ............................................. 65
21

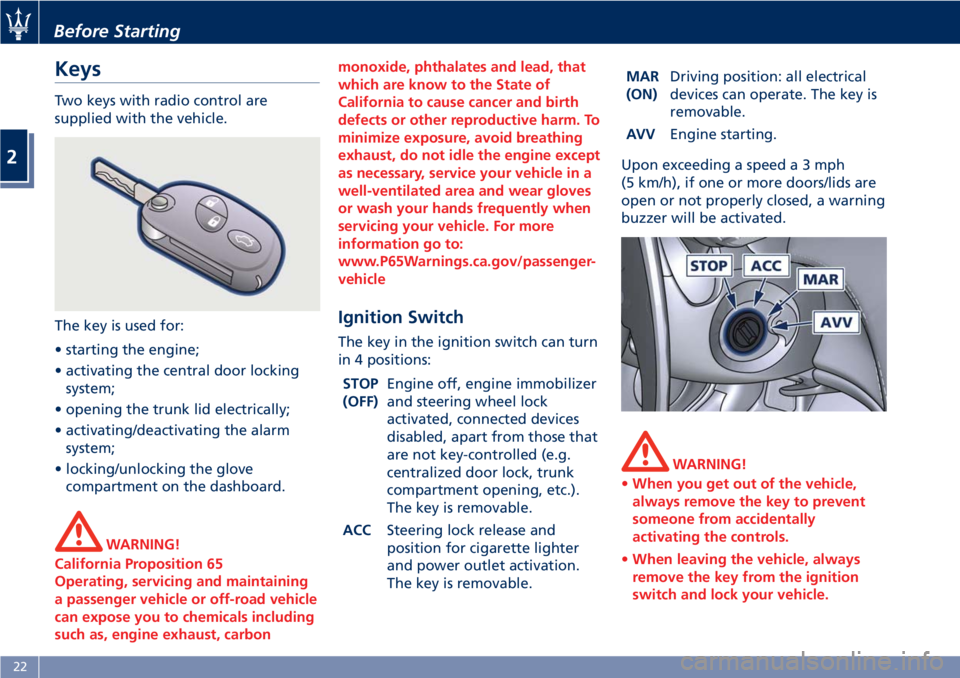

Keys Two keys with radio control are
supplied with the vehicle.
The key is used for:
• starting the engine;
• activating the central door locking
system;
• opening the trunk lid electrically;
• activating/deactivating the alarm
system;
• locking/unlocking the glove
compartment on the dashboard.
WARNING!
California Proposition 65
Operating, servicing and maintaining
a passenger vehicle or off-road vehicle
can expose you to chemicals including
such as, engine exhaust, carbon monoxide, phthalates and lead, that
which are know to the State of
California to cause cancer and birth
defects or other reproductive harm. To
minimize exposure, avoid breathing
exhaust, do not idle the engine except
as necessary, service your vehicle in a
well-ventilated area and wear gloves
or wash your hands frequently when
servicing your vehicle. For more
information go to:
www.P65Warnings.ca.gov/passenger-
vehicle
Ignition Switch The key in the ignition switch can turn
in 4 positions:
STOP
(OFF) Engine off, engine immobilizer
and steering wheel lock
activated, connected devices
disabled, apart from those that
are not key-controlled (e.g.
centralized door lock, trunk
compartment opening, etc.).
The key is removable.
ACC Steering lock release and
position for cigarette lighter
and power outlet activation.
The key is removable. MAR
(ON) Driving position: all electrical
devices can operate. The key is
removable.
AVV Engine starting.
Upon exceeding a spee da3mph
(5 km/h), if one or more doors/lids are
open or not properly closed, a warning
buzzer will be activated.
WARNING!
• When you get out of the vehicle,
always remove the key to prevent
someone from accidentally
activating the controls.
• When leaving the vehicle, always
remove the key from the ignition
switch and lock your vehicle.Before Starting
2
22

• Never leave children alone in a
vehicle, or with access to an
unlocked vehicle.
• Allowing children to be in a vehicle
unattended is dangerous for a
number of reasons. A child or others
could be seriously or fatally injured.
Children should be warned not to
touch the parking brake switch,
brake pedal or the shift lever.
• Do not leave the key in or near the
vehicle, and do not leave the key in
the ignition switch in the ACC or
MAR (ON) position. A child could
operate power windows, other
controls, or move the vehicle.
• Do not leave children or animals
inside parked vehicles in hot
weather. Interior heat build-up may
cause serious injury or death.
• An unlocked car is an invitation to
thieves. Always remove the key
from vehicle, cycle the ignition
switch to STOP (OFF) and lock all
doors when leaving the vehicle
unattended.
• In the event of tampering with the
starter switch (e.g. attempted theft),
have it checked by an Authorized
Maserati Dealer before restarting
the vehicle. The key can be removed from the
ignition
switch only when the
transmission shift lever is in position P
(Park).
If the transmission shift lever is shifted
to P (Park) after turning off the
engine, the key can only be removed
within 30 seconds from turning it to
STOP (OFF) position.
If you do not remove the key within
30 seconds, you will need to turn it
back to MAR (ON) and then to STOP
(OFF) position to have a further 30
seconds within which to remove the
key.
In the event that the key unlocking
system fails or if it is not possible to
shift the transmission shift lever to P
(Park) position, to remove the key
from the ignition switch you must turn
it to STOP (OFF) position, then:
• remove the cap indicated in the
picture using a pen or sufficiently
pointed tool;
• press the button just uncovered and
at the same time extract the key;
• once the key has been removed, refit
the cap. WARNING!
After stopping the vehicle, always
shift the transmission shift lever to P
(Park).Before Starting
2
23

Immobilizer System The Maserati CODE System In order to increase protection against
theft, the vehicle is equipped with an
electronic engine immobilizer system
(Maserati CODE), which is
automatically activated when the key
is removed from the ignition switch.
Each starter key contains an electronic
device which transmits a code signal to
the Maserati CODE control unit, and
engine ignition is enabled only if the
key code is recognized by the system.
Using the key inserted in the driver's
outboard door lock, you can also
control the soft top opening/closing
strategy referred to as “Summer
open”. This strategy is described in
chapter "Soft Top" of section
"Understanding the Vehicle".
Key Codes A CODE card is supplied with the keys.
This card indicates the following:
• the “ELECTRONIC CODE” to be used
for emergency starting (see
"Emergency Starting with Maserati
Code" in section "In an Emergency");
• the “MECHANICAL CODE” to be
provided to an Authorized Maserati Dealer if you request duplicates of
the keys.
NOTE:
• The code numbers shown on the
CODE card should be kept in a safe
place.
• You are advised to always keep the
CODE card number with you, as it is
absolutely necessary in the event of
“Emergency Starting”.
• In the event of a vehicle ownership
transfer, it is essential that the new
owner is provided with all the keys
and with the CODE card.
• It is advisable to write down and
keep the codes listed on the plates
delivered with the keys and the
remote control in a safe place (not in
the vehicle) in order to request
duplicates if needed. CODE System Operation Each time the key in the ignition
switch is removed in the STOP (OFF)
position, protection system activates
the engine immobilizer.
When the engine is started and the
key is turned to MAR (ON) position:
• If the code is recognized, the CODE
warning light on the instrument
cluster turns off within a second,
while the MIL
warning light,
once the ECU diagnosis has been
completed, goes off after about four
seconds. In these conditions, the
protection system recognizes the key
code and deactivates the engine
immobilizer. When the key in the
ignition switch is turned to AVV
position, the engine starts.
• If the CODE
warning light
remains on and the MIL
warning
light goes off after four seconds (ECU
diagnostics) and illuminates again
immediately afterward, the code has
not been recognized and the
message “Electronic key not
recognized” is displayed. If this
occurs, turn the key in the ignition
switch to STOP (OFF) and then back
to MAR (ON) position. If the
immobilizer stays on, try with the
other keys. If you still cannot startBefore Starting
2
24

the engine, try the emergency start
procedure (see "Emergency Starting
with Maserati Code" in section "In
an Emergency") and contact an
Authorized Maserati Dealer .
While driving, with the key in the
ignition switch in MAR (ON) position:
• If the CODE
warning light comes
on, it means that the system is
running a self-diagnostic cycle. At
the first stop you can test the system:
turn the key in the ignition switch in
STOP (OFF) position to stop the
engine and then back to MAR (ON)
position: the CODE
warning light
will illuminate and should turn off in
one second. If the warning light
stays on, repeat the procedure
described previously leaving the key
at STOP (OFF) position for more than
30 seconds. If the problem persists,
contact an Authorized Maserati
Dealer .
• If the CODE
warning light flashes,
it means that the vehicle is not
protected by the immobilizer device.
Immediately contact an Authorized
Maserati Dealer to have all the keys
stored in the memory. CAUTION!
• Strong impacts can damage the
electronic components in the key.
• Each key supplied has its own
specific code, which must be stored
in the memory of the system control
unit.
Duplicating the Keys When ordering additional keys,
remember that the storage procedure
(up to maximum of 7 keys) must be
performed for all the keys, including
those already in your possession.
Contact the Authorized Maserati
Dealer directly, bringing with you all
the keys in your possession, the
Maserati CODE card, the electronic
alarm system CODE CARD, a personal
ID and the identification and
registration documents proving
ownership of the vehicle. The codes of
any keys that are not available when
the new storage procedure is
performed will be deleted from the
memory to prevent any lost or stolen
keys from being used to start the
vehicle. When ordering additional
keys, remember that the storage
procedure (up to maximum of 7 keys) must be performed for all the keys,
including those already in your
possession. Contact the Authorized
Maserati Dealer directly, bringing with
you all the keys in your possession, the
Maserati CODE card, the electronic
alarm system CODE CARD, a personal
ID and the identification and
registration documents proving
ownership of the vehicle.
The codes of any keys that are not
available when the new storage
procedure is performed will be
deleted from the memory to prevent
any lost or stolen keys from being
used to start the vehicle.Before Starting
2
25

Vehicle Security Alarm The vehicle security alarm system
performs the following functions:
• remote control of the centralized
door locking/unlocking system;
• perimeter surveillance, detecting the
opening of doors, engine/trunk
compartment lids;
• motion surveillance, detecting
intrusion in the passenger
compartment;
• vehicle movement surveillance.
NOTE:
The engine immobilizer operation is
guaranteed by the Maserati CODE
system, which is automatically
activated when the key is removed
from the ignition switch.
Alarm System Activation Press the lock button on the key to
activate the security alarm system. • The turn signals flash once.
• The system beeps.
• The red LEDs on the front door
panels flash.
• The vehicle centralized door locking
is activated and the doors are locked.
The system becomes operative after
approximately 25 seconds and the
alarm is activated when:
• a door is opened;
• the trunk compartment lid is opened;
• the engine compartment lid is
opened;
• someone attempts to enter the
vehicle from a window;
• the power supply is disconnected;
• the siren is disconnected;
• the vehicle is moved.
When the vehicle security alarm is
active, the user may request the trunk
compartment opening; in this case, the motion and inclination sensors are
temporarily deactivated.
If the trunk compartment lid is then
closed, the sensors will be reactivated.
Should the turn signals flash 9 times
when you activate the security alarm
system, this means that one of the
doors or lids is not properly closed and
therefore is not protected by the
perimeter surveillance.
Check for correct closing of doors,
engine/trunk compartment lids and
close the open one without
deactivating the security alarm system:
the turn signals flashing once indicate
that now the door, engine/trunk
compartment lids are closed properly
and are protected by the perimeter
surveillance.
CAUTION!
If the turn signals flash 9 times when
the security alarm system is activated
with doors, front and rear lids properly
closed, this means that the
self-diagnostic function has detected a
malfunction in the system and that
you should contact an Authorized
Maserati Dealer to have the system
checked.Before Starting
2
26
