CONTROL SYSTEM F2
t OXYGEN SENSOR [BP TURBO]
I
CERAMlC HEATER
93GOF2-733
Because the temperature of the exhaust gas is inherently low in turbocharged engines, the BP Turbo model
uses a rapid heating ceramic heater to detect the air/fuel ratio,
PRESSURE REGULATOR CONTROL SYSTEM [BP TURBO]
PRESSURE
REGULATOR
I SOLENOID VALVE
(PRESSURE REGULATOR CONTROL)
FUEL
+ (FROM
DELIVERY PIPE1
II
FUEL INJ I
RELAY
(MAIN REU\Y)
I
II Ir
-__. _ - -’ VACUUM
CT0 DYNAMIC
Ill
CHAMBER)
BATTERY -
c
FUEL
(TO FUEL TANK)
nme*rn -.-a
To prevent percolation of the fuel during hot restart idle, vacuum to the pressure regulator k cut for 180
sec., and the fuel injection pressure is increased to slightly more than 284 kPa (2.90 kg/cm’, 41.2 psi).
Operating condition
l Coolant temperature: Above 90°C (194OF)
l Intake air temperature: Above 58OC (136OF)
g No-load condition
FZ-23

SUPPLEMENTAL SERVICE INFORMATION F2
SUPPLEMENTAL SERVICE INFORMATION
The following points in this section are changed in comparison to the Mazda 323 Workshop Manual
[I 203-I U-89F (Europe) or 120410-89F {Australia)].
intake air system components [BP Turbo]
l Removalllnspectionll nstaltation
WASTEGATE [BP Turbo]
l Inspection
WASTEGATE SULENOlD VALVE [BP Turbo]
l Inspection
Turbocharger [BP Turbo]
l Inspection
l Removalllnstaltation
Air bypass valve [BP Turbo]
l Removal/hstallation
l 1 nspection
lntetcoolet [BP Turbo]
l RemovaMnspection/tnstaltation
Fuel tank
l Removal ! Inspection I Installation
Fuel pump control unit [BP Tubto]/4x4 control unit [BP SOHC]
l 1 nspection
l Replacement
Transfer pump switch
l Inspection
l Replacement
Transfer pump
l Inspection
l Replacement
Fuel pump resistor/relay
l System operation
l Inspection
injector [8P Turbo]
l Volume test
Exhaust system components
l Removal / 1 nspection / Installation
Engine control unit (ECU) [BP Turbo]
l Terminal voftage
Oxygen sensor [BP Turbo]
l Inspection
l Replacement
Knock sensor [BP Turbo]
l Replacement 93GOFZ736
F2-25

F2 SELF-DIAGNOSlS FUNCTION
Troubleshooting
If a malfunction code number is shown on the SST (49 l-l01 8 9Ai, 49 B019 9AO), check for the cause
using the chart related to the code number shown, [Regarding code numbers except 05, 24, and 42, refer
to “Troubleshooting” in Workshop Manual [I 203-I O-89F (Europe) or 1204-f 0-89F (Australia)].
r C :ODE No. 05 (KNOCK CONTROL UNIT)-BP TUR80
;TEP
2
3 I INSPECTION
Check knock sensor and knock control unit
circuit for poor connectlon ACTtON
Yes Repalr or replace connector
Check knock control unit terminal voltage with
ignition switch ON
Check that voltage at ECU terminal 2J is
approx. 4V at idle
rs7 page F2-64 Yes Recheck ECU connector for poor
connection
4 If OK, replace ECU
4 If not OK, repair or replace connector
NO Repair wiring harness (R/Y) between
ECU terminal 2J and knock control unit
93GOF2-7:
Circuit Diagram
I
ECU
IGNITION
SWITCH
15A BATTERY
MAIN
RELAY
(FUEL 1N.J)
l W/L Y/i3 G/O W RIB R/L
YIL
jr- -- - - 1 BlLG
-
-
MCK CONTROL
I
. :
MAIN RELAY (FUEL INJ)
W/G BIW
C&=&A
KNOCK CONTROL UNIT
W/R EMLG RN Y/L
1
KNOCK SENSOR

TRUUBLESHOOT1NG GUIDE
TROUBLESHOOTING GUIDE [BP TURBO]
RELAT1ONSt-W CHART
,
i OUTPUT DEVICE
INPUT DEVfCE
KNOCK SENSOR
1
I
-
I-
3 DIAGNOSIS CONNECTOR
(TEN TERMfNAL)
IGNITION SWITCH
(START POSITION)
0 0 0 Cl
EIL SIGNAL * ’
0 0
0 0
P/S PRESSURE SWITCH
0
1
0 0 A/C SWITCH
0 0 0 0 NEUTRAt AND CLUTCH
SWfTCHES 0 0
0
STOPLIGHT SWITCH
0
0
0 0 0 ATMOSPHERIC PRESSURE
SENSOR (IN ECU) 0
0
THROTTLE SENSOR 0 0 0 0 0
0 INTAKE AfR THERMOSENSOR 0
AlRFLOW METER 0 0
I------ i
0 OXYGEN SENSOR
WATER THERMOSENSOR 0
0 0
O G-SIGNAL
DISTRIBUTOR
I---- Ne-SIGNAL I-L 0 0 L-
0
0
L.- 0 0
L 0 0
93GOF2-i45
*I E/L SIGNAL: Slower fan control switch Second position or higher, cooSing fan operating? headlights ON, or rear wtn-
dow defroster switch ON

TROUBLESHOOTING GUIDE F2
;TEP / t NSPECTION ACTION
4 i Check if throttle valve fully opens when depress- Yes Go to next step
rng accelerator fully
No Check if accelerator cabte is correctly
Installed *
-a If OK, check throttle body*
c=> If not OK, install accelerator cable
correctly*
5 Check if “00” fs dlsptayed on Self-Diagnosis
Yes Go to next step
Checker with ignition switch ON*
NO Malfunction Code No. displayed
SYSTEM SELECT: 1 Check for cause (Refer to specified
check sequence) *
“88” flashes
Check ECU terminal 1 F voltage
Voltage: Approx. f 2V
(Ignition switch ON) CT- page F2-60
i~sT SW: SELF TEST e If OK, replace ECU’
c3 ff not OK, check wiring between
ELECT SW: A ECU and Self-Diagnosis Checker
6 Check if continuity between throttle sensor termi- Yes Go to next step
nals IDt and E ts as shown’
7
Connect System Selector to diagnosis connector Yes Check if ignition timing advances when
and set Test Switch to “SELF TEST” and check accelerating
for correct ignition timing at idle after warm-up’
e If advances, go to next step
Ignitian timing: BTDC 10 f 1 D
=S If no advance, check ECU terminal
voltages
No Adjust
8
Check of ECU terminal voltages are OK Yes Go to next step
CT page F2-60
No Check for cause
9
Check for correct intake manrfold vacuum at idle Yes Go to next step
intake manifoId vacuum:
! More than 450 mmHg (17.7 inHg)
NO Check ior air leakage 07 intake air sys-
tem components
* Refer to 323 Workshop Manual [1203-IO-89F (Europe) or 1204-IO-89F (Australia)].
F2-37

F2 CONTROLSYSTEM
erminat Input ’ Output Connected to Test condition Correct voltage Remark
1N 0 I Throttle sensor Accelerator pedal released &low l.OV j Ignition switch
(Idle switch)
Accelerator pedal depressed Approx. 12V *N
IO I 0 j [ Stoplight switch Brake pedal released Betow 1 .OV -
1P j 0 1 i P/S pressure lgnitlon switch ON Approx. 12V
I
switch
f/S ON at idle Below 1 .UV
I
P/S OFF at idle Approx. 12V -
I
to 0 A/C switch A/C switch ON
NC switch OFF Beiow 2.W ignition switch
ON and blower
Approx* t2V motor ON
i
1R 0 Electric fan switch Fan operating (Engine coolant tempera- Betow l.OV
ture over 91 *C (t96*F) or diagnosis con-
-
nector terminal TFA grounded)
Fan not operating (Idle) Approx.. f 2V
IS 0 Blower control Blower controf switch OFF or 1st position Approx. 13 Ignition switch
switch
Blower control switch 2nd or higher po- Below 7 .OV ON
sition
IT
Cl Rear window
defroster switch Rear window defroster switch OFF
Rear window defroster switch ON Below 1 .OV Ignition switch
Approx. 12V ON
1u 3 Headlight switch Headlights ON Approx. 12V
-
Headlights OFF Below 1 .OV
-Iv Cl ’ Neutral/Clutch
Neutral position or clutch pedal Below I .OV
switches
depressed
Others Approx. 12V
l-7 I r
f
2V 2W 2U 25 20 20 2M 2K 21 2G IZE 2C 2A IU IS 10 10 IM 1K 11 1G rE tC IA
22 2X (2V 2T 2R 2P 2N 2L 2J 2H’ZF 20 2B fV 1T 1R IP IN 1L 7J III If ItI 1B l F2-62

CONTROL SYSTEM F2
Incorrect voltage
Always below 1 .OV Possible cause
l Throttle sensor misadjustment l Short circuit in wiring from throttle sensor to ECU terminal IN l ECU malfunction
Always approx. f 2V
Atways below 1 .OV (Stopfights OK)
Always below 1 .OV
l Throttle sensor misadjustment l Open circuit in wiring from throttle sensor to ECU terminal IN l Open ctrcuit in wiring from throttle sensor to ECU terminal 20
l Open crrcurt in wiring from stoplight switch to ECU terminal 10
l P/S pressure switch malfunction l Short circuit in wirrng from P/S pressure switch to ECU termrnai 1 P
l ECU malfunction
Always approx. 12V
Atways below 2.5V (Btower fan OK) . P/S pressure switch malfunction
l Open circuit in wiring from P/S pressure switch to ECU terminal I P l Open circuit in wiring from P/S pressure switch to ground
l A/C switch malfunction l Short circuit in wiring from A/C switch to ECU terminal 1 Q l Poor connection at ECU connector l ECU malfunction
Always approx. 12V (Blower fan OK)
l ’ A/C switch malfunction l Open c~rcurt in wiring from NC switch to ECU terminal 1Q l ken circuit H-I winnu from A/C switch to blower control switch
Always below 1.W
l Open or short circuit in wiring from fan relay to ECU terminal IR
(Electrkal cooling fan UK} l ECU malfunctron
Always below 1 .OV (Blower fan OK)
l Short crrcutt in wiring from blower control swrfch to ECU terminal IS l Poor connection at ECU connector l ECU malfunction
Always approx. 12V (Blower fan OK)
Always below Illumination lamp
1.w ON when rear
window defroster
switch ON 1
l Open circurt in wrring from blower control switch to ECU terminat IS
I
l Open or short circuit rn wiring from rear window defroster switch to ECU
terminal 1 T
ftlumination lamp
never ON
l Open circuit in wiring from ignition switch to rear window defroster switch
l Rear window defroster switch malfunction I
Always below 1 .OV (Headlights OK)
l Open or short circurt in wiring from headlight relay to ECU termtnal 1 U
Always below 1 .OV
Always approx. l2V
l Neutral switch malfunction l Clutch switch malfunction l Short circuit in wiring from ECU terminal IV to neutral or clutch switch
l Neutral switch maifunctton l Clutch switch malfunction l Open circuit in wiring from ECU terminal IV to neutral or clutch swttch
l Poor connection at ECU connector
93GOFZ789
F2-63

F2 CUNTRULSYSTEM
‘erminal Input Output i Connected to Test condition Correct voltage Remark
2A - - ’ Ground {Injector)
Constant OV -
2B - - I Ground (Output)
Constant OV -
2c , - - 1 Ground (CPU)
Constant OV - 20
-i- Ground (Input) Constant
OV -
2E ’ 0 1 Distributor I
Ignition switch ON Approx. OV
(Ne-signal)
or 5v -
Idle Approx. 2V
2F -j- - - - -
2G 0
Distributor ignition switch ON Approx. OV
(G-stgnal) or 5V
Idle Approx. I.3
2t-I - - -
- - -
21 - - - - - -
2J C
Knock control unit
Idle Approx. 4. OV -
2K 0
Thronle sensor/ Constant . 4.5--5.W
Airflow meter
-
2L
- -
- - - -
I
2M 0 Throttle sensor
Accelerator pedal released Approx. 0.W
-
Accelerator pedal fully depressed Approx. 4.W
2N 0
20 0
2P 0
1
2Q ! 0
2R Oxygen sensor
Airflow meter
Intake air
thermosensor
Water
thermosensor 0
’ Turbocharge
indicator Ignition switch ON
f OV
Idle (Cold engine) ov
Idle (After warm-up) O-l .ov -
Increasing engine speed [After warm-up) 0.5-I .ov
Deceleration o-0.4v
ignition switch ON
’ Idle Approx. 3.8V
-
Approx. 3.OV
Ambient air temperature 20°C (68OF) Approx. 2SV In airflow meter
Engine coolant temperature 20°C (68OF) Approx. 2.5V
-
After warm-up
Below 03
Ignition switch ON
Approx. f2V
-
F2-64

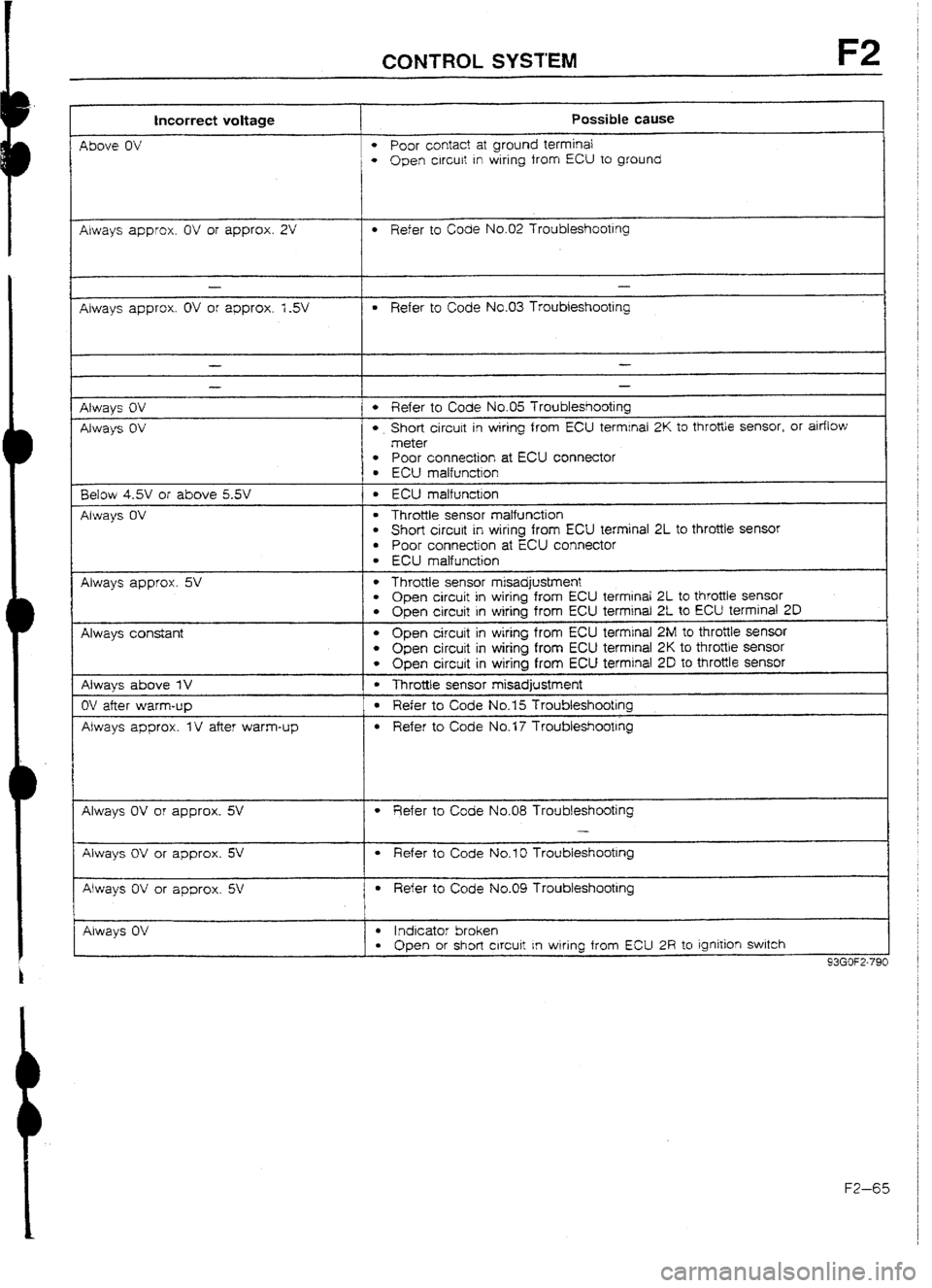

CUNTRUL SYSTEM F2
Incorrect voltage Possible cause
I
Above Ok’ l Poor contact at ground terminal l Open crrcurt in wiring from ECU to ground
Always approx. OV or approx. 2V
l Refer to Code No.02 Troubleshooting -
Always approx. OV or approx. ISV - l Refer to Code No.03 Troubleshooting
Always OV
Always OV -
- -
-
l Refer to Code No.05 Troubleshooting
l . Short circutt in wiring from ECU termrnal 2K to throttle sensor, or airflow
meter
l Poor connection at ECU connector l ECU malfunctron
Below 4-W or above 5.5V
Always OV
l ECU malfunction
l Throttle sensor malfunction l Short circurt in wiring from ECU terminal 2L to throttle sensor l Poor connection at ECU connector
l ECU malfunction
Always approx. 5V
Always constant
Always above f V
OV after warm-up
Always approx. IV after warm-up . Throttle sensor m&adjustment
l Open circuit in wiring from ECU terminal 2L to throttle sensor l Open circuit in wiring from ECU terminal 2t to ECU terminal 20
l Open circuit in wiring from ECU terminal 2M to throttle sensor l Open circuit in wiring from ECU terminal 2K to throttle sensor l Open circuit in wiring from ECU terminal 2D to throttle sensor
l Throttle sensor m&adjustment
l Refer to Code No.15 Troubleshooting
l Refer to Code No.1 7 TroubleshootIng
Always OV or approx. 5V l Refer to Code No.08 Troubleshooting
-
Always OV or approx. 5V
Always OV or approx. 5V
l Refer to Code No.1 0 Troubleshootrng
1
l Refer to Code No.09 Troubfeshooting
Always OV . Indicator broken
l Open or short circuit rn wirinq from ECU 2R to rgnition swatch
F2-65

F2 CONTROL SYSTEM
93GOF2-79; 2
93GOF2-793
93GOFZ794
1
OXYGEN SENSOR [BP TURBO]
Inspection
Sensor
1. Warm up the engine to normal operating temperature.
2. Disconnect the oxygen sensor connector.
3. Connect a voltmeter to the oxygen sensor terminal @.
4. Run the engine at 4,500 rpm untiI the voltmeter indicates
approx. 0.7V.
5. Increase and decrease the engine speed suddenly and
measure the vottage.
Voltage
Engme speed Voltage (v-)
Decelerating o-0.4
Accelerating 0.5-l .o 6. Connect the
SSTs to the diagnosis connector.
7. Set the system selector select switch to 1 and the test switch
to 02 MONITOR.
8. Increase the engine speed to
between 2,000 and 3,000
rpm, and verify that the monitor lamp flashes for 10 seconds.
Specification:
Monitor lamp flashes more than 8 times/IO sec.
Heater 1. Disconnect the oxygen sensor connector.
2. Check resistance between oxygen sensor connector ter-
minals @ and 0.
Resistance: Approx.-6& [at 20°C (68OF)]
Replacement 1. Disconnect the oxygen connector. ’
2. Remove the oxygen sensor.
3. Install the new oxygen sensor and new washer.
4. Tighten the oxygen sensor to specified torque.
Tightening torque:
29-49 N-m (3-5 m-kg, 22-36 ft-tb)
