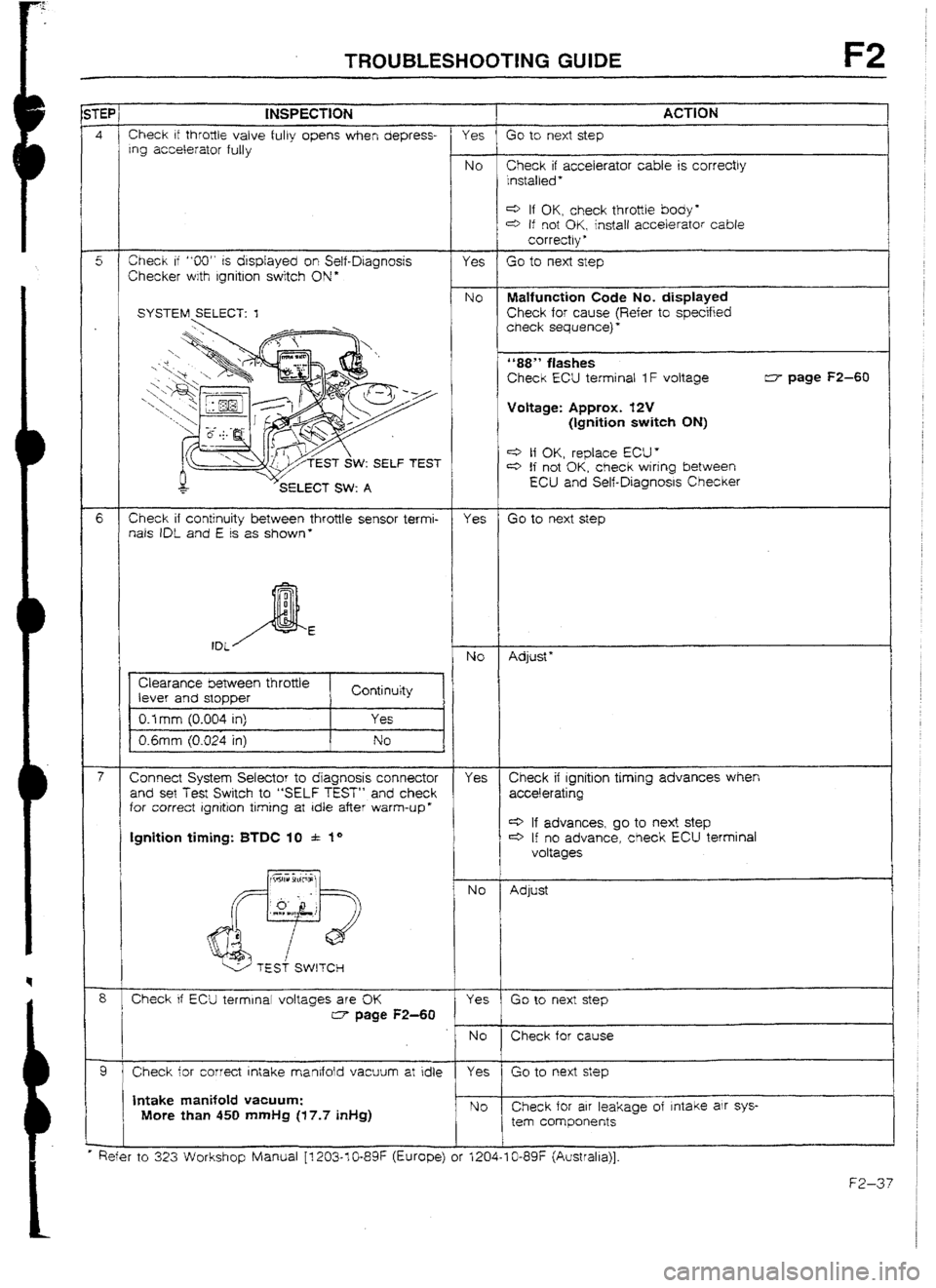

TROUBLESHOOTING GUIDE F2
;TEP / t NSPECTION ACTION
4 i Check if throttle valve fully opens when depress- Yes Go to next step
rng accelerator fully
No Check if accelerator cabte is correctly
Installed *
-a If OK, check throttle body*
c=> If not OK, install accelerator cable
correctly*
5 Check if “00” fs dlsptayed on Self-Diagnosis
Yes Go to next step
Checker with ignition switch ON*
NO Malfunction Code No. displayed
SYSTEM SELECT: 1 Check for cause (Refer to specified
check sequence) *
“88” flashes
Check ECU terminal 1 F voltage
Voltage: Approx. f 2V
(Ignition switch ON) CT- page F2-60
i~sT SW: SELF TEST e If OK, replace ECU’
c3 ff not OK, check wiring between
ELECT SW: A ECU and Self-Diagnosis Checker
6 Check if continuity between throttle sensor termi- Yes Go to next step
nals IDt and E ts as shown’
7
Connect System Selector to diagnosis connector Yes Check if ignition timing advances when
and set Test Switch to “SELF TEST” and check accelerating
for correct ignition timing at idle after warm-up’
e If advances, go to next step
Ignitian timing: BTDC 10 f 1 D
=S If no advance, check ECU terminal
voltages
No Adjust
8
Check of ECU terminal voltages are OK Yes Go to next step
CT page F2-60
No Check for cause
9
Check for correct intake manrfold vacuum at idle Yes Go to next step
intake manifoId vacuum:
! More than 450 mmHg (17.7 inHg)
NO Check ior air leakage 07 intake air sys-
tem components
* Refer to 323 Workshop Manual [1203-IO-89F (Europe) or 1204-IO-89F (Australia)].
F2-37

F2 TROUBLESHOUTING GUIDE
I 22 KNOCKtNG [8P TURBO] I
IESCW-
l Abnormal combustron accompanied by audible “pinging” noise rim
TROUBLESHOOTING HtNTS]
3 incorrect ignition timing (Too advanced) @ Low octan fuel used
2
Knock control system malfunction @ Air/Fuel mixture lean
3 Carbon deposits in cylinder l Fuel injection amount not correct
3 Overheating l Fuel line pressure decreases while accelerating
TEP INSPECTION ACTlON
1
Connect System Selector to diagnosis connector Yes Go to next step
and set Test Switch to “SELF TEST” and check
for correct ignition timing at idle after warm-up’
ignition timing: BTDC 10 f lo
No Adjust
2 Check if “00” is displayed on Self-Diagnosis Yes Go to next step
Checker with igmtlon switch UN*
No Matf unction Code No. displayed
Check for cause (Refer to specified
check sequence) *
“88” flashes
Check ECU terminal 1 F voltage
Vottage: Approx. 12V
(Ignition switch ON) 0 page FZ-60
4 If OK, replace ECU
W: SELF TEST
4 If not OK, check wiring between
ECU and Self-Diagnosis Checker
3 Check for correct fuel line pressure at idle* Yes Check if fuel Iine pressure decreases
when accelerating quickly
Fuel line pressure:
265-314 kPa (2.7-3.2 kg/cm2, 38-46 psi)
(vacuum hose to pressure regulator dis-
connected) 4 If decreases, check for clogging
between fuel pump and pressure
regulator
e If no decrease, go to next step
No tow pressure Check
fuel line pressure while pinching
fuel return hose
3 If fuel line pressure quickly in-
creases, check pressure
regulator*
4 If fuel line pressure gradually in-
creases, check for clogging be-
tween fuel pump and
pressure
regutator
If not clogged, check fuel pump
maximum pressure*
- -
.-
Refer to 323 Workshop Manual [1203-IO-89f (Europe} or t204-IO-89f (Australia)]. F2-40

CONTROL SYSTEM F2
Incorrect voltage Possible cause
Always OV
l ROOM 10A fuse burned l Open circuit in wiring from ROOM 10A fuse to ECU termrnal IA
Always OV
I l Main relay maifunctlon l Open or short crrcu~t in wirrng from main relay to ECU termrnal 1 B
Always OV (Srarrer turns)
l Open or short circuit in wiring from ignition switch to ECU terminal 1C
Always UV
l Main relay (FUEL INJ relay} malfunctron l Open circuit in wiring from main relay to diagnosis connector terminal + B l Open or short circuit in wiring from dragnosls connector terminal MEN to
ECU terminal 1D
Always approx. 12V
I . Poor connection at ECU connector
l ECU matfunction
Always approx. 5V
l ECU malfunction
-
I -
Always below No disptay on Self- . Main relay (FUEL INJ retay) malfunction (Refer to page F3-142)
2.5V Diagnosis Checker l Open circuit in wiring from main relay to diagnosis connector termjnal + B
“88” displayed and
l Open or short circuit in wiring from diagnosis connector terminal FEN to
buzzer sounds con- ECU terminal 1 F
tinuously
Always approx. 12V
l Poor connection at ECU connector l ECU malfunction
Always OV
l Short circuit in wiring from igniter to ECU terminal tG
Atways OV or approx. 12V
l Refer to Code No.42 Troubleshooting (Refer to page F2-30)
Always approx. 12V
l Fuel pump resistor/relay malfunction
Always OV
l Open or short circuit in wiring from ECU terminal 1 I to resistor/retay
Always below
A/C does not operate
l AJC relay malfunction
23 l Open circuit in wiring from ignition switch to NC relay l Open circuit in wiring from A/C relay to ECU terminal IJ
A/C switch OFF but
l Short circuit in wiring from A/C relay to ECU terminal IJ
AIC operates
l ECU matfunction
Always approx. t2V
Always below 1 .OV
l Poor connection at ECU connector l ECU malfunction
l Short circurt in wiring from diagnosis connector terminal TEN to ECU termi-
nal 1K
Always approx. 12V
l Open circutt in wiring from diagnosis connector terminal TEN to ECU termi-
nal lK
l Open c~rcud in wiring from diagnosis connector terminal GND to ground
Always above 1 .OV
I
l Open circuit in wiring from ECU terminal 1 M to ground
